MITSUBISHI OUTLANDER XL 2011 Owners Manual

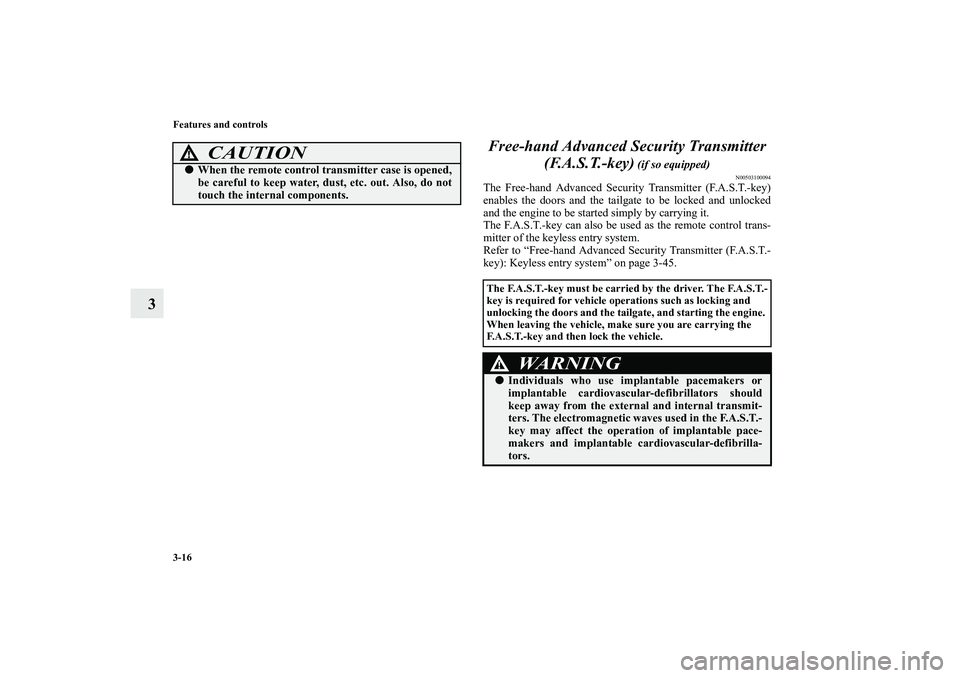

3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100094
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the tailgate to be locked and unlocked
and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-45.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the tailgate, and starting the engine.
When leaving the vehicle, make sure you are carrying the
F.A.S.T.-key and then lock the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0122500US.book 16 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-17
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
• Enabling only the locking and unlocking of the doors
and the tailgate
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key

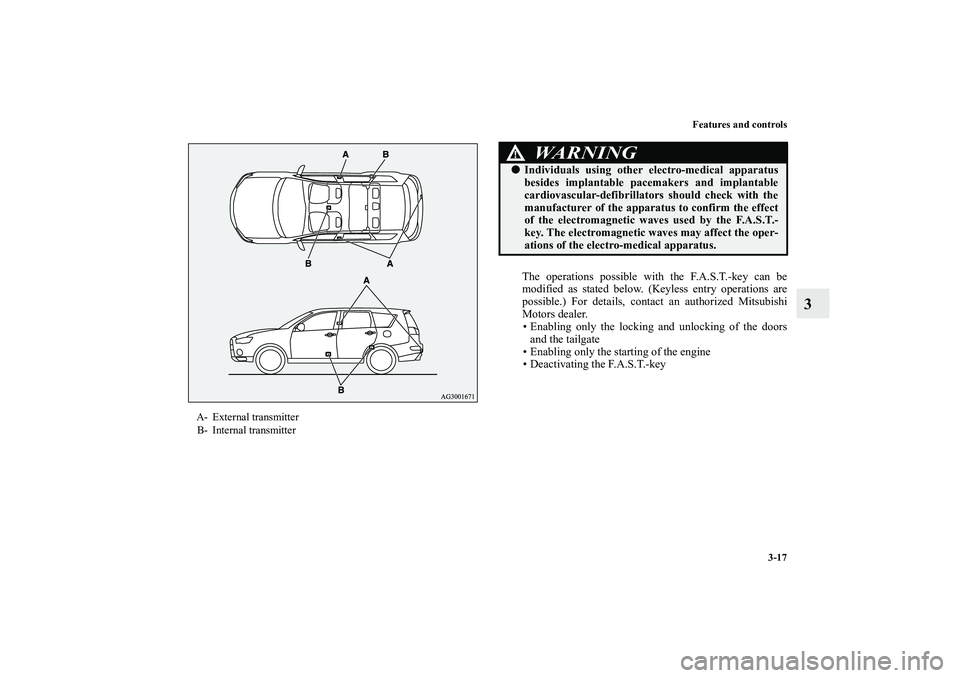

A- External transmitter
B- Internal transmitter
WA R N I N G
!
Individuals using other electro-medical apparatus
besides implantable pacemakers and implantable
cardiovascular-defibrillators should check with the
manufacturer of the apparatus to confirm the effect
of the electromagnetic waves used by the F.A.S.T.-
key. The electromagnetic waves may affect the oper-
ations of the electro-medical apparatus.
BK0122500US.book 17 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

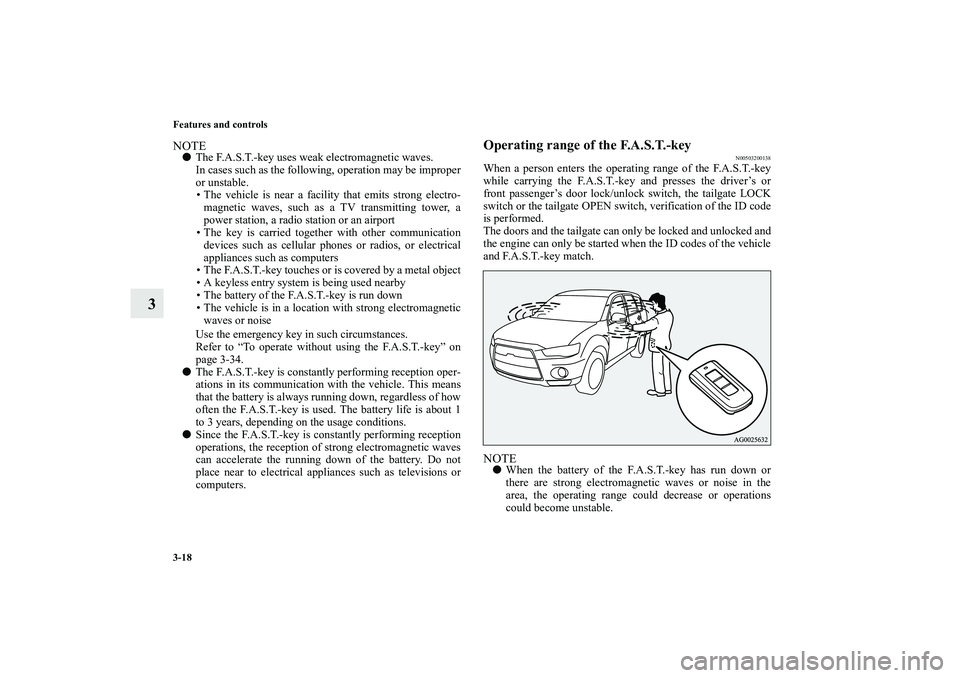

3-18 Features and controls
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate without using the F.A.S.T.-key” on
page 3-34.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near to electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200138
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and presses the driver’s or
front passenger’s door lock/unlock switch, the tailgate LOCK
switch or the tailgate OPEN switch, verification of the ID code
is performed.
The doors and the tailgate can only be locked and unlocked and
the engine can only be started when the ID codes of the vehicle
and F.A.S.T.-key match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0122500US.book 18 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

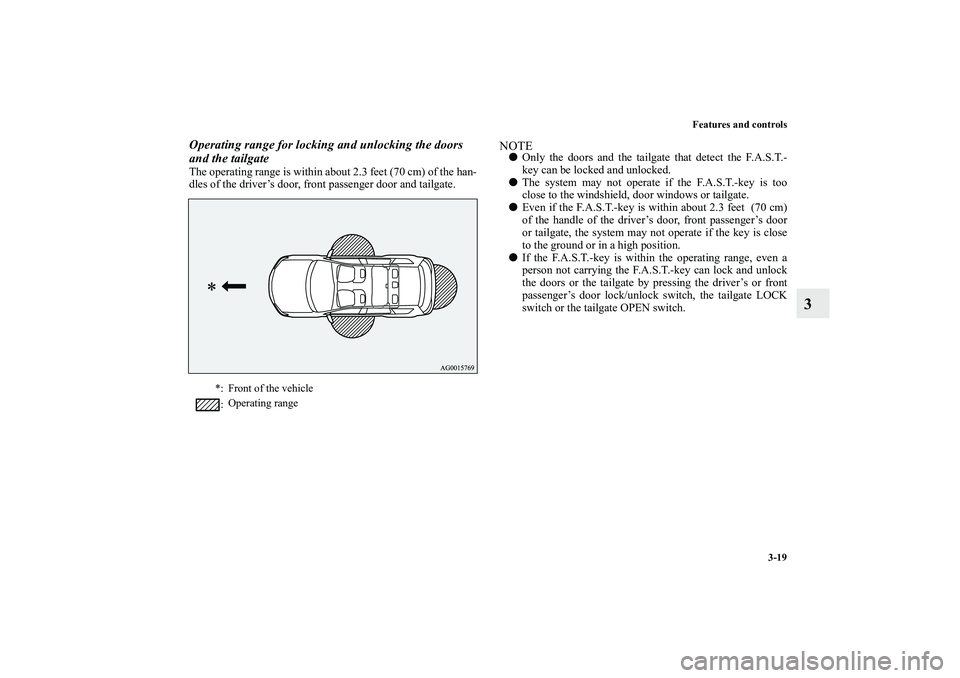

Features and controls
3-19
3
Operating range for locking and unlocking the doors
and the tailgateThe operating range is within about 2.3 feet (70 cm) of the han-
dles of the driver’s door, front passenger door and tailgate.
NOTE
Only the doors and the tailgate that detect the F.A.S.T.-
key can be locked and unlocked.

The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or tailgate.

Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the handle of the driver’s door, front passenger’s door
or tailgate, the system may not operate if the key is close
to the ground or in a high position.

If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the tailgate by pressing the driver’s or front
passenger’s door lock/unlock switch, the tailgate LOCK
switch or the tailgate OPEN switch.
*: Front of the vehicle
:Operating range
BK0122500US.book 19 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

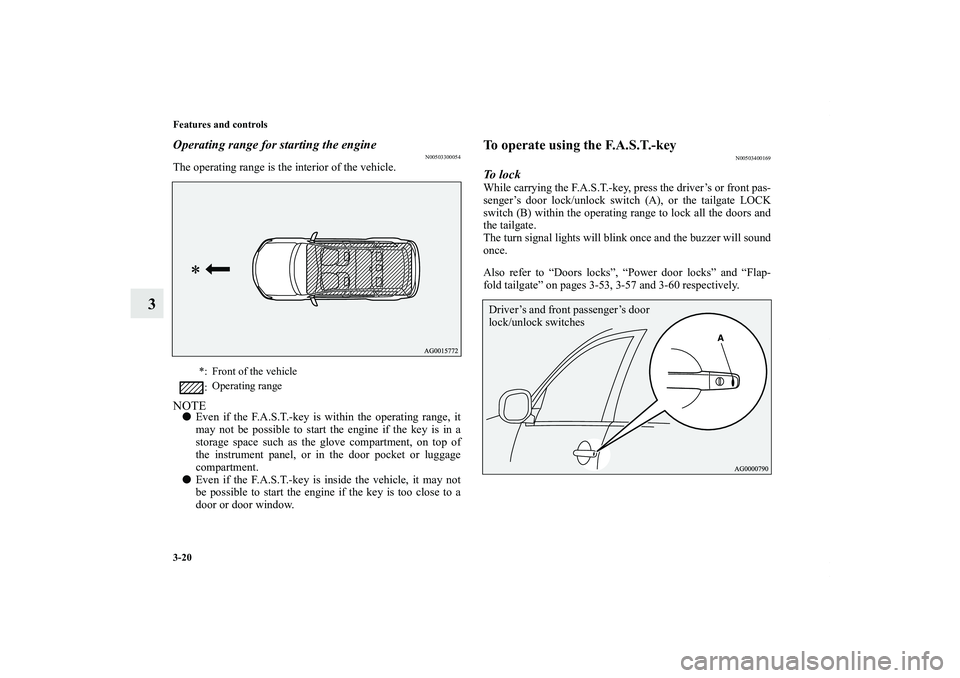

3-20 Features and controls
3
Operating range for starting the engine
N00503300054
The operating range is the interior of the vehicle.NOTE
Even if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine if the key is in a
storage space such as the glove compartment, on top of
the instrument panel, or in the door pocket or luggage
compartment.

Even if the F.A.S.T.-key is inside the vehicle, it may not
be possible to start the engine if the key is too close to a
door or door window.
To operate using the F.A.S.T.-key
N00503400169
To l o c kWhile carrying the F.A.S.T.-key, press the driver’s or front pas-
senger’s door lock/unlock switch (A), or the tailgate LOCK
switch (B) within the operating range to lock all the doors and
the tailgate.
The turn signal lights will blink once and the buzzer will sound
once.
Also refer to “Doors locks”, “Power door locks” and “Flap-
fold tailgate” on pages 3-53, 3-57 and 3-60 respectively.
*: Front of the vehicle
:Operating range
Driver’s and front passenger’s door
lock/unlock switches
BK0122500US.book 20 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

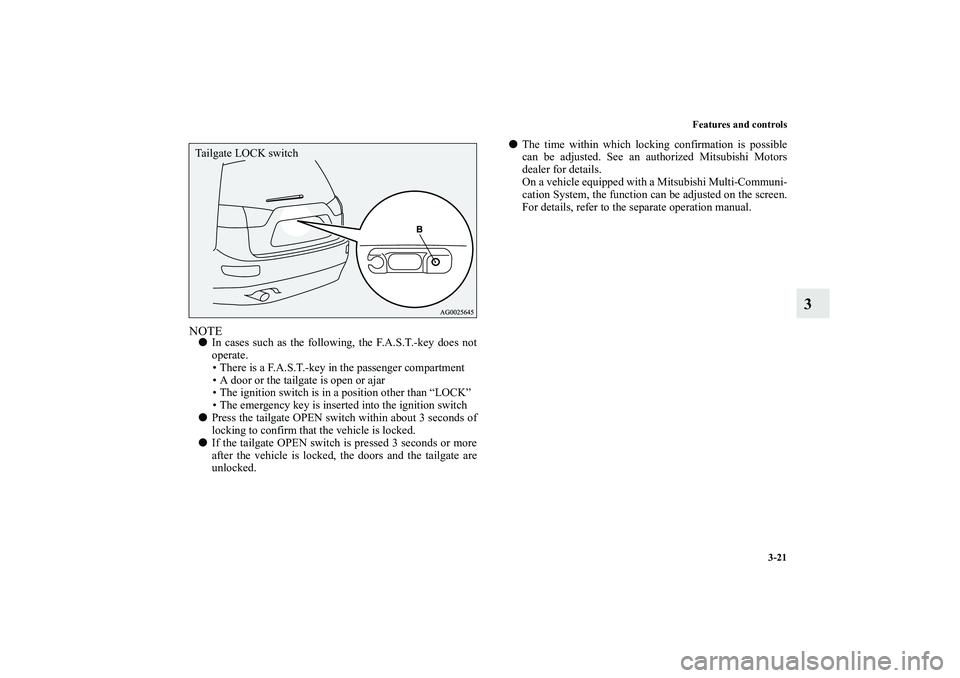

Features and controls
3-21
3
NOTE
In cases such as the following, the F.A.S.T.-key does not
operate.
• There is a F.A.S.T.-key in the passenger compartment
• A door or the tailgate is open or ajar
• The ignition switch is in a position other than “LOCK”
• The emergency key is inserted into the ignition switch

Press the tailgate OPEN switch within about 3 seconds of
locking to confirm that the vehicle is locked.

If the tailgate OPEN switch is pressed 3 seconds or more
after the vehicle is locked, the doors and the tailgate are
unlocked.
The time within which locking confirmation is possible
can be adjusted. See an authorized Mitsubishi Motors
dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the function can be adjusted on the screen.
For details, refer to the separate operation manual.Tailgate LOCK switch
BK0122500US.book 21 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

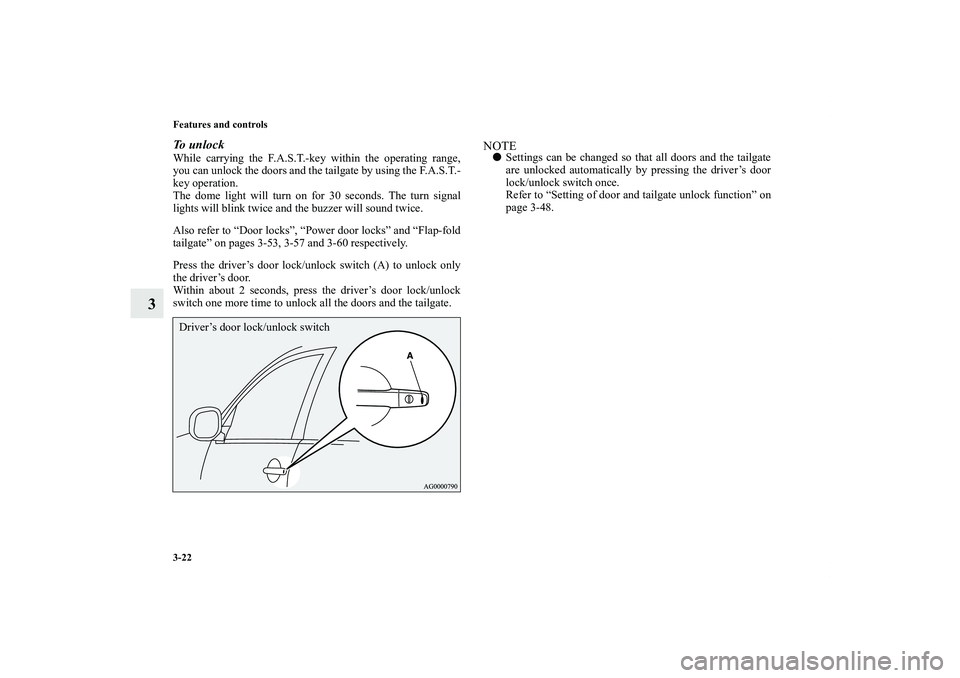

3-22 Features and controls
3
To unlockWhile carrying the F.A.S.T.-key within the operating range,
you can unlock the doors and the tailgate by using the F.A.S.T.-
key operation.
The dome light will turn on for 30 seconds. The turn signal
lights will blink twice and the buzzer will sound twice.
Also refer to “Door locks”, “Power door locks” and “Flap-fold
tailgate” on pages 3-53, 3-57 and 3-60 respectively.
Press the driver’s door lock/unlock switch (A) to unlock only
the driver’s door.
Within about 2 seconds, press the driver’s door lock/unlock
switch one more time to unlock all the doors and the tailgate.
NOTE
Settings can be changed so that all doors and the tailgate
are unlocked automatically by pressing the driver’s door
lock/unlock switch once.
Refer to “Setting of door and tailgate unlock function” on
page 3-48.
Driver’s door lock/unlock switchBK0122500US.book 22 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

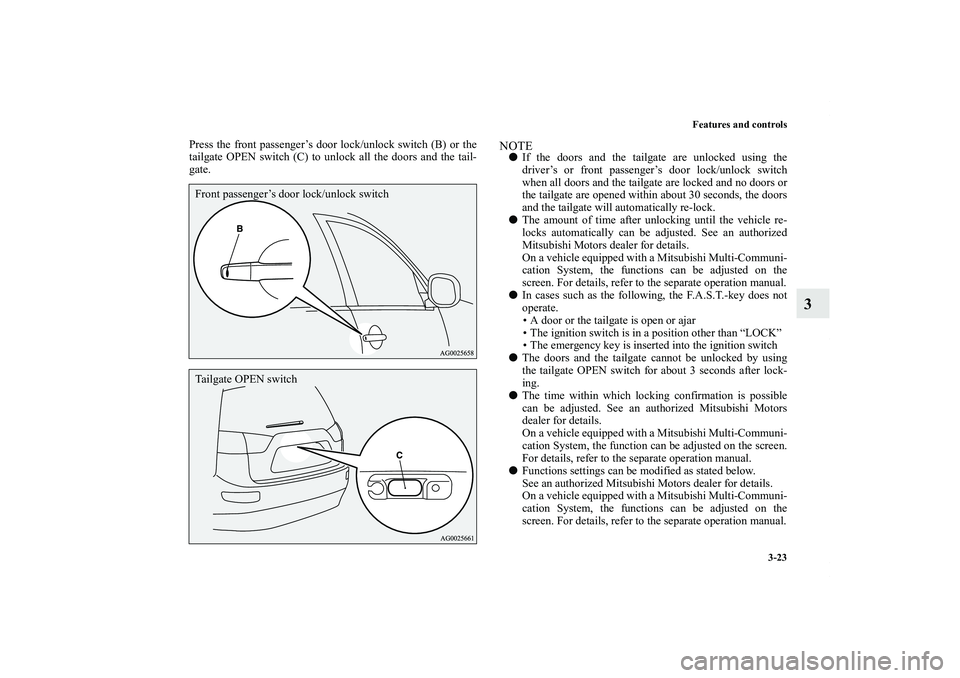

Features and controls
3-23
3
Press the front passenger’s door lock/unlock switch (B) or the
tailgate OPEN switch (C) to unlock all the doors and the tail-
gate.
NOTE
If the doors and the tailgate are unlocked using the
driver’s or front passenger’s door lock/unlock switch
when all doors and the tailgate are locked and no doors or
the tailgate are opened within about 30 seconds, the doors
and the tailgate will automatically re-lock.

The amount of time after unlocking until the vehicle re-
locks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

In cases such as the following, the F.A.S.T.-key does not
operate.
• A door or the tailgate is open or ajar
• The ignition switch is in a position other than “LOCK”
• The emergency key is inserted into the ignition switch

The doors and the tailgate cannot be unlocked by using
the tailgate OPEN switch for about 3 seconds after lock-
ing.

The time within which locking confirmation is possible
can be adjusted. See an authorized Mitsubishi Motors
dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the function can be adjusted on the screen.
For details, refer to the separate operation manual.

Functions settings can be modified as stated below.
See an authorized Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Front passenger’s door lock/unlock switchTailgate OPEN switch
BK0122500US.book 23 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

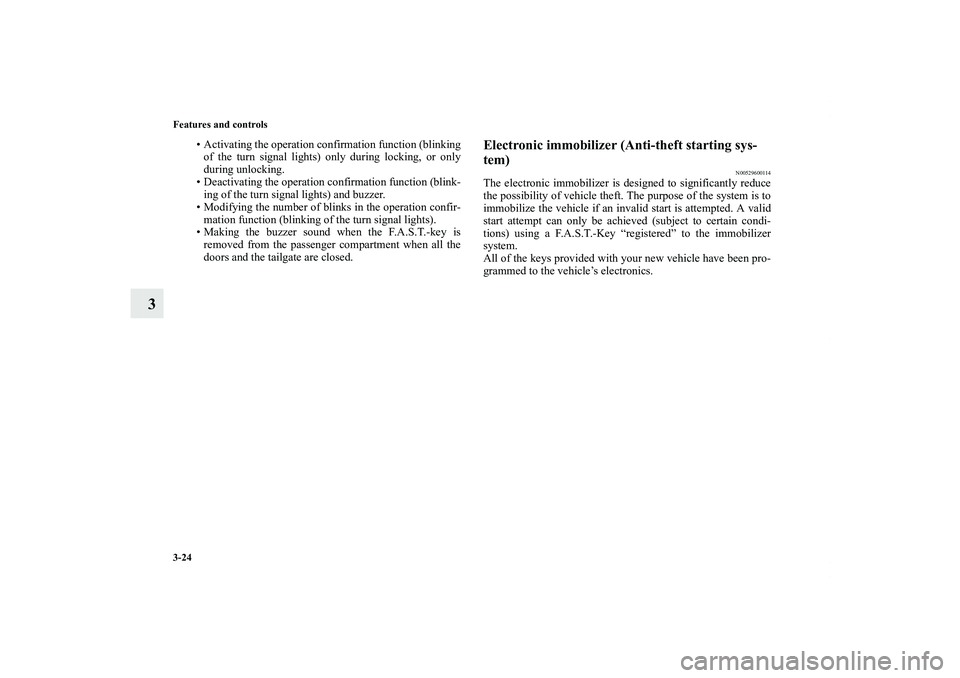

3-24 Features and controls
3
• Activating the operation confirmation function (blinking
of the turn signal lights) only during locking, or only
during unlocking.
• Deactivating the operation confirmation function (blink-
ing of the turn signal lights) and buzzer.
• Modifying the number of blinks in the operation confir-
mation function (blinking of the turn signal lights).
• Making the buzzer sound when the F.A.S.T.-key is
removed from the passenger compartment when all the
doors and the tailgate are closed.
Electronic immobilizer (Anti-theft starting sys-
tem)
N00529600114
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a F.A.S.T.-Key “registered” to the immobilizer
system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0122500US.book 24 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-25
3

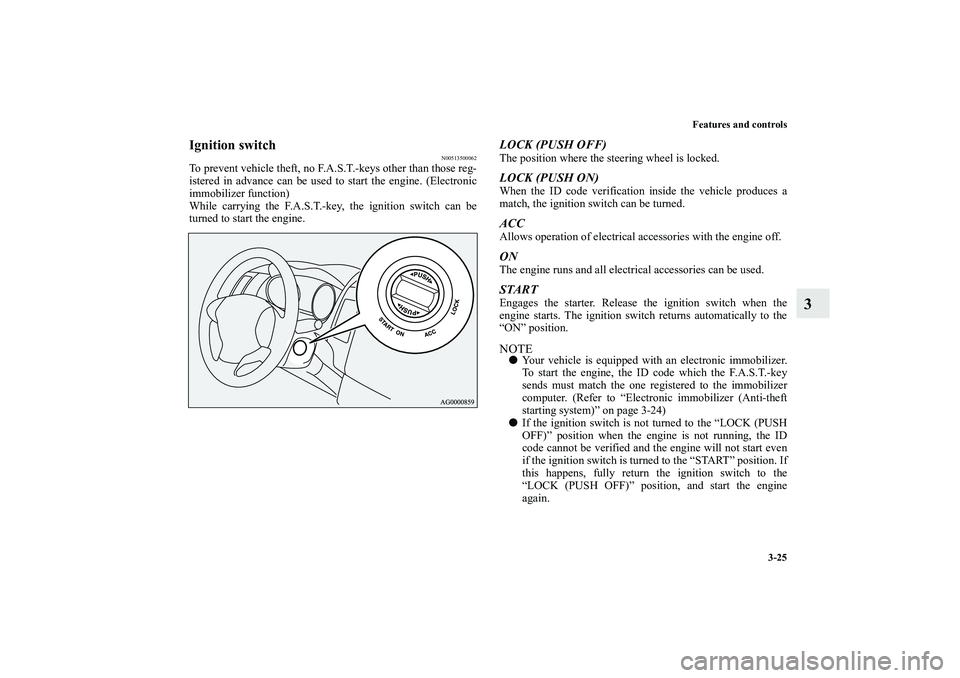

Ignition switch
N00513500062
To prevent vehicle theft, no F.A.S.T.-keys other than those reg-
istered in advance can be used to start the engine. (Electronic
immobilizer function)
While carrying the F.A.S.T.-key, the ignition switch can be
turned to start the engine.
LOCK (PUSH OFF)The position where the steering wheel is locked.LOCK (PUSH ON)When the ID code verification inside the vehicle produces a
match, the ignition switch can be turned.ACCAllows operation of electrical accessories with the engine off.ONThe engine runs and all electrical accessories can be used.STARTEngages the starter. Release the ignition switch when the
engine starts. The ignition switch returns automatically to the
“ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-24)

If the ignition switch is not turned to the “LOCK (PUSH
OFF)” position when the engine is not running, the ID
code cannot be verified and the engine will not start even
if the ignition switch is turned to the “START” position. If
this happens, fully return the ignition switch to the
“LOCK (PUSH OFF)” position, and start the engine
again.
BK0122500US.book 25 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
