4-8 Driving safety

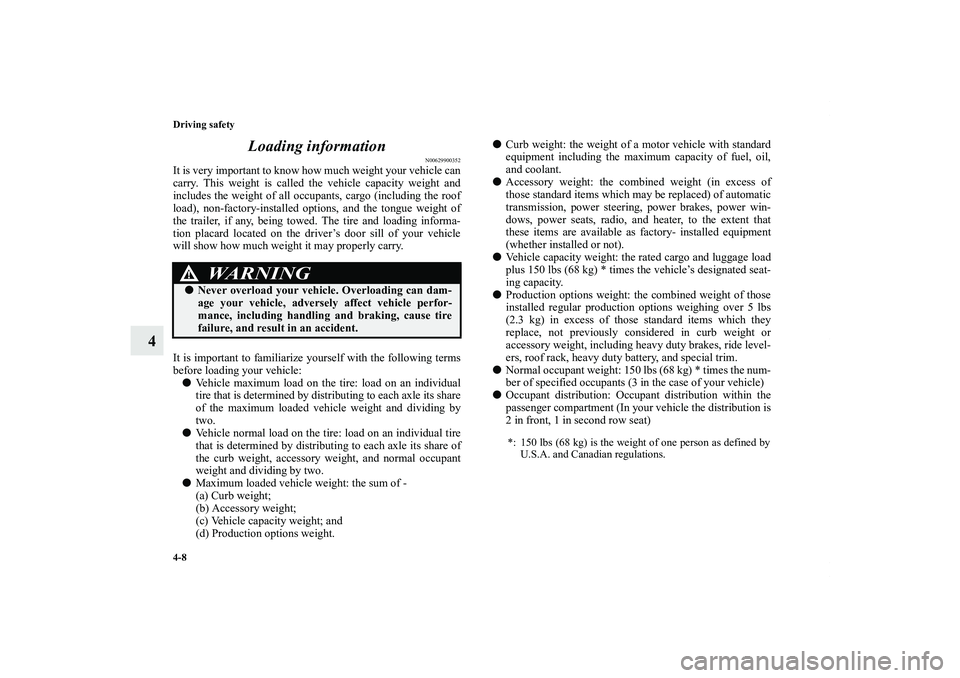

4Loading information
N00629900352
It is very important to know how much weight your vehicle can
carry. This weight is called the vehicle capacity weight and
includes the weight of all occupants, cargo (including the roof
load), non-factory-installed options, and the tongue weight of
the trailer, if any, being towed. The tire and loading informa-
tion placard located on the driver’s door sill of your vehicle
will show how much weight it may properly carry.
It is important to familiarize yourself with the following terms
before loading your vehicle:

Vehicle maximum load on the tire: load on an individual
tire that is determined by distributing to each axle its share
of the maximum loaded vehicle weight and dividing by
two.

Vehicle normal load on the tire: load on an individual tire
that is determined by distributing to each axle its share of
the curb weight, accessory weight, and normal occupant
weight and dividing by two.

Maximum loaded vehicle weight: the sum of -
(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight.
Curb weight: the weight of a motor vehicle with standard
equipment including the maximum capacity of fuel, oil,
and coolant.

Accessory weight: the combined weight (in excess of
those standard items which may be replaced) of automatic
transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that
these items are available as factory- installed equipment
(whether installed or not).

Vehicle capacity weight: the rated cargo and luggage load
plus 150 lbs (68 kg) * times the vehicle’s designated seat-
ing capacity.

Production options weight: the combined weight of those
installed regular production options weighing over 5 lbs
(2.3 kg) in excess of those standard items which they
replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride level-
ers, roof rack, heavy duty battery, and special trim.

Normal occupant weight: 150 lbs (68 kg) * times the num-
ber of specified occupants (3 in the case of your vehicle)

Occupant distribution: Occupant distribution within the
passenger compartment (In your vehicle the distribution is
2 in front, 1 in second row seat)
WA R N I N G
!
Never overload your vehicle. Overloading can dam-
age your vehicle, adversely affect vehicle perfor-
mance, including handling and braking, cause tire
failure, and result in an accident.
*: 150 lbs (68 kg) is the weight of one person as defined by
U.S.A. and Canadian regulations.
BK0122500US.book 8 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Driving safety
4-9
4

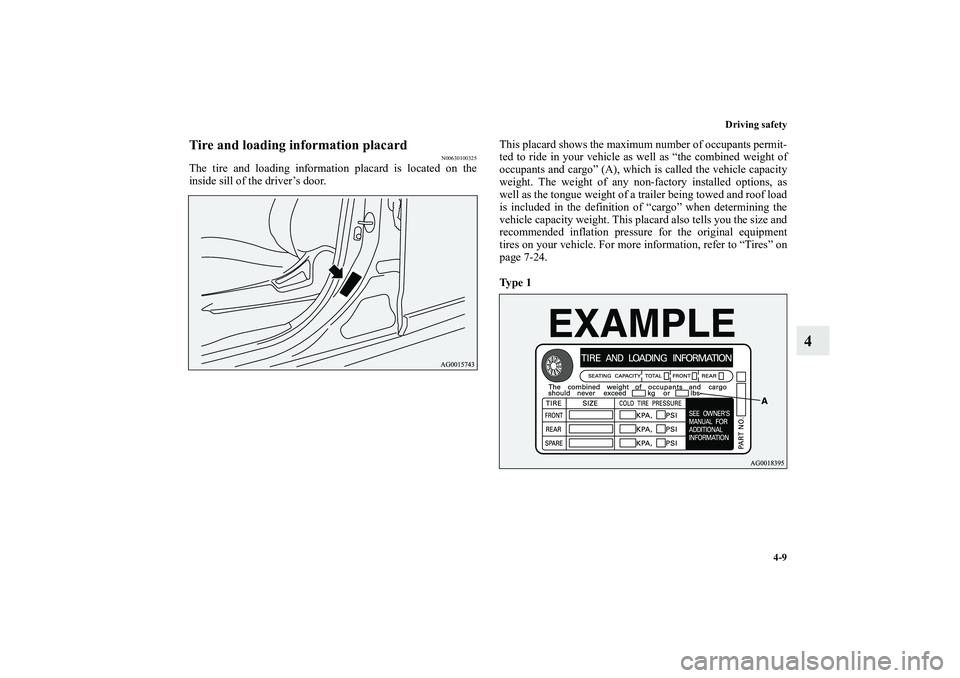

Tire and loading information placard
N00630100325
The tire and loading information placard is located on the
inside sill of the driver’s door.This placard shows the maximum number of occupants permit-
ted to ride in your vehicle as well as “the combined weight of
occupants and cargo” (A), which is called the vehicle capacity
weight. The weight of any non-factory installed options, as
well as the tongue weight of a trailer being towed and roof load
is included in the definition of “cargo” when determining the
vehicle capacity weight. This placard also tells you the size and
recommended inflation pressure for the original equipment
tires on your vehicle. For more information, refer to “Tires” on
page 7-24.
Ty p e 1

BK0122500US.book 9 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

4-10 Driving safety
4
Ty p e 2

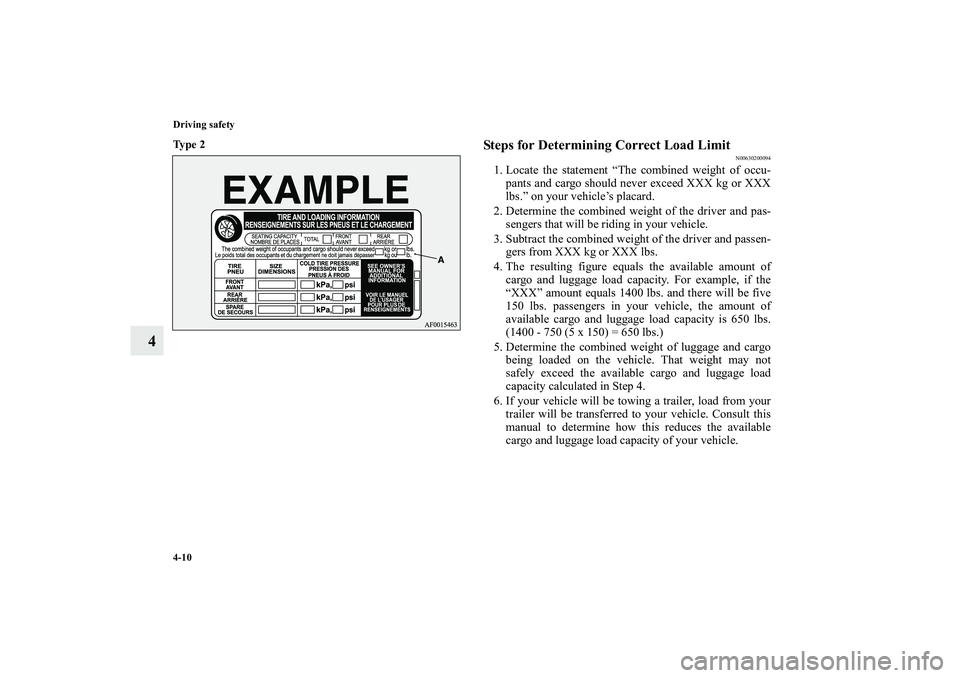

Steps for Determining Correct Load Limit
N00630200094
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX kg or XXX
lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and pas-
sengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passen-
gers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be five
150 lbs. passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not
safely exceed the available cargo and luggage load
capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.
BK0122500US.book 10 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Driving safety
4-11
4

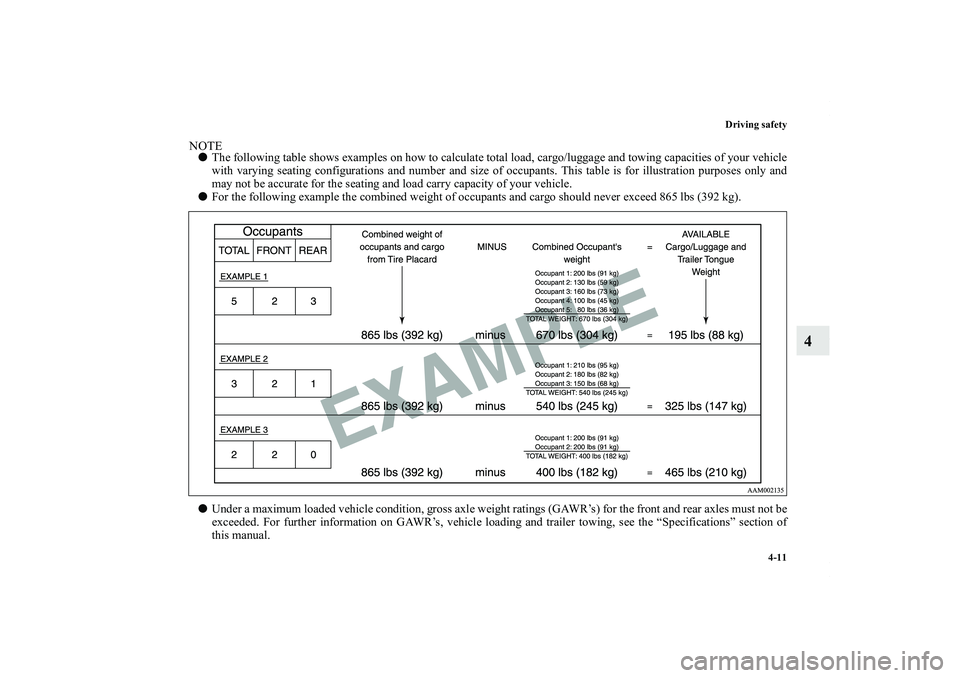

NOTE
The following table shows examples on how to calculate total load, cargo/luggage and towing capacities of your vehicle
with varying seating configurations and number and size of occupants. This table is for illustration purposes only and
may not be accurate for the seating and load carry capacity of your vehicle.

For the following example the combined weight of occupants and cargo should never exceed 865 lbs (392 kg).

Under a maximum loaded vehicle condition, gross axle weight ratings (GAWR’s) for the front and rear axles must not be
exceeded. For further information on GAWR’s, vehicle loading and trailer towing, see the “Specifications” section of
this manual.
BK0122500US.book 11 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

4-12 Driving safety
4Cargo loads
N00629700435

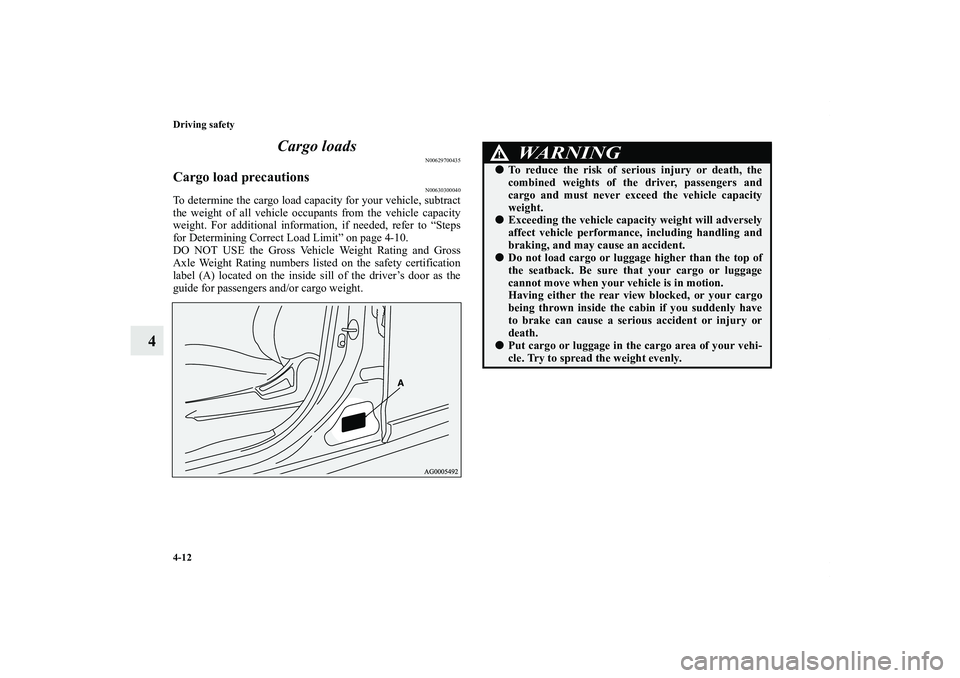

Cargo load precautions
N00630300040
To determine the cargo load capacity for your vehicle, subtract
the weight of all vehicle occupants from the vehicle capacity
weight. For additional information, if needed, refer to “Steps
for Determining Correct Load Limit” on page 4-10.
DO NOT USE the Gross Vehicle Weight Rating and Gross
Axle Weight Rating numbers listed on the safety certification
label (A) located on the inside sill of the driver’s door as the
guide for passengers and/or cargo weight.
WA R N I N G
!
To reduce the risk of serious injury or death, the
combined weights of the driver, passengers and
cargo and must never exceed the vehicle capacity
weight.
Exceeding the vehicle capacity weight will adversely
affect vehicle performance, including handling and
braking, and may cause an accident.
Do not load cargo or luggage higher than the top of
the seatback. Be sure that your cargo or luggage
cannot move when your vehicle is in motion.
Having either the rear view blocked, or your cargo
being thrown inside the cabin if you suddenly have
to brake can cause a serious accident or injury or
death.
Put cargo or luggage in the cargo area of your vehi-
cle. Try to spread the weight evenly.
BK0122500US.book 12 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Driving safety
4-13
4

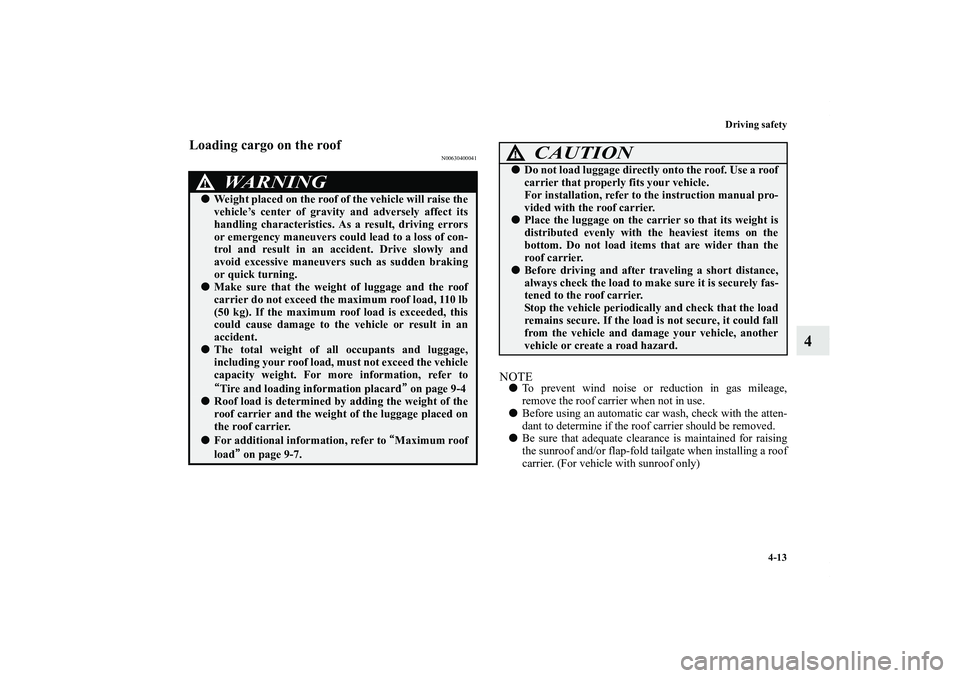

Loading cargo on the roof
N00630400041
NOTE
To prevent wind noise or reduction in gas mileage,
remove the roof carrier when not in use.

Before using an automatic car wash, check with the atten-
dant to determine if the roof carrier should be removed.

Be sure that adequate clearance is maintained for raising
the sunroof and/or flap-fold tailgate when installing a roof
carrier. (For vehicle with sunroof only)
WA R N I N G
!
Weight placed on the roof of the vehicle will raise the
vehicle’s center of gravity and adversely affect its
handling characteristics. As a result, driving errors
or emergency maneuvers could lead to a loss of con-
trol and result in an accident. Drive slowly and
avoid excessive maneuvers such as sudden braking
or quick turning.
Make sure that the weight of luggage and the roof
carrier do not exceed the maximum roof load, 110 lb
(50 kg). If the maximum roof load is exceeded, this
could cause damage to the vehicle or result in an
accident.
The total weight of all occupants and luggage,
including your roof load, must not exceed the vehicle
capacity weight. For more information, refer to
“
““ “Tire and loading information placard”
”” ” on page 9-4
Roof load is determined by adding the weight of the
roof carrier and the weight of the luggage placed on
the roof carrier.
For additional information, refer to “
““ “Maximum roof
load”
”” ” on page 9-7.
CAUTION
!
Do not load luggage directly onto the roof. Use a roof
carrier that properly fits your vehicle.
For installation, refer to the instruction manual pro-
vided with the roof carrier.
Place the luggage on the carrier so that its weight is
distributed evenly with the heaviest items on the
bottom. Do not load items that are wider than the
roof carrier.
Before driving and after traveling a short distance,
always check the load to make sure it is securely fas-
tened to the roof carrier.
Stop the vehicle periodically and check that the load
remains secure. If the load is not secure, it could fall
from the vehicle and damage your vehicle, another
vehicle or create a road hazard.
BK0122500US.book 13 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

4-14 Driving safety
4

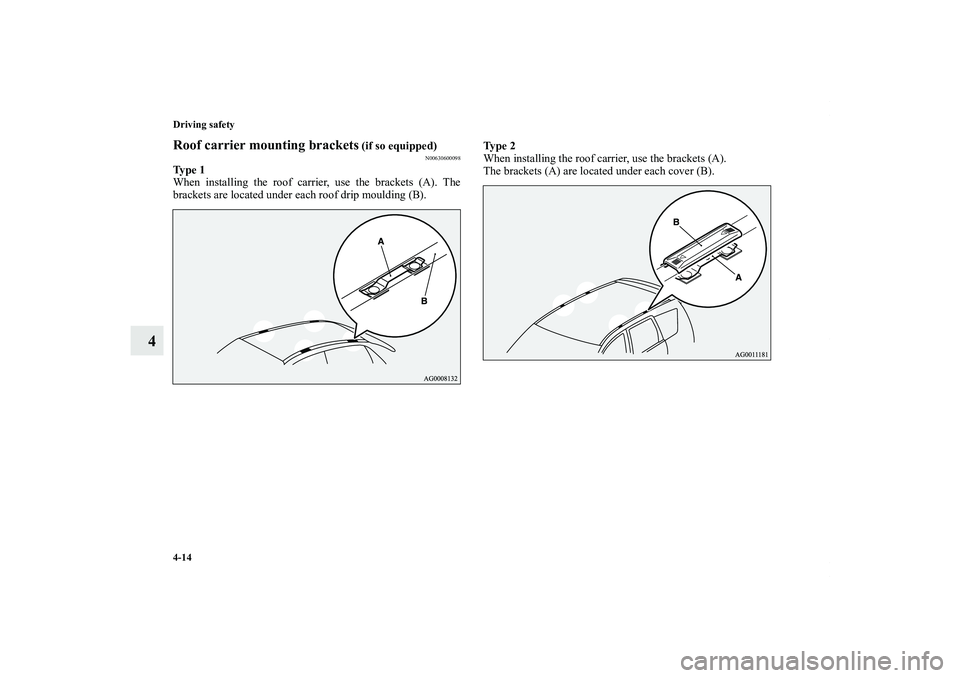

Roof carrier mounting brackets
(if so equipped)
N00630600098
Ty p e 1
When installing the roof carrier, use the brackets (A). The
brackets are located under each roof drip moulding (B).Ty p e 2
When installing the roof carrier, use the brackets (A).
The brackets (A) are located under each cover (B).BK0122500US.book 14 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Driving safety
4-15
4

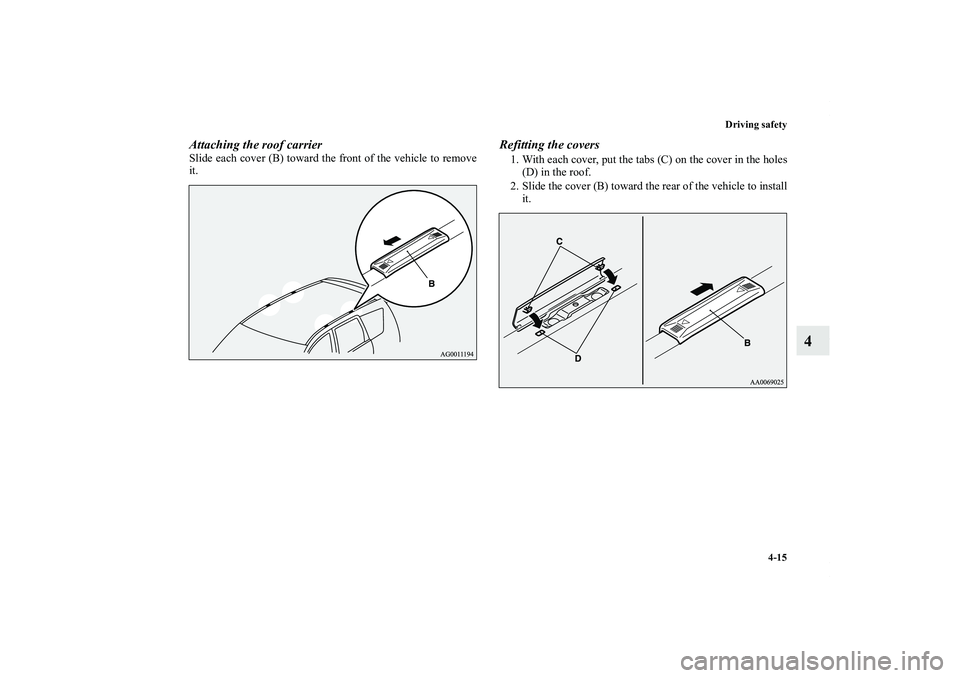

Attaching the roof carrierSlide each cover (B) toward the front of the vehicle to remove
it.
Refitting the covers1. With each cover, put the tabs (C) on the cover in the holes
(D) in the roof.
2. Slide the cover (B) toward the rear of the vehicle to install
it.
BK0122500US.book 15 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

4-16 Driving safety
4Trailer towing
N00629800289
Towing a trailer will adversely affect your vehicle’s handling,
performance, braking, durability and driving economy (fuel
consumption, etc.).
If you do tow a trailer with this vehicle, be sure to use proper
equipment and cautious steering and braking for safe driving.

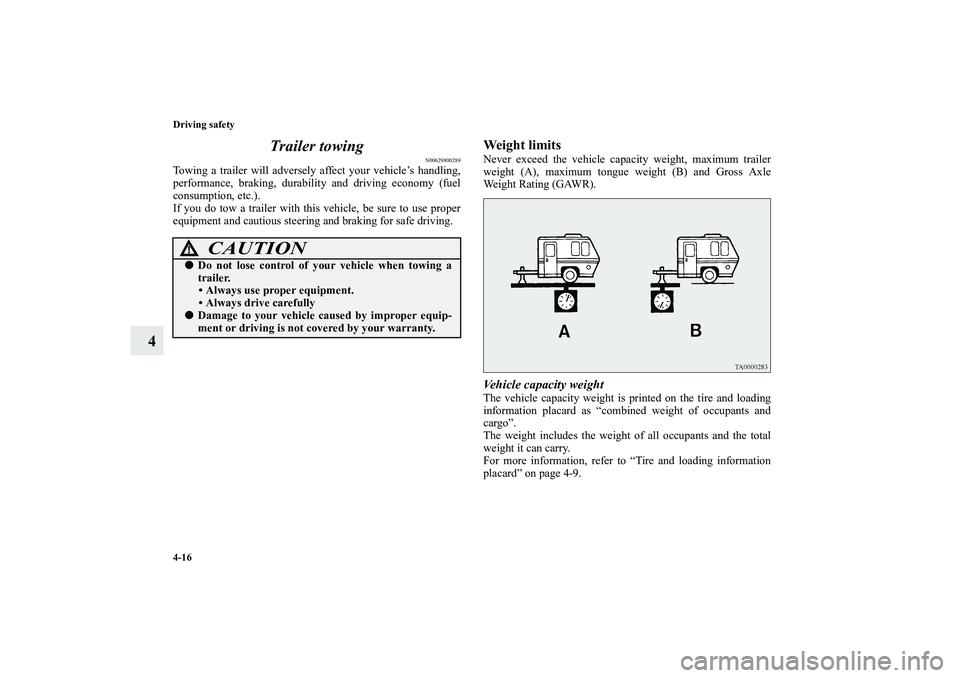

Weight limitsNever exceed the vehicle capacity weight, maximum trailer
weight (A), maximum tongue weight (B) and Gross Axle
Weight Rating (GAWR).Vehicle capacity weightThe vehicle capacity weight is printed on the tire and loading
information placard as “combined weight of occupants and
cargo”.
The weight includes the weight of all occupants and the total
weight it can carry.
For more information, refer to “Tire and loading information
placard” on page 4-9.
CAUTION
!
Do not lose control of your vehicle when towing a
trailer.
• Always use proper equipment.
• Always drive carefully

Damage to your vehicle caused by improper equip-
ment or driving is not covered by your warranty.
BK0122500US.book 16 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Driving safety
4-17
4

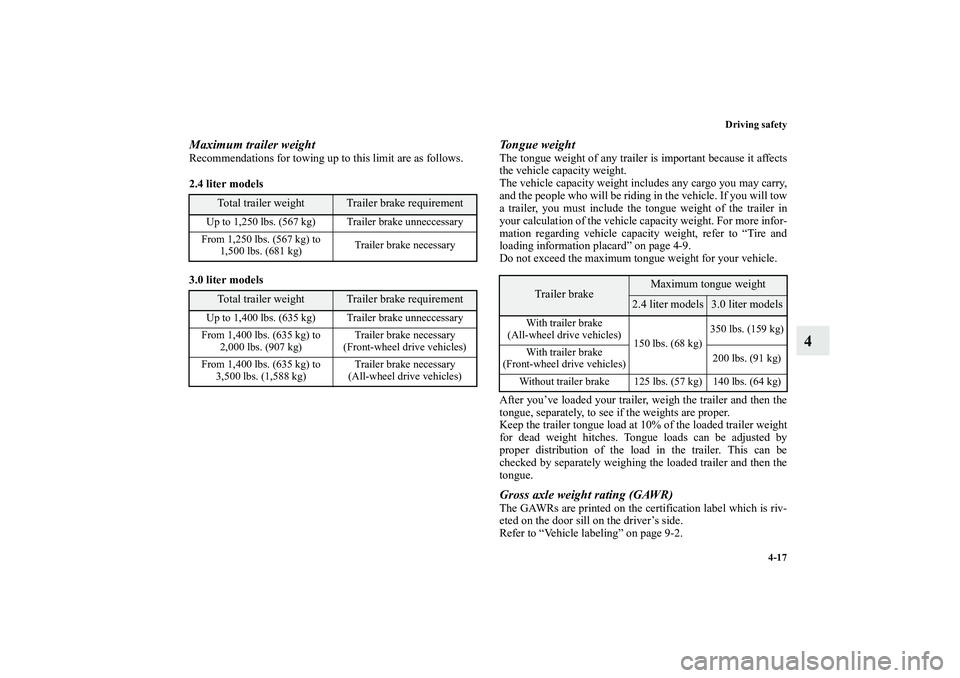

Maximum trailer weightRecommendations for towing up to this limit are as follows.
2.4 liter models

3.0 liter models

Tongue weightThe tongue weight of any trailer is important because it affects
the vehicle capacity weight.
The vehicle capacity weight includes any cargo you may carry,
and the people who will be riding in the vehicle. If you will tow
a trailer, you must include the tongue weight of the trailer in
your calculation of the vehicle capacity weight. For more infor-
mation regarding vehicle capacity weight, refer to “Tire and
loading information placard” on page 4-9.
Do not exceed the maximum tongue weight for your vehicle.
After you’ve loaded your trailer, weigh the trailer and then the
tongue, separately, to see if the weights are proper.
Keep the trailer tongue load at 10% of the loaded trailer weight
for dead weight hitches. Tongue loads can be adjusted by
proper distribution of the load in the trailer. This can be
checked by separately weighing the loaded trailer and then the
tongue.Gross axle weight rating (GAWR)The GAWRs are printed on the certification label which is riv-
eted on the door sill on the driver’s side.
Refer to “Vehicle labeling” on page 9-2.
Total trailer weight
Trailer brake requirement
Up to 1,250 lbs. (567 kg) Trailer brake unneccessary
From 1,250 lbs. (567 kg) to
1,500 lbs. (681 kg)Trailer brake necessaryTotal trailer weight
Trailer brake requirement
Up to 1,400 lbs. (635 kg) Trailer brake unneccessary
From 1,400 lbs. (635 kg) to
2,000 lbs. (907 kg)Trailer brake necessary
(Front-wheel drive vehicles)
From 1,400 lbs. (635 kg) to
3,500 lbs. (1,588 kg)Trailer brake necessary
(All-wheel drive vehicles)
Trailer brake
Maximum tongue weight
2.4 liter models
3.0 liter models
With trailer brake
(All-wheel drive vehicles)
150 lbs. (68 kg)350 lbs. (159 kg)
With trailer brake
(Front-wheel drive vehicles)200 lbs. (91 kg)
Without trailer brake 125 lbs. (57 kg) 140 lbs. (64 kg)
BK0122500US.book 17 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
