Page 421 of 714

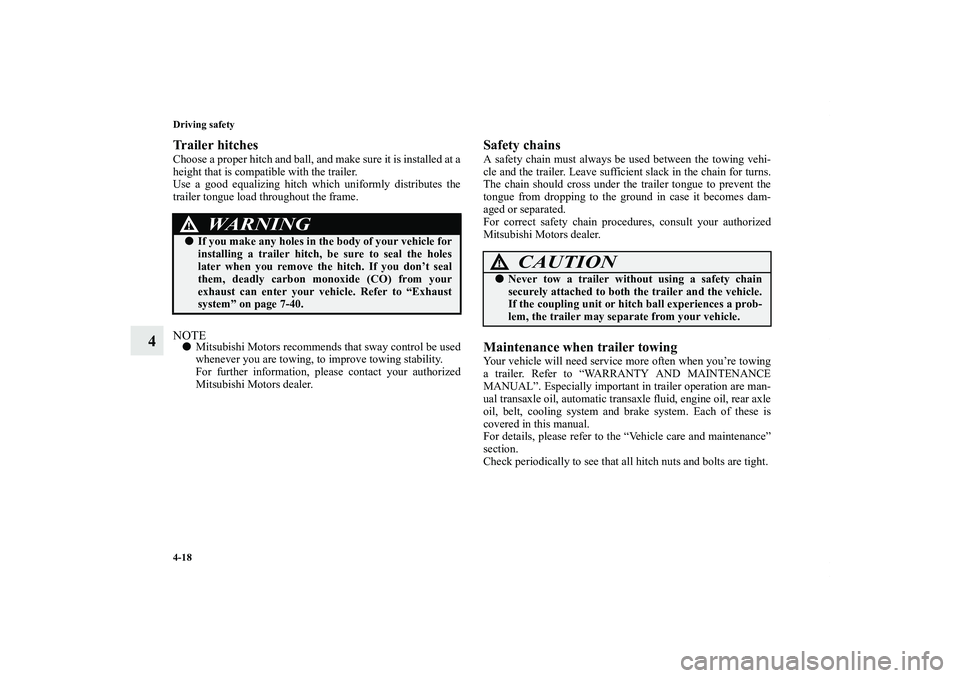

MITSUBISHI OUTLANDER XL 2011  Owners Manual 4-18 Driving safety
4
Trailer hitchesChoose a proper hitch and ball, and make sure it is installed at a
height that is compatible with the trailer.
Use a good equalizing hitch which uniformly distribu

Page 422 of 714

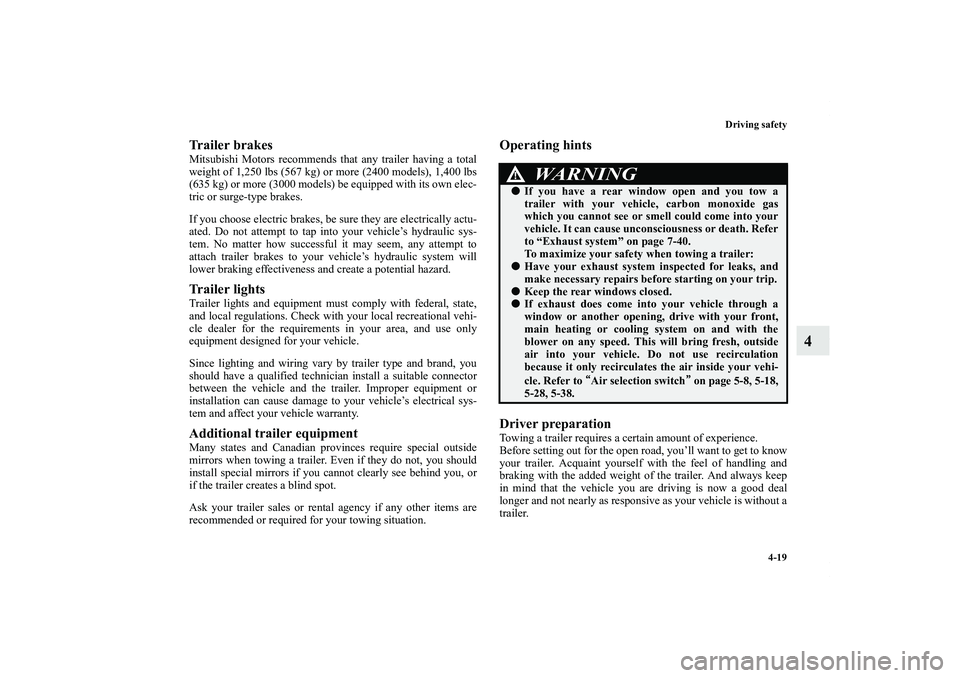

MITSUBISHI OUTLANDER XL 2011  Owners Manual Driving safety
4-19
4
Trailer brakesMitsubishi Motors recommends that any trailer having a total
weight of 1,250 lbs (567 kg) or more (2400 models), 1,400 lbs
(635 kg) or more (3000 models) be equippe

Page 423 of 714

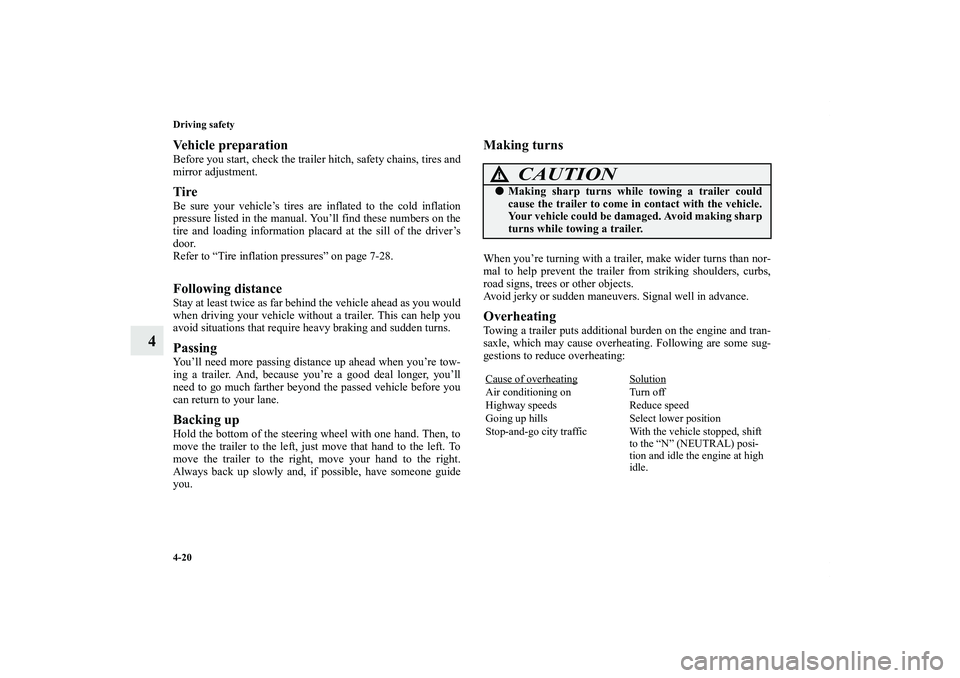

MITSUBISHI OUTLANDER XL 2011  Owners Manual 4-20 Driving safety
4
Vehicle preparationBefore you start, check the trailer hitch, safety chains, tires and
mirror adjustment.TireBe sure your vehicle’s tires are inflated to the cold inflation
pre

Page 424 of 714

MITSUBISHI OUTLANDER XL 2011  Owners Manual Driving safety
4-21
4
When towing at high altitudes, engine coolant and automatic
transaxle oil will overheat at a lower temperature than at nor-
mal altitudes.
If you turn your engine off immediately

Page 425 of 714

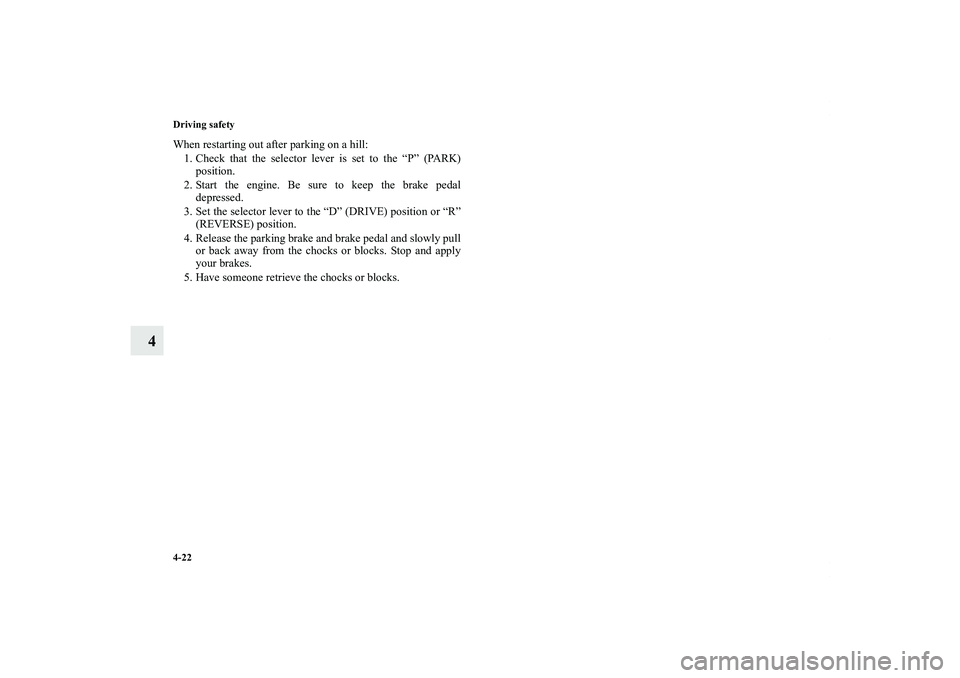

MITSUBISHI OUTLANDER XL 2011  Owners Manual 4-22 Driving safety
4
When restarting out after parking on a hill:
1. Check that the selector lever is set to the “P” (PARK)
position.
2. Start the engine. Be sure to keep the brake pedal
depresse

Page 426 of 714

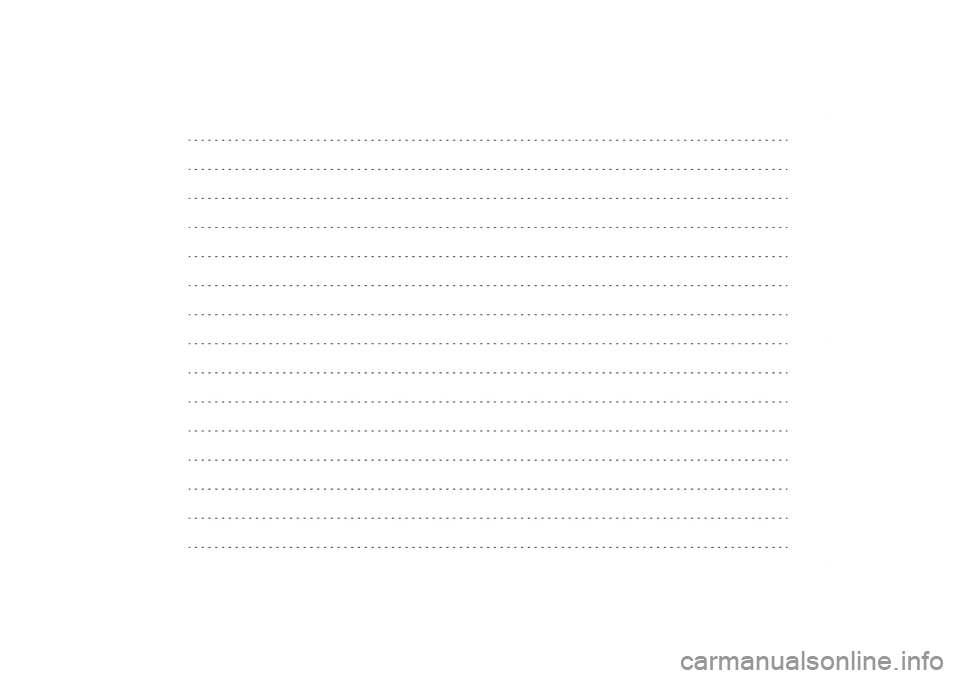

MITSUBISHI OUTLANDER XL 2011  Owners Manual BK0122500US.book  23 ページ  2010年5月12日 水曜日 午前11時11分

Page 427 of 714

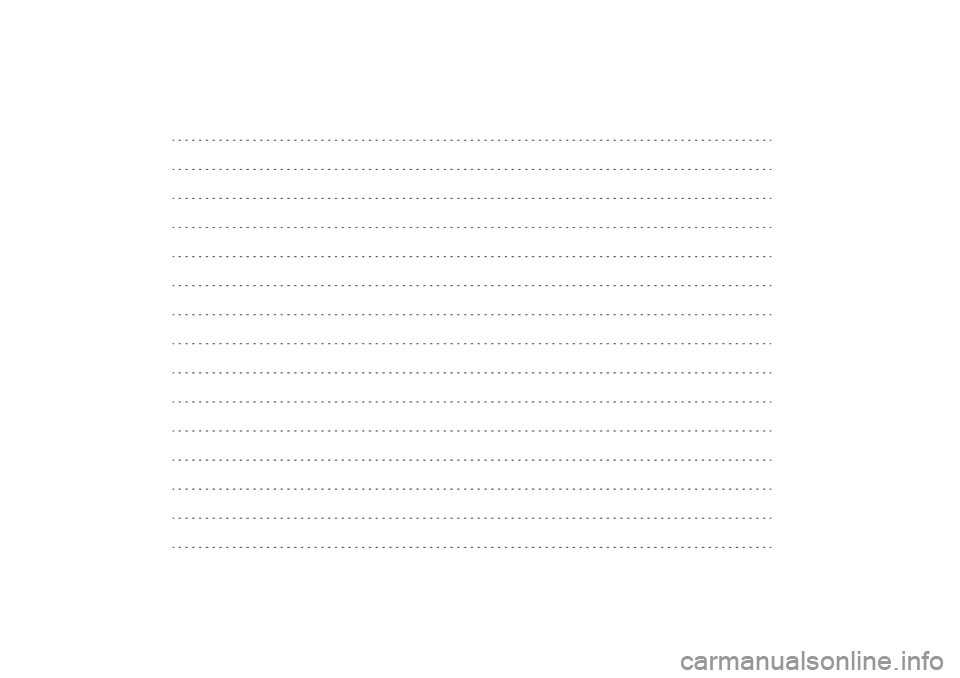

MITSUBISHI OUTLANDER XL 2011  Owners Manual BK0122500US.book  24 ページ  2010年5月12日 水曜日 午前11時11分

Page 428 of 714

MITSUBISHI OUTLANDER XL 2011  Owners Manual 5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning-Type 1
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 429 of 714

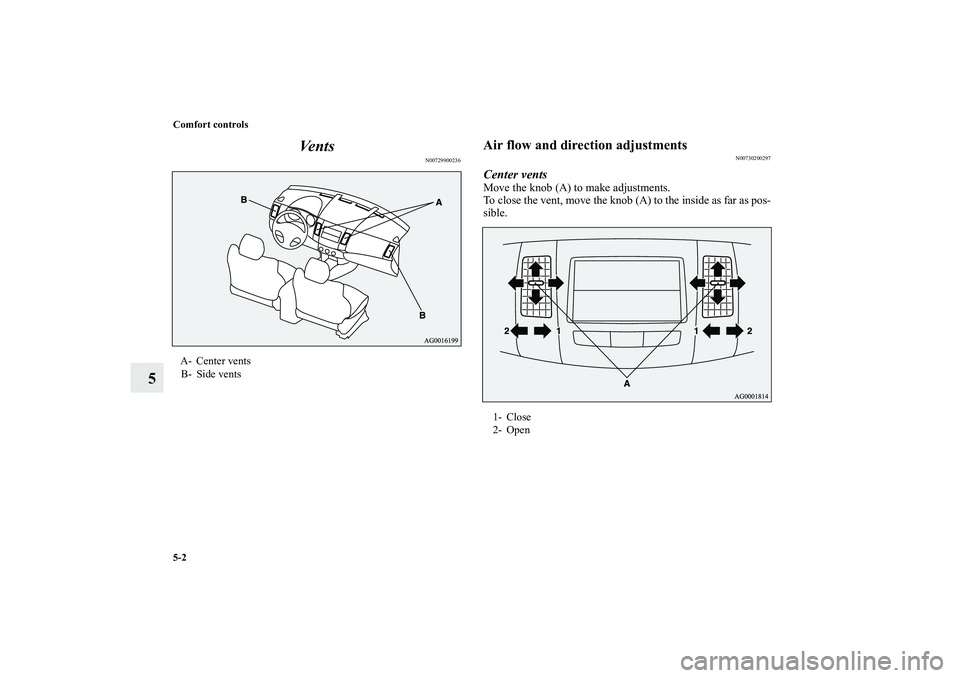

MITSUBISHI OUTLANDER XL 2011  Owners Manual 5-2 Comfort controls
5Ve n t s
N00729900236
Air flow and direction adjustments
N00730200297
Center ventsMove the knob (A) to make adjustments.
To close the vent, move the knob (A) to the inside as far

Page 430 of 714

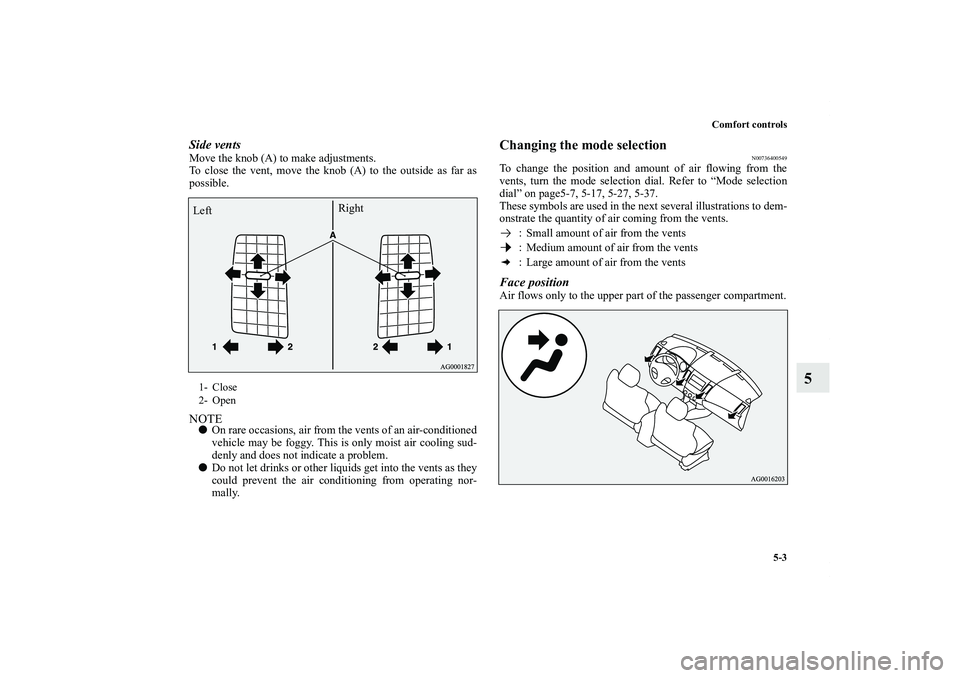

MITSUBISHI OUTLANDER XL 2011  Owners Manual Comfort controls
5-3
5
Side ventsMove the knob (A) to make adjustments.
To close the vent, move the knob (A) to the outside as far as
possible.NOTEOn rare occasions, air from the vents of an air-cond
