To remove the spare tire
N00849700260

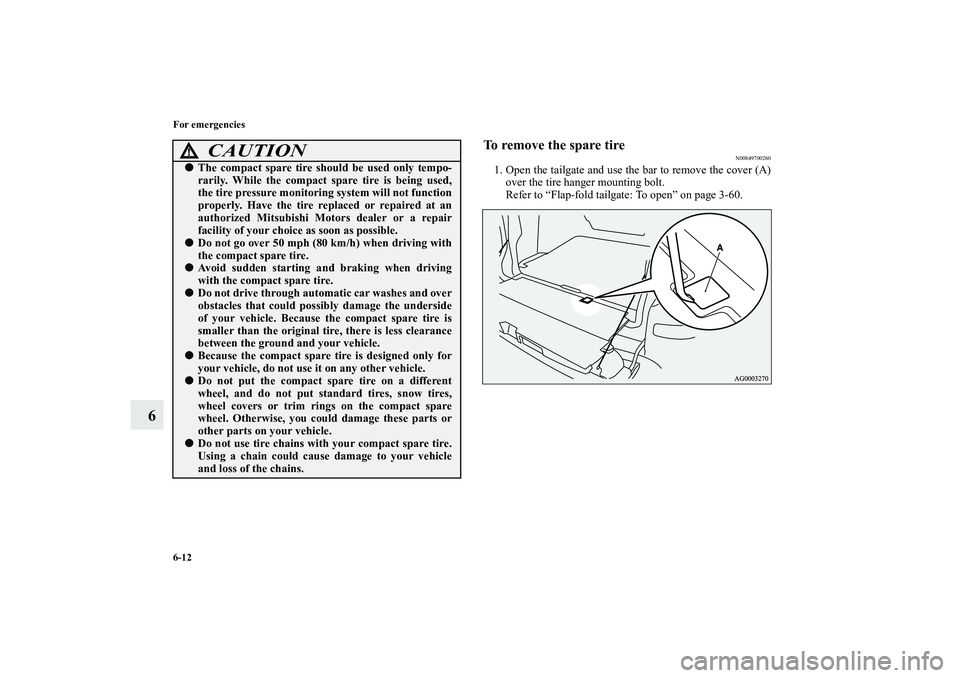

1. Open the tailgate and use the bar to remove the cover (A)
over the tire hanger mounting bolt.
Refer to “Flap-fold tailgate: To open” on page 3-60.

The compact spare tire should be used only tempo-
rarily. While the compact spare tire is being used,
the tire pressure monitoring system will not function
properly. Have the tire replaced or repaired at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
Do not go over 50 mph (80 km/h) when driving with
the compact spare tire.
Avoid sudden starting and braking when driving
with the compact spare tire.
Do not drive through automatic car washes and over
obstacles that could possibly damage the underside
of your vehicle. Because the compact spare tire is
smaller than the original tire, there is less clearance
between the ground and your vehicle.
Because the compact spare tire is designed only for
your vehicle, do not use it on any other vehicle.
Do not put the compact spare tire on a different
wheel, and do not put standard tires, snow tires,
wheel covers or trim rings on the compact spare
wheel. Otherwise, you could damage these parts or
other parts on your vehicle.
Do not use tire chains with your compact spare tire.
Using a chain could cause damage to your vehicle
and loss of the chains.
CAUTION
!
BK0122500US.book 12 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

For emergencies
6-13
6

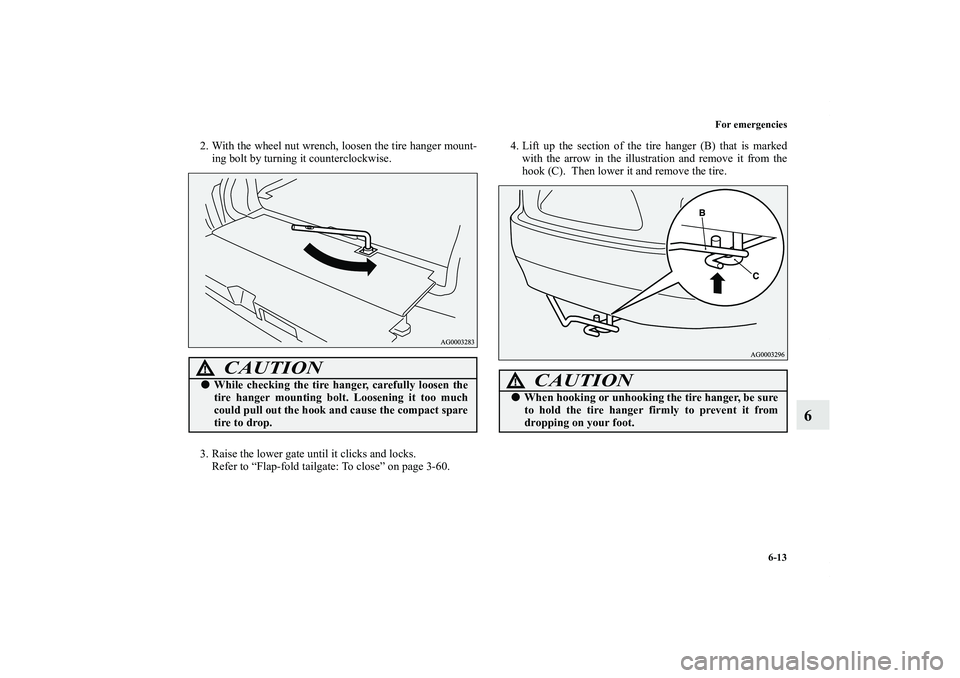

2. With the wheel nut wrench, loosen the tire hanger mount-
ing bolt by turning it counterclockwise.
3. Raise the lower gate until it clicks and locks.
Refer to “Flap-fold tailgate: To close” on page 3-60.4. Lift up the section of the tire hanger (B) that is marked
with the arrow in the illustration and remove it from the
hook (C). Then lower it and remove the tire.
CAUTION
!
While checking the tire hanger, carefully loosen the
tire hanger mounting bolt. Loosening it too much
could pull out the hook and cause the compact spare
tire to drop.
CAUTION
!
When hooking or unhooking the tire hanger, be sure
to hold the tire hanger firmly to prevent it from
dropping on your foot.
BK0122500US.book 13 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

6-14 For emergencies
6
To install
N00860500027

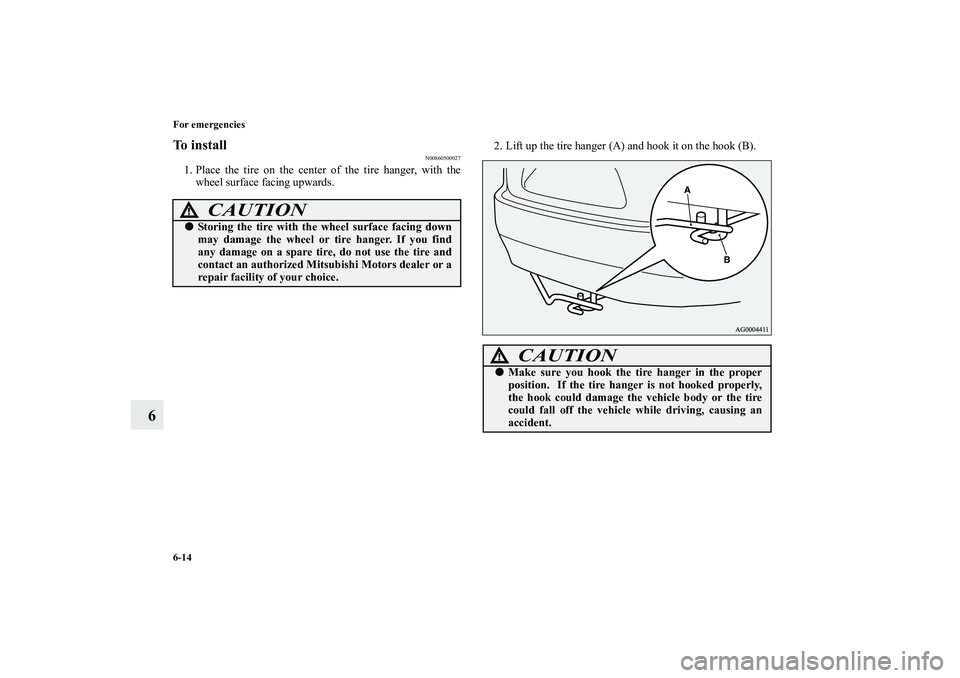

1. Place the tire on the center of the tire hanger, with the
wheel surface facing upwards.2. Lift up the tire hanger (A) and hook it on the hook (B).
CAUTION
!
Storing the tire with the wheel surface facing down
may damage the wheel or tire hanger. If you find
any damage on a spare tire, do not use the tire and
contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
CAUTION
!
Make sure you hook the tire hanger in the proper
position. If the tire hanger is not hooked properly,
the hook could damage the vehicle body or the tire
could fall off the vehicle while driving, causing an
accident.
BK0122500US.book 14 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

For emergencies
6-15
6

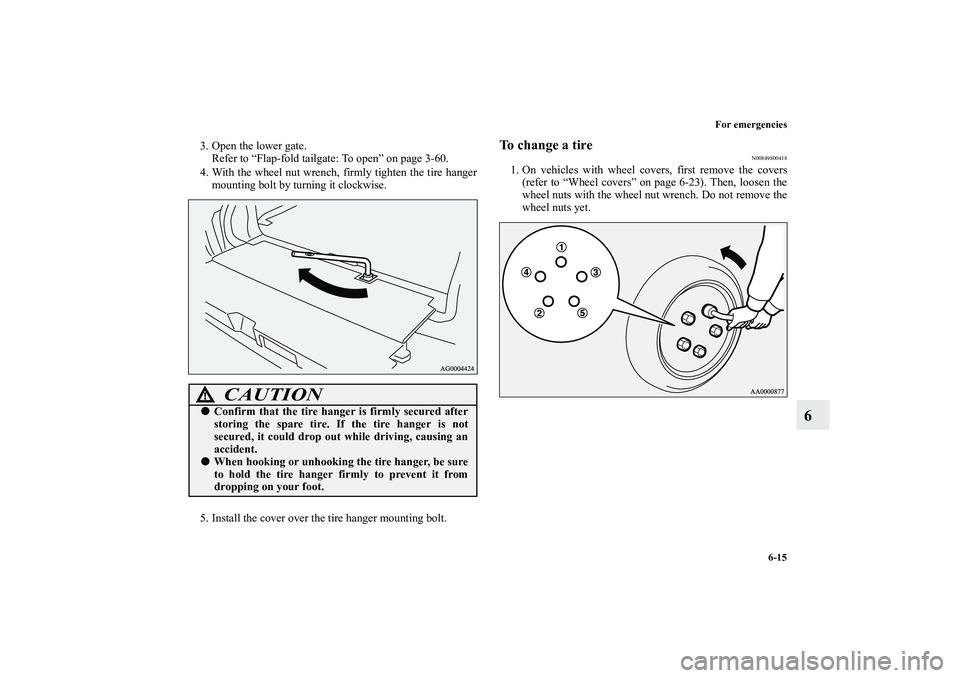

3. Open the lower gate.
Refer to “Flap-fold tailgate: To open” on page 3-60.
4. With the wheel nut wrench, firmly tighten the tire hanger
mounting bolt by turning it clockwise.
5. Install the cover over the tire hanger mounting bolt.
To change a tire
N00849800418
1. On vehicles with wheel covers, first remove the covers
(refer to “Wheel covers” on page 6-23). Then, loosen the
wheel nuts with the wheel nut wrench. Do not remove the
wheel nuts yet.
CAUTION
!
Confirm that the tire hanger is firmly secured after
storing the spare tire. If the tire hanger is not
secured, it could drop out while driving, causing an
accident.
When hooking or unhooking the tire hanger, be sure
to hold the tire hanger firmly to prevent it from
dropping on your foot.
BK0122500US.book 15 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

6-16 For emergencies
6

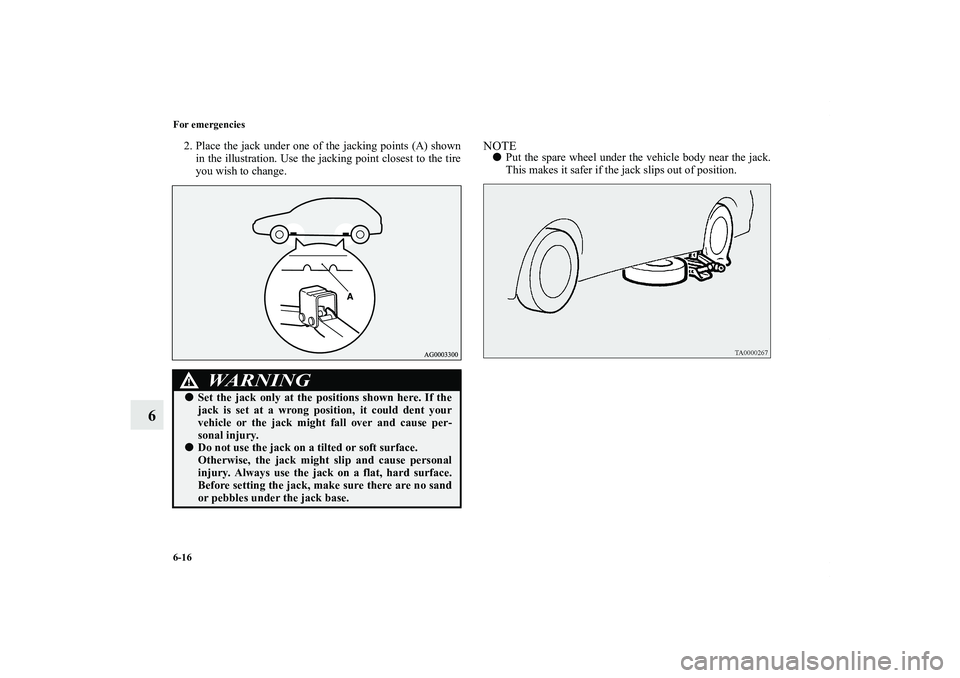

2. Place the jack under one of the jacking points (A) shown
in the illustration. Use the jacking point closest to the tire
you wish to change.
NOTE
Put the spare wheel under the vehicle body near the jack.
This makes it safer if the jack slips out of position.
WA R N I N G
!
Set the jack only at the positions shown here. If the
jack is set at a wrong position, it could dent your
vehicle or the jack might fall over and cause per-
sonal injury.
Do not use the jack on a tilted or soft surface.
Otherwise, the jack might slip and cause personal
injury. Always use the jack on a flat, hard surface.
Before setting the jack, make sure there are no sand
or pebbles under the jack base.
BK0122500US.book 16 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

For emergencies
6-17
6

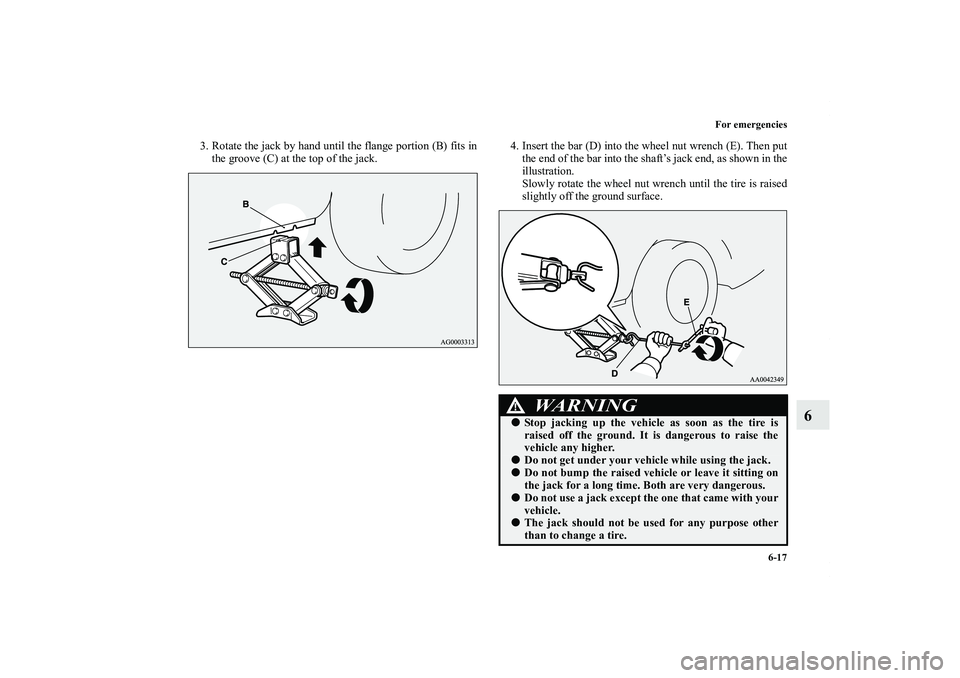

3. Rotate the jack by hand until the flange portion (B) fits in
the groove (C) at the top of the jack.4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of the bar into the shaft’s jack end, as shown in the
illustration.
Slowly rotate the wheel nut wrench until the tire is raised
slightly off the ground surface.
WA R N I N G
!
Stop jacking up the vehicle as soon as the tire is
raised off the ground. It is dangerous to raise the
vehicle any higher.
Do not get under your vehicle while using the jack.
Do not bump the raised vehicle or leave it sitting on
the jack for a long time. Both are very dangerous.
Do not use a jack except the one that came with your
vehicle.
The jack should not be used for any purpose other
than to change a tire.
BK0122500US.book 17 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

6-18 For emergencies
6

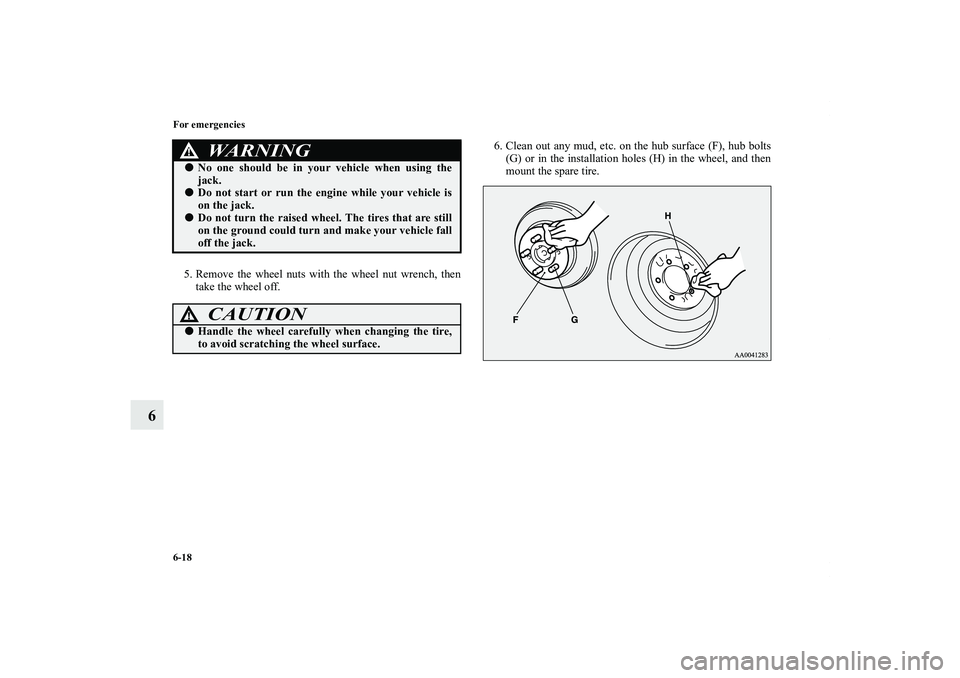

5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off.6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in the wheel, and then
mount the spare tire.
No one should be in your vehicle when using the
jack.
Do not start or run the engine while your vehicle is
on the jack.
Do not turn the raised wheel. The tires that are still
on the ground could turn and make your vehicle fall
off the jack.
CAUTION
!
Handle the wheel carefully when changing the tire,
to avoid scratching the wheel surface.
WA R N I N G
!
BK0122500US.book 18 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

For emergencies
6-19
6

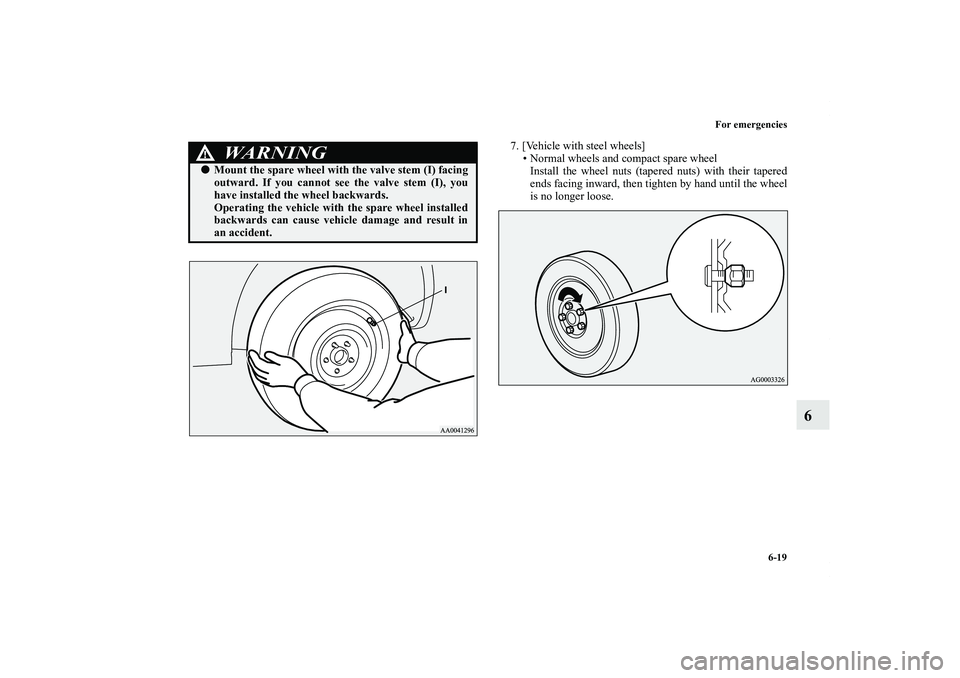

7. [Vehicle with steel wheels]
• Normal wheels and compact spare wheel
Install the wheel nuts (tapered nuts) with their tapered
ends facing inward, then tighten by hand until the wheel
is no longer loose.
WA R N I N G
!
Mount the spare wheel with the valve stem (I) facing
outward. If you cannot see the valve stem (I), you
have installed the wheel backwards.
Operating the vehicle with the spare wheel installed
backwards can cause vehicle damage and result in
an accident.
BK0122500US.book 19 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

6-20 For emergencies
6

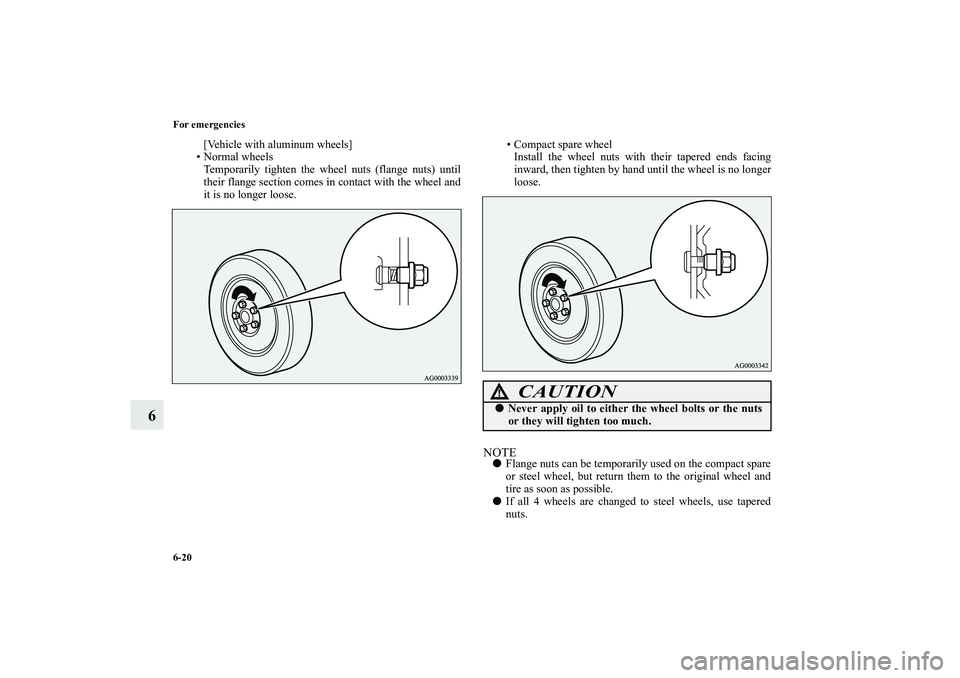

[Vehicle with aluminum wheels]
• Normal wheels
Temporarily tighten the wheel nuts (flange nuts) until
their flange section comes in contact with the wheel and
it is no longer loose.• Compact spare wheel
Install the wheel nuts with their tapered ends facing
inward, then tighten by hand until the wheel is no longer
loose.
NOTE
Flange nuts can be temporarily used on the compact spare
or steel wheel, but return them to the original wheel and
tire as soon as possible.

If all 4 wheels are changed to steel wheels, use tapered
nuts.
CAUTION
!
Never apply oil to either the wheel bolts or the nuts
or they will tighten too much.
BK0122500US.book 20 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

For emergencies
6-21
6

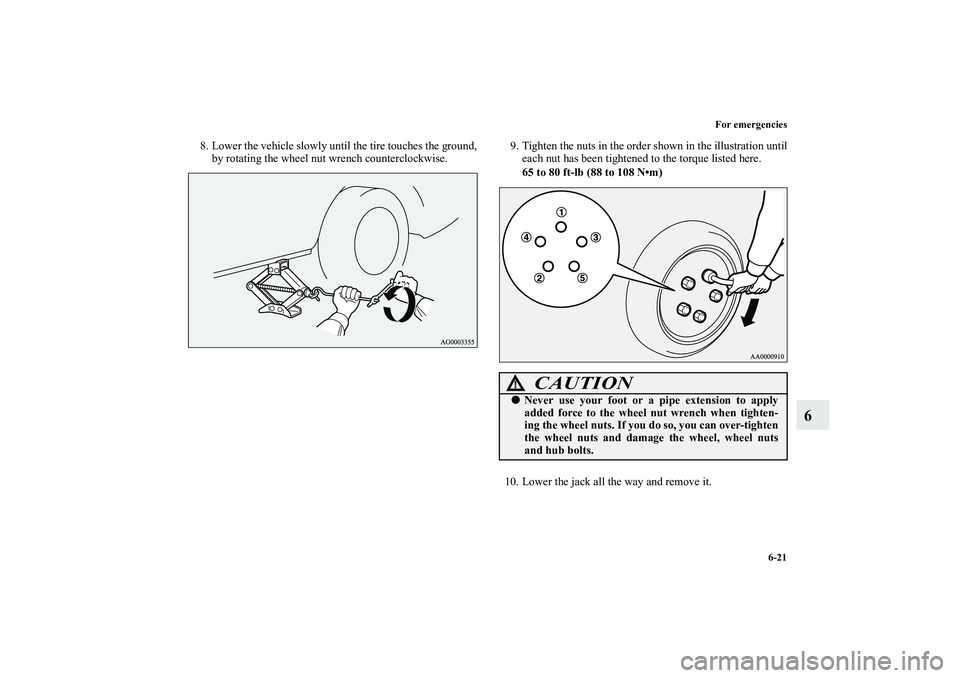

8. Lower the vehicle slowly until the tire touches the ground,
by rotating the wheel nut wrench counterclockwise.9. Tighten the nuts in the order shown in the illustration until
each nut has been tightened to the torque listed here.
65 to 80 ft-lb (88 to 108 N•m)
10. Lower the jack all the way and remove it.
CAUTION
!
Never use your foot or a pipe extension to apply
added force to the wheel nut wrench when tighten-
ing the wheel nuts. If you do so, you can over-tighten
the wheel nuts and damage the wheel, wheel nuts
and hub bolts.
