Page 331 of 392
N09A136A
Changing a fuse
EN29C-Vb
1. Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the“LOCK”posi-
tion.
2. Pull the fuse box lid (A) to remove it.
3. Remove the fuse puller (B) from the fuse
box lid (A).
N09A135A
4. The replacement of fuses located in the
driver’s seat foot area should be per-
formed from below the instrument panel.
N29C023A
5. Referring to the fuse load capacity table,
check the fuse pertaining to the prob-
lem.
C- Fuse is OK
D- Blown fuse
NOTE
If any system does not function but the fuse
corresponding to that system is normal,
there may be a fault in the system or else-
where.
Have your vehicle checked by an autho-
rized MITSUBISHI dealer.
For emergencies
8-33
Div:
Out put date:
Page 332 of 392
N29C001A
6. Insert a new fuse of the same capac-
ity by using the fuse puller and insert the
fuse at the same place in the fuse box.
CAUTION
(1) If the newly inserted fuse blows
again after a short time, have the
electric system checked by an
authorized MITSUBISHI dealer to
find the cause and rectify it.
(2) Never use a fuse with a capac-
ity larger than that specified or
any substitute, such as wire, foil,
etc.; doing so will cause the cir-
cuit wiring to heat up and could
cause a fire.
Replacement of lamp bulbs
EN10A-Ab
Before replacing a bulb, ensure the lamp
is off. Do not touch the glass part of the
new bulb with your bare fingers; the skin oil
left on the glass will evaporate when the
bulb gets hot and the vapor will con-
dense on the reflector and dim the sur-
face.
N10B307A
Bulb capacity
EN10BOIb
A bulb should only be replaced with a new
bulb of the same rating and type. The des-
ignation can be found on the base of the
bulb.
Outside
1- Headlamps, upper/lower beam
..................................60/55W (H4)
2- Front fog lamps*
........................... 51W(HB4)·9006
3- Front turn-signal lamps . 21W (W21W)
4- Position lamps................ 5W(W5W)
5- Side turn-signal lamps ... 5W (WY5W)
6- Side step lamps*........... 5W(WY5W)
For emergencies
8-34Div:
Out put date:

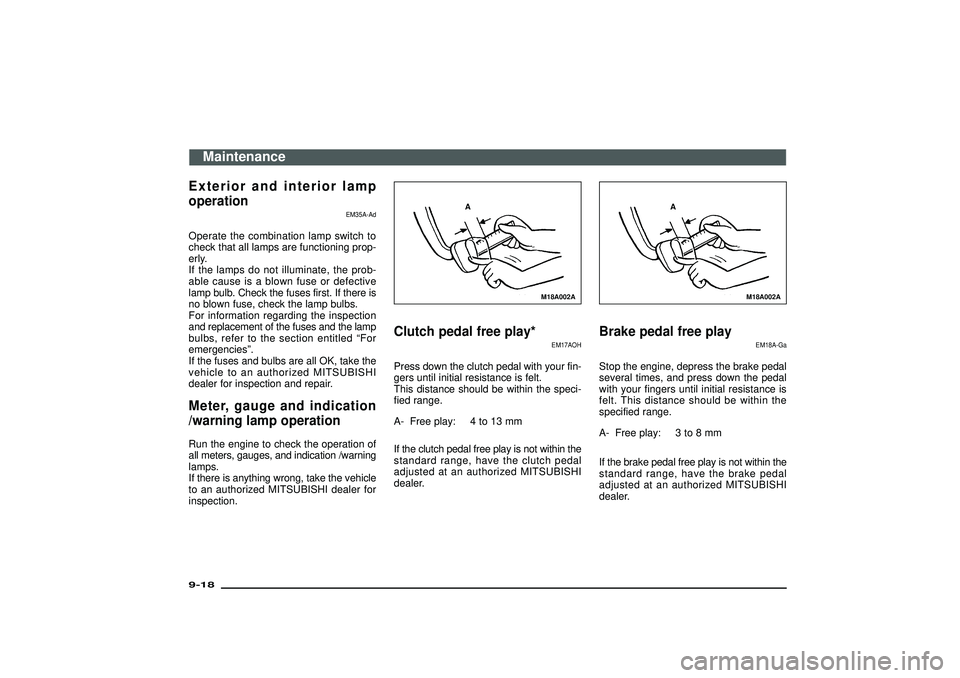

Page 360 of 392
Exterior and interior lamp
operation
EM35A-Ad
Operate the combination lamp switch to
check that all lamps are functioning prop-
erly.
If the lamps do not illuminate, the prob-
able cause is a blown fuse or defective
lamp bulb. Check the fuses first. If there is
no blown fuse, check the lamp bulbs.
For information regarding the inspection
and replacement of the fuses and the lamp
bulbs, refer to the section entitled“For
emergencies”.
If the fuses and bulbs are all OK, take the
vehicle to an authorized MITSUBISHI
dealer for inspection and repair.Meter, gauge and indication
/warning lamp operationRun the engine to check the operation of
all meters, gauges, and indication /warning
lamps.
If there is anything wrong, take the vehicle
to an authorized MITSUBISHI dealer for
inspection.
M18A002A
A
Clutch pedal free play*
EM17AOH
Press down the clutch pedal with your fin-
gers until initial resistance is felt.
This distance should be within the speci-
fied range.
A- Free play: 4 to 13 mm
If the clutch pedal free play is not within the
standard range, have the clutch pedal
adjusted at an authorized MITSUBISHI
dealer.
M18A002A
A
Brake pedal free play
EM18A-Ga
Stop the engine, depress the brake pedal
several times, and press down the pedal
with your fingers until initial resistance is
felt. This distance should be within the
specified range.
A- Free play: 3 to 8 mm
If the brake pedal free play is not within the
standard range, have the brake pedal
adjusted at an authorized MITSUBISHI
dealer.
Maintenance
9-18Div:
Out put date:
Page 382 of 392
Accessory boxes ................................................ 6-62
Accessory socket ............................................... 6-61
Additional equipment ......................................... 9-21
Air purifier ........................................................... 6-55
Antenna .............................................................. 6-35
Anti-lock brake system (ABS) ............................ 5-45
Armrest .............................................................. 3-13
Ashtray ............................................................... 6-60
Audio system anti-theft feature ......................... 6-32
Automatic air conditioning .................................. 6-43
Automatic transmission fluid ................................ 9-4
Automatic transmissionINVECS-II Sport Mode 5A/T(Intelligent & Innovative
Vehicle Electronic Control SystemII ) ........... 5-17
Auto-speed (cruise) control ................................ 5-53
Backdoor ............................................................ 2-10
Battery ................................................................. 9-6
Bleeding the fuel system (diesel-powered vehicles only) ..................... 8-23
Bonnet .................................................................. 2-9
Brake fluid ............................................................ 9-8
Brake pedal free play ......................................... 9-18
Braking ............................................................... 5-44
Capacities ........................................................ 10-16
Catalytic converter ............................................... 5-6
Cautions on handling of 4WD vehicles .............. 5-42
CD (Compact-Disc) player ................................. 6-30
Central door locks ................................................ 2-8
Changing a fuse ................................................. 8-33
Chassis number ................................................. 10-2
“Child-protection” rear doors (5-door models) ..... 2-6
Child restraint ..................................................... 3-33
Cigarette lighter .................................................. 6-59
Cleaning the inside of your vehicle ...................... 7-2
Cleaning the outside of your vehicle .................... 7-4
Clutch fluid ......................................................... 9-10
Clutch pedal free play ........................................ 9-18
Combination head lamps, dipper and turn signal switch ................................................... 4-14
Correct 4-wheel drive operation ......................... 5-38
Cup tray ............................................................. 6-65 Dimensions ........................................................ 10-6
Doors ................................................................... 2-4
Driving and alcohol ............................................ 1-13
Economical driving ............................................... 5-7
Electric remote-controlled outside
rear-view mirrors ............................................ 5-51
Electric window control ...................................... 2-12
Electrical system .............................................. 10-10
Electronic immobilizer (Anti-theft starting system) ............................... 2-2
Emergency starting ............................................ 8-25
Engine ................................................................ 10-9
Engine coolant ..................................................... 9-5
Engine number ................................................... 10-2
Engine oil ............................................................. 9-2
Engine overheating ............................................ 8-21
Exterior and interior lamp operation ................... 9-18
Front fog lamp switch ......................................... 4-22
Front heater/ Manual air conditioning .................................. 6-36
Front seat ............................................................. 3-6
Fuel consumption ............................................. 10-12
Fuel gauge ........................................................... 4-4
Fuel, engine coolant, oil and exhaust gas leakage ......................... 9-17
Fuses ................................................................. 8-28
Genuine parts .................................................... 1-12
Glove box ........................................................... 6-63
Handling of cassette tapes ................................ 6-33
Hazard warning flasher switch ........................... 4-20
Headlamp levelling switch ................................. 4-16
Headlamps washer switch ................................. 4-19
Head restraints ................................................... 3-28
Heated seats ...................................................... 3-10
Hinges and latches lubrication ........................... 9-19
Horn switch ........................................................ 4-24
How to set a CD autochanger ........................... 6-31 If a tyre is punctured .......................................... 8-13
If the vehicle breaks down ................................... 8-2
Ignition switch ..................................................... 5-11
Indication and warning lamps .............................. 4-6
Inside rear-view mirror ....................................... 5-50
Installation of accessories .................................. 1-10
Installation position for warning triangle ............. 6-67
Instruments .......................................................... 4-2
Jack and jack handle ........................................... 8-5
Jacking up the vehicle ......................................... 8-8
Keyless entry system ........................................... 2-5
Keys ..................................................................... 2-2
Limited-slip differential ....................................... 5-48
Luggage compartment lamp .............................. 4-26
Luggage floor box .............................................. 6-66
Making a flat seat ............................................... 3-26
Making a luggage area ...................................... 3-14
Manual outside rear-view mirrors ...................... 5-51
Manual transmission .......................................... 5-15
Meter, gauge and indication/
warning lamp operation .................................. 9-18
MITSUBISHI active stability & traction control system (M-ASTC) .................. 5-57
Modifications/alterations to the electric or fuel systems ................................... 1-11
Multi centre display ............................................ 4-27
Notes regarding diesel fuel .............................. 10-14
Odometer/Tripmeter ............................................. 4-3
Operation under adverse driving conditions ......................................................... 8-2
Other specifications .......................................... 10-11
Outside rear-view mirror .................................... 5-50
Alphabetical index
1
0-18Div:
