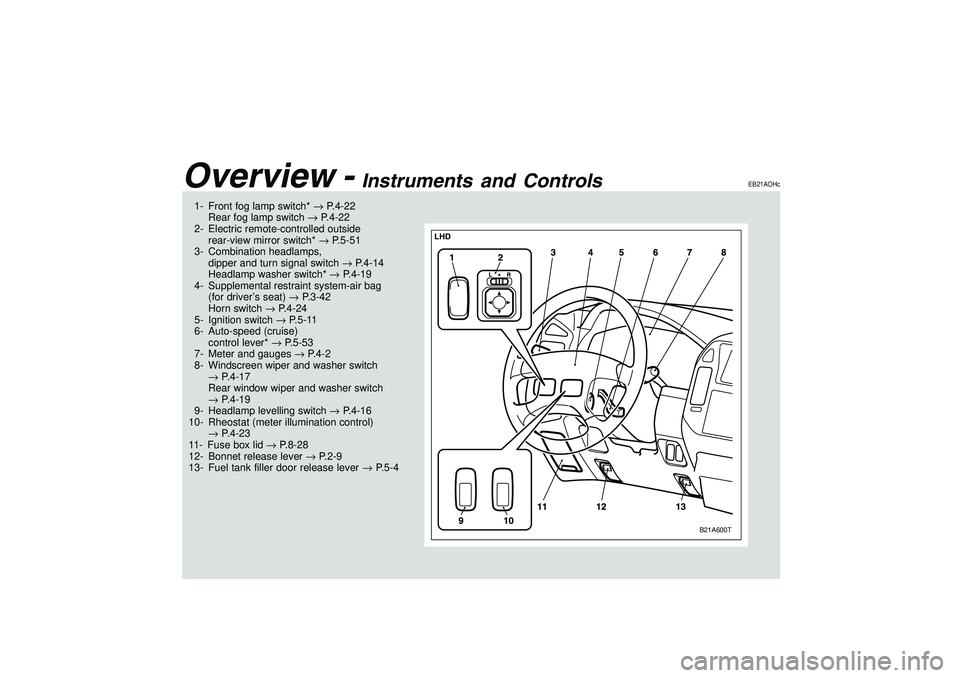

Overview -
Instruments and Controls
EB21AOHc
B21A600T
LHD
1- Front fog lamp switch*→P.4-22
Rear fog lamp switch→P.4-22
2- Electric remote-controlled outside
rear-view mirror switch*→P.5-51
3- Combination headlamps,
dipper and turn signal switch→P.4-14
Headlamp washer switch*→P.4-19
4- Supplemental restraint system-air bag
(for driver’s seat)→P.3-42
Horn switch→P.4-24
5- Ignition switch→P.5-11
6- Auto-speed (cruise)
control lever*→P.5-53
7- Meter and gauges→P.4-2
8- Windscreen wiper and washer switch
→P.4-17
Rear window wiper and washer switch
→P.4-19
9- Headlamp levelling switch→P.4-16
10- Rheostat (meter illumination control)
→P.4-23
11- Fuse box lid→P.8-28
12- Bonnet release lever→P.2-9
13- Fuel tank filler door release lever→P.5-4Div:
Out put date:

Instruments and Controls
B21A601T
LHD
14- Parking brake lever→P.5-42
15- Audio*→P.6-2, 6-17
16- Hazard warning flasher switch→P.4-20
17- Multi centre display*→P.4-27
18- RV meter*→P.4-40
19- Rear window demister switch→P.4-21
20- Front heater/Manual air conditioning*
→P.6-36
Front automatic air conditioning*
→P.6-43
21- Ventilators→P.6-35
22- Supplemental restraint system-air bag*
(for front passenger’s seat)→P.3-42
23- Ashtray (for front seats)→P.6-60
24- Cigarette lighter→P.6-59
25- Heated seat switch*→P.3-10
26- Rear differential lock switch*→P.5-34
Active stability control switch*
→P.5-58
27- Wiper deicer switch*→P.4-24
28- Main switch for rear heater*/
Rear air conditioning*
(for front seats)→P.6-53
29- Rear heater* /Rear air conditioning*
→P.6-52
30- Ashtray (for rear seats)→P.6-60
31- Centre console box→P.6-64
Accessory socket*→P.6-61
32- Cup tray (for front seats)→P.6-65
33- Gearshift or selector lever
→P.5-15, 5-17
34- Transfer shift lever→P.5-24, 5-28
Div:
Out put date:

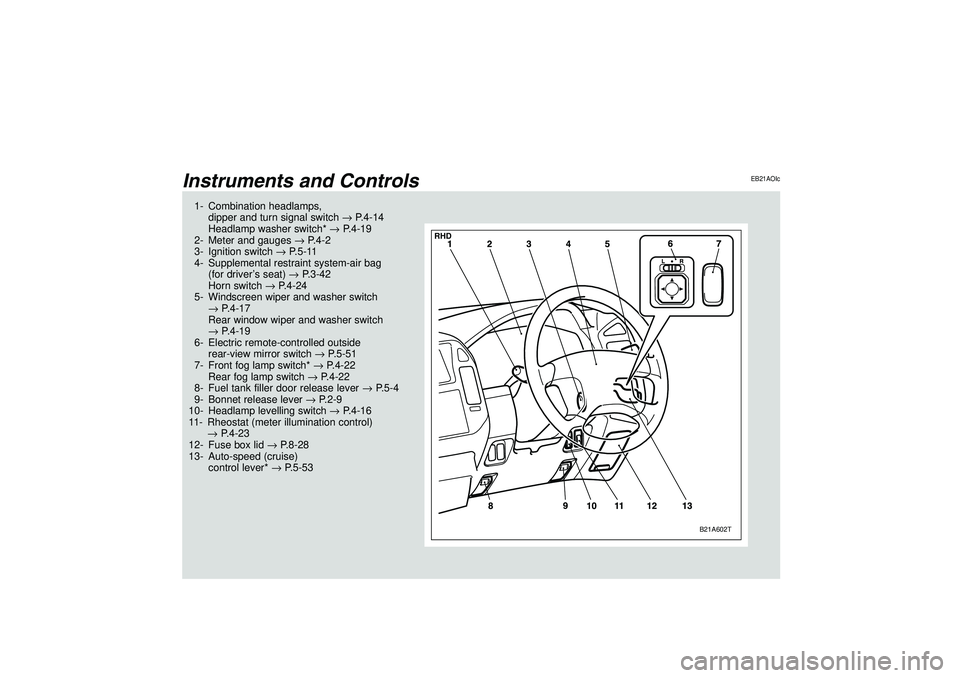

Instruments and Controls
EB21AOIc
B21A602T
RHD
1- Combination headlamps,
dipper and turn signal switch→P.4-14
Headlamp washer switch*→P.4-19
2- Meter and gauges→P.4-2
3- Ignition switch→P.5-11
4- Supplemental restraint system-air bag
(for driver’s seat)→P.3-42
Horn switch→P.4-24
5- Windscreen wiper and washer switch
→P.4-17
Rear window wiper and washer switch
→P.4-19
6- Electric remote-controlled outside
rear-view mirror switch→P.5-51
7- Front fog lamp switch*→P.4-22
Rear fog lamp switch→P.4-22
8- Fuel tank filler door release lever→P.5-4
9- Bonnet release lever→P.2-9
10- Headlamp levelling switch→P.4-16
11- Rheostat (meter illumination control)
→P.4-23
12- Fuse box lid→P.8-28
13- Auto-speed (cruise)
control lever*→P.5-53Div:
Out put date:

Instruments and Controls
B21A571T
RHD
14- Supplemental restraint system-air bag
(for front passenger’s seat)→P.3-42
15- Front heater/Manual air conditioning*
→P.6-36
Front automatic air conditioning*
→P.6-43
16- Rear window demister switch→P.4-21
17- Multi centre display*→P.4-27
18- RV meter*→P.4-40
19- Hazard warning flasher switch→P.4-20
20- Audio*→P.6-2, 6-17
21- Ventilators→P.6-35
22- Parking brake lever→P.5-42
23- Ashtray (for front seats)→P.6-60
24- Cigarette lighter→P.6-59
25- Heated seat switch*→P.3-10
26- Rear differential lock switch*→P.5-34
Active stability control switch*
→P.5-58
27- Wiper deicer switch*→P.4-24
28- Main switch for rear heater*/
Rear air conditioning*
(for front seats)→P.6-53
29- Transfer shift lever→P.5-24, 5-28
30- Gearshift or selector lever
→P.5-15, 5-17
31- Cup tray (for front seats)→P.6-65
32- Centre console box→P.6-64
Accessory socket*→P.6-61
33- Ashtray (for rear seats)→P.6-60
34- Rear heater* /Rear air conditioning*
→P.6-52
Div:
Out put date:

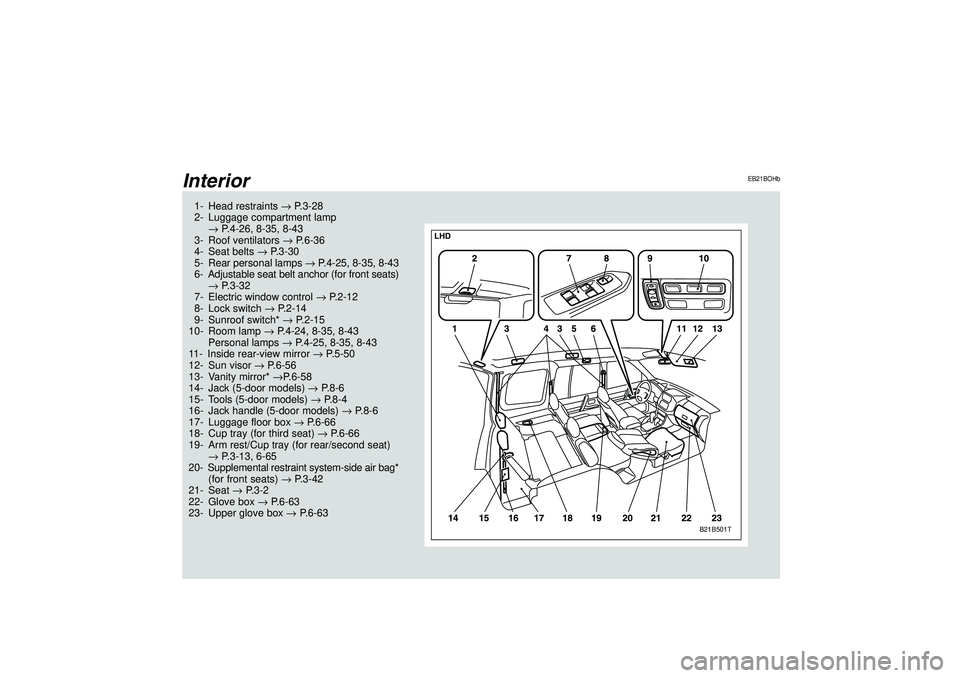

Interior
EB21BOHb
B21B501T
LHD
1- Head restraints→P.3-28
2- Luggage compartment lamp
→P.4-26, 8-35, 8-43
3- Roof ventilators→P.6-36
4- Seat belts→P.3-30
5- Rear personal lamps→P.4-25, 8-35, 8-43
6- Adjustable seat belt anchor (for front seats)
→P.3-32
7- Electric window control→P.2-12
8- Lock switch→P.2-14
9- Sunroof switch*→P.2-15
10- Room lamp→P.4-24, 8-35, 8-43
Personal lamps→P.4-25, 8-35, 8-43
11- Inside rear-view mirror→P.5-50
12- Sun visor→P.6-56
13- Vanity mirror*→P.6-58
14- Jack (5-door models)→P.8-6
15- Tools (5-door models)→P.8-4
16- Jack handle (5-door models)→P.8-6
17- Luggage floor box→P.6-66
18- Cup tray (for third seat)→P.6-66
19- Arm rest/Cup tray (for rear/second seat)
→P.3-13, 6-65
20- Supplemental restraint system-side air bag*
(for front seats)→P.3-42
21- Seat→P.3-2
22- Glove box→P.6-63
23- Upper glove box→P.6-63Div:
Out put date:

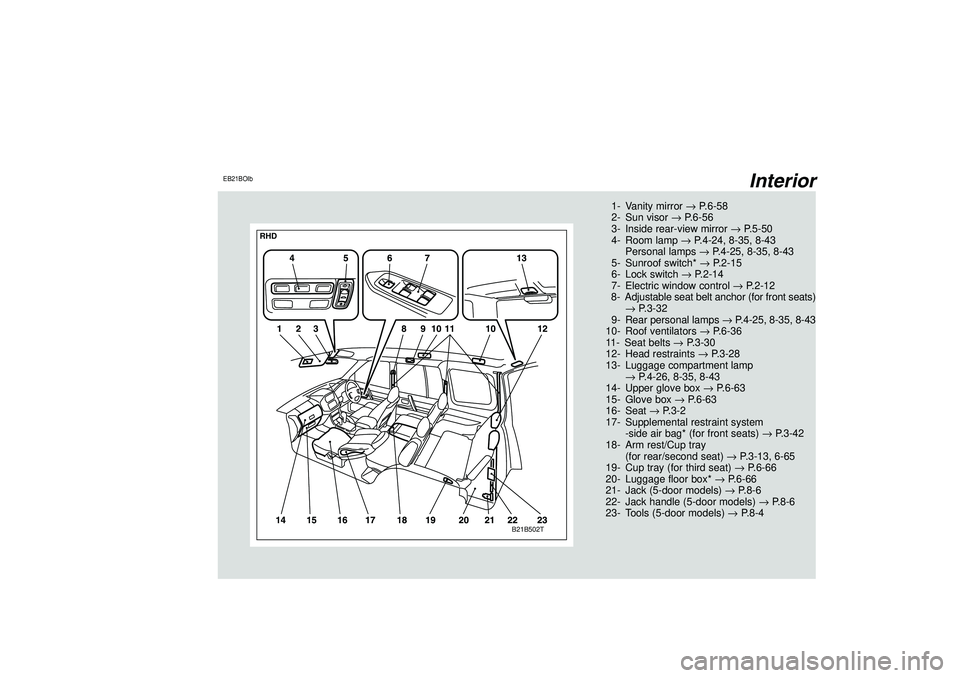

Interior
EB21BOIb
B21B502T
RHD
1- Vanity mirror→P.6-58
2- Sun visor→P.6-56
3- Inside rear-view mirror→P.5-50
4- Room lamp→P.4-24, 8-35, 8-43
Personal lamps→P.4-25, 8-35, 8-43
5- Sunroof switch*→P.2-15
6- Lock switch→P.2-14
7- Electric window control→P.2-12
8- Adjustable seat belt anchor (for front seats)
→P.3-32
9- Rear personal lamps→P.4-25, 8-35, 8-43
10- Roof ventilators→P.6-36
11- Seat belts→P.3-30
12- Head restraints→P.3-28
13- Luggage compartment lamp
→P.4-26, 8-35, 8-43
14- Upper glove box→P.6-63
15- Glove box→P.6-63
16- Seat→P.3-2
17- Supplemental restraint system
-side air bag* (for front seats)→P.3-42
18- Arm rest/Cup tray
(for rear/second seat)→P.3-13, 6-65
19- Cup tray (for third seat)→P.6-66
20- Luggage floor box*→P.6-66
21- Jack (5-door models)→P.8-6
22- Jack handle (5-door models)→P.8-6
23- Tools (5-door models)→P.8-4
Div:
Out put date:

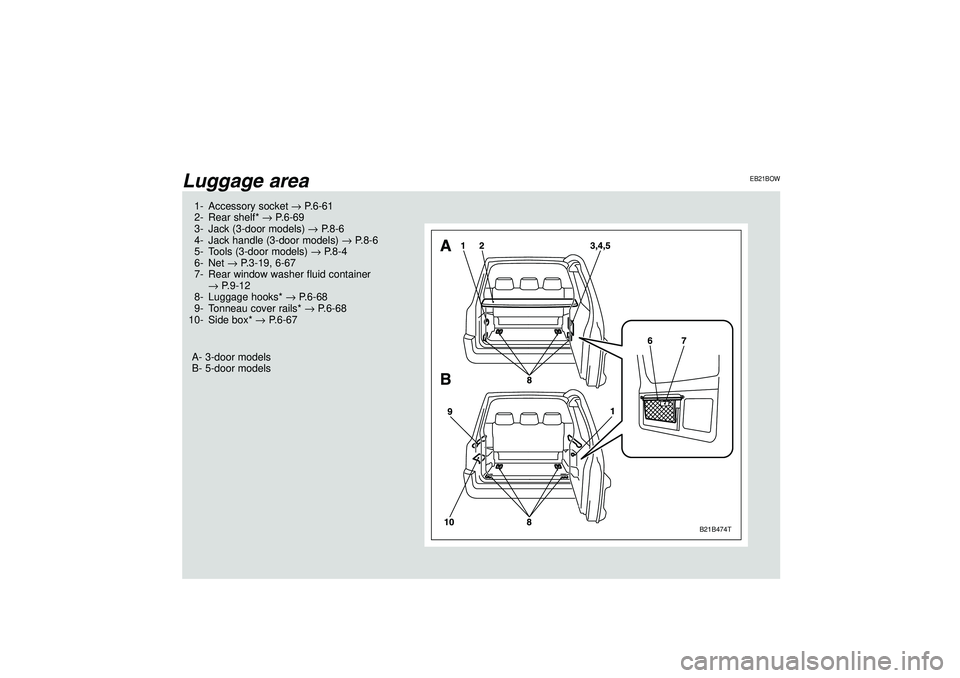

Luggage area
EB21BOW
B21B474T
1- Accessory socket→P.6-61
2- Rear shelf*→P.6-69
3- Jack (3-door models)→P.8-6
4- Jack handle (3-door models)→P.8-6
5- Tools (3-door models)→P.8-4
6- Net→P.3-19, 6-67
7- Rear window washer fluid container
→P.9-12
8- Luggage hooks*→P.6-68
9- Tonneau cover rails*→P.6-68
10- Side box*→P.6-67
A- 3-door models
B- 5-door modelsDiv:
Out put date:

Exterior
EB21DOIb
B21D219T
1- Engine compartment→P.10-15
Bonnet→P.2-9
2- Windscreen wiper and washer→P.4-17
3- Sunroof*→P.2-15
4- Outside rear-view mirrors→P.5-50
5- Electric window control→P.2-12
6- Locking and unlocking→P.2-4
Keyless entry system*→P.2-5
7- Antenna→P.6-35
8- Headlamps→P.4-14, 8-34, 8-35
9- Front fog lamps*→P.4-22, 8-34, 8-38
10- Turn-signal lamps
→P.4-15, 8-34, 8-37, 8-41
11- Position lamps→P.4-14, 8-34, 8-36
12- Side step lamps*→P.2-7, 8-34, 8-39
13- High-mounted stop lamp→P.8-35, 8-42
14- Backdoor→P.2-10
15- Rear window wiper and washer
→P.4-19
16- Rear fog lamp (LHD only)
→P.4-22, 8-35, 8-41
17- Number plate lamps→P.8-35, 8-42
18- Spare wheel→P.8-11
19- Stop and tail lamps→P.8-35, 8-41
20- Rear fog lamp (RHD only)
→P.4-22, 8-35, 8-41
21- Reversing lamps→P.8-35, 8-41
22- Tyre inflation pressure→P.9-14
Changing tyres→P.8-13
Tyre rotation→P.9-15
Tyre chains→P.9-16
23- Fuel tank filler→P.5-4
Div:
Out put date:

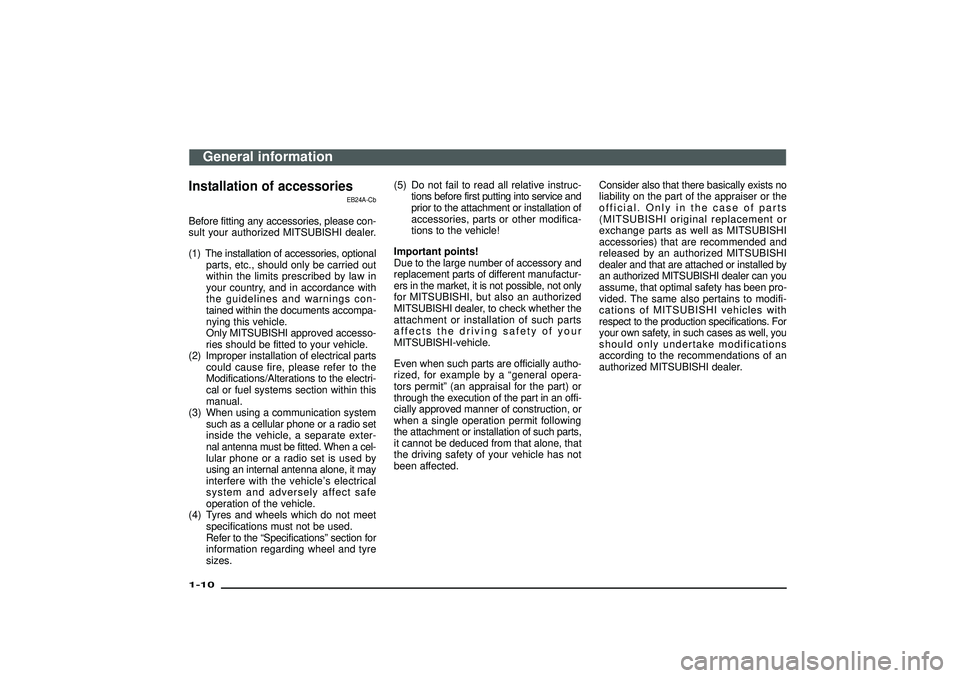

Installation of accessories
EB24A-Cb
Before fitting any accessories, please con-
sult your authorized MITSUBISHI dealer.
(1) The installation of accessories, optional
parts, etc., should only be carried out
within the limits prescribed by law in
your country, and in accordance with
the guidelines and warnings con-
tained within the documents accompa-
nying this vehicle.
Only MITSUBISHI approved accesso-
ries should be fitted to your vehicle.
(2) Improper installation of electrical parts
could cause fire, please refer to the
Modifications/Alterations to the electri-
cal or fuel systems section within this
manual.
(3) When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate exter-
nal antenna must be fitted. When a cel-
lular phone or a radio set is used by
using an internal antenna alone, it may
interfere with the vehicle’s electrical
system and adversely affect safe
operation of the vehicle.
(4) Tyres and wheels which do not meet
specifications must not be used.
Refer to the“Specifications”section for
information regarding wheel and tyre
sizes.(5) Do not fail to read all relative instruc-
tions before first putting into service and
prior to the attachment or installation of
accessories, parts or other modifica-
tions to the vehicle!
Important points!
Due to the large number of accessory and
replacement parts of different manufactur-
ers in the market, it is not possible, not only
for MITSUBISHI, but also an authorized
MITSUBISHI dealer, to check whether the
attachment or installation of such parts
affects the driving safety of your
MITSUBISHI-vehicle.
Even when such parts are officially autho-
rized, for example by a“general opera-
tors permit”(an appraisal for the part) or
through the execution of the part in an offi-
cially approved manner of construction, or
when a single operation permit following
the attachment or installation of such parts,
it cannot be deduced from that alone, that
the driving safety of your vehicle has not
been affected.Consider also that there basically exists no
liability on the part of the appraiser or the
official. Only in the case of parts
(MITSUBISHI original replacement or
exchange parts as well as MITSUBISHI
accessories) that are recommended and
released by an authorized MITSUBISHI
dealer and that are attached or installed by
an authorized MITSUBISHI dealer can you
assume, that optimal safety has been pro-
vided. The same also pertains to modifi-
cations of MITSUBISHI vehicles with
respect to the production specifications. For
your own safety, in such cases as well, you
should only undertake modifications
according to the recommendations of an
authorized MITSUBISHI dealer.
