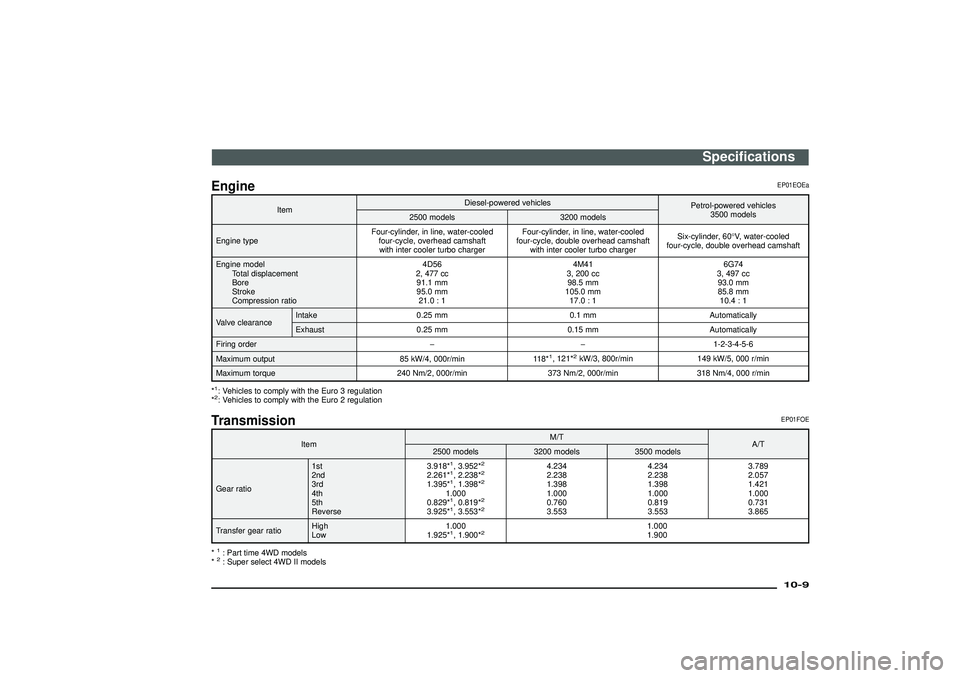

Engine
EP01EOEa
ItemDiesel-powered vehicles
Petrol-powered vehicles
3500 models
2500 models 3200 models
Engine typeFour-cylinder, in line, water-cooled
four-cycle, overhead camshaft
with inter cooler turbo chargerFour-cylinder, in line, water-cooled
four-cycle, double overhead camshaft
with inter cooler turbo chargerSix-cylinder, 60°V, water-cooled
four-cycle, double overhead camshaft
Engine model
Total displacement
Bore
Stroke
Compression ratio4D56
2, 477 cc
91.1 mm
95.0 mm
21.0 : 14M41
3, 200 cc
98.5 mm
105.0 mm
17.0 : 16G74
3, 497 cc
93.0 mm
85.8 mm
10.4 : 1
Valve clearanceIntake 0.25 mm 0.1 mm Automatically
Exhaust 0.25 mm 0.15 mm Automatically
Firing order−−1-2-3-4-5-6
Maximum output 85 kW/4, 000r/min 118*
1, 121*
2kW/3, 800r/min 149 kW/5, 000 r/min
Maximum torque 240 Nm/2, 000r/min 373 Nm/2, 000r/min 318 Nm/4, 000 r/min
*
1: Vehicles to comply with the Euro 3 regulation
*2: Vehicles to comply with the Euro 2 regulationTransmission
EP01FOE
ItemM/T
A/T
2500 models 3200 models 3500 models
Gear ratio1st
2nd
3rd
4th
5th
Reverse3.918*
1, 3.952*
2
2.261*
1, 2.238*
2
1.395*
1, 1.398*
2
1.000
0.829*1, 0.819*
2
3.925*
1, 3.553*
2
4.234
2.238
1.398
1.000
0.760
3.5534.234
2.238
1.398
1.000
0.819
3.5533.789
2.057
1.421
1.000
0.731
3.865
Transfer gear ratioHigh
Low1.000
1.925*
1, 1.900*
2
1.000
1.900
*
1: Part time 4WD models
*2: Super select 4WD II models
Specifications
10-9
