jacking points MITSUBISHI SHOGUN 2003 Owner's Manual (in English)

N22A200A

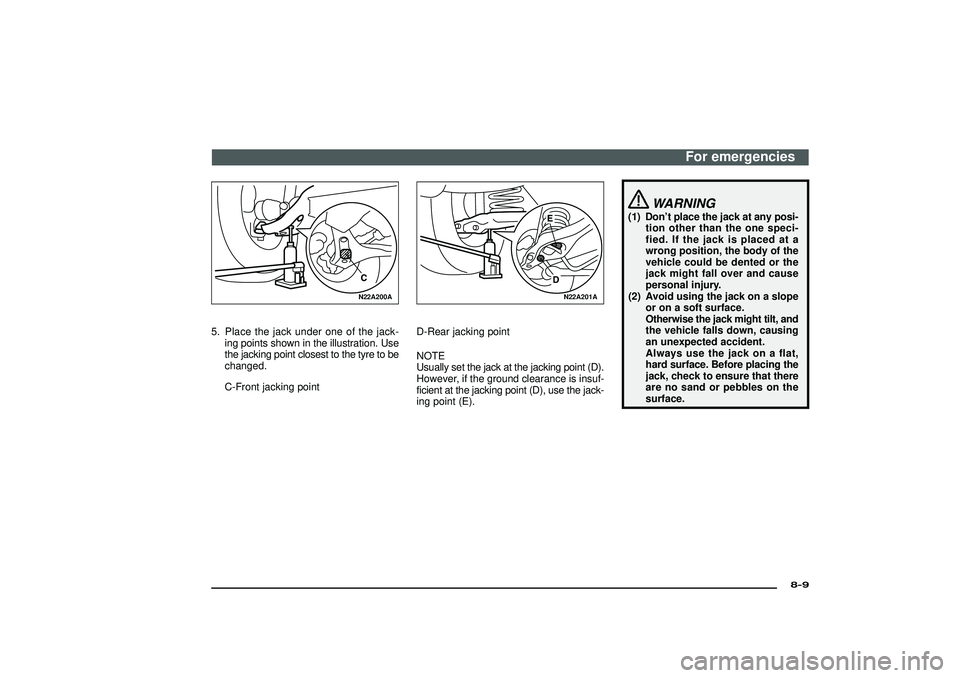

5. Place the jack under one of the jack-
ing points shown in the illustration. Use
the jacking point closest to the tyre to be
changed.
C-Front jacking point
N22A201A
D-Rear jacking point
NOTE
Usually set the jack at the jacking point (D).
However, if the ground clearance is insuf-
ficient at the jacking point (D), use the jack-
ing point (E).
WARNING
(1) Don’t place the jack at any posi-
tion other than the one speci-
fied. If the jack is placed at a
wrong position, the body of the
vehicle could be dented or the
jack might fall over and cause
personal injury.
(2) Avoid using the jack on a slope
or on a soft surface.
Otherwise the jack might tilt, and
the vehicle falls down, causing
an unexpected accident.
Always use the jack on a flat,
hard surface. Before placing the
jack, check to ensure that there
are no sand or pebbles on the
surface.
For emergencies
8-9
