keyless MITSUBISHI SHOGUN 2003 Owner's Manual (in English)

Exterior
EB21DOIb
B21D219T
1- Engine compartment→P.10-15
Bonnet→P.2-9
2- Windscreen wiper and washer→P.4-17
3- Sunroof*→P.2-15
4- Outside rear-view mirrors→P.5-50
5- Electric window control→P.2-12
6- Locking and unlocking→P.2-4
Keyless entry system*→P.2-5
7- Antenna→P.6-35
8- Headlamps→P.4-14, 8-34, 8-35
9- Front fog lamps*→P.4-22, 8-34, 8-38
10- Turn-signal lamps
→P.4-15, 8-34, 8-37, 8-41
11- Position lamps→P.4-14, 8-34, 8-36
12- Side step lamps*→P.2-7, 8-34, 8-39
13- High-mounted stop lamp→P.8-35, 8-42
14- Backdoor→P.2-10
15- Rear window wiper and washer
→P.4-19
16- Rear fog lamp (LHD only)
→P.4-22, 8-35, 8-41
17- Number plate lamps→P.8-35, 8-42
18- Spare wheel→P.8-11
19- Stop and tail lamps→P.8-35, 8-41
20- Rear fog lamp (RHD only)
→P.4-22, 8-35, 8-41
21- Reversing lamps→P.8-35, 8-41
22- Tyre inflation pressure→P.9-14
Changing tyres→P.8-13
Tyre rotation→P.9-15
Tyre chains→P.9-16
23- Fuel tank filler→P.5-4
Div:
Out put date:

Locking and unlocking
Keys .............................................................. 2- 2
Electronic immobilizer
(Anti-theft starting system) ..................... 2- 2
Doors ............................................................. 2- 4
Keyless entry system .................................. 2- 5
“Child-protection” rear doors
(5-door models) ........................................ 2- 6
Side step lamp ............................................. 2- 7
Central door locks ....................................... 2- 8
Bonnet ............................................................ 2- 9
Backdoor ....................................................... 2-10
Electric window control................................ 2-12
Rear side/quarter window ............................ 2-15
Sunroof .......................................................... 2-15
Div:
Out put date:

F12A261A
To lock the rear doors
(5-door models)Set the inside lock knob (1) to the locked
position (so that the red mark cannot be
seen), and close the door (2).
CAUTION
(1) Make sure the doors are closed:
driving with doors incom-
pletely closed is very danger-
ous.
(2) Never leave children in the
vehicle unattended.
(3) Be careful not to lock the doors
while the key is inside the
vehicle.
F12D030A
Keyless entry system*
EF11B-Xa
Press the remote control switch, and all
doors (including the backdoor) will be
locked or unlocked as desired.Operation of all doors
(including the backdoor)To lock
Press the LOCK switch, and all doors
(including the backdoor) will be locked.
When they are locked with the room lamp
at the [•] position, the room lamp and the
turn-signal lamps blink twice.To unlock
Press the UNLOCK switch, and all doors
(including the backdoor) will be unlocked.
When unlocked with the room lamp at the
[•] position, the room lamp will be turned on
for approximately 15 seconds and
turn-signal lamps will blink 4 times.
Locking and unlocking
2-5
Div:
Out put date:

NOTE
(1) The confirmation function (this indi-
cates locking or unlocking of the doors
and backdoor with the flash of the turn-
signal lamps) can be deactivated. For
further information, please contact your
authorized MITSUBISHI dealer.
(2) The keyless entry system does not
operate if the key is left in the key cyl-
inder, or any door (including the
backdoor) is open.
(3) If the UNLOCK switch is pressed and
no door is opened within approxi-
mately 30 seconds: relocking will auto-
matically occur.
(4) The remote control switch will oper-
ate within about 4 m from the vehicle.
However, the operating range of the
remote control switch may change if
the vehicle is located near a TV trans-
mitting tower, power station, or radio
broadcasting station.
(5) If the doors cannot be locked or
unlocked after pressing the remote
control switch, the battery inside the
switch may need to be replaced.
Replace the battery at your autho-
rized MITSUBISHI dealer.(6) If your remote control switch is lost,
please contact your authorized MIT-
SUBISHI dealer for a replacement
remote control switch.
(7) If you wish to add a remote control
switch, please contact your autho-
rized MITSUBISHI dealer. A maxi-
mum of 4 remote control switches are
available for your vehicle.
CAUTION
(1) Do not leave the remote con-
trol switch where it may be
exposed to heat caused by the
direct rays of the sun.
(2) The remote control switch is a
precision electronic device.
Therefore, pay attention to the
following:
•Avoid knocking the remote
control switch hard against
other objects or dropping it.
•Keep the remote control switch
dry.
•Do not disassemble the remote
control switch.
F12C038A
“Child-protection”rear doors
(5-door models)
EF12C-O
1- Lock
2- Free
Child protection helps prevent doors from
being opened accidentally, especially when
small children are in the rear seat.
A lever is provided on each rear door.
If the lever is set to the locked position, the
rear doors cannot be opened using the
inside handle.
To open the rear door while the child pro-
tection is in use, pull the outside door
handle.
If the lever is set to the“Free”position, the
child protection mechanism does not func-
tion.
Locking and unlocking
2-6Div:
Out put date:

CAUTION
When driving with a child in the rear
seat, please use the child protec-
tion to prevent accidental door open-
ing which may cause an accident.
F36A002A
Side step lamp*
EF36A-B
The lamps (A) come on to illuminate the
side step and road surface when enter-
ing and exiting the vehicle.
These lamps turn on/off as follows:
1. When all of the doors (including the
backdoor) are unlocked using the key-
less entry system, or one of the front
doors (driver and passenger side) and
the backdoor using the key, the lamps
come on for 15 seconds.
2. When any door or the backdoor is
opened, the lamp comes on for about 2
minutes.
If all of the doors (including the
backdoor) are closed while the lamps
are on, the lamps go off 30 seconds
later.NOTE
If any door or the backdoor is opened while
the lamps are on, the lamps stay on for an
additional 2 minutes.
The lamps go off immediately if :
•All of the doors (including the backdoor)
are locked using the keyless entry sys-
tem, or one of the front doors (driver and
passenger side) and the back door using
the key.
•The ignition switch is turned to the“ON”
position.
Locking and unlocking
2-7
Div:
Out put date:

F13A257A
To closeUnlatch the support bar and clip it in its
holder.
Slowly lower the bonnet to the position 30
cm above the closed position, then let it
drop.
NOTE
(1) If this does not close the bonnet,
release it from a slightly higher posi-
tion.
(2) Do not press down the bonnet hard
with a hand as it may damage the bon-
net.
CAUTION
(1) Be careful that hands or fin-
gers are not trapped when clos-
ing the bonnet.
(2) Before driving, make sure that
the bonnet is securely locked.
An incompletely locked bonnet
can suddenly open while driv-
ing. This can be extremely dan-
gerous.
Backdoor
EF05C-W
WARNING
It is dangerous to drive with the back-
door open since carbon monoxide
(CO) gas can enter the cabin.
You cannot see or smell CO. It can
cause unconsciousness and even
death.
CAUTION
Do not stand behind the exhaust pipe
when loading and unloading lug-
gage. A heat from the exhaust could
lead to burns.
NOTE
Locking/unlocking of the front doors (driver
and passenger side) by using the key,
inside lock knob (driver side) or keyless
entry system (if so equipped) also
locks/unlocks the backdoor.
Locking and unlocking
2-10Div:
Out put date:

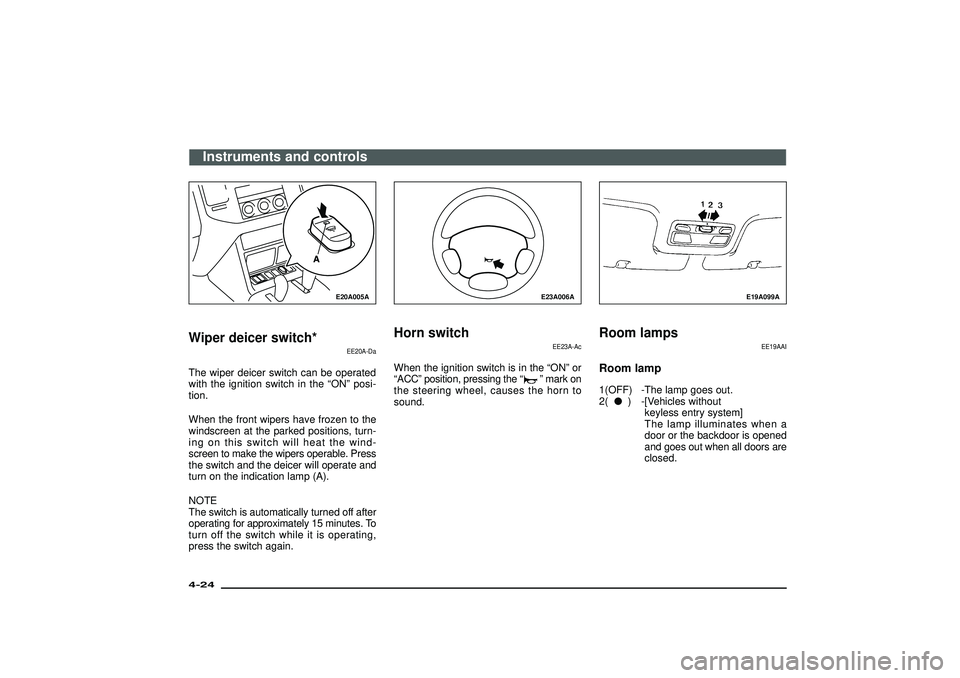

E20A005A
Wiper deicer switch*
EE20A-Da
The wiper deicer switch can be operated
with the ignition switch in the“ON”posi-
tion.
When the front wipers have frozen to the
windscreen at the parked positions, turn-
ing on this switch will heat the wind-
screen to make the wipers operable. Press
the switch and the deicer will operate and
turn on the indication lamp (A).
NOTE
The switch is automatically turned off after
operating for approximately 15 minutes. To
turn off the switch while it is operating,
press the switch again.
E23A006A
Horn switch
EE23A-Ac
When the ignition switch is in the“ON”or
“ACC”position, pressing the“
”mark on
the steering wheel, causes the horn to
sound.
E19A099A
Room lamps
EE19AAI
Room lamp1(OFF) -The lamp goes out.
2(
) -[Vehicles without
keyless entry system]
The lamp illuminates when a
door or the backdoor is opened
and goes out when all doors are
closed.
Instruments and controls
4-24Div:
Out put date:

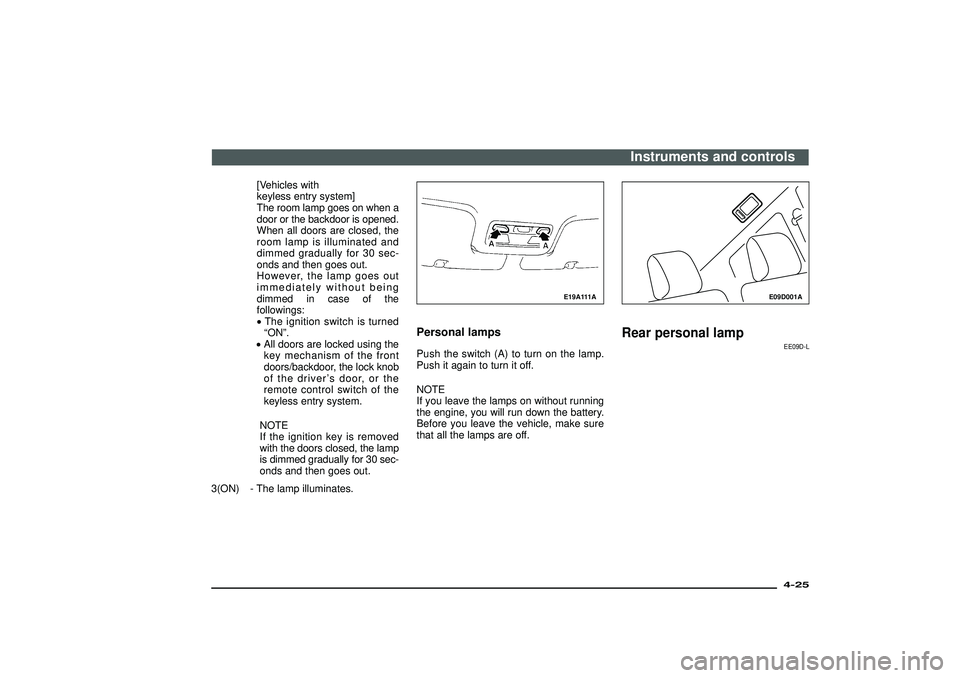

[Vehicles with
keyless entry system]
The room lamp goes on when a
door or the backdoor is opened.
When all doors are closed, the
room lamp is illuminated and
dimmed gradually for 30 sec-
onds and then goes out.
However, the lamp goes out
immediately without being
dimmed in case of the
followings:
•The ignition switch is turned
“ON”.
•All doors are locked using the
key mechanism of the front
doors/backdoor, the lock knob
of the driver’s door, or the
remote control switch of the
keyless entry system.
NOTE
If the ignition key is removed
with the doors closed, the lamp
is dimmed gradually for 30 sec-
onds and then goes out.
3(ON) - The lamp illuminates.
E19A111A
Personal lampsPush the switch (A) to turn on the lamp.
Push it again to turn it off.
NOTE
If you leave the lamps on without running
the engine, you will run down the battery.
Before you leave the vehicle, make sure
that all the lamps are off.
E09D001A
Rear personal lamp
EE09D-L
Instruments and controls
4-25
Div:
Out put date:

I21A005A
12
3
4
Ignition switch
EI21AAZc
1- The engine is stopped and the steer-
ing wheel locked. The key can be
inserted and removed only when the
switch is in this position.
2- The engine is stopped, but the radio,
cigarette lighter and other electrical
devices can be operated.
3- The engine is running, and all the vehi-
cle’s electrical devices can be oper-
ated.
4- The starter motor operates. After the
engine has started, release the key and
it will automatically return to the“ON”
position.
I21A058A
A/TNOTE
(1) For vehicles with a manual transmis-
sion, when removing the key, push the
key at the“ACC”position and keep it
depressed until it is turned to the
“LOCK”position, and remove it.
For vehicles with an automatic trans-
mission, when removing the key, first
set the selector lever to the“P”(PARK)
position, and then turn the key to
“LOCK”and remove it.
I21A057A
M/T(2) This vehicle is equipped with ignition
switch illumination.
The ignition switch illumination comes
on while the driver’s door is opened
and remains on for approximately 30
seconds after the driver door is closed.
However, it will go off even before a
lapse of 30 seconds if the ignition
switch is set to“ON”position.
[Vehicle with keyless entry system]
When you get out of the vehicle and
remove the ignition key, it will be illu-
minated for about 30 seconds.
Starting and driving
5-11
Div:
Out put date:

Accessory boxes ................................................ 6-62
Accessory socket ............................................... 6-61
Additional equipment ......................................... 9-21
Air purifier ........................................................... 6-55
Antenna .............................................................. 6-35
Anti-lock brake system (ABS) ............................ 5-45
Armrest .............................................................. 3-13
Ashtray ............................................................... 6-60
Audio system anti-theft feature ......................... 6-32
Automatic air conditioning .................................. 6-43
Automatic transmission fluid ................................ 9-4
Automatic transmissionINVECS-II Sport Mode 5A/T(Intelligent & Innovative
Vehicle Electronic Control SystemII ) ........... 5-17
Auto-speed (cruise) control ................................ 5-53
Backdoor ............................................................ 2-10
Battery ................................................................. 9-6
Bleeding the fuel system (diesel-powered vehicles only) ..................... 8-23
Bonnet .................................................................. 2-9
Brake fluid ............................................................ 9-8
Brake pedal free play ......................................... 9-18
Braking ............................................................... 5-44
Capacities ........................................................ 10-16
Catalytic converter ............................................... 5-6
Cautions on handling of 4WD vehicles .............. 5-42
CD (Compact-Disc) player ................................. 6-30
Central door locks ................................................ 2-8
Changing a fuse ................................................. 8-33
Chassis number ................................................. 10-2
“Child-protection” rear doors (5-door models) ..... 2-6
Child restraint ..................................................... 3-33
Cigarette lighter .................................................. 6-59
Cleaning the inside of your vehicle ...................... 7-2
Cleaning the outside of your vehicle .................... 7-4
Clutch fluid ......................................................... 9-10
Clutch pedal free play ........................................ 9-18
Combination head lamps, dipper and turn signal switch ................................................... 4-14
Correct 4-wheel drive operation ......................... 5-38
Cup tray ............................................................. 6-65 Dimensions ........................................................ 10-6
Doors ................................................................... 2-4
Driving and alcohol ............................................ 1-13
Economical driving ............................................... 5-7
Electric remote-controlled outside
rear-view mirrors ............................................ 5-51
Electric window control ...................................... 2-12
Electrical system .............................................. 10-10
Electronic immobilizer (Anti-theft starting system) ............................... 2-2
Emergency starting ............................................ 8-25
Engine ................................................................ 10-9
Engine coolant ..................................................... 9-5
Engine number ................................................... 10-2
Engine oil ............................................................. 9-2
Engine overheating ............................................ 8-21
Exterior and interior lamp operation ................... 9-18
Front fog lamp switch ......................................... 4-22
Front heater/ Manual air conditioning .................................. 6-36
Front seat ............................................................. 3-6
Fuel consumption ............................................. 10-12
Fuel gauge ........................................................... 4-4
Fuel, engine coolant, oil and exhaust gas leakage ......................... 9-17
Fuses ................................................................. 8-28
Genuine parts .................................................... 1-12
Glove box ........................................................... 6-63
Handling of cassette tapes ................................ 6-33
Hazard warning flasher switch ........................... 4-20
Headlamp levelling switch ................................. 4-16
Headlamps washer switch ................................. 4-19
Head restraints ................................................... 3-28
Heated seats ...................................................... 3-10
Hinges and latches lubrication ........................... 9-19
Horn switch ........................................................ 4-24
How to set a CD autochanger ........................... 6-31 If a tyre is punctured .......................................... 8-13
If the vehicle breaks down ................................... 8-2
Ignition switch ..................................................... 5-11
Indication and warning lamps .............................. 4-6
Inside rear-view mirror ....................................... 5-50
Installation of accessories .................................. 1-10
Installation position for warning triangle ............. 6-67
Instruments .......................................................... 4-2
Jack and jack handle ........................................... 8-5
Jacking up the vehicle ......................................... 8-8
Keyless entry system ........................................... 2-5
Keys ..................................................................... 2-2
Limited-slip differential ....................................... 5-48
Luggage compartment lamp .............................. 4-26
Luggage floor box .............................................. 6-66
Making a flat seat ............................................... 3-26
Making a luggage area ...................................... 3-14
Manual outside rear-view mirrors ...................... 5-51
Manual transmission .......................................... 5-15
Meter, gauge and indication/
warning lamp operation .................................. 9-18
MITSUBISHI active stability & traction control system (M-ASTC) .................. 5-57
Modifications/alterations to the electric or fuel systems ................................... 1-11
Multi centre display ............................................ 4-27
Notes regarding diesel fuel .............................. 10-14
Odometer/Tripmeter ............................................. 4-3
Operation under adverse driving conditions ......................................................... 8-2
Other specifications .......................................... 10-11
Outside rear-view mirror .................................... 5-50
Alphabetical index
1
0-18Div:
Out put date:
