AUX MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

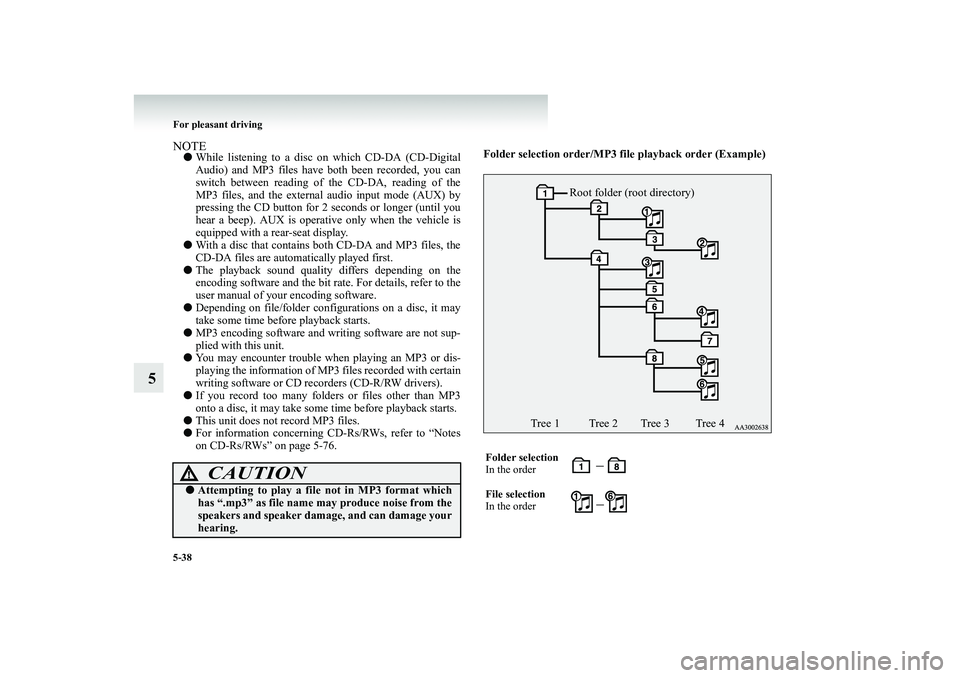

5-38 For pleasant driving
5
NOTE●
While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have both been recorded, you can switch between reading of
the CD-DA, reading of the
MP3 files, and the external audio input mode (AUX) bypressing the CD button for 2 seconds or longer (until you hear a beep). AUX is operativ
e only when the vehicle is
equipped with a rear-seat display.
●
With a disc that contains both CD-DA and MP3 files, the CD-DA files are automa
tically played first.
●
The playback sound quality differs depending on the encoding software and the bit rate. For details, refer to the user manual of your encoding software.
●
Depending on file/folder configurations on a disc, it may take some time before playback starts.
●
MP3 encoding software and writing software are not sup- plied with this unit.
●
You may encounter trouble wh
en playing an MP3 or dis-
playing the information of MP
3 files recorded with certain
writing software or CD reco
rders (CD-R/RW drivers).
●
If you record too many folders or files other than MP3 onto a disc, it may take some time before playback starts.
●
This unit does not record MP3 files.
●
For information concerning CD-Rs/RWs, refer to “Notes on CD-Rs/RWs” on page 5-76.
Folder selection order/MP3 file
playback order (Example)


CAUTION
!●
Attempting to play a file not in MP3 format which has “.mp3” as file name may produce noise from the speakers and speaker dam
age, and can damage your
hearing.
Folder selection In the order File selection In the order
Root folder (root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK-BK2008E1ENUK.en-uk-Section8.fm Page
38 Wednesday, January 9, 2008 4:41 PM

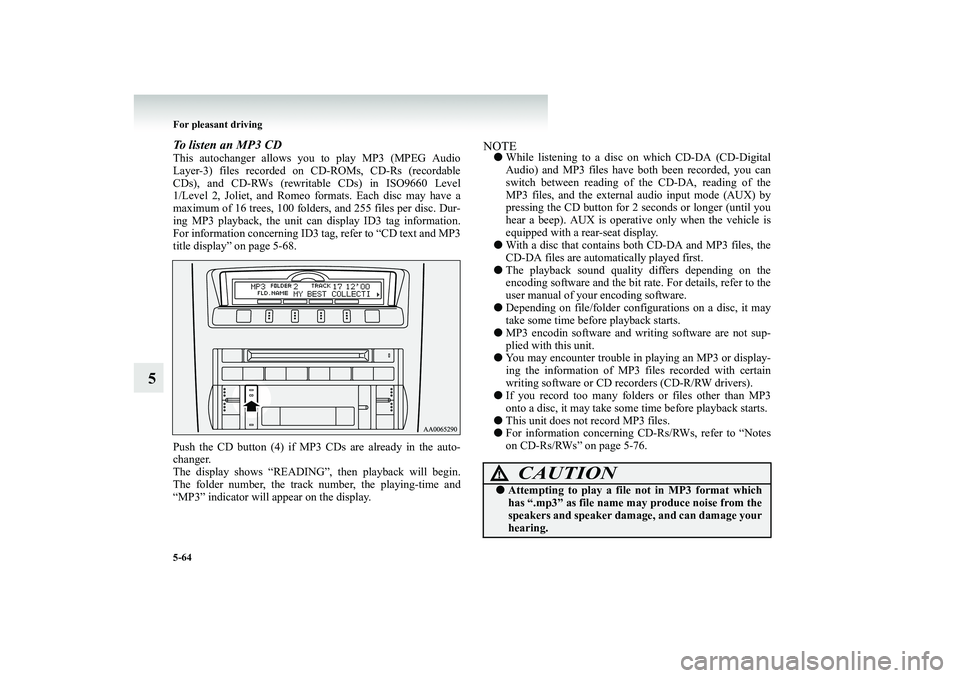

5-64 For pleasant driving
5
To listen an MP3 CDThis autochanger allows you to play MP3 (MPEG Audio Layer-3) files recorded on
CD-ROMs, CD-Rs (recordable
CDs), and CD-RWs (rewritabl
e CDs) in ISO9660 Level
1/Level 2, Joliet, and Romeo formats. Each disc may have amaximum of 16 trees, 100 folders, and 255 files per disc. Dur- ing MP3 playback, the unit can display ID3 tag information. For information concerning ID3 tag, refer to “CD text and MP3title display” on page 5-68. Push the CD button (4) if MP3
CDs are already in the auto-
changer.The display shows “READING”,
then playback will begin.
The folder number, the track
number, the playing-time and
“MP3” indicator will ap
pear on the display.
NOTE●
While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have
both been recorded, you can
switch between reading of the CD-DA, reading of the MP3 files, and the external audio input mode (AUX) bypressing the CD button for 2 seconds or longer (until you hear a beep). AUX is operat
ive only when the vehicle is
equipped with a rear-seat display.
●
With a disc that contains bo
th CD-DA and MP3 files, the
CD-DA files are automa
tically played first.
●
The playback sound quality differs depending on the encoding software and the bit rate. For details, refer to the user manual of your encoding software.
●
Depending on file/folder configurations on a disc, it may take some time before playback starts.
●
MP3 encodin software and writing software are not sup- plied with this unit.
●
You may encounter trouble in playing an MP3 or display- ing the information of MP3 files recorded with certain writing software or CD recorders (CD-R/RW drivers).
●
If you record too many folders or files other than MP3 onto a disc, it may take some time before playback starts.
●
This unit does not record MP3 files.
●
For information concerning CD
-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-76.
CAUTION
!●
Attempting to play a file not in MP3 format which has “.mp3” as file name may produce noise from the speakers and speaker damage, and can damage yourhearing.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
64 Wednesday, January 9, 2008 4:41 PM
