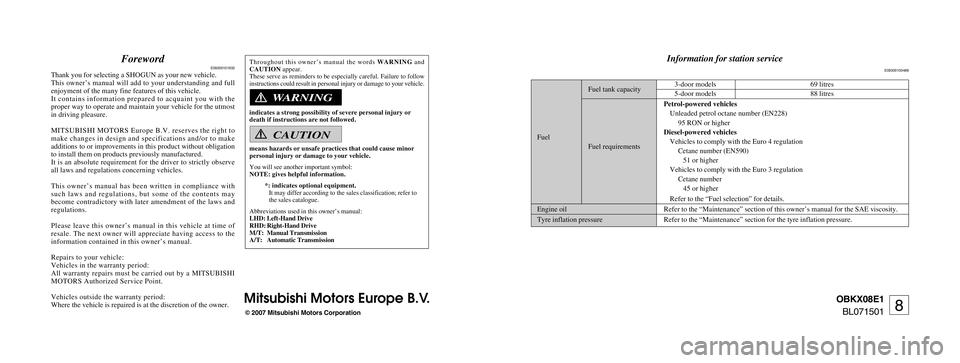

ForewordE09200101932
Thank you for selecting a SHOGUN as your new vehicle.
This owner’s manual will add to your understanding and full
enjoyment of the many fine features of this vehicle.
It contains information prepared to acquaint you with the
proper way to operate and maintain your vehicle for the utmost
in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to
make changes in design and specifications and/or to make
additions to or improvements in this product without obligation
to install them on products previously manufactured.
It is an absolute requirement for the driver to strictly observe
all laws and regulations concerning vehicles.
This owner’s manual has been written in compliance with
such laws and regulations, but some of the contents may
become contradictory with later amendment of the laws and
regulations.
Please leave this owner’s manual in this vehicle at time of
resale. The next owner will appreciate having access to the
information contained in this owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI
MOTORS Authorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNINGand
CAUTIONappear.
These serve as reminders to be especially careful. Failure to follow
instructions could result in personal injury or damage to your vehicle.
indicates a strong possibility of severe personal injury or
death if instructions are not followed.
means hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE: gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer to
the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic TransmissionInformation for station service
E09300100486
OBKX08E1
BL071501
8
WARNING
CAUTION
Fuel tank capacity3-door models 69 litres5-door models 88 litres
Petrol-powered vehicles
Unleaded petrol octane number (EN228)
95 RON or higher
FuelDiesel-powered vehicles
Fuel requirementsVehicles to comply with the Euro 4 regulation
Cetane number (EN590)
51 or higher
Vehicles to comply with the Euro 3 regulation
Cetane number
45 or higher
Refer to the “Fuel selection” for details.
Engine oil Refer to the “Maintenance” section of this owner’s manual for the SAE viscosity.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2007 Mitsubishi Motors Corporation
Mitsubishi Motors Europe B.V.
eng_CV_SHOGUN_Pajero08.qxd 26-12-2007 15:55 Page 2
Page 3 of 538

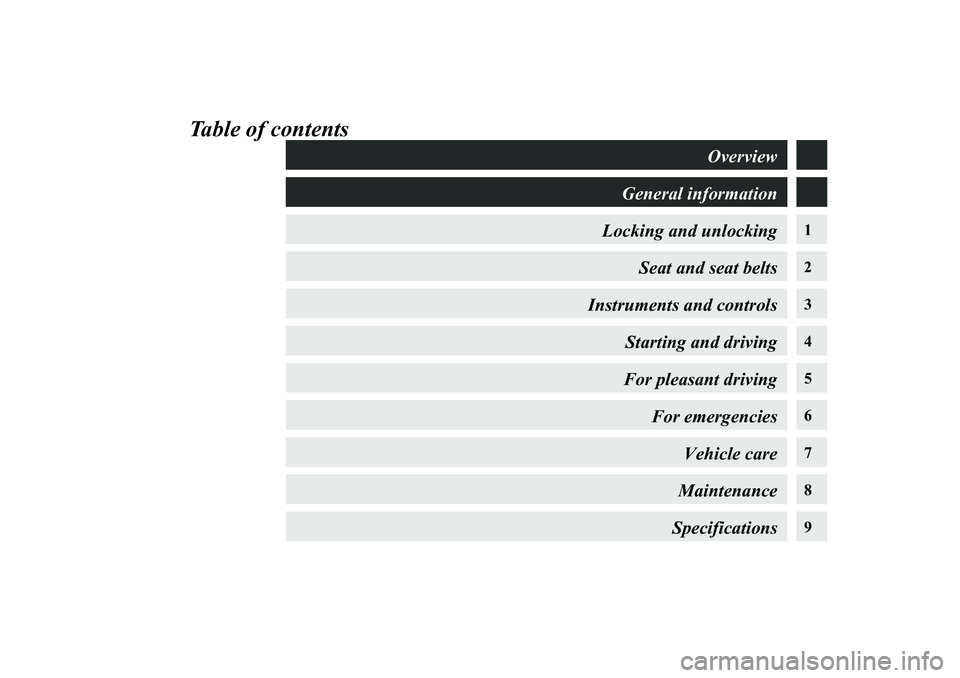

Table of contents
1 23 4 56 7 89
Overview
General information
Locking and unlocking
Seat and seat belts
Instruments and controls
Starting and drivingFor pleasant driving
For emergencies
Vehicle careMaintenance Specifications
BK-BK2008E1ENUK.en-ukTOC.fm Page 1
Wednesday, January 9, 2008 4:20 PM
Page 4 of 538
Overview

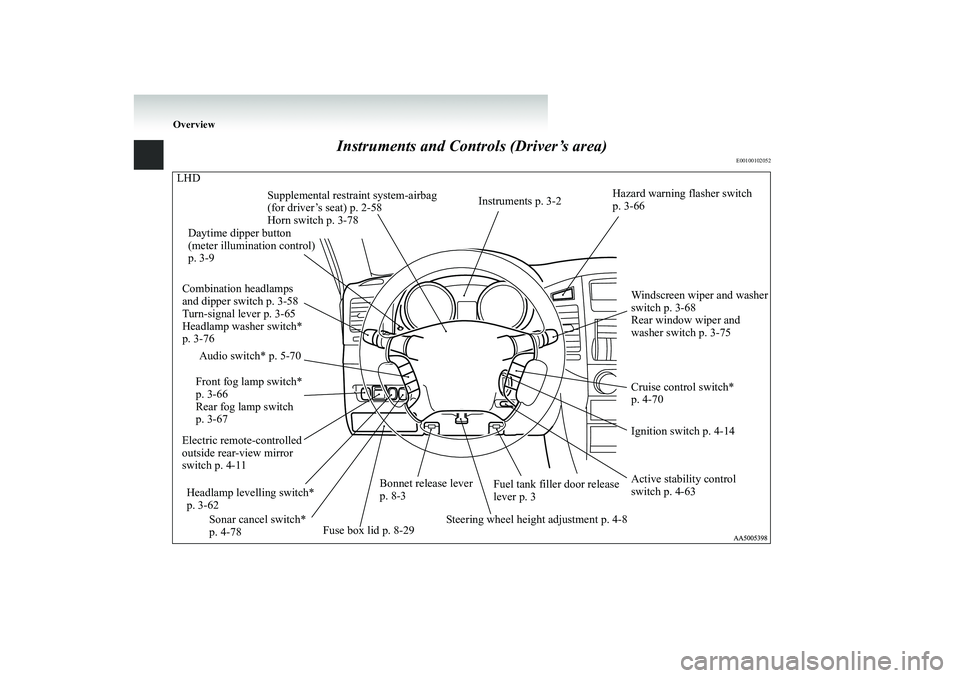

Instruments and Controls (Driver’s area)
E00100102052
Electric remote-controlled outside rear-view mirror switch p. 4-11
Front fog lamp switch* p. 3-66 Rear fog lamp switch p. 3-67
Combination headlamps and dipper switch p. 3-58 Turn-signal lever p. 3-65 Headlamp washer switch* p. 3-76
Supplemental restraint system-airbag (for driver’s seat) p. 2-58 Horn switch p. 3-78
Instruments p. 3-2
Windscreen wiper and washer switch p. 3-68 Rear window wiper and washer switch p. 3-75
Daytime dipper button (meter illumination control) p. 3-9
Cruise control switch* p. 4-70
Fuse box lid p. 8-29
Bonnet release lever p. 8-3
Ignition switch p. 4-14
Fuel tank filler door release lever p. 3
LHD
Hazard warning flasher switch p. 3-66
Active stability control switch p. 4-63
Steering wheel height adjustment p. 4-8
Audio switch* p. 5-70 Sonar cancel switch* p. 4-78
Headlamp levelling switch* p. 3-62
BK-BK2008E1ENUK.en-uk-Section2.fm Page 1 Wednesday, January 9, 2008 4:26 PM
Page 5 of 538
Overview
Electric remote-controlled outside rear-view mirror switch p. 4-11
Combination headlamps and dipper switch p. 3-58Turn-signal lever p. 3-65 Headlamp washer switch* p. 3-76
Supplemental restraint system-airbag (for driver’s seat) p. 2-58 Horn switch p. 3-78
Instruments p. 3-2
Windscreen wiper and washer switch p. 3-68Rear window wiper and washer switch p. 3-75
Daytime dipper button (meter illumination control) p. 3-9
Cruise control switch* p. 4-70 Fuse box lid p. 8-29
Bonnet release lever p. 8-3
Ignition switch p. 4-14
Fuel tank filler door release lever p. 3
Headlamp levelling switch* p. 3-62
Front fog lamp switch* p. 3-66Rear fog lamp switch p. 3-67
RHD
Steering wheel height adjustment p. 4-8
Hazard warning flasher switch p. 3-66 Active stability control switch p. 4-63 Audio switch* p. 5-70 Sonar cancel switch* p. 4-78
BK-BK2008E1ENUK.en-uk-Section2.fm Page 2 Wednesday, January 9, 2008 4:26 PM
Page 6 of 538
Overview
Instruments and Contro
ls (Instrument panel)
E00100102788
Supplemental restraint system-airbag (for front passenger’s seat) p. 2-58
Side ventilators p. 5-2
Rear window demister switch p. 3-77 Armrest (for front seats) p. 2-10 Centre console box p. 5-94Accessory socket p. 5-83 Front automatic air conditioning p. 5-4
Centre information display p. 3-17
Cigarette lighter* p. 5-82 Accessory socket* p. 5-83
Transfer shift lever p. 4-34
Rear heater*/Rear
air conditioning*
p. 5-15
Cup holder (for front seats) p. 5-99
Floor ventilators* p. 5-2
Audio* p. 5-20, 5-43 Mitsubishi Multi Communication System* Refer to the separate “Mitsubishi Multi Communication System owner’s manual”
Gearshift lever p. 4-23 Selector lever p. 4-25
Rear differential lock switch* p. 4-42
Centre ventilators p. 5-2
Parking brake lever p. 4-6
Heated seat switch* p. 2-12
LHD Centre accessory box* p. 5-96
Front passenger’s airbag OFF indication lamp p. 2-63
Front passenger’s airbag ON-OFF switch p. 2-63 Glove box p. 5-93
BK-BK2008E1ENUK.en-uk-Section2.fm Page 3 Wednesday, January 9, 2008 4:26 PM
Page 7 of 538
Overview

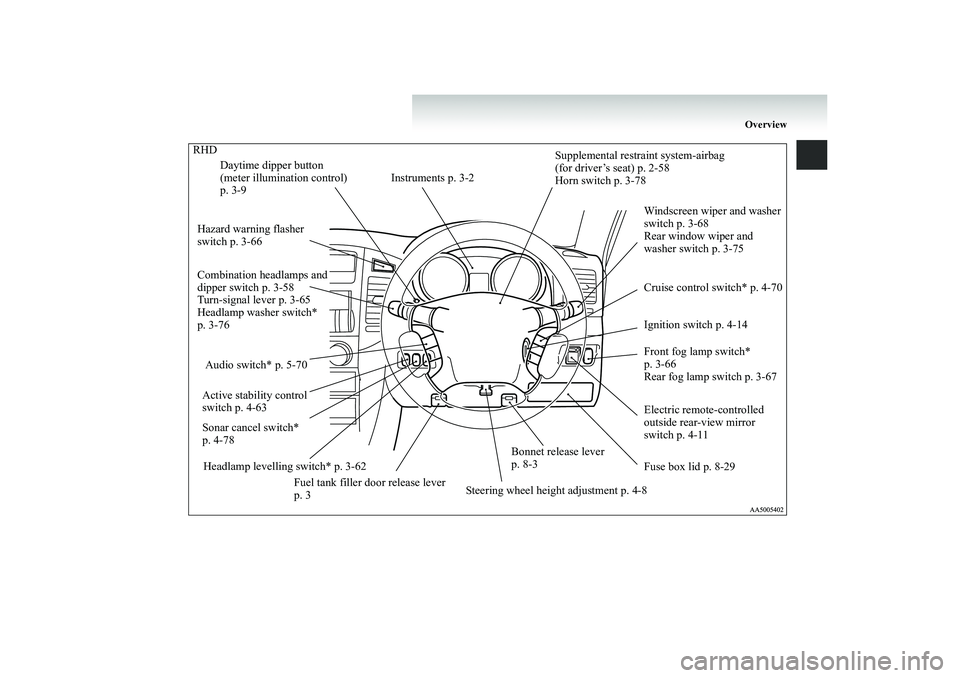

RHD Rear window demister switch p. 3-77
Front automatic air conditioning p. 5-4
Audio* p. 5-20, 5-43 Mitsubishi Multi Communication System*Refer to the separate “Mitsubishi Multi Communication System owner’s manual”
Centre accessory box* p. 5-96 Armrest (for front seats) p.2-10 Centre console box p. 5-94Accessory socket p. 5-83 Rear heater*/Rear air conditioning* p. 5-15 Gearshift lever p. 4-23 Selector lever p. 4-25 Parking brake lever p. 4-6
Transfer shift lever p. 4-34
Cup holder (for front seats) p.5-99
Floor ventilators* p. 5-2
Heated seat switch* p. 2-12
Cigarette lighter* p. 5-82 Accessory socket* p. 5-83
Rear differential lock switch* p. 4-42
Glove box p. 5-93
Supplemental restraint system - airbag (for front passenger’s seat) p. 2-58
Side ventilators p. 5-2
Centre ventilators p. 5-2
Front passenger’s airbag OFF indication lamp p. 2-63
Front passenger’s airbag ON-OFF switch p. 2-63
Centre information display p. 3-17
BK-BK2008E1ENUK.en-uk-Section2.fm Page 4 Wednesday, January 9, 2008 4:26 PM
Page 8 of 538
Overview

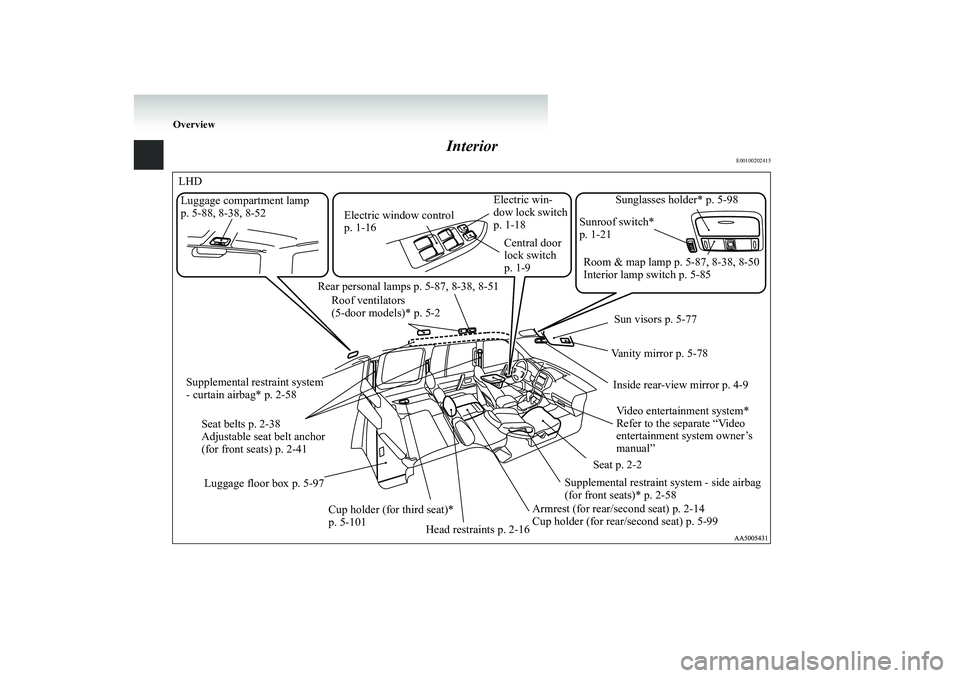

Interior
E00100202415
Sunroof switch* p. 1-21
Rear personal lamps
p. 5-87, 8-38, 8-51
Electric window control p. 1-16
Electric win- dow lock switch p. 1-18
Room & map lamp p. 5-87, 8-38, 8-50 Interior lamp switch p. 5-85
Seat belts p. 2-38 Adjustable seat belt anchor (for front seats) p. 2-41
Cup holder (for third seat)* p. 5-101
Luggage floor box p. 5-97
Vanity mirror p. 5-78 Sun visors p. 5-77 Inside rear-view mirror p. 4-9
Armrest (for rear/second seat) p. 2-14 Cup holder (for rear/second seat) p. 5-99
Seat p. 2-2
Supplemental restraint system - side airbag (for front seats)* p. 2-58
Luggage compartment lamp p. 5-88, 8-38, 8-52
Roof ventilators (5-door models)* p. 5-2
Head restraints p. 2-16
LHD
Central door lock switch p. 1-9
Supplemental restraint system - curtain airbag* p. 2-58
Sunglasses holder* p. 5-98 Video entertainment system* Refer to the separate “Video entertainment system owner’s manual”
BK-BK2008E1ENUK.en-uk-Section2.fm Page 5 Wednesday, January 9, 2008 4:26 PM
Page 9 of 538
Overview

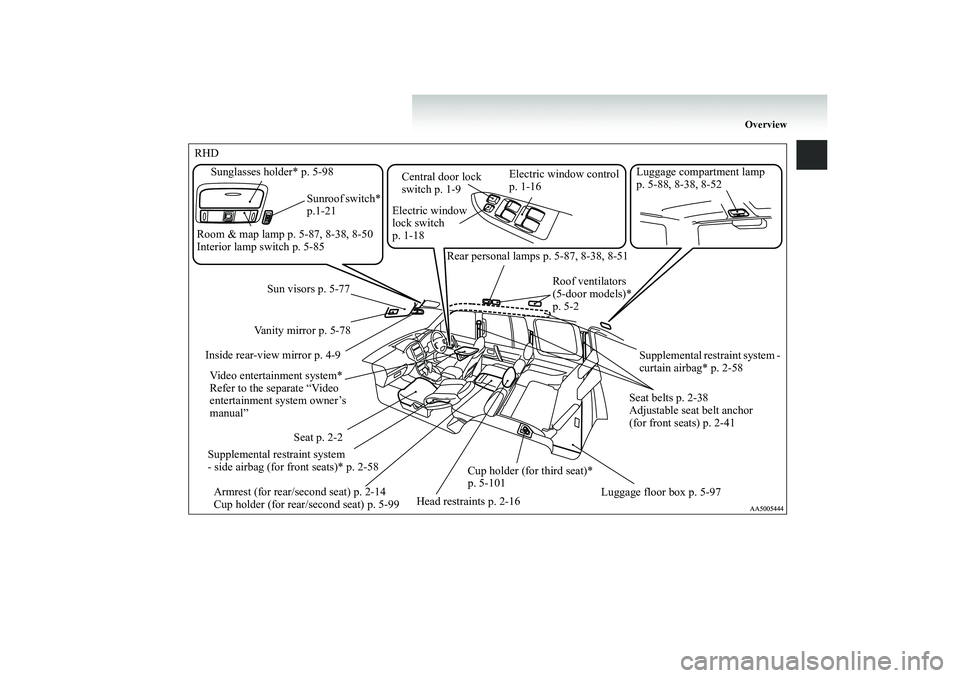

RHD
Electric window control p. 1-16
Electric window lock switch p. 1-18
Luggage compartment lamp p. 5-88, 8-38, 8-52
Central door lock switch p. 1-9
Sunroof switch* p.1-21
Room & map lamp p. 5-87, 8-38, 8-50 Interior lamp switch p. 5-85
Sunglasses holder* p. 5-98
Rear personal lamps p. 5-87, 8-38, 8-51
Seat belts p. 2-38 Adjustable seat belt anchor (for front seats) p. 2-41
Roof ventilators (5-door models)* p. 5-2
Supplemental restraint system - curtain airbag* p. 2-58
Sun visors p. 5-77
Vanity mirror p. 5-78
Inside rear-view mirror p. 4-9
Seat p. 2-2
Supplemental restraint system - side airbag (for front seats)* p. 2-58
Cup holder (for third seat)* p. 5-101
Luggage floor box p. 5-97
Armrest (for rear/sec
ond seat) p. 2-14
Cup holder (for rear/second seat) p. 5-99
Head restraints p. 2-16
Video entertainment system* Refer to the separate “Video entertainment system owner’s manual”
BK-BK2008E1ENUK.en-uk-Section2.fm Page 6 Wednesday, January 9, 2008 4:26 PM
Page 10 of 538
Overview

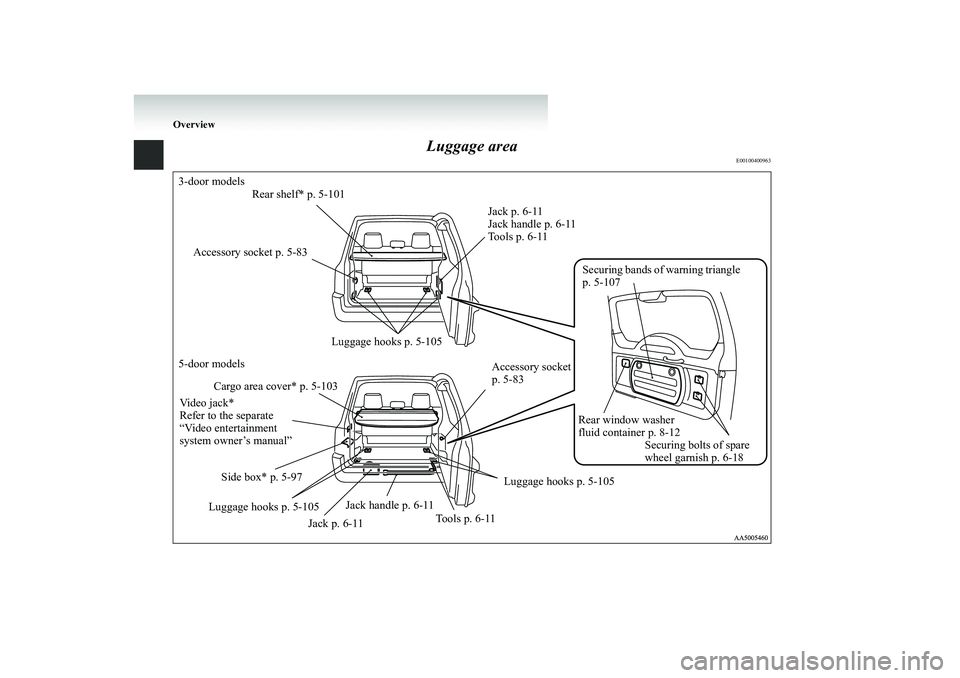

Luggage area
E00100400963
3-door models 5-door models
Accessory socket p. 5-83
Luggage hooks p. 5-105
Jack p. 6-11 Jack handle p. 6-11Tools p. 6-11
Side box* p. 5-97
Jack p. 6-11
Jack handle p. 6-11
Tools p. 6-11
Luggage hooks p. 5-105
Rear window washer fluid container p. 8-12
Rear shelf* p. 5-101
Luggage hooks p. 5-105 Cargo area cover* p. 5-103
Accessory socket p. 5-83
Securing bolts of spare wheel garnish p. 6-18
Video jack* Refer to the separate “Video entertainment system owner’s manual”
Securing bands of warning triangle p. 5-107
