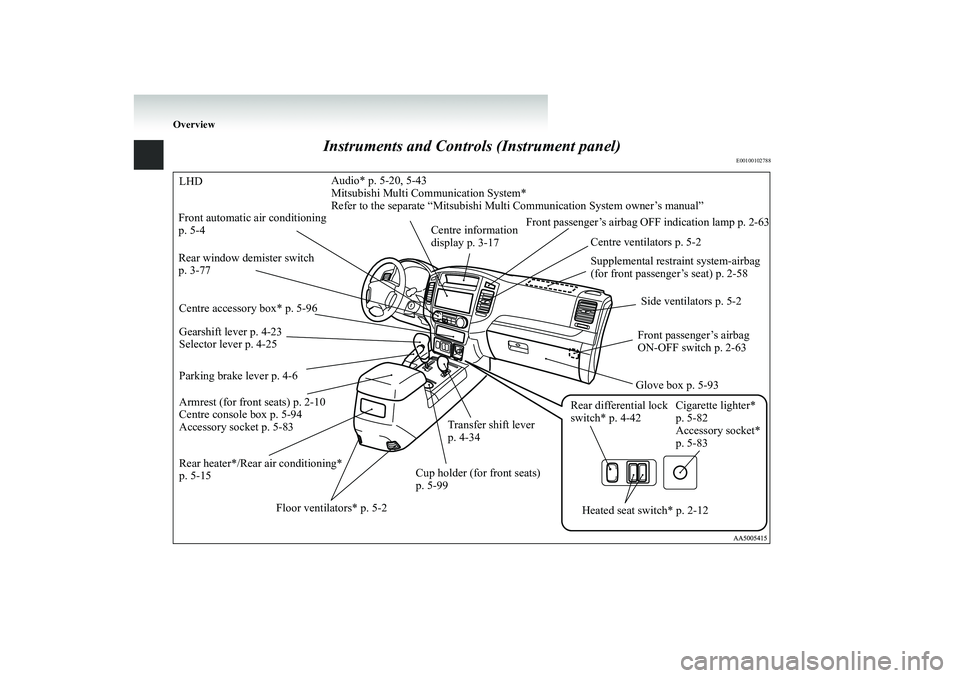

Overview
Instruments and Contro
ls (Instrument panel)
E00100102788
Supplemental restraint system-airbag (for front passenger’s seat) p. 2-58
Side ventilators p. 5-2
Rear window demister switch p. 3-77 Armrest (for front seats) p. 2-10 Centre console box p. 5-94Accessory socket p. 5-83 Front automatic air conditioning p. 5-4
Centre information display p. 3-17
Cigarette lighter* p. 5-82 Accessory socket* p. 5-83
Transfer shift lever p. 4-34
Rear heater*/Rear
air conditioning*
p. 5-15
Cup holder (for front seats) p. 5-99
Floor ventilators* p. 5-2
Audio* p. 5-20, 5-43 Mitsubishi Multi Communication System* Refer to the separate “Mitsubishi Multi Communication System owner’s manual”
Gearshift lever p. 4-23 Selector lever p. 4-25
Rear differential lock switch* p. 4-42
Centre ventilators p. 5-2
Parking brake lever p. 4-6
Heated seat switch* p. 2-12
LHD Centre accessory box* p. 5-96
Front passenger’s airbag OFF indication lamp p. 2-63
Front passenger’s airbag ON-OFF switch p. 2-63 Glove box p. 5-93
BK-BK2008E1ENUK.en-uk-Section2.fm Page 3 Wednesday, January 9, 2008 4:26 PM

Overview

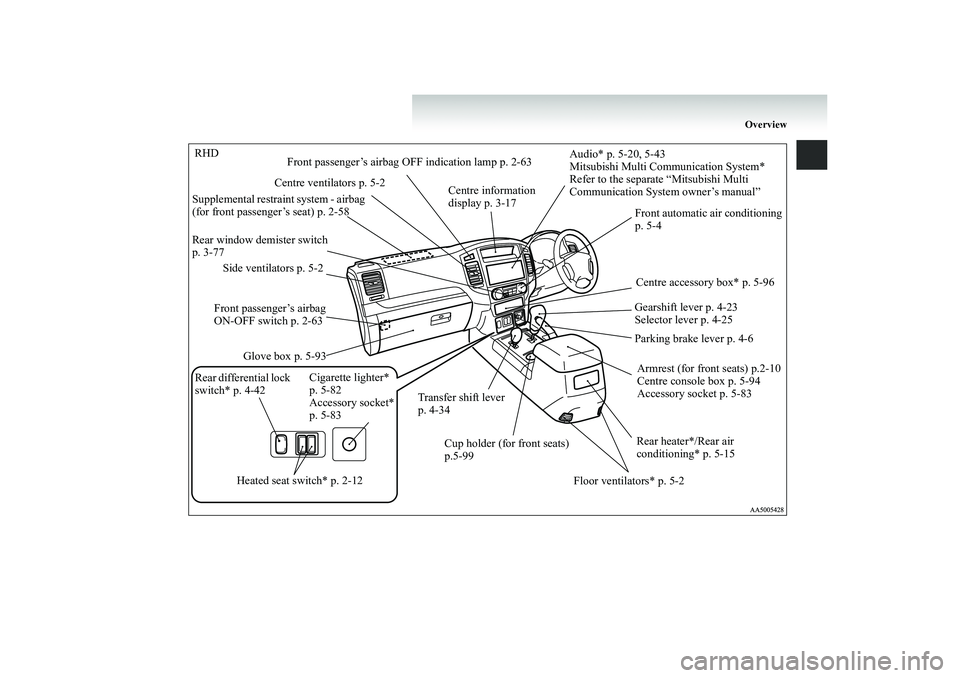

RHD Rear window demister switch p. 3-77
Front automatic air conditioning p. 5-4
Audio* p. 5-20, 5-43 Mitsubishi Multi Communication System*Refer to the separate “Mitsubishi Multi Communication System owner’s manual”
Centre accessory box* p. 5-96 Armrest (for front seats) p.2-10 Centre console box p. 5-94Accessory socket p. 5-83 Rear heater*/Rear air conditioning* p. 5-15 Gearshift lever p. 4-23 Selector lever p. 4-25 Parking brake lever p. 4-6
Transfer shift lever p. 4-34
Cup holder (for front seats) p.5-99
Floor ventilators* p. 5-2
Heated seat switch* p. 2-12
Cigarette lighter* p. 5-82 Accessory socket* p. 5-83
Rear differential lock switch* p. 4-42
Glove box p. 5-93
Supplemental restraint system - airbag (for front passenger’s seat) p. 2-58
Side ventilators p. 5-2
Centre ventilators p. 5-2
Front passenger’s airbag OFF indication lamp p. 2-63
Front passenger’s airbag ON-OFF switch p. 2-63
Centre information display p. 3-17
BK-BK2008E1ENUK.en-uk-Section2.fm Page 4 Wednesday, January 9, 2008 4:26 PM

General information
3
●

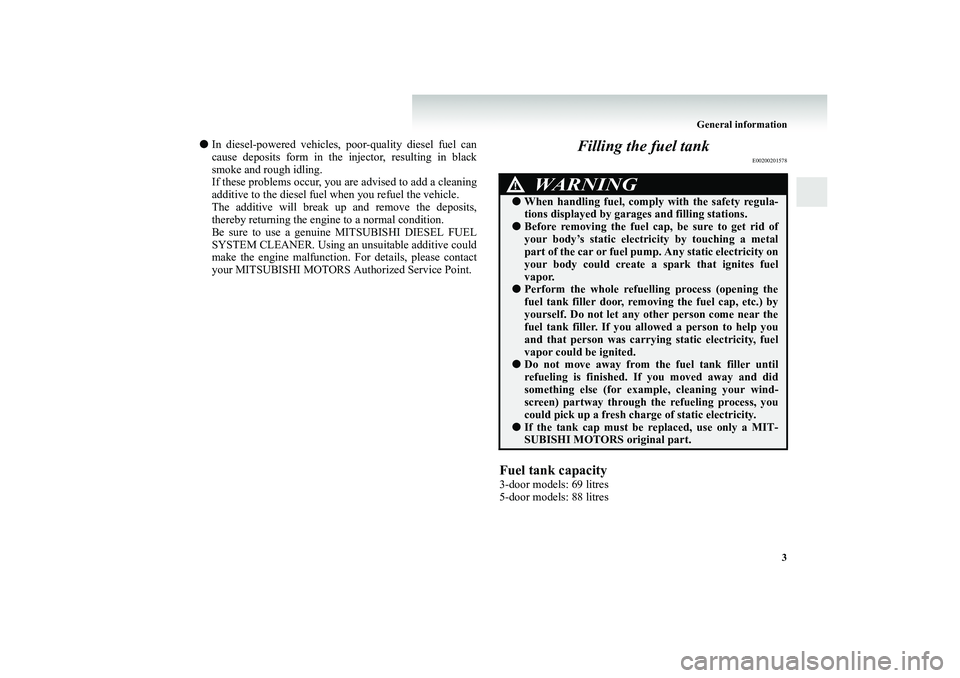

In diesel-powered vehicles,
poor-quality diesel fuel can
cause deposits form in the injector, resulting in black smoke and rough idling. If these problems occur, you are advised to add a cleaningadditive to the diesel fuel
when you refuel the vehicle.
The additive will break up and remove the deposits, thereby returning the engine to a normal condition.Be sure to use a genuine MITSUBISHI DIESEL FUEL SYSTEM CLEANER. Using an unsuitable additive could make the engine malfunction. For details, please contactyour MITSUBISHI MOTORS Authorized Service Point.
Filling the fuel tank
E00200201578
Fuel tank capacity3-door models: 69 litres 5-door models: 88 litres
WARNING
!●
When handling fuel, comply
with the safety regula-
tions displayed by garages and filling stations.
●
Before removing the fuel cap, be sure to get rid of your body’s static electricity by touching a metalpart of the car or fuel pu
mp. Any static electricity on
your body could create a spark that ignites fuel vapor.
●
Perform the whole refuelling process (opening the fuel tank filler door, removi
ng the fuel cap, etc.) by
yourself. Do not let any other person come near thefuel tank filler. If you allowed a person to help you and that person was carryin
g static electricity, fuel
vapor could be ignited.
●
Do not move away from the fuel tank filler until refueling is finished. If you moved away and did something else (for exam
ple, cleaning your wind-
screen) partway through th
e refueling process, you
could pick up a fresh char
ge of static electricity.
●
If the tank cap must be replaced, use only a MIT- SUBISHI MOTORS original part.
BK-BK2008E1ENUK.en-uk-Section3.fm Page 3 Wednesday, January 9, 2008 4:21 PM

3

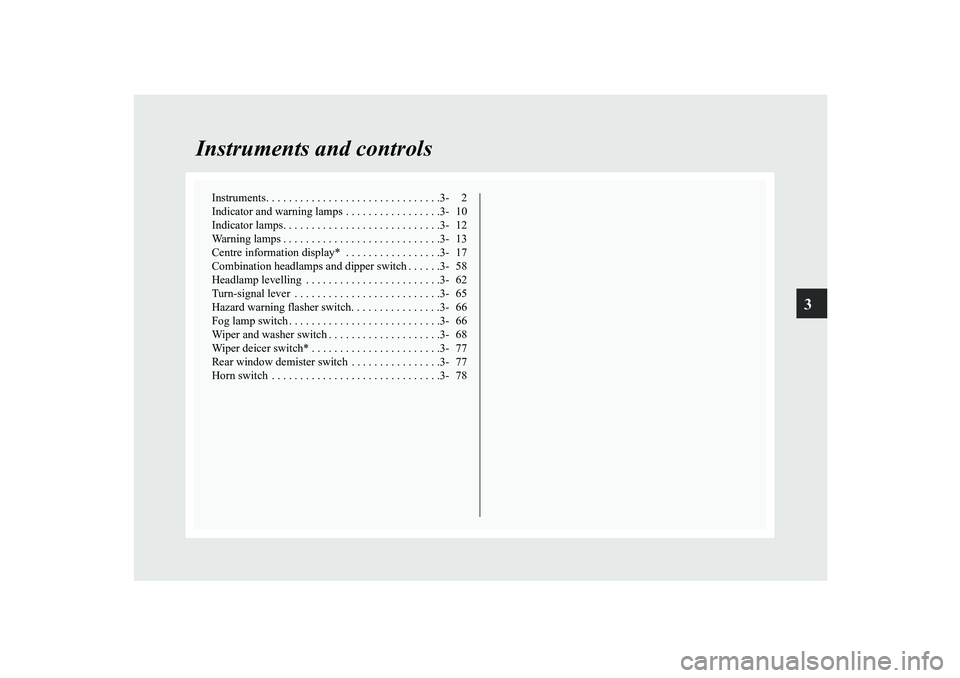

Instruments and controls
Instruments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2 Indicator and warning lamps . . . . . . . . . . . . . . . . .3- 10Indicator lamps. . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 12Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13Centre information display* . . . . . . . . . . . . . . . . .3- 17Combination headlamps and dipper switch . . . . . .3- 58Headlamp levelling . . . . . . . . . . . . . . . . . . . . . . . .3- 62Turn-signal lever . . . . . . . . . . . . . . . . . . . . . . . . . .3- 65Hazard warning flasher switch. . . . . . . . . . . . . . . .3- 66Fog lamp switch . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66Wiper and washer switch . . . . . . . . . . . . . . . . . . . .3- 68Wiper deicer switch* . . . . . . . . . . . . . . . . . . . . . . .3- 77Rear window demister switch . . . . . . . . . . . . . . . .3- 77Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 78
BK-BK2008E1ENUK.en-uk-Section6.fm Page 1 Wednesday, January 9, 2008 4:32 PM

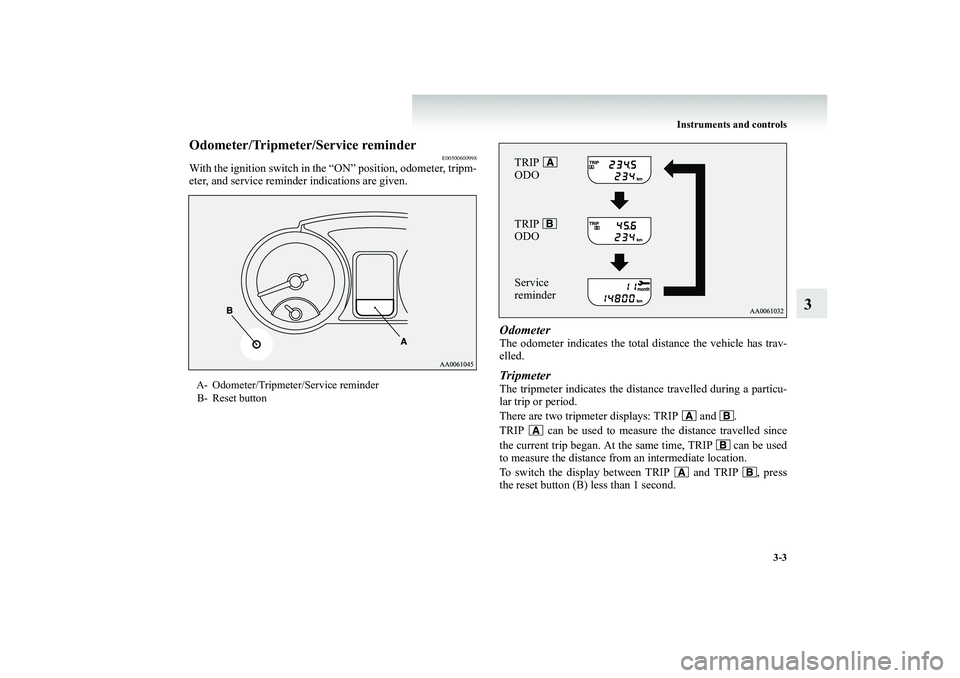

Instruments and controls
3-3
3
Odometer/Tripmeter/Service reminder
E00500600998
With the ignition switch in the “ON” position, odometer, tripm- eter, and service reminder indications are given.
Odometer The odometer indicates the tota
l distance the vehicle has trav-
elled.TripmeterThe tripmeter indicates the dist
ance travelled during a particu-
lar trip or period. There are two tripmeter displays: TRIP and . TRIP can be used to measur
e the distance travelled since
the current trip began. At the same time, TRIP can be used to measure the dist
ance from an inte
rmediate location.
To switch the display between TRIP and TRIP , press the reset button (B) less than 1 second.
A- Odometer/Tripmeter/Service reminder B- Reset button
TRIP ODOService reminder TRIP ODO
BK-BK2008E1ENUK.en-uk-Section6.fm Page 3 Wednesday, January 9, 2008 4:32 PM

3-4 Instruments and controls
3
NOTE●
If you do not push the button for about 10 seconds while the service reminder is showing, the display will return to the odometer indication.
●
The odometer, tripmeter, an
d service reminder indications
are given for 30 seconds after the ignition switch has been turned to the “ACC” or “LOCK” position.
●
After the odometer, tripmeter, and service reminder indi- cations have gone off, they come back on for about 30 seconds if either of the fo
llowing actions takes place.
• The driver’s door is opened.• The reset button is pressed.
To reset the tripmeter To return the display to “0”, press the reset button (B) for morethan 2 second. Only the currently displayed value will be reset.NOTE●
When disconnecting the battery
terminal for a long time,
the memory of tripmeter display TRIP and are cleared, and the display returns to “0”.

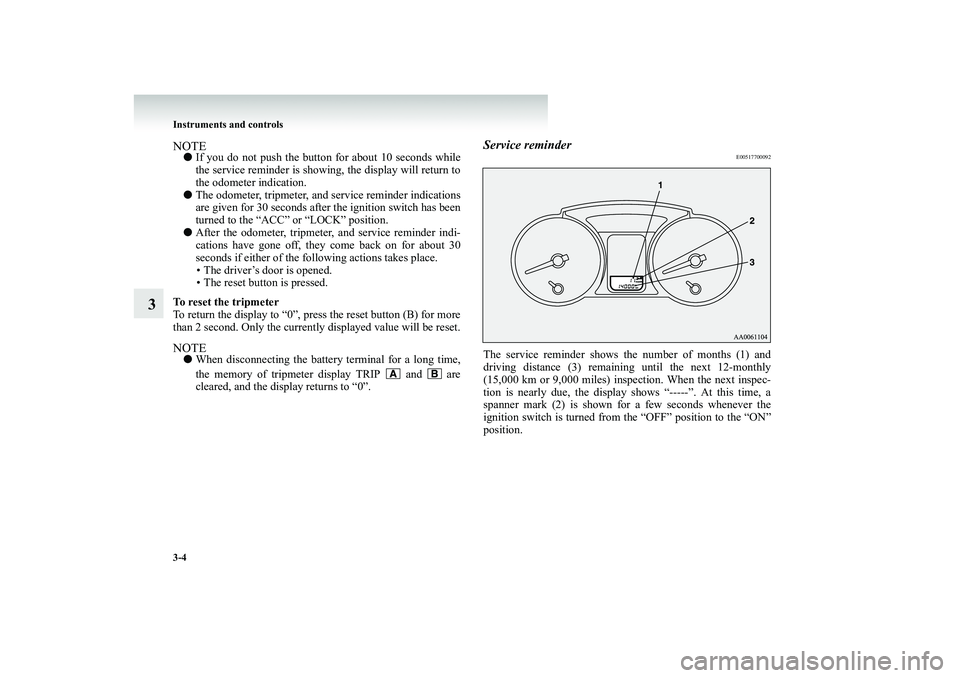

Service reminder
E00517700092
The service reminder shows the number of months (1) anddriving distance (3) remaining until the next 12-monthly(15,000 km or 9,000 miles) inspection. When the next inspec- tion is nearly due, the display s
hows “-----”. At this time, a
spanner mark (2) is shown for a few seconds whenever theignition switch is turned from the “OFF” position to the “ON” position.
BK-BK2008E1ENUK.en-uk-Section6.fm Page 4 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-5
3

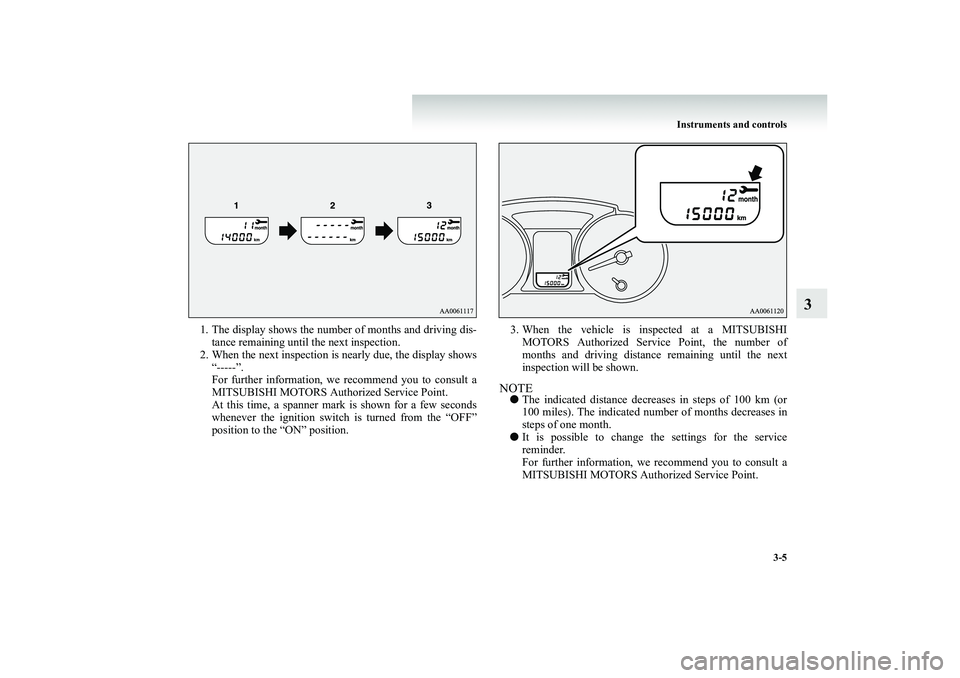

1. The display shows the number of months and driving dis-
tance remaining until the next inspection.
2. When the next inspection is nearly due, the display shows
“-----”. For further information, we recommend you to consult aMITSUBISHI MOTORS Authorized Service Point. At this time, a spanner mark is shown for a few seconds whenever the ignition switch
is turned from the “OFF”
position to the “ON” position.
3. When the vehicle is inspected at a MITSUBISHI
MOTORS Authorized Servi
ce Point, the number of
months and driving distance remaining until the next inspection will be shown.
NOTE●
The indicated distance decreases
in steps of 100 km (or
100 miles). The indicated num
ber of months decreases in
steps of one month.
●
It is possible to change the settings for the service reminder. For further information, we recommend you to consult a MITSUBISHI MOTORS Auth
orized Service Point.
BK-BK2008E1ENUK.en-uk-Section6.fm Page 5 Wednesday, January 9, 2008 4:32 PM

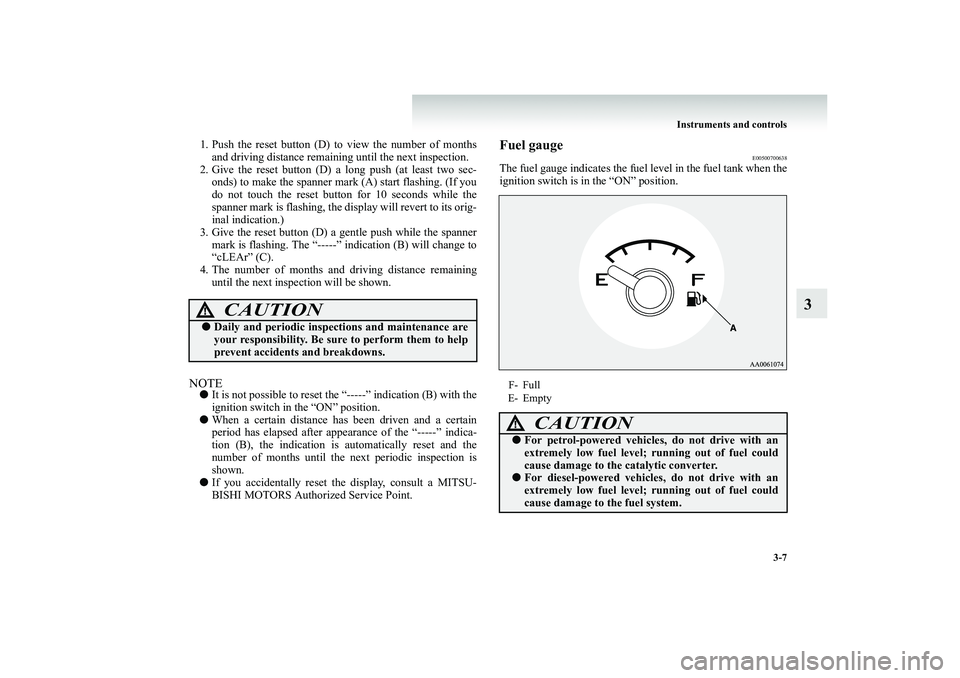

Instruments and controls
3-7
3
1. Push the reset button (D) to view the number of months
and driving distance remaining until the next inspection.
2. Give the reset button (D) a long push (at least two sec-
onds) to make the spanner mark (A) start flashing. (If youdo not touch the reset button for 10 seconds while the spanner mark is flashing, the display will revert to its orig- inal indication.)
3. Give the reset button (D) a gentle push while the spanner
mark is flashing. The “-----” indication (B) will change to “cLEAr” (C).
4. The number of months and driving distance remaining
until the next inspection will be shown.
NOTE●
It is not possible to reset the “-----” indication (B) with the ignition switch in the “ON” position.
●
When a certain distance has
been driven and a certain
period has elapsed after app
earance of the “-----” indica-
tion (B), the indication is automatically reset and the number of months until the next periodic inspection isshown.
●
If you accidentally reset th
e display, consult a MITSU-
BISHI MOTORS Author
ized Service Point.
Fuel gauge
E00500700638
The fuel gauge indicates the fuel
level in the fuel tank when the
ignition switch is in the “ON” position.
CAUTION
!●
Daily and periodic inspect
ions and maintenance are
your responsibility. Be sure to perform them to help prevent accidents and breakdowns.
F- Full E- Empty
CAUTION
!●
For petrol-powered vehicles, do not drive with an extremely low fuel level;
running out of fuel could
cause damage to the catalytic converter.
●
For diesel-powered vehicl
es, do not drive with an
extremely low fuel level;
running out of fuel could
cause damage to the fuel system.
BK-BK2008E1ENUK.en-uk-Section6.fm Page 7 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-17
3

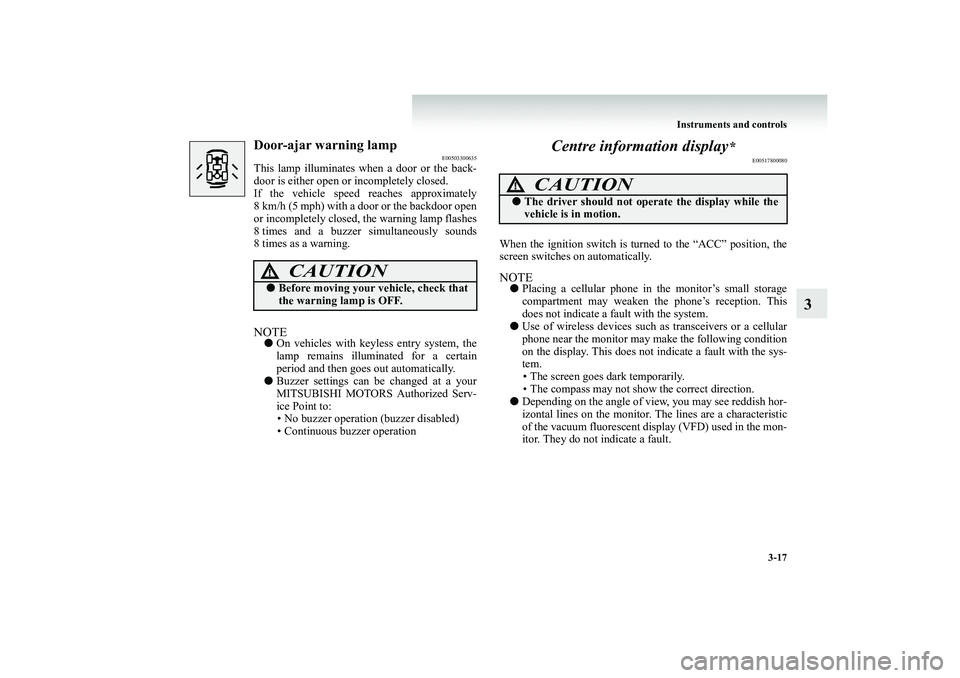

Door-ajar warning lamp
E00503300635
This lamp illuminates when a door or the back- door is either open or
incompletely closed.
If the vehicle speed reaches approximately 8 km/h (5 mph) with a door or the backdoor openor incompletely closed, the warning lamp flashes 8 times and a buzzer simultaneously sounds 8 times as a warning.NOTE●
On vehicles with keyless entry system, the lamp remains illuminated for a certain period and then goes out automatically.
●
Buzzer settings can be
changed at a your
MITSUBISHI MOTORS Authorized Serv- ice Point to:• No buzzer operation
(buzzer disabled)
• Continuous buzzer operation
Centre information display
*
E00517800080
When the ignition switch is turned to the “ACC” position, the screen switches on automatically.NOTE●
Placing a cellular phone in the monitor’s small storage compartment may weaken th
e phone’s reception. This
does not indicate a fau
lt with the system.
●
Use of wireless devices such as transceivers or a cellular phone near the monitor may make the following condition on the display. This does not indicate a fault with the sys-tem. • The screen goes dark temporarily. • The compass may not show the correct direction.
●
Depending on the angle of view, you may see reddish hor- izontal lines on the monitor.
The lines are a characteristic
of the vacuum fluorescent display (VFD) used in the mon-itor. They do not indicate a fault.
CAUTION
!●
Before moving your vehicle, check that the warning lamp is OFF.
CAUTION
!●
The driver should not oper
ate the display while the
vehicle is in motion.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
17 Wednesday, January 9, 2008 4:32 PM

3-18 Instruments and controls
3

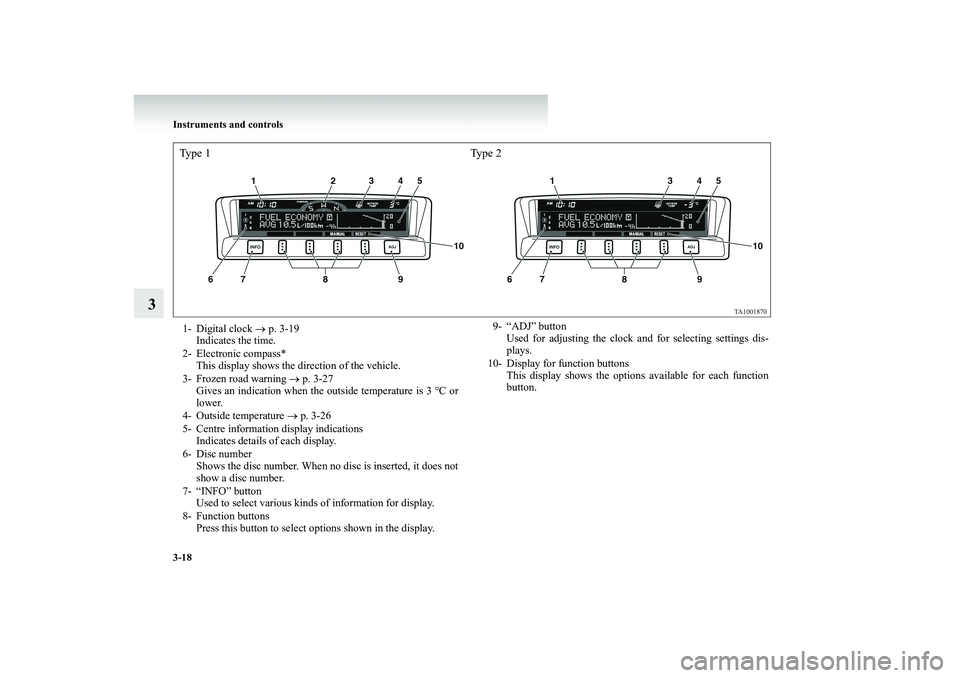

Type 1 Type 21- Digital clock
→ p. 3-19
Indicates the time.
2- Electronic compass*
This display shows the direction of the vehicle.
3- Frozen road warning
→ p. 3-27
Gives an indication when the outside temperature is 3 °C orlower.
4- Outside temperature
→ p. 3-26
5- Centre information display indications
Indicates details of each display.
6- Disc number
Shows the disc number. When no disc is inserted, it does notshow a disc number.
7- “INFO” button
Used to select various kinds of information for display.
8- Function buttons
Press this button to select options shown in the display.
9- “ADJ” button
Used for adjusting the clock and for selecting settings dis-plays.
10- Display for function buttons
This display shows the options available for each functionbutton.
