Overview
Instruments and Controls (Driver’s area)
E00100102052
Electric remote-controlled outside rear-view mirror switch p. 4-11
Front fog lamp switch* p. 3-66 Rear fog lamp switch p. 3-67
Combination headlamps and dipper switch p. 3-58 Turn-signal lever p. 3-65 Headlamp washer switch* p. 3-76
Supplemental restraint system-airbag (for driver’s seat) p. 2-58 Horn switch p. 3-78
Instruments p. 3-2
Windscreen wiper and washer switch p. 3-68 Rear window wiper and washer switch p. 3-75
Daytime dipper button (meter illumination control) p. 3-9
Cruise control switch* p. 4-70
Fuse box lid p. 8-29
Bonnet release lever p. 8-3
Ignition switch p. 4-14
Fuel tank filler door release lever p. 3
LHD
Hazard warning flasher switch p. 3-66
Active stability control switch p. 4-63
Steering wheel height adjustment p. 4-8
Audio switch* p. 5-70 Sonar cancel switch* p. 4-78
Headlamp levelling switch* p. 3-62
BK-BK2008E1ENUK.en-uk-Section2.fm Page 1 Wednesday, January 9, 2008 4:26 PM

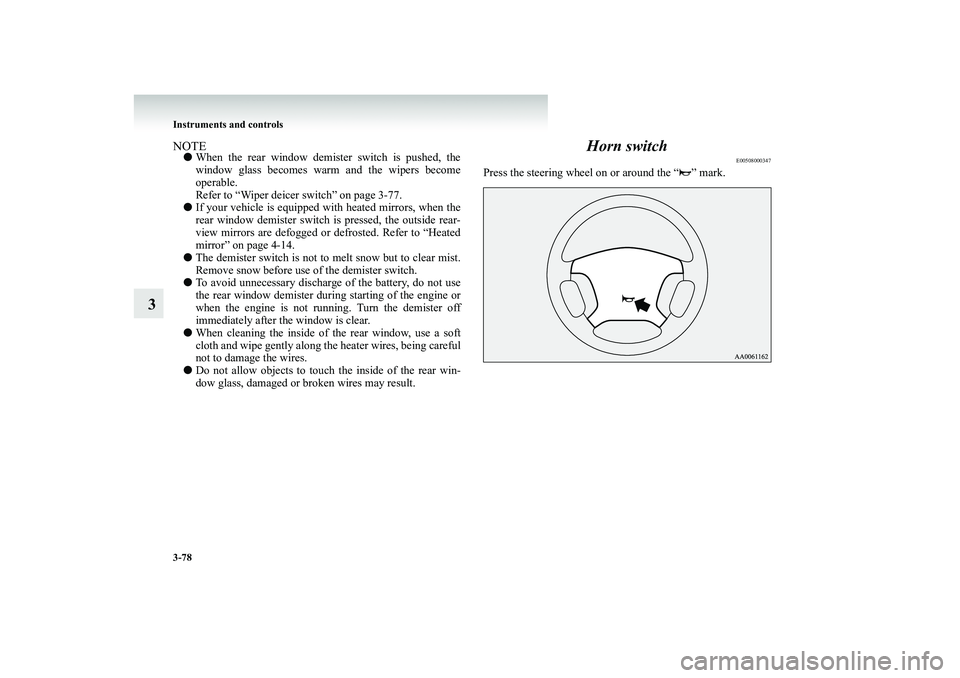

3-78 Instruments and controls
3
NOTE●
When the rear window demist
er switch is pushed, the
window glass becomes warm and the wipers become operable. Refer to “Wiper deicer switch” on page 3-77.
●
If your vehicle is equipped
with heated mirrors, when the
rear window demister switch is
pressed, the outside rear-
view mirrors are defogged or
defrosted. Refer to “Heated
mirror” on page 4-14.
●
The demister switch is not to melt snow but to clear mist. Remove snow before use of the demister switch.
●
To avoid unnecessary discharge
of the battery, do not use
the rear window demister duri
ng starting of the engine or
when the engine is not running. Turn the demister offimmediately after the window is clear.
●
When cleaning the inside of
the rear window, use a soft
cloth and wipe gently along the heater wires, being carefulnot to damage the wires.
●
Do not allow objects to touch
the inside of the rear win-
dow glass, damaged or broken wires may result.
Horn switch
E00508000347
Press the steering wheel on or around the “ ” mark.
