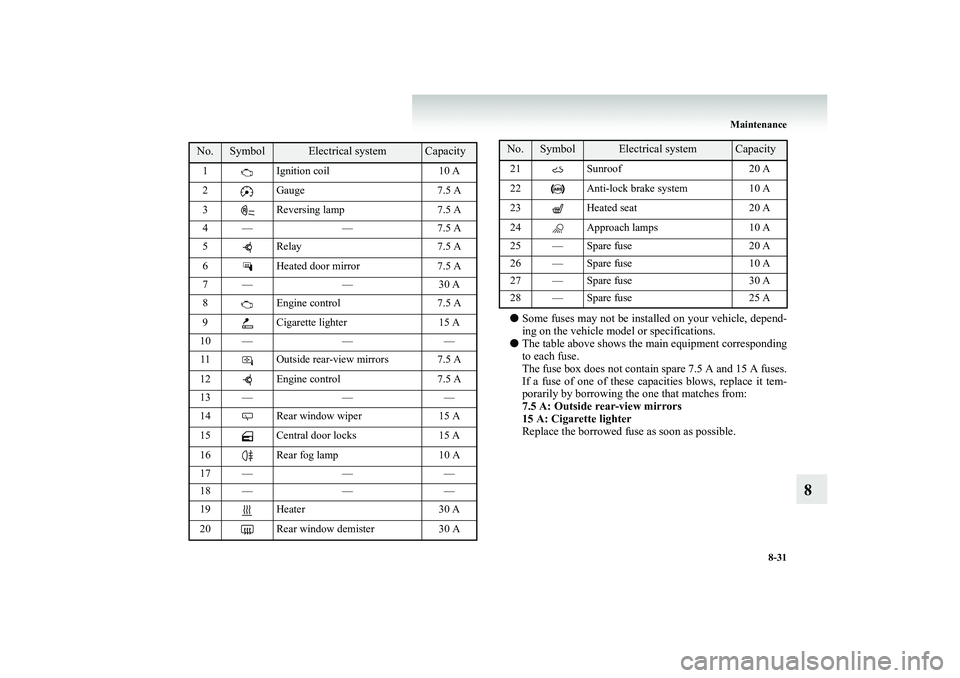

Some fuses may not be installed on your vehicle, depend- ing on the vehicle mo
del or specifications.
●
The table above shows the ma
in equipment corresponding
to each fuse. The fuse box does not contain spare 7.5 A and 15 A fuses. If a fuse of one of these capacities blows, replace it tem- porarily by borrowing the one that matches from:7.5 A: Outside rear-view mirrors 15 A: Cigarette lighter Replace the borrowed fuse as soon as possible.
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A 2 Gauge 7.5 A 3 Reversing lamp 7.5 A 4— — 7.5 A 5 Relay 7.5 A 6 Heated door mirror 7.5 A 7 — — 30 A 8 Engine control 7.5 A 9 Cigarette lighter 15 A 10 — — —11 Outside rear-view mirrors 7.5 A 12 Engine control 7.5 A 13 — — — 14 Rear window wiper 15 A 15 Central door locks 15 A 16 Rear fog lamp 10 A 17 — — — 18 — — — 19 Heater 30 A 20 Rear window demister 30 A
21 Sunroof 20 A 22 Anti-lock brake system 10 A 23 Heated seat 20 A 24 Approach lamps 10 A 25 — Spare fuse 20 A 26 — Spare fuse 10 A 27 — Spare fuse 30 A 28 — Spare fuse 25 ANo.
Symbol
Electrical system
Capacity
