MITSUBISHI SHOGUN 2016 Owner's Manual (in English)

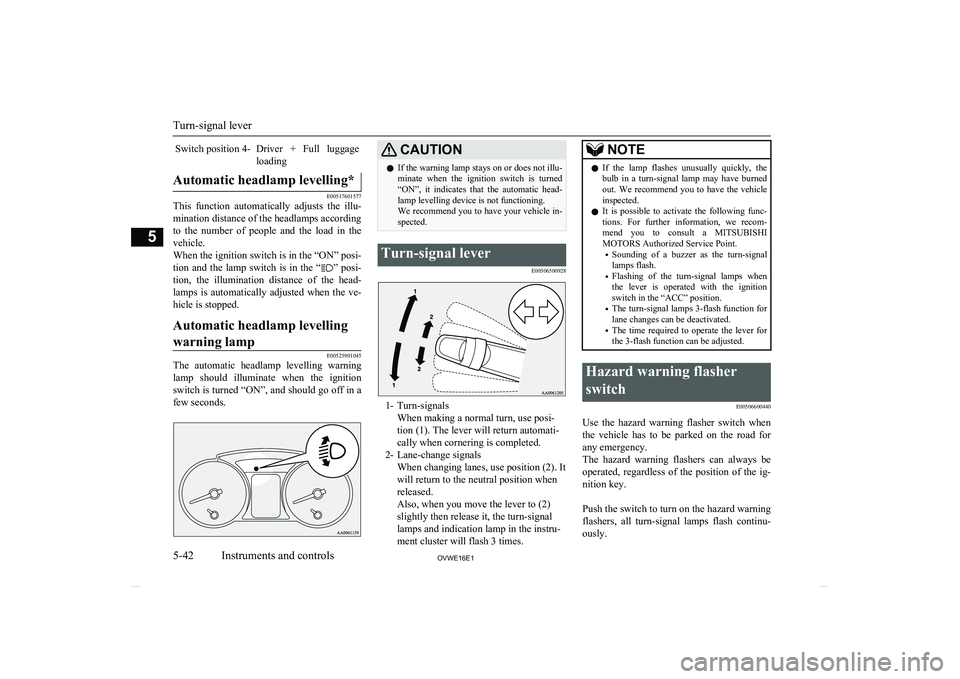

Switch position 4-Driver + Full luggageloadingAutomatic headlamp levelling*
E00517601577
This function automatically adjusts the illu-
mination distance of the headlamps according
to the number of people and the load in the vehicle.
When the ignition switch is in the “ON” posi-
tion and the lamp switch is in the “
” posi-
tion, the illumination distance of the head-
lamps is automatically adjusted when the ve-
hicle is stopped.
Automatic headlamp levelling
warning lamp
E00525901045
The automatic headlamp levelling warning lamp should illuminate when the ignition switch is turned “ON”, and should go off in a
few seconds.
CAUTIONl If the warning lamp stays on or does not illu-
minate when the ignition switch is turned
“ON”, it indicates that the automatic head- lamp levelling device is not functioning.
We recommend you to have your vehicle in- spected.Turn-signal lever
E00506500928
1- Turn-signalsWhen making a normal turn, use posi-
tion (1). The lever will return automati-
cally when cornering is completed.
2- Lane-change signals When changing lanes, use position (2). It
will return to the neutral position when released.
Also, when you move the lever to (2)
slightly then release it, the turn-signal
lamps and indication lamp in the instru-
ment cluster will flash 3 times.
NOTEl If the lamp flashes unusually quickly, the
bulb in a turn-signal lamp may have burned out. We recommend you to have the vehicle
inspected.
l It is possible to activate the following func-
tions. For further information, we recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• Sounding of a buzzer as the turn-signal
lamps flash.
• Flashing of the turn-signal lamps when
the lever is operated with the ignition switch in the “ACC” position.
• The turn-signal lamps 3-flash function for
lane changes can be deactivated.
• The time required to operate the lever for
the 3-flash function can be adjusted.Hazard warning flasher
switch E00506600440
Use the hazard warning flasher switch when
the vehicle has to be parked on the road for
any emergency.
The hazard warning flashers can always be operated, regardless of the position of the ig-
nition key.

Push the switch to turn on the hazard warning flashers, all turn-signal lamps flash continu-
ously.
Turn-signal lever
5-42OVWE16E1Instruments and controls5

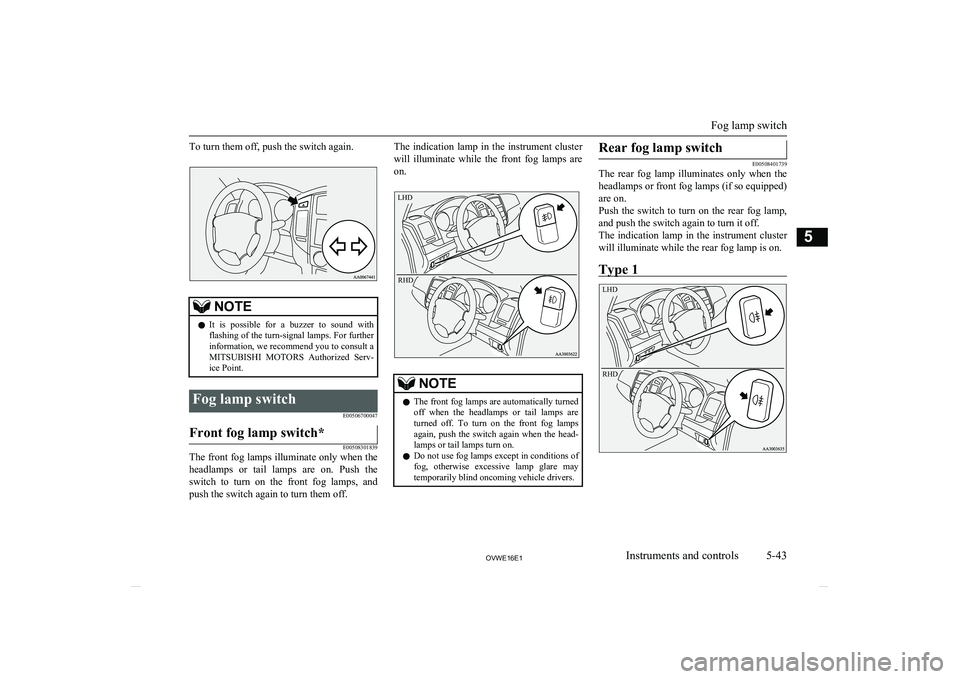

To turn them off, push the switch again.NOTElIt is possible for a buzzer to sound with
flashing of the turn-signal lamps. For further information, we recommend you to consult aMITSUBISHI MOTORS Authorized Serv-
ice Point.Fog lamp switch
E00506700047Front fog lamp switch*
E00508301839
The front fog lamps illuminate only when theheadlamps or tail lamps are on. Push the
switch to turn on the front fog lamps, and push the switch again to turn them off.
The indication lamp in the instrument cluster
will illuminate while the front fog lamps are
on.LHDRHD
NOTEl The front fog lamps are automatically turned
off when the headlamps or tail lamps are turned off. To turn on the front fog lamps again, push the switch again when the head-
lamps or tail lamps turn on.
l Do not use fog lamps except in conditions of
fog, otherwise excessive lamp glare may temporarily blind oncoming vehicle drivers.Rear fog lamp switch
E00508401739
The rear fog lamp illuminates only when the
headlamps or front fog lamps (if so equipped)
are on.
Push the switch to turn on the rear fog lamp, and push the switch again to turn it off.
The indication lamp in the instrument cluster
will illuminate while the rear fog lamp is on.
Type 1
LHDRHD
Fog lamp switch
5-43OVWE16E1Instruments and controls5

Type 2LHDRHD
NOTElThe rear fog lamp is automatically turned off
when the headlamps or front fog lamps (if so
equipped) are turned off.
To turn on the rear fog lamp again, push the switch again when the headlamps or front
fog lamps (if so equipped) turn on.Wiper and washer switch
E00507101191CAUTIONlIf the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze, which may hinder visibility. Warm the glass with the defroster or rear window
demister before using the washer.Windscreen wipers
E00516900273
Except for vehicles with rain
sensor
The windscreen wipers can be operated with
the ignition switch in the “ON” or “ACC” position.
If the blades are frozen to the windscreen or
rear window, do not operate the wipers until the ice has melted and the blades are freed,
otherwise the wiper motor may be damaged.MIST-Misting function
The wipers will operate once.OFF-OffINT-Intermittent (Speed sensitive)LO-SlowHI-Fast
Wiper and washer switch
5-44OVWE16E1Instruments and controls5

To adjust intermittent intervals
With the lever in the “INT” (speed-sensitive)position, the intermittent intervals can be ad-justed by turning the knob (A).
1- Fast
2- Slow
NOTEl The speed-sensitive-operation function of
the windscreen wipers can be deactivated.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Misting function
The misting function can be used when the
ignition switch is in the “ON” or “ACC” po- sition.
The wipers will operate once if the wiper lev-
er is raised to the “MIST” position and re-
leased. This operation is useful when it is drizzling, etc. The wipers will continue to op-erate while the lever is held in the “MIST”
position.Vehicles with rain sensor
E00526401773
The windscreen wipers can be operated with the ignition switch in the “ON” or “ACC”
position.
If the blades are frozen to the windscreen or
rear window, do not operate the wipers until
the ice has melted and the blades are freed,
otherwise the wiper motor may be damaged.MIST-Misting function
The wipers will operate once.OFF-OffAUTO-Auto-wiper control
Rain sensor
The wipers will automatically op- erate depending on the degree of
wetness on the windscreen.LO-SlowHI-Fast
Rain sensor
Can only be used when the ignition switch is in the “ON” position.
Wiper and washer switch
5-45OVWE16E1Instruments and controls5

If the lever is put in the “AUTO” position,the rain sensor (A) will detect the extent of
rain (or snow, other moisture, dust, etc.) and the wipers will operate automatically.
Keep the lever in the “OFF” position if the windscreen is dirty and the weather is dry.
Wiper operation under these conditions can scratch the windscreen and damage the wip-
ers.CAUTIONl With the ignition switch in the “ON” posi-
tion and the lever in the “AUTO” position,the wipers may automatically operate in the situations described below.
If your hands get trapped, you could suffer injuries or the wipers could malfunction. Be sure to turn the ignition switch to the “OFF”
position or move the lever to the “OFF” po-
sition to deactivate the rain sensor.
• When cleaning the outside surface of the
windscreen, if you touch the rain sensor.
• When cleaning the outside surface of the
windscreen, if you wipe with a cloth the
rain sensor.
• When using an automatic car wash.
• A physical shock is applied to the wind-
screen.
• A physical shock is applied to the rain
sensor.NOTEl To protect the rubber parts of the wipers,
this operation of the wipers does not take
place even if the lever is put in the “AUTO” position when the vehicle is stationary and
the ambient temperature is about 0 °C or lower.
l Do not cover the sensor by affixing a sticker
or label to the windscreen. Also, do not put any water-repellent coating on the wind-screen. The rain sensor would not be able to
detect the extent of rain, and the wipers
might stop working normally.NOTEl In the following cases, the rain sensor may
be malfunctioning.
Have the vehicle inspected at a MITSUBISHI MOTORS Authorized Serv-
ice Point.
• When the wipers operate at a constant in-
terval despite changes in the extent of
rain.
• When the wipers do not operate even
though it is raining.
l The wipers may automatically operate when
things such as insects or foreign objects are affixed to the windscreen on top of the rainsensor or when the windscreen is frozen.
Objects affixed to the windscreen will stop
the wipers when the wipers cannot remove them. To make the wipers operate again,
place the lever in the “LO” or “HI” position.
Also, the wipers may operate automatically due to strong direct sunlight or electromag-
netic wave. To stop the wipers, place the lever in the “OFF” position.
l Contact a
MITSUBISHI MOTORS Author-
ized Service Point when replacing the wind- screen or reinforcing the glass around the
sensor.
Wiper and washer switch
5-46OVWE16E1Instruments and controls5

To adjust the sensitivity of the rain sensor
With the lever in the “AUTO” (rain sensor)
position, it is possible to adjust the sensitivity of the rain sensor by turning the knob (A).
“+”-Higher sensitivity to rain“-”-Lower sensitivity to rainNOTEl It is possible to activate the following func-
tions. For further information, we recom- mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• Automatic operation (rain droplet sensi-
tive) can be changed to intermittent opera-
tion (vehicle-speed sensitive).
• Automatic operation (rain droplet sensi-
tive) can be changed to intermittent opera-
tion (except vehicle-speed sensitive).Misting function
Move the lever in the direction of the arrow
and release, to operate the wipers once.
Use this function when you are driving in
mist or drizzle.
The wipers will operate once if the lever is raised to the “MIST” position and released
when the ignition switch is in the “ON” or “ACC” position. The wipers will continue to
operate while the lever is held in the “MIST” position.
With the ignition switch in the “ON” posi-
tion, if the lever is moved to the AUTO posi- tion and pulled towards you a little, the wip-ers operate once.
The wipers will operate once if the lever is moved to the “AUTO” position and the knob
(A) is turned in the “+” direction when the ig-
nition switch is in the “ON” position.
Wiper and washer switch
5-47OVWE16E1Instruments and controls5

Windscreen washer
E00507200528
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
The wipers operate automatically several times while the washer fluid is being sprayed.
On a vehicle equipped with the headlamp
washer, the headlamp washer operates to- gether with the windscreen washer the first time the windscreen washer is used if the
headlamps are on.
CAUTIONl If the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze resulting in poor visibility. Heat the
glass with the defroster or demister before using the washer.Rear window wiper and wash-
er
E00507300994
The rear window wiper and washer switch
can be operated with the ignition switch in
the “ON” or “ACC” position.
INT-The wiper operates continuously for several seconds then operates inter- mittently at intervals of about every
8 seconds.OFF-Off-The washer fluid will be sprayed on-
to the rear window when the knob is turned fully in either direction.
The wipers operate automatically
several times while the washer fluid is being sprayed.NOTEl To ensure a clear rearward view, the wiper
performs several continuous operations
when the reverse gear is engaged while the
switch is in the “INT” position.
Following this continuous operation, the wiper will automatically switch to intermit-
tent operation.
l It is possible to activate the following func-
tions. For further information, we recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• Adjustment of the interval for intermittent
operation
• The wipers can be changed to continuous
operation by turning the knob at the end of the lever twice to the --- (intermittent operation) position. (Continuous opera- tion mode)
• Changing intermittent wiper operation to
continuous wiper operationHeadlamp washer switch*
E00510100231
The headlamp washer can be operated when
the ignition switch is in the “ON” or “ACC” position and the headlamps are on.
Wiper and washer switch
5-48OVWE16E1Instruments and controls5

Push the button once and the washer fluidwill be sprayed on to the headlamps.NOTEl If the ignition switch is in the “ON” or
“ACC” position and the headlamps are on,
the headlamp washer operates together with the windscreen washer the first time thewindscreen washer lever is pulled.Precautions to observe when
using wipers and washers
E00507601297
l If the moving wipers become blocked
partway through a sweep by ice or other deposits on the glass, the wipers maytemporarily stop operating to prevent the
motor from overheating. In this case,
park the vehicle in a safe place and turn the ignition switch to the “OFF” posi-
tion, and then remove the ice or other
deposits.
The wipers will start operating again af- ter the wiper motor cools down, so
check that the wipers operate before us-
ing them.
l Do not use the wipers when the glass is
dry. They may scratch the glass surface
and the blades wear out prematurely.
l Before using the wipers in cold weather,
check that the wiper blades are not fro-
zen onto the glass. The motor may burn out if the wipers are used with the blades
frozen onto the glass.
l Avoid using the washer continuously for
more than 20 seconds. Do not operate the washer when the fluid reservoir isempty.
Otherwise, the motor may burn out.
l Periodically check the level of washer
fluid in the reservoir and refill if re-
quired.
During cold weather, add a recommen- ded washer solution that will not freeze
in the washer reservoir. Failure to do so
could result in loss of washer function and frost damage to the system compo- nents.Wiper de-icer switch*
E00507700103
The wiper de-icer switch can be operatedwith the ignition switch in the “ON” position.
When the front wipers have frozen to the windscreen at the parked positions, turning
on this switch will heat the windscreen to make the wipers operable. Press the switch
and the deicer will operate and turn on the in- dication lamp (A).
Wiper de-icer switch*
5-49OVWE16E1Instruments and controls5

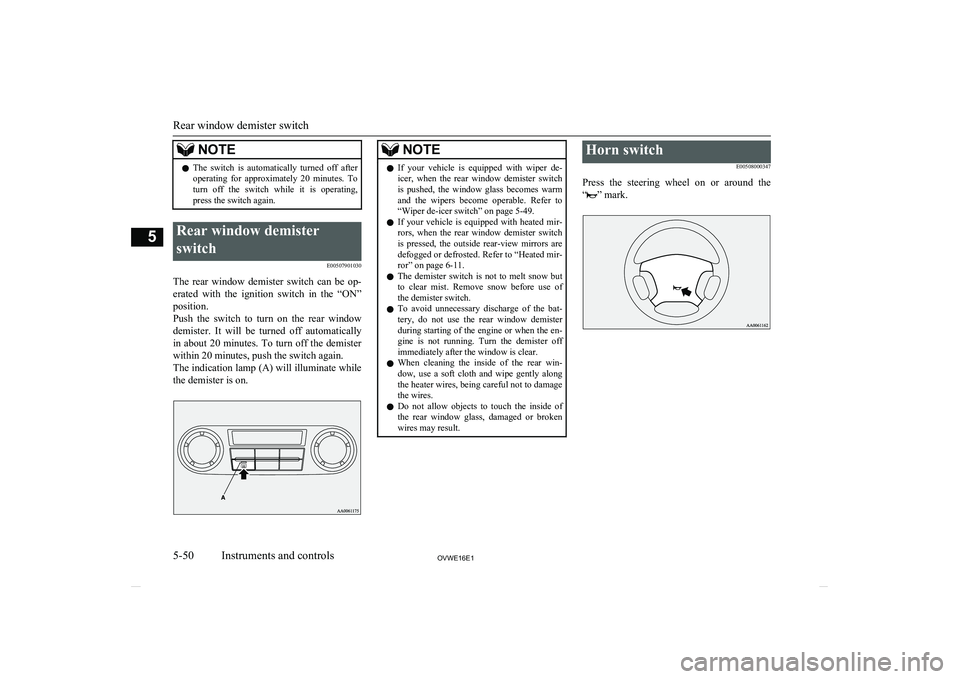

NOTElThe switch is automatically turned off after
operating for approximately 20 minutes. To
turn off the switch while it is operating,
press the switch again.Rear window demister
switch E00507901030
The rear window demister switch can be op-erated with the ignition switch in the “ON”position.
Push the switch to turn on the rear window
demister. It will be turned off automatically
in about 20 minutes. To turn off the demister
within 20 minutes, push the switch again.
The indication lamp (A) will illuminate while the demister is on.
NOTEl If your vehicle is equipped with wiper de-
icer, when the rear window demister switch
is pushed, the window glass becomes warm
and the wipers become operable. Refer to “Wiper de-icer switch” on page 5-49.
l If your vehicle is equipped with heated mir-
rors, when the rear window demister switchis pressed, the outside rear-view mirrors are defogged or defrosted. Refer to “Heated mir-
ror” on page 6-11.
l The demister switch is not to melt snow but
to clear mist. Remove snow before use of the demister switch.
l To avoid unnecessary discharge of the bat-
tery, do not use the rear window demister
during starting of the engine or when the en- gine is not running. Turn the demister off
immediately after the window is clear.
l When cleaning the inside of the rear win-
dow, use a soft cloth and wipe gently along
the heater wires, being careful not to damage
the wires.
l Do not allow objects to touch the inside of
the rear window glass, damaged or broken
wires may result.Horn switch
E00508000347
Press the steering wheel on or around the
“
” mark.
Rear window demister switch
5-50OVWE16E1Instruments and controls5

Economical driving............................................................................. 6-02
Driving, alcohol and drugs.................................................................. 6-02
Safe driving techniques....................................................................... 6-03
Running-in recommendations............................................................. 6-04 Parking brake...................................................................................... 6-05
Parking................................................................................................ 6-06
Steering wheel height adjustment....................................................... 6-07
Inside rear-view mirror....................................................................... 6-08 Outside rear-view mirrors................................................................... 6-09
Ignition switch.....................................................................................6-11 Steering wheel lock............................................................................. 6-13
Starting................................................................................................ 6-13 NOx trap catalyst (dieselpowered vehicles)*......................................6-16
Diesel particulate filter (DPF)*........................................................... 6-16 Manual transmission........................................................................... 6-17Automatic transmission INVECS-II Sports Mode 5A/T (Intelligent & Innovative Vehicle Electronic Control System II)...6-19
Super select 4WD II (SS4 II).............................................................. 6-25
Rear differential lock*........................................................................ 6-30 4-wheel drive operation...................................................................... 6-34
Inspection and maintenance following rough road operation............. 6-37
Cautions on handling of 4-wheel drive vehicles................................. 6-38
Braking................................................................................................ 6-39
Brake assist system............................................................................. 6-41
Anti-lock brake system (ABS)............................................................ 6-41
Power steering system.........................................................................6-44
Active stability & traction control (ASTC).........................................6-44
Cruise control*.................................................................................... 6-48 Tyre pressure monitoring system (TPMS)*........................................ 6-53Reversing sensor system*................................................................... 6-57
Rear-view camera*............................................................................. 6-61Cargo loads......................................................................................... 6-64Trailer towing......................................................................................6-65Starting and driving
OVWE16E16
