MITSUBISHI SHOGUN 2016 Owner's Manual (in English)
Manufacturer: MITSUBISHI, Model Year: 2016, Model line: SHOGUN, Model: MITSUBISHI SHOGUN 2016Pages: 404, PDF Size: 18.95 MB
Page 1 of 404
SHOGUN
OWNER’S MANUAL PAJERO - ENGLISH - OVWE16E1
PAJERO - ENGLISH - OVWE16E1
Page 2 of 404

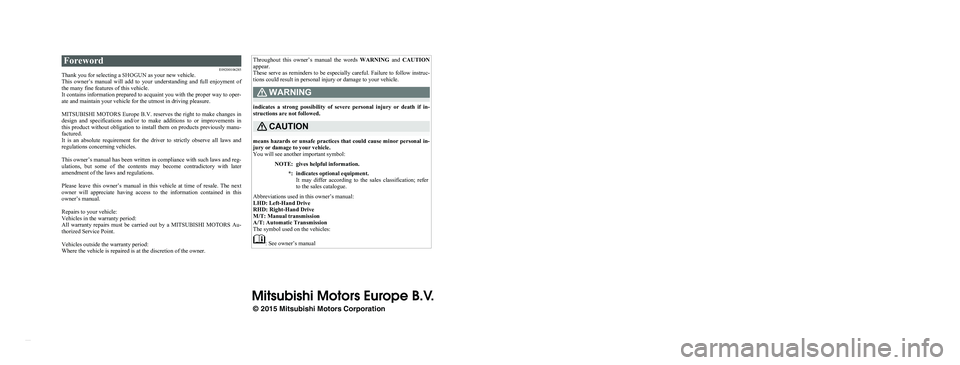

Foreword
E09200106285Thank you for selecting a
SHOGUN as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner. Throughout this owner’s manual the words
WARNING and CAUTION
appear.
These
serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle. WARNING
indicates a strong possibility of severe personal injury or death if in- structions are not followed. CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol: NOTE: gives helpful information.
*: indicates optional equipment.It may
differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T : Manual transmission
A/T: Automatic Transmission
The symbol used on the vehicles: : See owner’s manual Information for station service

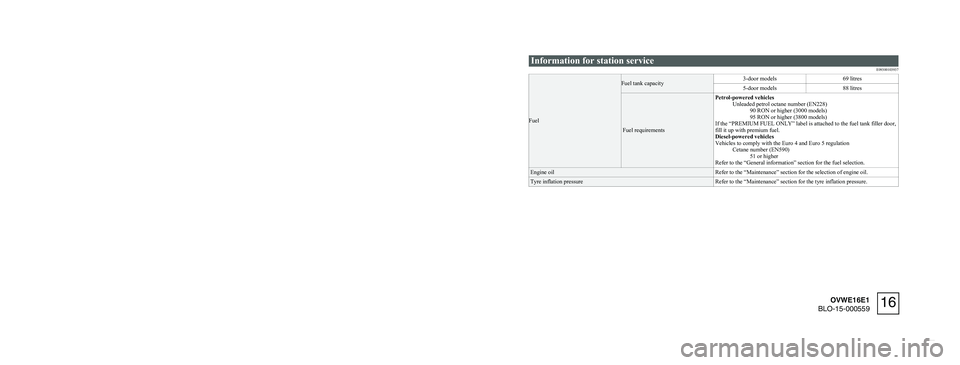

E09300103937 Fuel Fuel tank capacity
3-door models
69 litres
5-door models 88 litres Fuel requirements
Petrol-powered vehicles
Unleaded petrol octane number (EN228)90 RON or higher (3000 models)
95 RON or higher (3800 models)
If the “PREMIUM FUEL ONLY” label is attached to the fuel tank filler door,
fill it up with premium fuel.
Diesel-powered vehicles
Vehicles to comply with the Euro 4 and Euro 5 regulation Cetane number (EN590)51 or higher
Refer to the “General information” section for the fuel selection. Engine oil
Refer to the “Maintenance” section for the selection of engine oil. Tyre inflation pressure
Refer to the “Maintenance” section for the tyre inflation pressure. © 2015 Mitsubishi Motors Corporation
16 OVWE16E1
BLO-15-000559
Page 3 of 404
Foreword
E09200106285
Thank you for selecting a PAJERO as your new vehicle.
This
owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au- thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner. Throughout this owner’s manual the words
WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle. WARNING
indicates a strong possibility of severe personal injury or death if in- structions are not followed. CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol: NOTE: gives helpful information.
*: indicates optional equipment.It
may differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T
: Manual transmission
A/T: Automatic Transmission
The symbol used on the vehicles: : See owner’s manual Information for station service
E09300103937 Fuel Fuel tank capacity
3-door models
69 litres
5-door models 88 litres Fuel requirements
Petrol-powered vehicles
Unleaded petrol octane number (EN228)90 RON or higher (3000 models)
95 RON or higher (3800 models)
If the “PREMIUM FUEL ONLY” label is attached to the fuel tank filler door,
fill it up with premium fuel.
Diesel-powered vehicles
Vehicles to comply with the Euro 4 and Euro 5 regulation Cetane number (EN590)51 or higher
Refer to the “General information” section for the fuel selection. Engine oil
Refer to the “Maintenance” section for the selection of engine oil. Tyre inflation pressure
Refer to the “Maintenance” section for the tyre inflation pressure. © 2015 Mitsubishi Motors Corporation
16 OVWE16E1
BLO-15-000559
Page 4 of 404

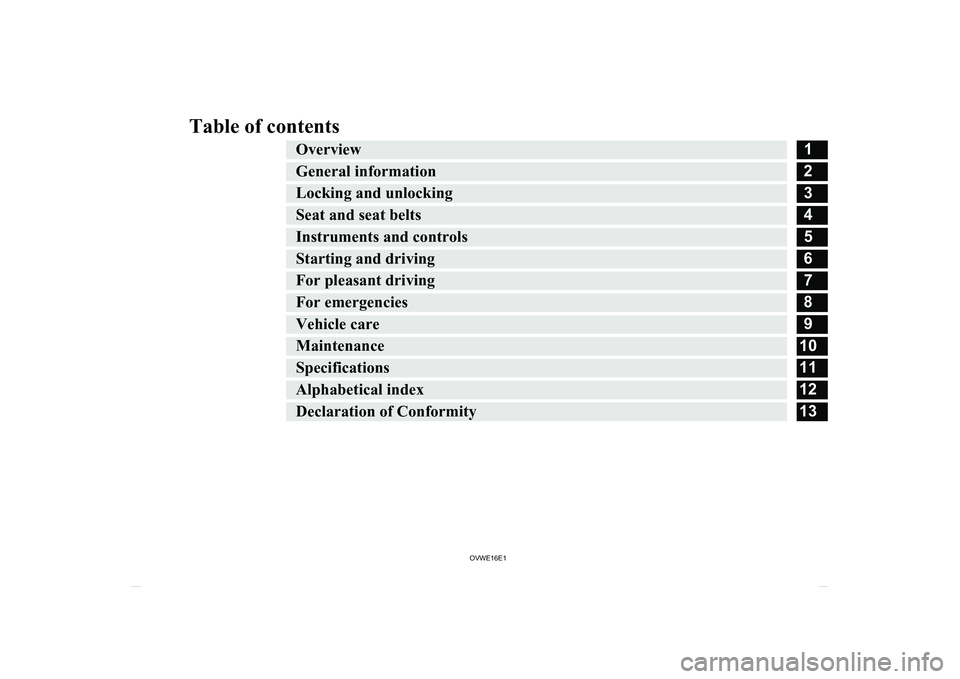

Table of contents
Overview
1
General information
2
Locking and unlocking
3
Seat and seat belts
4
Instruments and controls
5
Starting and driving
6
For pleasant driving
7
For emergencies
8
Vehicle care
9
Maintenance
10
Specifications
11
Alphabetical index
12
Declaration of Conformity
13
OVWE16E1
Page 5 of 404

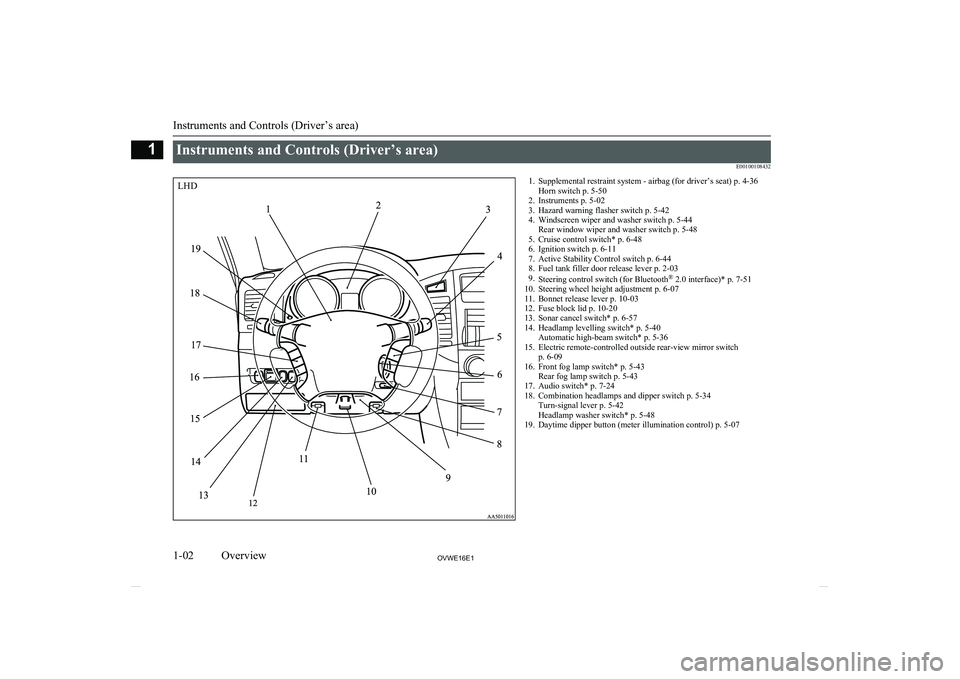

Instruments and Controls (Driver’s area)E001001084321. Supplemental restraint system - airbag (for driver’s seat) p. 4-36Horn switch p. 5-50
2. Instruments p. 5-02
3. Hazard warning flasher switch p. 5-42
4. Windscreen wiper and washer switch p. 5-44 Rear window wiper and washer switch p. 5-48
5. Cruise control switch* p. 6-48
6. Ignition switch p. 6-11
7. Active Stability Control switch p. 6-44
8. Fuel tank filler door release lever p. 2-03
9. Steering control switch (for Bluetooth ®
2.0 interface)* p. 7-51
10. Steering wheel height adjustment p. 6-07
11. Bonnet release lever p. 10-03
12. Fuse block lid p. 10-20
13. Sonar cancel switch* p. 6-57
14. Headlamp levelling switch* p. 5-40 Automatic high-beam switch* p. 5-36
15. Electric remote-controlled outside rear-view mirror switch p. 6-09
16. Front fog lamp switch* p. 5-43 Rear fog lamp switch p. 5-43
17. Audio switch* p. 7-24
18. Combination headlamps and dipper switch p. 5-34 Turn-signal lever p. 5-42
Headlamp washer switch* p. 5-48
19. Daytime dipper button (meter illumination control) p. 5-07
Instruments and Controls (Driver’s area)
1-02OVWE16E1Overview1LHD
Page 6 of 404

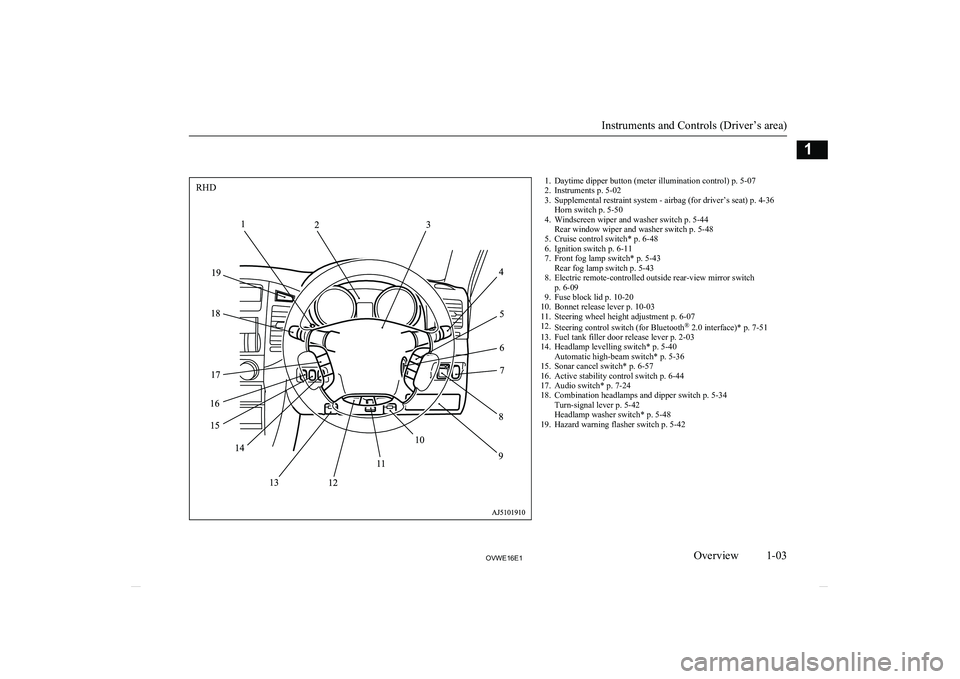

1. Daytime dipper button (meter illumination control) p. 5-07
2. Instruments p. 5-02
3. Supplemental restraint system - airbag (for driver’s seat) p. 4-36 Horn switch p. 5-50
4. Windscreen wiper and washer switch p. 5-44 Rear window wiper and washer switch p. 5-48
5. Cruise control switch* p. 6-48
6. Ignition switch p. 6-11
7. Front fog lamp switch* p. 5-43 Rear fog lamp switch p. 5-43
8. Electric remote-controlled outside rear-view mirror switch p. 6-09
9. Fuse block lid p. 10-20
10. Bonnet release lever p. 10-03
11. Steering wheel height adjustment p. 6-07
12. Steering control switch (for Bluetooth ®
2.0 interface)* p. 7-51
13. Fuel tank filler door release lever p. 2-03
14. Headlamp levelling switch* p. 5-40 Automatic high-beam switch* p. 5-36
15. Sonar cancel switch* p. 6-57
16. Active stability control switch p. 6-44
17. Audio switch* p. 7-24
18. Combination headlamps and dipper switch p. 5-34 Turn-signal lever p. 5-42
Headlamp washer switch* p. 5-48
19. Hazard warning flasher switch p. 5-42
Instruments and Controls (Driver’s area)
1-03OVWE16E1Overview1RHD
Page 7 of 404

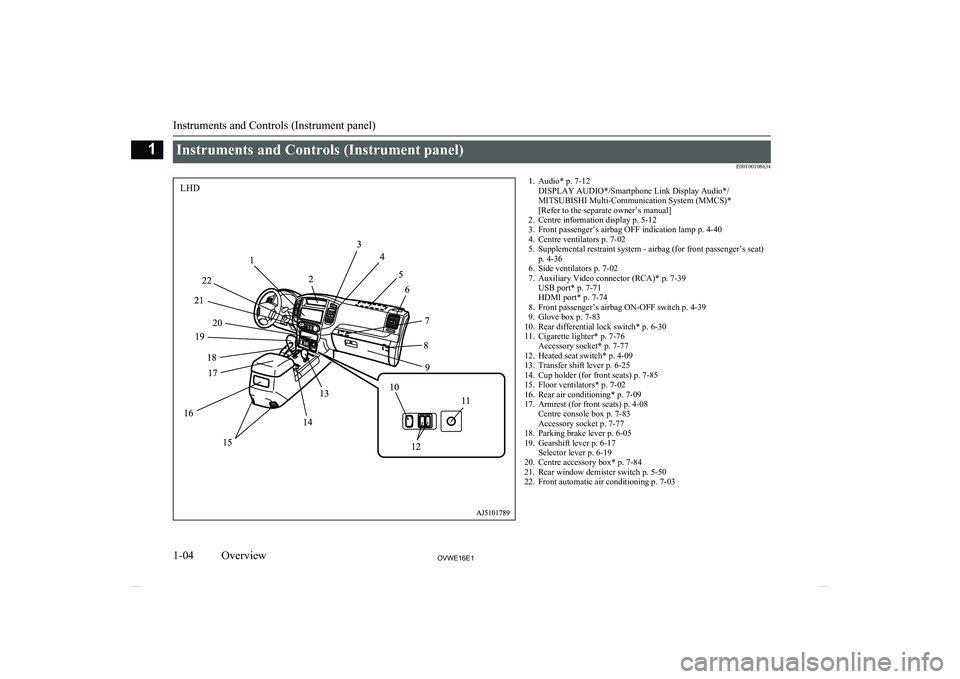

Instruments and Controls (Instrument panel)E001001086341. Audio* p. 7-12DISPLAY AUDIO*/Smartphone Link Display Audio*/
MITSUBISHI Multi-Communication System (MMCS)*
[Refer to the separate owner’s manual]
2. Centre information display p. 5-12
3. Front passenger’s airbag OFF indication lamp p. 4-40
4. Centre ventilators p. 7-02
5. Supplemental restraint system - airbag (for front passenger’s seat) p. 4-36
6. Side ventilators p. 7-02
7. Auxiliary Video connector (RCA)* p. 7-39 USB port* p. 7-71
HDMI port* p. 7-74
8. Front passenger’s airbag ON-OFF switch p. 4-39
9. Glove box p. 7-83
10. Rear differential lock switch* p. 6-30
11. Cigarette lighter* p. 7-76 Accessory socket* p. 7-77
12. Heated seat switch* p. 4-09
13. Transfer shift lever p. 6-25
14. Cup holder (for front seats) p. 7-85
15. Floor ventilators* p. 7-02
16. Rear air conditioning* p. 7-09
17. Armrest (for front seats) p. 4-08 Centre console box p. 7-83
Accessory socket p. 7-77
18. Parking brake lever p. 6-05
19. Gearshift lever p. 6-17 Selector lever p. 6-19
20. Centre accessory box* p. 7-84
21. Rear window demister switch p. 5-50
22. Front automatic air conditioning p. 7-03
Instruments and Controls (Instrument panel)
1-04OVWE16E1Overview1LHD
Page 8 of 404

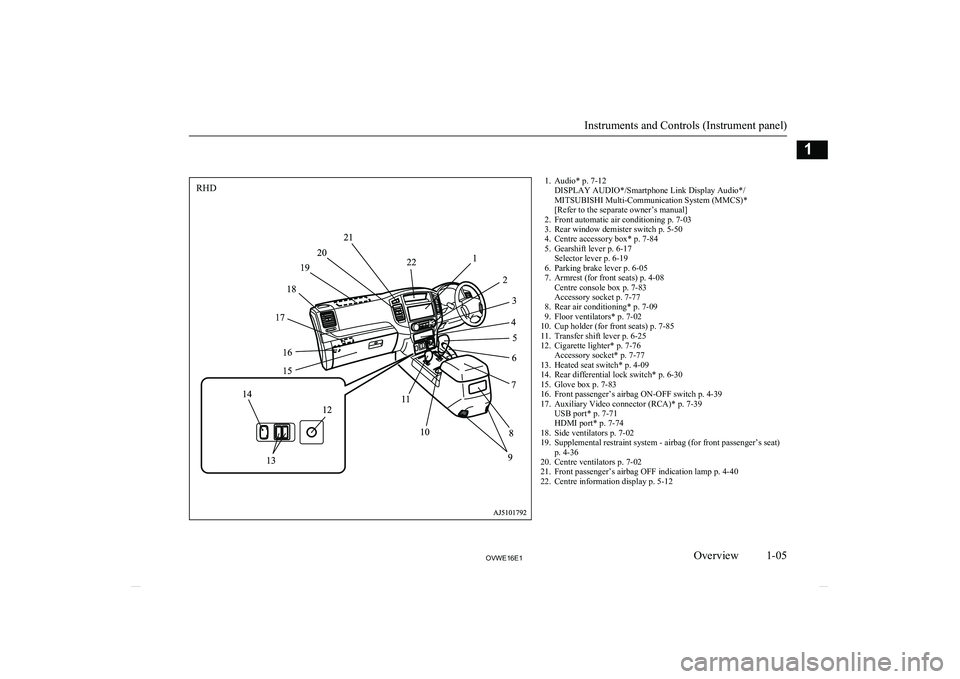

1. Audio* p. 7-12DISPLAY AUDIO*/Smartphone Link Display Audio*/
MITSUBISHI Multi-Communication System (MMCS)*
[Refer to the separate owner’s manual]
2. Front automatic air conditioning p. 7-03
3. Rear window demister switch p. 5-50
4. Centre accessory box* p. 7-84
5. Gearshift lever p. 6-17 Selector lever p. 6-19
6. Parking brake lever p. 6-05
7. Armrest (for front seats) p. 4-08 Centre console box p. 7-83
Accessory socket p. 7-77
8. Rear air conditioning* p. 7-09
9. Floor ventilators* p. 7-02
10. Cup holder (for front seats) p. 7-85
11. Transfer shift lever p. 6-25
12. Cigarette lighter* p. 7-76 Accessory socket* p. 7-77
13. Heated seat switch* p. 4-09
14. Rear differential lock switch* p. 6-30
15. Glove box p. 7-83
16. Front passenger’s airbag ON-OFF switch p. 4-39
17. Auxiliary Video connector (RCA)* p. 7-39 USB port* p. 7-71
HDMI port* p. 7-74
18. Side ventilators p. 7-02
19. Supplemental restraint system - airbag (for front passenger’s seat) p. 4-36
20. Centre ventilators p. 7-02
21. Front passenger’s airbag OFF indication lamp p. 4-40
22. Centre information display p. 5-12
Instruments and Controls (Instrument panel)
1-05OVWE16E1Overview1RHD
Page 9 of 404

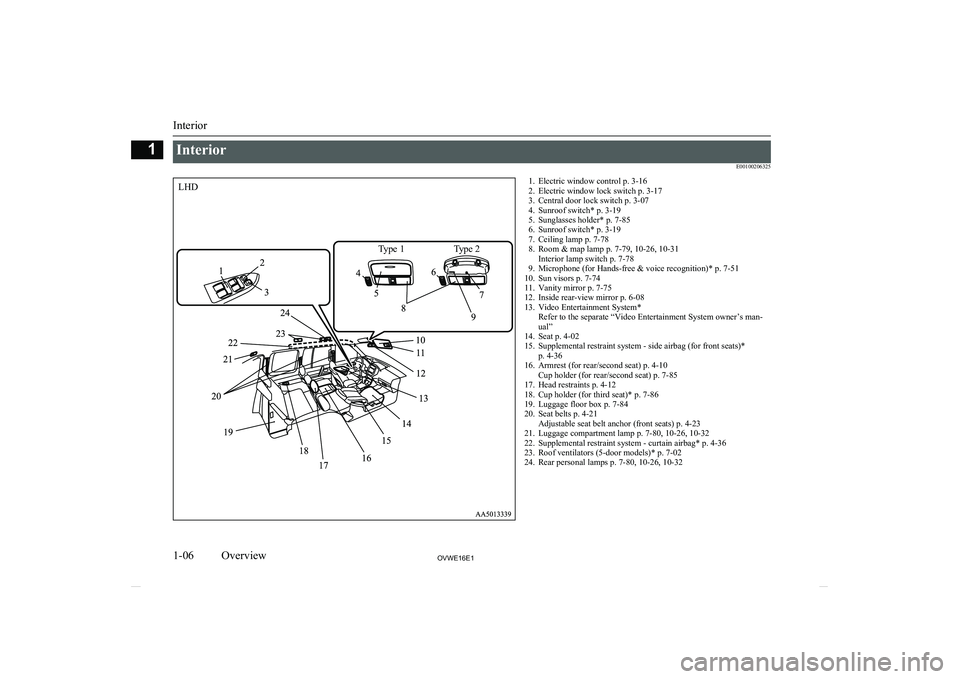

InteriorE00100206325
LHDType 1Type 21. Electric window control p. 3-162. Electric window lock switch p. 3-17
3. Central door lock switch p. 3-07
4. Sunroof switch* p. 3-19
5. Sunglasses holder* p. 7-85
6. Sunroof switch* p. 3-19
7. Ceiling lamp p. 7-78
8. Room & map lamp p. 7-79, 10-26, 10-31 Interior lamp switch p. 7-78
9. Microphone (for Hands-free & voice recognition)* p. 7-51
10. Sun visors p. 7-74
11. Vanity mirror p. 7-75
12. Inside rear-view mirror p. 6-08
13. Video Entertainment System* Refer to the separate “Video Entertainment System owner’s man-
ual”
14. Seat p. 4-02
15. Supplemental restraint system - side airbag (for front seats)* p. 4-36
16. Armrest (for rear/second seat) p. 4-10 Cup holder (for rear/second seat) p. 7-85
17. Head restraints p. 4-12
18. Cup holder (for third seat)* p. 7-86
19. Luggage floor box p. 7-84
20. Seat belts p. 4-21 Adjustable seat belt anchor (front seats) p. 4-23
21. Luggage compartment lamp p. 7-80, 10-26, 10-32
22. Supplemental restraint system - curtain airbag* p. 4-36
23. Roof ventilators (5-door models)* p. 7-02
24. Rear personal lamps p. 7-80, 10-26, 10-32
Interior
1-06OVWE16E1Overview1
Page 10 of 404
RHDType 1Type 21. Sunroof switch* p. 3-19
2. Sunglasses holder* p. 7-85
3. Room & map lamp p. 7-79, 10-26, 10-31 Interior lamp switch p. 7-78
4. Sunroof switch* p. 3-19
5. Microphone (for Hands-free & voice recognition)* p. 7-51
6. Ceiling lamp p. 7-78
7. Electric window lock switch p. 3-17
8. Central door lock switch p. 3-07
9. Electric window control p. 3-16
10. Rear personal lamps p. 7-80, 10-26, 10-32
11. Roof ventilators (5-door models)* p. 7-02
12. Supplemental restraint system - curtain airbag* p. 4-36
13. Luggage compartment lamp p. 7-80, 10-26, 10-32
14. Seat belts p. 4-21 Adjustable seat belt anchor (front seats) p. 4-23
15. Luggage floor box p. 7-84
16. Cup holder (for third seat)* p. 7-86
17. Head restraints p. 4-12
18. Armrest (for rear/second seat) p. 4-10 Cup holder (for rear/second seat) p. 7-85
19. Supplemental restraint system - side airbag (for front seats)* p. 4-36
20. Seat p. 4-02
21. Video Entertainment System* Refer to the separate “Video Entertainment System owner’s man-
ual”
22. Inside rear-view mirror p. 6-08
23. Vanity mirror p. 7-75
24. Sun visors p. 7-74
Interior
1-07OVWE16E1Overview1
