To adjust intermittent intervals
With the lever in the “INT” (speed-sensitive)position, the intermittent intervals can be ad-justed by turning the knob (A).
1- Fast
2- Slow
NOTEl The speed-sensitive-operation function of
the windscreen wipers can be deactivated.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Misting function
The misting function can be used when the
ignition switch is in the “ON” or “ACC” po- sition.
The wipers will operate once if the wiper lev-
er is raised to the “MIST” position and re-
leased. This operation is useful when it is drizzling, etc. The wipers will continue to op-erate while the lever is held in the “MIST”
position.Vehicles with rain sensor
E00526401773
The windscreen wipers can be operated with the ignition switch in the “ON” or “ACC”
position.
If the blades are frozen to the windscreen or
rear window, do not operate the wipers until
the ice has melted and the blades are freed,
otherwise the wiper motor may be damaged.MIST-Misting function
The wipers will operate once.OFF-OffAUTO-Auto-wiper control
Rain sensor
The wipers will automatically op- erate depending on the degree of
wetness on the windscreen.LO-SlowHI-Fast
Rain sensor
Can only be used when the ignition switch is in the “ON” position.
Wiper and washer switch
5-45OVWE16E1Instruments and controls5

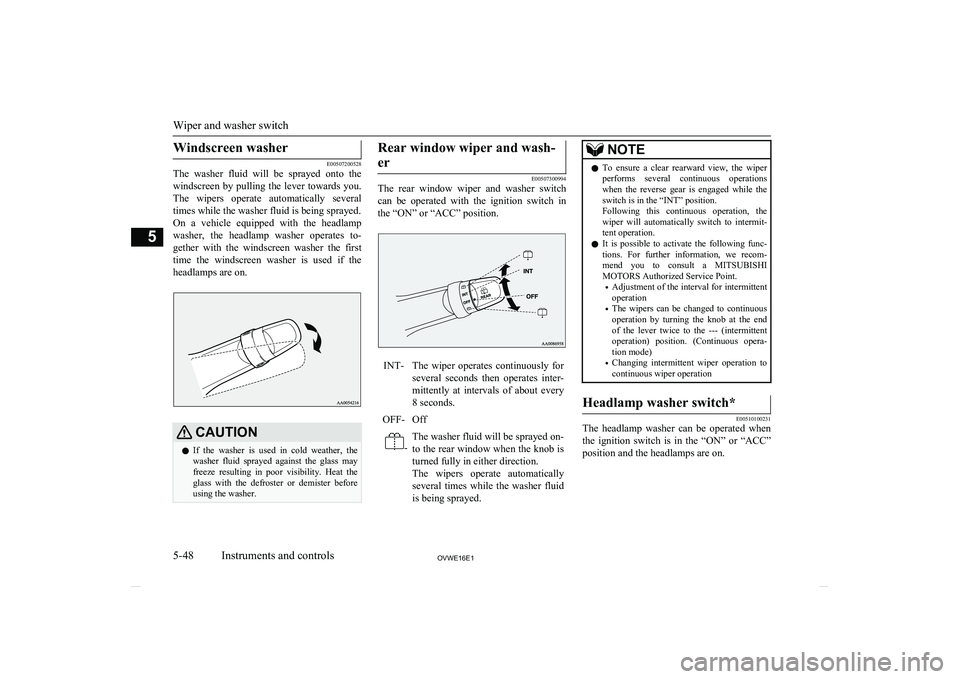

Windscreen washer
E00507200528
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
The wipers operate automatically several times while the washer fluid is being sprayed.
On a vehicle equipped with the headlamp
washer, the headlamp washer operates to- gether with the windscreen washer the first time the windscreen washer is used if the
headlamps are on.
CAUTIONl If the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze resulting in poor visibility. Heat the
glass with the defroster or demister before using the washer.Rear window wiper and wash-
er
E00507300994
The rear window wiper and washer switch
can be operated with the ignition switch in
the “ON” or “ACC” position.
INT-The wiper operates continuously for several seconds then operates inter- mittently at intervals of about every
8 seconds.OFF-Off-The washer fluid will be sprayed on-
to the rear window when the knob is turned fully in either direction.
The wipers operate automatically
several times while the washer fluid is being sprayed.NOTEl To ensure a clear rearward view, the wiper
performs several continuous operations
when the reverse gear is engaged while the
switch is in the “INT” position.
Following this continuous operation, the wiper will automatically switch to intermit-
tent operation.
l It is possible to activate the following func-
tions. For further information, we recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• Adjustment of the interval for intermittent
operation
• The wipers can be changed to continuous
operation by turning the knob at the end of the lever twice to the --- (intermittent operation) position. (Continuous opera- tion mode)
• Changing intermittent wiper operation to
continuous wiper operationHeadlamp washer switch*
E00510100231
The headlamp washer can be operated when
the ignition switch is in the “ON” or “ACC” position and the headlamps are on.
Wiper and washer switch
5-48OVWE16E1Instruments and controls5

Economical drivingE00600100561
For economical driving, there are some tech- nical requirements that have to be met. Theprerequisite for low fuel consumption is a
properly adjusted engine. In order to achieve longer life of the vehicle and the most eco- nomical operation, we recommend you tohave the vehicle checked at regular intervals in accordance with the service standards.
Fuel economy and generation of exhaust gas
and noise are highly influenced by personal
driving habits as well as the particular operat- ing conditions. The following points shouldbe observed in order to minimize wear of
brakes, tyres and engine as well as to reduce
environmental pollution.
Starting
Avoid rapid acceleration and sudden starts;
such operation will result in higher fuel con-
sumption.
Shifting
Shift only at an appropriate speed and engine speed. Always use the highest gear possible.
The transfer shift lever should be set to “2H” when driving on normal roads and express
ways to obtain best possible fuel economy.
City traffic
Frequent starting and stopping increases the
average fuel consumption. Use roads with smooth traffic flow whenever possible. When driving on congested roads, avoid use of a
low gear at high engine speeds.
Idling
The vehicle consumes fuel even during
idling. Avoid extended idling whenever pos- sible.
Speed
At higher vehicle speed, more fuel is con-
sumed. Avoid driving at full speed. Even a
slight release of the accelerator pedal will save a significant amount of fuel.
Tyre inflation pressure
Check the tyre inflation pressures at regularintervals. Low tyre inflation pressure increa-ses road resistance and fuel consumption. In addition, low tyre pressures adversely affect
tyre wear and driving stability.
Load
Do not drive with unnecessary articles in the
luggage compartment. Especially during city
driving where frequent starting and stopping is necessary, the increased weight of the ve-
hicle will greatly affect fuel consumption. Al- so avoid driving with unnecessary luggage or carriers, etc., on the roof; the increased air re- sistance will increase fuel consumption.
Cold engine starting
Starting of a cold engine consumes more fuel.
Unnecessary fuel consumption is also caused by keeping a hot engine running. After the
engine is started, commence driving as soon
as possible.
Air conditioning
The use of the air conditioning will increase the fuel consumption.
Driving, alcohol and drugs
E00600200067
Driving after drinking alcohol is one of the
most frequent causes of accidents.
Economical driving
6-02OVWE16E1Starting and driving6

CAUTIONlBe sure to shift the transfer shift lever to the
“2H” position. Never try to tow with the transfer shift lever in the “4H”, “4HLc” or
“4LLc” positions and with any of the wheels
on the ground (Type A or B). This could re- sult in damage to the vehicle’s driving sys- tem, or the vehicle could become separated from the tow truck and unexpected accident
might result. If you cannot shift the transfer shift lever to “2H” position or the transmis-
sion is malfunctioning or damaged, transport the vehicle with all the wheels on a carriage (Type C or D) as illustrated.If you can shift the transfer shift lever to the “2H” position.If you cannot shift the transfer shift lever to the “2H”
position.
Jacking up a 4-wheel drive ve-
hicle
WARNINGl Do not crank the engine while jacking up
the vehicle.
The tyre on the ground may turn and the
vehicle may roll off the jack.Clutch operation
Quick or slight clutch engagement made
while the engine is running at high speed will
cause damage to the clutch and transmission because the tractive force is very great.
Operate the pedal slowly and positively.
Braking
E00607001524
All the parts of the brake system are critical
to safety. We recommend you to have the ve- hicle checked at regular intervals according
to the service booklet.
CAUTIONl Avoid driving habits that cause heavy brak-
ing and never “ride” the brakes by resting
your foot on the brake pedal while driving.
It causes brake overheating and fade.
Brake system
The service brake is divided into two brake
circuits so that when one brake circuit fails, the other is available to stop the vehicle. In
this situation, even if the brake pedal moves down to the very end of its possible stroke,
keep depressing the brake pedal down harder than usual; stop driving as soon as possible
and have the brake system repaired.
Braking
6-39OVWE16E1Starting and driving6

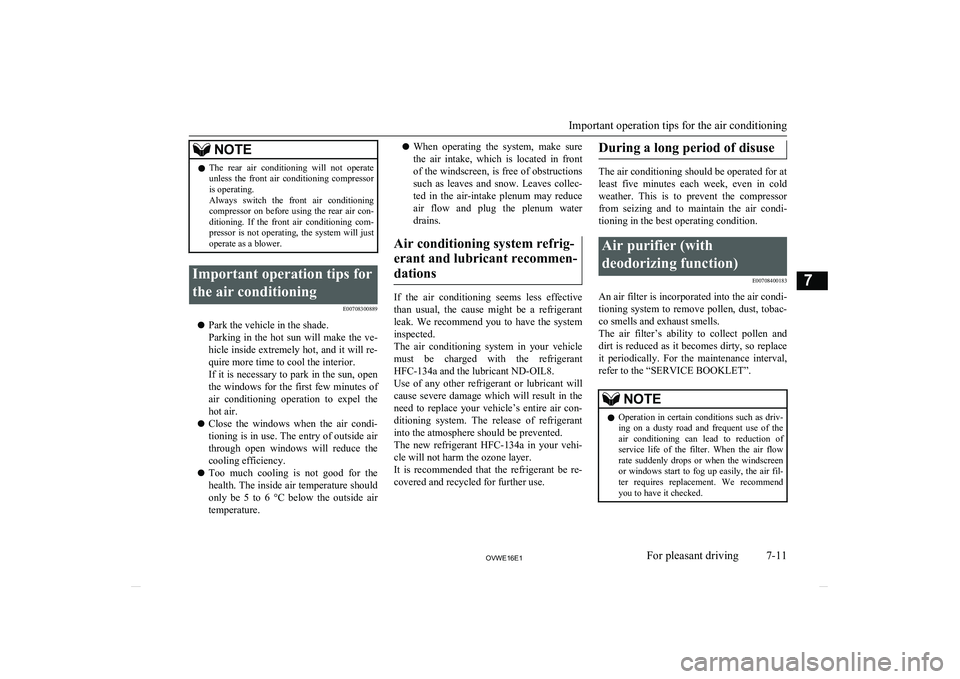

NOTElThe rear air conditioning will not operate
unless the front air conditioning compressor
is operating.
Always switch the front air conditioning
compressor on before using the rear air con- ditioning. If the front air conditioning com-
pressor is not operating, the system will just operate as a blower.Important operation tips for
the air conditioning E00708300889
lPark the vehicle in the shade.
Parking in the hot sun will make the ve-
hicle inside extremely hot, and it will re-
quire more time to cool the interior.
If it is necessary to park in the sun, open the windows for the first few minutes of
air conditioning operation to expel the
hot air.
l Close the windows when the air condi-
tioning is in use. The entry of outside air
through open windows will reduce the cooling efficiency.
l Too much cooling is not good for the
health. The inside air temperature should
only be 5 to 6 °C below the outside air temperature.
l When operating the system, make sure
the air intake, which is located in front
of the windscreen, is free of obstructions such as leaves and snow. Leaves collec- ted in the air-intake plenum may reduce
air flow and plug the plenum water
drains.
Air conditioning system refrig- erant and lubricant recommen-dations
If the air conditioning seems less effective than usual, the cause might be a refrigerant
leak. We recommend you to have the system inspected.
The air conditioning system in your vehicle must be charged with the refrigerant
HFC-134a and the lubricant ND-OIL8.
Use of any other refrigerant or lubricant will
cause severe damage which will result in the need to replace your vehicle’s entire air con-
ditioning system. The release of refrigerant into the atmosphere should be prevented.
The new refrigerant HFC-134a in your vehi-
cle will not harm the ozone layer.
It is recommended that the refrigerant be re-
covered and recycled for further use.
During a long period of disuse
The air conditioning should be operated for at
least five minutes each week, even in cold weather. This is to prevent the compressor
from seizing and to maintain the air condi- tioning in the best operating condition.
Air purifier (with
deodorizing function) E00708400183
An air filter is incorporated into the air condi-tioning system to remove pollen, dust, tobac-
co smells and exhaust smells.
The air filter’s ability to collect pollen and
dirt is reduced as it becomes dirty, so replace it periodically. For the maintenance interval, refer to the “SERVICE BOOKLET”.
NOTEl Operation in certain conditions such as driv-
ing on a dusty road and frequent use of the air conditioning can lead to reduction of
service life of the filter. When the air flow rate suddenly drops or when the windscreenor windows start to fog up easily, the air fil-
ter requires replacement. We recommend
you to have it checked.
Important operation tips for the air conditioning
7-11OVWE16E1For pleasant driving7
