Ad-
just-
ment
items
Turn counter- clockwiseTurn clockwise
TRE-
BLE-6 to 0
(Low high-pass
volume)0 to +6
(High high-pass
volume)FAD-
ERCENTER to REAR 11
(emphasise
REAR)FRONT 11 to
CENTER
(emphasise
FRONT)BAL-
ANC
ELEFT 11 to CENTER
(emphasise
LEFT)CENTER to
RIGHT 11
(emphasise
RIGHT)SCVOFF, LOW
(Low vehicle
compensated vol- ume effect)MID, HIGH
(High vehicle
compensated vol-
ume effect)System Settings
E00738301250
Change system settings such as product time.1. Press the MENU key.
2. Press the /SEL key to select settings
items.

Each time the
/SEL key is pressed,
this switches in the order DAB setting* 1
,
Gracenote DB* 2
, AF, REG, TP-S, PI-S,
PTY language settings, PHONE settings,
CT, Adjust time, and Cancel.
3. Turn the
/SEL key to set.
4. Press the
/SEL key to determine.

This completes settings, and displays the
next settings item.

* 1
:Displayed when a DAB tuner is con-
nected.* 2
:Displayed when playing back audio
files (vehicles with a Bluetooth ®
2.0 in-
terface).
DAB Setting*
Change DAB settings
(“Set value” bold typeface indicates factory
default settings.)
Settings
nameSettings val- ueSettings con-tentDAB-DAB
Link settingsOFFIf low recep-
tion sensitivi-
ty, switch to
another serv-
ice.ONIf low recep-
tion sensitivi-
ty, switch to
another serv-
ice.DAB Band settingsBAND IIISet used
broadcast
band to 174
to 239 MHz.L-BANDSet used
broadcast
band to 1452
to 1490 MHz.BOTHSet used
broadcast
band to Band
III and L-
Band.
System Settings
7-42OVWX17E1For pleasant driving7

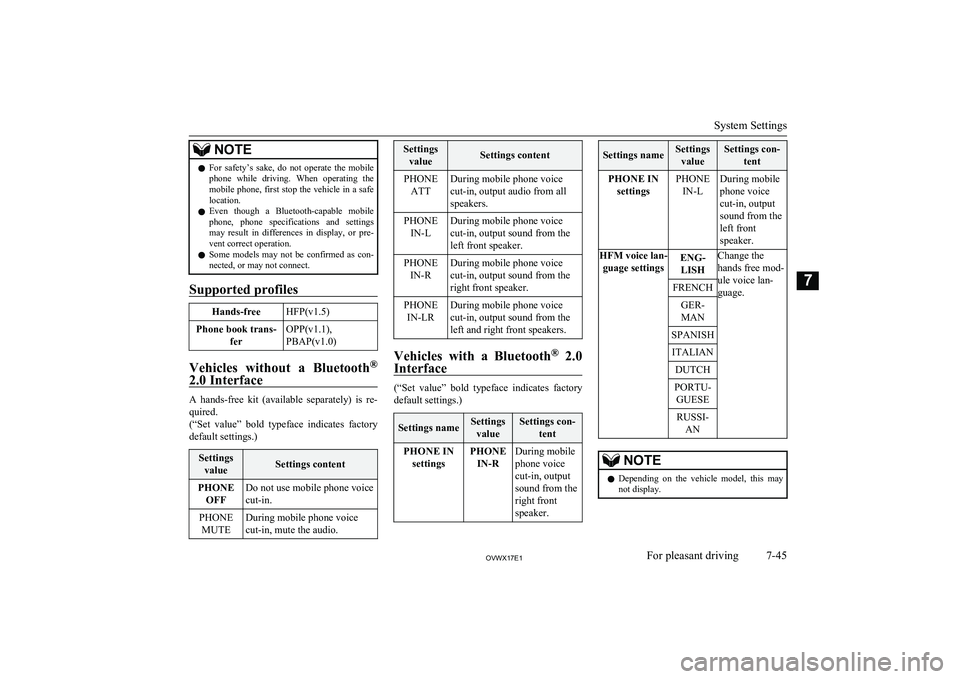

NOTElFor safety’s sake, do not operate the mobile
phone while driving. When operating themobile phone, first stop the vehicle in a safe
location.
l Even though a Bluetooth-capable mobile
phone, phone specifications and settings
may result in differences in display, or pre- vent correct operation.
l Some models may not be confirmed as con-
nected, or may not connect.
Supported profiles
Hands-freeHFP(v1.5)Phone book trans-
ferOPP(v1.1),
PBAP(v1.0)
Vehicles without a Bluetooth ®
2.0 Interface
A hands-free kit (available separately) is re- quired.
(“Set value” bold typeface indicates factory
default settings.)
Settings
valueSettings contentPHONE OFFDo not use mobile phone voice
cut-in.PHONE MUTEDuring mobile phone voice
cut-in, mute the audio.Settings valueSettings contentPHONE ATTDuring mobile phone voice
cut-in, output audio from all
speakers.PHONE IN-LDuring mobile phone voice
cut-in, output sound from the
left front speaker.PHONE IN-RDuring mobile phone voice
cut-in, output sound from the
right front speaker.PHONE IN-LRDuring mobile phone voice
cut-in, output sound from the
left and right front speakers.
Vehicles with a Bluetooth ®
2.0
Interface
(“Set value” bold typeface indicates factory
default settings.)
Settings nameSettings
valueSettings con- tentPHONE INsettingsPHONEIN-RDuring mobile
phone voice
cut-in, output
sound from the
right front
speaker.Settings nameSettings valueSettings con- tentPHONE INsettingsPHONEIN-LDuring mobile
phone voice
cut-in, output
sound from the
left front
speaker.HFM voice lan- guage settingsENG-LISHChange the
hands free mod-
ule voice lan-
guage.FRENCHGER-
MANSPANISHITALIANDUTCHPORTU- GUESERUSSI- ANNOTEl Depending on the vehicle model, this may
not display.
System Settings
7-45OVWX17E1For pleasant driving7

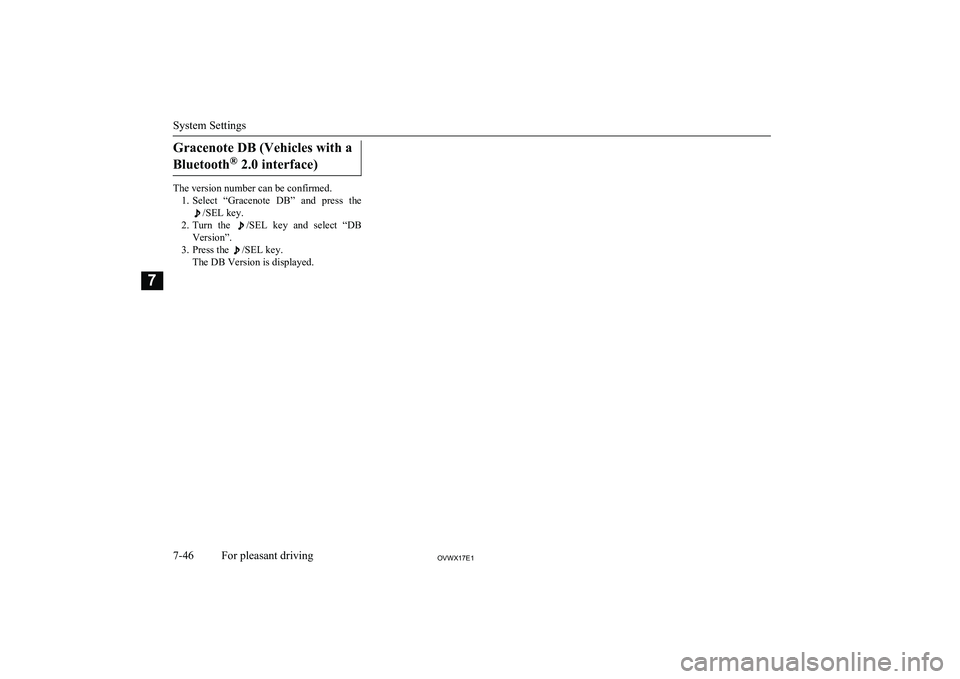

Gracenote DB (Vehicles with aBluetooth ®
2.0 interface)
The version number can be confirmed.
1. Select “Gracenote DB” and press the
/SEL key.
2. Turn the
/SEL key and select “DB
Version”.
3. Press the
/SEL key.
The DB Version is displayed.
System Settings
7-46OVWX17E1For pleasant driving7

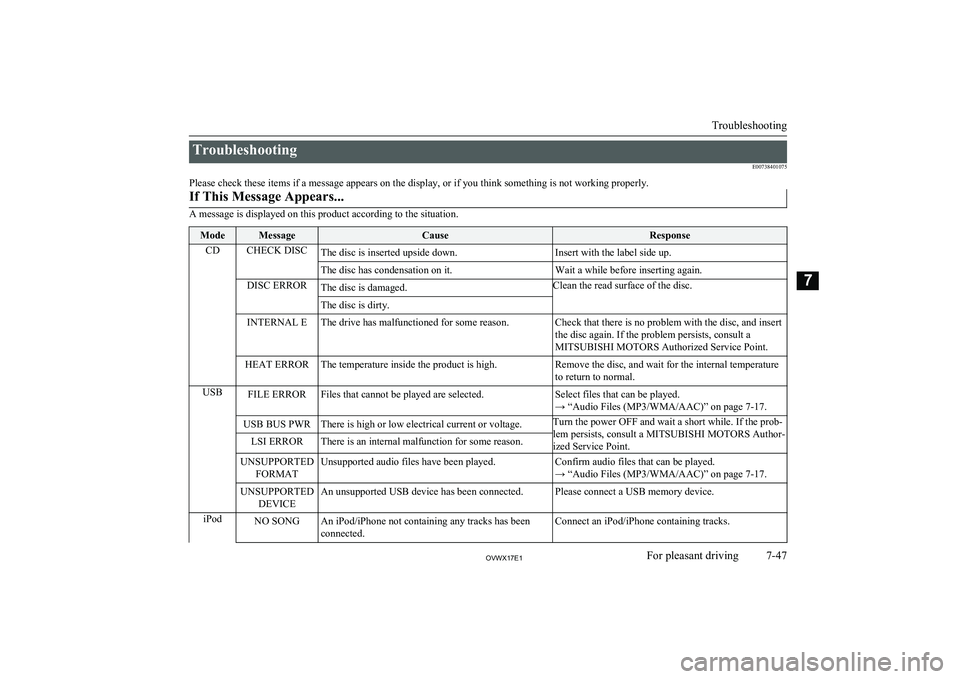

TroubleshootingE00738401075
Please check these items if a message appears on the display, or if you think something is not working properly.If This Message Appears...
A message is displayed on this product according to the situation.
ModeMessageCauseResponseCDCHECK DISCThe disc is inserted upside down.Insert with the label side up.The disc has condensation on it.Wait a while before inserting again.DISC ERRORThe disc is damaged.Clean the read surface of the disc.The disc is dirty.INTERNAL EThe drive has malfunctioned for some reason.Check that there is no problem with the disc, and insert
the disc again. If the problem persists, consult a
MITSUBISHI MOTORS Authorized Service Point.HEAT ERRORThe temperature inside the product is high.Remove the disc, and wait for the internal temperature
to return to normal.USBFILE ERRORFiles that cannot be played are selected.Select files that can be played.
→ “Audio Files (MP3/WMA/AAC)” on page 7-17.USB BUS PWRThere is high or low electrical current or voltage.Turn the power OFF and wait a short while. If the prob-
lem persists, consult a MITSUBISHI MOTORS Author- ized Service Point.LSI ERRORThere is an internal malfunction for some reason.UNSUPPORTED FORMATUnsupported audio files have been played.Confirm audio files that can be played.
→ “Audio Files (MP3/WMA/AAC)” on page 7-17.UNSUPPORTED DEVICEAn unsupported USB device has been connected.Please connect a USB memory device.iPodNO SONGAn iPod/iPhone not containing any tracks has beenconnected.Connect an iPod/iPhone containing tracks.
Troubleshooting
7-47OVWX17E1For pleasant driving7

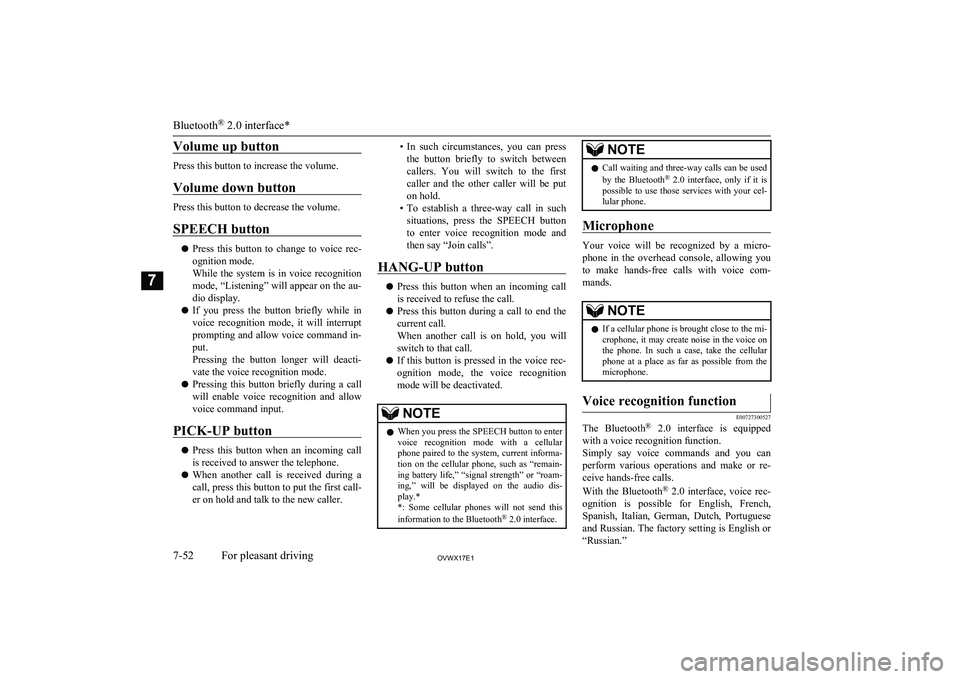

Volume up button
Press this button to increase the volume.
Volume down button
Press this button to decrease the volume.
SPEECH button
l Press this button to change to voice rec-
ognition mode.
While the system is in voice recognition
mode, “Listening” will appear on the au- dio display.
l If you press the button briefly while in
voice recognition mode, it will interrupt
prompting and allow voice command in- put.
Pressing the button longer will deacti-
vate the voice recognition mode.
l Pressing this button briefly during a call
will enable voice recognition and allow
voice command input.
PICK-UP button
l Press this button when an incoming call
is received to answer the telephone.
l When another call is received during a
call, press this button to put the first call-
er on hold and talk to the new caller.
• In such circumstances, you can press
the button briefly to switch between
callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such
situations, press the SPEECH button
to enter voice recognition mode and then say “Join calls”.
HANG-UP button
l Press this button when an incoming call
is received to refuse the call.
l Press this button during a call to end the
current call.
When another call is on hold, you will
switch to that call.
l If this button is pressed in the voice rec-
ognition mode, the voice recognition mode will be deactivated.
NOTEl When you press the SPEECH button to enter
voice recognition mode with a cellular
phone paired to the system, current informa- tion on the cellular phone, such as “remain- ing battery life,” “signal strength” or “roam-
ing,” will be displayed on the audio dis-
play.*
*: Some cellular phones will not send this
information to the Bluetooth ®
2.0 interface.NOTEl Call waiting and three-way calls can be used
by the Bluetooth ®
2.0 interface, only if it is
possible to use those services with your cel- lular phone.
Microphone
Your voice will be recognized by a micro-
phone in the overhead console, allowing you to make hands-free calls with voice com-
mands.
NOTEl If a cellular phone is brought close to the mi-
crophone, it may create noise in the voice on
the phone. In such a case, take the cellular phone at a place as far as possible from the
microphone.Voice recognition function
E00727300527
The Bluetooth ®
2.0 interface is equipped
with a voice recognition function.
Simply say voice commands and you can
perform various operations and make or re- ceive hands-free calls.
With the Bluetooth ®
2.0 interface, voice rec-
ognition is possible for English, French,
Spanish, Italian, German, Dutch, Portuguese and Russian. The factory setting is English or “Russian.”
Bluetooth ®
2.0 interface*
7-52OVWX17E1For pleasant driving7

NOTElIf you press and release the SPEECH button
and say “Continue” or “Previous” while the list is being read, the system will advance or
rewind the list.
Say “Continue” to proceed to the device with the next highest number or “Previous”
to return to the phone with the previous
number.
l You can change the device tag by pressing
and releasing the SPEECH button and then
saying “Edit” while the list is being read.
l You can change the phone to be connected
by pressing and releasing the SPEECH but-
ton and then saying “Select phone” while the list is being read.
l You can change the music player to be con-
nected by pressing and releasing the SPEECH button and then saying “Select mu-

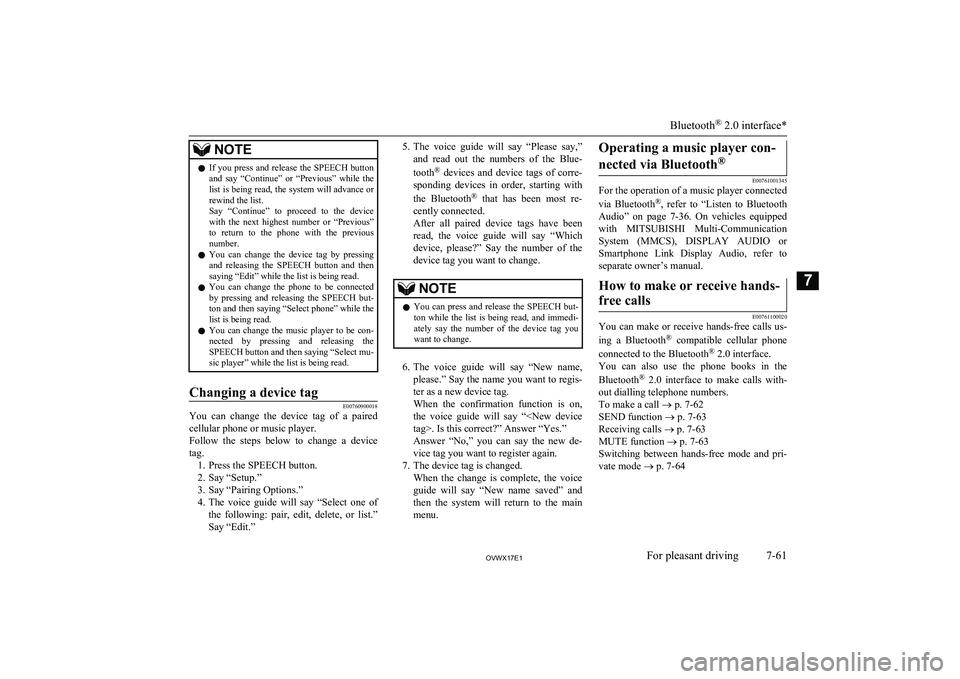

sic player” while the list is being read.Changing a device tag
E00760900018
You can change the device tag of a paired
cellular phone or music player.
Follow the steps below to change a device
tag. 1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of
the following: pair, edit, delete, or list.”
Say “Edit.”
5. The voice guide will say “Please say,”
and read out the numbers of the Blue-
tooth ®
devices and device tags of corre-
sponding devices in order, starting with
the Bluetooth ®
that has been most re-
cently connected.
After all paired device tags have been read, the voice guide will say “Whichdevice, please?” Say the number of the
device tag you want to change.NOTEl You can press and release the SPEECH but-
ton while the list is being read, and immedi- ately say the number of the device tag you
want to change.
6. The voice guide will say “New name,
please.” Say the name you want to regis-
ter as a new device tag.
When the confirmation function is on, the voice guide will say “. Is this correct?” Answer “Yes.”
Answer “No,” you can say the new de-
vice tag you want to register again.
7. The device tag is changed. When the change is complete, the voice
guide will say “New name saved” and
then the system will return to the main menu.
Operating a music player con-
nected via Bluetooth ®
E00761001345
For the operation of a music player connected
via Bluetooth ®
, refer to “Listen to Bluetooth
Audio” on page 7-36. On vehicles equipped
with MITSUBISHI Multi-Communication
System (MMCS), DISPLAY AUDIO or Smartphone Link Display Audio, refer to separate owner’s manual.
How to make or receive hands-
free calls
E00761100020
You can make or receive hands-free calls us-
ing a Bluetooth ®
compatible cellular phone
connected to the Bluetooth ®
2.0 interface.
You can also use the phone books in the
Bluetooth ®
2.0 interface to make calls with-
out dialling telephone numbers.
To make a call ® p. 7-62
SEND function ® p. 7-63
Receiving calls ® p. 7-63
MUTE function ® p. 7-63
Switching between hands-free mode and pri-
vate mode ® p. 7-64
Bluetooth ®
2.0 interface*
7-61OVWX17E1For pleasant driving7

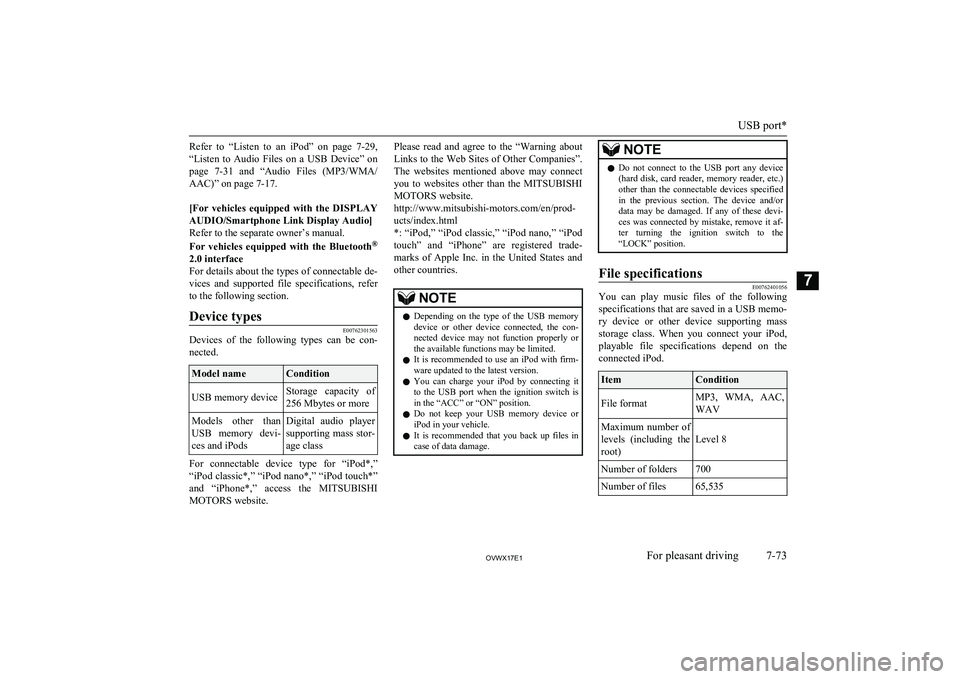

Refer to “Listen to an iPod” on page 7-29,
“Listen to Audio Files on a USB Device” on page 7-31 and “Audio Files (MP3/WMA/
AAC)” on page 7-17.

[For vehicles equipped with the DISPLAY AUDIO/Smartphone Link Display Audio]Refer to the separate owner’s manual.
For vehicles equipped with the Bluetooth ®
2.0 interface
For details about the types of connectable de- vices and supported file specifications, referto the following section.Device types
E00762301563
Devices of the following types can be con-
nected.
Model nameConditionUSB memory deviceStorage capacity of
256 Mbytes or moreModels other than
USB memory devi- ces and iPodsDigital audio player
supporting mass stor-
age class
For connectable device type for “iPod*,”
“iPod classic*,” “iPod nano*,” “iPod touch*”
and “iPhone*,” access the MITSUBISHI
MOTORS website.
Please read and agree to the “Warning about
Links to the Web Sites of Other Companies”.
The websites mentioned above may connect you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod- ucts/index.html
*: “iPod,” “iPod classic,” “iPod nano,” “iPod
touch” and “iPhone” are registered trade- marks of Apple Inc. in the United States and
other countries.NOTEl Depending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.
l It is recommended to use an iPod with firm-
ware updated to the latest version.
l You can charge your iPod by connecting it
to the USB port when the ignition switch is in the “ACC” or “ON” position.
l Do not keep your USB memory device or
iPod in your vehicle.
l It is recommended that you back up files in
case of data damage.NOTEl Do not connect to the USB port any device
(hard disk, card reader, memory reader, etc.)other than the connectable devices specified
in the previous section. The device and/or data may be damaged. If any of these devi-ces was connected by mistake, remove it af-
ter turning the ignition switch to the “LOCK” position.File specifications
E00762401056
You can play music files of the following
specifications that are saved in a USB memo-ry device or other device supporting mass
storage class. When you connect your iPod, playable file specifications depend on the connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVMaximum number of levels (including the root)
Level 8
Number of folders700Number of files65,535
USB port*
7-73OVWX17E1For pleasant driving7

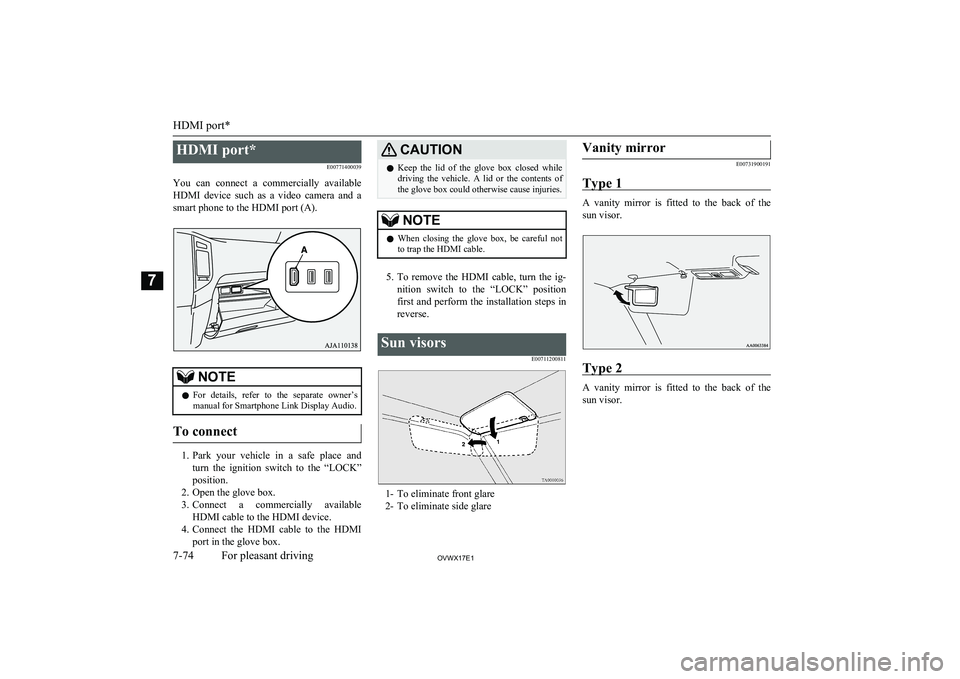

HDMI port*E00771400039
You can connect a commercially available HDMI device such as a video camera and a
smart phone to the HDMI port (A).NOTEl For details, refer to the separate owner’s
manual for Smartphone Link Display Audio.
To connect
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position.
2. Open the glove box.
3. Connect a commercially available
HDMI cable to the HDMI device.
4. Connect the HDMI cable to the HDMI
port in the glove box.
CAUTIONl Keep the lid of the glove box closed while
driving the vehicle. A lid or the contents of the glove box could otherwise cause injuries.NOTEl When closing the glove box, be careful not
to trap the HDMI cable.
5. To remove the HDMI cable, turn the ig-
nition switch to the “LOCK” position first and perform the installation steps in
reverse.
Sun visors
E00711200811
1- To eliminate front glare2- To eliminate side glare
Vanity mirror
E00731900191
Type 1
A vanity mirror is fitted to the back of the sun visor.
Type 2
A vanity mirror is fitted to the back of the sun visor.
HDMI port*
7-74OVWX17E1For pleasant driving7

A
Accessory (Installation).....................................2-04
Accessory socket............................................... 7-77
Active stability & traction control (ASTC)....... 6-40
Additional equipment...................................... 10-18
Air conditioning Front automatic air conditioning................... 7-03
Important operation tips for the air conditioning................................................. 7-11
Rear air conditioning.....................................7-09
Air purifier (with deodorizing function)........... 7-11
Airbag................................................................ 4-36 Caution for installing the child re-straint on vehicle with a front pas-
senger’s airbag.....................................4-25,4-39
Antenna............................................................. 7-50
Anti-lock brake system (ABS).......................... 6-37 Warning lamp................................................6-38
Approach lamps.................................................3-08
Armrest..................................................... 4-08,4-10
Ashtray.............................................................. 7-75
Audio LW/MW/FM radio/CD player...................... 7-12
To listen to a disc in the Video En- tertainment System...................................... 7-39
Troubleshooting............................................ 7-47
Auto-cutout function......................................... 7-81
Automatic headlamp levelling.......................... 5-41
Automatic high-beam system............................ 5-36 Automatic high-beam system warning lamp 5-39
Automatic transmission
Fluid............................................................ 11-14
Selector lever operation................................ 6-15
Selector lever position...................................6-17
Sports mode.................................................. 6-17
B
Backdoor........................................................... 3-09
Battery............................................................. 10-09 Charge warning display................................ 5-12
Discharged battery (Emergency starting)..... 8-02
Specifications.............................................. 11-11
Bleeding the fuel system................................... 8-06
Bluetooth® 2.0 interface................................... 7-50
Bonnet............................................................. 10-03
Brake Anti-lock brake............................................. 6-37
Brake assist system....................................... 6-36
Braking.......................................................... 6-35
Fluid.................................................. 10-08,11-14
Parking brake................................................ 6-04
Power brakes................................................. 6-35
Warning lamp................................................5-10
Bulb capacity........................................ 10-23,10-25
C
Card holder................................................7-75,7-83
Cargo loads........................................................6-59
Catalytic converter.......................................... 10-02 Cautions on handling of 4-wheel drive vehicles................................................... 6-33
Central door locks............................................. 3-07
Centre console box............................................ 7-83
Centre information display................................ 5-12
Changing a fuse............................................... 10-22 Charge warning display.....................................5-12Check engine warning lamp.............................. 5-11Child restraint.................................................... 4-26 Caution for installing the child re-straint on vehicle with a front pas-
senger’s airbag.....................................4-25,4-39
Child-protection rear doors............................... 3-08
Cigarette lighter................................................. 7-76
Cleaning Aluminium wheels........................................ 9-05Chrome parts................................................. 9-05
Exterior of your vehicle................................ 9-03
Genuine leather............................................. 9-03
Interior of your vehicle................................. 9-02
Plastic, vinyl leather, etc............................... 9-02
Polishing....................................................... 9-04
Sunroof.......................................................... 9-06
Washing........................................................ 9-03
Waxing.......................................................... 9-04
Coat hooks......................................................... 7-88
Combination headlamps and dipper switch...... 5-34
Convenient hook............................................... 7-87
Coolant (engine)....................................10-06,11-14
Cruise control.................................................... 6-44
Cup holder......................................................... 7-85
Curtain airbag system........................................ 4-44
D
Daytime dipper button.......................................5-07
Daytime running lamps..................................... 5-35
Demister (rear window).................................... 5-50
Diesel particulate filter (DPF)........................... 6-14
Alphabetical index
12- 1
OVWX17E1Alphabetical index
