1.Press the “ADJ” button to show the
brightness adjusting display.
2. Press the “←” or “→” function button to
select the setting you wish to adjust (daytime or nighttime). Then press the
“SELECT” function button.
3. Use the function buttons to adjust the
brightness.
“+”-To make the display brighter
The display becomes brighter by one step, every time you lightly
press the “+” function button. If you
continue pressing the button for
about 2 seconds or more, the indica- tion is fast-forwarded.“-”-To make the display darker
The display becomes darker by one step, every time you lightly press the
“-” function button. If you continue pressing the button for about
2 seconds or more, the indication is fast-forwarded.“SET” -To set the brightness
Press function button “SET” to set
the new brightness. The display will flash twice.NOTEl If you next wish to adjust the other adjust-
ment setting (daytime or nighttime), press
the “ADJ” button or “BACK” function but- ton.
4. After adjustment, press the “INFO” but-
ton to select the information display.
NOTEl As the display brightness can be adjusted in
the center information display only, the
brightness inside the meter cannot be changed.
Centre information display
5-23OVWX17E1Instruments and controls5

Correcting the compass*
E00519401322

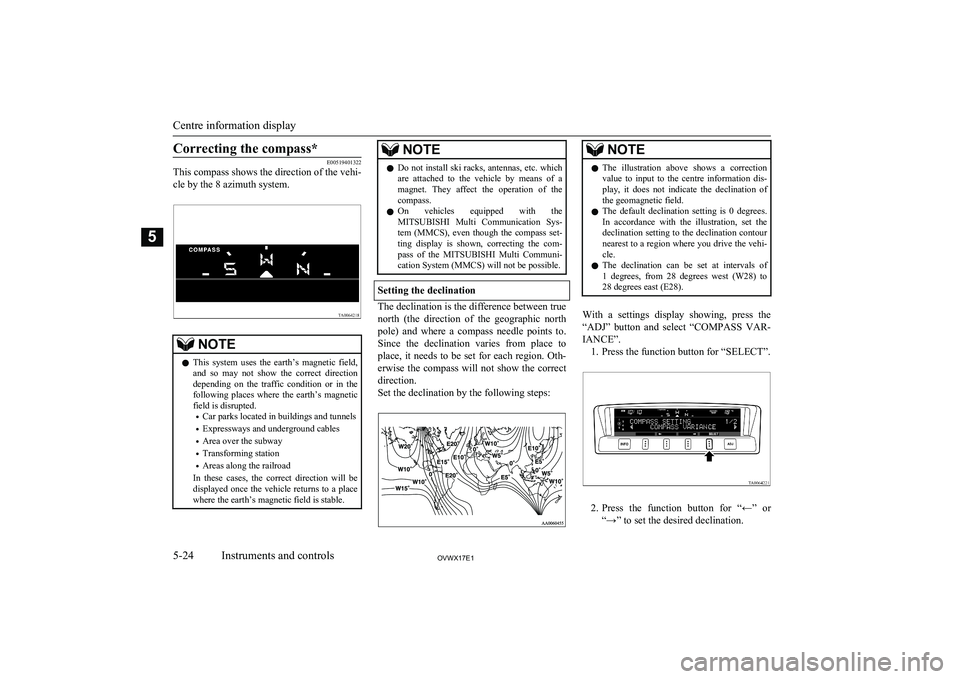

This compass shows the direction of the vehi-
cle by the 8 azimuth system.NOTEl This system uses the earth’s magnetic field,
and so may not show the correct direction
depending on the traffic condition or in the following places where the earth’s magnetic
field is disrupted.
• Car parks located in buildings and tunnels
• Expressways and underground cables
• Area over the subway
• Transforming station
• Areas along the railroad
In these cases, the correct direction will be displayed once the vehicle returns to a place
where the earth’s magnetic field is stable.NOTEl Do not install ski racks, antennas, etc. which
are attached to the vehicle by means of a
magnet. They affect the operation of the
compass.
l On vehicles equipped with the
MITSUBISHI Multi Communication Sys-
tem (MMCS), even though the compass set- ting display is shown, correcting the com- pass of the MITSUBISHI Multi Communi-
cation System (MMCS) will not be possible.
Setting the declination
The declination is the difference between true
north (the direction of the geographic north pole) and where a compass needle points to.
Since the declination varies from place to place, it needs to be set for each region. Oth-erwise the compass will not show the correct
direction.
Set the declination by the following steps:
NOTEl The illustration above shows a correction
value to input to the centre information dis- play, it does not indicate the declination of
the geomagnetic field.
l The default declination setting is 0 degrees
.
In accordance with the illustration, set the
declination setting to the declination contour nearest to a region where you drive the vehi-cle.
l The declination can be set at intervals of
1 degrees, from 28 degrees west (W28) to 28 degrees east (E28).
With a settings display showing, press the
“ADJ” button and select “COMPASS VAR-
IANCE”. 1. Press the function button for “SELECT”.
2. Press the function button for “←” or
“→” to set the desired declination.

Centre information display
5-24OVWX17E1Instruments and controls5

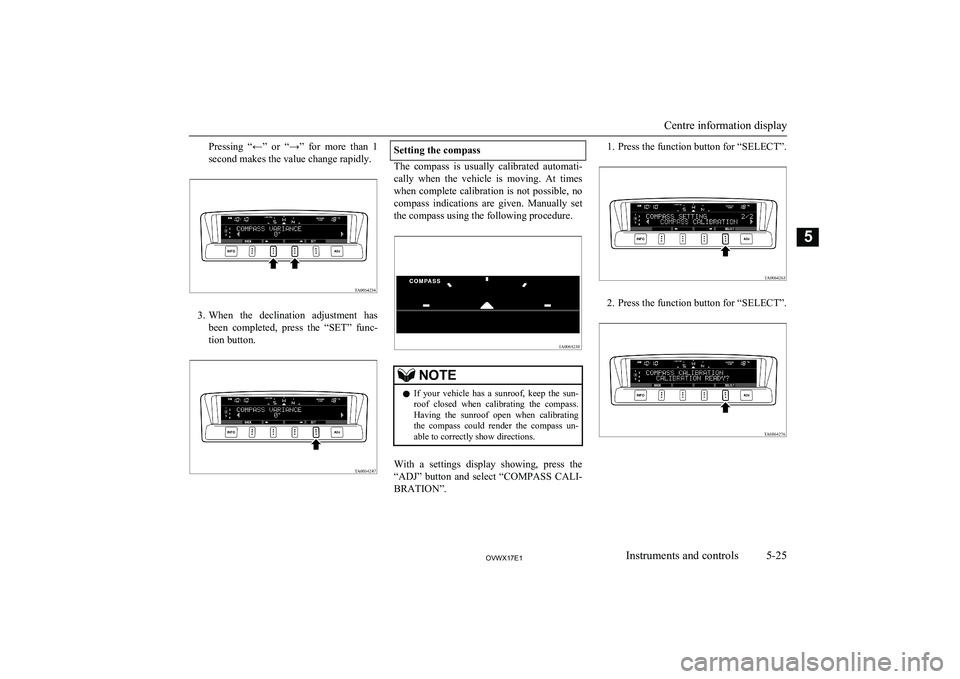

Pressing “←” or “→” for more than 1
second makes the value change rapidly.
3. When the declination adjustment has
been completed, press the “SET” func-
tion button.
Setting the compass
The compass is usually calibrated automati-
cally when the vehicle is moving. At times when complete calibration is not possible, nocompass indications are given. Manually set
the compass using the following procedure.
NOTEl If your vehicle has a sunroof, keep the sun-
roof closed when calibrating the compass.
Having the sunroof open when calibrating the compass could render the compass un-
able to correctly show directions.
With a settings display showing, press the
“ADJ” button and select “COMPASS CALI-
BRATION”.
1. Press the function button for “SELECT”.
2. Press the function button for “SELECT”.
Centre information display
5-25OVWX17E1Instruments and controls5

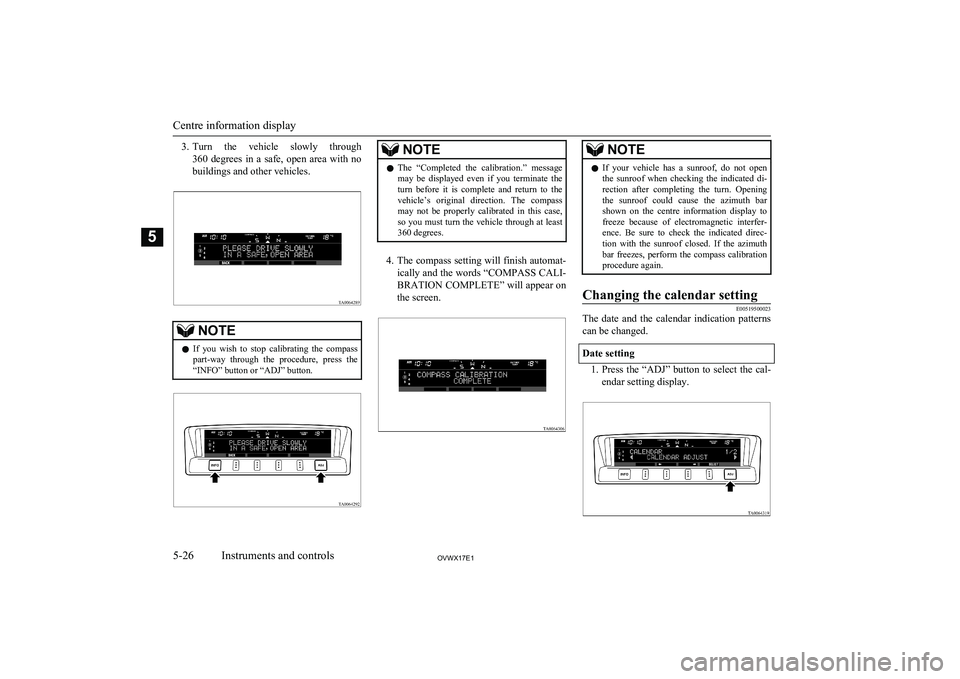

3.Turn the vehicle slowly through
360 degrees in a safe, open area with no buildings and other vehicles.NOTEl If you wish to stop calibrating the compass
part-way through the procedure, press the“INFO” button or “ADJ” button.NOTEl The “Completed the calibration.” message
may be displayed even if you terminate the
turn before it is complete and return to the vehicle’s original direction. The compass
may not be properly calibrated in this case, so you must turn the vehicle through at least
360 degrees.
4. The compass setting will finish automat-
ically and the words “COMPASS CALI-
BRATION COMPLETE” will appear on the screen.
NOTEl If your vehicle has a sunroof, do not open
the sunroof when checking the indicated di- rection after completing the turn. Opening the sunroof could cause the azimuth barshown on the centre information display to
freeze because of electromagnetic interfer-
ence. Be sure to check the indicated direc-
tion with the sunroof closed. If the azimuth bar freezes, perform the compass calibration procedure again.Changing the calendar setting
E00519500023
The date and the calendar indication patterns
can be changed.
Date setting
1. Press the “ADJ” button to select the cal-
endar setting display.
Centre information display
5-26OVWX17E1Instruments and controls5

2.Press the “←” or “→” function button to
select “CALENDAR ADJUST”. Then press the “SELECT” function button.
3. Use the function buttons to set the calen-
dar.
“→”-Select “YEAR”, “MONTH”,
“DAY” you wish to change.
“YEAR”, “MONTH”, and “DAY”
are changed over by turns every time you lightly press the“→” function button.“+”-Change “YEAR”, “MONTH”,
“DAY” you have selected.
The indication is changed to your
desired date every time you lightly press the “+” function button.
If you continue pressing the button
for about 2 seconds or more, the
indication is forwarded.“SET”-Determine the date.
Press the “SET” function button.
Then the display flashes twice and the setting is changed.NOTEl The year changes in the following sequence:
2006 → 2007 → … 2099 → 2006.
l You can return to the previous display by
pressing the “BACK” function button.4. After setting the date, press the “INFO”
button to return to the information dis- play.
Changing the calendar pattern
1. Press the “ADJ” button to select the cal-
endar setting display. Press the “←” or “→” function button to select “CALEN-
DAR PATTERN SELECT”. Then press
the “SELECT” function button.
Centre information display
5-27OVWX17E1Instruments and controls5

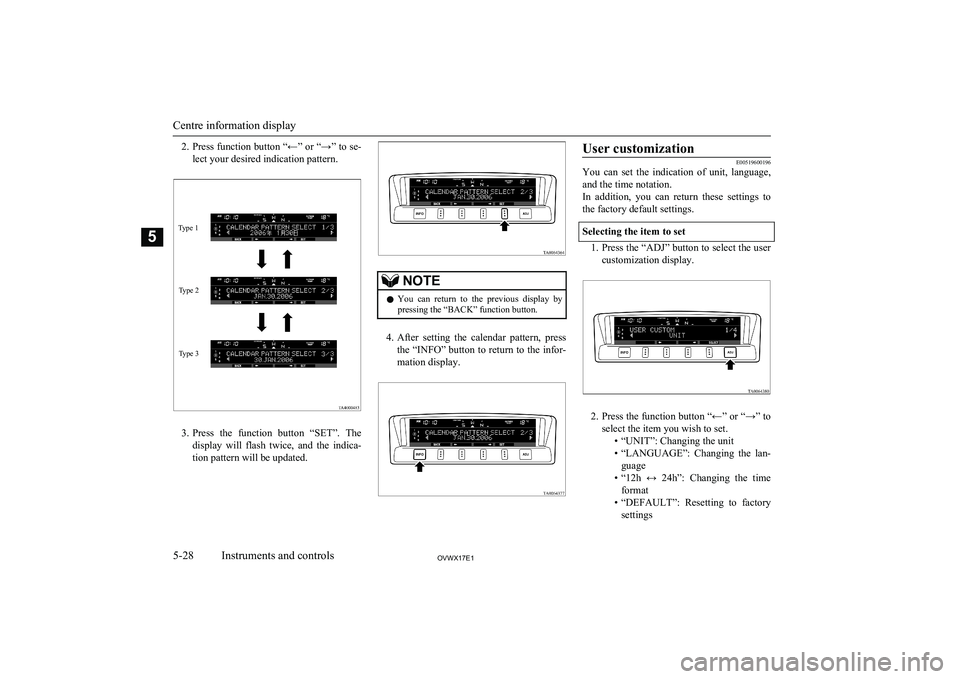

2.Press function button “←” or “→” to se-
lect your desired indication pattern.
3. Press the function button “SET”. The
display will flash twice, and the indica- tion pattern will be updated.
NOTEl You can return to the previous display by
pressing the “BACK” function button.
4. After setting the calendar pattern, press
the “INFO” button to return to the infor-
mation display.
User customization
E00519600196
You can set the indication of unit, language,
and the time notation.
In addition, you can return these settings to
the factory default settings.
Selecting the item to set
1. Press the “ADJ” button to select the user
customization display.
2. Press the function button “←” or “→” to
select the item you wish to set. • “UNIT”: Changing the unit
• “LANGUAGE”: Changing the lan-
guage
• “12h ↔ 24h”: Changing the time
format
• “DEFAULT”: Resetting to factory
settings
Centre information display
5-28OVWX17E1Instruments and controls5Type 1Type 2
Type 3

Push the function button “SELECT”.
The setting display for your selected
item will appear.

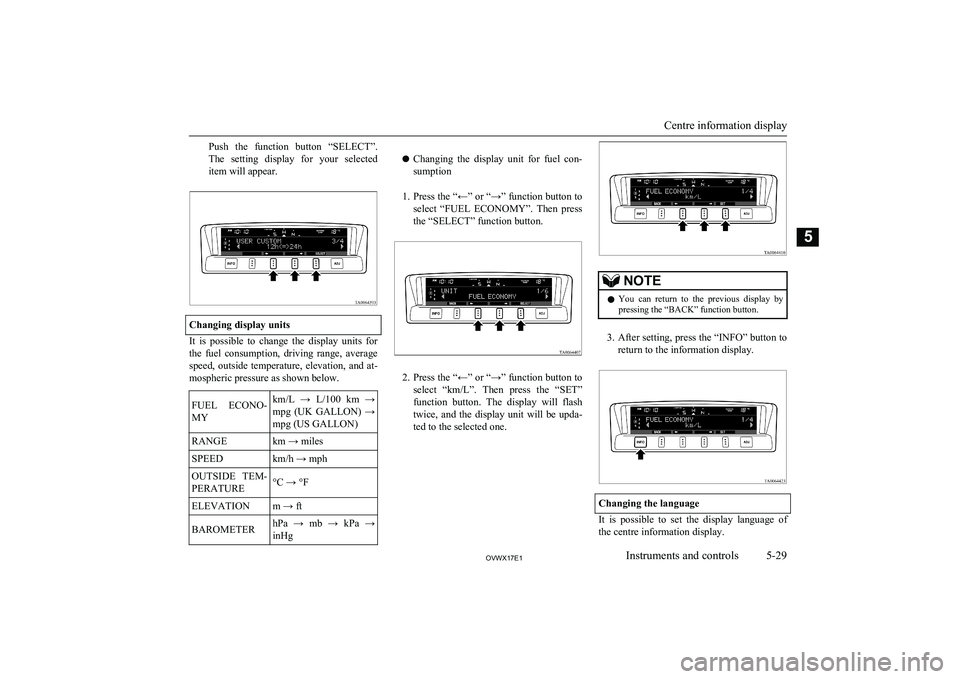

Changing display units
It is possible to change the display units for the fuel consumption, driving range, average
speed, outside temperature, elevation, and at- mospheric pressure as shown below.
FUEL ECONO-
MYkm/L → L/100 km →
mpg (UK GALLON) → mpg (US GALLON)RANGEkm → milesSPEEDkm/h → mphOUTSIDE TEM-
PERATURE°C → °FELEVATIONm → ftBAROMETERhPa → mb → kPa → inHg
l Changing the display unit for fuel con-
sumption
1. Press the “←” or “→” function button to
select “FUEL ECONOMY”. Then press the “SELECT” function button.
2. Press the “←” or “→” function button to
select “km/L”. Then press the “SET” function button. The display will flash
twice, and the display unit will be upda- ted to the selected one.
NOTEl You can return to the previous display by
pressing the “BACK” function button.
3. After setting, press the “INFO” button to
return to the information display.
Changing the language
It is possible to set the display language of
the centre information display.
Centre information display
5-29OVWX17E1Instruments and controls5

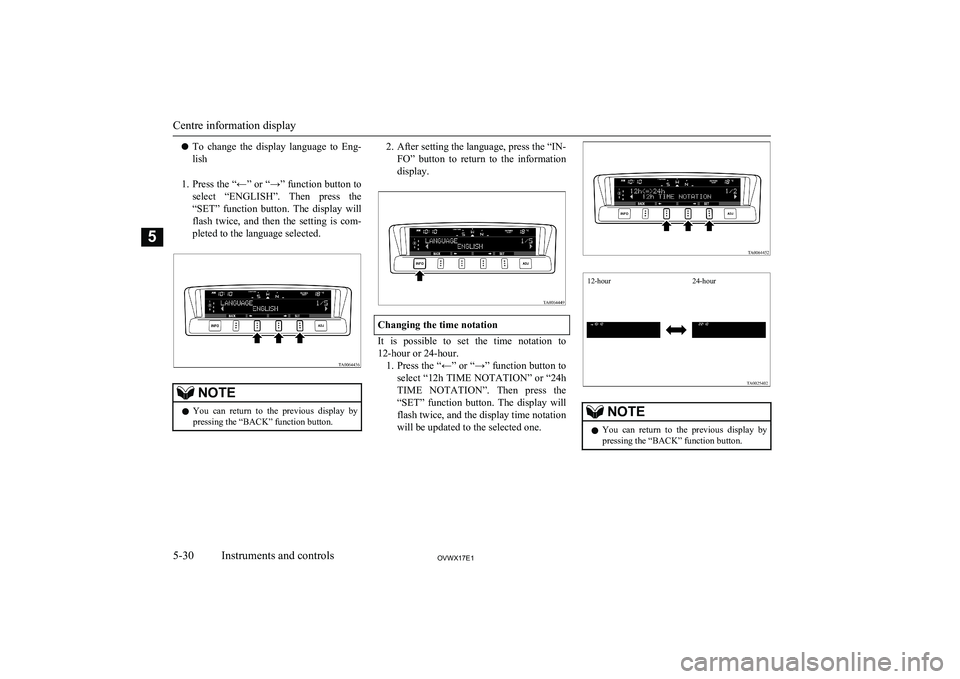

lTo change the display language to Eng-
lish
1. Press the “←” or “→” function button to
select “ENGLISH”. Then press the
“SET” function button. The display will
flash twice, and then the setting is com- pleted to the language selected.NOTEl You can return to the previous display by
pressing the “BACK” function button.2. After setting the language, press the “IN-
FO” button to return to the information
display.
Changing the time notation
It is possible to set the time notation to 12-hour or 24-hour. 1. Press the “←” or “→” function button to
select “12h TIME NOTATION” or “24h
TIME NOTATION”. Then press the “SET” function button. The display will flash twice, and the display time notation
will be updated to the selected one.
NOTEl You can return to the previous display by
pressing the “BACK” function button.
Centre information display
5-30OVWX17E1Instruments and controls5 12-hour 24-hour

2.After setting the time notation, press the
“INFO” button to return to the informa- tion display.
Returning display items to their factorysettings
You can return the setting of each item to the
factory default settings.
NOTEl The factory settings are as follows:
• Fuel consumption: L/100 km
• Driving range: km
• Average speed: km/h
• Outside temperature: °C
• Elevation: m
• Atmospheric pressure: hPa
• Display language: English

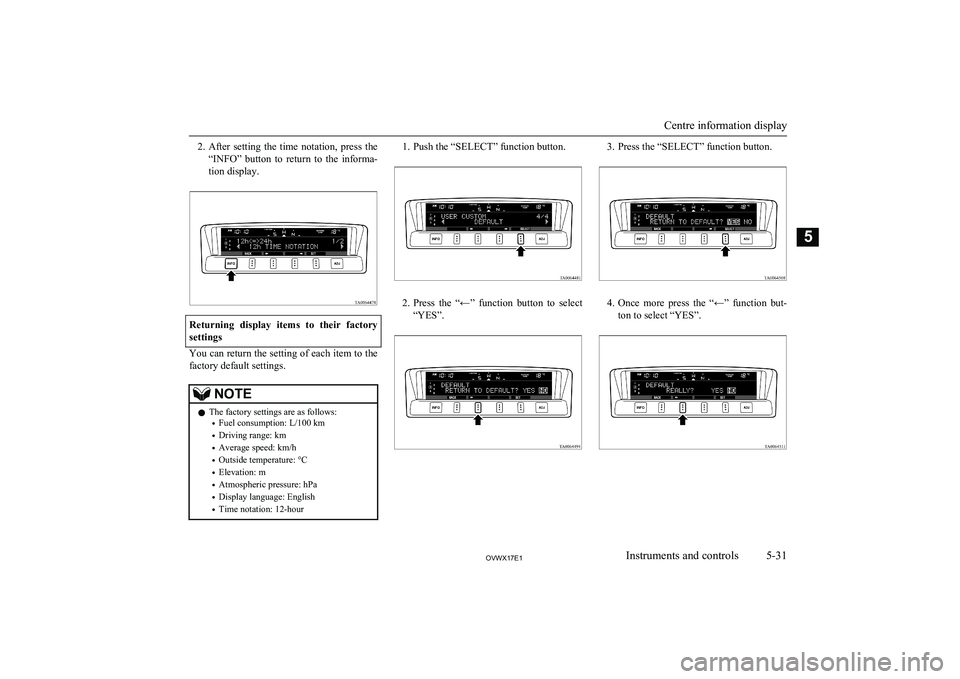

• Time notation: 12-hour1. Push the “SELECT” function button.
2.
Press the “←” function button to select
“YES”.
3. Press the “SELECT” function button.
4. Once more press the “←” function but-
ton to select “YES”.
Centre information display
5-31OVWX17E1Instruments and controls5

5. Press the “SET” function button.
6.The display shown below will appear,
and the display items will return to their
factory settings.
NOTEl If the battery terminals are disconnected, the
settings for the date and time may be erased. If this happens, please set the date and time
again.Adjusting the barometer
E00524400020
It is possible to adjust the barometer indica-
tion and return it to the factory setting.NOTEl It is not necessary to adjust the barometer
because it has been adjusted at the factory.
However, if you wish, adjust it using an ac- curate barometer.
To adjust the barometer
1. Press the “ADJ” button to select the bar-
ometer adjustment display.
2. Press the “←” or “→” function button to
select the “BAROMETER ADJUST” display. Then press the “SELECT” func-
tion button.
3. Adjust the barometer by pressing the
function buttons.
Centre information display
