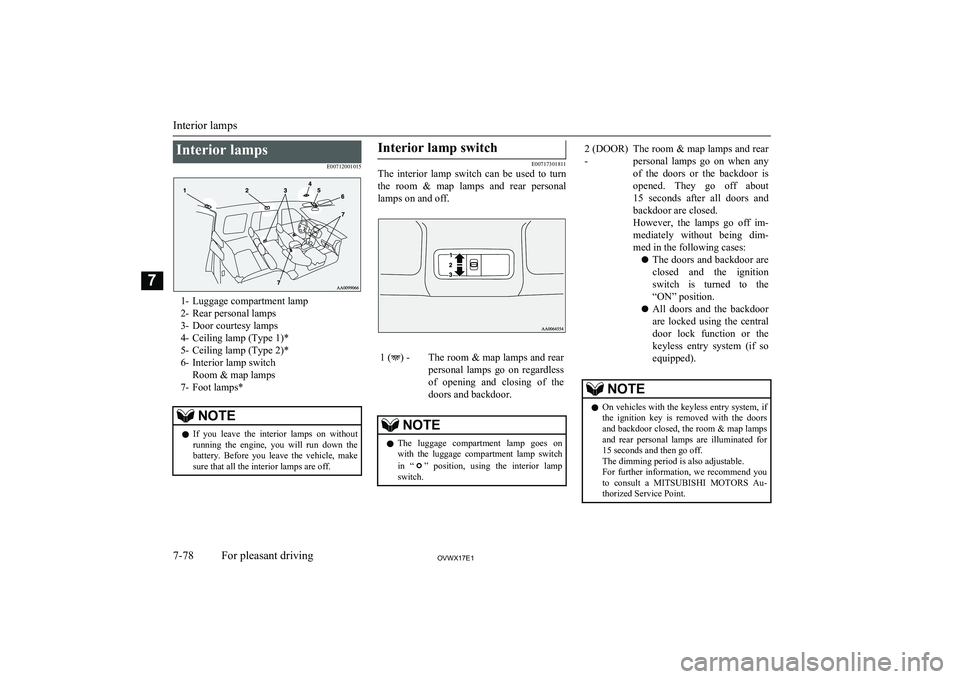

Interior lampsE00712001015
1- Luggage compartment lamp2- Rear personal lamps
3- Door courtesy lamps
4- Ceiling lamp (Type 1)*
5- Ceiling lamp (Type 2)*
6- Interior lamp switch Room & map lamps
7- Foot lamps*
NOTEl If you leave the interior lamps on without
running the engine, you will run down the battery. Before you leave the vehicle, makesure that all the interior lamps are off.Interior lamp switch
E00717301811
The interior lamp switch can be used to turn
the room & map lamps and rear personal
lamps on and off.
1 () -The room & map lamps and rear
personal lamps go on regardless of opening and closing of the
doors and backdoor.NOTEl The luggage compartment lamp goes on
with the luggage compartment lamp switch
in “
” position, using the interior lamp
switch.
2 (DOOR)
-The room & map lamps and rear
personal lamps go on when any of the doors or the backdoor is
opened. They go off about
15 seconds after all doors and backdoor are closed.
However, the lamps go off im-
mediately without being dim-
med in the following cases:
l The doors and backdoor are
closed and the ignition
switch is turned to the “ON” position.
l All doors and the backdoor
are locked using the central
door lock function or the keyless entry system (if so equipped).NOTEl On vehicles with the keyless entry system, if
the ignition key is removed with the doors
and backdoor closed, the room & map lamps and rear personal lamps are illuminated for
15 seconds and then go off.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Interior lamps
7-78OVWX17E1For pleasant driving7

NOTElWhen the interior lamp switch is in the “”
position, the lamp remains off even when the
lens (A) is pressed and any of the doors or the backdoor is opened.Luggage compartment lamp
E00712701748
1 () -The lamp illuminates.2 () -With the interior lamp switch in
“DOOR” position, the lamp
goes on when any of the doors or the backdoor is opened.
When all the doors and the backdoor are closed, the lamp is
illuminated for 15 seconds, then goes off.
However, the lamp goes off im-
mediately without being dim-
med in case of the followings:
l The ignition switch is
turned to the “ON” posi-
tion.
l All the doors and the back-
door are locked using thecentral door lock function
or the keyless entry system (if so equipped).NOTEl When the interior lamp switch is in the “”
position, the luggage compartment lamp will not come on.NOTEl On vehicles with keyless entry system, when
the ignition key is removed with the doors
and the backdoor closed, the lamp is illumi- nated for 15 seconds, then goes off.
The dimming period is also adjustable.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.3 () -The lamp goes off.Foot lamps and ceiling lamp
E00726601344
The front foot lamps (A), rear foot lamp (B)
and ceiling lamp (C) illuminate when the
lamp switch in the “
”, “”, or “AUTO”
position (vehicles with automatic lamp con-
trol).
Front foot lamps*
Interior lamps
7-80OVWX17E1For pleasant driving7

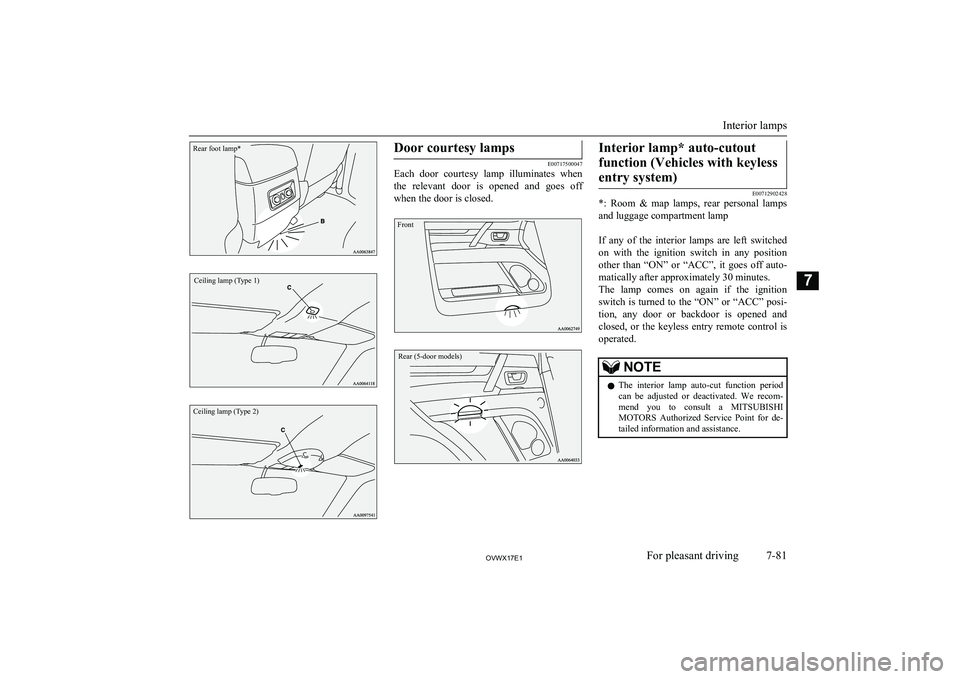

Rear foot lamp*Ceiling lamp (Type 1)Ceiling lamp (Type 2)Door courtesy lamps
E00717500047
Each door courtesy lamp illuminates when
the relevant door is opened and goes off when the door is closed.
FrontRear (5-door models)Interior lamp* auto-cutout
function (Vehicles with keylessentry system)
E00712902428
*: Room & map lamps, rear personal lamps
and luggage compartment lamp

If any of the interior lamps are left switched on with the ignition switch in any position
other than “ON” or “ACC”, it goes off auto- matically after approximately 30 minutes.
The lamp comes on again if the ignition switch is turned to the “ON” or “ACC” posi-
tion, any door or backdoor is opened and
closed, or the keyless entry remote control is
operated.
NOTEl The interior lamp auto-cut function period
can be adjusted or deactivated. We recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point for de-
tailed information and assistance.
Interior lamps
7-81OVWX17E1For pleasant driving7

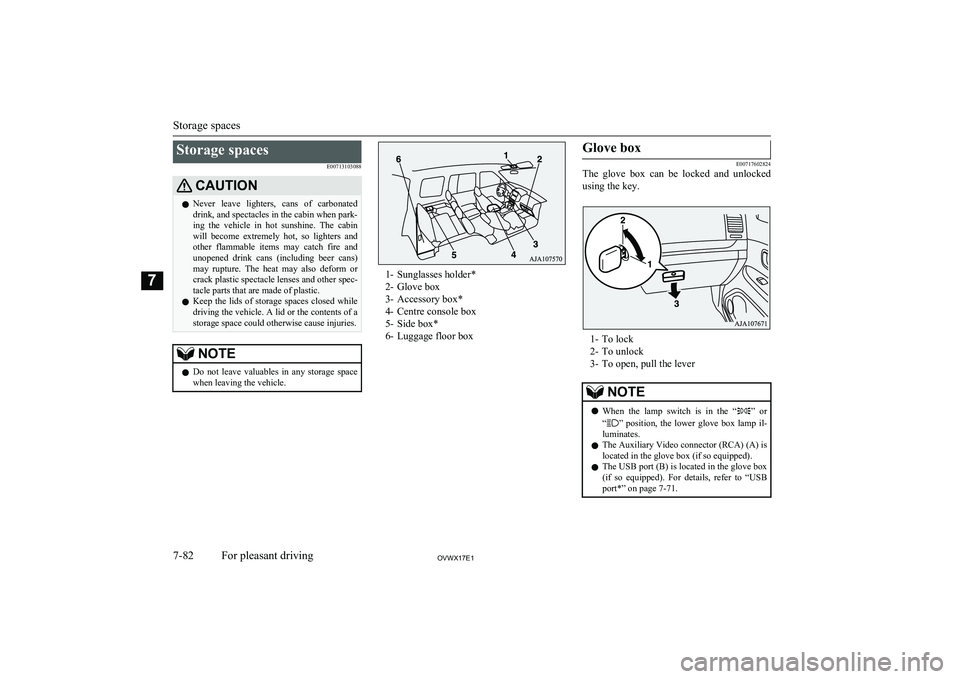

Storage spacesE00713103088CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans (including beer cans)
may rupture. The heat may also deform or crack plastic spectacle lenses and other spec-
tacle parts that are made of plastic.
l Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.NOTEl Do not leave valuables in any storage space
when leaving the vehicle.
1- Sunglasses holder*
2- Glove box
3- Accessory box*
4- Centre console box
5- Side box*
6- Luggage floor box
Glove box
E00717602824
The glove box can be locked and unlocked
using the key.
1- To lock
2- To unlock
3- To open, pull the lever
NOTEl When the lamp switch is in the “” or
“
” position, the lower glove box lamp il-
luminates.
l The Auxiliary Video connector (RCA) (A) is
located in the glove box (if so equipped).
l The USB port (B) is located in the glove box
(if so equipped). For details, refer to “USB
port*” on page 7-71.
Storage spaces
7-82OVWX17E1For pleasant driving7

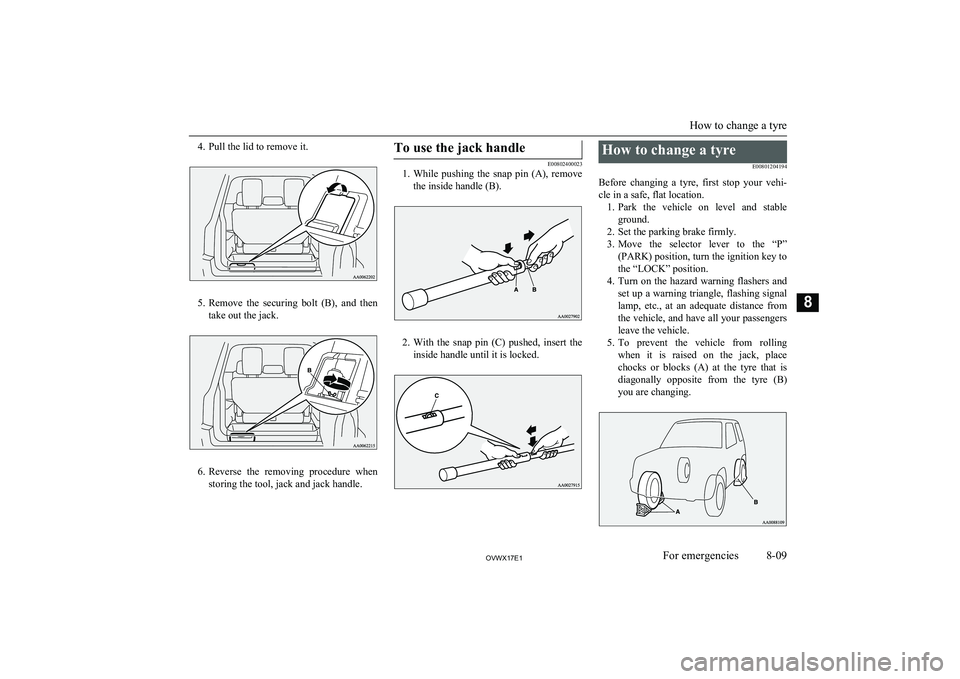

4. Pull the lid to remove it.
5.Remove the securing bolt (B), and then
take out the jack.
6. Reverse the removing procedure when
storing the tool, jack and jack handle.
To use the jack handle
E00802400023
1. While pushing the snap pin (A), remove
the inside handle (B).
2. With the snap pin (C) pushed, insert the
inside handle until it is locked.
How to change a tyre
E00801204194
Before changing a tyre, first stop your vehi- cle in a safe, flat location. 1. Park the vehicle on level and stable
ground.
2. Set the parking brake firmly.
3. Move the selector lever to the “P”
(PARK) position, turn the ignition key to
the “LOCK” position.
4. Turn on the hazard warning flashers and
set up a warning triangle, flashing signal
lamp, etc., at an adequate distance from
the vehicle, and have all your passengers
leave the vehicle.
5. To prevent the vehicle from rolling
when it is raised on the jack, place
chocks or blocks (A) at the tyre that is
diagonally opposite from the tyre (B)
you are changing.
How to change a tyre
8-09OVWX17E1For emergencies8

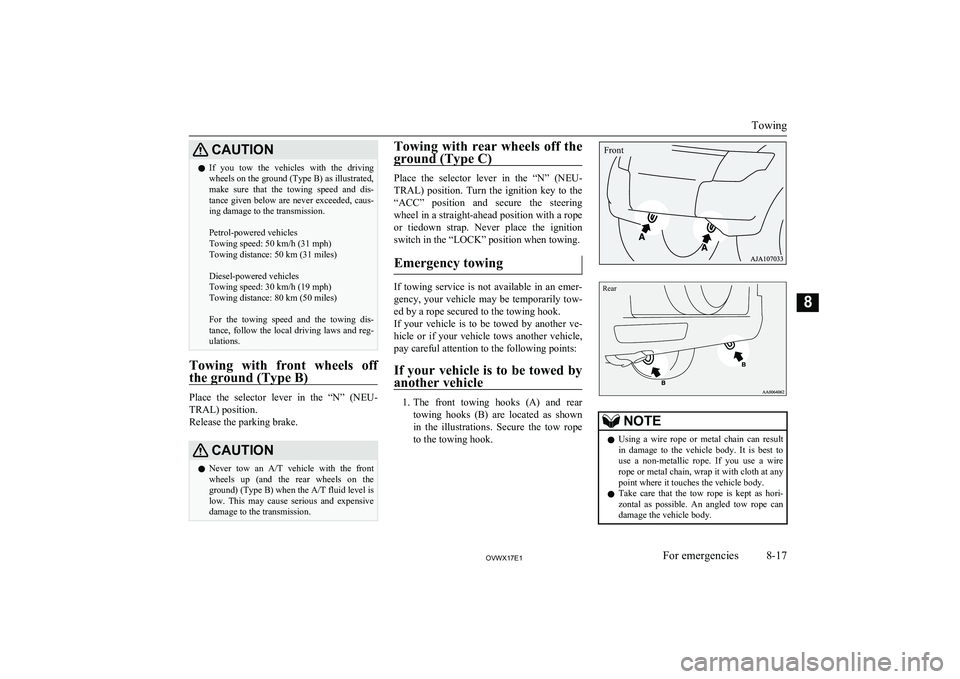

CAUTIONlIf you tow the vehicles with the driving
wheels on the ground (Type B) as illustrated,
make sure that the towing speed and dis-
tance given below are never exceeded, caus-
ing damage to the transmission.

Petrol-powered vehicles
Towing speed: 50 km/h (31 mph)
Towing distance: 50 km (31 miles)

Diesel-powered vehicles
Towing speed: 30 km/h (19 mph)
Towing distance: 80 km (50 miles)

For the towing speed and the towing dis- tance, follow the local driving laws and reg- ulations.
Towing with front wheels off
the ground (Type B)
Place the selector lever in the “N” (NEU-TRAL) position.
Release the parking brake.
CAUTIONl Never tow an
A/T vehicle with the front
wheels up (and the rear wheels on the
ground) (Type B) when the A/T fluid level is low. This may cause serious and expensive damage to the transmission.Towing with rear wheels off the
ground (Type C)
Place the selector lever in the “N” (NEU- TRAL) position. Turn the ignition key to the
“ACC” position and secure the steering wheel in a straight-ahead position with a ropeor tiedown strap. Never place the ignition
switch in the “LOCK” position when towing.
Emergency towing
If towing service is not available in an emer-gency, your vehicle may be temporarily tow-ed by a rope secured to the towing hook.If your vehicle is to be towed by another ve-
hicle or if your vehicle tows another vehicle, pay careful attention to the following points:
If your vehicle is to be towed by
another vehicle
1. The front towing hooks (A) and rear
towing hooks (B) are located as shown
in the illustrations. Secure the tow rope
to the towing hook.
Rear
NOTEl Using a wire rope or metal chain can result
in damage to the vehicle body. It is best to use a non-metallic rope. If you use a wire
rope or metal chain, wrap it with cloth at any
point where it touches the vehicle body.
l Take care that the tow rope is kept as hori-
zontal as possible. An angled tow rope can
damage the vehicle body.
Towing
8-17OVWX17E1For emergencies8 Front

NOTElSecure the tow rope to the same side towing
hook, to keep the tow rope as straight as pos-
sible.
2. Keep the engine running.
If the engine is not running, turn the ig-
nition switch to the “ACC” or “ON” po- sition to unlock the steering wheel.
CAUTIONl When the engine is not running, the brake
booster and power steering pump do not op- erate. This means higher brake depression
force and higher steering effort are required. Therefore, vehicle operation is more difficult
than usual.
l Do not leave the key in the “LOCK” posi-
tion. The steering wheel will lock, causing
loss of control.
3. Place the selector lever in the “N”
(NEUTRAL) position.
4. Shift the transfer shift lever to “2H” po-
sition.
5. Turn on the hazard warning lamps if re-
quired by law. (Follow the local driving
laws and regulations.)
6. During towing make sure that close con-
tact is maintained between the drivers of
both vehicles, and that the vehicles trav- el at low speed.
CAUTIONl Avoid sudden braking, sudden acceleration
and sharp turning; such operation could
cause damage to the towing hooks or the tow
rope.
People in the vicinity could be injured as a
result.
l When towing or being towed down a long
slope, the brakes may overheat reducing the effectiveness. In this situation, have your ve-hicle transported by a tow truck.
l When the vehicle is to be towed by another
vehicle with all the wheels on the ground,make sure that the towing speed and dis-
tance given below are never exceeded,
avoiding damage to the transmission.

Petrol-powered vehicles
Towing speed: 50 km/h (31 mph)
Towing distance: 50 km (31 miles)

Diesel-powered vehicles
Towing speed: 30 km/h (19 mph)
Towing distance: 80 km (50 miles)

For the towing speed and the towing dis- tance, follow the local driving laws and reg- ulations.If your vehicle tows another ve-
hicle
Only use the rear towing hook as shown in
the illustration. Secure the tow rope to the rear towing hook.
CAUTIONl When you are going to tow another vehicle,
move the transfer shift lever to “4H” posi-
tion.
Selecting “2H” drive may increase the dif- ferential oil temperature, resulting in possi-
ble damage to the driving system.
Further, the drive train will be subjected to
excessive loading possibly leading to oil leakage, component seizure, or other serious faults.
Towing
8-18OVWX17E1For emergencies8

Horn switch....................................................... 5-50I
If the vehicle breaks down................................ 8-02
Ignition switch................................................... 6-10
Indication and warning lamps........................... 5-08
Indication lamps................................................ 5-09
Inside rear-view mirror......................................6-07
Inspection and maintenance following rough road operation........................................ 6-33
Installation of accessories..................................2-04
Installation position for warning triangle.......... 7-88
Instruments........................................................ 5-02
Interior lamp switch.......................................... 7-78
Interior lamps.................................................... 7-78
J
Jack handle........................................................ 8-09Storage.......................................................... 8-09
Jack.................................................................... 8-07
Storage.......................................................... 8-07
Jump starting (Emergency starting).................. 8-02
K
Keyless entry system......................................... 3-04
Keys...................................................................3-02
L
Labeling...........................................................11-02
Lamp monitor buzzer........................................ 5-36
Lamps (headlamps, fog lamp, etc.) auto-cutout function......................................... 5-35
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 10-17
Licence plate lamps Bulb capacity.............................................. 10-23
Replacement................................................ 10-29
Link System.......................................................7-50
Low fuel warning lamp..................................... 5-06
Lubricants........................................................ 11-14
Luggage compartment lamp.............................. 7-80 Bulb capacity.............................................. 10-25
Replacement................................................ 10-31
Luggage floor box............................................. 7-84
Luggage hooks.................................................. 7-88
M
Making a flat seat.............................................. 4-20
Making a luggage area...................................... 4-13
Mirror Inside rear-view mirror................................. 6-07
Outside rear-view mirrors............................. 6-08
MIVEC engine.................................................. 6-13
Modification/alterations to the electri- cal or fuel systems............................................2-05
N
NOx trap catalyst...............................................6-14 O
Odometer........................................................... 5-02
Oil pressure warning lamp................................ 5-12
Oil Differential oil............................................. 11-14
Engine oil.................................................... 10-04 Transfer oil.................................................. 11-14
Operation under adverse driving conditions..... 8-19
Outside rear-view mirrors................................. 6-08
Overheating....................................................... 8-04
P
Parking.............................................................. 6-05Parking brake................................................ 6-04
Position lamps
Bulb capacity.............................................. 10-23
Indication lamp............................................. 5-09
Replacement................................................ 10-26
Power brakes..................................................... 6-35
Power steering Fluid.................................................. 10-09,11-14
System........................................................... 6-39
Precautions to observe when using wipers and washers.......................................... 5-49
Pregnant women restraint.................................. 4-25
Puncture (Tyre changing).................................. 8-09
R
Rear air conditioning......................................... 7-09
Rear combination lamps Bulb capacity.............................................. 10-23
Replacement................................................ 10-28
Rear differential lock.........................................6-26
Rear fog lamp
Alphabetical index
12- 3
OVWX17E1Alphabetical index
