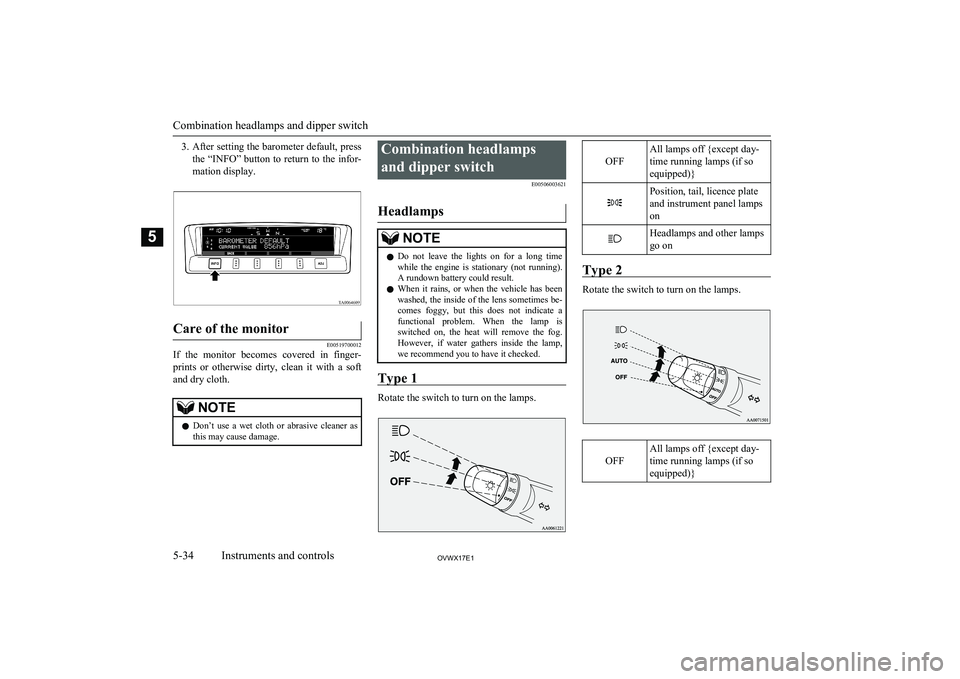

3.After setting the barometer default, press
the “INFO” button to return to the infor-
mation display.Care of the monitor
E00519700012
If the monitor becomes covered in finger-
prints or otherwise dirty, clean it with a soft and dry cloth.
NOTEl Don’t use a wet cloth or abrasive cleaner as
this may cause damage.Combination headlamps
and dipper switch E00506003621
HeadlampsNOTEl Do not leave the lights on for a long time
while the engine is stationary (not running).A rundown battery could result.
l When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a functional problem. When the lamp is
switched on, the heat will remove the fog. However, if water gathers inside the lamp,
we recommend you to have it checked.
Type 1
Rotate the switch to turn on the lamps.
OFF
All lamps off {except day-
time running lamps (if so
equipped)}Position, tail, licence plate
and instrument panel lamps
onHeadlamps and other lamps
go on
Type 2
Rotate the switch to turn on the lamps.
OFF
All lamps off {except day-
time running lamps (if so
equipped)}
Combination headlamps and dipper switch
5-34OVWX17E1Instruments and controls5

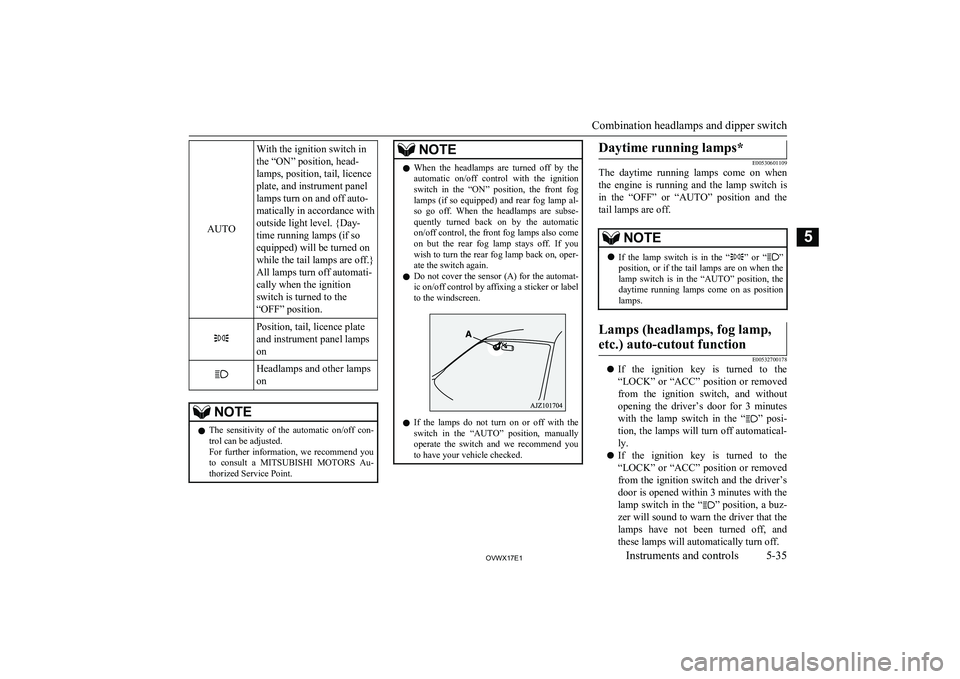

AUTO
With the ignition switch in
the “ON” position, head-
lamps, position, tail, licence
plate, and instrument panel
lamps turn on and off auto-
matically in accordance with
outside light level. {Day-
time running lamps (if so
equipped) will be turned on
while the tail lamps are off.}
All lamps turn off automati-
cally when the ignition
switch is turned to the
“OFF” position.Position, tail, licence plate
and instrument panel lamps
onHeadlamps and other lamps
onNOTEl The sensitivity of the automatic on/off con-
trol can be adjusted.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.NOTEl When the headlamps are turned off by the
automatic on/off control with the ignition
switch in the “ON” position, the front fog lamps (if so equipped) and rear fog lamp al-
so go off. When the headlamps are subse- quently turned back on by the automatic
on/off control, the front fog lamps also come on but the rear fog lamp stays off. If you wish to turn the rear fog lamp back on, oper-
ate the switch again.
l Do not cover the sensor (A) for the automat-
ic on/off control by affixing a sticker or label
to the windscreen.
l If the lamps do not turn on or off with the
switch in the “AUTO” position, manually
operate the switch and we recommend you
to have your vehicle checked.
Daytime running lamps*
E00530601109
The daytime running lamps come on when
the engine is running and the lamp switch is in the “OFF” or “AUTO” position and the
tail lamps are off.NOTEl If the lamp switch is in the “” or “”
position, or if the tail lamps are on when the lamp switch is in the “AUTO” position, the
daytime running lamps come on as position lamps.Lamps (headlamps, fog lamp,
etc.) auto-cutout function
E00532700178
l If the ignition key is turned to the
“LOCK” or “ACC” position or removed from the ignition switch, and without
opening the driver’s door for 3 minutes with the lamp switch in the “
” posi-
tion, the lamps will turn off automatical-
ly.
l If the ignition key is turned to the
“LOCK” or “ACC” position or removed from the ignition switch and the driver’s
door is opened within 3 minutes with the
lamp switch in the “
” position, a buz-
zer will sound to warn the driver that the
lamps have not been turned off, and these lamps will automatically turn off.
Combination headlamps and dipper switch
5-35OVWX17E1Instruments and controls5

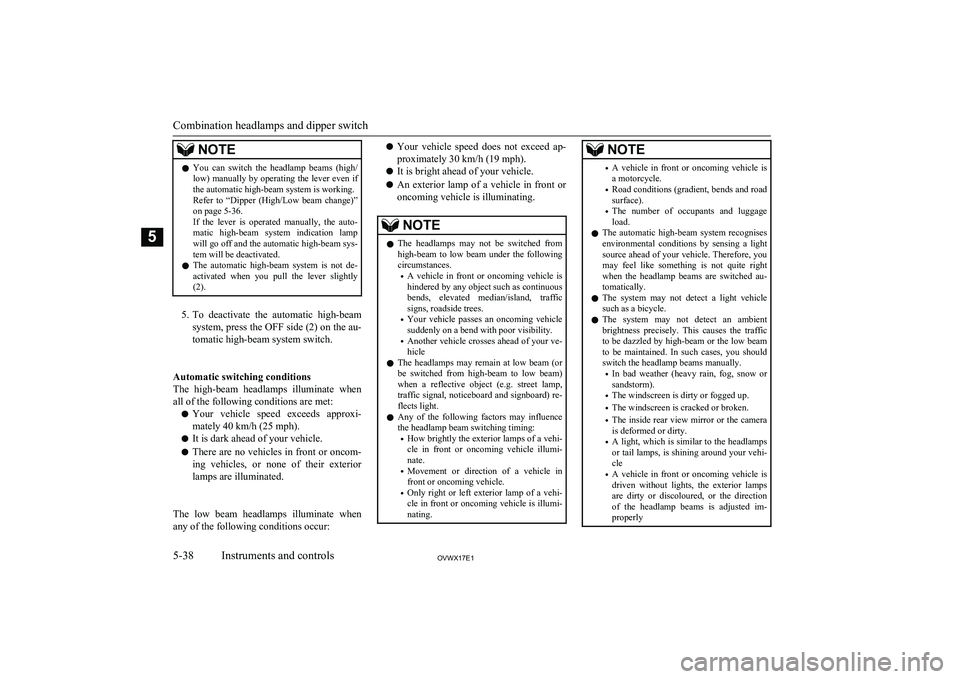

NOTElYou can switch the headlamp beams (high/
low) manually by operating the lever even if the automatic high-beam system is working.Refer to “Dipper (High/Low beam change)”
on page 5-36.
If the lever is operated manually, the auto-
matic high-beam system indication lamp will go off and the automatic high-beam sys- tem will be deactivated.
l The automatic high-beam system is not de-
activated when you pull the lever slightly
(2).
5. To deactivate the automatic high-beam
system, press the OFF side (2) on the au- tomatic high-beam system switch.

Automatic switching conditions
The high-beam headlamps illuminate when all of the following conditions are met:
l Your vehicle speed exceeds approxi-
mately 40 km/h (25 mph).
l It is dark ahead of your vehicle.
l There are no vehicles in front or oncom-
ing vehicles, or none of their exterior
lamps are illuminated.

The low beam headlamps illuminate when
any of the following conditions occur:
l Your vehicle speed does not exceed ap-
proximately 30 km/h (19 mph).
l It is bright ahead of your vehicle.
l An exterior lamp of a vehicle in front or
oncoming vehicle is illuminating.NOTEl The headlamps may not be switched from
high-beam to low beam under the following circumstances.
• A vehicle in front or oncoming vehicle is
hindered by any object such as continuous
bends, elevated median/island, traffic
signs, roadside trees.
• Your vehicle passes an oncoming vehicle
suddenly on a bend with poor visibility.
• Another vehicle crosses ahead of your ve-
hicle
l The headlamps may remain at low beam (or
be switched from high-beam to low beam)
when a reflective object (e.g. street lamp,
traffic signal, noticeboard and signboard) re- flects light.
l Any of the following factors may influence
the headlamp beam switching timing:
• How brightly the exterior lamps of a vehi-
cle in front or oncoming vehicle illumi-
nate.
• Movement or direction of a vehicle in
front or oncoming vehicle.
• Only right or left exterior lamp of a vehi-
cle in front or oncoming vehicle is illumi-
nating.NOTE• A vehicle in front or oncoming vehicle is
a motorcycle.
• Road conditions (gradient, bends and road
surface).
• The number of occupants and luggage
load.
l The automatic high-beam system recognises
environmental conditions by sensing a lightsource ahead of your vehicle. Therefore, you
may feel like something is not quite right
when the headlamp beams are switched au- tomatically.
l The system may not detect a light vehicle
such as a bicycle.
l The system may not detect an ambient
brightness precisely. This causes the trafficto be dazzled by high-beam or the low beam
to be maintained. In such cases, you should switch the headlamp beams manually.
• In bad weather (heavy rain, fog, snow or
sandstorm).
• The windscreen is dirty or fogged up.
• The windscreen is cracked or broken.
• The inside rear view mirror or the camera
is deformed or dirty.
• A light, which is similar to the headlamps
or tail lamps, is shining around your vehi-
cle
• A vehicle in front or oncoming vehicle is
driven without lights, the exterior lamps
are dirty or discoloured, or the direction of the headlamp beams is adjusted im- properly
Combination headlamps and dipper switch
5-38OVWX17E1Instruments and controls5

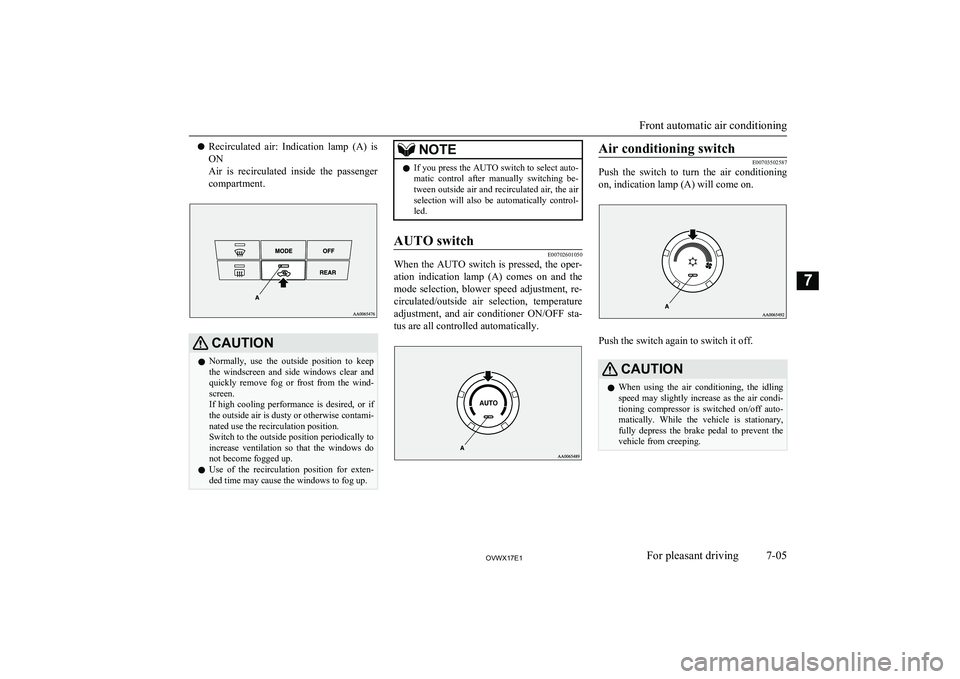

lRecirculated air: Indication lamp (A) is
ON
Air is recirculated inside the passenger
compartment.CAUTIONl Normally, use the outside position to keep
the windscreen and side windows clear and quickly remove fog or frost from the wind- screen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami- nated use the recirculation position.Switch to the outside position periodically to
increase ventilation so that the windows do not become fogged up.
l Use of the recirculation position for exten-
ded time may cause the windows to fog up.NOTEl If you press the AUTO switch to select auto-
matic control after manually switching be-tween outside air and recirculated air, the air selection will also be automatically control- led.AUTO switch
E00702601050
When the AUTO switch is pressed, the oper-
ation indication lamp (A) comes on and the
mode selection, blower speed adjustment, re- circulated/outside air selection, temperature adjustment, and air conditioner ON/OFF sta-
tus are all controlled automatically.
Air conditioning switch
E00703502587
Push the switch to turn the air conditioning
on, indication lamp (A) will come on.
Push the switch again to switch it off.
CAUTIONl When using the air conditioning, the idling
speed may slightly increase as the air condi-
tioning compressor is switched on/off auto- matically. While the vehicle is stationary,
fully depress the brake pedal to prevent the vehicle from creeping.
Front automatic air conditioning
7-05OVWX17E1For pleasant driving7

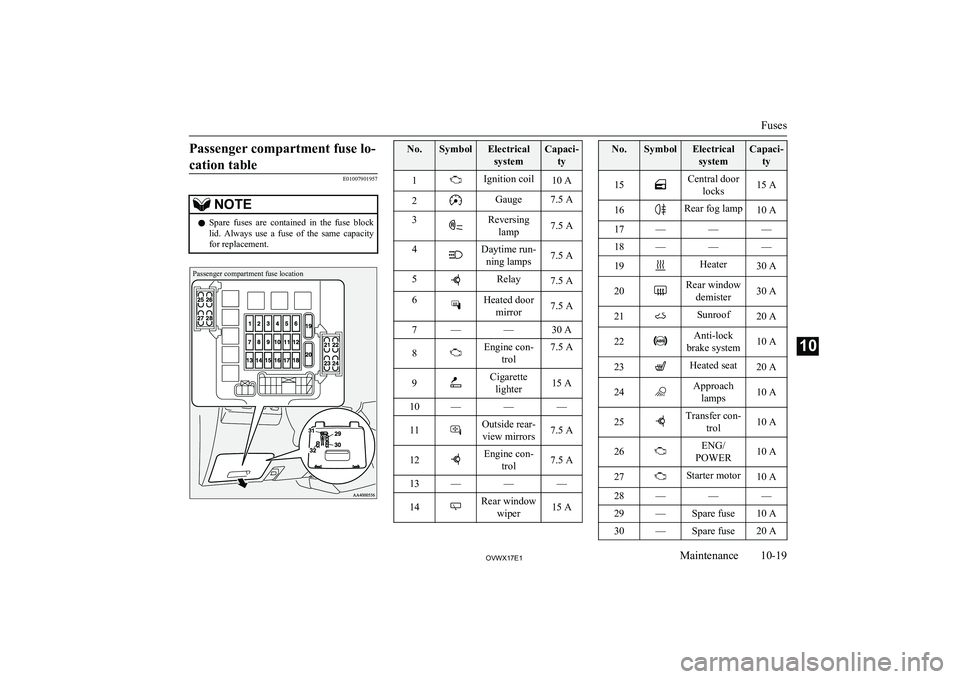

Passenger compartment fuse lo-cation table
E01007901957
NOTEl Spare fuses are contained in the fuse block
lid. Always use a fuse of the same capacity
for replacement.Passenger compartment fuse locationNo.SymbolElectrical
systemCapaci- ty1Ignition coil10 A2Gauge7.5 A3Reversinglamp7.5 A4Daytime run-ning lamps7.5 A5Relay7.5 A6Heated door mirror7.5 A7——30 A8Engine con- trol7.5 A9Cigarettelighter15 A10———11Outside rear-view mirrors7.5 A12Engine con- trol7.5 A13———14Rear windowwiper15 ANo.SymbolElectricalsystemCapaci- ty15Central door locks15 A16Rear fog lamp10 A17———18———19Heater30 A20Rear windowdemister30 A21Sunroof20 A22Anti-lock
brake system10 A23Heated seat20 A24Approach lamps10 A25Transfer con- trol10 A26ENG/
POWER10 A27Starter motor10 A28———29—Spare fuse10 A30—Spare fuse20 A
Fuses
10-19OVWX17E1Maintenance10

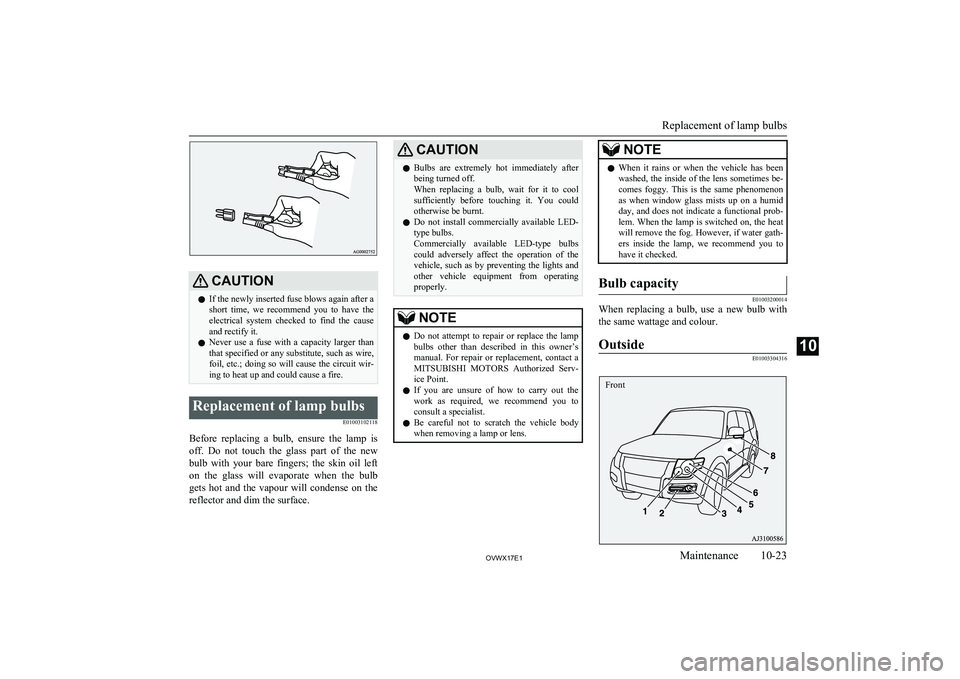

CAUTIONlIf the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
l Never use a fuse with a capacity larger than
that specified or any substitute, such as wire,
foil, etc.; doing so will cause the circuit wir-
ing to heat up and could cause a fire.Replacement of lamp bulbs
E01003102118
Before replacing a bulb, ensure the lamp isoff. Do not touch the glass part of the new
bulb with your bare fingers; the skin oil left
on the glass will evaporate when the bulb gets hot and the vapour will condense on the
reflector and dim the surface.
CAUTIONl Bulbs are extremely hot immediately after
being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could otherwise be burnt.
l Do not install commercially available LED-
type bulbs.
Commercially available LED-type bulbs
could adversely affect the operation of the vehicle, such as by preventing the lights andother vehicle equipment from operating
properly.NOTEl Do not attempt to repair or replace the lamp
bulbs other than described in this owner’s manual. For repair or replacement, contact aMITSUBISHI MOTORS Authorized Serv-
ice Point.
l If you are unsure of how to carry out the
work as required, we recommend you to consult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.NOTEl When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon as when window glass mists up on a humid
day, and does not indicate a functional prob- lem. When the lamp is switched on, the heat
will remove the fog. However, if water gath- ers inside the lamp, we recommend you tohave it checked.Bulb capacity
E01003200014
When replacing a bulb, use a new bulb with
the same wattage and colour.
Outside
E01003304316
Replacement of lamp bulbs
10-23OVWX17E1Maintenance10 Front
