KeysE00300103631
The key fits all locks.
Type 1
WARNINGl When taking a key on flights, do not press
any switches on the key while on the plane. If a switch is pressed on the plane,the key emits electromagnetic waves,which could adversely affect the plane’s
flight operation.
When carrying a key in a bag, be careful that no switches on the key can be easily
pressed by mistake.NOTEl The key number is stamped on the tag as in-
dicated in the illustration.
Make a record of the key number and store the key and key number tag in separate pla-
ces, so that you can order a key in the event the original keys are lost.
l The key is a precision electronic device with
a built-in signal transmitter. Please observe the following in order to prevent damage.
• Do not leave where it may be exposed to
heat caused by direct sunlight, such as on
top of the dashboard.
• Do not take the remote control transmitter
apart.
• Do not excessively bend the key or sub-
ject it to strong impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as
key rings.
• Keep away from devices that produce
magnetism, such as audio systems, com-
puters and televisions.NOTE• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be ex-
posed to high temperature or high humidi-ty.
l The engine is designed so that it will not
start if the ID code registered in the immo- bilizer computer and the key’s ID code do
not match. Refer to the section entitled “Electronic immobilizer” section for details
and key usage.
To use and carry the key (Type
2)
When using the key, press the button (A) on the body.
When carrying the key, fold the key while
pressing the button.
Keys
3-02OVWX17E1Locking and unlocking3Type 2

Electronic immobilizer(Anti-theft starting system) E00300203472
The electronic immobilizer is designed to significantly reduce the possibility of vehicle
theft. The purpose of the system is to immo-
bilize the vehicle if an invalid start is attemp-
ted. A valid start attempt can only be ach- ieved by using a key “registered” to the im-mobilizer system.NOTEl In the following cases, the vehicle may not
be able to receive the registered ID code from the registered key and the engine may
not start.
• When the key contacts a key ring or other
metallic or magnetic objectNOTE• When the key grip contacts metal of an-
other key
• When the key contacts or is close to other
immobilizing keys (including keys of oth-er vehicles)
In cases like these, remove the object or ad- ditional key from the vehicle key. Then try
again to start the engine. If the engine does
NOTEnot start, we recommend you to contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Electronic immobilizer is not compatible
with remote starting systems. Use of these systems may result in vehicle starting prob-lems and a loss of security protection.
l If you lose your key, order a key from your
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible. To obtain a re-
placement or extra spare key, take your vehi-
cle and all remaining keys to your MITSUBISHI MOTORS Authorized Serv-
ice Point. All the keys have to be re-regis- tered in the immobilizer computer unit. The immobilizer can register up to 8 different
keys for use.CAUTIONl Don’t make any alterations or additions to
the immobilizer system; alterations or addi-tions could cause failure of the immobilizer.
Electronic immobilizer (Anti-theft starting system)
3-03OVWX17E1Locking and unlocking3

NOTElBe careful not to get your hands trapped
while a mirror is moving.
l If you move a mirror by hand or it moves af-
ter hitting a person or object, you may not be
able to return it to its original position using the mirror retractor switch. If this happens,
push the mirror retractor switch to place the mirror in its retracted position and then push
the switch again to return the mirror to its original position.
l If the battery voltage is low and you start the
engine while extending the mirrors, the mir- rors may stop part-way. If this happens, push
the mirror retractor switch to retract the mir- rors and then push the switch again to extend
them.
l When freezing has occurred and mirrors fail
to operate as intended, please refrain from
repeated pushing of the retractor switch as
this action can result in burn-out of the mir- ror motor circuits.
Automatic extension of mirrors
If the engine is stopped and started with the
mirrors retracted, the mirrors automatically
extend for safety when the vehicle speed rea-
ches 30 km/h (19 mph).
Heated mirror*
E00601200312
To demist or defrost the outside rear-view
mirrors, press the rear window demister
switch.
The indication lamp (C) will illuminate while
the demister is on.
The heater will be turned off automatically in about 20 minutes.Ignition switch

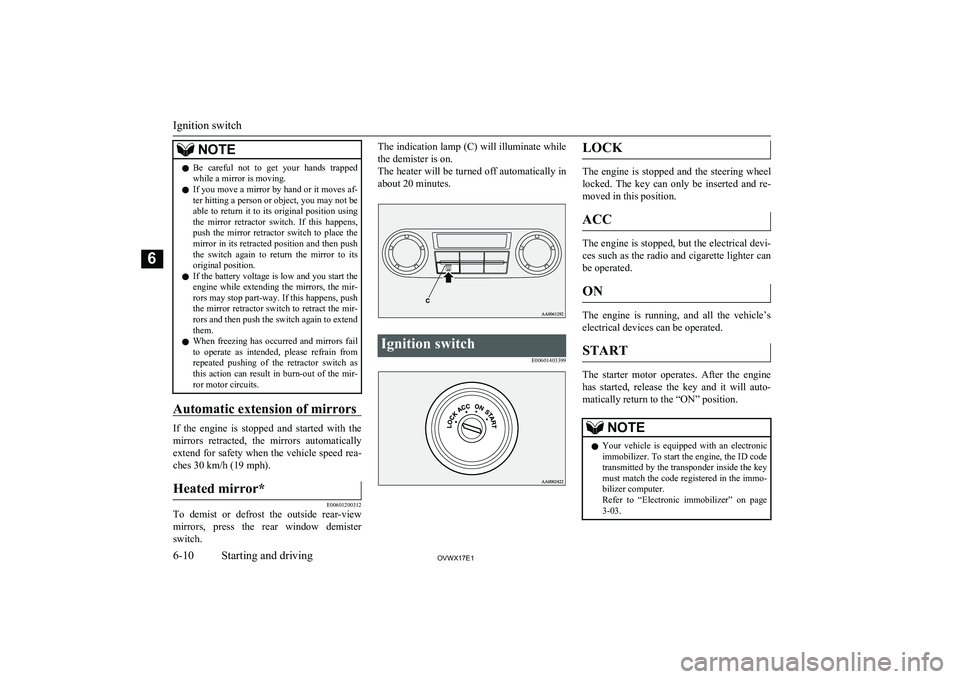

E00601403399LOCK
The engine is stopped and the steering wheel
locked. The key can only be inserted and re- moved in this position.
ACC
The engine is stopped, but the electrical devi-
ces such as the radio and cigarette lighter can be operated.
ON
The engine is running, and all the vehicle’s
electrical devices can be operated.
START
The starter motor operates. After the engine has started, release the key and it will auto- matically return to the “ON” position.
NOTEl Your vehicle is equipped with an electronic
immobilizer. To start the engine, the ID codetransmitted by the transponder inside the key must match the code registered in the immo-bilizer computer.
Refer to “Electronic immobilizer” on page
3-03.
Ignition switch
6-10OVWX17E1Starting and driving6
