CHASSIS ELECTRICAL ± Ignition Switch and Immobilizer System54-10
Immobilizer System
Caution
1. The ID code should always be re-registered when replacing the immobilizer-ECU. vehicles>
2. If the immobilizer-ECU has been replaced, you will need to re-register the ignition key ID codes
and to reset the code for the fuel cut valve controller to the factory setting. vehicles>
3. If the immobilizer-ECU has been replaced with a new part, the password (vehicle secret code)
which has been stored in the immobilizer-ECU for each vehicle will be replaced by the password
(secret code) specified by the customer.
STANDARD FLOW OF DIAGNOSIS TROUBLESHOOTING54300690024
Refer to GROUP 00 ± How To Use Troubleshooting/Inspection Service Points.
DIAGNOSIS FUNCTION54300700116
DIAGNOSIS CODES CHECK
Refer to GROUP 00 ± How To Use Troubleshooting/Inspection Service Points.
ERASING DIAGNOSIS CODES
Refer to GROUP 00 ± How To Use Troubleshooting/Inspection Service Points.
Caution
The diagnosis codes which result from disconnecting the battery cables cannot be erased.
INSPECTION CHART FOR DIAGNOSIS CODES

54300710027
Diagnosis code No.Inspection itemsReference
page
11Transponder communication system or radio interference of ID code54-11
12*ID code are not the same or are not registered54-11
21Communication system between MUT-II and engine-ECU54-12
31EEPROM abnormality inside immobilizer-ECU54-12
NOTE
*: Diagnosis code No. 12 is not recorded.

CHASSIS ELECTRICAL ± Ignition Switch and Immobilizer System54-11
INSPECTION PROCEDURE FOR DIAGNOSIS CODES

Code No.11 Transponder communication system or radio
interference of ID codeProbable cause

The ID code of the transponder is not sent to the immobilizer-ECU immediately
after the ignition switch is turned to ON position.

If the engine is started while several ignition keys are in the vicinity, then interference
between the different keys may occur, which will cause this code to be generated.
Radio interference of ID code

Malfunction of transponder

Malfunction of ignition key ring antenna

Malfunction of harness or connector

Malfunction of immobilizer-ECU
Are there any other ignition keys in the
vicinity of the ignition key being used
to for starting?Ye sMove other keys well away from key
being used.
NoCheck trouble symptom.
NG
Does the engine start using the spare
ignition key which has had the ID code
registered?OKReplace the ignition key that does not
work.Re-register the ID code
(Refer to P.54-23.)
NG
Diagnosis code checkCode No.12
occurs.To INSPECTION PROCEDURE FOR
DIAGNOSIS CODE No.12.
Code No.11 occurs.
Ignition key ring antenna continuity
check (Refer to P.54-22.)NG
Replace
OK
Check the following connectors:
C-36, C-71NG
Repair
OK
Check trouble symptom.NGCheck the harness between the immobi-
lizer-ECU and key ring antenna.NG
Repair
OK
Replace the immobilizer-ECU.Register the password (secret code)
and ID code. (Refer to P.54-23.)
Code No.12 ID codes are not the same or not registered.Probable cause
The ID code which is sent from the transponder is not the same as the ID code
which is registered in the immobilizer-ECU.
The ID code in the ignition key being used has not
been properly registered.

Malfunction of immobilizer-ECU
Re-register the ID code
(Refer to P.54-23.)Check trouble symptom.NGReplace the immobilizer-ECU.
Register the password (secret code)
and ID code. (Refer to P.54-23.)

CHASSIS ELECTRICAL ± Ignition Switch and Immobilizer System54-13
INSPECTION CHART FOR DIAGNOSIS CODES

54300710034
Diagnosis code No.Inspection itemsReference page
11Transponder communication system or radio interference of ID
code54-11
12*ID codes are not the same or not registered54-11
21Communication system between fuel cut valve controller and
immobilizer-ECU54-13
22Malfunction of fuel cut valve controller system54-14
23Identification codes are not identical54-14
31EEPROM abnormality inside immobilizer-ECU54-12
NOTE
*: diagnosis code No.12 is recorded.
INSPECTION PROCEDURE FOR DIAGNOSIS CODES

For diagnosis code numbers other than those listed below, refer to ªPETROL-POWERED VEHICLESº.
Code No.21 Communication system between fuel cut
valve controller and immobilizer-ECU
Probable cause
The confirmation code is not sent from the fuel cut valve controller within the specified
time after the ignition key is turned to ON or, an incorrect code is sent.
Malfunction of harness or connector

Malfunction of fuel cut valve controller

Malfunction of immobilizer-ECU
Check the following connectors: A-90, C-19, C-36NG
Repair
OK
Check trouble symptom.
NG
Check the harness between the immobilizer-ECU and fuel cut valve
controller.NG
Repair
OK
Check the fuel cut valve controller power source and earth circuit.
(Refer to P.54-17, Inspection Procedure 6.)NG
Repair
OK
Check trouble symptom.NGReplace the immobilizer-ECU.
Register the password (secret code), reset the code to the factory
setting and register the ID code. (Refer to P.54-23.)
Check trouble symptom.
NG
Replace the fuel cut valve controller (fuel injection pump assembly).

CHASSIS ELECTRICAL ± Ignition Switch and Immobilizer System54-15
INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS
Inspection Procedure 1
Communication with MUT-II is impossible
Probable cause
The cause is probably that a malfunction of the diagnosis line or the immobilizer-ECU
ia not functioning.
Malfunction of diagnosis line

Malfunction of harness or connector

Malfunction of immobilizer
Ye sOK
Check trouble symptom.
NG
OK
Check trouble symptom.NG
Check the harness between the immobi-
lizer-ECU and diagnosis connector.NG
Repair
OK
Check the immobilizer-ECU power sup-
ply and earth circuit. (Refer to P.54-17,
Inspection Procedure 5.)
OK
Check trouble symptom.NGReplace the immobilizer-ECU.

Register the password (secret code)
and the ID code. (Refer to P.54-23.)

Register the password (secret code),
reset the code to the factory setting and
register the ID code. (Refer to P.54-23.)
Check the immobilizer-ECU connector
C-36.
(Short-circuited harness wire between
terminal No.14 and No.15)NG
Repair
Can the MUT-II communicate with the
engine-ECU?NoCheck the following connectors:
C-35, C-36NG
Repair
Inspection Procedure 2
ID code cannot be registered using the MUT-II
Probable cause
The cause is probably that there is no ID code registered in the immobilizer-ECU
or there is a malfunction of the immobilizer-ECU.
Malfunction of transponder

Malfunction of ignition key ring antenna

Malfunction of harness or connector

Malfunction of immobilizer-ECU
No ignition key can be registered.NoReplace the ignition key that cannot be
registered.Re-register the ID code.
(Refer to P.54-23.)
Ye s
Is a diagnosis code displayed?Ye sTo INSPECTION CHART FOR DIAG-
NOSIS CODE. (Refer to P.54-10, 13.)
No
Check the immobilizer-ECU power
source and the earth circuit. (Refer to
P.54-17, Inspection Procedure 5.)OKCheck trouble symptom.NGReplace the immobilizer-ECU.

Register the password (secret code)
and the ID code. (Refer to P.54-23.)

Register the password (secret code),
reset the code to the factory setting and
register the ID code. (Refer to P.54-23.)

CHASSIS ELECTRICAL ± Ignition Switch and Immobilizer System54-16
Inspection Procedure 3
Engine does not start (Cranking but no initial combus-
tion).
Probable cause
If the fuel injectors are not operating, there might be a problem with the MPI system
in addition to a malfunction of the immobilizer system.
It is normal for this to occur if an attempt is made to start the engine using a key
that has not been properly registered.
Malfunction of MPI system

Malfunction of immobilizer-ECU
Check the system voltage during crank-
ing
OK:8 V or moreNGCheck the battery.
OK
Is a diagnosis code displayed from the
immobilizer-ECU?Ye sTo INSPECTION CHART FOR DIAG-
NOSIS CODE. (Refer to P.54-10.)
No
Is a diagnosis code displayed from the
engine-ECU?Ye sRefer to GROUP 13A ± Troubleshoot-
ing.
No
Check the starting system. (Refer to
GROUP 13A ± Troubleshooting.)
OK
Check trouble symptom.
NG
Check the immobilizer-ECU power
source and the earth circuit. (Refer to
P.54-17, Inspection Procedure 5.)OKCheck trouble symptom.NGReplace the immobilizer-ECU.
Register the password (secret code)
and the ID code. (Refer to P.54-23.)
Inspection Procedure 4
Engine does not start (Cranking but no initial combus-
tion).
Probable cause
If no fuel injection, there might be a problem with the fuel injection system in addition
to a malfunction of the immobilizer system.
It is normal for this to occur if an attempt is made to start the engine using a key
that has not been properly registered.
Malfunction of diesel fuel injection system

Malfunction of immobilizer-ECU
Check the system voltage during crank-
ing
OK:8 V or moreNGCheck the battery.
OK
Is a diagnosis code displayed from the
immobilizer-ECU?Ye sTo INSPECTION CHART FOR DIAG-
NOSIS CODE. (Refer to P.54-13.)
No
Check the diesel fuel injection system.
(Refer to GROUP 13E ± On-vehicle Ser-
vice.)
OK
Check the immobilizer-ECU power sup-
ply and the earth circuit. (Refer to
P.54-17, Inspection Procedure 5.)OKCheck trouble symptom.NGReplace the immobilizer-ECU.
Register the password (secret code),
reset the code to the factory setting and
register the ID code. (Refer to P.54-23.)
Check trouble symptom.
NG
Replace the fuel cut valve controller
(fuel injection pump assembly).

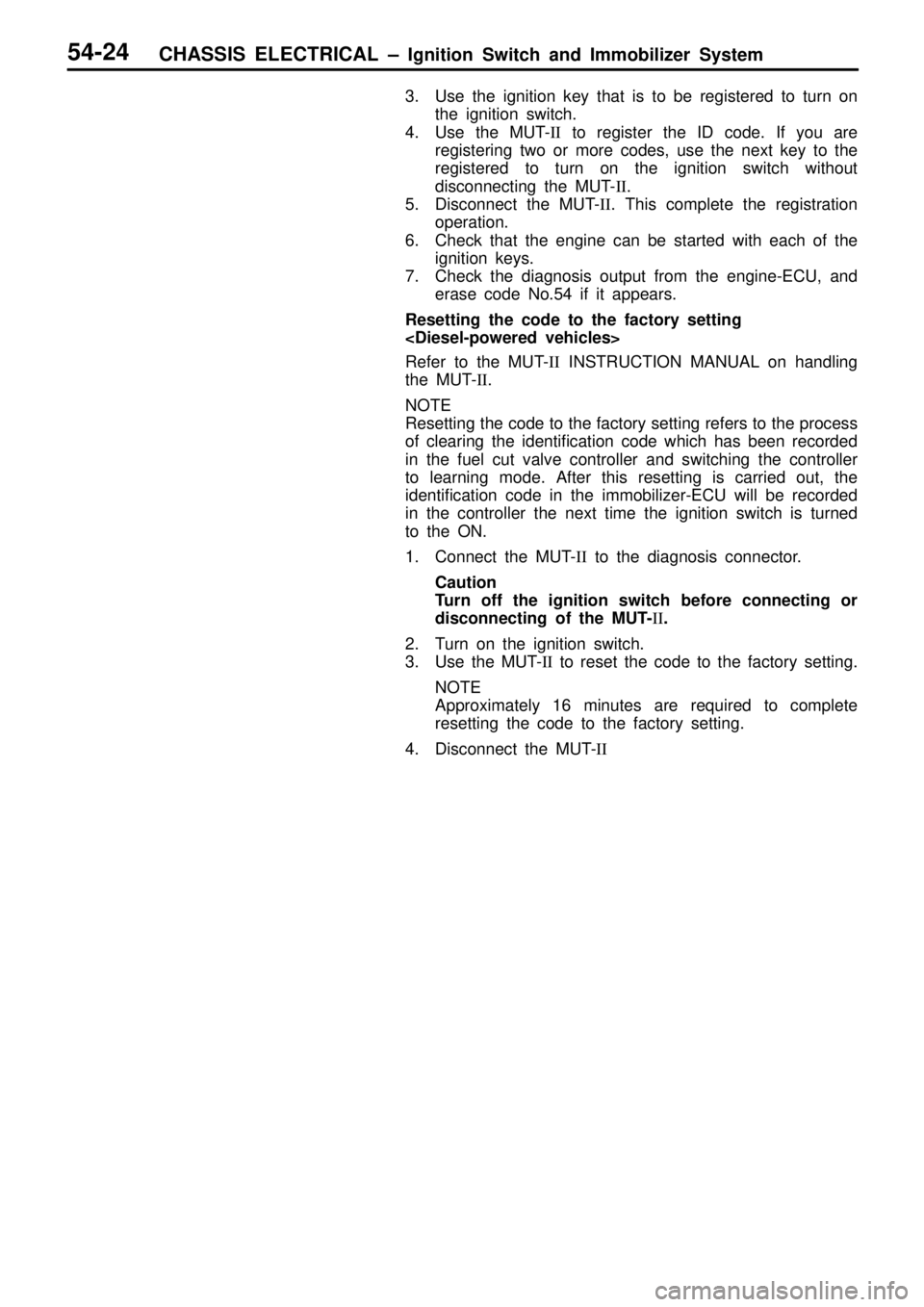

CHASSIS ELECTRICAL ± Ignition Switch and Immobilizer System54-24
3. Use the ignition key that is to be registered to turn on
the ignition switch.
4. Use the MUT-II to register the ID code. If you are
registering two or more codes, use the next key to the
registered to turn on the ignition switch without
disconnecting the MUT-II.
5. Disconnect the MUT-II. This complete the registration
operation.
6. Check that the engine can be started with each of the
ignition keys.
7. Check the diagnosis output from the engine-ECU, and
erase code No.54 if it appears.
Resetting the code to the factory setting

Refer to the MUT-II INSTRUCTION MANUAL on handling
the MUT-II.
NOTE
Resetting the code to the factory setting refers to the process
of clearing the identification code which has been recorded
in the fuel cut valve controller and switching the controller
to learning mode. After this resetting is carried out, the
identification code in the immobilizer-ECU will be recorded
in the controller the next time the ignition switch is turned
to the ON.
1. Connect the MUT-II to the diagnosis connector.
Caution
Turn off the ignition switch before connecting or
disconnecting of the MUT-II.
2. Turn on the ignition switch.
3. Use the MUT-II to reset the code to the factory setting.
NOTE
Approximately 16 minutes are required to complete
resetting the code to the factory setting.
4. Disconnect the MUT-II

CHASSIS ELECTRICAL ± Radio and Tape Player54-77
RADIO AND TAPE PLAYER WITH ANTI-THEFT SYSTEM54400430032

After the power supply to the radio and tape
player has been interrupted for an hour or more,
the anti-theft system will prevent the radio and
tape player from working, even if the powersupply is restored. Problem with the anti-theft
system can be found using the flow chart below.
When the ignition key is in the ACC or ON position and the POWER
button is pressed, does ªCODEº appear on the display?NoCheck and repair the connector or harness.
Ye s
Can the security code be input to the display using the memory
select buttons?NoRepair or replace the radio and tape player.
Ye s
If the BAND button is pressed after security code has been input,
do the radio and tape player then work?Ye sNormal
No
If the security code is not accepted, is ª1 ERRORº displayed for
two seconds and then changes into ªcodeº to wait for the next
input?NoRepair or replace the radio and tape player.
Ye s
If the BAND button are pressed after the security code has been
input again by means of the memory select buttons, do the radio
and tape player then work?Ye sNormal (an incorrect code was input the first time)
No
If the security code is not accepted, is ª2 ERRORº displayed for
two seconds and then changes into ªcodeº to wait for the next
input?NoRepair or replace the radio and tape player.
Ye s
If the BAND button are pressed after the security code has been
input again by means of the memory select buttons, do the radio
and tape player then work?Ye sNormal (an incorrect code was input the second time)
No
If the security code is not accepted, ª3 ERRORº is displayed for
five seconds and then changes into ªOFFº. Then the security code
can not be input any more. To input the security code again, turn
the ignition switch to the ACC or ON position and wait for one
hour when ªOFFº is displayed. After ªOFFº disappears on the display
and changes into ªcodeº, the security code can be input again.

10
2.
Exit conditions from the adjustment mode
The ETACS-ECU cancels the adjustment mode when any of the following conditions is satisfied:
•
Diagnosis control: OFF (Disconnect the MUT-II>)
•
Key reminder switch: ON (Pull out the ignition key.)
•
Ignition switch: Other than LOCK (OFF)
•
Door switch: ON (Open the door)
•
After the ETACS_ECU has entered the adjustment mode, no adjustment is made within 3 minutes (If
any adjustment is made within 3 minutes, the ETACS-ECU monitors an adjustment operation for
other 3 minutes.
•
Other warning buzzer(s) sounds
3.
Adjustment of functions
Function Adjustment procedure
Keyless entry answerback function When the transmitter lock switch is turned on twice continuously
within 2 seconds, the lock answerback function toggles on and off.
•
If the function toggles on, the buzzer sounds once (default con-
dition).
•
If the function toggles off, the buzzer sounds twice,
When the transmitter unlock switch is turned on twice continuously
within 2 seconds, the unlock answerback function toggles on and
off.
•
If the function toggles on, the buzzer sounds once (default con-
dition).
•
If the function toggles off, the buzzer sounds twice,
Initialisation of all the ETACS func-
tions (From deactivation to activa-
tion)When the tailgate switch remains on for more than 20 seconds, th
buzzer sounds twice and he answer-back function of the keyless
entry system is initialised.
The buzzer will sound in 10 seconds (indicating that the ETACS-
ECU enters the adjustment mode), but the washer switch must re-
mains off for 20 seconds in order to initialise all the functions.
If the tailgate switch remains on for more than 20 seconds without
entering the adjustment mode, the system enters the adjustment
mode in 10 seconds, but does not initialise all of the functions.
INSPECTION CHART FOR TROUBLE SYMPTOMS
Trouble symptom Inspection procedure No. Reference page
None of the doors can be locked or unlocked using th
transmitter.142-3
All of the doors can be locked and unlocked using th
transmitter, but the room lamp or turn-signal lamp does
not flash or illuminate. (However, the room lamp oper-
ates normally when the doors are opened and closed.)242-4
Encrypted codes cannot be registered. 3 42-5
42-2BODY – Keyless entry system

11
INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS
INSPECTION PROCEDURE 1
None of the doors can be locked or unlocked using
the transmitter.Probable cause
The cause may be a malfunction of the transmitter or ETACS-
ECU, defective connection between ETACS-ECU and junction
block, defective power supply voltage to ETACS-ECU input
line due to commercial equipment, or the lock and unlock sig-
nals are not being sent to the ETACS-ECU.•
Malfunction of transmitter
•
Malfunction of ETACS-ECU
•
Malfunction of key reminder switch
•
Malfunction of wiring harness or connector
•
Malfunction of door switch
•
Defective connection between ETACS-ECU and
junction block
•
Defective power supply voltage to ETACS-ECU
input line due to commercial equipment
Check the central door lock systemCan the doors be locked and unlocked by the pas-
senger’s-side door key cylinder and lock knob?
YesNo
Has the encrypted code been registered properly? * NG Re-register the encrypted code. (Refer to P.42.6)
OK
Replace the transmitter battery. (Refer to P.42-6)
NG
Is a commercial equipment equipped?
NoYes
Remove that equipment, and then check trouble
symptoms.
NG
Check the connection between ETACS-ECU and
junction block claw.NG
Repair
OK
NG .Check the following connectors:
A-56X, C-81, C-91
OK NG
Measure at the ETACS-ECU connector C-91.
•
Disconnect the connector, and measure at the
harness side.
•
Voltage between 2 and body earth
OK:
System voltageCheck trouble symptomsRepair
OK NG
Check the harness wire, and repair if necessary.
•
Between fusible link No.5 and ETACS-ECU
Door switch continuity check
OK NG
Mut-II Pulse Check
•
Door switch input signal
OK:
MUT-II Buzzer sounds once when opening
and closing each door.NG
Repair
OK
Check the following connectors:
C-110, D-03, D-07, D-14, D-17, D-21
OK NG
Check trouble Symptoms.Repair
NG
To next pageCheck the harness wire, and repair if necessary.
•
Between ETACS-ECU and door switch
NOTE
*: This should be done if a transmitter, receiver or ETACS-ECU has been replaced, and if a secret cod
has not been registered properly
BODY – Keyless Entry System42-3

12From previous page
Key reminder switch continuity check
OK NG
MUT-II Pulse Check
•
Key reminder switch input signal
OK:
MUT-II buzzer sounds once when removing
and inserting ignition key.NG
Repair
OK
Check the following connectors:
C-72, C-79, C-86, C-91
Replace the transmitter.OK NG
OK
Check trouble symptomsRepair
Check the trouble symptoms.NG
OK
Replace the ETACS-ECU.
Check the harness wire, and repair if necessary.
•
Between key reminder switch and ETACS-ECU
•
Between key reminder switch and earth
INSPECTION PROCEDURE 2
All of the doors can be locked and unlocked using th
transmitter, but the room lamp or turn-signal lamp does
not flash or illuminate. (However, the room lamp oper-
ates normally when the doors are opened and closed.)Probable cause
If neither room lamp nor turn-signal lamp flash/illuminate, the
cause may be a malfunction of the ETACS-ECU or driver’s-side
door lock actuator.
If either room lamp or turn-signal lamp does not flash/illuminate,
the cause may be a malfunction of the room lamp circuit or turn-
signal lamp.•
Malfunction of ETACS-ECU
•
Malfunction of driver’s door lock actuator
•
Burnt turn-signal lamp bulb
•
Malfunction of connector or wiring harness
Carry out the troubleshooting for room lamp circuit.Does the room lamp go on/go off simultaneous
with opening/closing door?NO
Yes
Does the turn-signal lamp flash when the turn-
signal lamp switch is operated?NO
Carry out the troubleshooting for turn-signal lamp
circuit.
Yes
NG
Check the driver’s door lock actuator
OK NG
MUT-II Pulse Check
•
Drivers door lock actuator switch input signal
OK:
MUT-II buzzer sounds once when locking
or unlocking driver’s door.Replace
OKCheck the following connectors:
C-38, C-110, E-09 ,
E-20
Replace the ETACS-ECUOK NG
Check trouble symptoms.Repair
NG
Check the harness wire, and repair if necessary.
•
Between ETACS-ECU and driver’s door lock actua-
tor
•
Between driver’s door lock actuator and earth
42-4BODY – Keyless Entry System
