Page 12 of 1310
GENERAL ± How to Use Troubleshooting/Inspection Service Points00-9
HOW TO USE THE INSPECTION PROCEDURES
The causes of a high frequency of problems occurring in electronic circuitry are generally the connectors,
components, the ECU and the harnesses between connectors, in that order. These inspection procedures
follow this order, and they first try to discover a problem with a connector or a defective component.
Indicator does not turn on or off even if control
mode switch is pressed.
Indicator switch should not be illuminated is
illuminated.Probable cause
OK
OK
OK
Measure at switch connector A-44
Disconnect the connector, and measure at the harness
side.
Voltage between terminal 6 ± earth and terminal 8 ±
earth
OK:Approx. 5V
OK
NG
Check the following connector. A-44
Repair
OK
Check trouble symptom.
Replace the ECS-ECU.
In the above cases, the ECS switch circuit is defective or the indicator
circuit is defective.
CHECKING PROCEDURE 4
2. Indicates inspection carried out using the
MUT-II.
Indicates the operation and inspection proce-
dures.
Indicates the OK judgement conditions.
3. Detailed inspection procedures (methods)
such as component inspection and circuit
inspection are listed on a separate page, and
are given here for reference.
5. Inspect the contact condition at each connector terminal.
(Refer to Connector Inspection Service Points.)
The connector position can be located in the wiring diagram in the
electrical wiring manual by means of this symbol.
Caution
After carrying out connector inspection, always be sure to
reconnect the connector as it was before.
6. Confirm that there are trouble symptoms. If trouble symptoms have
disappeared, the connector may have been inserted incorrectly and the
trouble symptom may have disappeared during inspection.
If it seems that trouble symptoms still remain, proceed to the next page of
instructions.
7. If trouble symptoms still remain up to this stage, there is a possibility that there is an
open or short circuit in the harness between the connectors, so check the harness.
Alternatively, the cause may be a defective ECU, so try replacing the ECU and check
if the trouble symptom disappears.
NGECU switch component inspection (Refer to P.3-44.)
NG
1. Comments on the diagnosis code or trouble
symptom above.
MUT-II Data list
17 Control mode selection switch
OK:Voltage changes between approx. 0V approx.
2.5V approx. 5V when the switch is operated.
4. Indicates voltage and resistance to be measured at a particular
connector.
(Refer to Connector Measurement Service Points.)
The connector position can be located in the wiring diagram in the
electrical wiring manual by means of this symbol.
Indicates operation and inspection procedures, inspection terminals
and inspection conditions.
Indicates the OK judgement conditions.
HARNESS INSPECTION
Check for an open or short circuit in the harness between the terminals which were defective according
to the connector measurements. Carry out this inspection while referring to the electrical wiring manual.
Here, ªCheck harness between power supply and terminal xxº also includes checking for blown fuses.
For inspection service points when there is a blown fuse, refer to ªInspection Service Points for a Blown
Fuse.º
MEASURES TO TAKE AFTER REPLACING THE ECU
If the trouble symptoms have not disappeared even after replacing the ECU, repeat the inspection procedure
from the beginning.
Page 44 of 1310
S
EA LA NT 111 00050218
I te m S
pecif ie d s e ala nt R
em ark O
il p an M
IT S U BIS H I G EN UIN E P A R T
M D970389 o r e quiv a le nt S
em i- d ry in g s e ala nt N
um ber N
am e U
se M
B991502 M
UT-II s u b a s-
s e m bly M
D998738 A
dju stin g s cre w M
B990767 E
nd y o ke h old er H
old in g th e c a m sh aft s p ro cke t M
D998719 o r
M D998754 C
ra nksh aft p ulle y
h old er p in M
D998713 C
am sh aft o il s e al
i n sta lle r P
re ss-in o f th e c a m sh aft o il s e al M
D998727 O
il p an r e m ove r R
em ova l o f th e o il p an M
D998781 F
ly w heel s to pper S
ecu rin g th e fly w heel < M /T > o r d riv e p la te
< A /T >

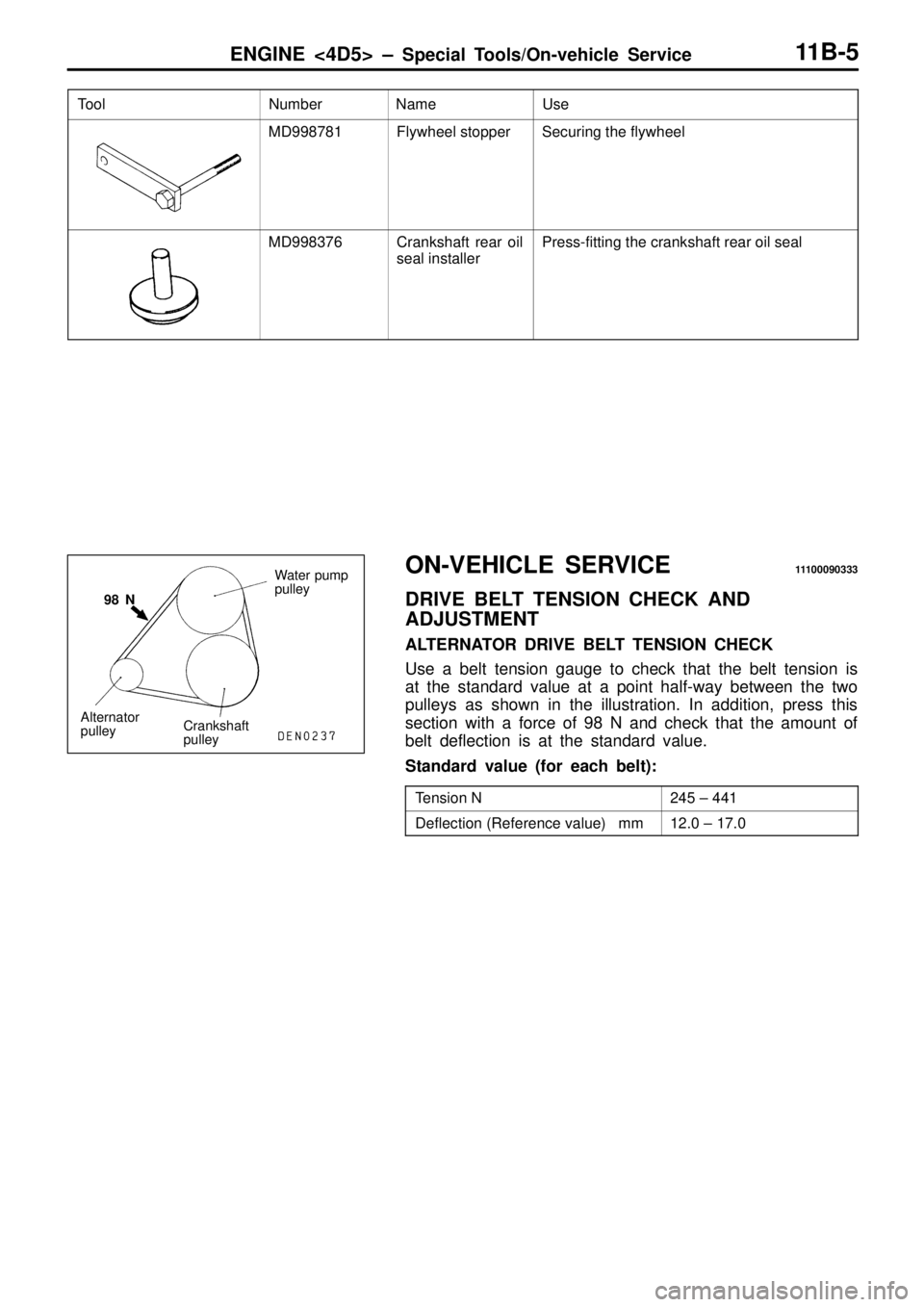

Page 84 of 1310
M
D998781 F
ly w heel s to pper S
ecu rin g th e fly w heel M
D998376 C
ra nksh aft r e ar o il
s e al in sta lle r P
re ss-fit tin g th e c ra nksh aft r e ar o il s e al 2
45 ± 4 41 D
efle ctio n ( R efe re nce v a lu e) m m 1
2.0 ± 1 7.0 C
ra nksh aft
p ulle y
Page 126 of 1310
MPI ± General Information13A-3
MULTIPOINT FUEL INJECTION (MPI)13100010265
GENERAL INFORMATION
The Multipoint Fuel Injection System consists
of sensors which detect the engine conditions,
the engine-ECU which controls the system
based on signals from these sensors, and
actuators which operate under the control of
the engine-ECU. The engine-ECU carries outactivities such as fuel injection control, idle
speed control and ignition timing control. In
addition, the engine-ECU is equipped with
several diagnosis modes which simplify
troubleshooting when a problem develops.
FUEL INJECTION CONTROL
The injector drive times and injector timing are
controlled so that the optimum air/fuel mixture
is supplied to the engine to correspond to the
continually-changing engine operation condi-
tions.
A single injector is mounted at the intake port
of each cylinder. Fuel is sent under pressure
from the fuel tank by the fuel pump, with the
pressure being regulated by the fuel pressure
regulator. The fuel thus regulated is distributed
to each of the injectors.
Fuel injection is normally carried out once for
each 2-cylinder group for every two rotationsof the crankshaft. This is called group fuel
injection. The engine-ECU provides a richer
air/fuel mixture by carrying out ªopen-loopº
control when the engine is cold or operating
under high load conditions in order to maintain
engine performance. In addition, when the
engine is warm or operating under normal
conditions, the engine-ECU controls the air/fuel
mixture by using the oxygen sensor signal to
carry out ªclosed-loopº control in order to obtain
the theoretical air/fuel mixture ratio that
provides the maximum cleaning performance
from the three way catalyst.
IDLE AIR CONTROL
The idle speed is kept at the optimum speed
by controlling the amount of air that bypasses
the throttle valve in accordance with changes
in idling conditions and engine load during
idling. The engine-ECU drives the idle speed
control (ISC) motor to keep the engine running
at the pre-set idle target speed in accordance
with the engine coolant temperature and airconditioner load. In addition, when the air
conditioner switch is turned off and on while
the engine is idling, the ISC motor operates
to adjust the throttle valve bypass air amount
in accordance with the engine load conditions
in order to avoid fluctuations in the engine
speed.
IGNITION TIMING CONTROL
The power transistor located in the ignition
primary circuit turns ON and OFF to control
the primary current flow to the ignition coil. This
controls the ignition timing in order to provide
the optimum ignition timing with respect to theengine operating conditions. The ignition timing
is determined by the engine-ECU from the
engine speed, intake air volume, engine coolant
temperature and atmospheric pressure.
SELF-DIAGNOSIS FUNCTION
When an abnormality is detected in one
of the sensors or actuators related to
emission control, the engine warning lamp
(check engine lamp) illuminates as a
warning to the driver.
When an abnormality is detected in one
of the sensors or actuators, a diagnosiscode corresponding to the abnormality is
output.
The RAM data inside the ENGINE-ECU
that is related to the sensors and actuators
can be read by means of the MUT-II. In
addition, the actuators can be force-driven
under certain circumstances.
Page 127 of 1310
MPI ± General Information13A-4
OTHER CONTROL FUNCTIONS
1. Fuel Pump Control
Turns the fuel pump relay ON so that current
is supplied to the fuel pump while the engine
is cranking or running.
2. A/C Relay Control
Turns the compressor clutch of the A/C
ON and OFF.3. Purge Control Solenoid Valve Control
Refer to GROUP 17.
4. EGR Control Solenoid Valve Control
Refer to GROUP 17.
GENERAL SPECIFICATIONS
ItemsSpecifications
Throttle bodyThrottle bore mm54
Throttle position sensorVariable resistor type
Idle speed control servoStepper motor type
(Stepper motor type by-pass air control system with the air
volume limiter)
Idle position switchRotary contact type, within throttle position sensor
Engine-ECUIdentification model No.E2T64271 <4G63 - Vehicles without immobilizer system>
E2T64277 <4G63 - Vehicles with immobilizer system>
E2T64272 <4G64 - Vehicles without immobilizer system>
E2T64276 <4G64 - Vehicles with immobilizer system>
SensorsAir flow sensorKarman vortex type
Barometric pressure sensorSemiconductor type
Intake air temperature sensorThermistor type
Engine coolant temperature sensorThermistor type
Oxygen sensorZirconia type
Vehicle speed sensorMagnetic resistive element type
Top dead centre sensorHall element type
Crank angle sensorHall element type
Power steering fluid pressure switchContact switch type
ActuatorsControl relay typeContact switch type
Fuel pump relay typeContact switch type
Injector type and numberElectromagnetic type, 4
Injector identification markCDH275
EGR control solenoid valveDuty cycle type solenoid valve
Purge control solenoid valveON/OFF type solenoid valve
Fuel pressure
regulatorRegulator pressure kPa328
Page 132 of 1310
MPI ± Troubleshooting13A-9
Engine warning lamp inspection items
Engine-ECU
Oxygen sensor
Air flow sensor
Intake air temperature sensor
Throttle position sensor
Engine coolant temperature sensor
Crank angle sensor
Top dead centre sensor
Barometric pressure sensor
Ignition timing adjustment signal
Injector
Immobilizer system
Caution
Engine warning lamp will come on even when terminal
for ignition timing adjustment is short-circuited.
Therefore, it is not abnormal that the lamp comes
on even when terminal for ignition timing adjustment
is short-circuited at the time of ignition timing
adjustment.
METHOD OF READING AND ERASING DIAGNOSIS
CODES
Refer to GROUP 00 ± How to Use Troubleshooting/Inspection
Service Points.
INSPECTION USING MUT-II DATA LIST AND
ACTUATOR TESTING
1. Carry out inspection by means of the data list and the
actuator test function.
If there is an abnormality, check and repair the chassis
harnesses and components.
2. After repairing, re-check using the MUT-II and check that
the abnormal input and output have returned to normal
as a result of the repairs.
3. Erase the diagnosis code memory.
4. Remove the MUT-II.
5. Start the engine again and carry out a road test to confirm
that the problem has disappeared.
Page 134 of 1310
MPI ± Troubleshooting13A-11
INSPECTION PROCEDURE FOR DIAGNOSIS CODES
Code No. 11 Oxygen sensor systemProbable cause
Range of Check
3 minutes have passed after engine was started.
Engine coolant temperature is approx. 80C or more.
Intake air temperature is 20 ± 50C.
Engine speed is approx. 2,000 ± 3,000 r/min
Vehicle is moving at constant speed on a flat, level road surface
Set conditions
The oxygen sensor output voltage is around 0.6 V for 30 seconds (does not cross
0.6 V for 30 seconds).
When the range of check operations given above which accompany starting of
the engine are carried out four time in succession, a problem is detected after
each operation.Malfunction of the oxygen sensor
Improper connector contact, open circuit or
short-circuited harness wire
Malfunction of the engine-ECU
Check the oxygen sensor. (Refer to P.13A-88.)NG
Replace
OK
Measure at the oxygen sensor connector B-03.
Disconnect the connector, and measure at the
harness side.
1. Voltage between 1 and earth (Ignition switch: ON)
OK:System voltage
2. Continuity between 2 and earth
OK:Continuity
OK1. NG
Check the harness wire between the
oxygen sensor and the control relay
connector, and repair if necessary.
2. NG
Check the following connector.
C-51, C-60NG
Repair
OK
Check trouble symptom.
NG
Check the harness wire between the
engine-ECU and the oxygen sensor
connector.NG
Repair
OK
Replace the engine-ECU.
Measure at the engine-ECU connector C-50.
Disconnect the connector, and measure at the
harness side.
Voltage between 35 and earth (Ignition switch: ON)
OK:System voltage
NGCheck the following connector.
B-03, C-60NG
Repair
OK
Check the following connectors.
B-03, C-50NG
RepairCheck trouble symptom.OK
OKNGCheck the harness wire between the
engine-ECU and the oxygen sensor
connector, and repair if necessary.
Check trouble symptom.
NG
Check the harness wire between the engine-ECU and
the oxygen sensor connector.NG
Repair
OK
Replace the engine-ECU.
Page 135 of 1310
MPI ± Troubleshooting13A-12
Code No. 12 Air flow sensor systemProbable cause
Range of Check
Engine speed is 500 r/min or more.
Set conditions
Sensor output frequency is 3 Hz or less for 4 seconds.Malfunction of the air flow sensor
Improper connector contact, open circuit or
short-circuited harness wire of the air flow sensor
Malfunction of the engine-ECU
Measure at the air flow sensor con-
nector A-77.
Connect the connector. (Use
the test harness: MB991348)
1. Voltage between 3 and earth
(Engine: Idling)
OK:2.2 ± 3.2 V
2. Voltage between 7 and earth
OK:0 ± 1 V (Engine: idling)
6 ± 9 V (2,000 r/min)
OK
Replace the engine-ECU.1. NG
Check the air flow sensor circuit.
(Refer to P.13A-54, INSPECTION
PROCEDURE 45.)
2. NG
Measure at the engine-ECU con-
nector C-49.
Connect the connector.
Voltage between 19 and earth
(Ignition switch: ON)
OK:6±9 V
OK
Check the following connector.
C-49
OK
Check trouble symptom.
NG
Replace the engine-ECU.NG
Check the following connector.
A-77NG
Repair
OK
Check trouble symptom.
NG
NG
Repair
Replace the air flow sensor.
Code No. 13 Intake air temperature sensor systemProbable cause
Range of Check
Ignition switch: ON
Excluding 60 seconds after the ignition switch is turned to ON or immediately
after the engine starts.
Set conditions
Sensor output voltage is 4.6 V or more (corresponding to an intake air temperature
of ±45C or less) for 4 seconds.
or
Sensor output voltage is 0.2V or less (corresponding to an intake air temperature
of 125C or more) for 4 seconds.Malfunction of the intake air temperature sensor
Improper connector contact, open circuit or
short-circuited harness wire of the intake air
temperature sensor circuit
Malfunction of the engine-ECU
Check the intake air temperature
sensor.
(Refer to P.13A-86.)NG
Replace
OK
Measure at the air flow sensor con-
nector A-77.
Disconnect the connector, and
measure at the harness side.
Voltage between 6 and earth
(Ignition switch: ON)
OK:4.5 ± 4.9 V
Continuity between 5 and earth
OK:ContinuityNGCheck the following connector.
C-51NG
Repair
OK
Check trouble symptom.
NG
Check the harness wire between
the engine-ECU and the intake air
temperature sensor connector.NG
Repair
OK
Replace the engine-ECU. OK
Check the following connector.
A-77NG
Repair
OK
Check trouble symptom.NGReplace the engine-ECU.
Page 136 of 1310
MPI ± Troubleshooting13A-13
Code No. 14 Throttle position sensor systemProbable cause
Range of Check
Ignition switch: ON
Excluding 60 seconds after the ignition switch is turned to ON or immediately
after the engine starts.
Set conditions
When the idle position switch is ON, the sensor output voltage is 2 V or more
for 4 seconds.
or
The sensor output voltage is 0.2 V or less for 4 seconds.Malfunction of the throttle position sensor or
maladjustment
Improper connector contact, open circuit or
short-circuited harness wire of the throttle position
sensor circuit
Improper ªONº state of idle position switch
Short circuit of the idle position switch signal line
Malfunction of the engine-ECU
MUT-II Data list
26 Idle position switch system
OK:With the throttle valve at the
idle position: ON
With the throttle valve slight-
ly open: OFFNGCheck the idle position switch system.
(Refer to P.13A-40 INSPECTION
PROCEDURE 25.)
OK
Check the throttle position sensor.
(Refer to P.13A-87.)NG
Replace
OK
Measure at the throttle position sensor
connector A-47.
Disconnect the connector, and
measure at the harness side.
Voltage between 4 and earth
(Ignition switch: ON)
OK:4.8 ± 5.2 V
Continuity between 1 and earth
OK:ContinuityNGCheck the following connector.
C-51NG
Repair
OK
Check trouble symptom.
NG
Check the harness wire between the
engine-ECU and the throttle position
sensor connector.NG
Repair
OK
Replace the engine-ECU. OK
Check the throttle position sensor out-
put circuit. (Refer to P.13A-55, IN-
SPECTION PROCEDURE 46.)
Page 137 of 1310
MPI ± Troubleshooting13A-14
Code No. 21 Engine coolant temperature sensor systemProbable cause
Range of Check
Ignition switch: ON
Excluding 60 seconds after the ignition switch is turned to ON or immediately
after the engine starts.
Set conditions
Sensor output voltage is 4.6 V or more (corresponding to an engine coolant
temperature of ±45C or less) for 4 seconds.
or
Sensor output voltage is 0.1 V or less (corresponding to an engine coolant
temperature of 140C or more) for 4 seconds.Malfunction of the engine coolant temperature sensor
Improper connector contact, open circuit or
short-circuited harness wire of the engine coolant
temperature sensor circuit
Malfunction of the engine-ECU
Range of Check
Ignition switch: ON
Engine speed is approx. 50 r/min or more
Set conditions
The sensor output voltage increases from 1.6 V or less (corresponding to an
engine coolant temperature of 40C or more) to 1.6 V or more (corresponding
to an engine coolant temperature of 40C or less).
After this, the sensor output voltage is 1.6 V or more for 5 minutes.
Check the engine coolant temperature
sensor. (Refer to P.13A-86.)NG
Replace
OK
Measure at the engine coolant temper-
ature sensor connector A-64.
Disconnect the connector, and
measure at the harness side.
Voltage between 1 and earth
(Ignition switch: ON)
OK:4.5 ± 4.9 V
Continuity between 2 and earth
OK:ContinuityNGCheck the following connector.
C-51NG
Repair
OK
Check trouble symptom.
NG
Check the harness wire between the
engine-ECU and the engine coolant
temperature sensor connector.NG
Repair
OK
Replace the engine-ECU.
Check the following connector.
A-64OKCheck trouble symptom.
NG
Replace the engine-ECU.NG
RepairOK
