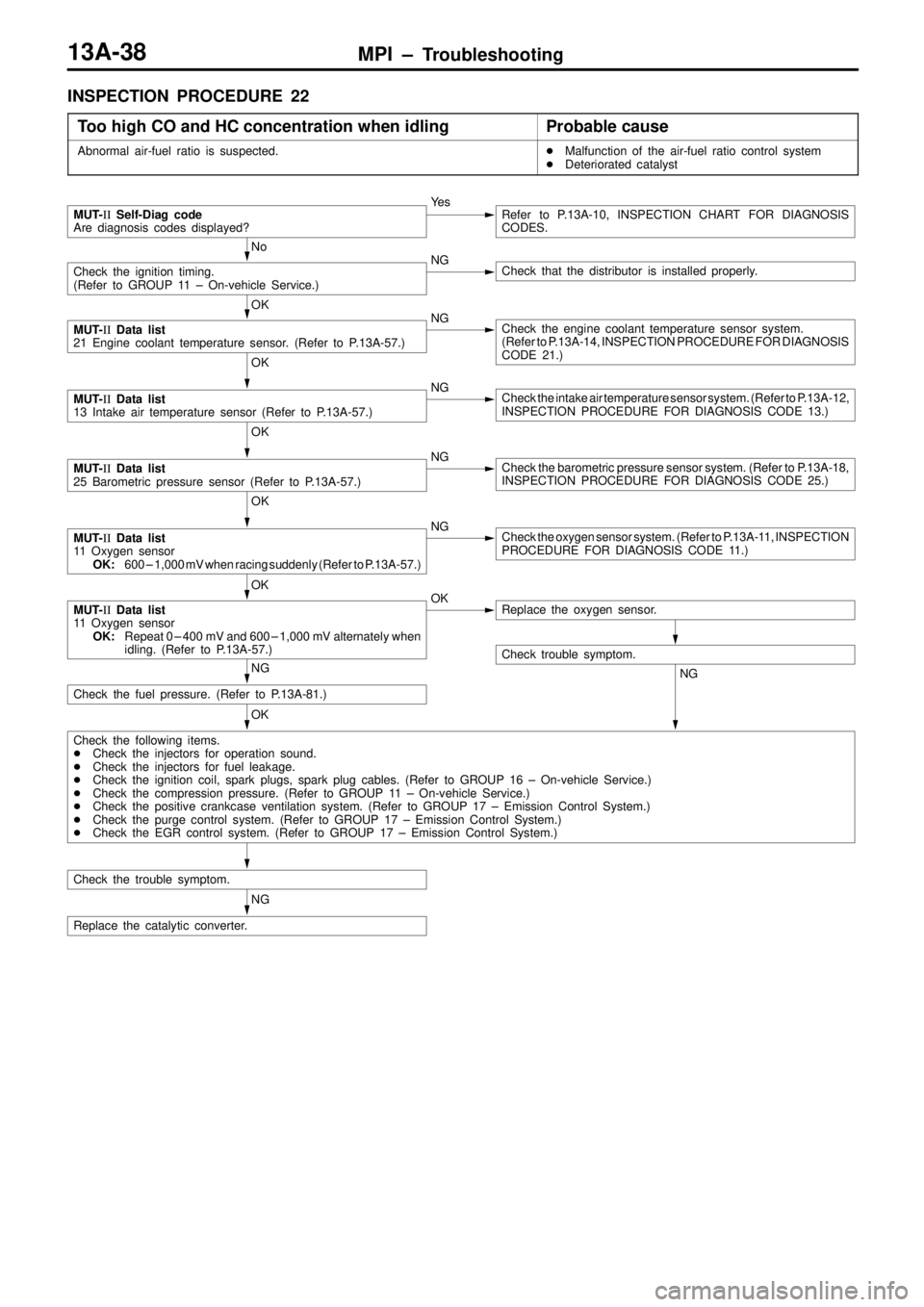

MPI ± Troubleshooting13A-38
INSPECTION PROCEDURE 22
Too high CO and HC concentration when idling
Probable cause
Abnormal air-fuel ratio is suspected.
Malfunction of the air-fuel ratio control system

Deteriorated catalyst
Check trouble symptom.
No
Check the ignition timing.
(Refer to GROUP 11 ± On-vehicle Service.)NGCheck that the distributor is installed properly.
OK
MUT-II Data list
21 Engine coolant temperature sensor. (Refer to P.13A-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13A-14, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
13 Intake air temperature sensor (Refer to P.13A-57.)NGCheck the intake air temperature sensor system. (Refer to P.13A-12,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 13.)
OK
MUT-II Data list
25 Barometric pressure sensor (Refer to P.13A-57.)NGCheck the barometric pressure sensor system. (Refer to P.13A-18,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 25.)
OK
MUT-II Data list
11 Oxygen sensor
OK:600 ± 1,000 mV when racing suddenly (Refer to P.13A-57.)NGCheck the oxygen sensor system. (Refer to P.13A-11, INSPECTION
PROCEDURE FOR DIAGNOSIS CODE 11.)
OK
MUT-II Data list
11 Oxygen sensor
OK:Repeat 0 ± 400 mV and 600 ± 1,000 mV alternately when
idling. (Refer to P.13A-57.)OK
NG
Check the fuel pressure. (Refer to P.13A-81.)
OK
NG
Check the following items.

Check the injectors for operation sound.

Check the injectors for fuel leakage.

Check the ignition coil, spark plugs, spark plug cables. (Refer to GROUP 16 ± On-vehicle Service.)

Check the compression pressure. (Refer to GROUP 11 ± On-vehicle Service.)

Check the positive crankcase ventilation system. (Refer to GROUP 17 ± Emission Control System.)

Check the purge control system. (Refer to GROUP 17 ± Emission Control System.)

Check the EGR control system. (Refer to GROUP 17 ± Emission Control System.)
Check the trouble symptom.
NG
Replace the catalytic converter.
Replace the oxygen sensor.
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
