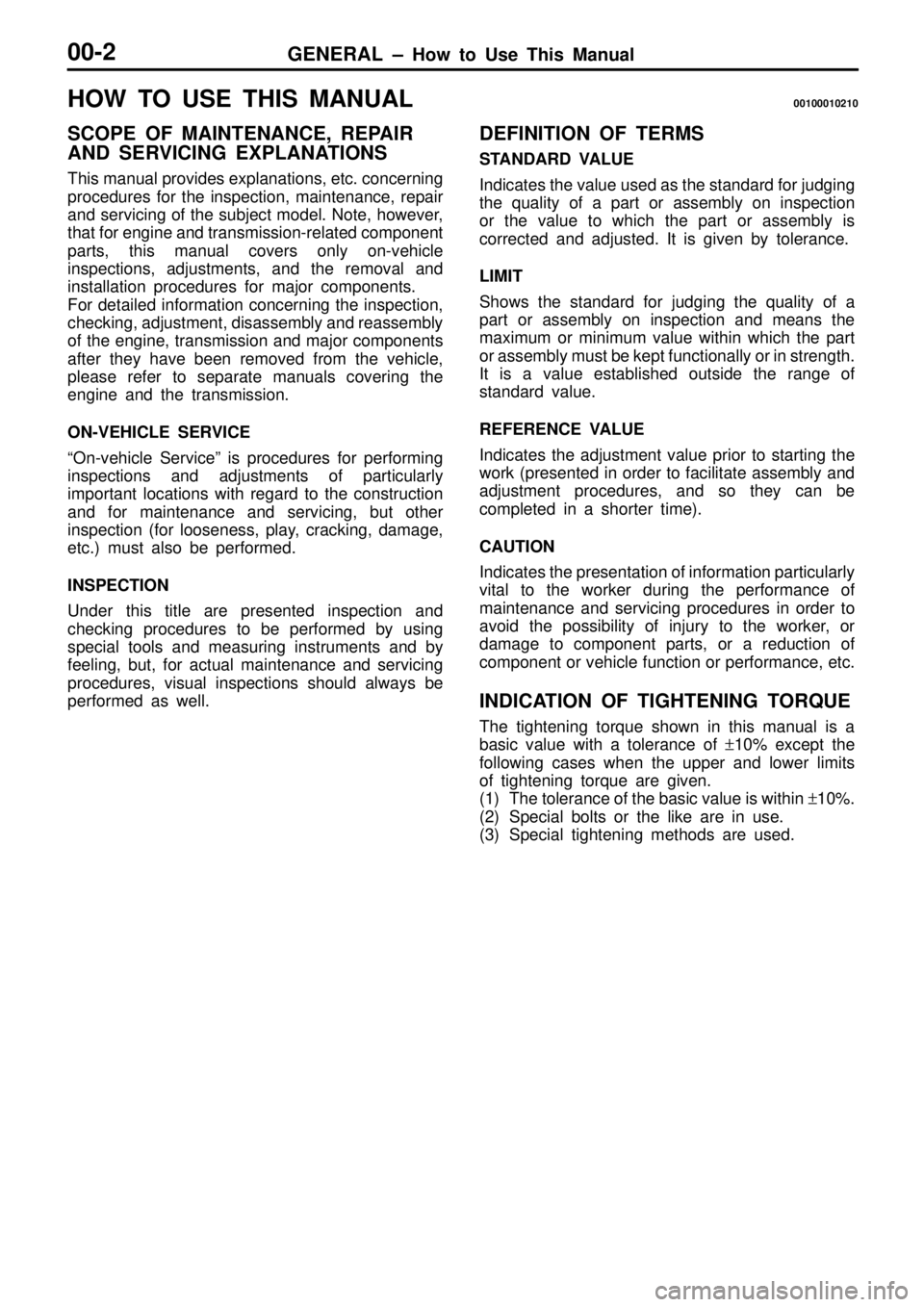

GENERAL ± How to Use This Manual00-2
HOW TO USE THIS MANUAL00100010210
SCOPE OF MAINTENANCE, REPAIR
AND SERVICING EXPLANATIONS
This manual provides explanations, etc. concerning
procedures for the inspection, maintenance, repair
and servicing of the subject model. Note, however,
that for engine and transmission-related component
parts, this manual covers only on-vehicle
inspections, adjustments, and the removal and
installation procedures for major components.
For detailed information concerning the inspection,
checking, adjustment, disassembly and reassembly
of the engine, transmission and major components
after they have been removed from the vehicle,
please refer to separate manuals covering the
engine and the transmission.
ON-VEHICLE SERVICE
ªOn-vehicle Serviceº is procedures for performing
inspections and adjustments of particularly
important locations with regard to the construction
and for maintenance and servicing, but other
inspection (for looseness, play, cracking, damage,
etc.) must also be performed.
INSPECTION
Under this title are presented inspection and
checking procedures to be performed by using
special tools and measuring instruments and by
feeling, but, for actual maintenance and servicing
procedures, visual inspections should always be
performed as well.
DEFINITION OF TERMS
STANDARD VALUE
Indicates the value used as the standard for judging
the quality of a part or assembly on inspection
or the value to which the part or assembly is
corrected and adjusted. It is given by tolerance.
LIMIT
Shows the standard for judging the quality of a
part or assembly on inspection and means the
maximum or minimum value within which the part
or assembly must be kept functionally or in strength.
It is a value established outside the range of
standard value.
REFERENCE VALUE
Indicates the adjustment value prior to starting the
work (presented in order to facilitate assembly and
adjustment procedures, and so they can be
completed in a shorter time).
CAUTION
Indicates the presentation of information particularly
vital to the worker during the performance of
maintenance and servicing procedures in order to
avoid the possibility of injury to the worker, or
damage to component parts, or a reduction of
component or vehicle function or performance, etc.
INDICATION OF TIGHTENING TORQUE
The tightening torque shown in this manual is a
basic value with a tolerance of +10% except the
following cases when the upper and lower limits
of tightening torque are given.
(1) The tolerance of the basic value is within +10%.
(2) Special bolts or the like are in use.
(3) Special tightening methods are used.

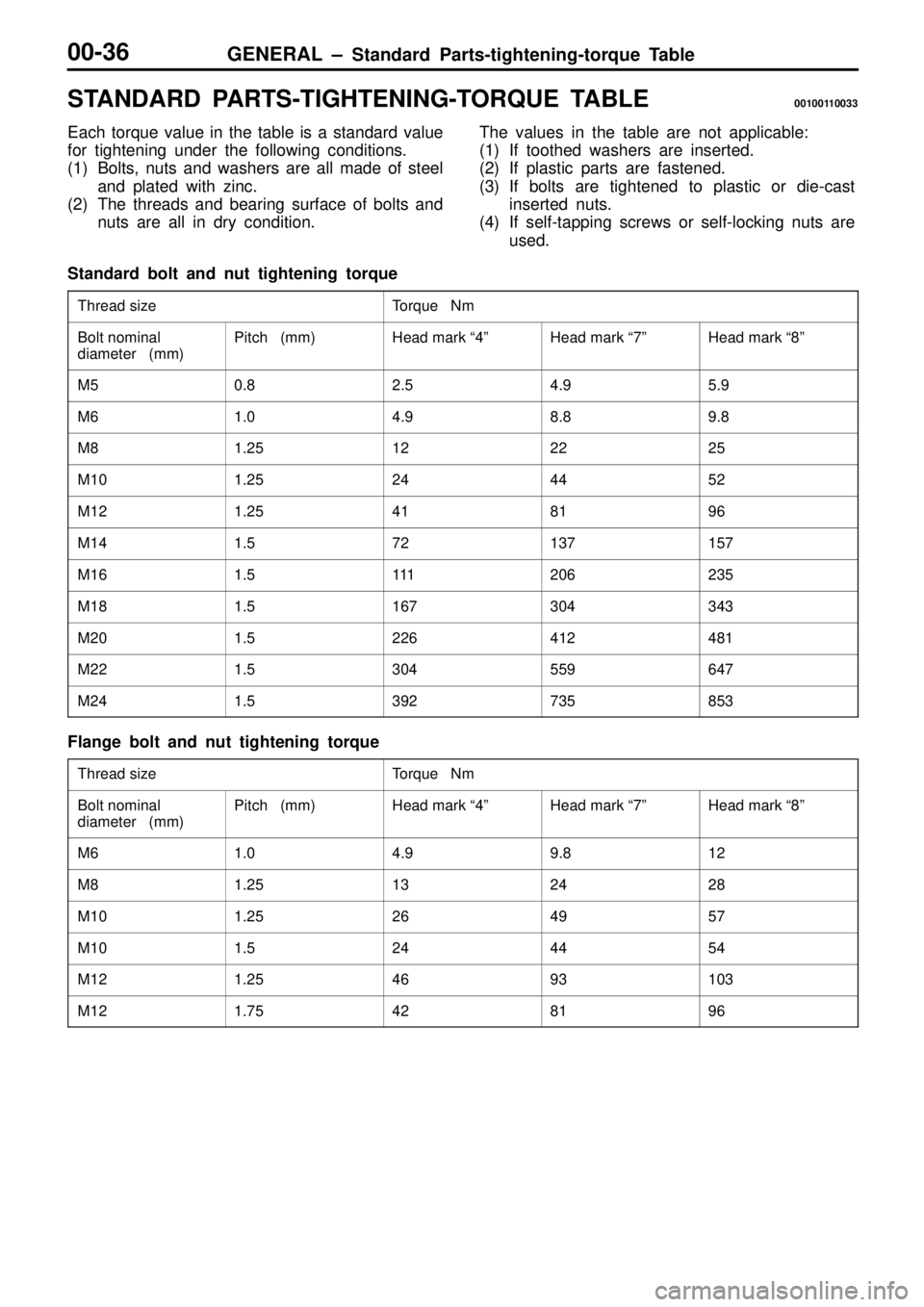

GENERAL ± Standard Parts-tightening-torque Table00-36
STANDARD PARTS-TIGHTENING-TORQUE TABLE00100110033
Each torque value in the table is a standard value
for tightening under the following conditions.
(1) Bolts, nuts and washers are all made of steel
and plated with zinc.
(2) The threads and bearing surface of bolts and
nuts are all in dry condition.The values in the table are not applicable:
(1) If toothed washers are inserted.
(2) If plastic parts are fastened.
(3) If bolts are tightened to plastic or die-cast
inserted nuts.
(4) If self-tapping screws or self-locking nuts are
used.
Standard bolt and nut tightening torque
Thread sizeTorque Nm
Bolt nominal
diameter (mm)Pitch (mm)Head mark ª4ºHead mark ª7ºHead mark ª8º
M50.82.54.95.9
M61.04.98.89.8
M81.25122225
M101.25244452
M121.25418196
M141.572137157
M161.5111206235
M181.5167304343
M201.5226412481
M221.5304559647
M241.5392735853
Flange bolt and nut tightening torque
Thread sizeTorque Nm
Bolt nominal
diameter (mm)Pitch (mm)Head mark ª4ºHead mark ª7ºHead mark ª8º
M61.04.99.812
M81.25132428
M101.25264957
M101.5244454
M121.254693103
M121.75428196

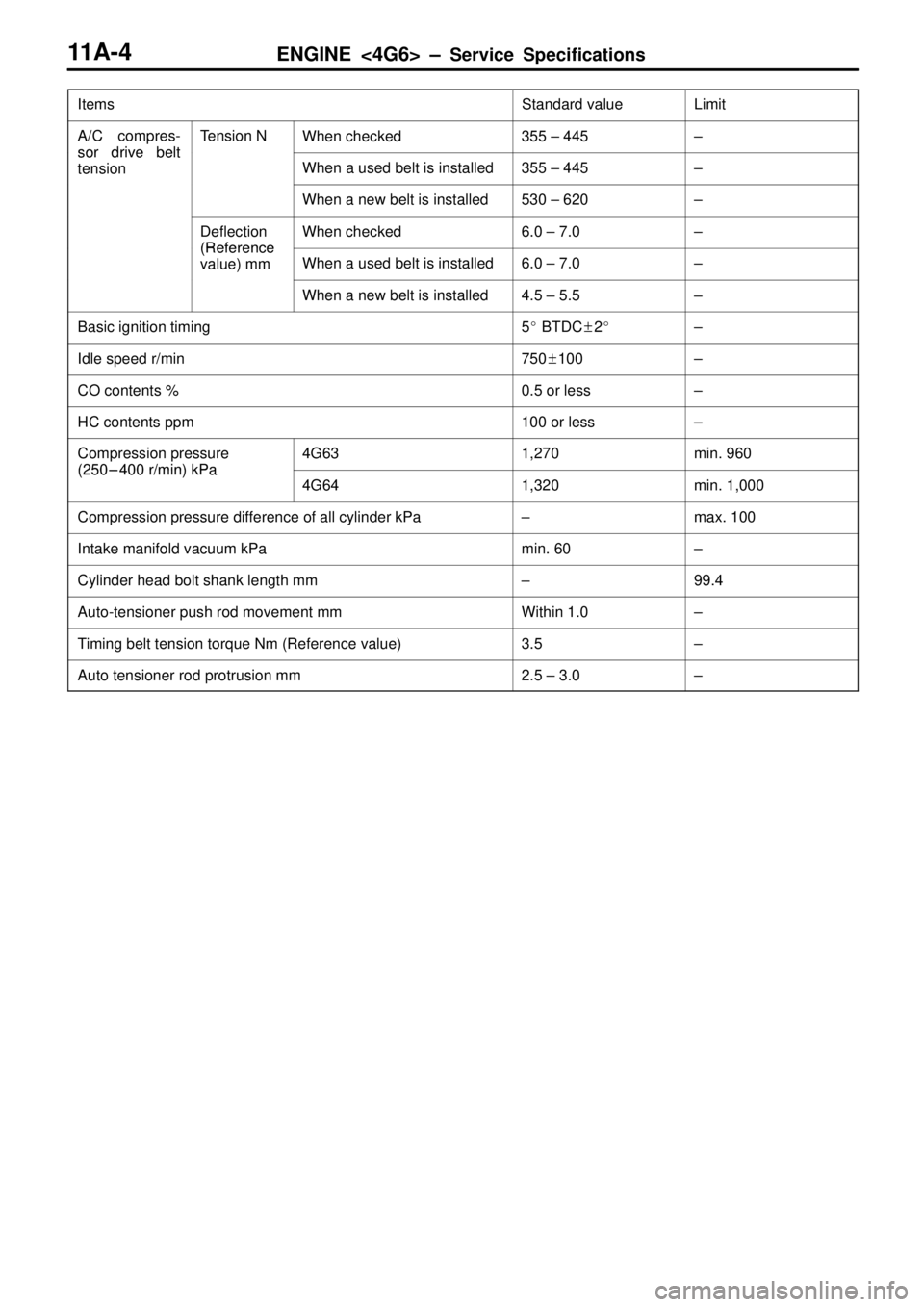

ENGINE <4G6> ± Service Specifications11A-4
ItemsLimit Standard value
A/C compres-
sor drive belt
Tension NWhen checked355 ± 445±
sor drive belt
tensionWhen a used belt is installed355 ± 445±
When a new belt is installed530 ± 620±
Deflection
(Reference
When checked6.0 ± 7.0±
(Reference
value) mmWhen a used belt is installed6.0 ± 7.0±
When a new belt is installed4.5 ± 5.5±
Basic ignition timing5
BTDC+2
±
Idle speed r/min750+100±
CO contents %0.5 or less±
HC contents ppm100 or less±
Compression pressure
(250±400 r/min) kPa
4G631,270min. 960
(250±400 r/min) kPa
4G641,320min. 1,000
Compression pressure difference of all cylinder kPa±max. 100
Intake manifold vacuum kPamin. 60±
Cylinder head bolt shank length mm±99.4
Auto-tensioner push rod movement mmWithin 1.0±
Timing belt tension torque Nm (Reference value)3.5±
Auto tensioner rod protrusion mm2.5 ± 3.0±

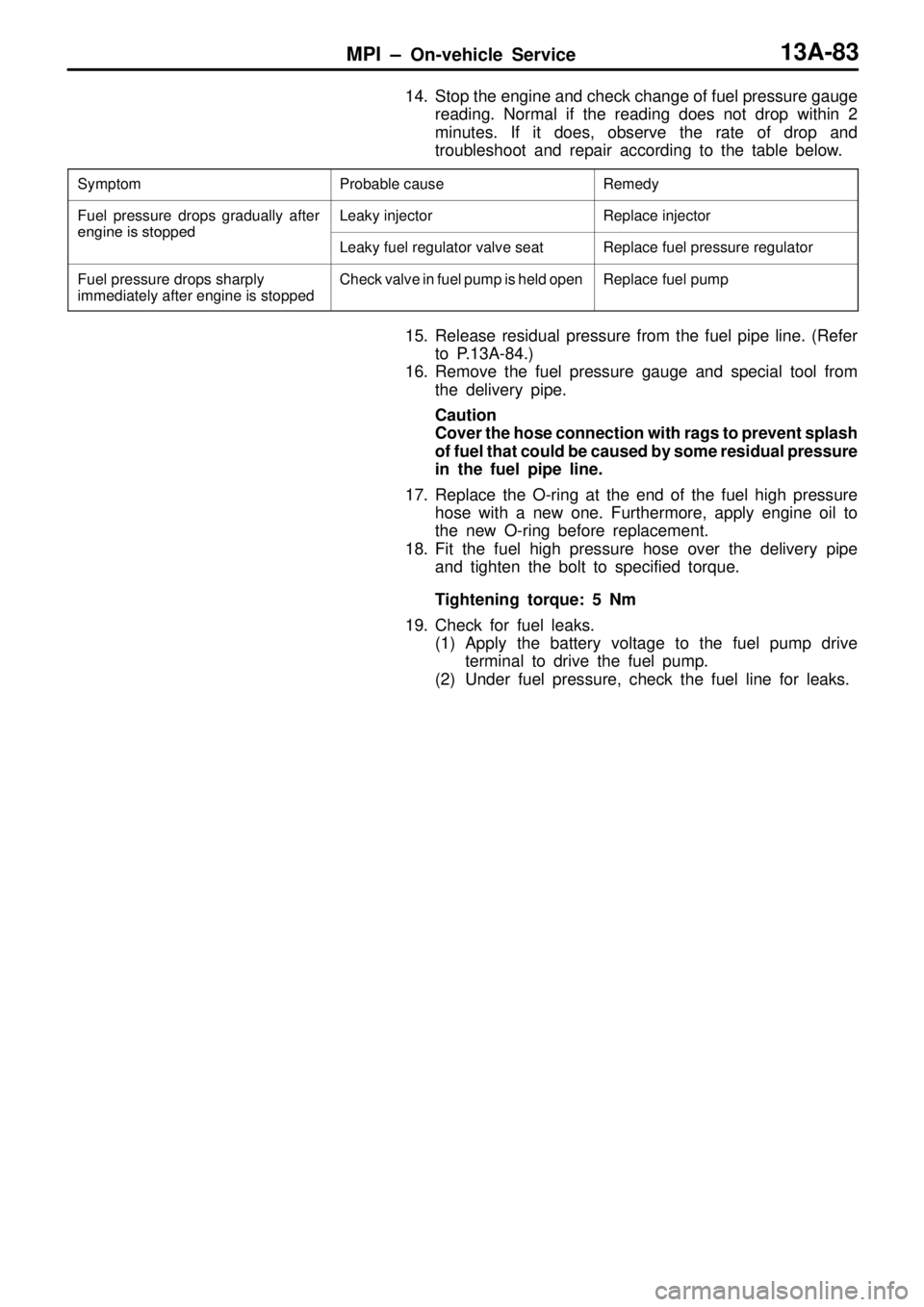

MPI ± On-vehicle Service13A-83
14. Stop the engine and check change of fuel pressure gauge
reading. Normal if the reading does not drop within 2
minutes. If it does, observe the rate of drop and
troubleshoot and repair according to the table below.
SymptomProbable causeRemedy
Fuel pressure drops gradually after
engine is stopped
Leaky injectorReplace injector
engine is sto ed
Leaky fuel regulator valve seatReplace fuel pressure regulator
Fuel pressure drops sharply
immediately after engine is stoppedCheck valve in fuel pump is held openReplace fuel pump
15. Release residual pressure from the fuel pipe line. (Refer
to P.13A-84.)
16. Remove the fuel pressure gauge and special tool from
the delivery pipe.
Caution
Cover the hose connection with rags to prevent splash
of fuel that could be caused by some residual pressure
in the fuel pipe line.
17. Replace the O-ring at the end of the fuel high pressure
hose with a new one. Furthermore, apply engine oil to
the new O-ring before replacement.
18. Fit the fuel high pressure hose over the delivery pipe
and tighten the bolt to specified torque.
Tightening torque: 5 Nm
19. Check for fuel leaks.
(1) Apply the battery voltage to the fuel pump drive
terminal to drive the fuel pump.
(2) Under fuel pressure, check the fuel line for leaks.

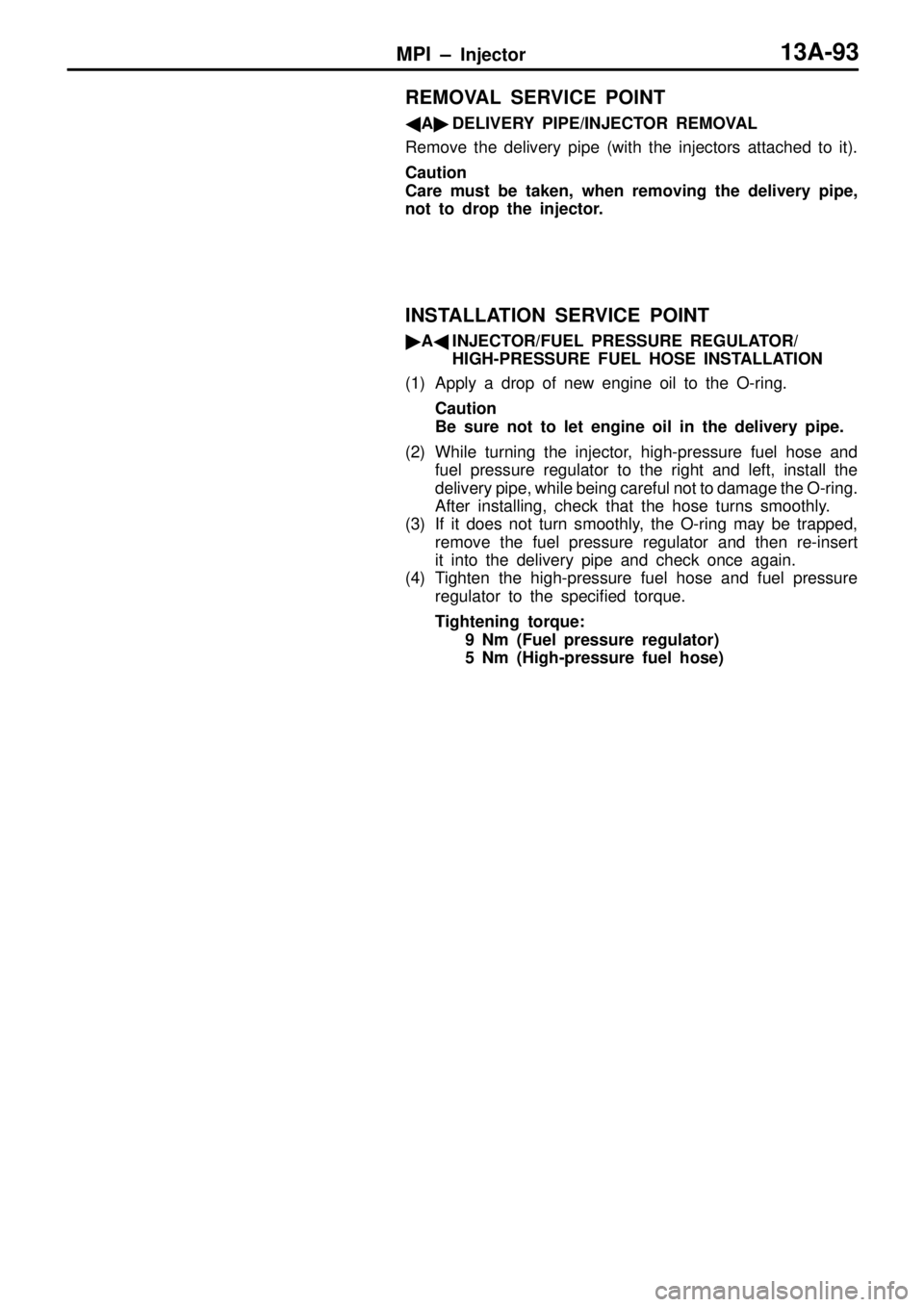

MPI ± Injector13A-93
REMOVAL SERVICE POINT
A
DELIVERY PIPE/INJECTOR REMOVAL
Remove the delivery pipe (with the injectors attached to it).
Caution
Care must be taken, when removing the delivery pipe,
not to drop the injector.
INSTALLATION SERVICE POINT

AINJECTOR/FUEL PRESSURE REGULATOR/
HIGH-PRESSURE FUEL HOSE INSTALLATION
(1) Apply a drop of new engine oil to the O-ring.
Caution
Be sure not to let engine oil in the delivery pipe.
(2) While turning the injector, high-pressure fuel hose and
fuel pressure regulator to the right and left, install the
delivery pipe, while being careful not to damage the O-ring.
After installing, check that the hose turns smoothly.
(3) If it does not turn smoothly, the O-ring may be trapped,
remove the fuel pressure regulator and then re-insert
it into the delivery pipe and check once again.
(4) Tighten the high-pressure fuel hose and fuel pressure
regulator to the specified torque.
Tightening torque:
9 Nm (Fuel pressure regulator)
5 Nm (High-pressure fuel hose)

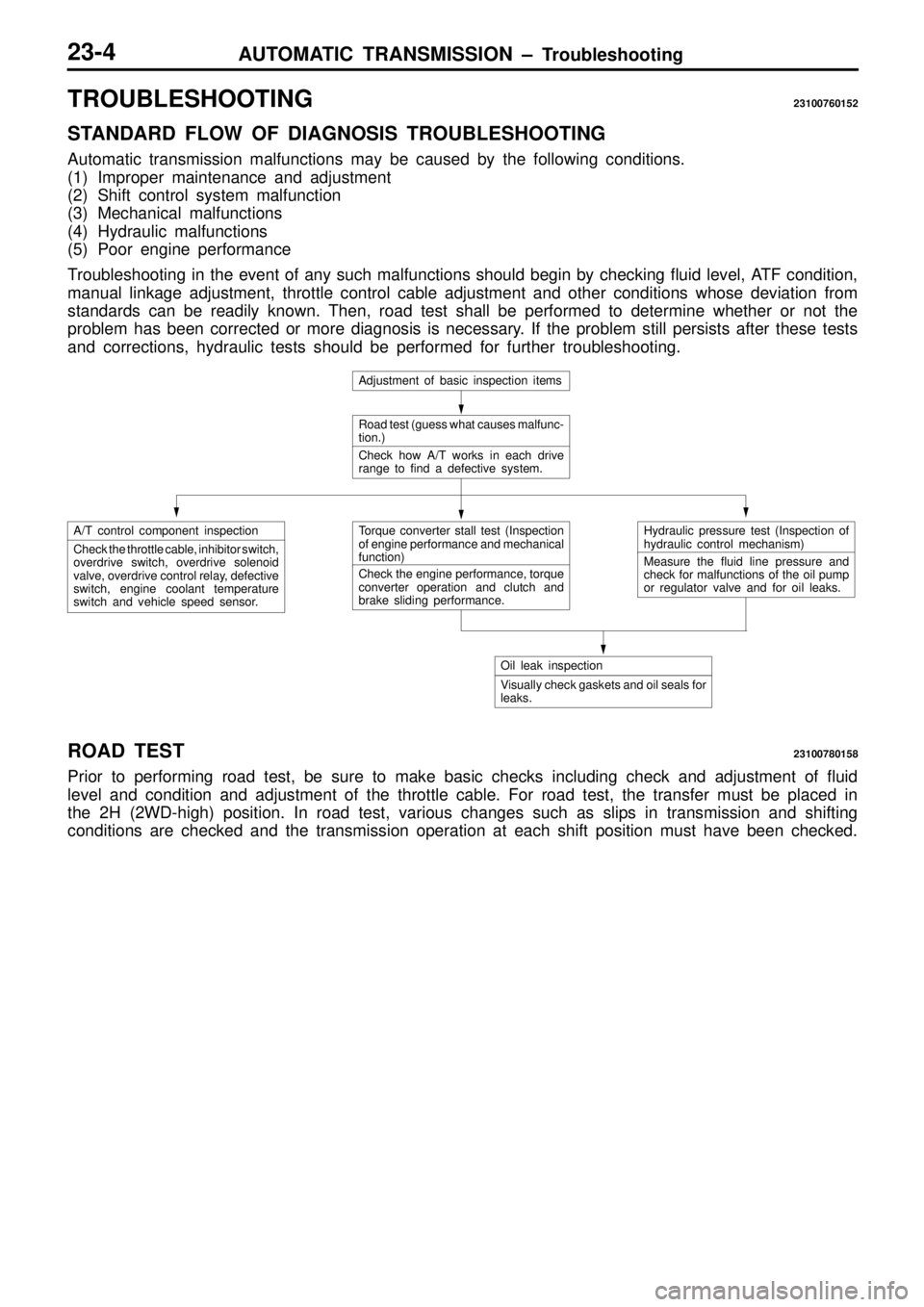

AUTOMATIC TRANSMISSION ± Troubleshooting23-4
TROUBLESHOOTING23100760152
STANDARD FLOW OF DIAGNOSIS TROUBLESHOOTING
Automatic transmission malfunctions may be caused by the following conditions.
(1) Improper maintenance and adjustment
(2) Shift control system malfunction
(3) Mechanical malfunctions
(4) Hydraulic malfunctions
(5) Poor engine performance
Troubleshooting in the event of any such malfunctions should begin by checking fluid level, ATF condition,
manual linkage adjustment, throttle control cable adjustment and other conditions whose deviation from
standards can be readily known. Then, road test shall be performed to determine whether or not the
problem has been corrected or more diagnosis is necessary. If the problem still persists after these tests
and corrections, hydraulic tests should be performed for further troubleshooting.
Road test (guess what causes malfunc-
tion.)
Check how A/T works in each drive
range to find a defective system.
A/T control component inspection
Check the throttle cable, inhibitor switch,
overdrive switch, overdrive solenoid
valve, overdrive control relay, defective
switch, engine coolant temperature
switch and vehicle speed sensor.
Torque converter stall test (Inspection
of engine performance and mechanical
function)
Check the engine performance, torque
converter operation and clutch and
brake sliding performance.
Hydraulic pressure test (Inspection of
hydraulic control mechanism)
Measure the fluid line pressure and
check for malfunctions of the oil pump
or regulator valve and for oil leaks.
Oil leak inspection
Visually check gaskets and oil seals for
leaks.
Adjustment of basic inspection items
ROAD TEST 23100780158
Prior to performing road test, be sure to make basic checks including check and adjustment of fluid
level and condition and adjustment of the throttle cable. For road test, the transfer must be placed in
the 2H (2WD-high) position. In road test, various changes such as slips in transmission and shifting
conditions are checked and the transmission operation at each shift position must have been checked.

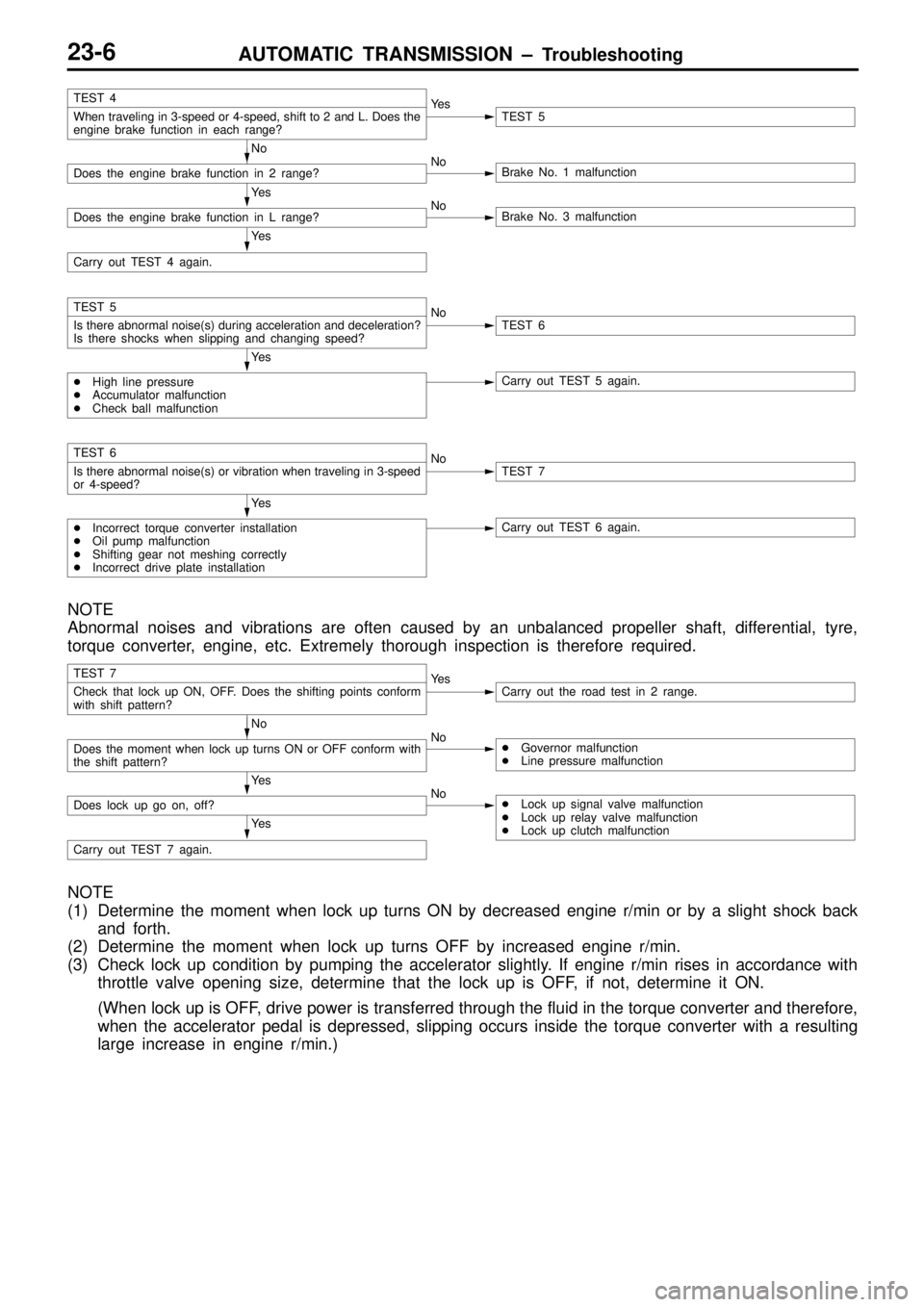

AUTOMATIC TRANSMISSION ± Troubleshooting23-6
Ye s
Carry out TEST 4 again.
Ye s
Does the engine brake function in L range?NoBrake No. 3 malfunction
No
Does the engine brake function in 2 range?NoBrake No. 1 malfunction
TEST 4
When traveling in 3-speed or 4-speed, shift to 2 and L. Does the
engine brake function in each range?Ye sTEST 5
Ye s

High line pressure

Accumulator malfunction

Check ball malfunctionCarry out TEST 5 again.
TEST 5
Is there abnormal noise(s) during acceleration and deceleration?
Is there shocks when slipping and changing speed?NoTEST 6
Ye s

Incorrect torque converter installation

Oil pump malfunction

Shifting gear not meshing correctly

Incorrect drive plate installationCarry out TEST 6 again.
TEST 6
Is there abnormal noise(s) or vibration when traveling in 3-speed
or 4-speed?NoTEST 7
NOTE
Abnormal noises and vibrations are often caused by an unbalanced propeller shaft, differential, tyre,
torque converter, engine, etc. Extremely thorough inspection is therefore required.
Ye s
Carry out TEST 7 again.
Ye s
Does lock up go on, off?No
Lock up signal valve malfunction

Lock up relay valve malfunction

Lock up clutch malfunction
No
Does the moment when lock up turns ON or OFF conform with
the shift pattern?No
Governor malfunction

Line pressure malfunction
TEST 7
Check that lock up ON, OFF. Does the shifting points conform
with shift pattern?Ye sCarry out the road test in 2 range.
NOTE
(1) Determine the moment when lock up turns ON by decreased engine r/min or by a slight shock back
and forth.
(2) Determine the moment when lock up turns OFF by increased engine r/min.
(3) Check lock up condition by pumping the accelerator slightly. If engine r/min rises in accordance with
throttle valve opening size, determine that the lock up is OFF, if not, determine it ON.
(When lock up is OFF, drive power is transferred through the fluid in the torque converter and therefore,
when the accelerator pedal is depressed, slipping occurs inside the torque converter with a resulting
large increase in engine r/min.)

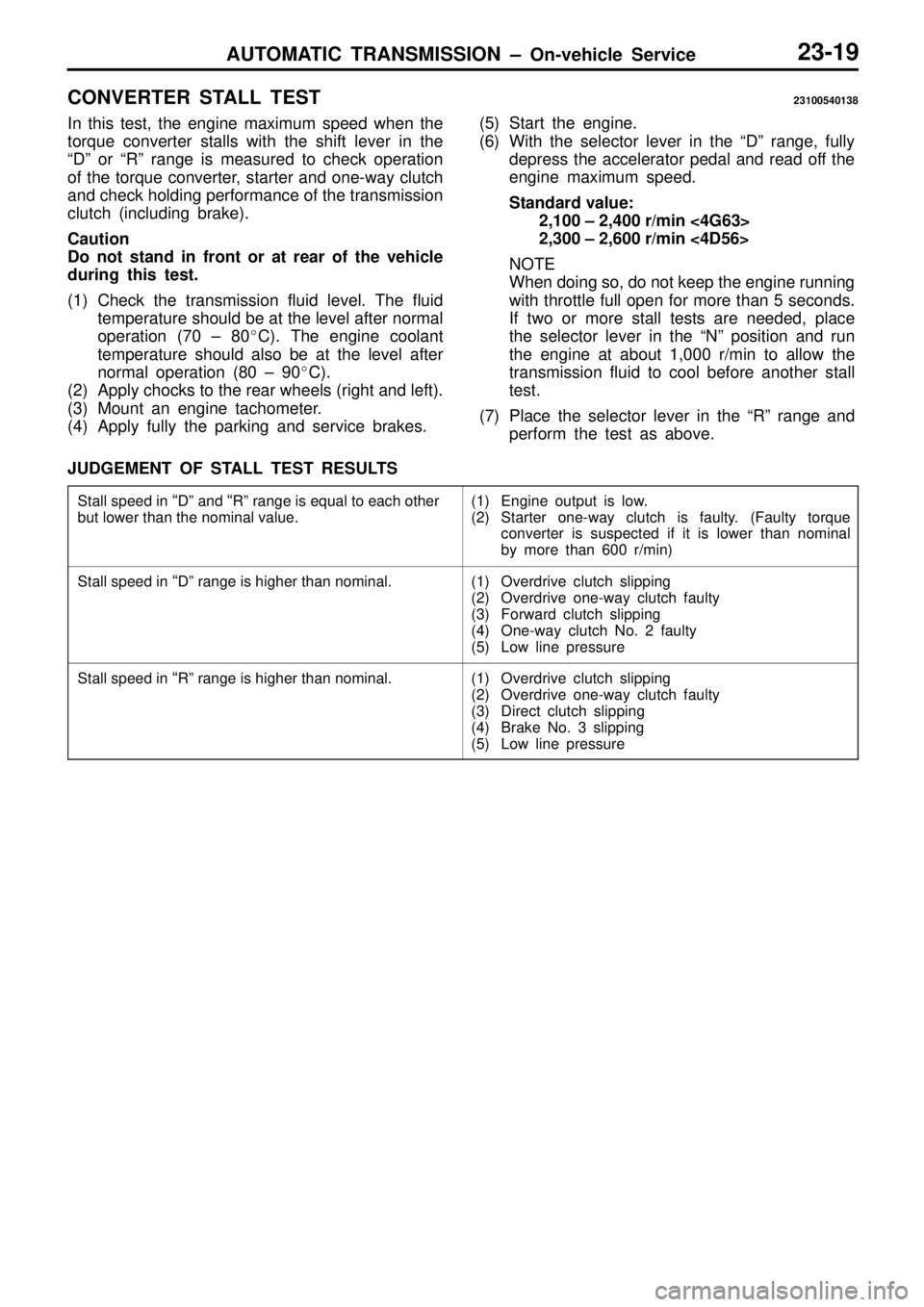

AUTOMATIC TRANSMISSION ± On-vehicle Service23-19
CONVERTER STALL TEST 23100540138
In this test, the engine maximum speed when the
torque converter stalls with the shift lever in the
ªDº or ªRº range is measured to check operation
of the torque converter, starter and one-way clutch
and check holding performance of the transmission
clutch (including brake).
Caution
Do not stand in front or at rear of the vehicle
during this test.
(1) Check the transmission fluid level. The fluid
temperature should be at the level after normal
operation (70 ± 80
C). The engine coolant
temperature should also be at the level after
normal operation (80 ± 90
C).
(2) Apply chocks to the rear wheels (right and left).
(3) Mount an engine tachometer.
(4) Apply fully the parking and service brakes.(5) Start the engine.
(6) With the selector lever in the ªDº range, fully
depress the accelerator pedal and read off the
engine maximum speed.
Standard value:
2,100 ± 2,400 r/min <4G63>
2,300 ± 2,600 r/min <4D56>
NOTE
When doing so, do not keep the engine running
with throttle full open for more than 5 seconds.
If two or more stall tests are needed, place
the selector lever in the ªNº position and run
the engine at about 1,000 r/min to allow the
transmission fluid to cool before another stall
test.
(7) Place the selector lever in the ªRº range and
perform the test as above.
JUDGEMENT OF STALL TEST RESULTS
Stall speed in ªDº and ªRº range is equal to each other
but lower than the nominal value.(1) Engine output is low.
(2) Starter one-way clutch is faulty. (Faulty torque
converter is suspected if it is lower than nominal
by more than 600 r/min)
Stall speed in ªDº range is higher than nominal.(1) Overdrive clutch slipping
(2) Overdrive one-way clutch faulty
(3) Forward clutch slipping
(4) One-way clutch No. 2 faulty
(5) Low line pressure
Stall speed in ªRº range is higher than nominal.(1) Overdrive clutch slipping
(2) Overdrive one-way clutch faulty
(3) Direct clutch slipping
(4) Brake No. 3 slipping
(5) Low line pressure

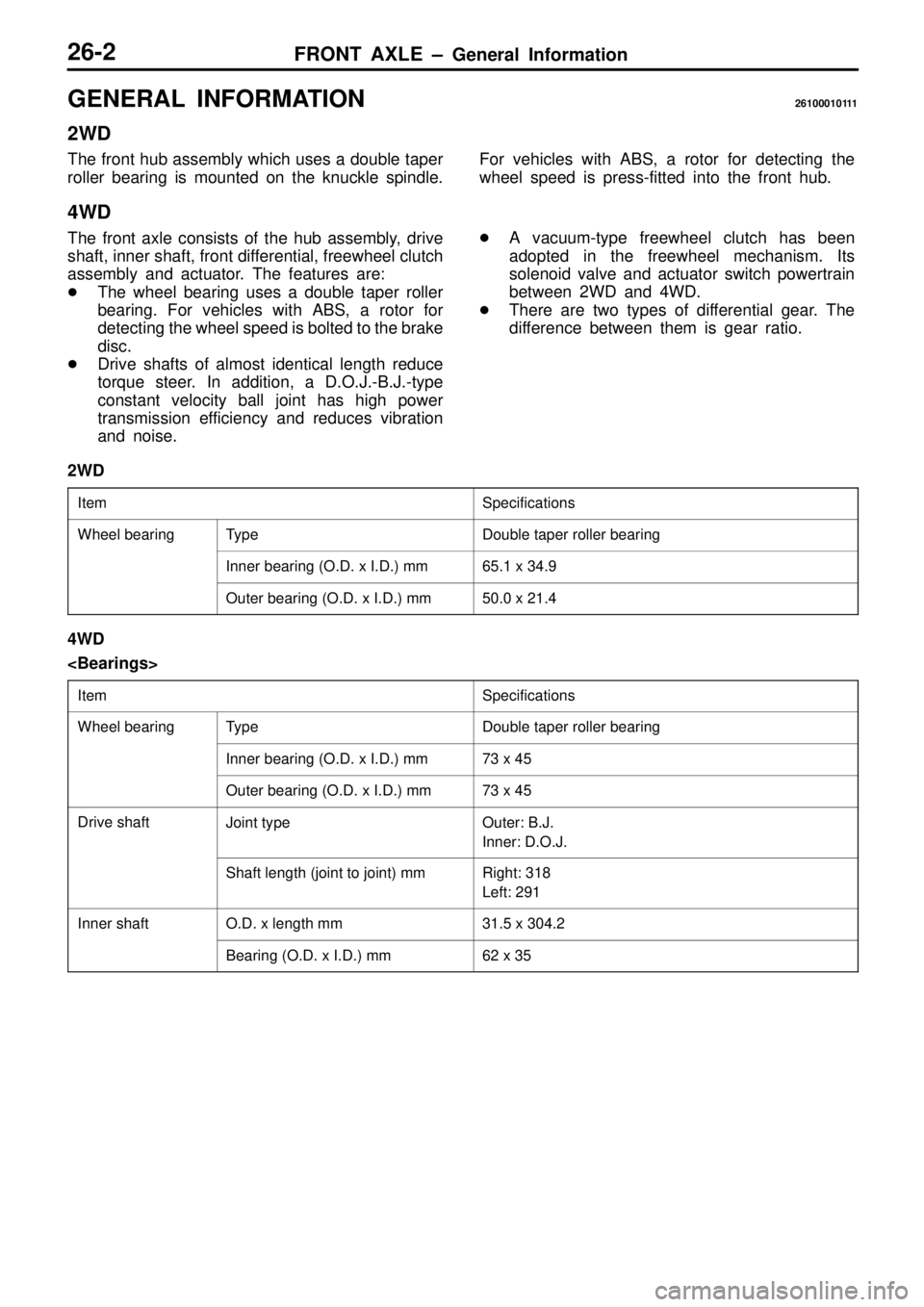

FRONT AXLE ± General Information26-2
GENERAL INFORMATION26100010111
2WD
The front hub assembly which uses a double taper
roller bearing is mounted on the knuckle spindle.For vehicles with ABS, a rotor for detecting the
wheel speed is press-fitted into the front hub.
4WD
The front axle consists of the hub assembly, drive
shaft, inner shaft, front differential, freewheel clutch
assembly and actuator. The features are:

The wheel bearing uses a double taper roller
bearing. For vehicles with ABS, a rotor for
detecting the wheel speed is bolted to the brake
disc.

Drive shafts of almost identical length reduce
torque steer. In addition, a D.O.J.-B.J.-type
constant velocity ball joint has high power
transmission efficiency and reduces vibration
and noise.
A vacuum-type freewheel clutch has been
adopted in the freewheel mechanism. Its
solenoid valve and actuator switch powertrain
between 2WD and 4WD.

There are two types of differential gear. The
difference between them is gear ratio.
2WD
ItemSpecifications
Wheel bearingTypeDouble taper roller bearing
Inner bearing (O.D. x I.D.) mm65.1 x 34.9
Outer bearing (O.D. x I.D.) mm50.0 x 21.4
4WD

ItemSpecifications
Wheel bearingTypeDouble taper roller bearing
Inner bearing (O.D. x I.D.) mm73 x 45
Outer bearing (O.D. x I.D.) mm73 x 45
Drive shaftJoint typeOuter: B.J.
Inner: D.O.J.
Shaft length (joint to joint) mmRight: 318
Left: 291
Inner shaftO.D. x length mm31.5 x 304.2
Bearing (O.D. x I.D.) mm62 x 35

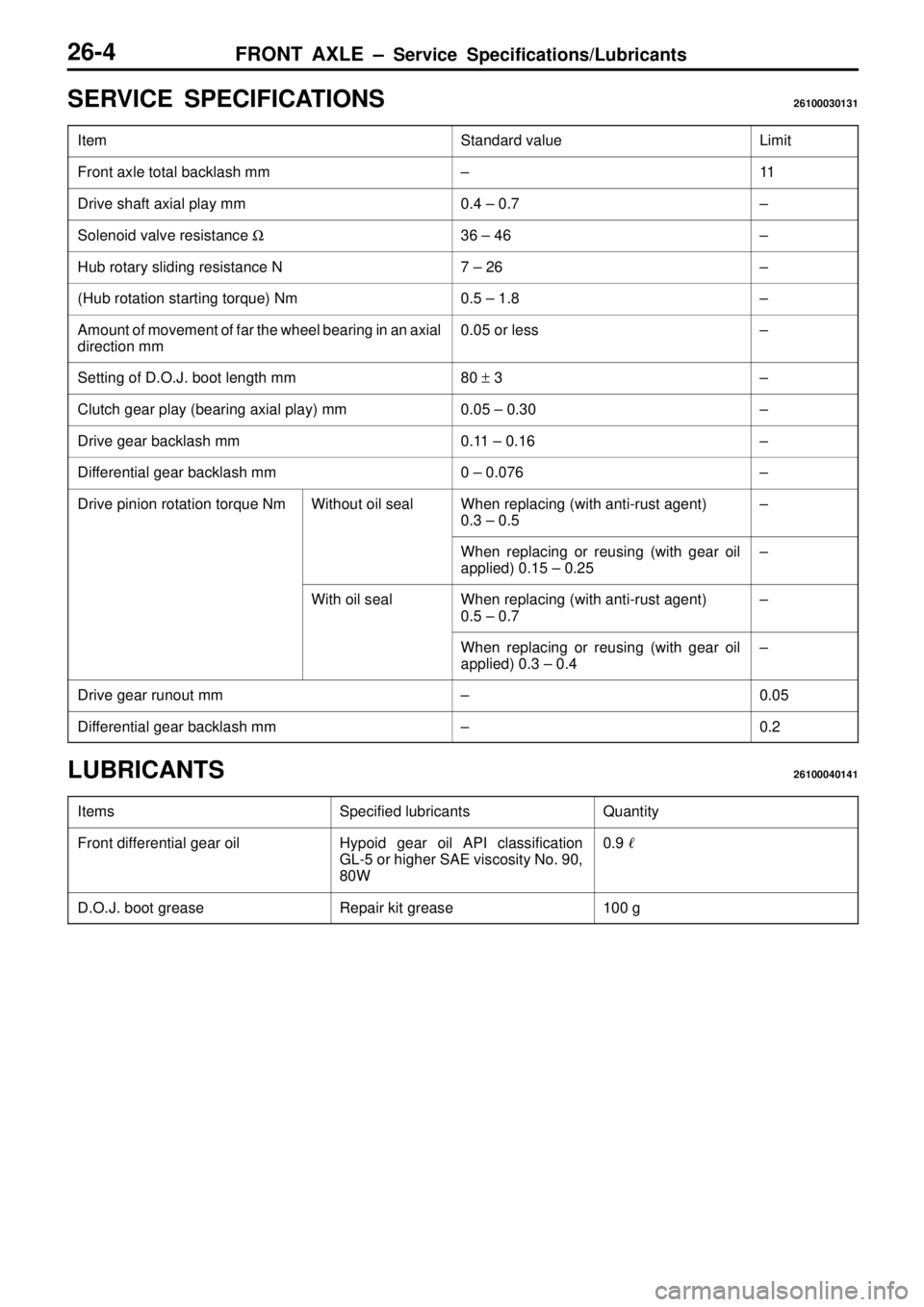

FRONT AXLE ± Service Specifications/Lubricants26-4
SERVICE SPECIFICATIONS26100030131
ItemStandard valueLimit
Front axle total backlash mm±11
Drive shaft axial play mm0.4 ± 0.7±
Solenoid valve resistance W36 ± 46±
Hub rotary sliding resistance N7 ± 26±
(Hub rotation starting torque) Nm0.5 ± 1.8±
Amount of movement of far the wheel bearing in an axial
direction mm0.05 or less±
Setting of D.O.J. boot length mm80 + 3±
Clutch gear play (bearing axial play) mm0.05 ± 0.30±
Drive gear backlash mm0.11 ± 0.16±
Differential gear backlash mm0 ± 0.076±
Drive pinion rotation torque NmWithout oil sealWhen replacing (with anti-rust agent)
0.3 ± 0.5±
When replacing or reusing (with gear oil
applied) 0.15 ± 0.25±
With oil sealWhen replacing (with anti-rust agent)
0.5 ± 0.7±
When replacing or reusing (with gear oil
applied) 0.3 ± 0.4±
Drive gear runout mm±0.05
Differential gear backlash mm±0.2
LUBRICANTS26100040141
ItemsSpecified lubricantsQuantity
Front differential gear oilHypoid gear oil API classification
GL-5 or higher SAE viscosity No. 90,
80W0.9

D.O.J. boot greaseRepair kit grease100 g
