NISSAN 350Z 2003 Z33 Navigation Manual

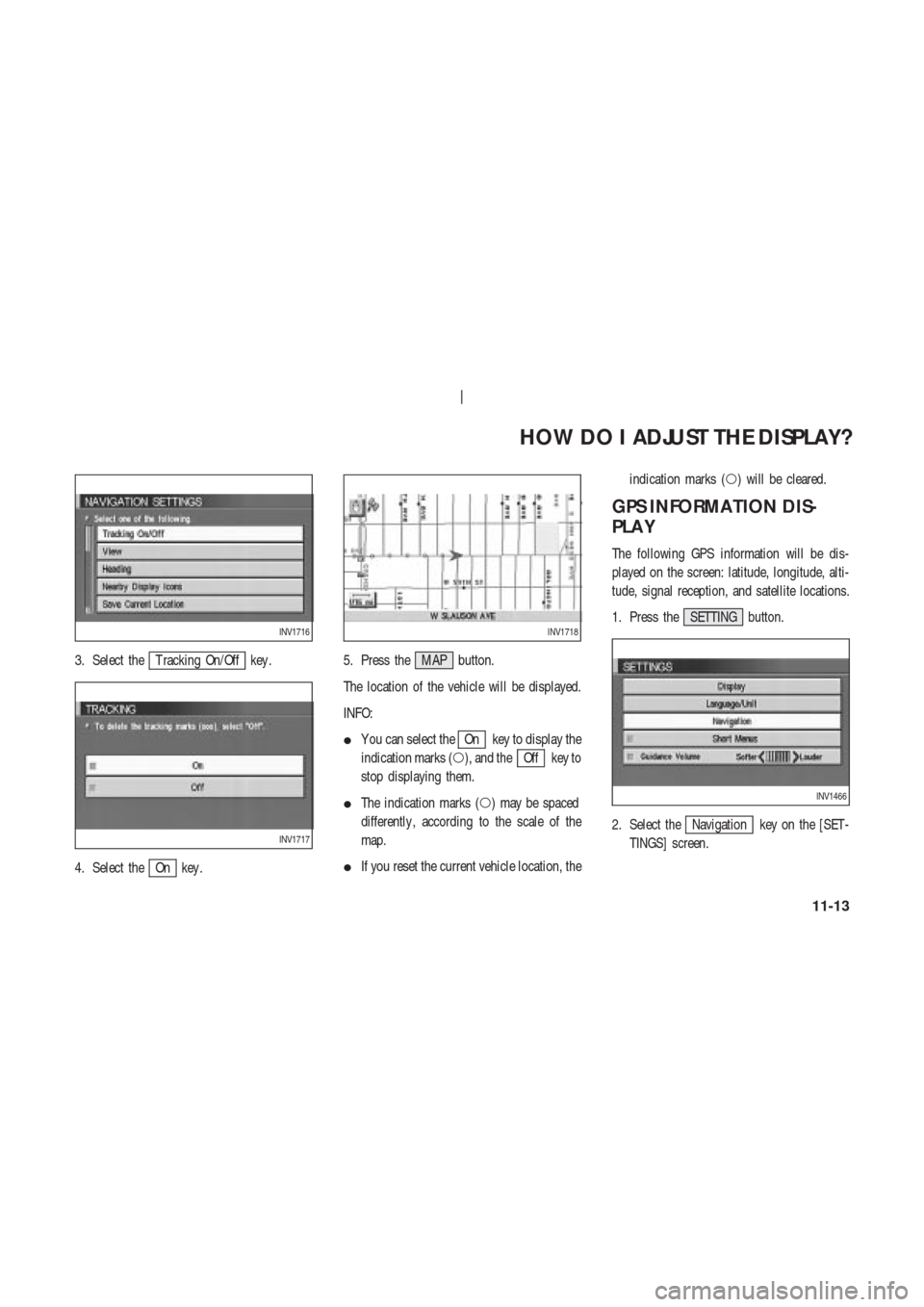

3. Select theT racking On/Off key .
4. Select the
On key .5. Press the MAP button.
The location of the vehicle will be displayed.
INFO:

Y ou can select the
On key to display the
indication marks (), and the
Off key to
stop displaying them.

The indication marks () may be spaced
differently , according to the scale of the
map.

If you reset the current vehicle location, theindication marks () will be cleared.
GPS INFORMA TION DIS-
PLA Y
The following GPS information will be dis-
played on the screen: latitude, longitude, alti-
tude, signal reception, and satellite locations.
1. Press the SETTING button.
2. Select the
Navigation key on the [SET -
TINGS] screen.
INV1716
INV1717
INV1718
INV1466
HOW DO I ADJUST THE DISPLAY?
11-13

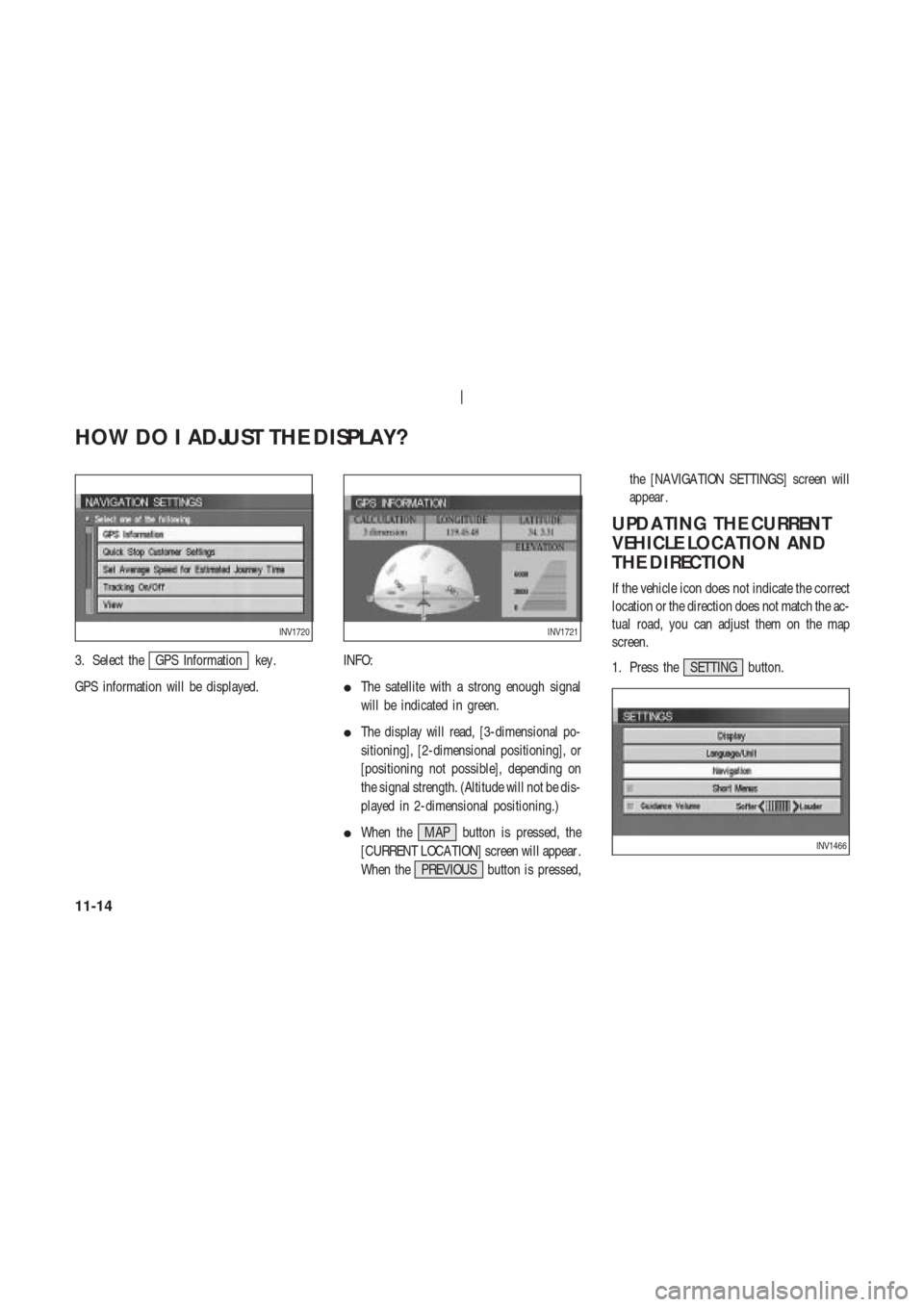

3. Select theGPS Information key .
GPS information will be displayed.INFO:

The satellite with a strong enough signal
will be indicated in green.

The display will read, [3-dimensional po-
sitioning], [2-dimensional positioning], or
[positioning not possible], depending on
the signal strength. (Altitude will not be dis-
played in 2-dimensional positioning.)

When the MAP button is pressed, the
[CURRENT LOCA TION] screen will appear .
When the PREVIOUS button is pressed,the [NAVIGA TION SETTINGS] screen will
appear .
UPDA TING THE CURRENT
VEHICLE LOCA TION AND
THE DIRECTION
If the vehicle icon does not indicate the correct
location or the direction does not match the ac-
tual road, you can adjust them on the map
screen.
1. Press the SETTING button.
INV1720INV1721
INV1466
HOW DO I ADJUST THE DISPLAY?
11-14

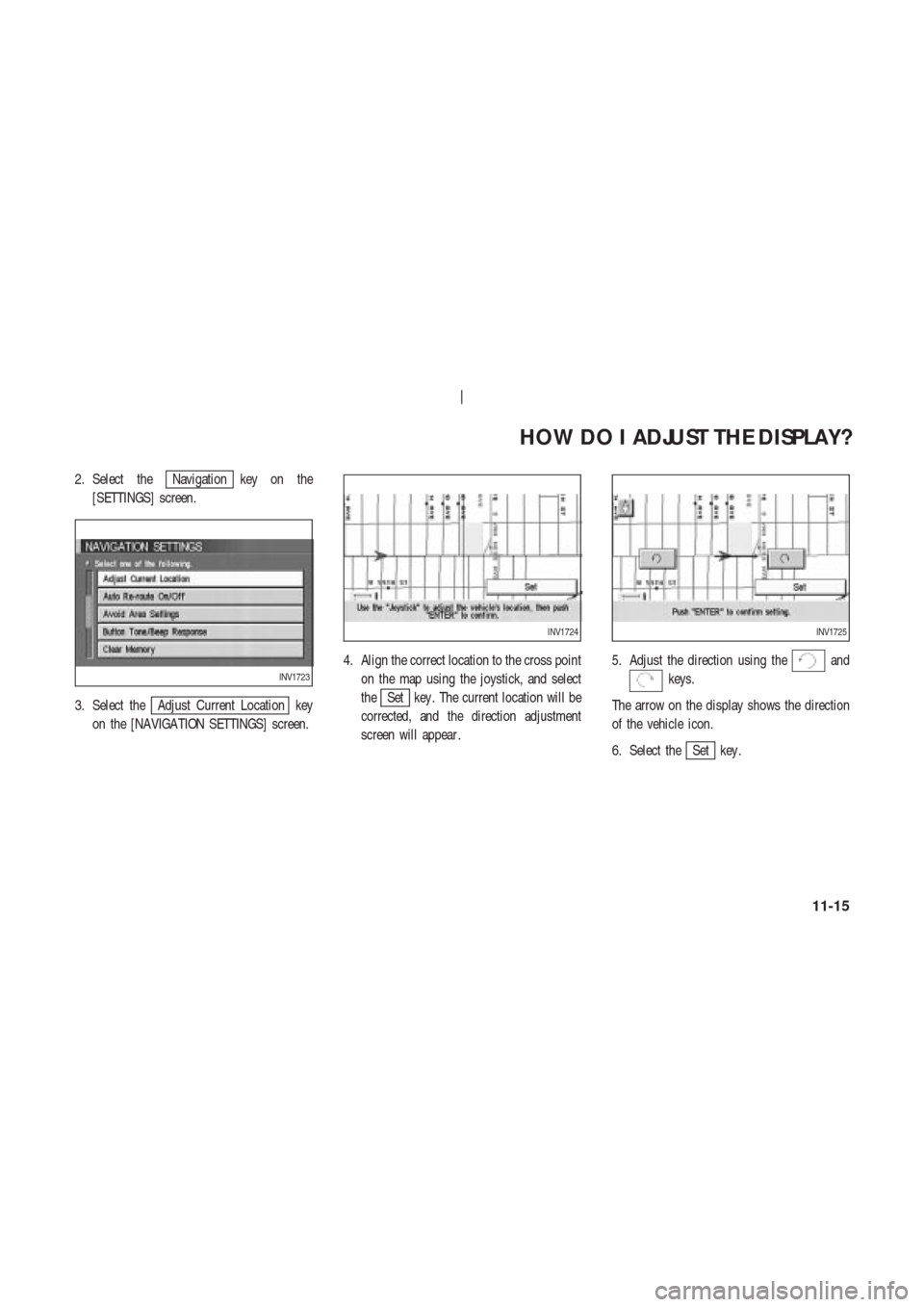

2. Select theNavigation key on the
[SETTINGS] screen.
3. Select the
Adjust Current Location key
on the [NAVIGA TION SETTINGS] screen.4. Align the correct location to the cross point
on the map using the joystick, and select
theSet key . The current location will be
corrected, and the direction adjustment
screen will appear .5. Adjust the direction using the
and
keys.
The arrow on the display shows the direction
of the vehicle icon.
6. Select the
Set key .
INV1723
INV1724INV1725
HOW DO I ADJUST THE DISPLAY?
11-15

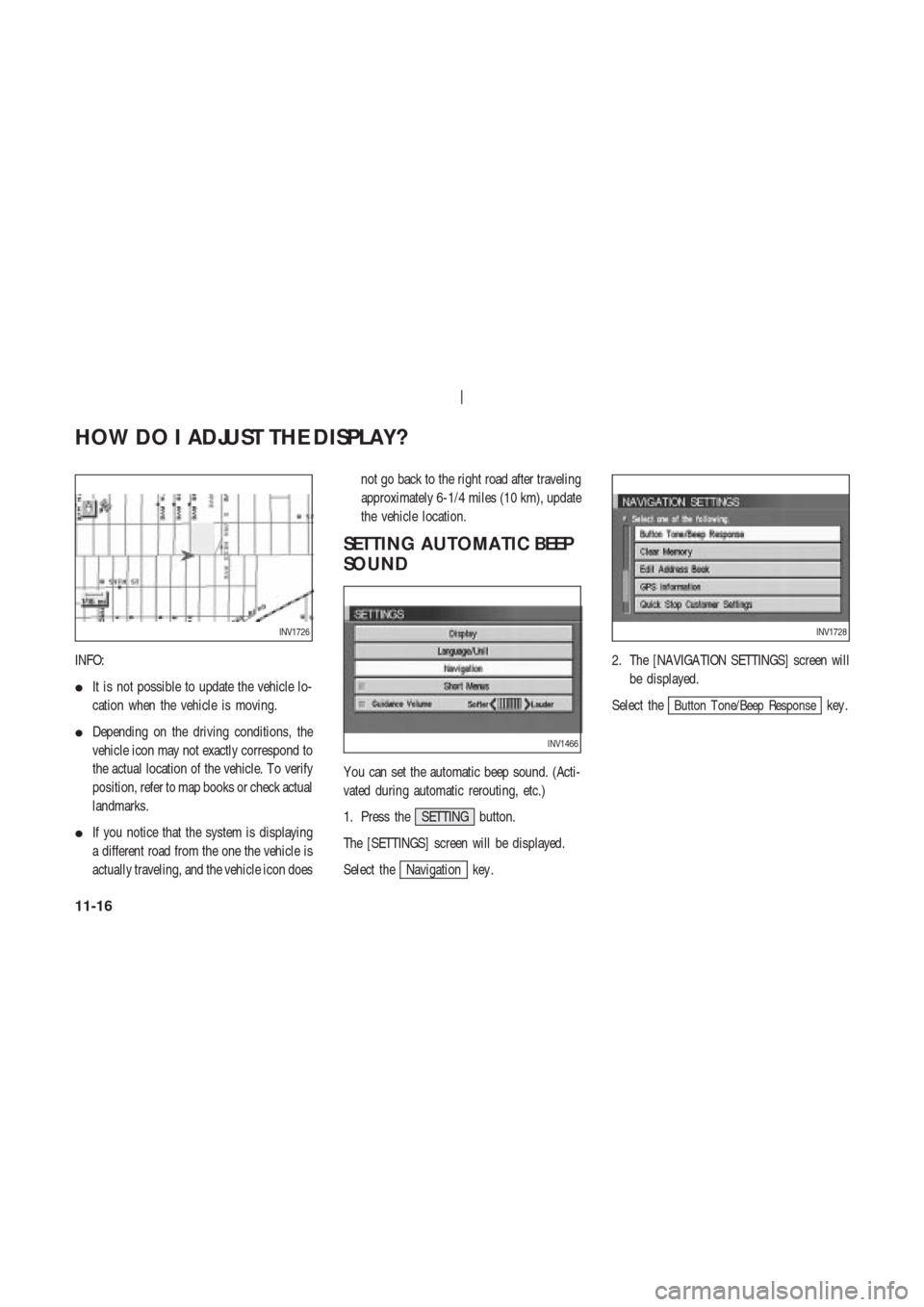

INFO:

It is not possible to update the vehicle lo-
cation when the vehicle is moving.

Depending on the driving conditions, the
vehicle icon may not exactly correspond to
the actual location of the vehicle. T o verify
position, refer to map books or check actual
landmarks.

If you notice that the system is displaying
a different road from the one the vehicle is
actually traveling, and the vehicle icon doesnot go back to the right road after traveling
approximately 6-1/4 miles (10 km), update
the vehicle location.
SETTING AUTOMA TIC BEEP
SOUND
Y ou can set the automatic beep sound. (Acti-
vated during automatic rerouting, etc.)
1. Press the SETTING button.
The [SETTINGS] screen will be displayed.
Select the
Navigation key .2. The [NAVIGA TION SETTINGS] screen will
be displayed.
Select the
Button T one/Beep Responsekey .
INV1726
INV1466
INV1728
HOW DO I ADJUST THE DISPLAY?
11-16

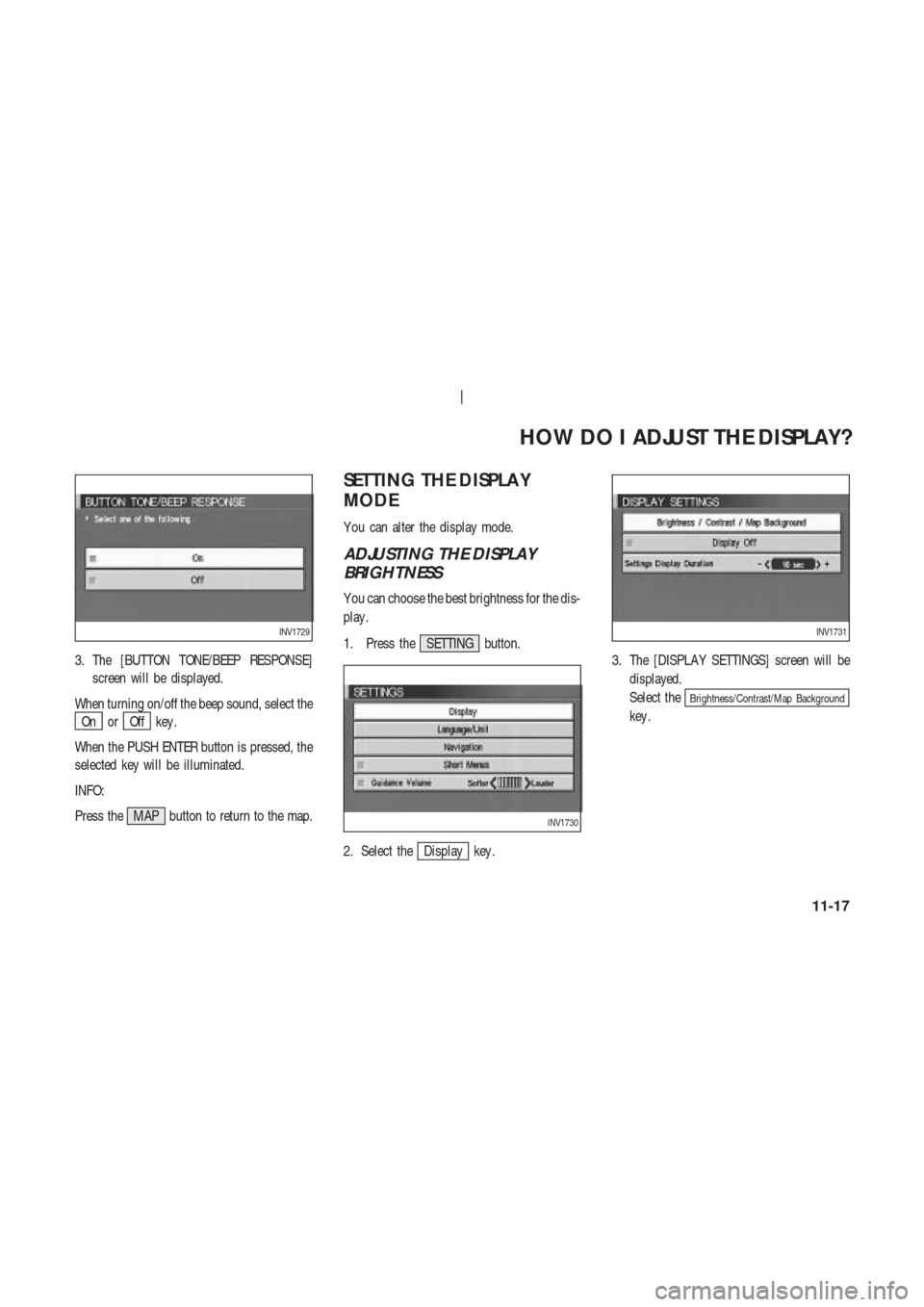

3. The [BUTTON TONE/BEEP RESPONSE]
screen will be displayed.
When turning on/off the beep sound, select the
On orOff key .
When the PUSH ENTER button is pressed, the
selected key will be illuminated.
INFO:
Press the MAP button to return to the map.
SETTING THE DISPLA Y
MODE
Y ou can alter the display mode.
ADJUSTING THE DISPLAY
BRIGHTNESS
Y ou can choose the best brightness for the dis-
play .
1. Press the SETTING button.
2. Select the
Display key .3. The [DISPLA Y SETTINGS] screen will be
displayed.
Select the
Brightness/Contrast/Map Background
key .
INV1729
INV1730
INV1731
HOW DO I ADJUST THE DISPLAY?
11-17

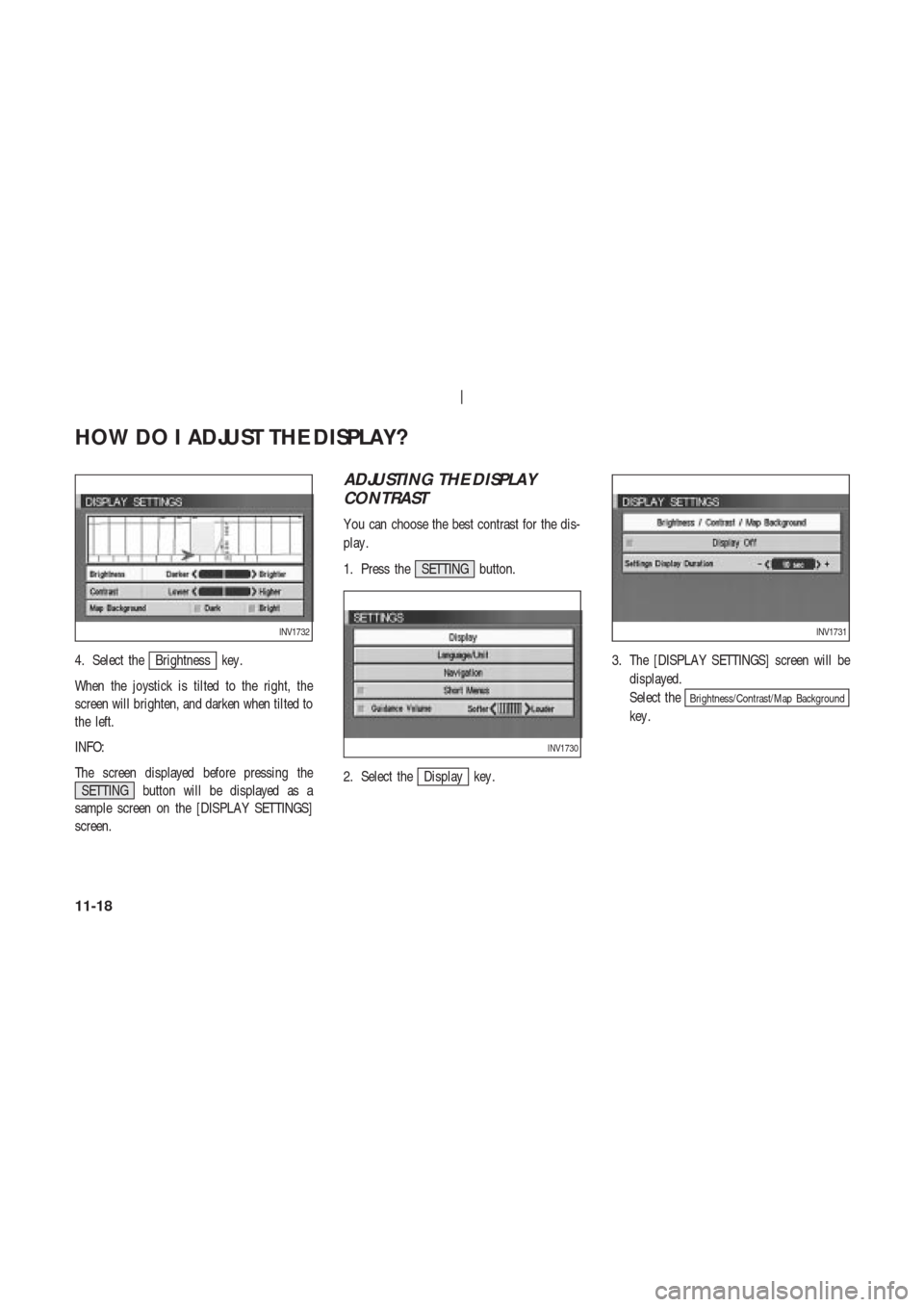

4. Select theBrightness key .
When the joystick is tilted to the right, the
screen will brighten, and darken when tilted to
the left.
INFO:
The screen displayed before pressing the
SETTING button will be displayed as a
sample screen on the [DISPLA Y SETTINGS]
screen.
ADJUSTING THE DISPLAY
CONTRAST
Y ou can choose the best contrast for the dis-
play .
1. Press the SETTING button.
2. Select the
Display key .3. The [DISPLA Y SETTINGS] screen will be
displayed.
Select the
Brightness/Contrast/Map Background
key .
INV1732
INV1730
INV1731
HOW DO I ADJUST THE DISPLAY?
11-18

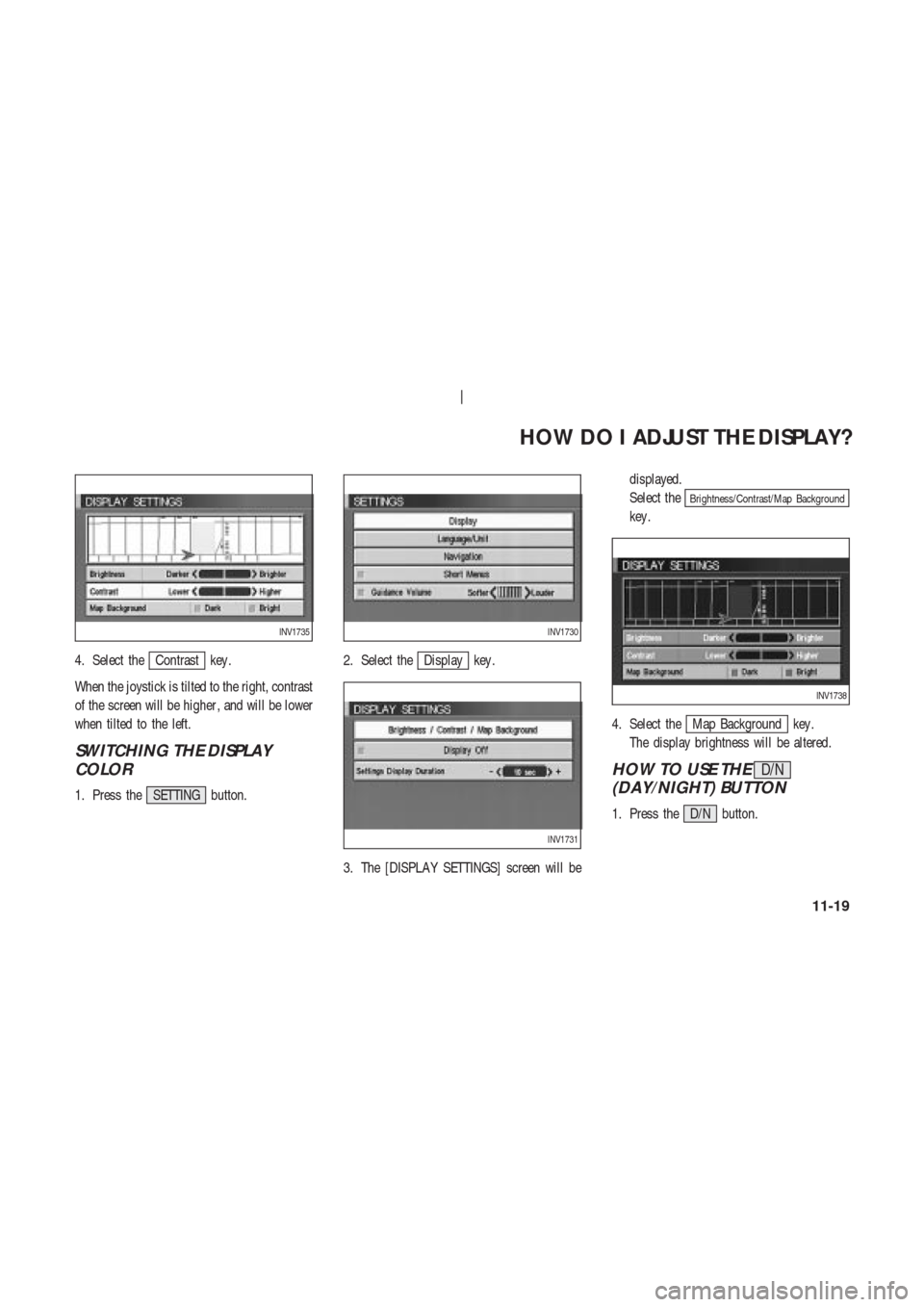

4. Select theContrast key .
When the joystick is tilted to the right, contrast
of the screen will be higher , and will be lower
when tilted to the left.
SWITCHING THE DISPLAY
COLOR
1. Press the SETTING button.2. Select the
Display key .
3. The [DISPLA Y SETTINGS] screen will bedisplayed.
Select the
Brightness/Contrast/Map Background
key .
4. Select the
Map Background key .
The display brightness will be altered.
HOW TO USE THED/N
(DAY/NIGHT) BUTTON
1. Press the D/N button.
INV1735INV1730
INV1731
INV1738
HOW DO I ADJUST THE DISPLAY?
11-19

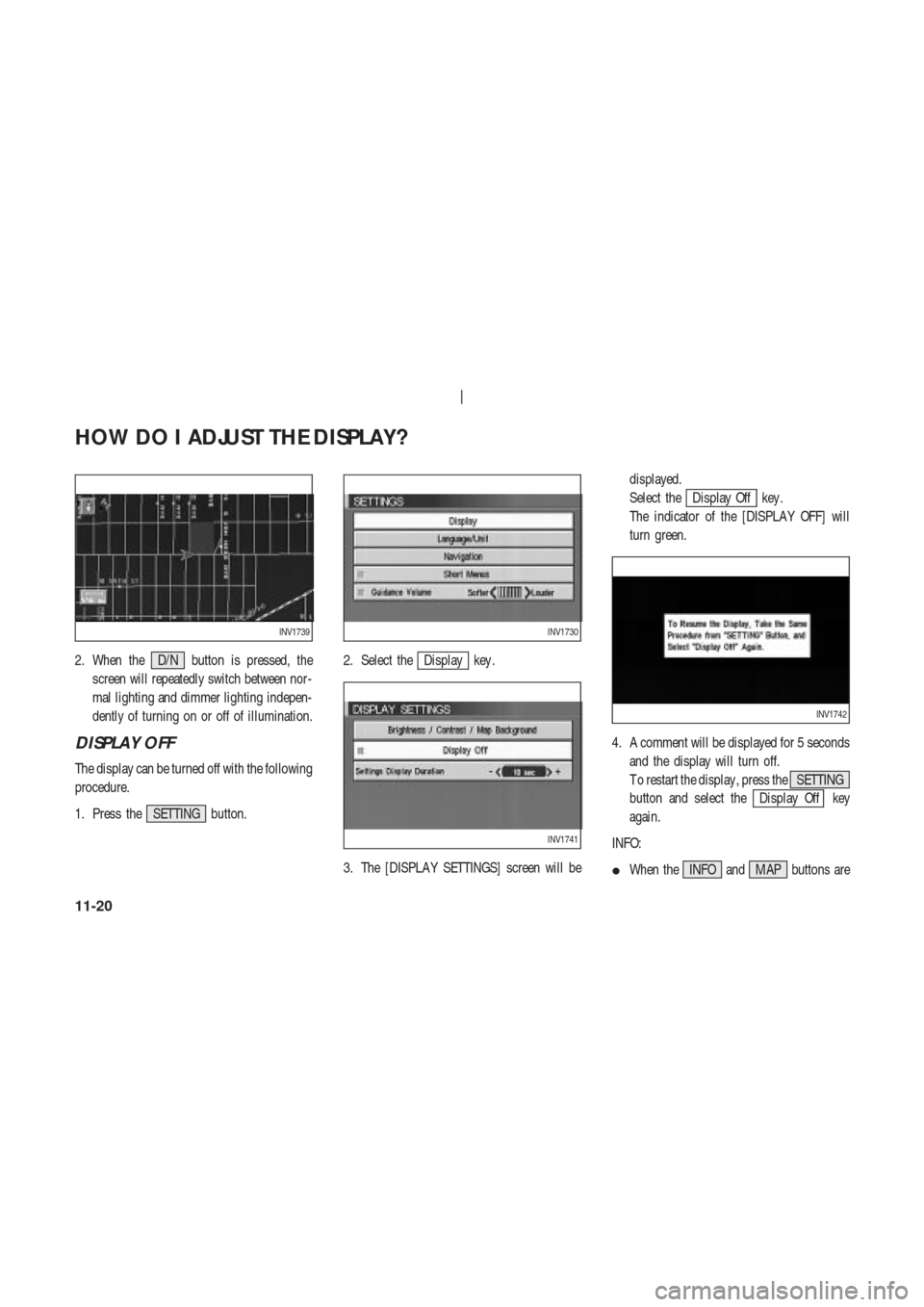

2. When the D/N button is pressed, the
screen will repeatedly switch between nor-
mal lighting and dimmer lighting indepen-
dently of turning on or off of illumination.
DISPLAY OFF
The display can be turned off with the following
procedure.
1. Press the SETTING button.2. Select the
Display key .
3. The [DISPLA Y SETTINGS] screen will bedisplayed.
Select the
Display Off key .
The indicator of the [DISPLA Y OFF] will
turn green.
4. A comment will be displayed for 5 seconds
and the display will turn off.
T o restart the display , press the SETTING
button and select the
Display Off key
again.
INFO:

When the INFO and MAP buttons are
INV1739INV1730
INV1741
INV1742
HOW DO I ADJUST THE DISPLAY?
11-20

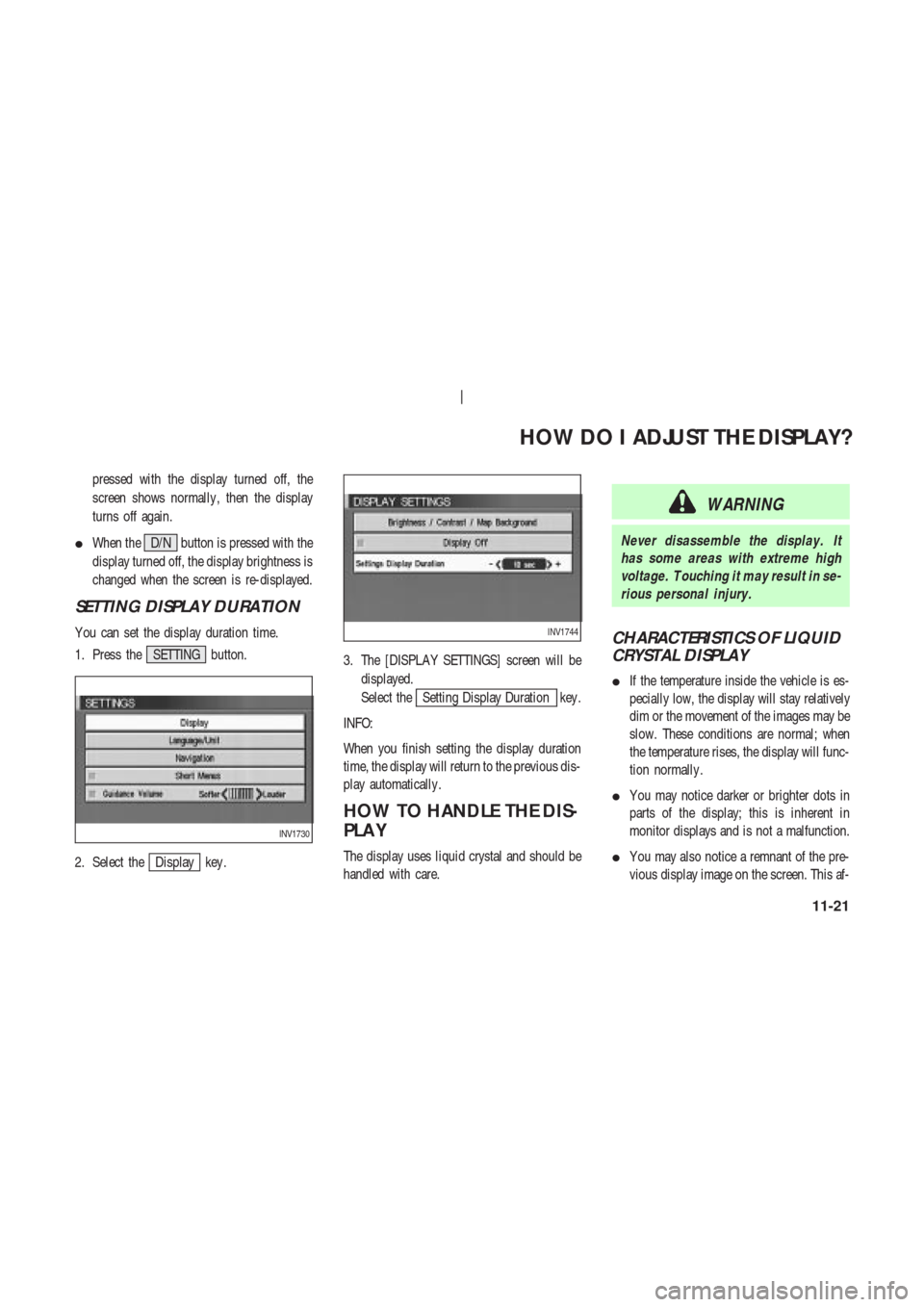

pressed with the display turned off, the
screen shows normally , then the display
turns off again.

When the D/N button is pressed with the
display turned off, the display brightness is
changed when the screen is re-displayed.
SETTING DISPLAY DURATION
Y ou can set the display duration time.
1. Press the SETTING button.
2. Select the
Display key .3. The [DISPLA Y SETTINGS] screen will be
displayed.
Select the
Setting Display Duration key .
INFO:
When you finish setting the display duration
time, the display will return to the previous dis-
play automatically .
HOW TO HANDLE THE DIS-
PLA Y
The display uses liquid crystal and should be
handled with care.
WARNING
Never disassemble the display . It
has some areas with extreme high
voltage. T ouching it may result in se-
rious personal injury .
CHARACTERISTICS OF LIQUID
CRYSTAL DISPLAY

If the temperature inside the vehicle is es-
pecially low, the display will stay relatively
dim or the movement of the images may be
slow. These conditions are normal; when
the temperature rises, the display will func-
tion normally .

Y ou may notice darker or brighter dots in
parts of the display; this is inherent in
monitor displays and is not a malfunction.

Y ou may also notice a remnant of the pre-
vious display image on the screen. This af-
INV1730
INV1744
HOW DO I ADJUST THE DISPLAY?
11-21

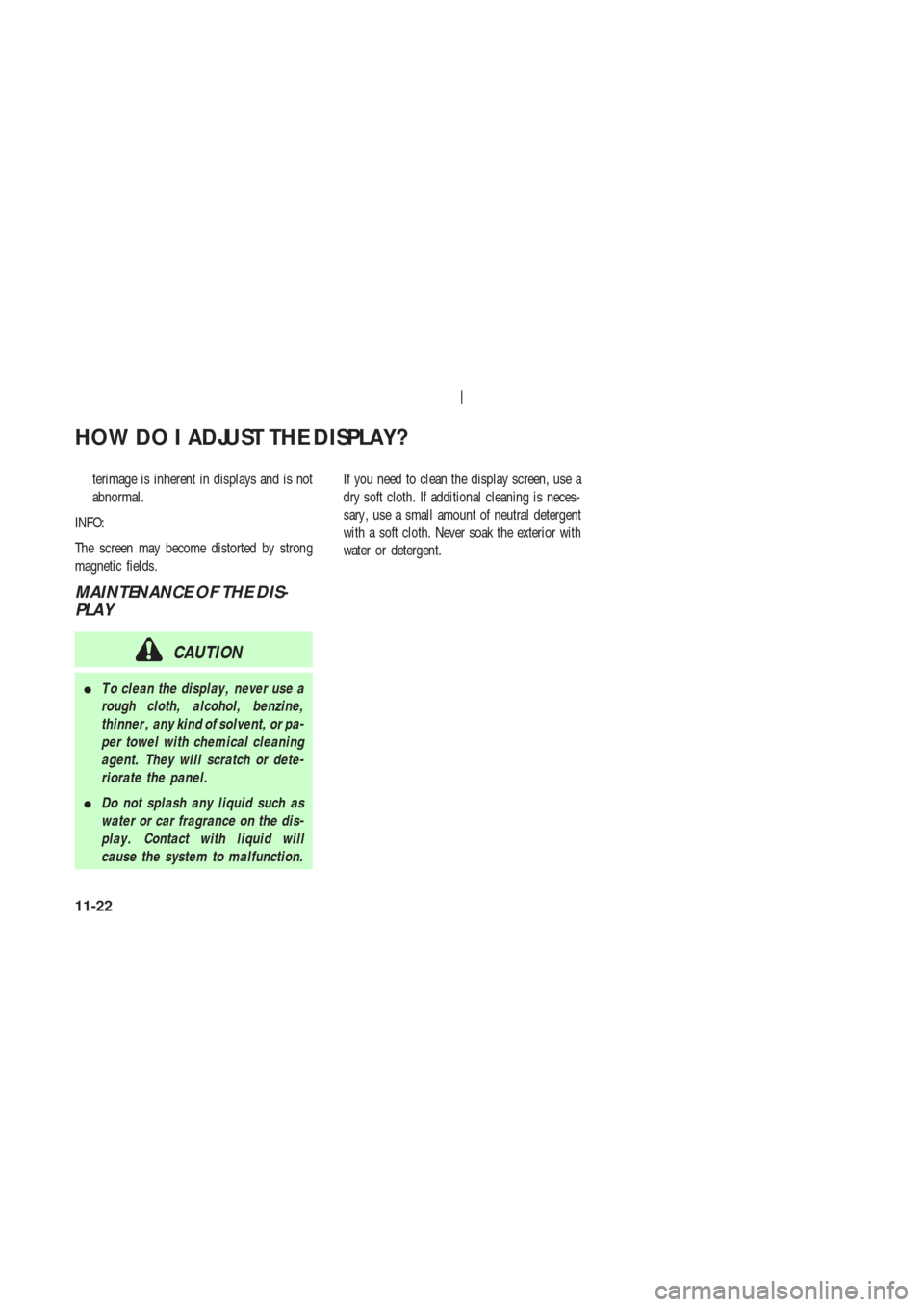

terimage is inherent in displays and is not
abnormal.
INFO:
The screen may become distorted by strong
magnetic fields.
MAINTENANCE OF THE DIS-
PLAY
CAUTION

T o clean the display , never use a
rough cloth, alcohol, benzine,
thinner , any kind of solvent, or pa-
per towel with chemical cleaning
agent. They will scratch or dete-
riorate the panel.

Do not splash any liquid such as
water or car fragrance on the dis-
play . Contact with liquid will
cause the system to malfunction.If you need to clean the display screen, use a
dry soft cloth. If additional cleaning is neces-
sary , use a small amount of neutral detergent
with a soft cloth. Never soak the exterior with
water or detergent.
HOW DO I ADJUST THE DISPLAY?
11-22
