NISSAN 350Z 2004 Owner´s Manual

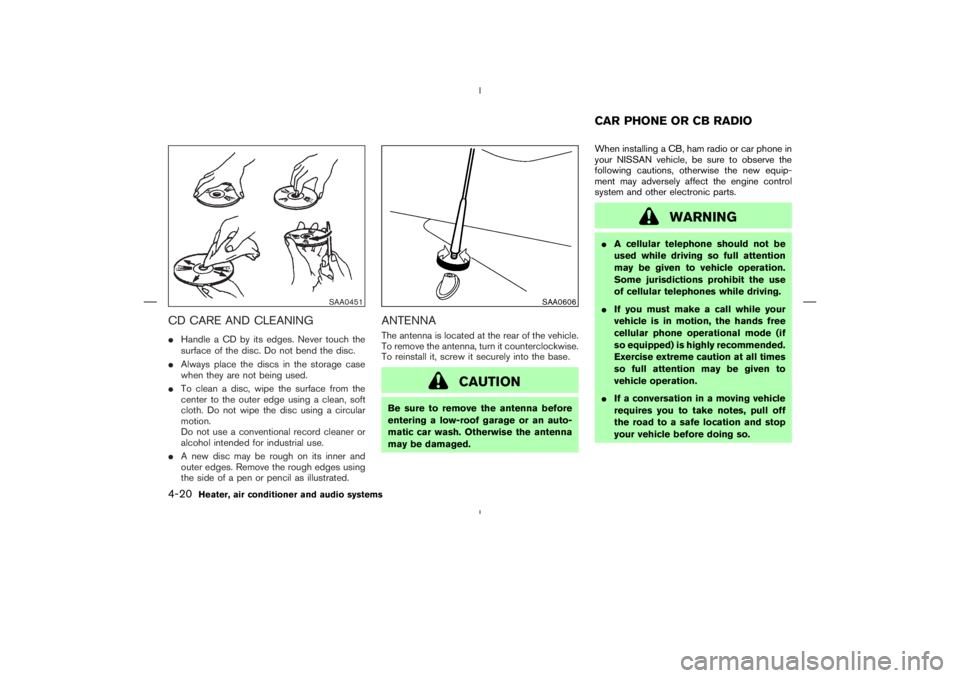

CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.
ANTENNAThe antenna is located at the rear of the vehicle.
To remove the antenna, turn it counterclockwise.
To reinstall it, screw it securely into the base.
CAUTION
Be sure to remove the antenna before
entering a low-roof garage or an auto-
matic car wash. Otherwise the antenna
may be damaged.When installing a CB, ham radio or car phone in
your NISSAN vehicle, be sure to observe the
following cautions, otherwise the new equip-
ment may adversely affect the engine control
system and other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
SAA0451
SAA0606
CAR PHONE OR CB RADIO
4-20
Heater, air conditioner and audio systems


04.5.17/Z33-D/V5.0

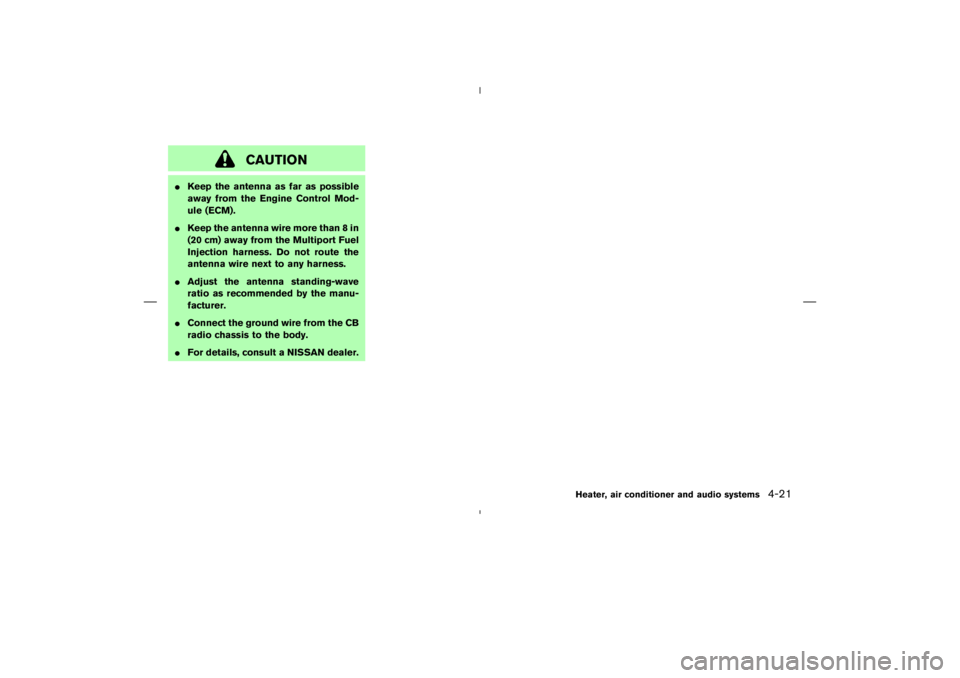

CAUTION

Keep the antenna as far as possible
away from the Engine Control Mod-
ule (ECM).

Keep the antenna wire more than 8 in
(20 cm) away from the Multiport Fuel
Injection harness. Do not route the
antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult a NISSAN dealer.
Heater, air conditioner and audio systems
4-21


04.5.17/Z33-D/V5.0

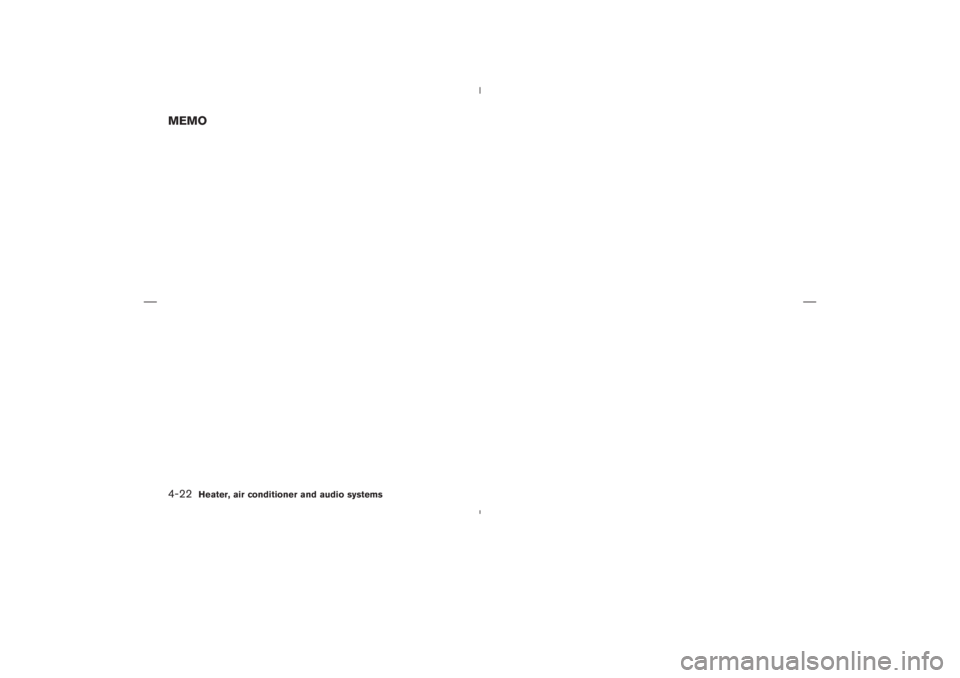

MEMO4-22
Heater, air conditioner and audio systems


04.5.17/Z33-D/V5.0

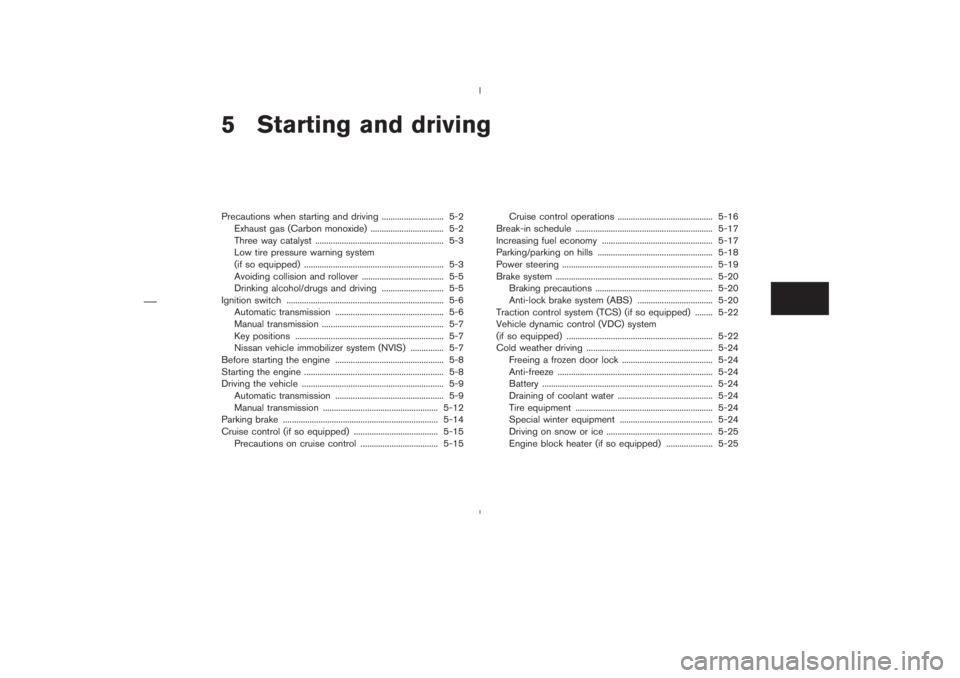

5 Starting and drivingPrecautions when starting and driving ............................ 5-2
Exhaust gas (Carbon monoxide) ................................. 5-2
Three way catalyst .......................................................... 5-3
Low tire pressure warning system
(if so equipped) ............................................................... 5-3
Avoiding collision and rollover ..................................... 5-5
Drinking alcohol/drugs and driving ............................ 5-5
Ignition switch ....................................................................... 5-6
Automatic transmission ................................................. 5-6
Manual transmission ....................................................... 5-7
Key positions ................................................................... 5-7
Nissan vehicle immobilizer system (NVIS) ............... 5-7
Before starting the engine ................................................. 5-8
Starting the engine ............................................................... 5-8
Driving the vehicle ................................................................ 5-9
Automatic transmission ................................................. 5-9
Manual transmission .................................................... 5-12
Parking brake ...................................................................... 5-14
Cruise control (if so equipped) ...................................... 5-15
Precautions on cruise control ................................... 5-15Cruise control operations ........................................... 5-16
Break-in schedule .............................................................. 5-17
Increasing fuel economy .................................................. 5-17
Parking/parking on hills .................................................... 5-18
Power steering .................................................................... 5-19
Brake system ....................................................................... 5-20
Braking precautions ..................................................... 5-20
Anti-lock brake system (ABS) .................................. 5-20
Traction control system (TCS) (if so equipped) ........ 5-22
Vehicle dynamic control (VDC) system
(if so equipped) .................................................................. 5-22
Cold weather driving ......................................................... 5-24
Freeing a frozen door lock ......................................... 5-24
Anti-freeze ...................................................................... 5-24
Battery ............................................................................. 5-24
Draining of coolant water ........................................... 5-24
Tire equipment .............................................................. 5-24
Special winter equipment .......................................... 5-24
Driving on snow or ice ................................................ 5-25
Engine block heater (if so equipped) ..................... 5-25


04.5.17/Z33-D/V5.0

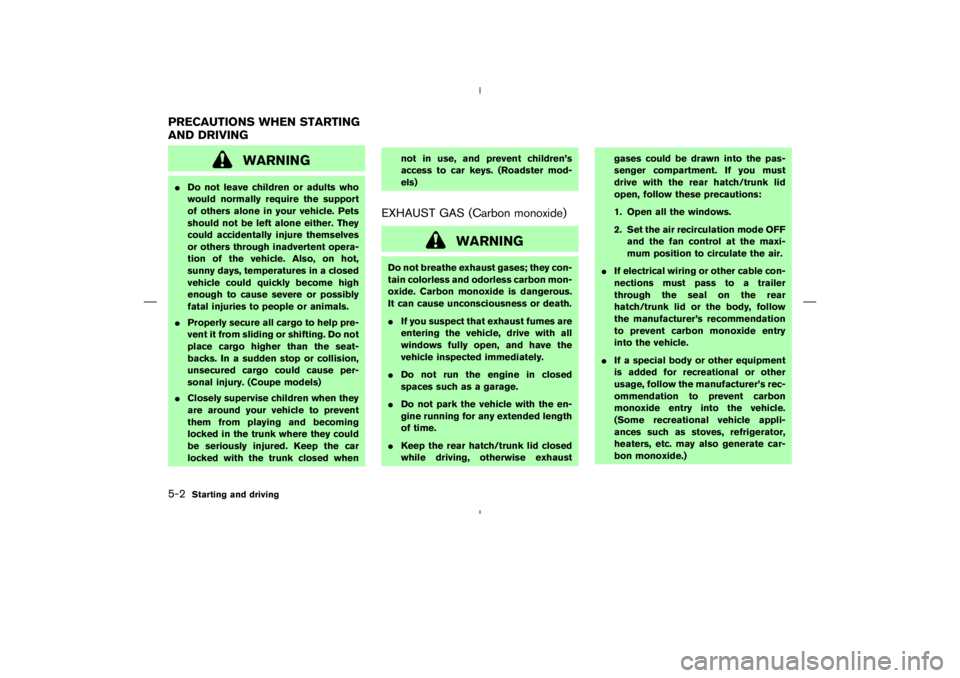

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury. (Coupe models)

Closely supervise children when they
are around your vehicle to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked with the trunk closed whennot in use, and prevent children’s
access to car keys. (Roadster mod-
els)
EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the en-
gine running for any extended length
of time.

Keep the rear hatch/trunk lid closed
while driving, otherwise exhaustgases could be drawn into the pas-
senger compartment. If you must
drive with the rear hatch/trunk lid
open, follow these precautions:
1. Open all the windows.
2. Set the air recirculation mode OFF
and the fan control at the maxi-
mum position to circulate the air.

If electrical wiring or other cable con-
nections must pass to a trailer
through the seal on the rear
hatch/trunk lid or the body, follow
the manufacturer’s recommendation
to prevent carbon monoxide entry
into the vehicle.

If a special body or other equipment
is added for recreational or other
usage, follow the manufacturer’s rec-
ommendation to prevent carbon
monoxide entry into the vehicle.
(Some recreational vehicle appli-
ances such as stoves, refrigerator,
heaters, etc. may also generate car-
bon monoxide.)
PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving


04.5.17/Z33-D/V5.0

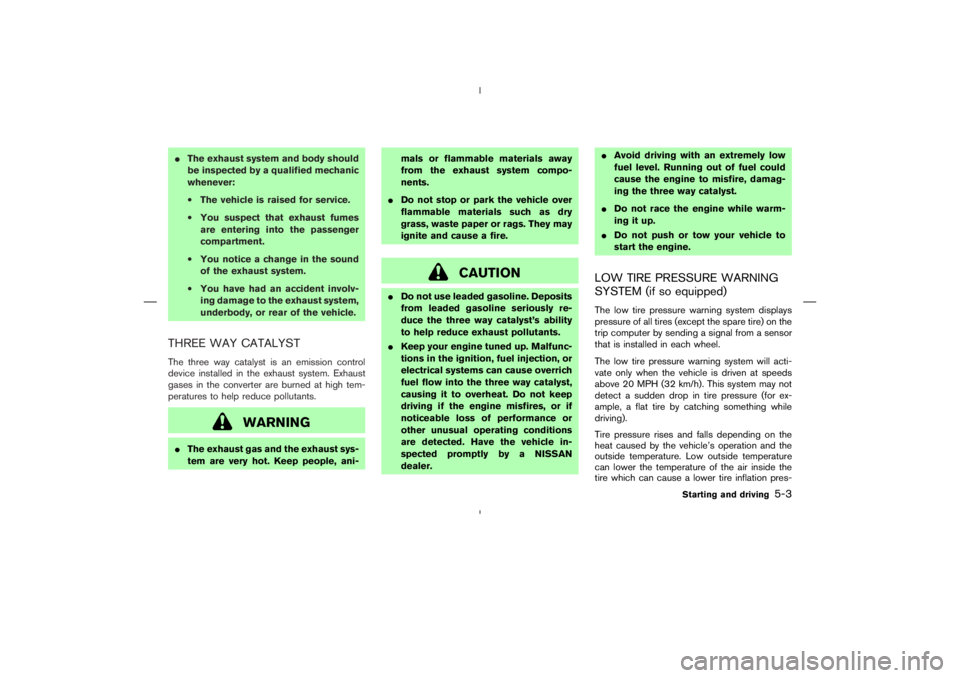

The exhaust system and body should
be inspected by a qualified mechanic
whenever:
•The vehicle is raised for service.
•You suspect that exhaust fumes
are entering into the passenger
compartment.
•You notice a change in the sound
of the exhaust system.
•You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.THREE WAY CATALYSTThe three way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the converter are burned at high tem-
peratures to help reduce pollutants.
WARNING

The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-mals or flammable materials away
from the exhaust system compo-
nents.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline seriously re-
duce the three way catalyst’s ability
to help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by a NISSAN
dealer.
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three way catalyst.

Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.
LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)The low tire pressure warning system displays
pressure of all tires (except the spare tire) on the
trip computer by sending a signal from a sensor
that is installed in each wheel.
The low tire pressure warning system will acti-
vate only when the vehicle is driven at speeds
above 20 MPH (32 km/h). This system may not
detect a sudden drop in tire pressure (for ex-
ample, a flat tire by catching something while
driving).
Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature
can lower the temperature of the air inside the
tire which can cause a lower tire inflation pres-
Starting and driving
5-3


04.5.17/Z33-D/V5.0

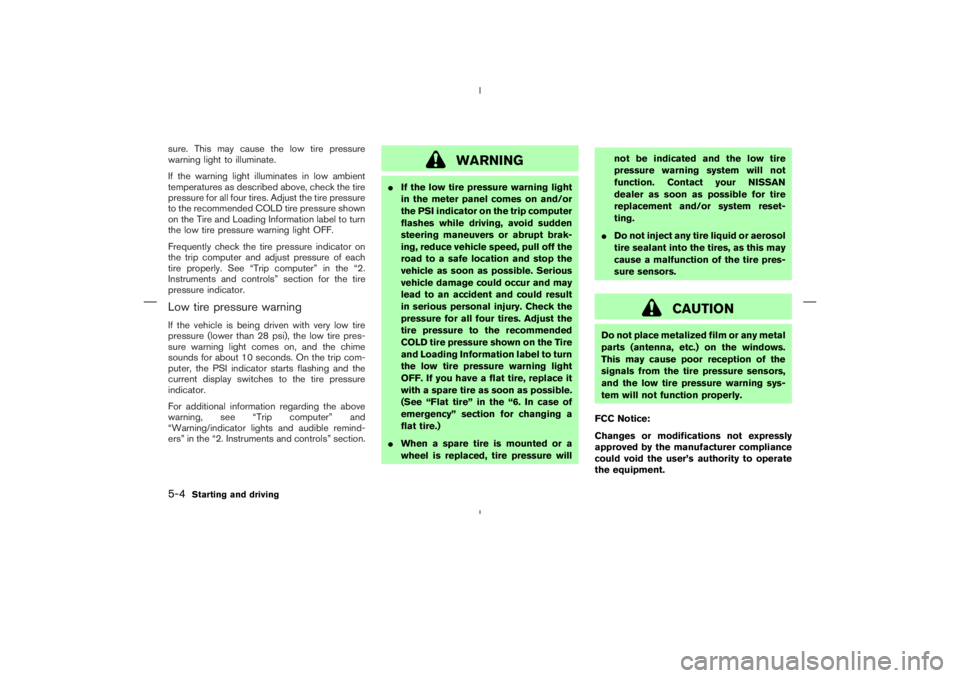

sure. This may cause the low tire pressure
warning light to illuminate.
If the warning light illuminates in low ambient
temperatures as described above, check the tire
pressure for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure shown
on the Tire and Loading Information label to turn
the low tire pressure warning light OFF.
Frequently check the tire pressure indicator on
the trip computer and adjust pressure of each
tire properly. See “Trip computer” in the “2.
Instruments and controls” section for the tire
pressure indicator.Low tire pressure warningIf the vehicle is being driven with very low tire
pressure (lower than 28 psi), the low tire pres-
sure warning light comes on, and the chime
sounds for about 10 seconds. On the trip com-
puter, the PSI indicator starts flashing and the
current display switches to the tire pressure
indicator.
For additional information regarding the above
warning, see “Trip computer” and
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section.
WARNING

If the low tire pressure warning light
in the meter panel comes on and/or
the PSI indicator on the trip computer
flashes while driving, avoid sudden
steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the
road to a safe location and stop the
vehicle as soon as possible. Serious
vehicle damage could occur and may
lead to an accident and could result
in serious personal injury. Check the
pressure for all four tires. Adjust the
tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label to turn
the low tire pressure warning light
OFF. If you have a flat tire, replace it
with a spare tire as soon as possible.
(See “Flat tire” in the “6. In case of
emergency” section for changing a
flat tire.)

When a spare tire is mounted or a
wheel is replaced, tire pressure willnot be indicated and the low tire
pressure warning system will not
function. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CAUTION
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the low tire pressure warning sys-
tem will not function properly.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
could void the user’s authority to operate
the equipment.
5-4
Starting and driving


04.5.17/Z33-D/V5.0


This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle.As
with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways.Be attentive at alltimes, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt. See “Seat Belts” in the “1.
Safety — Seats, seat belts and supplemental
restraint system” section. Also instruct your pas-
sengers to do so.
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alco-
hol or drugs. Alcohol in the bloodstream
reduces coordination, delays reaction
time and impairs judgment. Driving after
drinking alcohol increases the likeli-
hood of being involved in an accident
injuring yourself and others. Addition-
ally, if you are injured in the accident,
alcohol can increase the severity of the
injury.
NISSAN is committed to safe driving. You must
not drive under the influence of alcohol. Every
year thousands of people are injured or killed in
alcohol related accidents. Although the locallaws vary on what is considered to be legally
intoxicated, the fact is that alcohol affects all
people differently and most people underesti-
mate the effects of alcohol.
Remember, drinking and driving don’t mix!
And that’s true for drugs too (over the counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired by
alcohol, drugs, or some other physical condition.
Starting and driving
5-5


04.5.17/Z33-D/V5.0


WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage
and/or personal injury.
AUTOMATIC TRANSMISSIONOn automatic transmission models, the ignition
lock is designed so that the key cannot be
turned to LOCK and removed until the selector
lever is moved to the P (Park) position.
When removing the key from the ignition, make
sure the selector lever is in the P (Park) position.
If the selector lever is not returned to P (Park)
position, the key cannot be moved toward
LOCK.
When the key cannot be turned toward the
LOCK position, proceed as follows to remove
the key:1. Move the selector lever into the P (Park)
position.
2. Turn the ignition key slightly in the ON direc-
tion.
3. Turn the key toward the LOCK position.
4. Remove the key.
If the key is removed from the ignition switch, the
selector lever cannot be moved from P (Park)
position.The selector lever can be moved if
the ignition switch is in the ONposition
and the foot brake pedal is depressed.
There is an OFF position in between LOCK and
ACC, although it does not show on the lock
cylinder. When the ignition is in OFF the steering
wheel is not locked.
In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn counterclock-
wise from the straight up position.
To lock the steering wheel, turn the key to
the LOCK position. Remove the key. To
unlock the steering wheel, insert the key
and turn it gently while rotating the steer-
ing wheel slightly right and left.
SSD0083
IGNITION SWITCH5-6
Starting and driving


04.5.17/Z33-D/V5.0


MANUAL TRANSMISSIONThe switch includes an anti-theft steering lock
device.
The ignition key can only be removed when the
switch is in the LOCK position.
On manual transmission models, to turn the
ignition key to LOCK from ACC or ON, first turn
the key to OFF and turn the key to LOCK while
pushing the key in.
In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn clockwise
from the straight up position.
To lock the steering wheel, turn the key tothe LOCK position. Remove the key. To
unlock the steering wheel, insert the key
and turn it gently while rotating the steer-
ing wheel slightly right and left.
KEY POSITIONSThe switch includes an anti-theft steering lock
device.
LOCK (Normal parking position) (0)
The ignition key can only be removed when the
switch is in this position.
OFF (1)
The engine can be turned off without locking the
steering wheel.
The ignition lock is designed so that the key
cannot be turned to LOCK and removed until the
selector lever is moved to the P (Park) position.
ACC (Accessories) (2)
This position activates electrical accessories
such as the radio when the engine is not running.
ON (Normal operating position) (3)
This position turns on the ignition system and the
electrical accessories.START (4)
This position activates the starter motor, starting
the engine.
NISSAN VEHICLE IMMOBILIZER
SYSTEM (NVIS)The Nissan Vehicle Immobilizer System (NVIS)
will not allow the engine to start without the use
of the registered NVIS key.
If the engine fails to start using the registered
NVIS key, it may be due to interference caused
by another NVIS key, an automated toll road
device or automated payment device on the key
ring. Restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered NVIS key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NVIS key on a separate key ring to avoid inter-
ference from other devices.
SSD0082C
Starting and driving
5-7


04.5.17/Z33-D/V5.0
