NISSAN 350Z 2004 Owner´s Manual

ground or four wheels on the ground
(forward or backward) as this may
cause serious and expensive damage
to the transmission.
If it is necessary to tow the vehicle
with the front wheels raised, always
use towing dollies under the rear
wheels.

When towing rear wheel drive mod-
els with the front wheels on the
ground or on towing dollies:
Turn the ignition key to the OFF po-
sition, and secure the steering wheel
in a straight ahead position with a
rope or similar device. Never secure
the steering wheel by turning the
ignition key to the LOCK position.
This may damage the steering lock
mechanism.
VEHICLE RECOVERY (Freeing a
stuck vehicle)Use the towing hook by installing it in the front of
the vehicle. (The rear has no towing points.)
After removing the front license plate (if so
equipped),1Remove the towing hook cover from the
bumper.
2Securely install the towing hook stored with
jacking tools.
Make sure that the hook is properly secured in
the stored place after use.
Tow chains or cables must be attached only
to the main structural members of the vehicle.

Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.

Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.

Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.

Stand clear of a stuck vehicle.
WARNING
Do not spin your tires at high speed.
This could cause them to explode and
result in serious injury. Parts of your
vehicle could also overheat and be dam-
aged.
SCE0413
6-12
In case of emergency


04.5.17/Z33-D/V5.0


MEMO
In case of emergency
6-13


04.5.17/Z33-D/V5.0


MEMO6-14
In case of emergency


04.5.17/Z33-D/V5.0

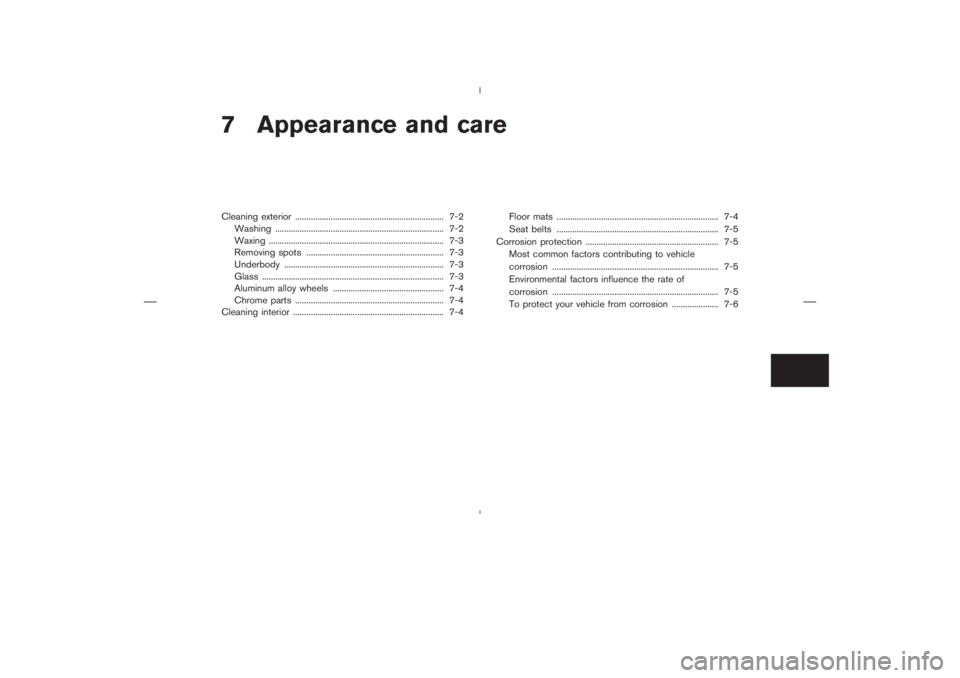

7 Appearance and careCleaning exterior ................................................................... 7-2
Washing ............................................................................ 7-2
Waxing ............................................................................... 7-3
Removing spots .............................................................. 7-3
Underbody ........................................................................ 7-3
Glass .................................................................................. 7-3
Aluminum alloy wheels .................................................. 7-4
Chrome parts ................................................................... 7-4
Cleaning interior .................................................................... 7-4Floor mats ......................................................................... 7-4
Seat belts ......................................................................... 7-5
Corrosion protection ............................................................ 7-5
Most common factors contributing to vehicle
corrosion ........................................................................... 7-5
Environmental factors influence the rate of
corrosion ........................................................................... 7-5
To protect your vehicle from corrosion ..................... 7-6


04.5.17/Z33-D/V5.0

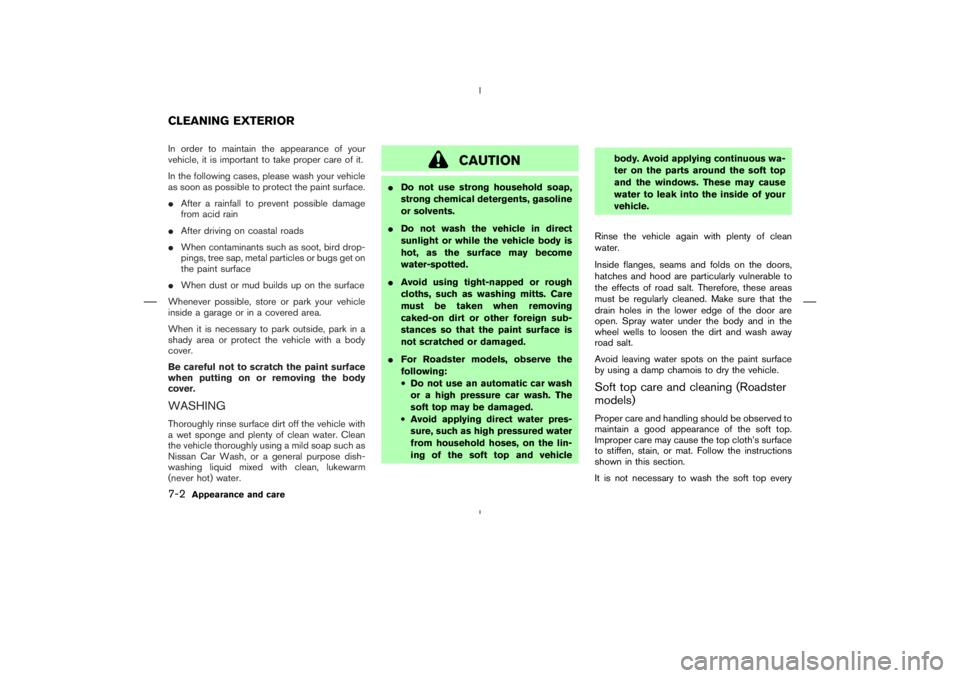

In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
In the following cases, please wash your vehicle
as soon as possible to protect the paint surface.

After a rainfall to prevent possible damage
from acid rain

After driving on coastal roads

When contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get on
the paint surface

When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGThoroughly rinse surface dirt off the vehicle with
a wet sponge and plenty of clean water. Clean
the vehicle thoroughly using a mild soap such as
Nissan Car Wash, or a general purpose dish-
washing liquid mixed with clean, lukewarm
(never hot) water.
CAUTION

Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.

Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.

Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so that the paint surface is
not scratched or damaged.

For Roadster models, observe the
following:
•Do not use an automatic car wash
or a high pressure car wash. The
soft top may be damaged.
•Avoid applying direct water pres-
sure, such as high pressured water
from household hoses, on the lin-
ing of the soft top and vehiclebody. Avoid applying continuous wa-
ter on the parts around the soft top
and the windows. These may cause
water to leak into the inside of your
vehicle.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
Soft top care and cleaning (Roadster
models)Proper care and handling should be observed to
maintain a good appearance of the soft top.
Improper care may cause the top cloth’s surface
to stiffen, stain, or mat. Follow the instructions
shown in this section.
It is not necessary to wash the soft top every
CLEANING EXTERIOR7-2
Appearance and care


04.5.17/Z33-D/V5.0

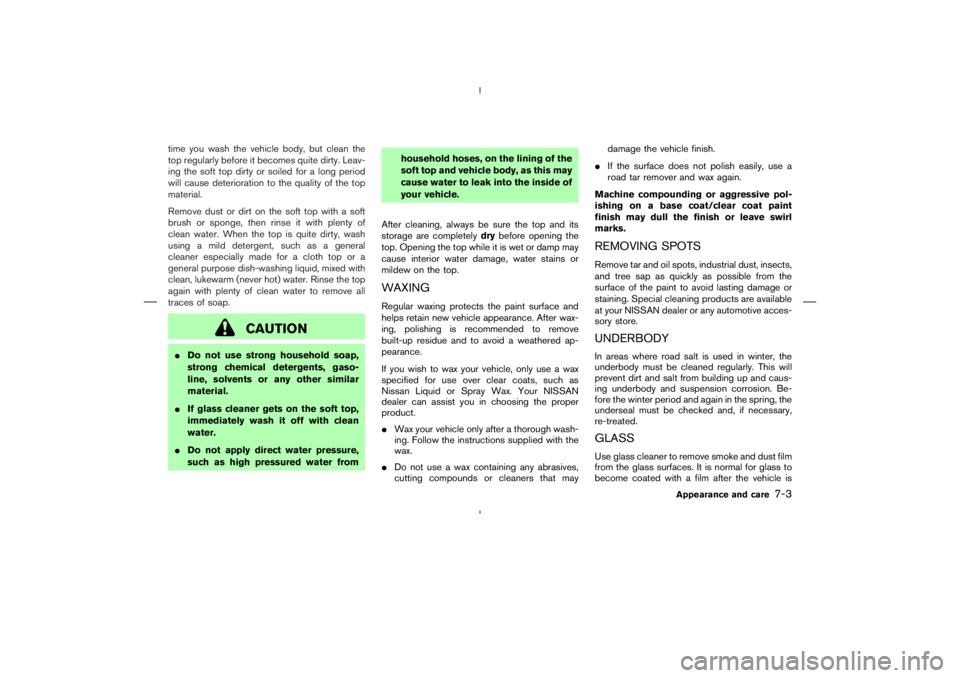

time you wash the vehicle body, but clean the
top regularly before it becomes quite dirty. Leav-
ing the soft top dirty or soiled for a long period
will cause deterioration to the quality of the top
material.
Remove dust or dirt on the soft top with a soft
brush or sponge, then rinse it with plenty of
clean water. When the top is quite dirty, wash
using a mild detergent, such as a general
cleaner especially made for a cloth top or a
general purpose dish-washing liquid, mixed with
clean, lukewarm (never hot) water. Rinse the top
again with plenty of clean water to remove all
traces of soap.
CAUTION

Do not use strong household soap,
strong chemical detergents, gaso-
line, solvents or any other similar
material.

If glass cleaner gets on the soft top,
immediately wash it off with clean
water.

Do not apply direct water pressure,
such as high pressured water fromhousehold hoses, on the lining of the
soft top and vehicle body, as this may
cause water to leak into the inside of
your vehicle.
After cleaning, always be sure the top and its
storage are completelydrybefore opening the
top. Opening the top while it is wet or damp may
cause interior water damage, water stains or
mildew on the top.
WAXINGRegular waxing protects the paint surface and
helps retain new vehicle appearance. After wax-
ing, polishing is recommended to remove
built-up residue and to avoid a weathered ap-
pearance.
If you wish to wax your vehicle, only use a wax
specified for use over clear coats, such as
Nissan Liquid or Spray Wax. Your NISSAN
dealer can assist you in choosing the proper
product.

Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with the
wax.

Do not use a wax containing any abrasives,
cutting compounds or cleaners that maydamage the vehicle finish.

If the surface does not polish easily, use a
road tar remover and wax again.
Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint
finish may dull the finish or leave swirl
marks.
REMOVING SPOTSRemove tar and oil spots, industrial dust, insects,
and tree sap as quickly as possible from the
surface of the paint to avoid lasting damage or
staining. Special cleaning products are available
at your NISSAN dealer or any automotive acces-
sory store.UNDERBODYIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and caus-
ing underbody and suspension corrosion. Be-
fore the winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.GLASSUse glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
Appearance and care
7-3


04.5.17/Z33-D/V5.0

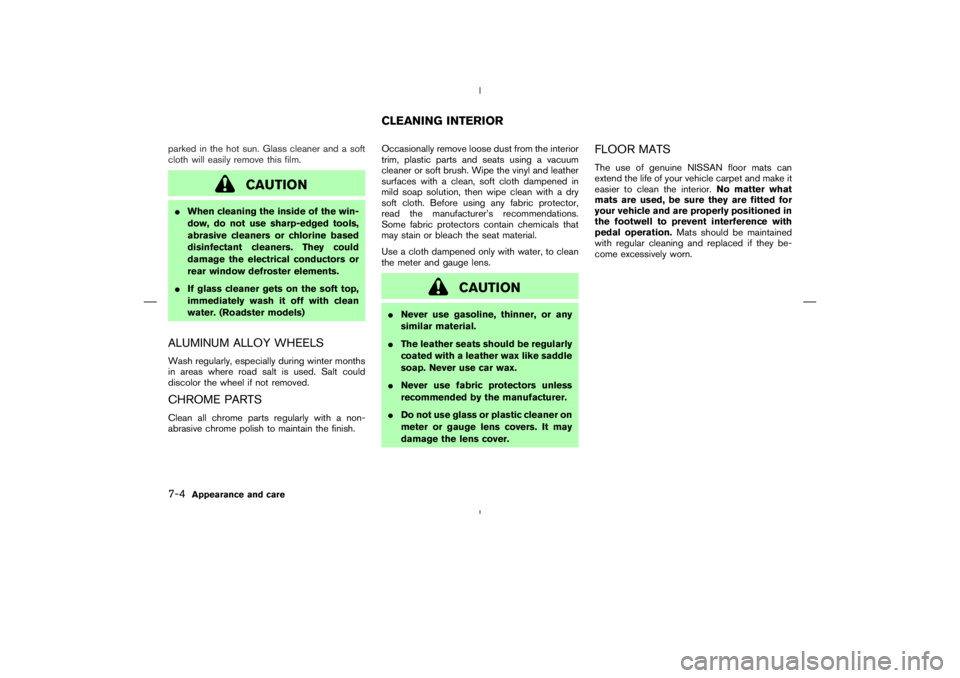

parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION

When cleaning the inside of the win-
dow, do not use sharp-edged tools,
abrasive cleaners or chlorine based
disinfectant cleaners. They could
damage the electrical conductors or
rear window defroster elements.

If glass cleaner gets on the soft top,
immediately wash it off with clean
water. (Roadster models)ALUMINUM ALLOY WHEELSWash regularly, especially during winter months
in areas where road salt is used. Salt could
discolor the wheel if not removed.CHROME PARTSClean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft brush. Wipe the vinyl and leather
surfaces with a clean, soft cloth dampened in
mild soap solution, then wipe clean with a dry
soft cloth. Before using any fabric protector,
read the manufacturer’s recommendations.
Some fabric protectors contain chemicals that
may stain or bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
CAUTION

Never use gasoline, thinner, or any
similar material.

The leather seats should be regularly
coated with a leather wax like saddle
soap. Never use car wax.

Never use fabric protectors unless
recommended by the manufacturer.

Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
FLOOR MATSThe use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior.No matter what
mats are used, be sure they are fitted for
your vehicle and are properly positioned in
the footwell to prevent interference with
pedal operation.Mats should be maintained
with regular cleaning and replaced if they be-
come excessively worn.
CLEANING INTERIOR
7-4
Appearance and care


04.5.17/Z33-D/V5.0

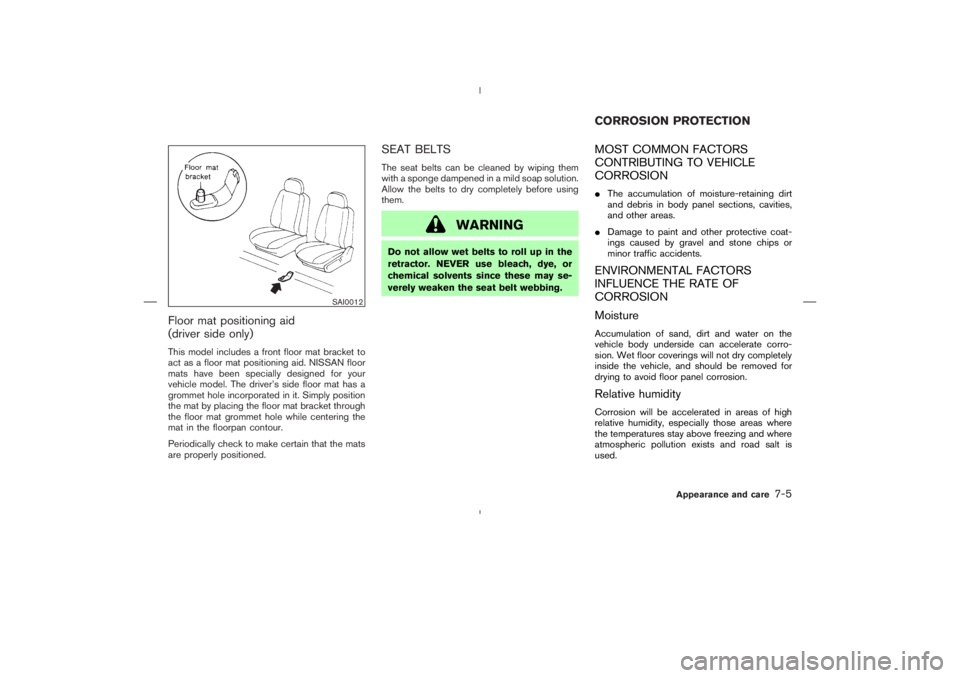

Floor mat positioning aid
(driver side only)This model includes a front floor mat bracket to
act as a floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The driver’s side floor mat has a
grommet hole incorporated in it. Simply position
the mat by placing the floor mat bracket through
the floor mat grommet hole while centering the
mat in the floorpan contour.
Periodically check to make certain that the mats
are properly positioned.
SEAT BELTSThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely before using
them.
WARNING
Do not allow wet belts to roll up in the
retractor. NEVER use bleach, dye, or
chemical solvents since these may se-
verely weaken the seat belt webbing.
MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION
The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.

Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION
MoistureAccumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.Relative humidityCorrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing and where
atmospheric pollution exists and road salt is
used.
SAI0012
CORROSIONPROTECTION
Appearance and care
7-5


04.5.17/Z33-D/V5.0

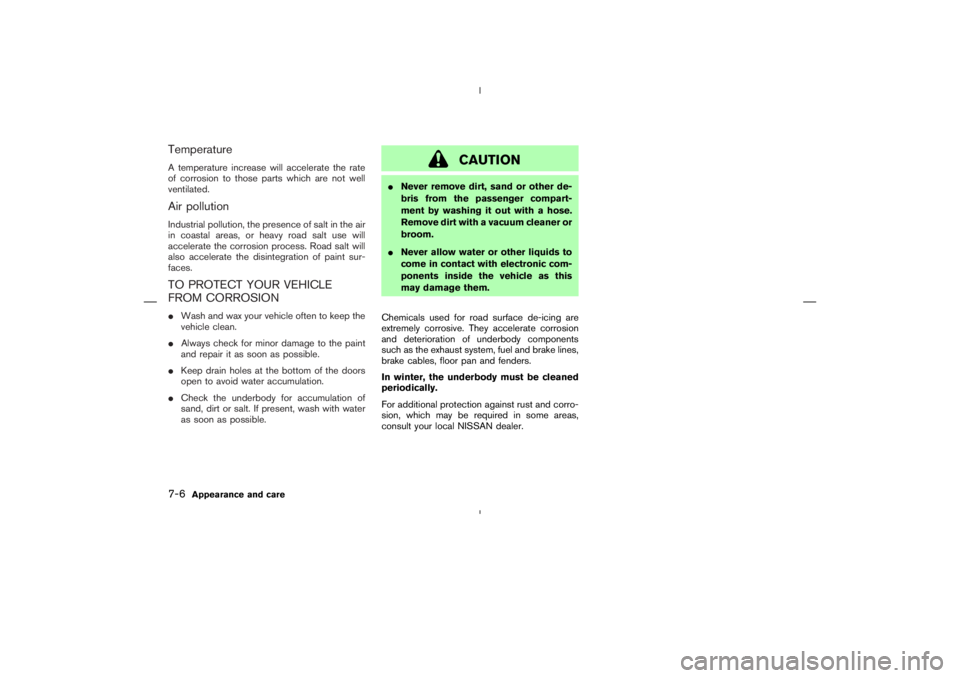

TemperatureA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.Air pollutionIndustrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint sur-
faces.TO PROTECT YOUR VEHICLE
FROM CORROSION
Wash and wax your vehicle often to keep the
vehicle clean.

Always check for minor damage to the paint
and repair it as soon as possible.

Keep drain holes at the bottom of the doors
open to avoid water accumulation.

Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION

Never remove dirt, sand or other de-
bris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner or
broom.

Never allow water or other liquids to
come in contact with electronic com-
ponents inside the vehicle as this
may damage them.
Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake lines,
brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and corro-
sion, which may be required in some areas,
consult your local NISSAN dealer.
7-6
Appearance and care


04.5.17/Z33-D/V5.0

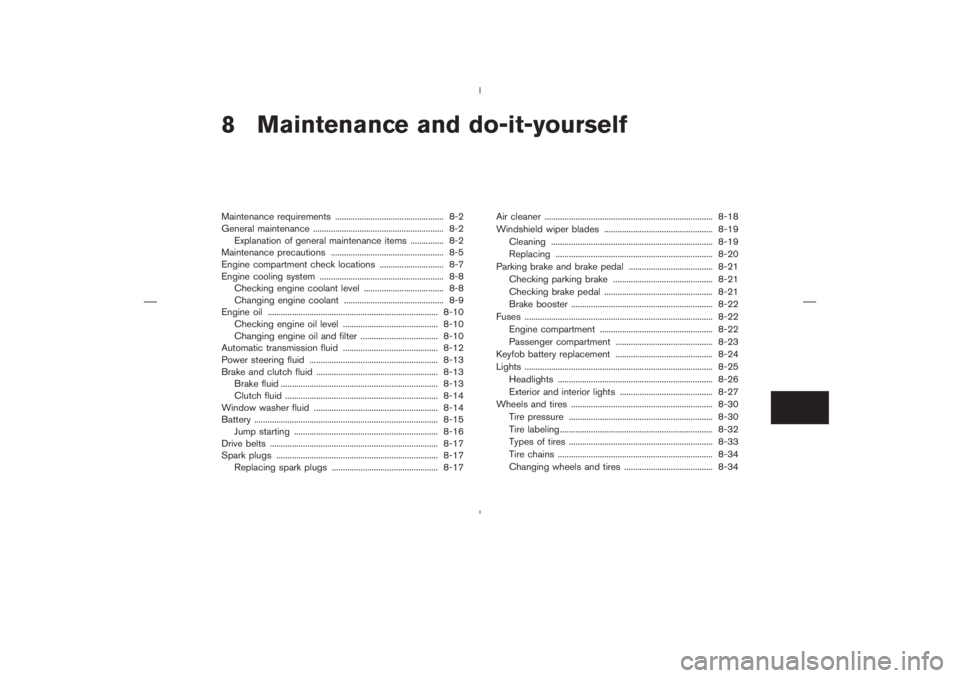

8 Maintenance and do-it-yourselfMaintenance requirements ................................................. 8-2
General maintenance ........................................................... 8-2
Explanation of general maintenance items ............... 8-2
Maintenance precautions ................................................... 8-5
Engine compartment check locations ............................. 8-7
Engine cooling system ........................................................ 8-8
Checking engine coolant level .................................... 8-8
Changing engine coolant ............................................. 8-9
Engine oil ............................................................................. 8-10
Checking engine oil level ........................................... 8-10
Changing engine oil and filter ................................... 8-10
Automatic transmission fluid ........................................... 8-12
Power steering fluid .......................................................... 8-13
Brake and clutch fluid ....................................................... 8-13
Brake fluid ....................................................................... 8-13
Clutch fluid ..................................................................... 8-14
Window washer fluid ........................................................ 8-14
Battery ................................................................................... 8-15
Jump starting ................................................................. 8-16
Drive belts ............................................................................ 8-17
Spark plugs ......................................................................... 8-17
Replacing spark plugs ................................................ 8-17Air cleaner ............................................................................ 8-18
Windshield wiper blades ................................................. 8-19
Cleaning ......................................................................... 8-19
Replacing ....................................................................... 8-20
Parking brake and brake pedal ...................................... 8-21
Checking parking brake ............................................. 8-21
Checking brake pedal ................................................. 8-21
Brake booster ................................................................ 8-22
Fuses ..................................................................................... 8-22
Engine compartment ................................................... 8-22
Passenger compartment ............................................ 8-23
Keyfobbattery replacement ............................................ 8-24
Lights ..................................................................................... 8-25
Headlights ...................................................................... 8-26
Exterior and interior lights .......................................... 8-27
Wheels and tires ................................................................ 8-30
Tire pressure ................................................................. 8-30
Tire labeling ..................................................................... 8-32
Types of tires ................................................................. 8-33
Tire chains ...................................................................... 8-34
Changing wheels and tires ........................................ 8-34


04.5.17/Z33-D/V5.0
