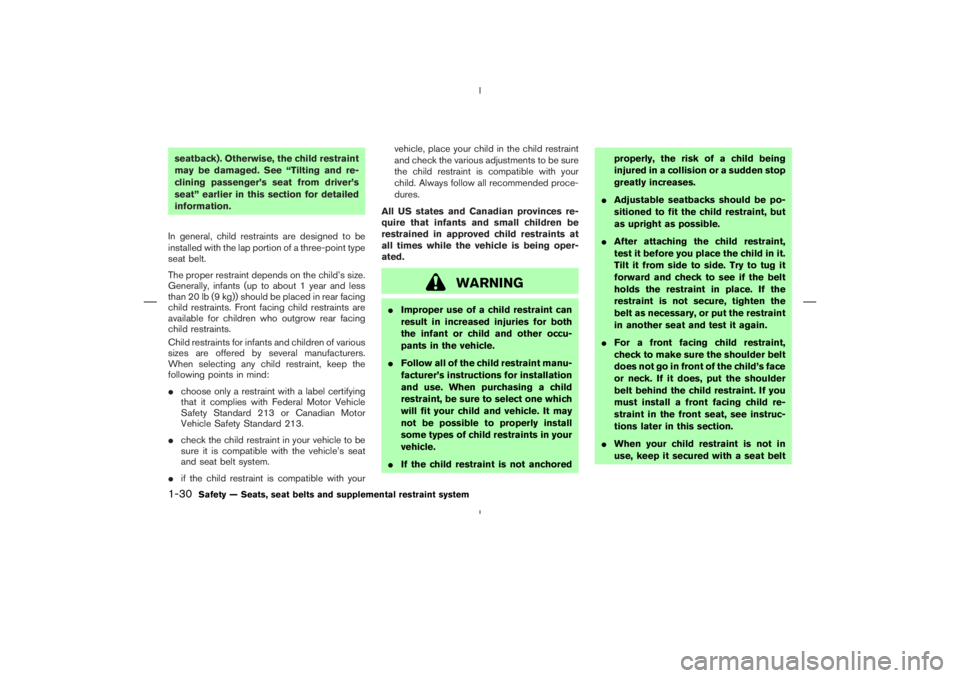

seatback). Otherwise, the child restraint
may be damaged. See “Tilting and re-
clining passenger’s seat from driver’s
seat” earlier in this section for detailed
information.
In general, child restraints are designed to be
installed with the lap portion of a three-point type
seat belt.
The proper restraint depends on the child’s size.
Generally, infants (up to about 1 year and less
than 20 lb(9 kg)) should be placed in rear facing
child restraints. Front facing child restraints are
available for children who outgrow rear facing
child restraints.
Child restraints for infants and children of various
sizes are offered by several manufacturers.
When selecting any child restraint, keep the
following points in mind:
choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
if the child restraint is compatible with yourvehicle, place your child in the child restraint
and check the various adjustments to be sure
the child restraint is compatible with your
child. Always follow all recommended proce-
dures.
All US states and Canadian provinces re-
quire that infants and small children be
restrained in approved child restraints at
all times while the vehicle is being oper-
ated.
WARNING
Improper use of a child restraint can
result in increased injuries for both
the infant or child and other occu-
pants in the vehicle.
Follow all of the child restraint manu-
facturer’s instructions for installation
and use. When purchasing a child
restraint, be sure to select one which
will fit your child and vehicle. It may
not be possible to properly install
some types of child restraints in your
vehicle.
If the child restraint is not anchoredproperly, the risk of a child being
injured in a collision or a sudden stop
greatly increases.
Adjustable seatbacks should be po-
sitioned to fit the child restraint, but
as upright as possible.
After attaching the child restraint,
test it before you place the child in it.
Tilt it from side to side. Try to tug it
forward and check to see if the belt
holds the restraint in place. If the
restraint is not secure, tighten the
belt as necessary, or put the restraint
in another seat and test it again.
For a front facing child restraint,
check to make sure the shoulder belt
does not go in front of the child’s face
or neck. If it does, put the shoulder
belt behind the child restraint. If you
must install a front facing child re-
straint in the front seat, see instruc-
tions later in this section.
When your child restraint is not in
use, keep it secured with a seat belt
1-30
Safety — Seats, seat belts and supplemental restraint system
04.5.17/Z33-D/V5.0
Page 42 of 262
to prevent it from being thrown
around in case of a sudden stop or
accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
INSTALLATION ON FRONT
PASSENGER SEAT
WARNING
Never install a child restraint in the
front passenger seat unless an air
bag ON/OFF switch has been in-
stalled and the air bag has been
turned OFF. Supplemental air bags
inflate with great force. A child re-
straint could be struck by the supple-mental air bag in a crash and could
seriously injure or kill your child.
The three-point seat belt in your ve-
hicle is equipped with a locking mode
retractor which must be used when
installing a child restraint.
Failure to use the retractor’s locking
mode will result in the child restraint
not being properly secured. The child
restraint could tip over or otherwise
be unsecured and cause injury to the
SSS0261
Safety — Seats, seat belts and supplemental restraint system
1-31
04.5.17/Z33-D/V5.0
Page 43 of 262
child in a sudden stop or collision.
CAUTION
Turn off the automatic passenger seat-
back tilt function by turning the seat-
back tilt cancel switch to the CANCEL
position. (Roadster models)
Front facingIf you must install a child restraint in the front
seat, follow these steps:
1. Turn the air bag ON/OFF switch to the OFF
position.
Turn the seatback tilt cancel switch to the
CANCEL position. (Roadster models only)
2. Position the child restraint on the front pas-
senger seat. Move the seat to the rearmost
position. The direction of the child restraint
depends on the type of the child restraint and
the size of the child. Always follow the re-
straint manufacturer’s instructions.3. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.
SSS0263A
SSS0055A
1-32
Safety — Seats, seat belts and supplemental restraint system
04.5.17/Z33-D/V5.0
Page 44 of 262
4. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.5. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.6. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
7. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
8. Check to make sure that the child restraint is
properly secured prior to each use. If the lap
belt is not locked, repeat steps 4 through 7.
SSS0113A
SSS0056A
SSS0264A
Safety — Seats, seat belts and supplemental restraint system
1-33
04.5.17/Z33-D/V5.0
Page 45 of 262
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
Rear facingWhen you install a child restraint in the front
seat, follow these steps:
1. Turn the air bag ON/OFF switch to the OFF
position.
Turn the seatback tilt cancel switch to the
CANCEL position. (Roadster models only)
2. Position the child restraint on the front pas-
senger seat. Move the seat to the rearmost
position. The direction of the child restraint
depends on the type of the child restraint and
the size of the child. Always follow the re-
straint manufacturer’s instructions.3. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manufac-
turer’s instructions for belt routing.
SSS0211
SSS0212
1-34
Safety — Seats, seat belts and supplemental restraint system
04.5.17/Z33-D/V5.0
Page 46 of 262
4. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.5. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.6. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
7. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
8. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 4 through 7.
SSS0213
SSS0214
SSS0215
Safety — Seats, seat belts and supplemental restraint system
1-35
04.5.17/Z33-D/V5.0
Page 47 of 262
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
TOP TETHER STRAP CHILD
RESTRAINT (Coupe models)An anchor for a child restraint with a top tether is
provided in this vehicle.However, a child
restraint of this type should not be used in
this vehicle unless an air bag ON/OFF
switch has been installed and is being
properly used.See “Obtaining an air bag
ON/OFF switch” earlier in this manual.
If your child restraint has a top tether strap, it
must be secured to the provided anchor point.
Secure the child restraint with the seat belt.
Guide the top tether strap under the head
restraint as illustrated, and secure it to theanchor bracket. Tighten the strap according to
manufacturer instructions to remove any slack.
WARNING
The child restraint anchor point is de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstance is it to
be used for adult seat belts or har-
nesses.
SSS0207
1-36
Safety — Seats, seat belts and supplemental restraint system
04.5.17/Z33-D/V5.0
Page 48 of 262
Anchor point locationThe anchor point
A
is located on the luggage
area floor.
A flap is provided in the carpet for easy access
and is marked with the label shown.
If you have any questions when installing a
top tether strap child restraint on the pas-
senger seat, consult your NISSAN dealer
for details.
SPA1644
Safety — Seats, seat belts and supplemental restraint system
1-37
04.5.17/Z33-D/V5.0
Page 49 of 262

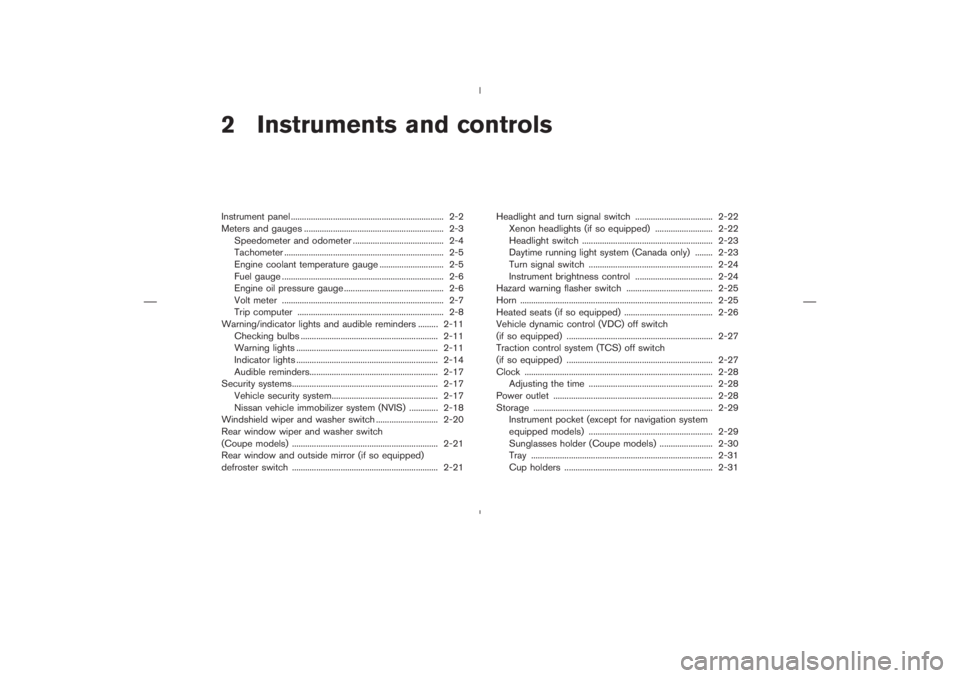

2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-4
Tachometer ........................................................................ 2-5
Engine coolant temperature gauge ............................. 2-5
Fuel gauge ......................................................................... 2-6
Engine oil pressure gauge ............................................. 2-6
Volt meter ......................................................................... 2-7
Trip computer .................................................................. 2-8
Warning/indicator lights and audible reminders ......... 2-11
Checking bulbs .............................................................. 2-11
Warning lights ................................................................ 2-11
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-17
Security systems.................................................................. 2-17
Vehicle security system................................................ 2-17
Nissan vehicle immobilizer system (NVIS) ............. 2-18
Windshield wiper and washer switch ............................ 2-20
Rear window wiper and washer switch
(Coupe models) .................................................................. 2-21
Rear window and outside mirror (if so equipped)
defroster switch .................................................................. 2-21Headlight and turn signal switch ................................... 2-22
Xenon headlights (if so equipped) .......................... 2-22
Headlight switch ........................................................... 2-23
Daytime running light system (Canada only) ........ 2-23
Turn signal switch ........................................................ 2-24
Instrument brightness control ................................... 2-24
Hazard warning flasher switch ....................................... 2-25
Horn ....................................................................................... 2-25
Heated seats (if so equipped) ........................................ 2-26
Vehicle dynamic control (VDC) off switch
(if so equipped) .................................................................. 2-27
Traction control system (TCS) off switch
(if so equipped) .................................................................. 2-27
Clock ..................................................................................... 2-28
Adjusting the time ........................................................ 2-28
Power outlet ........................................................................ 2-28
Storage ................................................................................. 2-29
Instrument pocket (except for navigation system
equipped models) ........................................................ 2-29
Sunglasses holder (Coupe models) ........................ 2-30
Tray .................................................................................. 2-31
Cup holders ................................................................... 2-31
04.5.17/Z33-D/V5.0
Page 50 of 262
Console box .................................................................. 2-32
Rear floor box ................................................................ 2-33
Rear parcel box ............................................................ 2-33
Stowing golf bags ......................................................... 2-34
Coat hook .............................................................................. 2-35
Windows .............................................................................. 2-35
Power windows ............................................................ 2-35
Automatic adjusting function ...................................... 2-37
Interior lights ........................................................................ 2-37
Interior ............................................................................. 2-37
Map .................................................................................. 2-38
Vanity mirror light (if so equipped) ................................ 2-38Luggage compartment light (Coupe models) ............. 2-39
Trunk light (Roadster models).......................................... 2-39
HomeLink
universal transceiver (if so equipped) .... 2-39
Programming HomeLink
........................................... 2-40
Programming HomeLinkfor Canadian
customers ....................................................................... 2-41
Operating the HomeLinkuniversal
transceiver ...................................................................... 2-42
Programming trouble diagnosis ................................ 2-42
Clearing the programmed information .................... 2-42
Reprogramming a single HomeLink
button ........ 2-42
If your vehicle is stolen ............................................... 2-42
04.5.17/Z33-D/V5.0
