1. Headlight/turn signal switch
2. Instrument brightness control switch
3. Driver supplemental air bag/Horn
4. Meters/gauges
5. Cruise control main/set switch
(if so equipped)6. Trip computer mode/setting switch
7. Windshield wiper/washer switch
8. Center ventilator
9. Cup holder
10. Passenger supplemental air bag
11. Side ventilator12. VDC (Vehicle dynamic control) OFF switch
or TCS (Traction control system) OFF
switch (if so equipped)
13. Soft top operating switch (for Roadster
models)
14. Fuel filler lid opener switch
15. Hood lock release handle
16. Fuse box
17. Tilting steering wheel lock lever
18. Ignition switch/steering lock
19. Navigation system* or Instrument pocket
20. Rear window (and outside mirror) defroster
switch
21. Heater/air conditioner control
22. Audio system/Clock
23. Heated seat switch (if so equipped)
24. Hazard warning flasher switch
25. Tray
26. Power outlet
*: Refer to the separate Navigation System
Owner’s Manual.
SIC2268
INSTRUMENT PANEL2-2
Instruments and controls
04.5.17/Z33-D/V5.0
Page 52 of 262
Combination meter:
1. Warning/Indicator lights
2. Turn signal/hazard indicator lights
3. Tachometer
4. Speedometer5. Instrument brightness control switch
(See “Headlight and turn signal switch” later
in this section.)
6. Fuel gauge
7. Engine coolant temperature gauge8. Automatic transmission position indicator or
Manual transmission shift up indicator
(See “Driving the vehicle” in the “5. Starting
and driving” section.)
9. Reset knobfor trip odometer
10. Odometer (Total/Twin trip)
11. Trip computer setting switch
(See “Trip computer” later in this section.)
12. Trip computer mode switch
(See “Trip computer” later in this section.)
SIC2233
METERS AND GAUGES
Instruments and controls
2-3
04.5.17/Z33-D/V5.0
Page 53 of 262
Triple meter:
1. Trip computer
2. Engine oil pressure gauge
3. Volt meter
SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed.Odometer/Twin trip odometerThe odometer/twin trip odometer are displayed
when the ignition key is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display:
Pushing the reset knobchanges the display as
follows:
TRIP A→TRIP B→TRIP A
Resetting the trip odometer:
Pushing the reset knobfor more than 1 second
resets the trip odometer to zero.
SIC1948
SIC1949
2-4
Instruments and controls
04.5.17/Z33-D/V5.0
Page 54 of 262
TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm).
CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature over the normal range,
stop the vehicle as soon as safely pos-
sible. If the engine is overheated, con-
tinued operation of the vehicle may se-
riously damage the engine. See “If your
vehicle overheats” in the “6. In case of
emergency” section for immediate ac-
tion required.
SIC1950
SIC1951
Instruments and controls
2-5
04.5.17/Z33-D/V5.0
Page 55 of 262
FUEL GAUGEThe gauge indicates the approximate fuel level in
the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hill.
The gauge needle is designed to move to the E
(Empty) position when the ignition key is turned
to the OFF position.
Refill the fuel tank before the gauge regis-
ters the E (Empty) position.The low fuel warning light comes on when
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
gauge reaches the E position. There will be
a small reserve of fuel in the tank when the
fuel gauge needle reaches the E position.
The
indicates that the fuel filler lid is lo-
cated on the passenger’s side of the vehicle.
CAUTION
If the vehicle runs out of fuel, the
malfunction indicator lamp
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
lamp should turn off. If the
lamp remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.
For additional information, see the
“Malfunction indicator lamp (MIL)”
later in this section.
ENGINE OIL PRESSURE GAUGEThe gauge indicates the engine lubrication sys-
tem oil pressure while the engine is running.
When the engine speed is high, the engine oil
pressure is also high. When it is low, the gauge
indicates the low oil pressure.
SIC1952
SIC1954A
Type A
2-6
Instruments and controls
04.5.17/Z33-D/V5.0
Page 56 of 262
CAUTION
This gauge is not designed to indi-
cate low engine oil level. Use the
dipstick to check the oil level. (See
“Engine oil” in the “8. Maintenance
and do-it-yourself” section.)
If the gauge needle does not move
with the proper amount of engine oil,
have the vehicle checked by a
NISSAN dealer. Continued vehicleoperation in such a condition could
cause serious damage to the engine.
VOLT METERWhen the ignition switch is turned to the ON
position, the volt meter indicates the battery
voltage; while the engine is running, it indicates
the alternator voltage of 11 - 15 volts (normal
range
A). However, while cranking the engine,
the volts drop below the normal range.
If the needle is not in the normal range
A
while
the engine is running, it may indicate that the
charging system is not functioning properly.
Have the system checked by a NISSAN dealer.
SIC1953A
Type B
SIC1955
Instruments and controls
2-7
04.5.17/Z33-D/V5.0
Page 57 of 262
TRIP COMPUTERThe display of the trip computer is situated in the
triple meter. When the ignition switch is turned
to ON, the display scrolls all the modes of the
trip computer and then shows the mode chosen
before the ignition switch is turned OFF.Switches for the trip computer are located on
the side of the combination meter panel. To
operate the trip computer, press the side of the
switches as shown above.
A: Trip computer mode switch
B: Trip computer setting switch
When the ignition switch is turned to ON, modes
of the trip computer can be selected by pressing
the trip computer mode switch
A.
Each time the mode switch
A
is pressed, the
display will change as follows:
Speed indicator→Outside air temperature
(ICY)→Distance to empty (dte)→Average fuelconsumption and speed→Elapsed time and
trip odometer→Stopwatch→Tire pressure
indicator (PSI) (if so equipped)→Up-shift indi-
cator setting (for M/T models)→Speed indica-
tor
Speed indicator (mph or km/h)The vehicle speed is displayed in MPH or km/h
while driving.
The speed indicator in the trip computer
indicates the reference speed. The actual
speed indicated by the speedometer (com-
bination meter) may differ from the one in
the trip computer.Outside air temperature
(ICY—°For°C)The outside air temperature is displayed in °F or
°C in the range of −22 to 131°F (−30 to 55°C).
The outside air temperature mode includes a low
temperature warning feature: below 37°F (3°C),
the outside air temperature mode is automati-
cally selected and the ICY indicator will illumi-
nate in order to draw the driver’s attention. Press
the mode switch
A
if you wish to return to the
mode that was selected before the warning
occurred. The ICY indicator will continue blink-
ing as long as the temperature remains below
39°F (4°C).
SIC2234
SIC1957
2-8
Instruments and controls
04.5.17/Z33-D/V5.0
Page 58 of 262
The ambient temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual ambient temperature or the
temperature displayed on various signs or bill-
boards.Distance to empty (dte — mls or km)The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature: when the fuel level is low, the dte mode
is automatically selected and the digits blink in
order to draw the driver’s attention. Press the
mode switch
Aif you wish to return to the mode
that was selected before the warning occurred.
The dte indicator will remain blinking until the
vehicle is refuelled.
When the fuel level drops even lower, the dte
display will change to (----).
NOTE:
If the amount of fuel added while the
ignition switch is OFF is small, the dis-play just before the ignition switch is
turned OFF may continue to be dis-
played.
When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
Average fuel consumption
(mpg or l (liter)/100 km) and speed
(av. mph or av. km/h)Fuel consumption:
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the trip computer
setting switch
B
for more than approximately 1
second. (The average speed is also reset at the
same time.)
The display is updated every 30 seconds. At
about the first 1/3 miles (500 m) after a reset,
the display shows (----).
Speed:
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pressing the setting switch
Bfor more
than approximately 1 second. (The average fuel
consumption is also reset at the same time.)
The display is updated every 30 seconds. Thefirst 30 seconds after a reset, the display shows
(----).
Elapsed time (h:m:s) and trip
odometer (mls or km)Elapsed time:
The elapsed time mode shows the time since the
last reset. The displayed time can be reset by
pressing the trip computer setting switch
Bfor
more than approximately 1 second. (The trip
odometer is also reset at the same time.)
Trip odometer:
The trip odometer mode shows the total dis-
tance the vehicle has been driven since the last
reset. Resetting is done by pressing the setting
switch
Bfor more than approximately 1 second.
(The elapsed time is also reset at the same time.)
Stopwatch (h:m:s)You can use the trip computer as a stopwatch.
Each time the trip computer setting switch
Bis
pressed, the stopwatch will be operated as
follows:
After 100 hours, the time will start from the reset
display again.
Instruments and controls
2-9
04.5.17/Z33-D/V5.0
Page 59 of 262

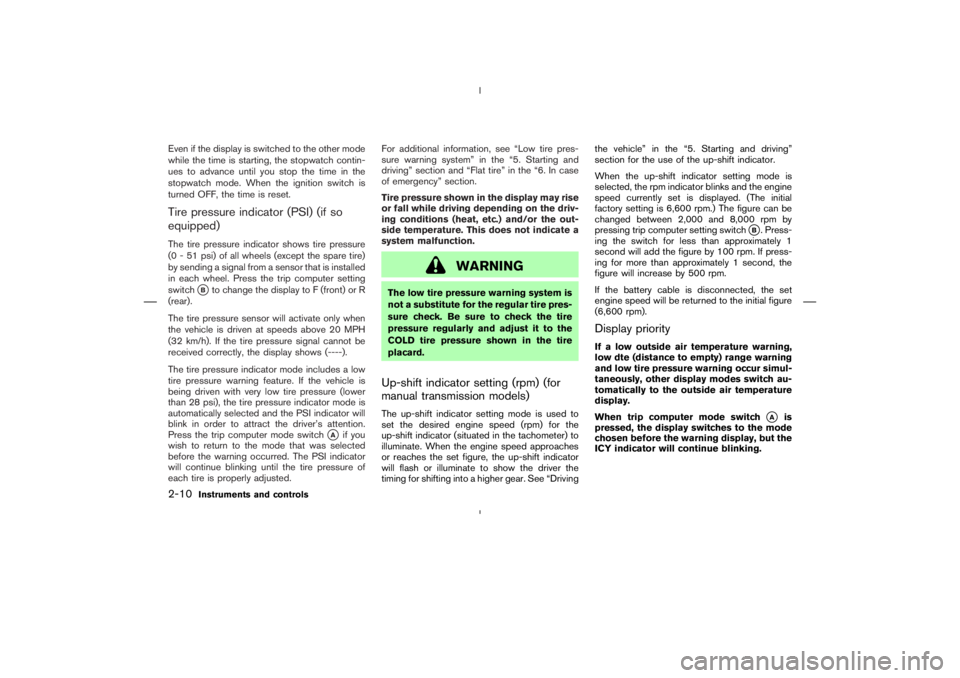

Even if the display is switched to the other mode
while the time is starting, the stopwatch contin-
ues to advance until you stop the time in the
stopwatch mode. When the ignition switch is
turned OFF, the time is reset.Tire pressure indicator (PSI) (if so
equipped)The tire pressure indicator shows tire pressure
(0 - 51 psi) of all wheels (except the spare tire)
by sending a signal from a sensor that is installed
in each wheel. Press the trip computer setting
switch
Bto change the display to F (front) or R
(rear).
The tire pressure sensor will activate only when
the vehicle is driven at speeds above 20 MPH
(32 km/h). If the tire pressure signal cannot be
received correctly, the display shows (----).
The tire pressure indicator mode includes a low
tire pressure warning feature. If the vehicle is
being driven with very low tire pressure (lower
than 28 psi), the tire pressure indicator mode is
automatically selected and the PSI indicator will
blink in order to attract the driver’s attention.
Press the trip computer mode switch
A
if you
wish to return to the mode that was selected
before the warning occurred. The PSI indicator
will continue blinking until the tire pressure of
each tire is properly adjusted.For additional information, see “Low tire pres-
sure warning system” in the “5. Starting and
driving” section and “Flat tire” in the “6. In case
of emergency” section.
Tire pressure shown in the display may rise
or fall while driving depending on the driv-
ing conditions (heat, etc.) and/or the out-
side temperature. This does not indicate a
system malfunction.
WARNING
The low tire pressure warning system is
not a substitute for the regular tire pres-
sure check. Be sure to check the tire
pressure regularly and adjust it to the
COLD tire pressure shown in the tire
placard.Up-shift indicator setting (rpm) (for
manual transmission models)The up-shift indicator setting mode is used to
set the desired engine speed (rpm) for the
up-shift indicator (situated in the tachometer) to
illuminate. When the engine speed approaches
or reaches the set figure, the up-shift indicator
will flash or illuminate to show the driver the
timing for shifting into a higher gear. See “Drivingthe vehicle” in the “5. Starting and driving”
section for the use of the up-shift indicator.
When the up-shift indicator setting mode is
selected, the rpm indicator blinks and the engine
speed currently set is displayed. (The initial
factory setting is 6,600 rpm.) The figure can be
changed between 2,000 and 8,000 rpm by
pressing trip computer setting switch
B. Press-
ing the switch for less than approximately 1
second will add the figure by 100 rpm. If press-
ing for more than approximately 1 second, the
figure will increase by 500 rpm.
If the battery cable is disconnected, the set
engine speed will be returned to the initial figure
(6,600 rpm).
Display priorityIf a low outside air temperature warning,
low dte (distance to empty) range warning
and low tire pressure warning occur simul-
taneously, other display modes switch au-
tomatically to the outside air temperature
display.
When trip computer mode switch
A
is
pressed, the display switches to the mode
chosen before the warning display, but the
ICY indicator will continue blinking.
2-10
Instruments and controls
04.5.17/Z33-D/V5.0
Page 60 of 262
or
Anti-lock brake warning light
Low washer fluid warning light
Malfunction indicator lamp (MIL)
Automatic transmission check warning
light (A/T models)
Seat belt warning light
Slip indicator light
or
Brake warning light
Supplemental air bag warning light
Traction control system (TCS) off indica-
tor light (if so equipped)
Charge warning light
Automatic transmission position indicator
light (A/T models)
Vehicle dynamic control (VDC) off indica-
tor light (if so equipped)
Door open warning light
Cruise main switch indicator light
(if so equipped)
Soft top indicator light (Roadster models)
Engine oil pressure warning light
Cruise set switch indicator light
(if so equipped)
Turn signal/hazard indicator lights
Low tire pressure warning light
(if so equipped)
High beam indicator light (Blue)
CHECKING BULBSApply the parking brake and turn the ignition key
to ON without starting the engine. The following
lights will come on:
,
or
,
,
The following lights come on briefly and then go
off:
,
or
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-trical system. Have the system repaired
promptly.
WARNING LIGHTS
or
Anti-lock brake
warning light
When the ignition switch is turned to the ON
position, the anti-lock brake warning light will
illuminate and then turn off. This indicates the
anti-lock brake system (ABS) is operational.
If the light comes on while the engine is running,it may indicate the anti-lock brake system is not
functioning properly. Have the system checked
by your NISSAN dealer.
If a malfunction occurs in the system, the anti-
lock function of the brake will cease operation
but the ordinary brakes will continue to operate.
See “Anti-lock brake system (ABS)” in the “5.
Starting and driving” section for further details.
If the light comes on while you are driving,
contact your NISSAN dealer for repair.
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-11
04.5.17/Z33-D/V5.0
