Roadster models1. Seat belts (P.1-10)
2. Seats
- Power seats adjustment (P.1-5)
- Net seats* (P.1-6).
3. Power seatback tilt switch (P.1-8)/Cancel
switch (P.1-9) for passenger seat
4. Power window switch (P.2-38)
5. Outside mirror remote control switch
(P.3-18)
6. Soft top latch lever (P.3-22)
7. Safety switch for soft top latch lever (P.3-22)
8. Interior light (P.2-40)
9. Inside mirror (P.3-16)
- Automatic anti-glare inside mirror* (P.3-17)
- HomeLink
universal transceiver* (P.2-42)
10. Rear parcel box (P.2-10)
11. Rear parcel box or Navigation system*1
12. Rear floor box (P.2-35)
- Trunk lid cancel switch (P.3-12)
- Secondary trunk lid release (P.3-13)
13. Power outlet (P.2-31)
14. Console box (P.2-34)
15. Parking brake
- Operation (P.5-14)
- Parking/Parking on hills (P.5-18)
- Checking (P.8-21)
16. Driving with automatic transmission (P.5-9)
17. Driving with manual transmission (P.5-12)
*: if so equipped
*1: Refer to the separate Navigation System
Owner’s Manual.
SSI0068
0-6
Illustrated table of contents
04.8.23/Z33-D/V5.0
Page 12 of 279
1. Headlight/turn signal switch (P.2-24)
2. Instrument brightness control switch
(P.2-26)
3. Driver supplemental air bag (P.1-29)/Horn
(P.2-27)
4. Meters/gauges (P.2-3)5. Cruise control main/set switch* (P.5-15)
6. Trip computer mode/setting switch (P.2-8)
7. Windshield wiper/washer switch (P.2-22)
8. Center ventilator (P.4-7)
9. Cup holder (P.2-33)
10. Passenger supplemental air bag (P.1-29)11. Side ventilators (P.4-7)
12. VDC (Vehicle dynamic control) OFF switch*
(P.2-29) or TCS (Traction control system)
OFF switch* (P.2-29)
13. Soft top operating switch (for Roadster
models) (P.3-19)
14. Fuel filler lid opener switch (P.3-13)
15. Hood lock release handle (P.3-9)
16. Fuse box (P.8-22)
17. Tilting steering wheel lock lever (P.3-15)
18. Ignition switch (P.5-6)
19. Navigation system display (P.4-2)*1 or In-
strument pocket (P.2-32)
20. Rear window and outside mirror defroster
switch (P.2-23)
21. Heater/air conditioner control (P.4-8)
22. Audio system (P.4-11)/Clock (P.2-30)
23. Heated seat switch* (P.2-28)
24. Hazard warning flasher switch (P.2-27)
25. Tray (P.2-33)
26. Power outlet (P.2-31)
*: if so equipped
*1: Refer to the separate Navigation System
Owner’s Manual.
SIC2268
INSTRUMENT PANEL
Illustrated table of contents
0-7
04.8.23/Z33-D/V5.0
Page 13 of 279
1. Fuse/fusible link holder (P.8-22)
2. Battery (P.8-15)
3. Engine oil filler cap (P.8-10)
4. Brake fluid reservoir (P.8-13)
5. Clutch fluid reservoir (M/T models) (P.8-14)
6. Window washer fluid reservoir (P.8-14)
7. Power steering fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-8)
9. Radiator filler cap (P.8-9)
10. Engine oil dipstick (P.8-10)
11. Air cleaner (P.8-18)
Do not tamper with the strut tower bar
adjustment
A. The strut tower bar has
been adjusted to the most suitable posi-
tion at the factory.
SDI1519
ENGINE COMPARTMENT CHECK
LOCATIONS0-8
Illustrated table of contents
04.8.23/Z33-D/V5.0
Page 14 of 279

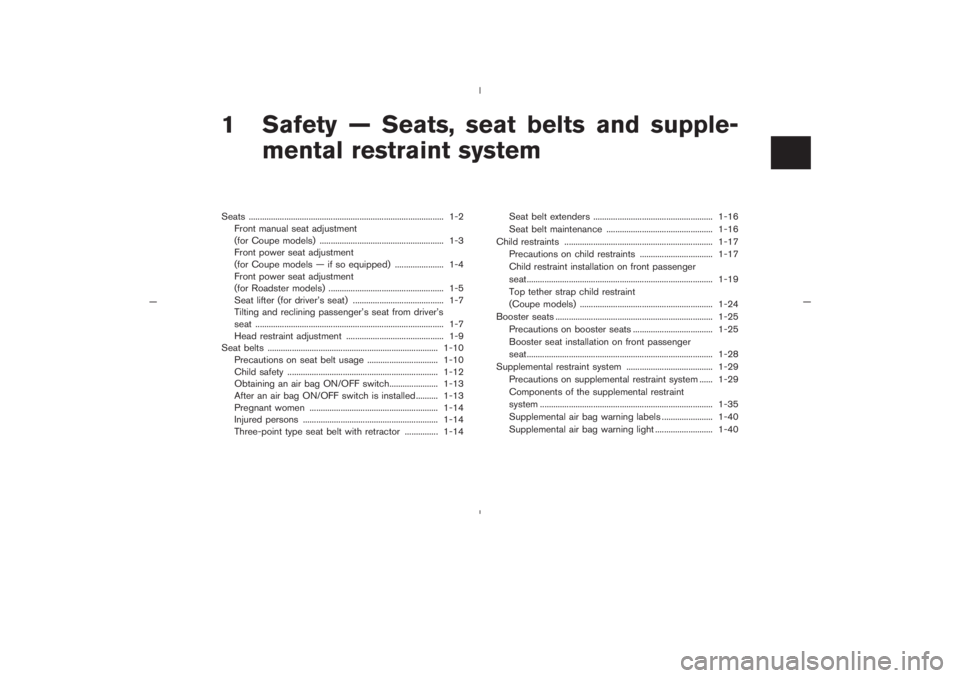

1 Safety — Seats, seat belts and supple-
mental restraint systemSeats ........................................................................................ 1-2
Front manual seat adjustment
(for Coupe models) ........................................................ 1-3
Front power seat adjustment
(for Coupe models — if so equipped) ...................... 1-4
Front power seat adjustment
(for Roadster models) .................................................... 1-5
Seat lifter (for driver’s seat) ......................................... 1-7
Tilting and reclining passenger’s seat from driver’s
seat ..................................................................................... 1-7
Head restraint adjustment ............................................ 1-9
Seat belts ............................................................................. 1-10
Precautions on seat belt usage ................................ 1-10
Child safety .................................................................... 1-12
Obtaining an air bag ON/OFF switch...................... 1-13
After an air bag ON/OFF switch is installed.......... 1-13
Pregnant women .......................................................... 1-14
Injured persons ............................................................. 1-14
Three-point type seat belt with retractor ............... 1-14Seat belt extenders ...................................................... 1-16
Seat belt maintenance ................................................ 1-16
Child restraints ................................................................... 1-17
Precautions on child restraints ................................. 1-17
Child restraint installation on front passenger
seat.................................................................................... 1-19
Top tether strap child restraint
(Coupe models) ............................................................ 1-24
Booster seats ....................................................................... 1-25
Precautions on booster seats .................................... 1-25
Booster seat installation on front passenger
seat.................................................................................... 1-28
Supplemental restraint system ....................................... 1-29
Precautions on supplemental restraint system ...... 1-29
Components of the supplemental restraint
system .............................................................................. 1-35
Supplemental air bag warning labels ....................... 1-40
Supplemental air bag warning light .......................... 1-40
04.8.23/Z33-D/V5.0
Page 15 of 279

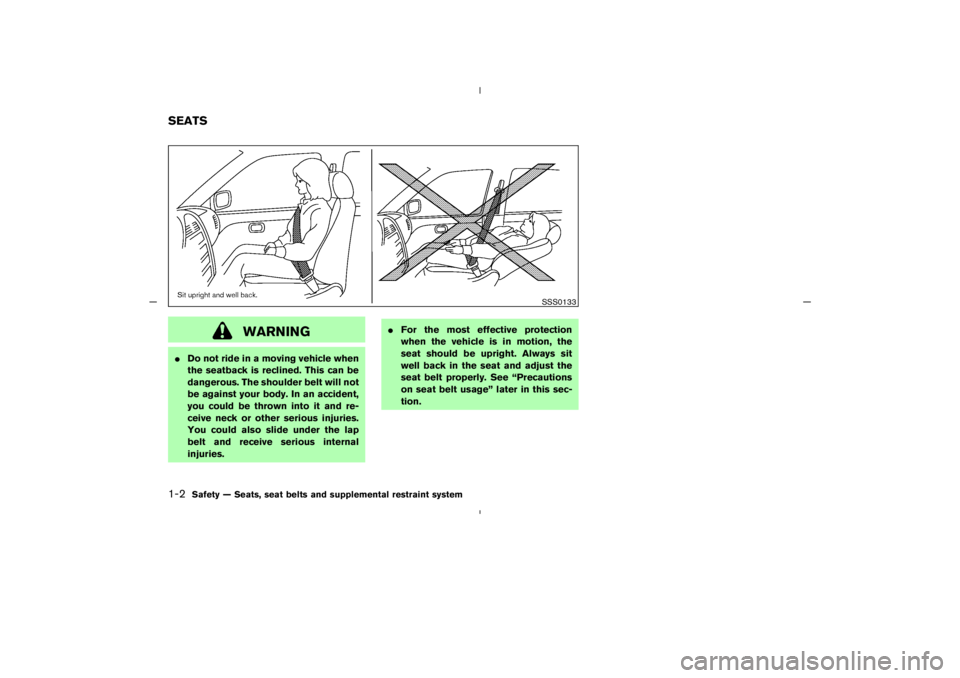

WARNING
Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly. See “Precautions
on seat belt usage” later in this sec-
tion.
SSS0133
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 16 of 279
FRONT MANUAL SEAT
ADJUSTMENT (for Coupe models)
WARNING
Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
After adjustment, gently rock in the
seat to make sure it is securely
locked.
1
Forward and backward
Pull the lever up while you slide the seat forward
or backward to the desired position. Release the
lever to lock the seat in position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.
2
Reclining
To recline the seatback, pull the lever up and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
SSS0394
Safety — Seats, seat belts and supplemental restraint system
1-3
04.8.23/Z33-D/V5.0
Page 17 of 279
FRONT POWER SEAT
ADJUSTMENT (for Coupe models —
if so equipped)
WARNING
Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.
Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tipsThe seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.
Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining (for driver’s seat)
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.
2
Reclining (for passenger’s seat)
The passenger’s seat is equipped with a manual
lever for reclining. See “Front manual seat ad-
justment” earlier in this section.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
SPA1793
1-4
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 18 of 279
FRONT POWER SEAT
ADJUSTMENT (for Roadster models)
WARNING
Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.
Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tipsThe seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.
Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
Automatic passenger seatback tilt
functionThe passenger seatback will automatically tilt
forward and backward during the soft top
open/close operation. If you need to cancel this
function or when a child restraint is installed in
the passenger’s seat, push the seatback tilt
SSS0271
Safety — Seats, seat belts and supplemental restraint system
1-5
04.8.23/Z33-D/V5.0
Page 19 of 279

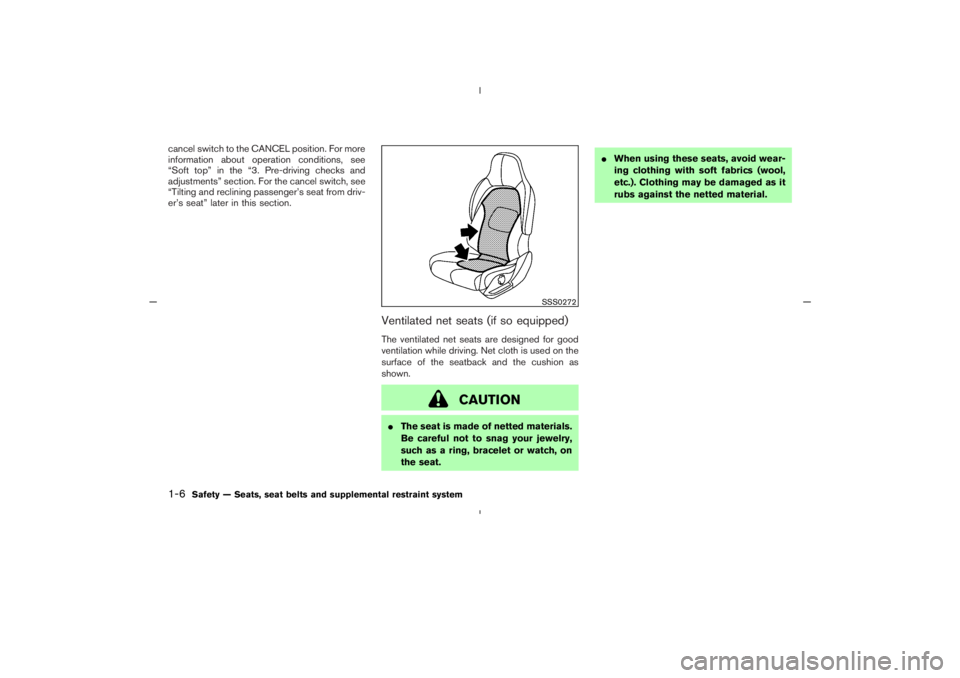

cancel switch to the CANCEL position. For more
information about operation conditions, see
“Soft top” in the “3. Pre-driving checks and
adjustments” section. For the cancel switch, see
“Tilting and reclining passenger’s seat from driv-
er’s seat” later in this section.
Ventilated net seats (if so equipped)The ventilated net seats are designed for good
ventilation while driving. Net cloth is used on the
surface of the seatback and the cushion as
shown.
CAUTION
The seat is made of netted materials.
Be careful not to snag your jewelry,
such as a ring, bracelet or watch, on
the seat.When using these seats, avoid wear-
ing clothing with soft fabrics (wool,
etc.). Clothing may be damaged as it
rubs against the netted material.
SSS0272
1-6
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 20 of 279

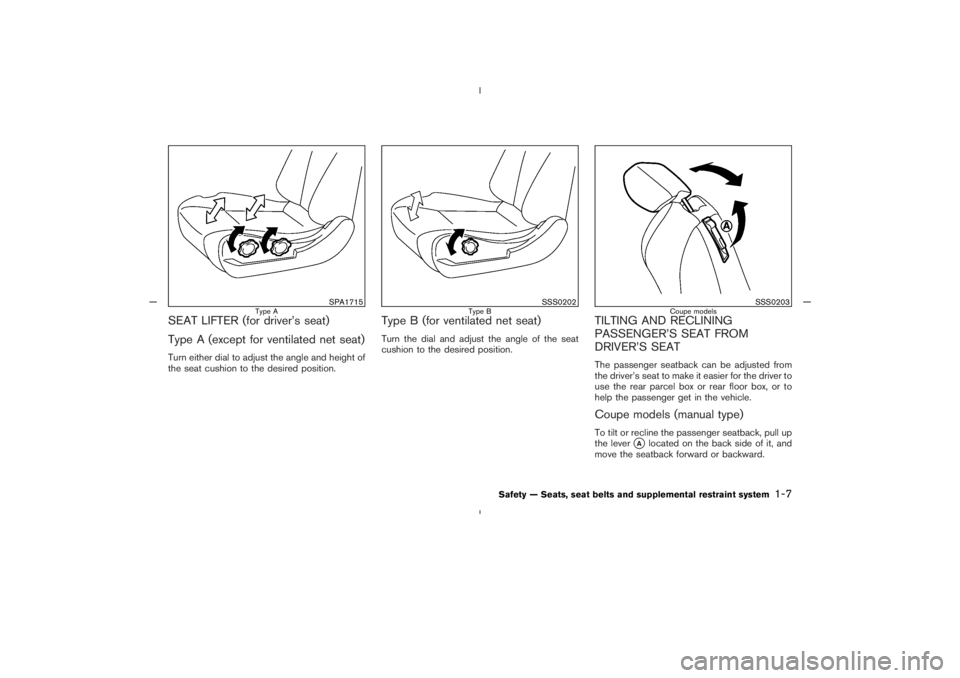

SEAT LIFTER (for driver’s seat)
Type A (except for ventilated net seat)Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
Type B (for ventilated net seat)Turn the dial and adjust the angle of the seat
cushion to the desired position.
TILTING AND RECLINING
PASSENGER’S SEAT FROM
DRIVER’S SEATThe passenger seatback can be adjusted from
the driver’s seat to make it easier for the driver to
use the rear parcel box or rear floor box, or to
help the passenger get in the vehicle.Coupe models (manual type)To tilt or recline the passenger seatback, pull up
the lever
A
located on the back side of it, and
move the seatback forward or backward.
SPA1715
Type A
SSS0202
Type B
SSS0203
Coupe models
Safety — Seats, seat belts and supplemental restraint system
1-7
04.8.23/Z33-D/V5.0
