NISSAN 350Z 2005 Owner´s Manual
Manufacturer: NISSAN, Model Year: 2005, Model line: 350Z, Model: NISSAN 350Z 2005Pages: 279, PDF Size: 3.25 MB
Page 21 of 279
Roadster models (power type)The power seatback tilt switch
B
and the
seatback tilt cancel switch
Care located on the
back side of the passenger seatback as shown.
Tilting/reclining operation:
To tilt the passenger seatback forward, push the
top (
side) of the power seatback tilt
switch
B
for more than 0.5 seconds. The
seatback will automatically tilt forward. To stop
the movement, push the top or bottom of the
switch.
To tilt or adjust the seatback backward, push
and hold the bottom (
side) of the powerseatback tilt switch. While the switch is held
down, the seatback will move backward to the
original position that was last selected using the
reclining switch (located on the seat cushion).
Release the switch to stop the movement.
Operation conditions:
The power seatback tilt switch does not activate
under the following conditions.
when the passenger seat sliding/reclining
switches on the seat cushion are being op-
erated.
when the seat tilt cancel switch is in the
CANCEL position. (See “Seatback tilt cancelswitch” later in this section.)
when the passenger seat belt is fastened.
when the vehicle speed reaches 4 MPH (7
km/h) and more.
The automatic tilting/reclining movement will be
stopped:
when any of the above 4 conditions occur.
when the power seatback tilt switch (top or
bottom) is pushed again.
when the seatback is moved with the soft top
open/close operation.
When this interruption occurs, you cannot move
the seatback backward from the stopped posi-
tion with the power seatback tilt switch. Use the
reclining switch (on the seat cushion) to select
the seatback position.
SSS0273
Roadster models — Type A
SSS0274
Roadster models — Type B
1-8
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 22 of 279
Seatback tilt cancel switch:
When the seatback tilt cancel switch
C
is
pushed to the CANCEL position, the
tilting/reclining operation using the power seat-
back tilt switch
B
will be cancelled. Only the
sliding/reclining switches (located on the seat
cushion) are operational. Push the seatback tilt
cancel switch to the AUTO position to reactivate
the power seatback tilt switch.
This cancel switch is linked with the automatic
passenger seatback tilt function of the soft top
operation. See “Soft top” in the “3. Pre-driving
checks and adjustments” section.
CAUTION
When a child restraint is installed in the
passenger seat, be sure to turn the seat-
back tilt cancel switch to the CANCEL
position. Otherwise, the child restraint
may be damaged.
HEAD RESTRAINT ADJUSTMENTTo raise the head restraint, just pull it up. To
lower, push the lock knob
Aand push the head
restraint down.
The ventilated net seats (if so equipped for
Roadster models) have non-adjustable head
restraints.
SSS0275
SSS0204
Safety — Seats, seat belts and supplemental restraint system
1-9
04.8.23/Z33-D/V5.0
Page 23 of 279
Adjust the head restraints so the center is level
with the center of your ears.
WARNING
Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust-
ment after someone else uses the seat.
PRECAUTIONS ON SEAT BELT
USAGEIf you are wearing your seat belt properly ad-
justed and you are sitting upright and well back
in your seat, your chances of being injured or
killed in an accident and/or the severity of injury
may be greatly reduced. NISSAN strongly en-
courages you and all of your passengers to
buckle up every time you drive, even if your
seating position includes a supplemental air bag.
Most states, provinces or territories re-
quire that seat belts be worn at all times
when a vehicle is being driven.
SSS0178A
SEAT BELTS
1-10
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 24 of 279
WARNING
Every person who drives or rides in
this vehicle should use a seat belt at
all times.
The seat belt should be properly ad-
justed to a snug fit. Failure to do so
may reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury inan accident. Serious injury or death
can occur if the seat belt is not worn
properly.
Always route the shoulder belt over
your shoulder and across your chest.
Never run the belt behind your back,
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder.Position the lap belt as low and snug
as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal
injuries in an accident.
Be sure the seat belt tongue is se-
curely fastened to the proper buckle.
Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
Do not allow more than one person
to use the same seat belt.
Never carry more people in the ve-
hicle than there are seat belts. This
vehicle has only two seating posi-
tions. Never allow anyone to ride in
the luggage area.
If the seat belt warning light glows
continuously while the ignition is
turned ONwith all doors closed and
all seat belts fastened, it may indi-
cate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
SSS0136
Safety — Seats, seat belts and supplemental restraint system
1-11
04.8.23/Z33-D/V5.0
Page 25 of 279

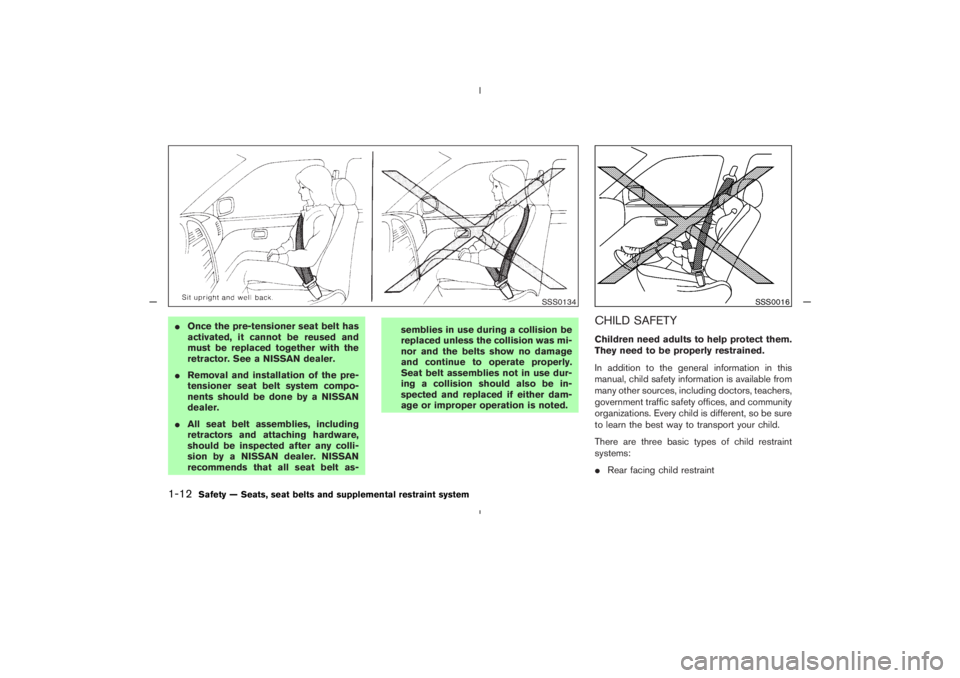

Once the pre-tensioner seat belt has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.
Removal and installation of the pre-
tensioner seat belt system compo-
nents should be done by a NISSAN
dealer.
All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-semblies in use during a collision be
replaced unless the collision was mi-
nor and the belts show no damage
and continue to operate properly.
Seat belt assemblies not in use dur-
ing a collision should also be in-
spected and replaced if either dam-
age or improper operation is noted.
CHILD SAFETYChildren need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.
There are three basic types of child restraint
systems:
Rear facing child restraint
SSS0134
SSS0016
1-12
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 26 of 279

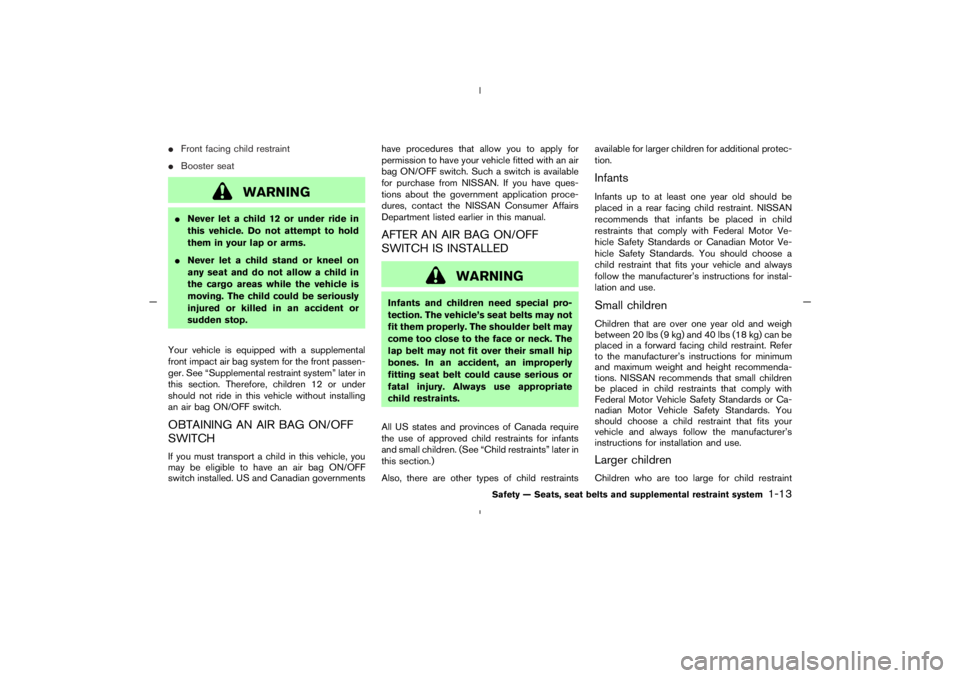

Front facing child restraint
Booster seat
WARNING
Never let a child 12 or under ride in
this vehicle. Do not attempt to hold
them in your lap or arms.
Never let a child stand or kneel on
any seat and do not allow a child in
the cargo areas while the vehicle is
moving. The child could be seriously
injured or killed in an accident or
sudden stop.
Your vehicle is equipped with a supplemental
front impact air bag system for the front passen-
ger. See “Supplemental restraint system” later in
this section. Therefore, children 12 or under
should not ride in this vehicle without installing
an air bag ON/OFF switch.OBTAINING AN AIR BAG ON/OFF
SWITCHIf you must transport a child in this vehicle, you
may be eligible to have an air bag ON/OFF
switch installed. US and Canadian governmentshave procedures that allow you to apply for
permission to have your vehicle fitted with an air
bag ON/OFF switch. Such a switch is available
for purchase from NISSAN. If you have ques-
tions about the government application proce-
dures, contact the NISSAN Consumer Affairs
Department listed earlier in this manual.
AFTER AN AIR BAG ON/OFF
SWITCH IS INSTALLED
WARNING
Infants and children need special pro-
tection. The vehicle’s seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.
All US states and provinces of Canada require
the use of approved child restraints for infants
and small children. (See “Child restraints” later in
this section.)
Also, there are other types of child restraintsavailable for larger children for additional protec-
tion.
InfantsInfants up to at least one year old should be
placed in a rear facing child restraint. NISSAN
recommends that infants be placed in child
restraints that comply with Federal Motor Ve-
hicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.Small childrenChildren that are over one year old and weigh
between 20 lbs (9 kg) and 40 lbs (18 kg) can be
placed in a forward facing child restraint. Refer
to the manufacturer’s instructions for minimum
and maximum weight and height recommenda-
tions. NISSAN recommends that small children
be placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or Ca-
nadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer’s
instructions for installation and use.Larger childrenChildren who are too large for child restraint
Safety — Seats, seat belts and supplemental restraint system
1-13
04.8.23/Z33-D/V5.0
Page 27 of 279

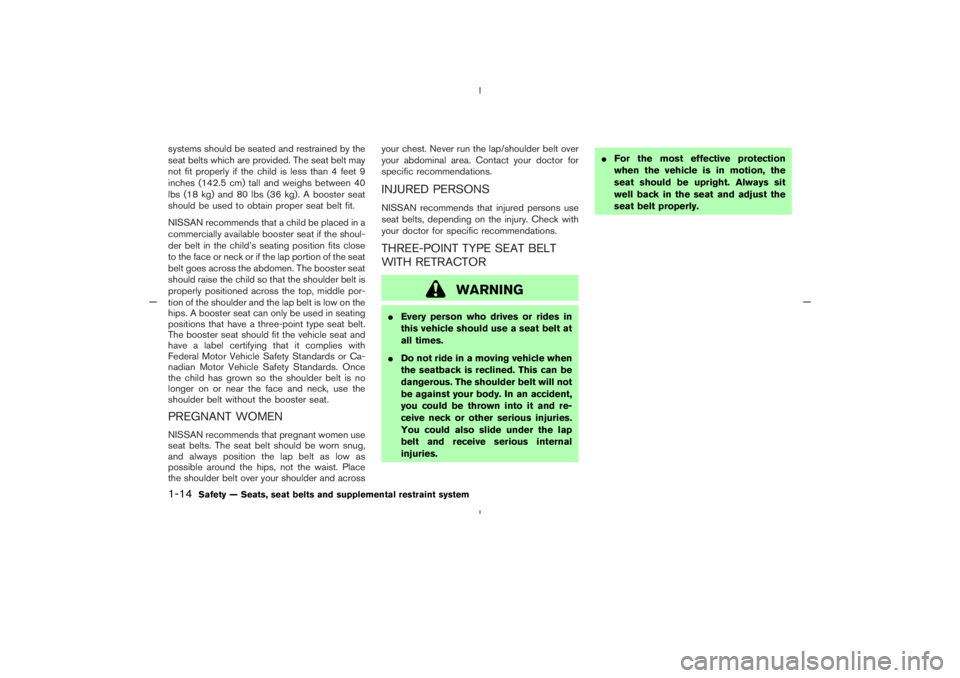

systems should be seated and restrained by the
seat belts which are provided. The seat belt may
not fit properly if the child is less than 4 feet 9
inches (142.5 cm) tall and weighs between 40
lbs (18 kg) and 80 lbs (36 kg). A booster seat
should be used to obtain proper seat belt fit.
NISSAN recommends that a child be placed in a
commercially available booster seat if the shoul-
der belt in the child’s seating position fits close
to the face or neck or if the lap portion of the seat
belt goes across the abdomen. The booster seat
should raise the child so that the shoulder belt is
properly positioned across the top, middle por-
tion of the shoulder and the lap belt is low on the
hips. A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or Ca-
nadian Motor Vehicle Safety Standards. Once
the child has grown so the shoulder belt is no
longer on or near the face and neck, use the
shoulder belt without the booster seat.PREGNANT WOMENNISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and acrossyour chest. Never run the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONSNISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
WARNING
Every person who drives or rides in
this vehicle should use a seat belt at
all times.
Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly.
1-14
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 28 of 279

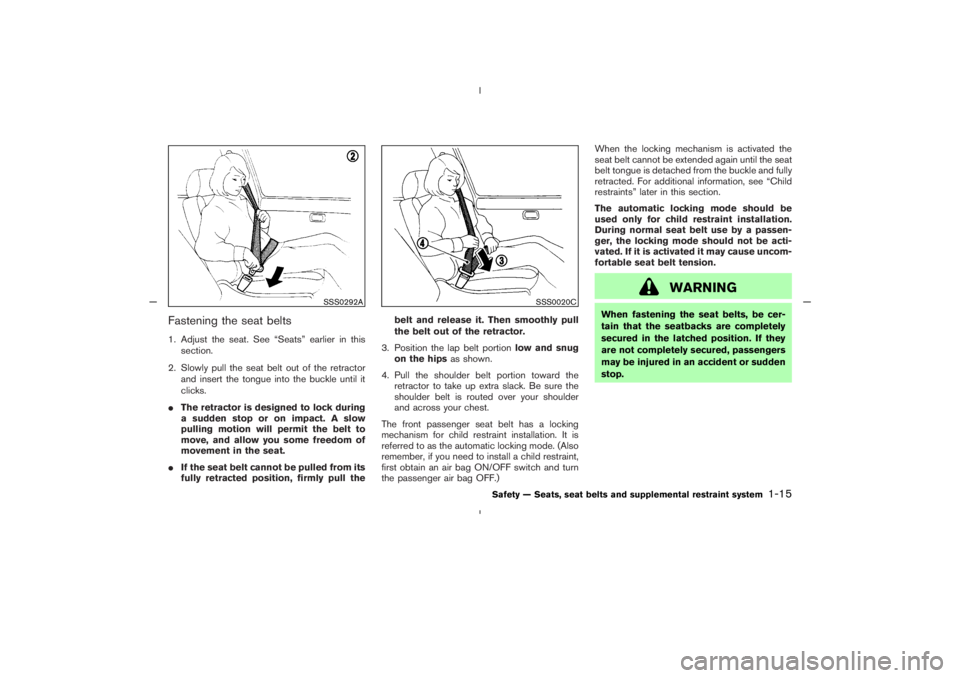

Fastening the seat belts1. Adjust the seat. See “Seats” earlier in this
section.
2. Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until it
clicks.
The retractor is designed to lock during
a sudden stop or on impact. A slow
pulling motion will permit the belt to
move, and allow you some freedom of
movement in the seat.
If the seat belt cannot be pulled from its
fully retracted position, firmly pull thebelt and release it. Then smoothly pull
the belt out of the retractor.
3. Position the lap belt portionlow and snug
on the hipsas shown.
4. Pull the shoulder belt portion toward the
retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat belt has a locking
mechanism for child restraint installation. It is
referred to as the automatic locking mode. (Also
remember, if you need to install a child restraint,
first obtain an air bag ON/OFF switch and turn
the passenger air bag OFF.)When the locking mechanism is activated the
seat belt cannot be extended again until the seat
belt tongue is detached from the buckle and fully
retracted. For additional information, see “Child
restraints” later in this section.
The automatic locking mode should be
used only for child restraint installation.
During normal seat belt use by a passen-
ger, the locking mode should not be acti-
vated. If it is activated it may cause uncom-
fortable seat belt tension.
WARNING
When fastening the seat belts, be cer-
tain that the seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.
SSS0292A
SSS0020C
Safety — Seats, seat belts and supplemental restraint system
1-15
04.8.23/Z33-D/V5.0
Page 29 of 279

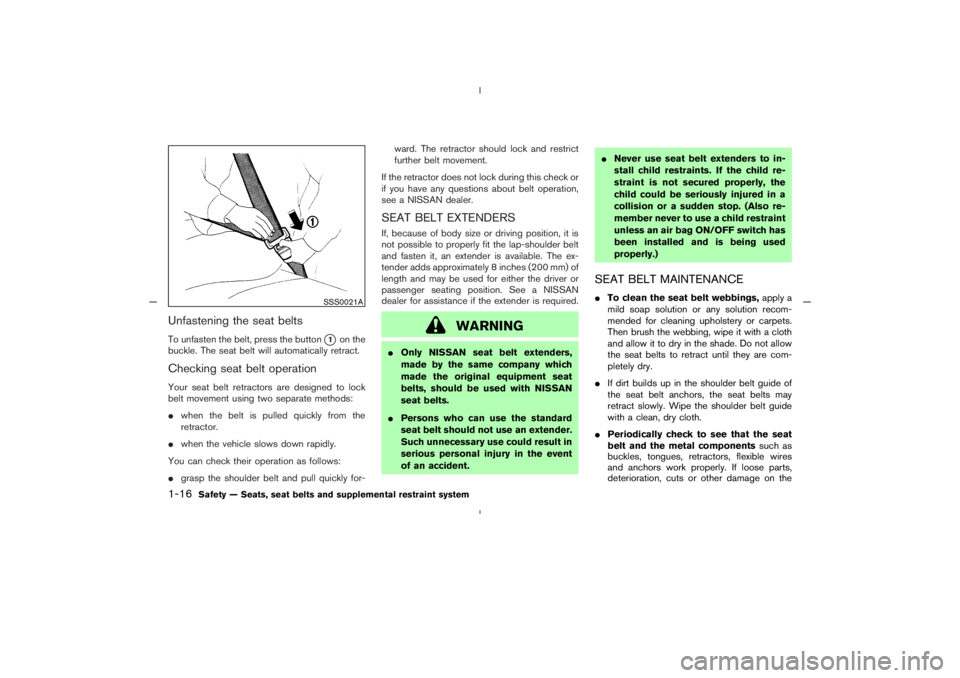

Unfastening the seat beltsTo unfasten the belt, press the button
1
on the
buckle. The seat belt will automatically retract.
Checking seat belt operationYour seat belt retractors are designed to lock
belt movement using two separate methods:
when the belt is pulled quickly from the
retractor.
when the vehicle slows down rapidly.
You can check their operation as follows:
grasp the shoulder belt and pull quickly for-ward. The retractor should lock and restrict
further belt movement.
If the retractor does not lock during this check or
if you have any questions about belt operation,
see a NISSAN dealer.
SEAT BELT EXTENDERSIf, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender is available. The ex-
tender adds approximately 8 inches (200 mm) of
length and may be used for either the driver or
passenger seating position. See a NISSAN
dealer for assistance if the extender is required.
WARNING
Only NISSAN seat belt extenders,
made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.
Persons who can use the standard
seat belt should not use an extender.
Such unnecessary use could result in
serious personal injury in the event
of an accident.Never use seat belt extenders to in-
stall child restraints. If the child re-
straint is not secured properly, the
child could be seriously injured in a
collision or a sudden stop. (Also re-
member never to use a child restraint
unless an air bag ON/OFF switch has
been installed and is being used
properly.)
SEAT BELT MAINTENANCETo clean the seat belt webbings,apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then brush the webbing, wipe it with a cloth
and allow it to dry in the shade. Do not allow
the seat belts to retract until they are com-
pletely dry.
If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
Periodically check to see that the seat
belt and the metal componentssuch as
buckles, tongues, retractors, flexible wires
and anchors work properly. If loose parts,
deterioration, cuts or other damage on the
SSS0021A
1-16
Safety — Seats, seat belts and supplemental restraint system
04.8.23/Z33-D/V5.0
Page 30 of 279

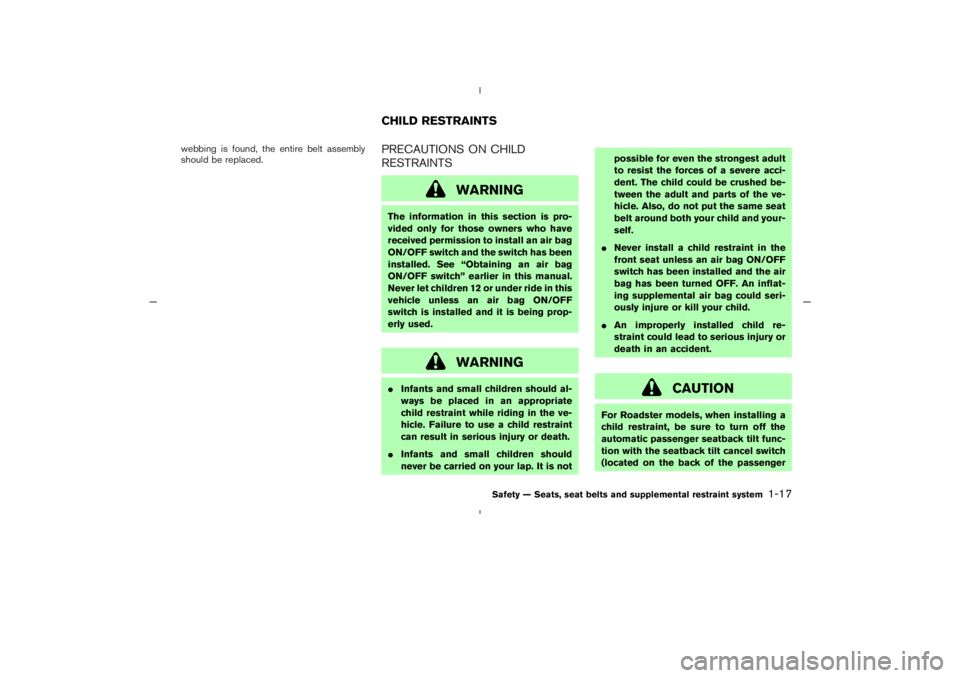

webbing is found, the entire belt assembly
should be replaced.
PRECAUTIONS ON CHILD
RESTRAINTS
WARNING
The information in this section is pro-
vided only for those owners who have
received permission to install an air bag
ON/OFF switch and the switch has been
installed. See “Obtaining an air bag
ON/OFF switch” earlier in this manual.
Never let children 12 or under ride in this
vehicle unless an air bag ON/OFF
switch is installed and it is being prop-
erly used.
WARNING
Infants and small children should al-
ways be placed in an appropriate
child restraint while riding in the ve-
hicle. Failure to use a child restraint
can result in serious injury or death.
Infants and small children should
never be carried on your lap. It is notpossible for even the strongest adult
to resist the forces of a severe acci-
dent. The child could be crushed be-
tween the adult and parts of the ve-
hicle. Also, do not put the same seat
belt around both your child and your-
self.
Never install a child restraint in the
front seat unless an air bag ON/OFF
switch has been installed and the air
bag has been turned OFF. An inflat-
ing supplemental air bag could seri-
ously injure or kill your child.
An improperly installed child re-
straint could lead to serious injury or
death in an accident.
CAUTION
For Roadster models, when installing a
child restraint, be sure to turn off the
automatic passenger seatback tilt func-
tion with the seatback tilt cancel switch
(located on the back of the passenger
CHILD RESTRAINTS
Safety — Seats, seat belts and supplemental restraint system
1-17
04.8.23/Z33-D/V5.0
