11 How do I adjust the display?Screen information — Planview display ........................ 11-2
Screen information — Birdview
TM
display .................... 11-2
Switching between BirdviewTM
and Planview
displays ............................................................................ 11-4
Zooming in and out of the map ....................................... 11-6
Changing the display direction
(in Planview display) ........................................................... 11-7
Scrolling the map ................................................................ 11-9
Displaying the complete route to the destination..... 11-10
Displaying turn list ............................................................ 11-11
Requesting the simulation drive to the
destination .......................................................................... 11-13
Cancel simulation ........................................................ 11-14
Displaying the track .......................................................... 11-15GPS information display ................................................. 11-17
Updating the current vehicle location and
the direction ...................................................................... 11-18
Setting automatic beep sound ...................................... 11-20
Setting the display mode ................................................ 11-21
Adjusting the display brightness ............................. 11-21
Adjusting the display contrast ................................. 11-22
Switching the display color ...................................... 11-24
How to use the
(day/night) button ............. 11-25
Display off ..................................................................... 11-26
Setting display duration............................................. 11-27
How to handle the display ............................................. 11-28
Characteristics of liquid crystal display ................. 11-28
Maintenance of the display....................................... 11-28


04.7.6/Z33-N


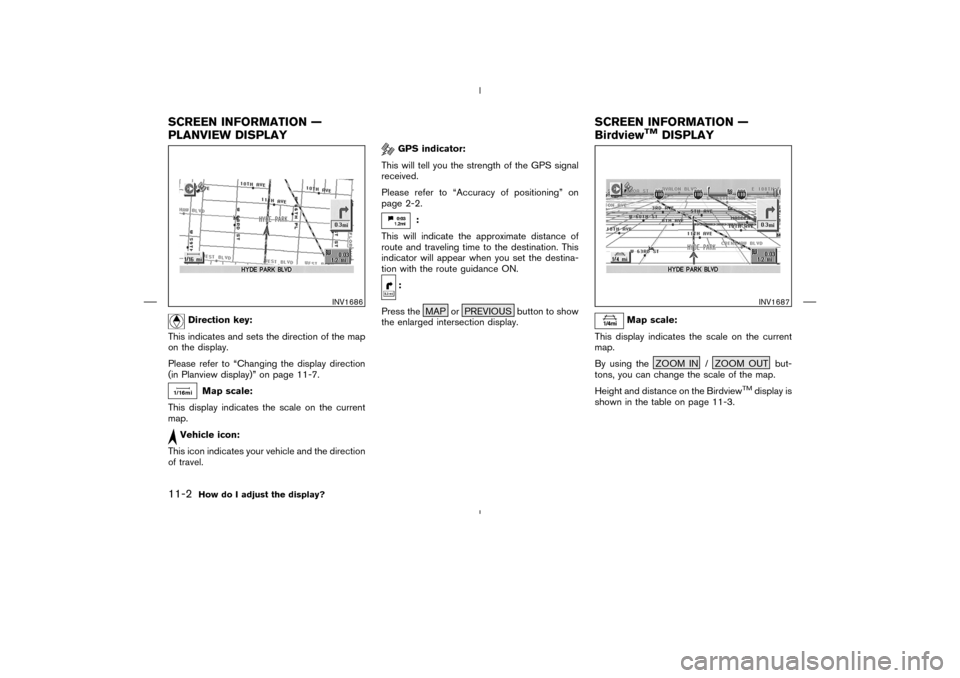

Direction key:
This indicates and sets the direction of the map
on the display.
Please refer to “Changing the display direction
(in Planview display)” on page 11-7.
Map scale:
This display indicates the scale on the current
map.
Vehicle icon:
This icon indicates your vehicle and the direction
of travel.
GPS indicator:
This will tell you the strength of the GPS signal
received.
Please refer to “Accuracy of positioning” on
page 2-2.
:
This will indicate the approximate distance of
route and traveling time to the destination. This
indicator will appear when you set the destina-
tion with the route guidance ON.
:
Press the MAP or PREVIOUS button to show
the enlarged intersection display.
Map scale:
This display indicates the scale on the current
map.
By using the ZOOM IN / ZOOM OUT but-
tons, you can change the scale of the map.
Height and distance on the Birdview
TM
display is
shown in the table on page 11-3.
INV1686
INV1687
SCREEN INFORMATION —
PLANVIEW DISPLAYSCREEN INFORMATION —
Birdview
TM
DISPLAY
11-2
How do I adjust the display?


04.7.6/Z33-N


Height of viewDistance
between gridsDepth of distance
512,000 feet
(160,000 m)160miles
(256 km)approx. 2,240miles
(approx. 1,792 km)
128,000 feet
(40,000 m)40miles
(64 km)approx. 560miles
(approx. 896 km)
64,000 feet
(20,000 m)20miles
(32 km)approx. 280miles
(approx. 448 km)
32,000 feet
(10,000 m)10miles
(16 km)approx. 140miles
(approx. 224 km)
16,000 feet
(4,800 m)4.0miles
(8 km)approx. 70miles
(approx. 112 km)
8,000 feet
(2,400 m)2.0miles
(4 km)approx. 35 miles
(approx. 56 km)
4,000 feet
(1,200 m)1.0mile
(2 km)approx. 17-1/2
miles
(approx. 28 km)
2,000 feet
(600 m)1/2 mile
(1 km)approx. 8-3/4 miles
(approx. 14 km)
1,000 feet
(300 m)1/4 mile
(500 m)approx. 4-3/8 miles
(approx. 7 km)
Height of view: 1,000 feet (300 m) Height of view: 16,000 feet
(4,800 m)
INV1688
INV1689
How do I adjust the display?
11-3


04.7.6/Z33-N


SWITCHING BETWEEN Birdview
TM
and PLANVIEW DISPLAYSThe Birdview
TM
mode displays the view from
above, looking down toward the direction the
vehicle is traveling. This combines the detailed
display close to the vehicle and the long dis-
tance view in one screen.
To change between the Birdview
TM
and Plan-
view, proceed as follows:
1. Press the SETTING button.
INV1690
INV1691
INI0036
11-4
How do I adjust the display?


04.7.6/Z33-N

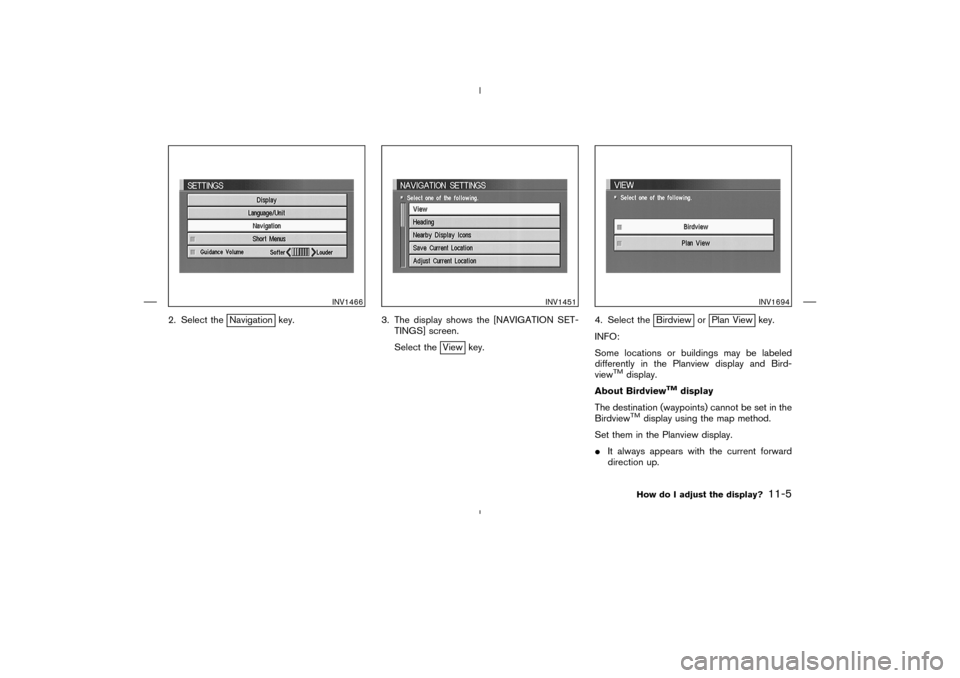

2. Select the
Navigation key. 3. The display shows the [NAVIGATION SET-
TINGS] screen.
Select the
View key.4. Select the
Birdview or
Plan View key.
INFO:
Some locations or buildings may be labeled
differently in the Planview display and Bird-
view
TM
display.
About Birdview
TM
display
The destination (waypoints) cannot be set in the
Birdview
TM
display using the map method.
Set them in the Planview display.

It always appears with the current forward
direction up.
INV1466
INV1451
INV1694
How do I adjust the display?
11-5


04.7.6/Z33-N


When the system is re-drawing the display in
the Birdview
TM
display, the distance the ve-
hicle travels becomes longer, and/or the de-
gree the vehicle turns becomes larger than in
the Planview display in order to complete
re-drawing.

The names of the roads and locations may
differ, depending on where the names appear
on the screen.

In order to avoid having too much detail on
the map, all road names are not always
shown on the screen. When the display
re-draws the map, a road name which is
shown on the previous screen may not ap-
pear on the new screen.Use the ZOOM IN / ZOOM OUT buttons to
change the scale of the display and height view.
Nine map scales are available from the most
detailed (1 : 10,000) to the widest view (1 :
20.48 million).
Each time the ZOOM IN button is pressed, the
map scale will change one level to display a
more detailed map.
Each time the ZOOM OUT button is pressed,
the map scale will change one level to display a
map that shows a wider area.
The chosen map scale will be displayed on the
left side of the screen.
INFO:
By pressing the button repeatedly, you can skip
the levels to reach the map of desired scale.Scale level on the Planview display
Map scale Actual distance
1 : 20.48 million 160 miles (256 km)
1 : 5.12 million 40miles (64 km)
1 : 1.28 million 10miles (16 km)
1 : 320,000 2.5 miles (4 km)
1 : 160,000 1 mile (2 km)
1 : 80,000 1/2 mile (1 km)
1 : 40,000 1/4 mile (500 m)
1 : 20,000 1/8 mile (200 m)
1 : 10,000 1/16 mile (100 m)
Scales on the Birdview
TM
display are listed on
page 11-3.
ZOOMINGIN AND OUT OF THE
MAP
11-6
How do I adjust the display?


04.7.6/Z33-N

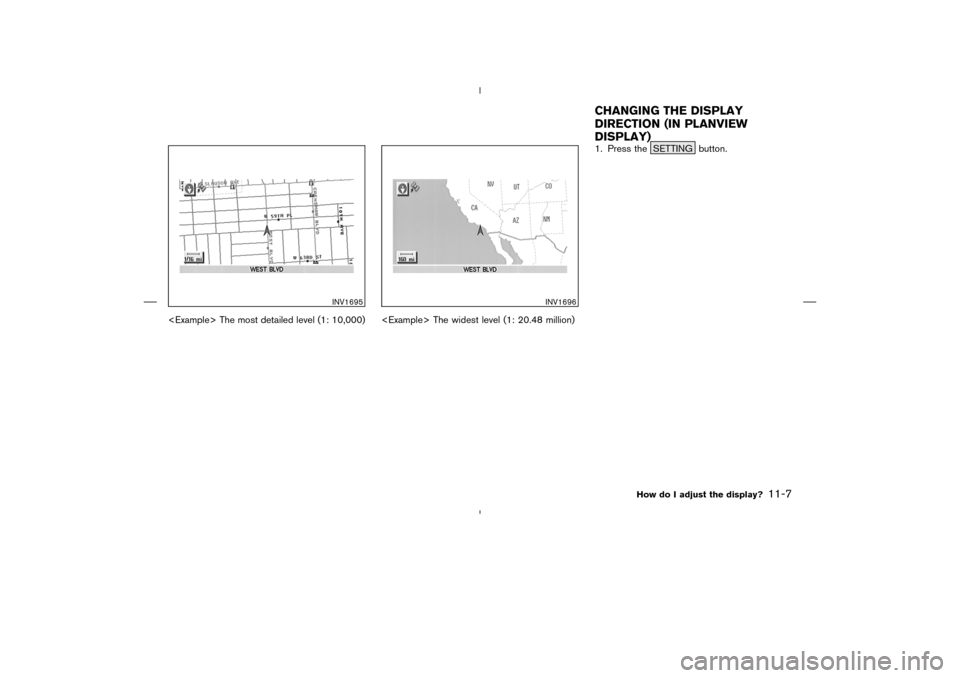

The most detailed level (1: 10,000) The widest level (1: 20.48 million)1. Press the SETTING button.
INV1695
INV1696
CHANGING THE DISPLAY
DIRECTION (IN PLANVIEW
DISPLAY)
How do I adjust the display?
11-7


04.7.6/Z33-N


2. Select the
Navigation key on the [SET-
TINGS] screen.3. Select the
Heading key on the [NAVIGA-
TION SETTINGS] screen.
The [HEADING] screen will be displayed.4. Select the
Heading up key or the
North up
key.
The map is displayed as follows:
Heading up : The map shows the current for-
ward direction up.North up : The map shows North up.
INV1466
INV1698
INV1699
11-8
How do I adjust the display?


04.7.6/Z33-N

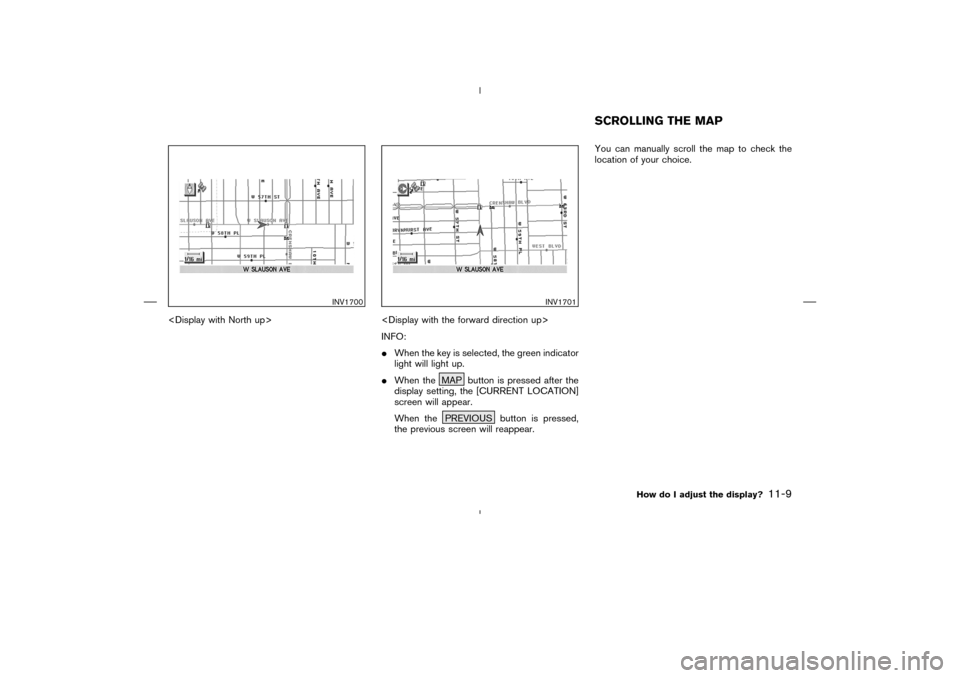

INFO:

When the key is selected, the green indicator
light will light up.

When the MAP button is pressed after the
display setting, the [CURRENT LOCATION]
screen will appear.
When the PREVIOUS button is pressed,
the previous screen will reappear.You can manually scroll the map to check the
location of your choice.
INV1700
INV1701
SCROLLINGTHE MAP
How do I adjust the display?
11-9


04.7.6/Z33-N

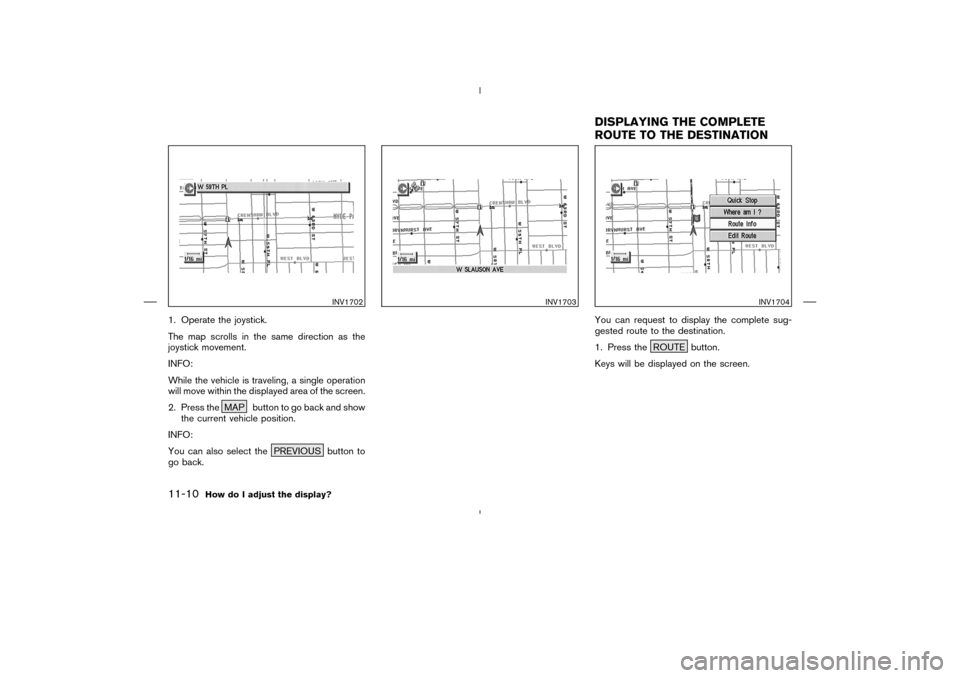

1. Operate the joystick.
The map scrolls in the same direction as the
joystick movement.
INFO:
While the vehicle is traveling, a single operation
will move within the displayed area of the screen.
2. Press the MAP button to go back and show
the current vehicle position.
INFO:
You can also select the PREVIOUS button to
go back.You can request to display the complete sug-
gested route to the destination.
1. Press the ROUTE button.
Keys will be displayed on the screen.
INV1702
INV1703
INV1704
DISPLAYINGTHE COMPLETE
ROUTE TO THE DESTINATION
11-10
How do I adjust the display?


04.7.6/Z33-N
