FOREWORDThank you for purchasing a NISSAN automo-
bile. This user’s manual is for the navigation
system only. This manual contains operating
instructions for the NISSAN Navigation System
offered in the NISSAN 350Z.
Please read this manual carefully to ensure safe
operation of the navigation system.
Please read your vehicle’s Owner’s Manual
first.
Do not remove this manual from the vehicle
when selling this vehicle. The next user of
this navigation system may need the manual.
Because of possible specification changes,
sections of this manual may not apply to your
vehicle.
All information, specifications and illustra-
tions in this manual are those in effect at the
time of printing. NISSAN reserves the right to
change specifications or design at any time
without notice.
04.7.6/Z33-N
Page 2 of 202
04.7.6/Z33-N
Page 3 of 202
Table of
Contents
Introduction
1
How does the NISSAN Navigation System work?
2
What features are available on the NISSAN Navigation System?
3
How do I operate the NISSAN Navigation System?
4
How do I program a destination?
5
How do I use the Point of Interest (POI) feature?
6
How do I use the address book feature?
7
How do I use the avoid area feature?
8
How do I use the automatic rerouting feature?
9
How do I use the voice guidance feature?
10
How do I adjust the display?
11
How do I use the vehicle information?
12
Information on map data discs
13
Troubleshooting guide
14
Index
15
04.7.6/Z33-N
Page 4 of 202
04.7.6/Z33-N
Page 5 of 202
1 IntroductionHow to use this manual ....................................................... 1-2
For safe operation .......................................................... 1-2
Reference symbols .......................................................... 1-2
Safety note .............................................................................. 1-2
Laser product .................................................................... 1-3
04.7.6/Z33-N
Page 6 of 202
This manual uses special words and icons,
organized by function. Please refer to the follow-
ing items and familiarize yourself with them.FOR SAFE OPERATION
WARNING
This is used to indicate the presence of
a hazard that could cause death or se-
rious personal injury. To avoid or reduce
the risk, the procedures must be fol-
lowed precisely.
CAUTION
This is used to indicate the presence of
a hazard that could cause minor or mod-
erate personal injury or damage to your
vehicle. To avoid or reduce the risk, the
procedures must be followed carefully.
NOTE:
This indicates an item to help you under-
stand the maximum performance of your
vehicle. If ignored, it may lead to a mal-function or poor performance.
REFERENCE SYMBOLSINFO:
This indicates information necessary for efficient
use of your vehicle or accessories.
DESTbutton
This is a button on the control panel.Viewkey
This is a select key on the screen. By
selecting this key you can proceed to the
next function.This system is primarily designed to help you
reach your destination, and also performs other
functions as outlined in this manual. However,
you, the driver, must use the system safely and
properly. Information concerning road condi-
tions, traffic signs and the availability of services
may not always be up-to-date.The system is
not a substitute for safe, proper, and legal
driving.
Before using the navigation system, please read
the following safety information. Always use the
system as outlined in this manual.
HOW TO USE THIS MANUAL SAFETY NOTE1-2
Introduction
04.7.6/Z33-N
Page 7 of 202

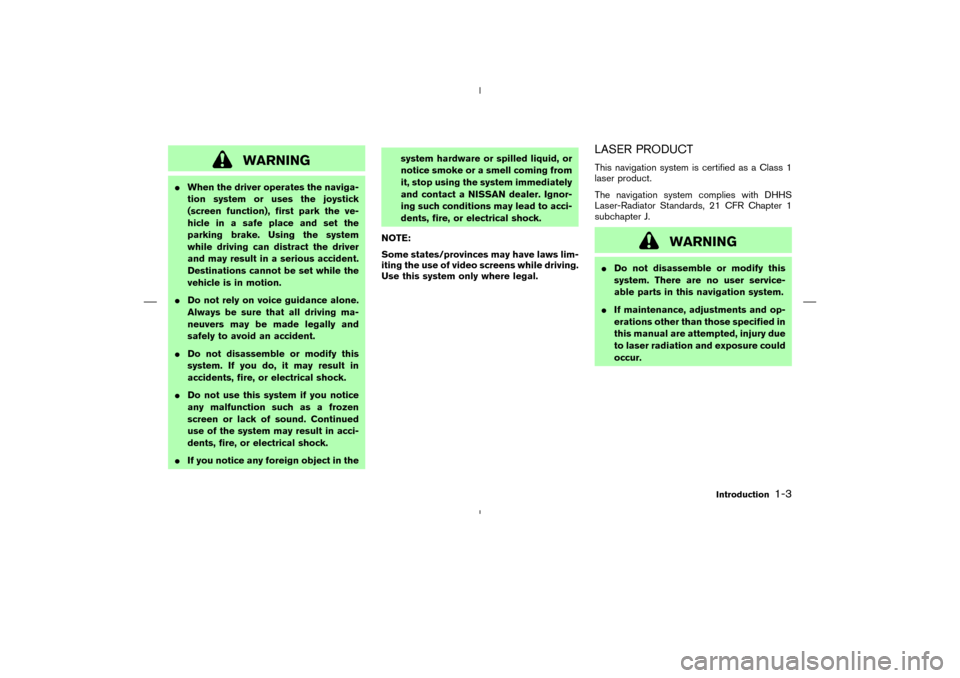

WARNING
When the driver operates the naviga-
tion system or uses the joystick
(screen function), first park the ve-
hicle in a safe place and set the
parking brake. Using the system
while driving can distract the driver
and may result in a serious accident.
Destinations cannot be set while the
vehicle is in motion.
Do not rely on voice guidance alone.
Always be sure that all driving ma-
neuvers may be made legally and
safely to avoid an accident.
Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electrical shock.
Do not use this system if you notice
any malfunction such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dents, fire, or electrical shock.
If you notice any foreign object in thesystem hardware or spilled liquid, or
notice smoke or a smell coming from
it, stop using the system immediately
and contact a NISSAN dealer. Ignor-
ing such conditions may lead to acci-
dents, fire, or electrical shock.
NOTE:
Some states/provinces may have laws lim-
iting the use of video screens while driving.
Use this system only where legal.
LASER PRODUCTThis navigation system is certified as a Class 1
laser product.
The navigation system complies with DHHS
Laser-Radiator Standards, 21 CFR Chapter 1
subchapter J.
WARNING
Do not disassemble or modify this
system. There are no user service-
able parts in this navigation system.
If maintenance, adjustments and op-
erations other than those specified in
this manual are attempted, injury due
to laser radiation and exposure could
occur.
Introduction
1-3
04.7.6/Z33-N
Page 8 of 202
MEMO1-4
Introduction
04.7.6/Z33-N
Page 9 of 202
2 How does the NISSAN Navigation System
work?What is a navigation system? ............................................ 2-2
About the navigation system ....................................... 2-2
What is GPS (Global Positioning System)? ................. 2-2
Accuracy of positioning .................................................. 2-2
Positioning adjustment.................................................... 2-3
Receiving signals from GPS satellites ...................... 2-3
Display of GPS information ........................................... 2-3
Detailed map coverage areas (MCA) for the navigation
system ....................................................................................... 2-3
When a gray road or dark green road is displayed on
the map ............................................................................. 2-4
04.7.6/Z33-N
Page 10 of 202
ABOUT THE NAVIGATION SYSTEMThis navigation system combines the data ob-
tained from the vehicle (by gyro sensor) and from
GPS (Global Positioning System) satellites to
calculate the current location of the vehicle. This
position is then displayed on the screen, allow-
ing route guidance to a destination.GPS is a system developed and operated by the
U.S. Government, covering the entire planet.
This navigation system receives three or more
different radio signals from NAVSTAR (GPS
satellites), orbiting the earth 13,049 miles
(21,000 km) above ground. The data from dif-
ferent sets of signals will be trigonometrically
calculated to obtain the position of the vehicle.
INFO:
The tracking center in the U.S. controls signals
transmitted from GPS satellites. This control
sometimes results in reduced accuracy or no
signal received at all in accordance with govern-
ment requirements.
ACCURACY OF POSITIONINGThe color of the GPS Indicator
on the upper
left corner of the screen indicates positioning as
follows:
Green: positioning is possible and accurate
Yellow: positioning is possible but accuracy
is minimal.
Gray: positioning is not possible
INV1441
WHAT IS A NAVIGATION
SYSTEM?WHAT IS GPS (GLOBAL
POSITIONINGSYSTEM)?2-2
How does the NISSAN Navigation System work?
