dehumidify or ventilate the player com-
pletely.

The player may skip while driving on
rough roads.

The CD player sometimes cannot func-
tion when the passenger compartment
temperature is extremely high. De-
crease the temperature before use.

Only use high quality 4.7 inches (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc or
packaging.

Do not expose the CD to direct sunlight.
CDs that are of poor quality, dirty,
scratched, covered with fingerprints, or
that have pin holes may not work prop-
erly.

The following CDs may not work prop-
erly:

Copy control compact discs (CCCD)

Recordable compact discs (CD-R)

Rewritable compact discs (CD-RW)

Do not use the following CDs as they
may cause the CD player to malfunction.

3.1 in (8 cm) discs

CDs that are not round

CDs with a paper label

CDs that are warped, scratched, or
have abnormal edges

This audio system can only play prere-
corded CDs. CDs with MP3 or WMA
format cannot be written in this audio
system.

If the CD cannot be played, one of the
following messages will be displayed.
SAA0480
4-14
Display screen, heater, air conditioner and audio systems


06.1.17/Z33-D/V5.0


CHECK DISC:

Confirm that the CD is inserted cor-
rectly (the label side is facing up,
etc.).

Confirm that the CD is not bent or
warped and it is free of scratches.
PUSH EJECT:
This is a malfunction due to excessive
temperature inside the player. Remove
the CD by pushing the EJECT button.
After a short time, reinsert the CD. The
CD can be played when the temperature
of the player returns to normal.
UNPLAYABLE:
The file is unplayable in this audio sys-
tem (only MP3 or WMA CD in the audio
system with a CD changer).
Compact Disc (CD) with MP3 or
WMA (for the audio system with a
6CD changer)Explanation of terms:

MP3 — MP3 is short for Moving Pictures
Experts Group Audio Layer 3. MP3 is the
most well-known compressed digital audio
file format. This format allows for near “CD
quality” sound, but at a fraction of the size ofnormal audio files. MP3 conversion of an
audio track from CD-ROM can reduce the file
size by approximately 10:1 ratio (Sampling:
44.1 kHz, Bit rate: 128 kbps) with virtually no
perceptible loss in quality. MP3 compression
removes the redundant and irrelevant parts of
a sound signal that the human ear doesn’t
hear.

WMA — Windows Media Audio (WMA) is a
compressed audio format created by Mi-
crosoft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.

Bit rate — Bit rate denotes the number of bits
per second used by a digital music file. The
size and quality of a compressed digital audio
file is determined by the bit rate used when
encoding the file.

Sampling frequency — Sampling frequency is
the rate at which the samples of a signal are
converted from analog to digital (A/D conver-
sion) per second.

Multisession — Multisession is one of the
methods for writing data to media. Writing
data once to the media is called a singlesession, and writing more than once is called
a multisession.

ID3/WMA Tag — The ID3/WMA tag is the
part of the encoded MP3 or WMA file that
contains information about the digital music
file such as song title, artist, album title,
encoding bit rate, track time duration, etc.
ID3 tag information is displayed on the
Album/Artist/Track title line on the display.
* Windows
and Windows Media
are either
registered trademarks and trademarks of Mi-
crosoft Corporation in the United States
and/or other countries.
Display screen, heater, air conditioner and audio systems
4-15


06.1.17/Z33-D/V5.0


Playback order:
Playback order of the CD with compressed files
(MP3/WMA) is as illustrated above.

The names of folders not containing
MP3/WMA files are not shown in the display.
If there is a file in the top level of the disc,
“ROOT” is displayed.

The playback order is the order in which the
files were written by the writing software.
Therefore, the files might not play in the
desired order.
SAA1025
4-16
Display screen, heater, air conditioner and audio systems


06.1.17/Z33-D/V5.0

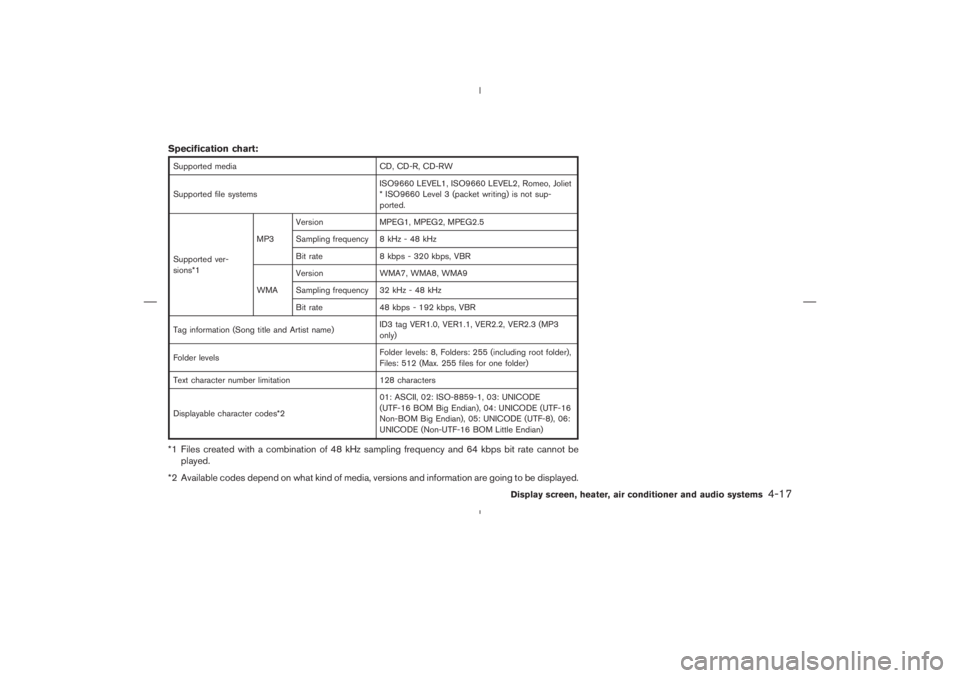

Specification chart:Supported media CD, CD-R, CD-RW
Supported file systemsISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not sup-
ported.
Supported ver-
sions*1MP3Version MPEG1, MPEG2, MPEG2.5
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR
WMAVersion WMA7, WMA8, WMA9
Sampling frequency 32 kHz - 48 kHz
Bit rate 48 kbps - 192 kbps, VBR
Tag information (Song title and Artist name)ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3
only)
Folder levelsFolder levels: 8, Folders: 255 (including root folder),
Files: 512 (Max. 255 files for one folder)
Text character number limitation 128 characters
Displayable character codes*201: ASCII, 02: ISO-8859-1, 03: UNICODE
(UTF-16 BOM Big Endian), 04: UNICODE (UTF-16
Non-BOM Big Endian), 05: UNICODE (UTF-8), 06:
UNICODE (Non-UTF-16 BOM Little Endian)*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be
played.
*2 Available codes depend on what kind of media, versions and information are going to be displayed.
Display screen, heater, air conditioner and audio systems
4-17


06.1.17/Z33-D/V5.0

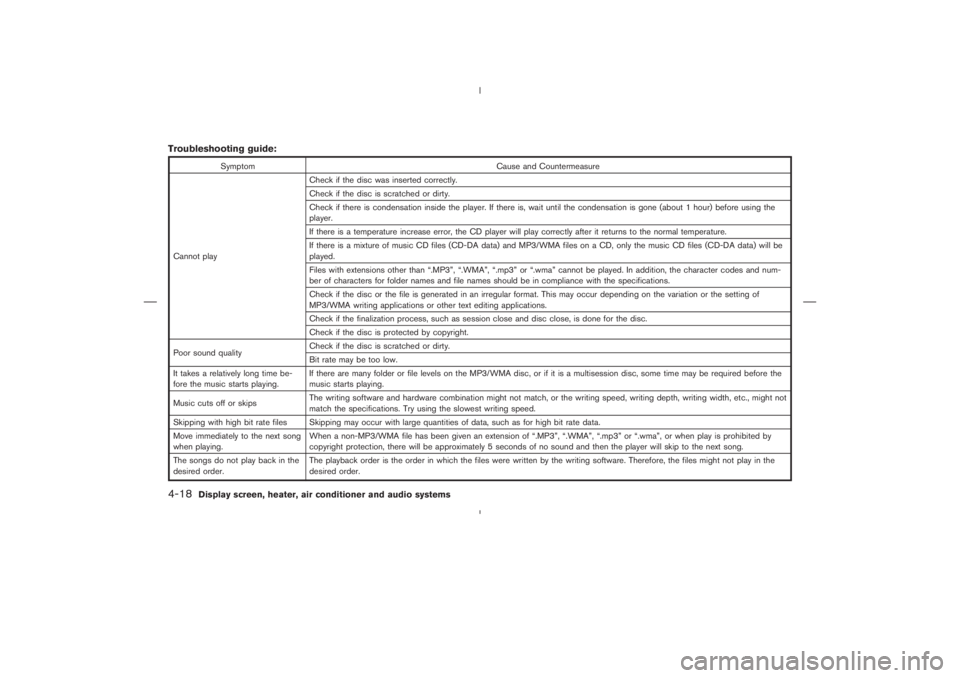

Troubleshooting guide:
Symptom Cause and Countermeasure
Cannot playCheck if the disc was inserted correctly.
Check if the disc is scratched or dirty.
Check if there is condensation inside the player. If there is, wait until the condensation is gone (about 1 hour) before using the
player.
If there is a temperature increase error, the CD player will play correctly after it returns to the normal temperature.
If there is a mixture of music CD files (CD-DA data) and MP3/WMA files on a CD, only the music CD files (CD-DA data) will be
played.
Files with extensions other than “.MP3”, “.WMA”, “.mp3” or “.wma” cannot be played. In addition, the character codes and num-
ber of characters for folder names and file names should be in compliance with the specifications.
Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the setting of
MP3/WMA writing applications or other text editing applications.
Check if the finalization process, such as session close and disc close, is done for the disc.
Check if the disc is protected by copyright.
Poor sound qualityCheck if the disc is scratched or dirty.
Bit rate may be too low.
It takes a relatively long time be-
fore the music starts playing.If there are many folder or file levels on the MP3/WMA disc, or if it is a multisession disc, some time may be required before the
music starts playing.
Music cuts off or skipsThe writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not
match the specifications. Try using the slowest writing speed.
Skipping with high bit rate files Skipping may occur with large quantities of data, such as for high bit rate data.
Move immediately to the next song
when playing.When a non-MP3/WMA file has been given an extension of “.MP3”, “.WMA”, “.mp3” or “.wma”, or when play is prohibited by
copyright protection, there will be approximately 5 seconds of no sound and then the player will skip to the next song.
The songs do not play back in the
desired order.The playback order is the order in which the files were written by the writing software. Therefore, the files might not play in the
desired order.
4-18
Display screen, heater, air conditioner and audio systems


06.1.17/Z33-D/V5.0


FM-AM RADIO WITH COMPACT
DISC (CD) PLAYER1. MUTE button
2. SEEK/APS REW, APS FF/TRACK
CHANGE button3. DISP (Display) CHANGE button
4. SCAN tuning button
5. CD play button
6. RADIO (FM/AM) band select button
7. MIX play button8. RPT (Repeat) play button
9. CD EJECT button
10. TUNE/FF⋅REW button
11. ON⋅OFF/VOL (Volume) control knob
12. Audio/Clock display
13. Station and preset select button
14. AUDIO button
Audio main operationON⋅OFF/Volume control:
Turn the ignition key to ACC or ON, and then
push the ON⋅OFF/VOL (Volume) control knob
while the system is off to call up the mode (radio
or CD) which was playing immediately before
the system was turned off. When no CD is
loaded, the radio will come on. While the system
is on, pushing the ON⋅OFF/VOL control knob
turns the system off.
Turn the ON⋅OFF/VOL control knobto adjust
the volume.
AUDIO button (BASS, TREBLE, FADER,
BALANCE):
Press the AUDIO button to change the selecting
mode as follows.
BASS→TREBLE→FADE→BALANCE
To adjust Bass, Treble, Fader and Balance, push
SAA1298
Display screen, heater, air conditioner and audio systems
4-19


06.1.17/Z33-D/V5.0


the AUDIO button until the desired mode
(BASS, TREBLE, FADER or BALANCE) ap-
pears in the display. Push the TUNE
(
,
) or SEEK (
,
) button
to adjust Bass and Treble to the desired level.
Use the TUNE or SEEK button also to adjust
Fader or Balance modes. Fader adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the
right and left speakers.
After 10 seconds, the radio or CD display
reappears. Once the sound quality is set to the
desired level, push the AUDIO button repeatedly
until the radio or CD display appears.
MUTE button:
Push the MUTE button to mute the audio sound.
Push the MUTE button again to release the
mute.
DISP DISPLAY CHANGE:
Push the DISP button for more than 1.5 seconds
to adjust the digital clock display. See “Clock” in
the “2. Instruments and controls” section for the
clock adjustment operation.
When the DISP button is pushed for less than
1.5 seconds while the compact disc is being
played, the display will show the CD play time.
FM-AM radio operation
RADIO (FM/AM) band select:
Pushing the RADIO band select button will
change the band as follows:
AM→FM1→FM2→AM
When RADIO band select button is pushed
while the ignition switch is in the ACC or ON, the
radio will come on at the station last played.
The last station played will also come on when
the power knobis turned to ON.
If a compact disc is playing when the RADIO
band select button is pushed, the compact disc
will automatically be turned off and the last radio
station played will come on.
The FM stereo indicator ST will glow during FM
stereo reception. When the stereo broadcast
signal is weak, the radio will automatically
change from stereo to monaural reception.
TUNE (Tuning):WARNING
The radio should not be tuned whiledriving so full attention may be given to
vehicle operation.
Push the TUNE button
or
for manual
tuning. To move quickly through the channels,
push and hold either side of the TUNE button
down for more than 0.5 seconds.
SEEK tuning:
Push the SEEK button
or
to tune
from high to low or low to high frequencies and
stops at the next broadcasting station.
SCANtuning:
Push the SCAN tuning button to tune from low
to high frequencies and stops at each broad-
casting station for 5 seconds. Pushing the but-
ton again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next sta-
tion.
Station memory operations:
Twelve stations can be set for the FM band (six
for FM1, six for FM2) and six stations can be set
for the AM band.
4-20
Display screen, heater, air conditioner and audio systems


06.1.17/Z33-D/V5.0


1. Tune to the desired station using the SEEK,
SCAN or TUNE button.
2. Select the desired station and keep pushing
any of the desired station select buttons (1 to
6) until a beep sound is heard. (The radio
mutes when the select button is pushed.)
3. The channel indicator will then come on and
the sound will resume. Memorizing is now
complete.
4. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if
the fuse blows, the radio memory will be
erased. In that case, reset the desired sta-
tions.Compact disc (CD) player operationTurn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing.
After loading the disc, the number of tracks on
the disc will appear on the display.
If the radio is already operating, it will automati-
cally turn off and the compact disc will play.
CAUTION
Do not force the compact disc into the
slot. This could damage the player.
If the system has been turned off while the
compact disc was playing, pushing the
ON⋅OFF/VOL control knobwill start the com-
pact disc.
3.1 in (8 cm) diameter compact discs can also
be used without an adapter.
CD PLAY:
When the CD (CD play) button is pushed with
the system off and the compact disc loaded, the
system will turn on and the compact disc will
start to play.
When the CD button is pushed with the com-
pact disc loaded but the radio playing, the radio
will automatically be turned off and the compact
disc will start to play.
DISP CD PLAY TIME:
Push the DISP button for less than 1.5 seconds
while the compact disc is being played to show
the play time on the display.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button is
released, the compact disc will return to normal
play speed.
APS (Automatic Program
Search) FF, APS REW/
TRACK CHANGE:
When the(APS FF) button is pushed
while the compact disc is being played, the
program next to the present one will start to play
from its beginning. Push several times to skip
through programs. The compact disc will ad-
vance the number of times the button is pushed.
(When the last program on the compact disc is
skipped through, the first program will be
played.) When the
(APS REW) button is
pushed, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.
SCANtuning:
When the SCAN tuning button is pushed while
the CD is being played, the beginning of all the
Display screen, heater, air conditioner and audio systems
4-21


06.1.17/Z33-D/V5.0


tracks of CD will be played for 10 seconds in
sequence.
Pushing the button again during this 10 second
period will stop SCAN tuning. If the SCAN
tuning button is not pushed within 10 seconds,
SCAN tuning moves to the next CD program.MIX MIX play:
When the MIX button is pushed while the com-
pact disc is being played, programs will be
played at random, not following the sequence on
the compact disc. The same program may be
repeated twice. Push the MIX button again to
return to the normal play mode.
REPEAT (RPT) play:
When the RPT button is pushed while the
compact disc is being played, the play pattern
can be changed as follows:
The display shows the following symbol; (no
mark): 1 CD RPT (Repeat)
1: 1 TR (Track) RPT
CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it. (except for 3.1 in [8 cm] diam-
eter compact discs)
If the following message appears on the display,
push the EJECT button:

CHECK DISC — Eject the disc, and check
whether it is damaged or
inserted upside-down.

CD ERR F * — Eject the disc, and check
whether it is a proper audio
CD. (* shows a different
number according to the au-
dio condition.)
CD INindicator:
CD IN indicator appears on the display when the
CD is loaded.
4-22
Display screen, heater, air conditioner and audio systems


06.1.17/Z33-D/V5.0


FM-AM-SAT RADIO WITH
COMPACT DISC (CD) CHANGER1. CD LOAD button
2. SEEK/APS REW, APS FF/TRACK
CHANGE button3. DISP (Display) CHANGE button
4. SCAN tuning button
5. CD PLAY button
6. RADIO (FM/AM/SAT*) band select button
7. PTY (Program type), CAT (Category)* select
button8. RPT (Repeat) play/CLOCK button
9. CD EJECT button
10. TUNE/FF⋅REW button
11. ON⋅OFF/VOL (Volume) control knob
12. Audio/Clock display
13. Station and preset (FM/AM/SAT*)/CD in-
sert or CD play select button
14. AUDIO button
* No satellite radio reception is available when
the SAT band option is selected unless op-
tional satellite receiver and antenna are in-
stalled, and an XM
®
or SIRIUS
TM
satellite
radio service subscription is active.
It may take some time to receive the activation
signal after subscribing to the XMor SIRI-
US
TM
satellite radio provider. After receiving
the activation signal, an available channel list
will be automatically updated in the radio. For
XM, turn the ignition switch from the LOCK
to ACC position to update the channel list.
Satellite radio is not available in Alaska and
Hawaii.
Audio main operationHead unit:
The auto loudness circuit enhances the low
frequency range automatically in both radio re-
ception and CD playback.
SAA1299
Display screen, heater, air conditioner and audio systems
4-23


06.1.17/Z33-D/V5.0
