and falls simultaneously. Support the
top by hand so it does not strike the
body.
b. Lower the rear part of the top and push it
onto the top storage lid. The top is locked to
the storage lid, but the bottom of the rear part
is not closed tightly.
CAUTION

After closing the top manually, have
the system checked and/or repaired
by a NISSAN dealer as soon as pos-
sible.

Avoid leaving the vehicle outside for
long periods or driving at high
speeds. The rear of the top is not
locked completely, and this may al-
low wind and rain to get into your
vehicle.CARE OF THE SOFT TOP AND THE
VEHICLE BODYTo use your Roadster safely and comfortably,you need to observe all the warnings and cau-
tions shown in the previous pages. Also, to
maintain a good appearance of the soft top and
the vehicle body, you need to care for them by
cleaning and/or washing properly.
CAUTION

Do not use an automatic car wash or
a high-pressure car wash to clean
your vehicle. The top may be dam-
aged and water may leak into the
inside of the vehicle.

Store the vehicle with the top closed
if it is not to be used for long periods.
Keeping the top stowed for long pe-
riods may cause wrinkles on the sur-
face of the top.
See “Cleaning exterior” in the “7. Appearance
and care” section for detailed instructions.

A protective clear tape is applied to the top
storage lid painted surface where the soft top
contacts the surface. When the top is fully
closed, the tape may transmit some light,
visible from the inside of the vehicle. This
does not affect the water and air tightness of
the seal.
The inner surface of the trunk and top storage
lids may show a fibrous, or marbled pattern.
This is the normal appearance of the material
used in these parts.
3-22
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0


OPENER OPERATIONTo open the fuel-filler door, push the opener
switch located below the instrument panel. To
lock, close the fuel-filler door securely.
FUEL-FILLER CAP
1To remove the fuel-filler cap, turn it counter-
clockwise.
2Hang the string of the cap on the hook
Aas
shown while refueling.
The fuel-filler cap is a ratcheting type. Tighten
the cap clockwise until ratcheting clicks are
heard.
WARNING

Gasoline is extremely flammable andhighly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames
or sparks near the vehicle when refu-
eling.

Fuel may be under pressure. Turn the
cap a third of a turn, and wait for any
“hissing” sound to stop to prevent
fuel from spraying out and possibly
causing personal injury. Then remove
SPA1508
SPA1509A
FUEL-FILLER DOOR
Pre-driving checks and adjustments
3-23


06.1.17/Z33-D/V5.0

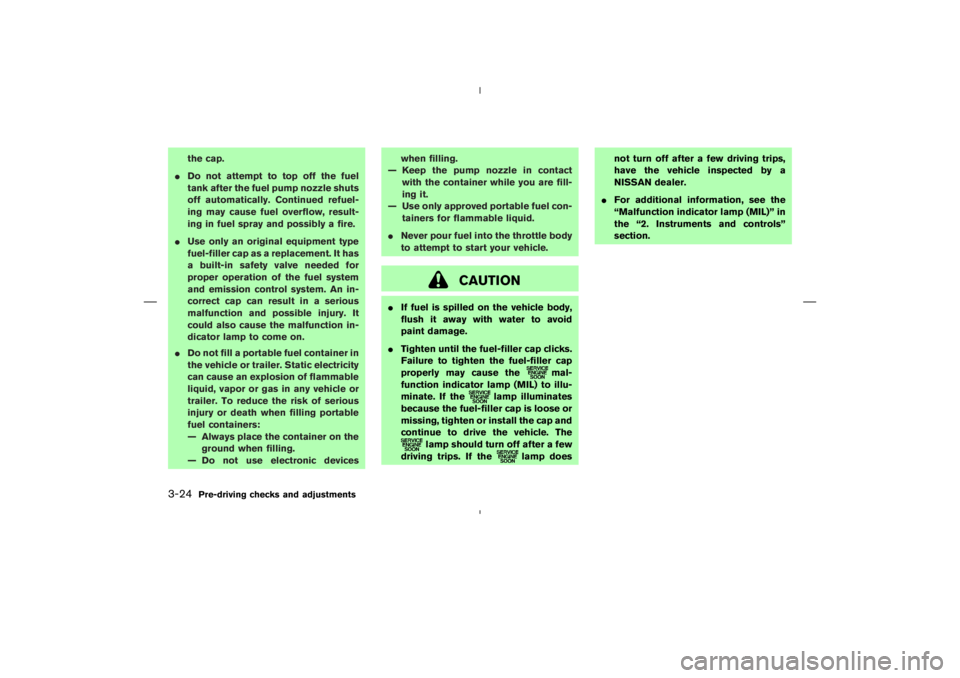

the cap.

Do not attempt to top off the fuel
tank after the fuel pump nozzle shuts
off automatically. Continued refuel-
ing may cause fuel overflow, result-
ing in fuel spray and possibly a fire.

Use only an original equipment type
fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious
malfunction and possible injury. It
could also cause the malfunction in-
dicator lamp to come on.

Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
— Always place the container on the
ground when filling.
— Do not use electronic deviceswhen filling.
— Keep the pump nozzle in contact
with the container while you are fill-
ing it.
— Use only approved portable fuel con-
tainers for flammable liquid.

Never pour fuel into the throttle body
to attempt to start your vehicle.
CAUTION

If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.

Tighten until the fuel-filler cap clicks.
Failure to tighten the fuel-filler cap
properly may cause the
mal-
function indicator lamp (MIL) to illu-
minate. If the
lamp illuminates
because the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
lamp should turn off after a few
driving trips. If the
lamp doesnot turn off after a few driving trips,
have the vehicle inspected by a
NISSAN dealer.

For additional information, see the
“Malfunction indicator lamp (MIL)” in
the “2. Instruments and controls”
section.
3-24
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0

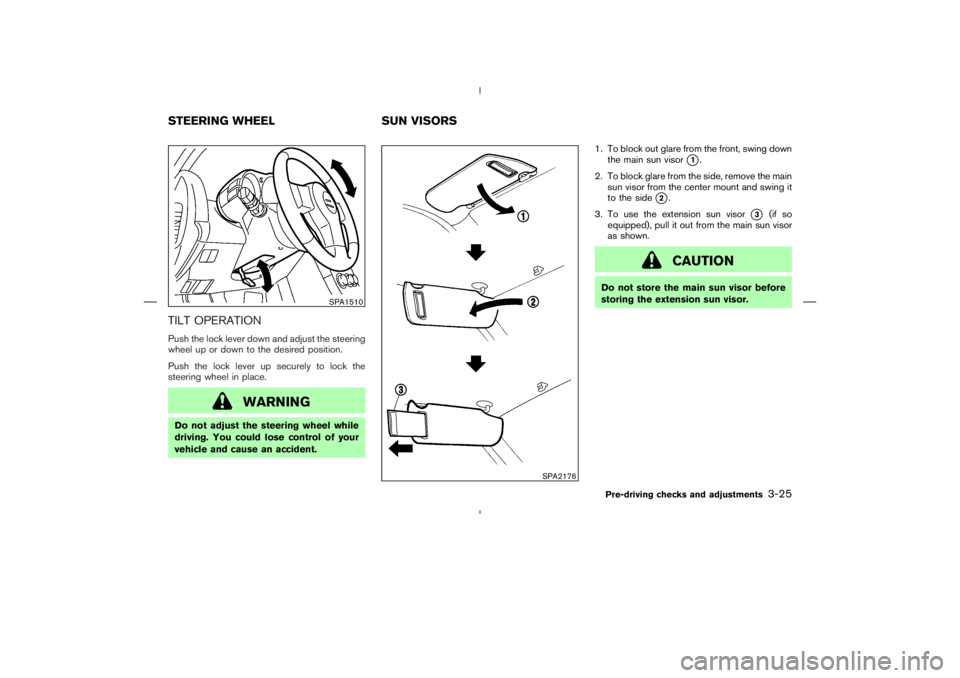

TILT OPERATIONPush the lock lever down and adjust the steering
wheel up or down to the desired position.
Push the lock lever up securely to lock the
steering wheel in place.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.1. To block out glare from the front, swing down
the main sun visor
1.
2. To block glare from the side, remove the main
sun visor from the center mount and swing it
to the side
2.
3. To use the extension sun visor
3
(if so
equipped), pull it out from the main sun visor
as shown.
CAUTION
Do not store the main sun visor before
storing the extension sun visor.
SPA1510
SPA2176
STEERING WHEEL SUN VISORS
Pre-driving checks and adjustments
3-25


06.1.17/Z33-D/V5.0

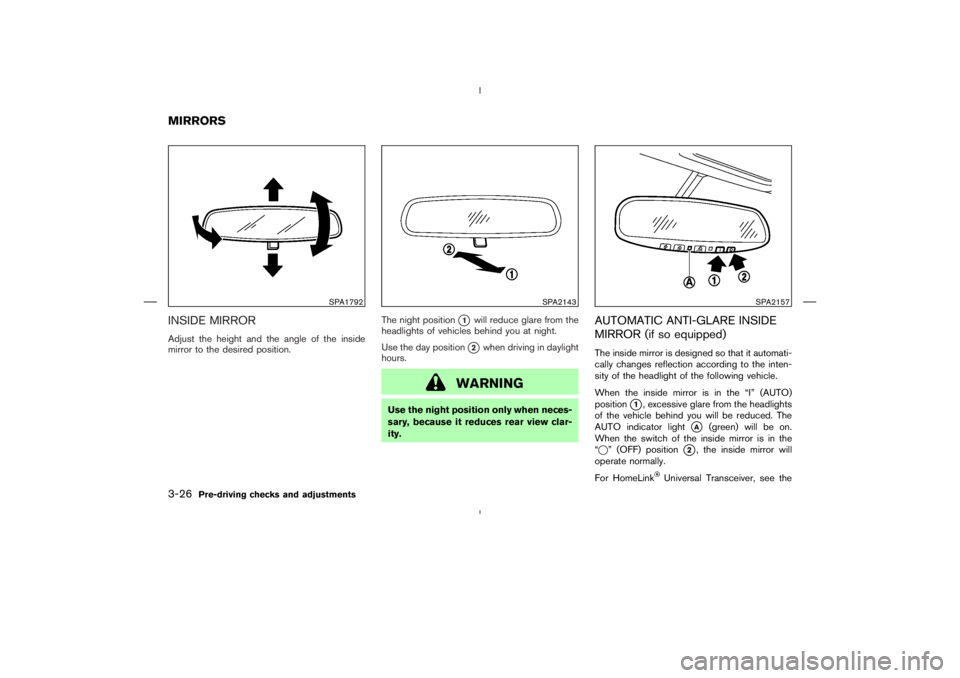

INSIDE MIRRORAdjust the height and the angle of the inside
mirror to the desired position.The night position
1
will reduce glare from the
headlights of vehicles behind you at night.
Use the day position2when driving in daylight
hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clar-
ity.
AUTOMATIC ANTI-GLARE INSIDE
MIRROR (if so equipped)The inside mirror is designed so that it automati-
cally changes reflection according to the inten-
sity of the headlight of the following vehicle.
When the inside mirror is in the “I” (AUTO)
position
1, excessive glare from the headlights
of the vehicle behind you will be reduced. The
AUTO indicator light
A
(green) will be on.
When the switch of the inside mirror is in the
“” (OFF) position
2, the inside mirror will
operate normally.
For HomeLink
Universal Transceiver, see the
SPA1792
SPA2143
SPA2157
MIRRORS3-26
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0


description in the “2. Instruments and controls”
section.

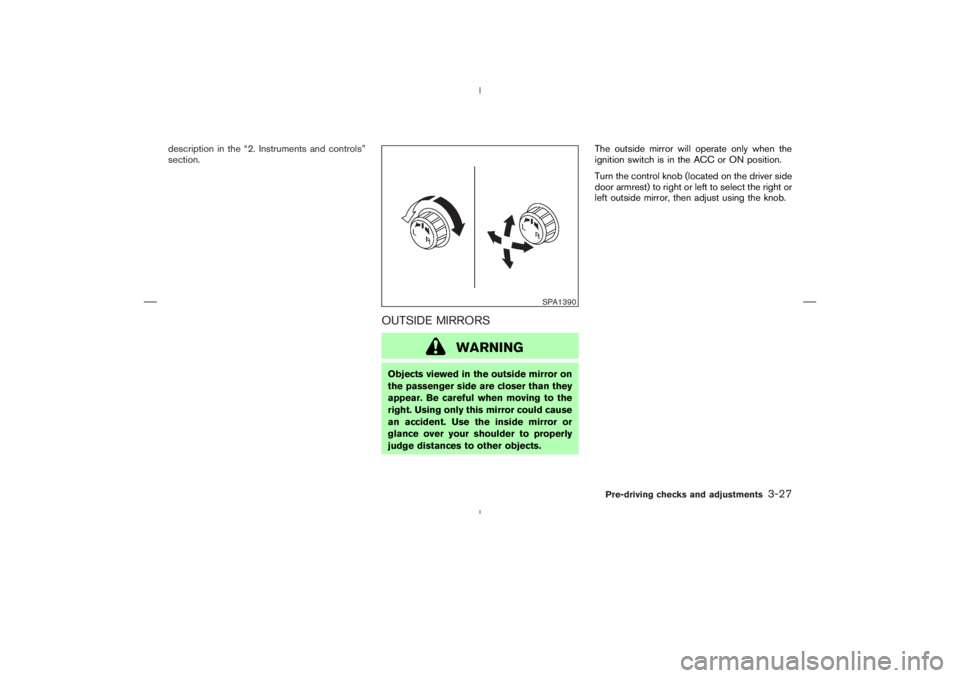

OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the control knob(located on the driver side
door armrest) to right or left to select the right or
left outside mirror, then adjust using the knob.
SPA1390
Pre-driving checks and adjustments
3-27


06.1.17/Z33-D/V5.0

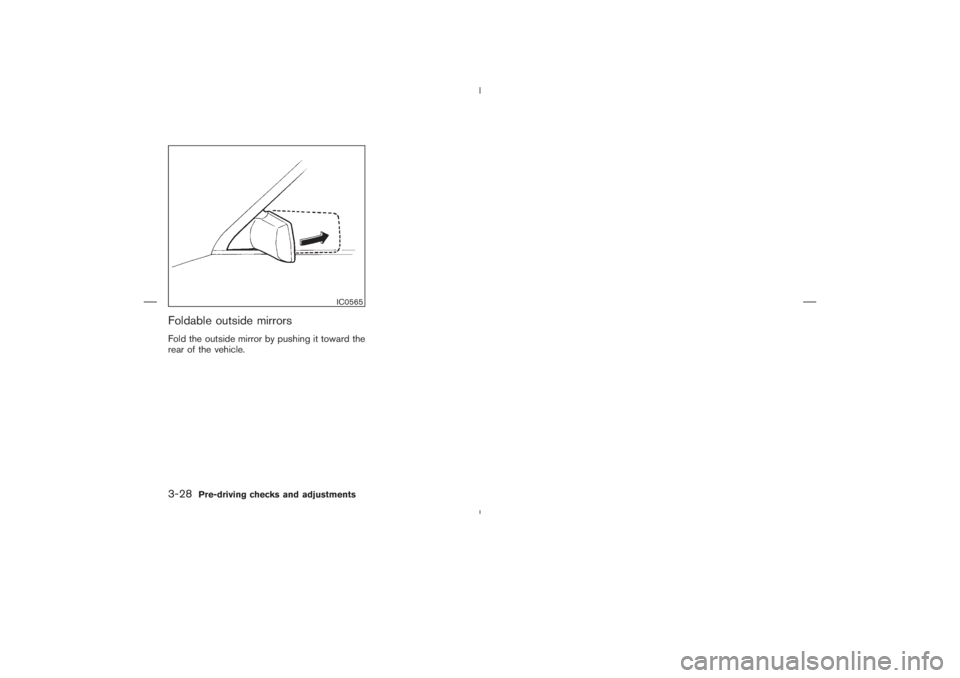

Foldable outside mirrorsFold the outside mirror by pushing it toward the
rear of the vehicle.
IC0565
3-28
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0

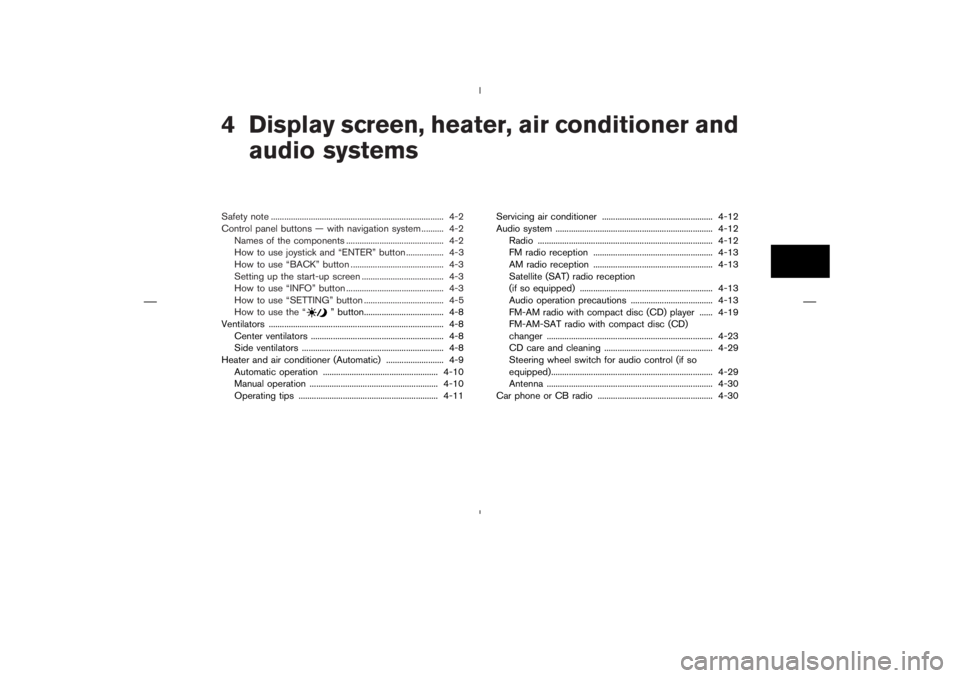

4 Display screen, heater, air conditioner and
audio systemsSafety note .............................................................................. 4-2
Control panel buttons — with navigation system .......... 4-2
Names of the components ............................................ 4-2
How to use joystick and “ENTER” button ................. 4-3
How to use “BACK” button .......................................... 4-3
Setting up the start-up screen ..................................... 4-3
How to use “INFO” button ............................................ 4-3
How to use “SETTING” button .................................... 4-5
How to use the “
” button.................................... 4-8
Ventilators ............................................................................... 4-8
Center ventilators ............................................................ 4-8
Side ventilators ................................................................ 4-8
Heater and air conditioner (Automatic) .......................... 4-9
Automatic operation .................................................... 4-10
Manual operation .......................................................... 4-10
Operating tips ............................................................... 4-11Servicing air conditioner .................................................. 4-12
Audio system ....................................................................... 4-12
Radio ............................................................................... 4-12
FM radio reception ...................................................... 4-13
AM radio reception ...................................................... 4-13
Satellite (SAT) radio reception
(if so equipped) ............................................................ 4-13
Audio operation precautions ..................................... 4-13
FM-AM radio with compact disc (CD) player ...... 4-19
FM-AM-SAT radio with compact disc (CD)
changer ........................................................................... 4-23
CD care and cleaning ................................................. 4-29
Steering wheel switch for audio control (if so
equipped)......................................................................... 4-29
Antenna ........................................................................... 4-30
Car phone or CB radio .................................................... 4-30


06.1.17/Z33-D/V5.0

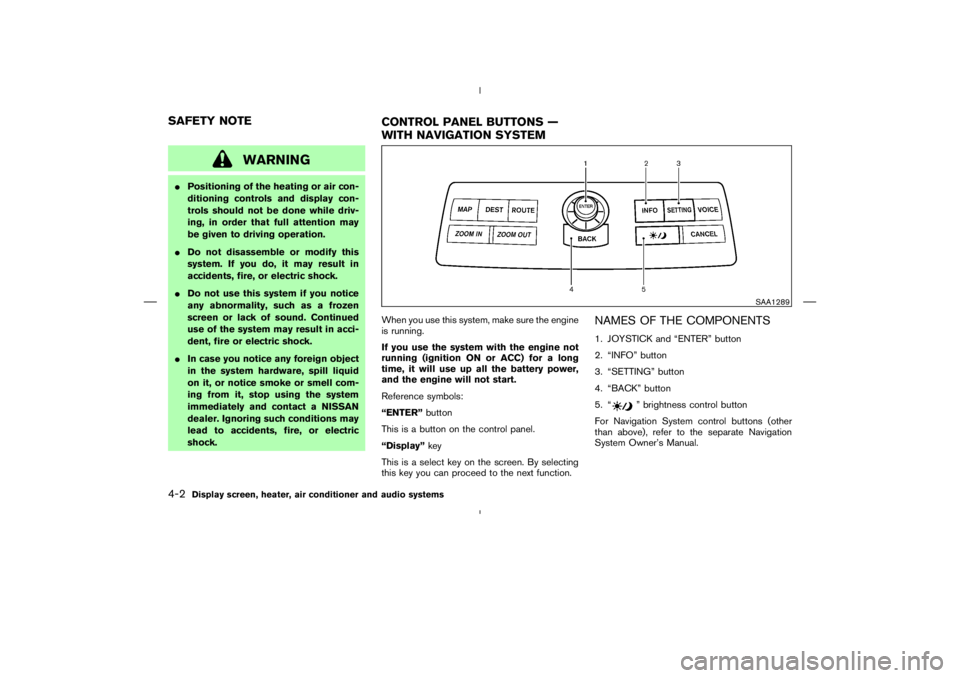

WARNING

Positioning of the heating or air con-
ditioning controls and display con-
trols should not be done while driv-
ing, in order that full attention may
be given to driving operation.

Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.

Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.

In case you notice any foreign object
in the system hardware, spill liquid
on it, or notice smoke or smell com-
ing from it, stop using the system
immediately and contact a NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire, or electric
shock.When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ONor ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
Reference symbols:
“ENTER”button
This is a button on the control panel.
“Display”key
This is a select key on the screen. By selecting
this key you can proceed to the next function.
NAMES OF THE COMPONENTS1. JOYSTICK and “ENTER” button
2. “INFO” button
3. “SETTING” button
4. “BACK” button
5. “
” brightness control button
For Navigation System control buttons (other
than above), refer to the separate Navigation
System Owner’s Manual.
SAA1289
SAFETY NOTE
CONTROL PANEL BUTTONS —
WITH NAVIGATION SYSTEM4-2
Display screen, heater, air conditioner and audio systems


06.1.17/Z33-D/V5.0

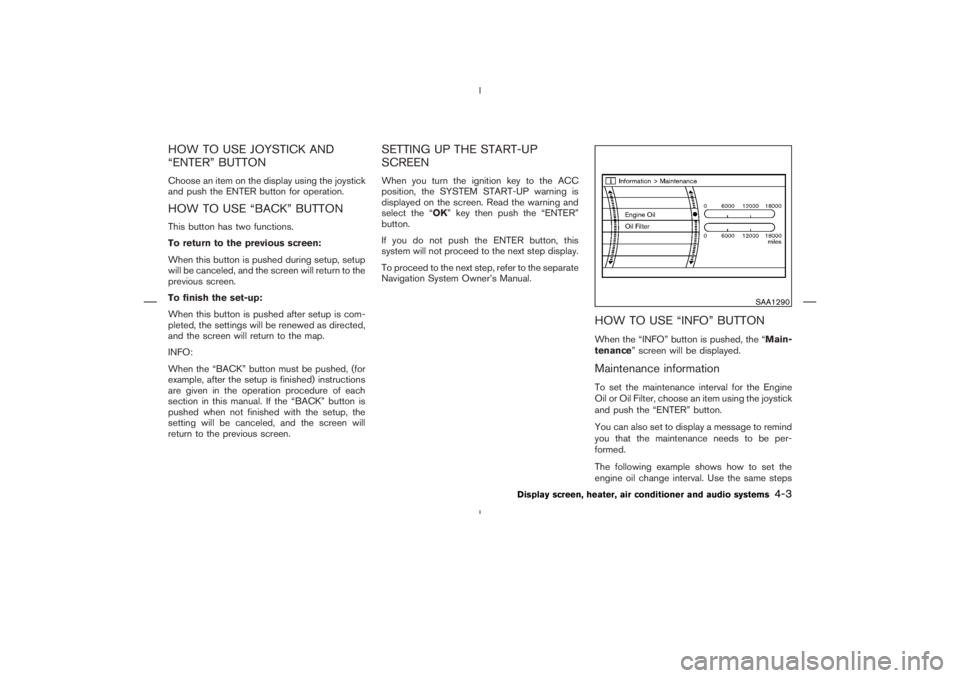

HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick
and push the ENTER button for operation.HOW TO USE “BACK” BUTTONThis button has two functions.
To return to the previous screen:
When this button is pushed during setup, setup
will be canceled, and the screen will return to the
previous screen.
To finish the set-up:
When this button is pushed after setup is com-
pleted, the settings will be renewed as directed,
and the screen will return to the map.
INFO:
When the “BACK” button must be pushed, (for
example, after the setup is finished) instructions
are given in the operation procedure of each
section in this manual. If the “BACK” button is
pushed when not finished with the setup, the
setting will be canceled, and the screen will
return to the previous screen.
SETTING UP THE START-UP
SCREENWhen you turn the ignition key to the ACC
position, the SYSTEM START-UP warning is
displayed on the screen. Read the warning and
select the “OK” key then push the “ENTER”
button.
If you do not push the ENTER button, this
system will not proceed to the next step display.
To proceed to the next step, refer to the separate
Navigation System Owner’s Manual.
HOW TO USE “INFO” BUTTONWhen the “INFO” button is pushed, the “Main-
tenance” screen will be displayed.Maintenance informationTo set the maintenance interval for the Engine
Oil or Oil Filter, choose an item using the joystick
and push the “ENTER” button.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil change interval. Use the same steps
SAA1290
Display screen, heater, air conditioner and audio systems
4-3


06.1.17/Z33-D/V5.0
