be followed.For additional information, see the
appropriate maintenance log shown in the
NISSAN Service and Maintenance Guide.BRAKE BOOSTERCheck the brake booster function as follows:
1. With the engine off, press and release the
brake pedal several times. When brake pedal
movement (distance of travel) remains the
same from one pedal application to the next,
continue on to the next step.
2. While depressing the brake pedal, start the
engine. The pedal height should drop a little.
3. With the brake pedal depressed, stop the
engine. Keeping the pedal depressed for
about 30 seconds, the pedal height should
not change.
4. Run the engine for one minute without de-
pressing the brake pedal, then turn it off.
Depress the brake pedal several times. The
pedal travel distance will decrease gradually
with each depression as the vacuum is re-
leased from the booster.
If the brakes do not operate properly, see a
NISSAN dealer.Some vehicles are equipped with engine com-
partment and passenger compartment fuse
boxes that use only type
A
fuses. Other ve-
hicles are equipped with typeA
fuses in the
engine compartment fuse box and type
Bfuses
in the passenger compartment fuse box.
Type
Afuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type
A
fuses can be installed in the engine
compartment and passenger compartment fuse
boxes.If a type
A
fuse is used to replace a type
B
fuse, the type
A
fuse will not be level with the
fuse pocket as shown in the illustration. This will
not affect the performance of the fuse. Make
sure the fuse is installed in the fuse box securely.
Type
B
fuses cannot be installed in the under-
hood fuse boxes. Only use type
A
fuses in the
underhood fuse boxes.
SDI1751
SDI1752
FUSES
8-22
Maintenance and do-it-yourself


06.1.17/Z33-D/V5.0


ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and headlight
switch are OFF.2. Open the engine hood and remove the cover
on the battery and the fuse/fusible link holder.
3. Remove the fuse/fusible link holder cover by
pushing the tabs
1
and lifting the cover
2.
4. Remove the fuse with the fuse puller. The
fuse puller is located in the passenger com-
partment fuse box.
5. If the fuse is open
A, replace it with a new
fuse
B. Spare fuses are stored in the pas-
senger compartment fuse box.
6. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
SDI1479B
SDI1753
Maintenance and do-it-yourself
8-23


06.1.17/Z33-D/V5.0


PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight
switch are OFF.2. Open the fuse box lid
1.
3. Pinch the fuse perpendicularly with the fuse
puller
2
and pull it out.4. If the fuse is open
A, replace it with a new
fuse
B. Spare fuses
3
are stored in the
fuse box.
5. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
SDI1962
SDI1754
8-24
Maintenance and do-it-yourself


06.1.17/Z33-D/V5.0


Replace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.
Recommended battery: CR2025 or equiva-
lentMake sure that the⊕side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch the circuit board
and the battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it gets wet, immediately wipe it com-
pletely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
SDI1608
KEYFOB BATTERY
REPLACEMENT
Maintenance and do-it-yourself
8-25


06.1.17/Z33-D/V5.0


1
Front view
1. Headlight (low-beam, high-beam)
2. Spot light
3. Front park light
4. Front turn signal light
5. Front side marker light2
Rear view (Coupe),
3
Rear view (Roadster)
6. Luggage compartment light (Coupe) or Trunk
light (Roadster)
7. High-mounted stop light
8. Rear combination light
(Side marker, Stop/Tail)
9. License plate lights
10. Rear combination light
(Back-up, Turn signal)
SDI1950
LIGHTS8-26
Maintenance and do-it-yourself


06.1.17/Z33-D/V5.0


HEADLIGHTS
ReplacingIf replacement is required, see a NISSAN dealer.
Xenon headlight bulb:
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” in
the “2. Instruments and controls” sec-
tion.
CAUTION
Use the same number and wattage as
originally installed:
Bulb no. (Wattage)
D2S (35W) - Xenon low/high-beam
Maintenance and do-it-yourself
8-27


06.1.17/Z33-D/V5.0


EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) BulbNo.
Front turn signal light* 28/8 3457NA
Front park light* 5 T10
Front side marker light* (LED) —
Rear combination light (Upper)
Stop/Tail* (LED) —
Side marker* (LED) —
Rear combination light (Lower)
Back-up* 21 T20
Turn signal* 21 T20
License plate light (x 2) 5 T10
High-mounted stop light* (LED) —
Spot light 8 —
Luggage compartment light (Coupe) 5 —
Trunk light (Roadster)* 3.4 —
Vanity mirror light 1.8 —
Rear floor box light* 1.4 —
*: See a NISSAN dealer for replacement.
Replacement proceduresAll other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens and/or
cover.
MDI0006
8-28
Maintenance and do-it-yourself


06.1.17/Z33-D/V5.0


Interior light (Roadster)
Be careful not to snap the nails
Aon the plastic
cover when removing it.
SDI1450A
SDI1572
SDI1779SDI1451
Maintenance and do-it-yourself
8-29


06.1.17/Z33-D/V5.0


TIRE PRESSURE
Tire pressure monitoring system
(TPMS)This vehicle is equipped with the tire pressure
monitoring system (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit, one or more of
your tires is significantly under-inflated. The sys-
tem also displays pressure of all tires (except the
spare tire) on the trip computer by sending a
signal from a sensor that is installed in each
wheel.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h). Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving).
For more details, refer to “Trip computer” and
“Low tire pressure warning light” in the “2.
Instruments and controls” section, “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section, and “Flat tire” in the “6. In
case of emergency” section.
Tire inflation pressureCheck the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “COLD TIRE PRESSURE” heading.
The Tire and Loading Information label is
affixed to the driver side center pillar. Tire
pressures should be checked regularly
because:

Most tires naturally lose air over time.

Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curbwhile
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
SDI1401A
WHEELS AND TIRES
8-30
Maintenance and do-it-yourself


06.1.17/Z33-D/V5.0

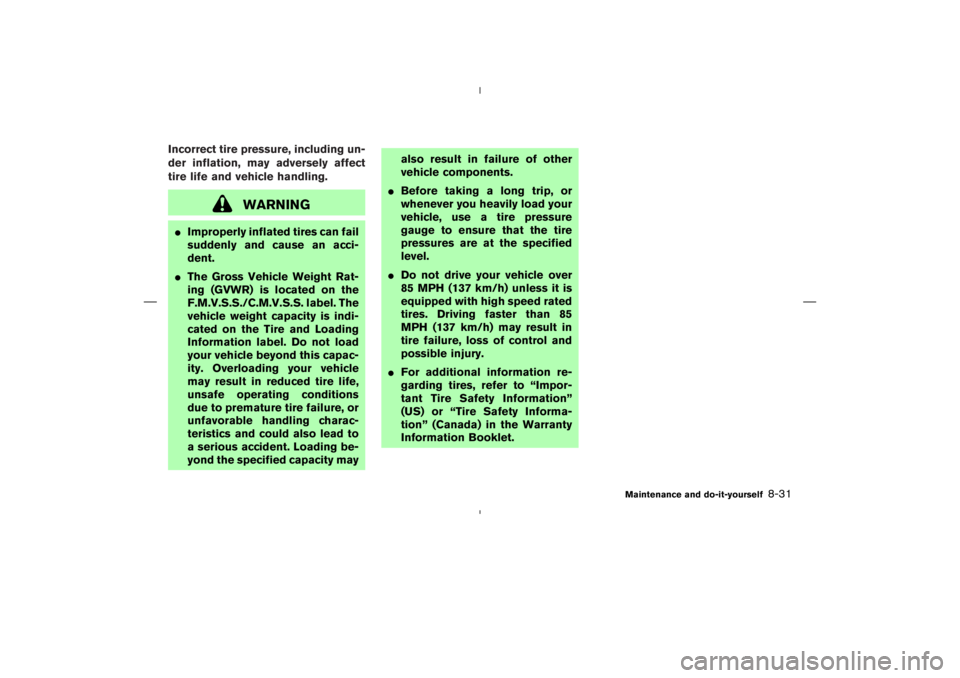

Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING

Improperly inflated tires can fail
suddenly and cause an acci-
dent.

The Gross Vehicle Weight Rat-
ing (GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. label. The
vehicle weight capacity is indi-
cated on the Tire and Loading
Information label. Do not load
your vehicle beyond this capac-
ity. Overloading your vehicle
may result in reduced tire life,
unsafe operating conditions
due to premature tire failure, or
unfavorable handling charac-
teristics and could also lead to
a serious accident. Loading be-
yond the specified capacity mayalso result in failure of other
vehicle components.

Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.

Do not drive your vehicle over
85 MPH (137 km/h) unless it is
equipped with high speed rated
tires. Driving faster than 85
MPH (137 km/h) may result in
tire failure, loss of control and
possible injury.

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.
Maintenance and do-it-yourself
8-31
