NISSAN 350Z 2006 Owner´s Manual
Manufacturer: NISSAN, Model Year: 2006, Model line: 350Z, Model: NISSAN 350Z 2006Pages: 297, PDF Size: 3.36 MB
Page 211 of 297
MEMO6-14
In case of emergency
06.1.17/Z33-D/V5.0
Page 212 of 297
7 Appearance and careCleaning exterior ................................................................... 7-2
Washing ............................................................................ 7-2
Waxing ............................................................................... 7-3
Removing spots .............................................................. 7-3
Underbody ........................................................................ 7-3
Glass .................................................................................. 7-3
Aluminum alloy wheels .................................................. 7-4
Chrome parts ................................................................... 7-4
Tire dressing .................................................................... 7-4Cleaning interior .................................................................... 7-4
Floor mats ......................................................................... 7-5
Seat belts ......................................................................... 7-5
Corrosion protection ............................................................ 7-6
Most common factors contributing to vehicle
corrosion ........................................................................... 7-6
Environmental factors influence the rate of
corrosion ........................................................................... 7-6
To protect your vehicle from corrosion ..................... 7-6
06.1.17/Z33-D/V5.0
Page 213 of 297
In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
In the following cases, please wash your vehicle
as soon as possible to protect the paint surface.
After a rainfall to prevent possible damage
from acid rain
After driving on coastal roads
When contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get on
the paint surface
When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGWash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or a
general purpose dish-washing liquid mixed with
clean, lukewarm (never hot) water.
CAUTION
Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.
Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.
Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
For Roadster models, observe the
following:
•Do not use an automatic car wash
or a high pressure car wash. The
soft top may be damaged.
•Avoid applying direct water pres-
sure, such as high pressured water
from household hoses, on the lin-
ing of the soft top and vehicle
body. Avoid applying continuouswater on the parts around the soft
top and the windows. These may
cause water to leak into the inside of
your vehicle.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
Soft top care and cleaning (Roadster
models)Proper care and handling should be observed to
maintain a good appearance of the soft top.
Improper care may cause the top cloth’s surface
to stiffen, stain, or mat. Follow the instructions
shown in this section.
It is not necessary to wash the soft top every
time you wash the vehicle body, but clean the
CLEANING EXTERIOR7-2
Appearance and care
06.1.17/Z33-D/V5.0
Page 214 of 297
top regularly before it becomes quite dirty. Leav-
ing the soft top dirty or soiled for a long period
will cause deterioration to the quality of the top
material.
Remove dust or dirt on the soft top with a soft
brush or sponge, then rinse it with plenty of
clean water. When the top is quite dirty, wash
using a mild detergent, such as a general
cleaner especially made for a cloth top or a
general purpose dish-washing liquid, mixed with
clean, lukewarm (never hot) water. Rinse the top
again with plenty of clean water to remove all
traces of soap.
CAUTION
Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.
If glass cleaner gets on the soft top,
immediately wash it off with clean
water.
Do not apply direct water pressure,
such as high pressured water from
household hoses, on the lining of the
soft top and vehicle body, as this maycause water to leak into the inside of
your vehicle.
After cleaning, always be sure the top and its
storage are completelydrybefore opening the
top. Opening the top while it is wet or damp may
cause interior water damage, water stains or
mildew on the top.
WAXINGRegular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.
Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with the
wax.
Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
Machine compounding or aggressive polishing
on a base coat/clear coat paint finish may dull
the finish or leave swirl marks.
REMOVING SPOTSRemove tar and oil spots, industrial dust, insects,
and tree sap as quickly as possible from the
surface of the paint to avoid lasting damage or
staining. Special cleaning products are available
at a NISSAN dealer or any automotive accessory
store.UNDERBODYIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and caus-
ing underbody and suspension corrosion. Be-
fore the winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.GLASSUse glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION
When cleaning the inside of the win-
dows, do not use sharp-edged tools,
Appearance and care
7-3
06.1.17/Z33-D/V5.0
Page 215 of 297
abrasive cleaners or chlorine-based
disinfectant cleaners. They could
damage the electrical conductors or
rear window defroster elements.
If glass cleaner gets on the soft top,
immediately wash it off with clean
water. (Roadster models)
ALUMINUM ALLOY WHEELSWash regularly, especially during winter months
in areas where road salt is used. Salt could
discolor the wheel if not removed.CHROME PARTSClean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.TIRE DRESSINGNISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.If you choose to use a tire dressing, take the
following precautions:
Use a water-based tire dressing. The coating
on the tire dissolves more easily with an
oil-based tire dressing.
Apply a light coat of tire dressing to help
prevent it from entering the tire tread/grooves
(where it would be difficult to remove).
Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is com-
pletely removed from the tire tread/grooves.
Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth damp-
ened in mild soap solution, then wipe clean with
a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
CAUTION
Never use benzine, thinner or any
similar material.
Small dirt particles can be abrasive
and damaging to leather surfaces
and should be removed promptly. Do
not use saddle soap, car waxes, pol-
ishes, oils, cleaning fluids, solvents,
detergents or ammonia-based clean-
ers as they may damage the leatherCLEANING INTERIOR
7-4
Appearance and care
06.1.17/Z33-D/V5.0
Page 216 of 297

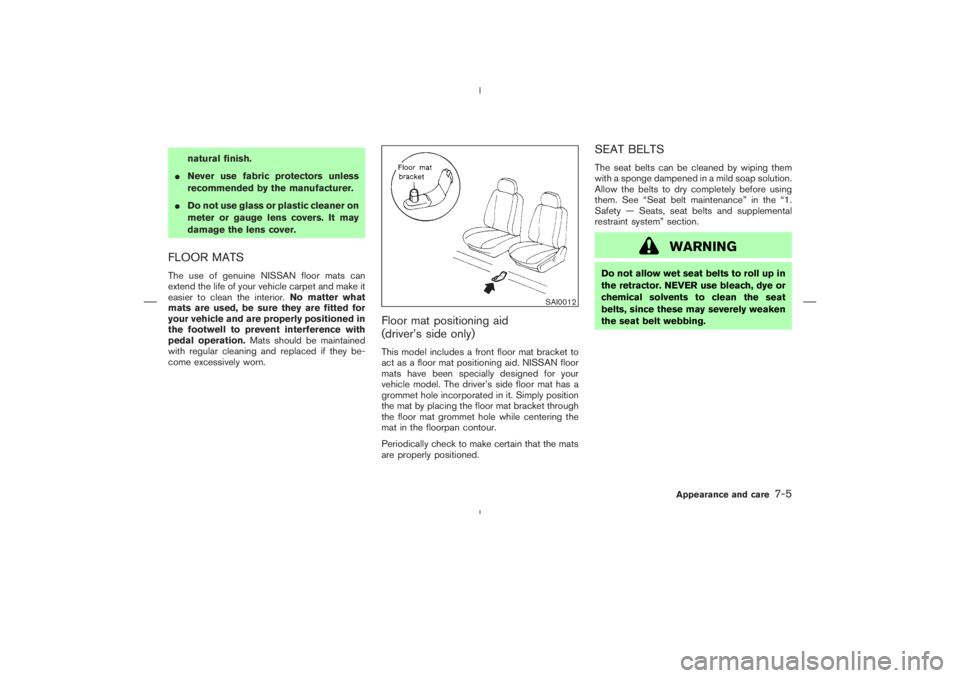

natural finish.
Never use fabric protectors unless
recommended by the manufacturer.
Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
FLOOR MATSThe use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior.No matter what
mats are used, be sure they are fitted for
your vehicle and are properly positioned in
the footwell to prevent interference with
pedal operation.Mats should be maintained
with regular cleaning and replaced if they be-
come excessively worn.
Floor mat positioning aid
(driver’s side only)This model includes a front floor mat bracket to
act as a floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The driver’s side floor mat has a
grommet hole incorporated in it. Simply position
the mat by placing the floor mat bracket through
the floor mat grommet hole while centering the
mat in the floorpan contour.
Periodically check to make certain that the mats
are properly positioned.
SEAT BELTSThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely before using
them. See “Seat belt maintenance” in the “1.
Safety — Seats, seat belts and supplemental
restraint system” section.
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye or
chemical solvents to clean the seat
belts, since these may severely weaken
the seat belt webbing.
SAI0012
Appearance and care
7-5
06.1.17/Z33-D/V5.0
Page 217 of 297
MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSIONThe accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION
MoistureAccumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.Relative humidityCorrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing and where
atmospheric pollution exists and road salt is
used.
TemperatureA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.Air pollutionIndustrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint sur-
faces.TO PROTECT YOUR VEHICLE
FROM CORROSIONWash and wax your vehicle often to keep the
vehicle clean.
Always check for minor damage to the paint
and repair it as soon as possible.
Keep drain holes at the bottom of the doors
open to avoid water accumulation.
Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION
Never remove dirt, sand or other de-
bris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner or
broom.
Never allow water or other liquids to
come in contact with electronic com-
ponents inside the vehicle as this
may damage them.
Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake lines,
brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and corro-
sion, which may be required in some areas,
consult a NISSAN dealer.
CORROSIONPROTECTION7-6
Appearance and care
06.1.17/Z33-D/V5.0
Page 218 of 297
MEMO
Appearance and care
7-7
06.1.17/Z33-D/V5.0
Page 219 of 297
MEMO7-8
Appearance and care
06.1.17/Z33-D/V5.0
Page 220 of 297

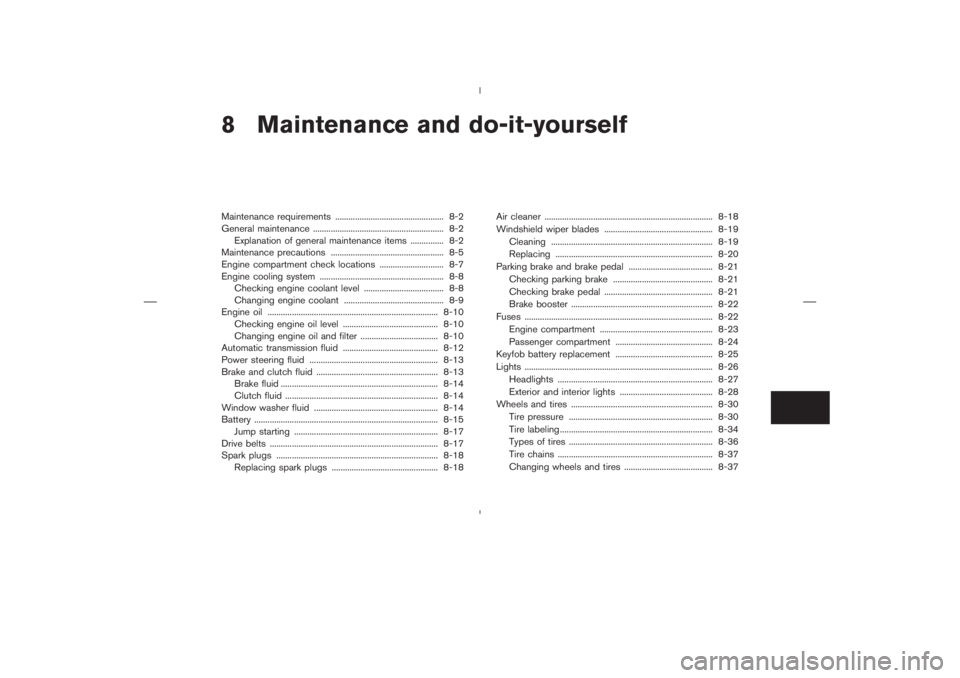

8 Maintenance and do-it-yourselfMaintenance requirements ................................................. 8-2
General maintenance ........................................................... 8-2
Explanation of general maintenance items ............... 8-2
Maintenance precautions ................................................... 8-5
Engine compartment check locations ............................. 8-7
Engine cooling system ........................................................ 8-8
Checking engine coolant level .................................... 8-8
Changing engine coolant ............................................. 8-9
Engine oil ............................................................................. 8-10
Checking engine oil level ........................................... 8-10
Changing engine oil and filter ................................... 8-10
Automatic transmission fluid ........................................... 8-12
Power steering fluid .......................................................... 8-13
Brake and clutch fluid ....................................................... 8-13
Brake fluid ....................................................................... 8-14
Clutch fluid ..................................................................... 8-14
Window washer fluid ........................................................ 8-14
Battery ................................................................................... 8-15
Jump starting ................................................................. 8-17
Drive belts ............................................................................ 8-17
Spark plugs ......................................................................... 8-18
Replacing spark plugs ................................................ 8-18Air cleaner ............................................................................ 8-18
Windshield wiper blades ................................................. 8-19
Cleaning ......................................................................... 8-19
Replacing ....................................................................... 8-20
Parking brake and brake pedal ...................................... 8-21
Checking parking brake ............................................. 8-21
Checking brake pedal ................................................. 8-21
Brake booster ................................................................ 8-22
Fuses ..................................................................................... 8-22
Engine compartment ................................................... 8-23
Passenger compartment ............................................ 8-24
Keyfobbattery replacement ............................................ 8-25
Lights ..................................................................................... 8-26
Headlights ...................................................................... 8-27
Exterior and interior lights .......................................... 8-28
Wheels and tires ................................................................ 8-30
Tire pressure ................................................................. 8-30
Tire labeling ..................................................................... 8-34
Types of tires ................................................................. 8-36
Tire chains ...................................................................... 8-37
Changing wheels and tires ........................................ 8-37
06.1.17/Z33-D/V5.0
