COUPE MODELS1. Coat hook (P.2-39)
2. Seat belts (P.1-10)
3. Seats
— Manual seats adjustment (P.1-3)
— Power seats adjustment (P.1-4)
4. Passenger seat
— Tilt lever for passenger seat (seatback)
(P.1-7)
5. Power window switch (P.2-39)/Power door
lock switch (P.3-4)
6. Outside mirror remote control switch
(P.3-27)
7. Sun visor (P.3-25)
8. Interior light (P.2-41)
9. Sunglasses holder (P.2-33)
10. Inside mirror (P.3-26)
— Automatic anti-glare inside mirror*
(P.3-26)
— HomeLink
universal transceiver*
(P.2-43)
11. Rear parcel box (P.2-37)
12. Rear parcel box or Navigation system*1
13. Rear floor box (P.2-36)
14. Power outlet (P.2-32)
15. Console box (P.2-36)
16. Parking brake
— Operation (P.5-15)
— Parking/Parking on hills (P.5-19)
— Checking (P.8-21)
SSI0153
PASSENGER COMPARTMENT0-6
Illustrated table of contents
05.10.18/Z33-D/V5.0
Page 12 of 297
17. Selector lever or shift lever
— Automatic transmission (P.5-9)
— Manual transmission (P.5-13)
18. Cargo net (P.2-34)
*: if so equipped
*1: Refer to the separate Navigation System
Owner’s Manual.
Illustrated table of contents
0-7
05.10.18/Z33-D/V5.0
Page 13 of 297
ROADSTER MODELS1. Seat belts (P.1-10)
2. Seats
— Power seats adjustment (P.1-5)
— Ventilated net seats* (P.1-6)
3. Passenger seat
— Power seatback tilt switch (P.1-8)
— Cancel switch (P.1-9)
4. Power window switch (P.2-39)/Power door
lock switch (P.3-4)
5. Outside mirror remote control switch
(P.3-27)
6. Soft top latch lever (P.3-16)
7. Safety switch for soft top latch lever (P.3-16)
8. Interior light (P.2-41)
9. Inside mirror (P.3-26)
— Automatic anti-glare inside mirror*
(P.3-26)
— HomeLink
universal transceiver* (P.2-43)
10. Rear parcel box (P.2-37)
11. Rear parcel box or Navigation system*1
12. Rear floor box (P.2-36)
— Trunk lid cancel switch (P.3-11)
— Secondary trunk lid release (P.3-12)
13. Power outlet (P.2-32)
14. Console box (P.2-36)
15. Parking brake
— Operation (P.5-15)
— Parking/Parking on hills (P.5-19)
— Checking (P.8-21)
16. Selector lever or shift lever
— Automatic transmission (P.5-9)
— Manual transmission (P.5-13)
SSI0154
0-8
Illustrated table of contents
05.10.18/Z33-D/V5.0
Page 14 of 297
17. Cargo net (P.2-34)
*: if so equipped
*1: Refer to the separate Navigation System
Owner’s Manual.
Illustrated table of contents
0-9
05.10.18/Z33-D/V5.0
Page 15 of 297
1. Headlight/turn signal switch (P.2-24)
2. Instrument brightness control switch
(P.2-27)
3. Steering wheel switch for audio control*
(P.4-29)4. Driver supplemental air bag (P.1-30)/Horn
(P.2-28)
5. Meters/gauges (P.2-3)
6. Cruise control main/set switch* (P.5-16)
7. Trip computer mode/setting switch (P.2-8)
8. Wiper/washer switch (P.2-22)9. Center ventilator (P.4-8)
10. Card holder (P.2-34)
11. Passenger supplemental air bag (P.1-30)
12. Side ventilators (P.4-8)
13. VDC (Vehicle dynamic control) OFF switch*
(P.2-29) or TCS (Traction control system)
OFF switch* (P.2-30)
14. Soft top operating switch (for Roadster
models) (P.3-13)
15. Fuel-filler door opener switch (P.3-23)
16. Hood lock release handle (P.3-8)
17. Fuse box (P.8-24)
18. Tilting steering wheel lock lever (P.3-25)
19. Ignition switch (P.5-6)
20. Navigation system display (P.4-2)*1 or In-
strument pocket (P.2-33)
21. Audio system (P.4-12)/Clock (P.2-31)
22. Rear window and outside mirror defroster
switch (P.2-24)
23. Hazard warning flasher switch (P.2-27)
24. Cup holder (P.2-35)
25. Heated seat switch* (P.2-28)
26. Heater/air conditioner control (P.4-9)
27. Power outlet (P.2-32)
*: if so equipped
*1: Refer to the separate Navigation System
Owner’s Manual.
SIC2996
INSTRUMENT PANEL0-10
Illustrated table of contents
05.10.18/Z33-D/V5.0
Page 16 of 297
1. Fuse/fusible link holder (P.8-22)
2. Battery (P.8-15)
3. Engine oil filler cap (P.8-10)
4. Brake fluid reservoir (P.8-13)
5. Clutch fluid reservoir (M/T models) (P.8-13)
6. Window washer fluid reservoir (P.8-14)
7. Power steering fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-8)
9. Radiator filler cap (P.8-9)
10. Engine oil dipstick (P.8-10)
11. Air cleaner (P.8-18)
Do not tamper with the strut tower bar
adjustment
A. The strut tower bar has
been adjusted to the most suitable posi-
tion at the factory.
SDI1519
ENGINE COMPARTMENT
Illustrated table of contents
0-11
05.10.18/Z33-D/V5.0
Page 17 of 297
MEMO0-12
Illustrated table of contents
05.10.18/Z33-D/V5.0
Page 18 of 297
1 Safety — Seats, seat belts and supple-
mental restraint systemSeats ........................................................................................ 1-2
Front manual seat adjustment
(for Coupe models) ........................................................ 1-3
Front power seat adjustment
(for Coupe models — if so equipped) ...................... 1-4
Front power seat adjustment
(for Roadster models) .................................................... 1-5
Seat lifter (for driver’s seat) ......................................... 1-7
Tilting and reclining passenger’s seat from driver’s
seat ..................................................................................... 1-7
Head restraint adjustment ............................................ 1-9
Seat belts ............................................................................. 1-10
Precautions on seat belt usage ................................ 1-10
Child safety .................................................................... 1-12
Obtaining an air bag ON/OFF switch...................... 1-13
After an air bag ON/OFF switch is installed.......... 1-13
Pregnant women .......................................................... 1-14
Injured persons ............................................................. 1-14
Three-point type seat belt with retractor ............... 1-14Seat belt extenders ...................................................... 1-16
Seat belt maintenance ................................................ 1-17
Child restraints ................................................................... 1-17
Precautions on child restraints ................................. 1-17
Child restraint installation on front passenger
seat .................................................................................. 1-20
Top tether strap child restraint
(Coupe models) ............................................................ 1-25
Booster seats ....................................................................... 1-26
Precautions on booster seats .................................... 1-26
Booster seat installation on front passenger
seat.................................................................................... 1-29
Supplemental restraint system ....................................... 1-30
Precautions on supplemental restraint system ..... 1-30
Components of the supplemental restraint
system .............................................................................. 1-35
Supplemental air bag warning labels ...................... 1-40
Supplemental air bag warning light ......................... 1-41
05.10.18/Z33-D/V5.0
Page 19 of 297

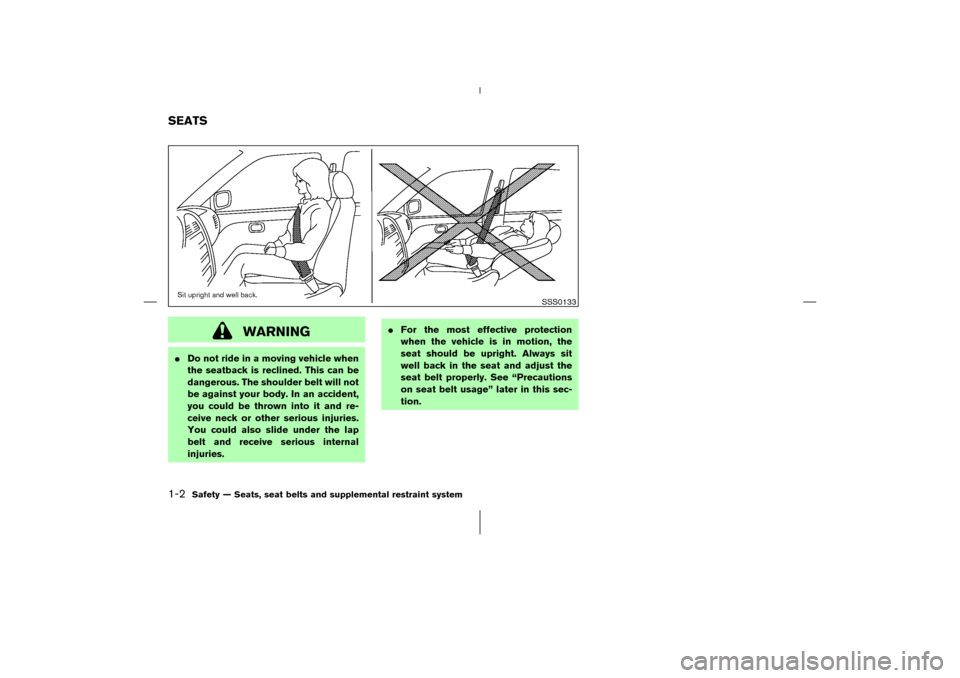

WARNING
Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly. See “Precautions
on seat belt usage” later in this sec-
tion.
SSS0133
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system
05.10.18/Z33-D/V5.0
Page 20 of 297
FRONT MANUAL SEAT
ADJUSTMENT (for Coupe models)
WARNING
Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
After adjustment, gently rock in the
seat to make sure it is securely
locked.
1
Forward and backward
Pull the lever up while you slide the seat forward
or backward to the desired position. Release the
lever to lock the seat in position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.
2
Reclining
To recline the seatback, pull the lever up and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
SSS0394
Safety — Seats, seat belts and supplemental restraint system
1-3
05.10.18/Z33-D/V5.0
