NISSAN 350Z 2007 Owner´s Manual

1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining (for driver’s seat)
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.
2
Reclining (for passenger’s seat)
The passenger’s seat is equipped with a manual
lever for reclining. See “Front manual seat ad-
justment” earlier in this section.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
FRONT POWER SEAT
ADJUSTMENT (for Roadster models)
Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
SPA1793
1-4
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0


1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
Automatic passenger seatback tilt
functionThe passenger seatback will automatically tilt
forward and backward during the soft top
open/close operation. If you need to cancel this
function or when a child restraint is installed in
the passenger’s seat, push the seatback tiltcancel switch to the CANCEL position. For more
information about operation conditions, see
“Soft top” in the “3. Pre-driving checks and
adjustments” section. For the cancel switch, see
“Tilting and reclining passenger’s seat from driv-
er’s seat” later in this section.
SSS0472
Safety — Seats, seat belts and supplemental restraint system
1-5


07.2.9/Z33-D/V5.0


Ventilated net seats (if so equipped)The ventilated net seats are designed for good
ventilation while driving. Net cloth is used on the
surface of the seatback and the cushion as
shown.
CAUTION

The seat is made of netted materials.
Be careful not to snag your jewelry,
such as a ring, bracelet or watch, on
the seat.
When using these seats, avoid wear-
ing clothing with soft fabrics (wool,
etc.). Clothing may be damaged as it
rubs against the netted material.
SEAT LIFTER (for driver’s seat)
Type A (except for ventilated net seat)Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
SSS0272
SPA1715
Type A
1-6
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0


Type B (for ventilated net seat)Turn the dial and adjust the angle of the seat
cushion to the desired position.
TILTING AND RECLINING
PASSENGER’S SEAT FROM
DRIVER’S SEATThe passenger seatback can be adjusted from
the driver’s seat to make it easier for the driver to
use the rear parcel box or rear floor box, or to
help the passenger get in the vehicle.Coupe models (manual type)To tilt or recline the passenger seatback, pull up
the lever
A
located on the back side of it, and
move the seatback forward or backward.
Roadster models (power type)The power seatback tilt switch
B
and the
seatback tilt cancel switch
Care located on the
back side of the passenger seatback as shown.
Tilting/reclining operation:
To tilt the passenger seatback forward, push the
top (
side) of the power seatback tilt
switch
B
for more than 0.5 second. The seat-
back will automatically tilt forward. To stop the
movement, push the top or bottom of the switch.
To tilt or adjust the seatback backward, push
and hold the bottom (
side) of the power
SSS0202
Type B
SSS0203
Coupe models
SSS0273
Roadster models — Type A
Safety — Seats, seat belts and supplemental restraint system
1-7


07.2.9/Z33-D/V5.0


seatback tilt switch. While the switch is held
down, the seatback will move backward to the
original position that was last selected using the
reclining switch (located on the seat cushion).
Release the switch to stop the movement.
Operation conditions:
The power seatback tilt switch does not activate
under the following conditions.

when the passenger seat sliding/reclining
switches on the seat cushion are being op-
erated.

when the seat tilt cancel switch is in the
CANCEL position. (See “Seatback tilt cancelswitch” later in this section.)

when the passenger seat belt is fastened.

when the vehicle speed reaches 4 MPH (7
km/h) and more.
The automatic tilting/reclining movement will be
stopped:

when any of the above 4 conditions occur.

when the power seatback tilt switch (top or
bottom) is pushed again.

when the seatback is moved with the soft top
open/close operation.
When this interruption occurs, you cannot move
the seatback backward from the stopped posi-
tion with the power seatback tilt switch. Use the
reclining switch (on the seat cushion) to select
the seatback position.Seatback tilt cancel switch:
When the seatback tilt cancel switch
C
is
pushed to the CANCEL position, the
tilting/reclining operation using the power seat-
back tilt switch
B
will be cancelled. Only the
sliding/reclining switches (located on the seat
cushion) are operational. Push the seatback tilt
cancel switch to the AUTO position to reactivate
the power seatback tilt switch.
This cancel switch is linked with the automatic
passenger seatback tilt function of the soft top
operation. See “Soft top” in the “3. Pre-driving
checks and adjustments” section.
SSS0274
Roadster models — Type B
SSS0275
1-8
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0


CAUTION
When a child restraint is installed in the
passenger seat, be sure to turn the seat-
back tilt cancel switch to the CANCEL
position. Otherwise, the child restraint
may be damaged.
HEAD RESTRAINT ADJUSTMENTTo raise the head restraint, just pull it up. To
lower, push the lock knob
Aand push the head
restraint down.
The ventilated net seats (if so equipped for
Roadster models) have non-adjustable head
restraints.Adjust the head restraints so the center is level
with the center of your ears.
WARNING
Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust-
ment after someone else uses the seat.
SSS0204
SSS0178A
Safety — Seats, seat belts and supplemental restraint system
1-9


07.2.9/Z33-D/V5.0


ACTIVE HEAD RESTRAINT (except
for ventilated net seats)
WARNING

Always adjust the head restraints
properly as specified in the previous
section. Failure to do so can reduce
the effectiveness of the active head
restraint.

Active head restraints are designed
to supplement other safety systems.Always wear seat belts. No system
can prevent all injuries in any acci-
dent.

Do not attach anything to the head
restraint stalks. Doing so could im-
pair active head restraint function.
The head restraint moves forward utilizing the
force that the seatback receives from the occu-
pant in a rear-end collision. The movement of the
head restraint helps support the occupant’s
head by reducing its backward movement and
helping absorb some of the forces that may lead
to whiplash type injuries.
Active head restraints are effective for collisions
at low to medium speeds in which it is said that
whiplash injury occurs most.
Active head restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.
Properly adjust the active head restraints as
described in the previous section.
PRECAUTIONS ON SEAT BELT
USAGEIf you are wearing your seat belt properly ad-
justed and you are sitting upright and well back
in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories require that seat belts be
worn at all times when a vehicle is being
driven.
SSS0508
SEAT BELTS
1-10
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0


WARNING

Every person who drives or rides in
this vehicle should use a seat belt at
all times.

The seat belt should be properly ad-
justed to a snug fit. Failure to do so
may reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury inan accident. Serious injury or death
can occur if the seat belt is not worn
properly.

Always route the shoulder belt over
your shoulder and across your chest.
Never run the belt behind your back,
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder.
Position the lap belt as low and snug
as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal
injuries in an accident.

Be sure the seat belt tongue is se-
curely fastened to the proper buckle.

Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.

Do not allow more than one person
to use the same seat belt.

Never carry more people in the ve-
hicle than there are seat belts. This
vehicle has only two seating posi-
tions. Never allow anyone to ride in
the luggage area.

If the seat belt warning light glows
continuously while the ignition is
turned ONwith all doors closed and
all seat belts fastened, it may indi-
cate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
SSS0136
Safety — Seats, seat belts and supplemental restraint system
1-11


07.2.9/Z33-D/V5.0


Once the pre-tensioner seat belt has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.

Removal and installation of the pre-
tensioner seat belt system compo-
nents should be done by a NISSAN
dealer.

All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-semblies in use during a collision be
replaced unless the collision was mi-
nor and the belts show no damage
and continue to operate properly.
Seat belt assemblies not in use dur-
ing a collision should also be in-
spected and replaced if either dam-
age or improper operation is noted.
CHILD SAFETYChildren need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.
There are three basic types of child restraint
systems:

Rear facing child restraint (should not be
installed in this vehicle)

Front facing child restraint (should not be
installed in the Roadster models)

Booster seat
WARNING

Never let an infant who requires the
use of a rear facing child restraint
ride in this vehicle. Do not attempt to
hold a child in your lap or arms.

Roadster models do not have an an-
chor for a top tether strap required
SSS0134
1-12
Safety — Seats, seat belts and supplemental restraint system


07.2.9/Z33-D/V5.0

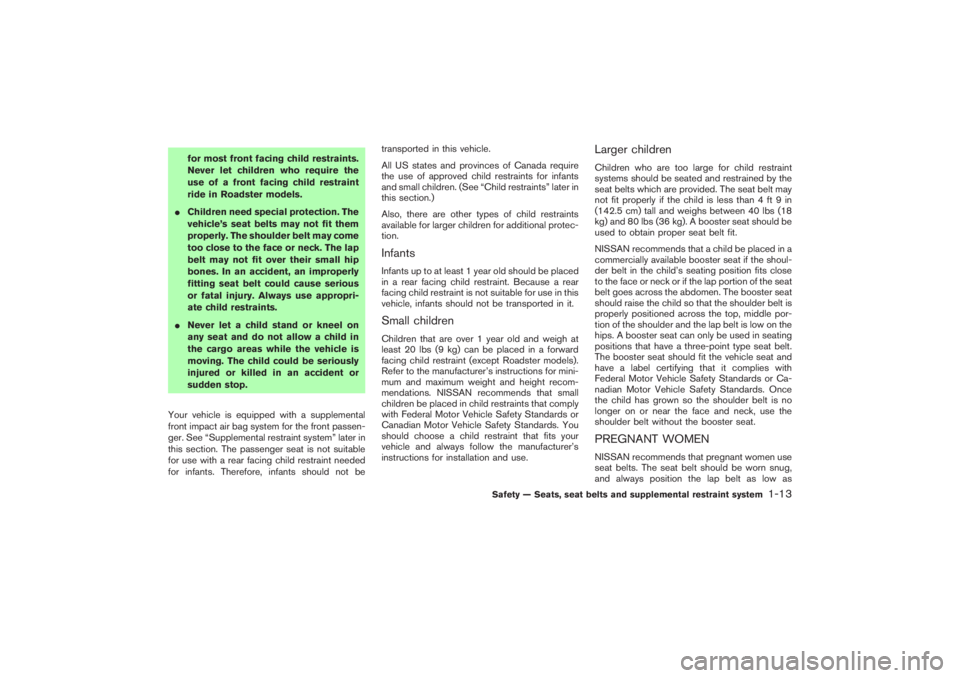

for most front facing child restraints.
Never let children who require the
use of a front facing child restraint
ride in Roadster models.

Children need special protection. The
vehicle’s seat belts may not fit them
properly. The shoulder belt may come
too close to the face or neck. The lap
belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious
or fatal injury. Always use appropri-
ate child restraints.

Never let a child stand or kneel on
any seat and do not allow a child in
the cargo areas while the vehicle is
moving. The child could be seriously
injured or killed in an accident or
sudden stop.
Your vehicle is equipped with a supplemental
front impact air bag system for the front passen-
ger. See “Supplemental restraint system” later in
this section. The passenger seat is not suitable
for use with a rear facing child restraint needed
for infants. Therefore, infants should not betransported in this vehicle.
All US states and provinces of Canada require
the use of approved child restraints for infants
and small children. (See “Child restraints” later in
this section.)
Also, there are other types of child restraints
available for larger children for additional protec-
tion.
InfantsInfants up to at least 1 year old should be placed
in a rear facing child restraint. Because a rear
facing child restraint is not suitable for use in this
vehicle, infants should not be transported in it.Small childrenChildren that are over 1 year old and weigh at
least 20 lbs (9 kg) can be placed in a forward
facing child restraint (except Roadster models).
Refer to the manufacturer’s instructions for mini-
mum and maximum weight and height recom-
mendations. NISSAN recommends that small
children be placed in child restraints that comply
with Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer’s
instructions for installation and use.
Larger childrenChildren who are too large for child restraint
systems should be seated and restrained by the
seat belts which are provided. The seat belt may
not fit properly if the child is less than 4 ft 9 in
(142.5 cm) tall and weighs between 40 lbs (18
kg) and 80 lbs (36 kg). A booster seat should be
used to obtain proper seat belt fit.
NISSAN recommends that a child be placed in a
commercially available booster seat if the shoul-
der belt in the child’s seating position fits close
to the face or neck or if the lap portion of the seat
belt goes across the abdomen. The booster seat
should raise the child so that the shoulder belt is
properly positioned across the top, middle por-
tion of the shoulder and the lap belt is low on the
hips. A booster seat can only be used in seating
positions that have a three-point type seat belt.
The booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or Ca-
nadian Motor Vehicle Safety Standards. Once
the child has grown so the shoulder belt is no
longer on or near the face and neck, use the
shoulder belt without the booster seat.PREGNANT WOMENNISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
Safety — Seats, seat belts and supplemental restraint system
1-13


07.2.9/Z33-D/V5.0
