Page 302 of 312
AT-302
ASSEMBLY
Revision: 2006 November2007 350Z
55. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to the specified torque.
c. Back of band servo anchor end pin three turns.
d. Holding band servo anchor end pin, tighten lock nut to the spec-
ified torque. Refer to AT- 2 4 6 , "
Components" .
AdjustmentNCS0009J
TOTAL END PLAY
Measure clearance between front sun gear and bearing race for
oil pump cover.
Select proper thickness of bearing race so that end play is within
specifications.
1. Measure dimensions “K” and “L” and then calculate dimension
“J”.
a. Measure dimension “K”.: 5.0 N·m (0.51 kg-m, 44 in-lb)
SCIA5498E
SCIA2810E
SCIA7073E
SCIA7074E

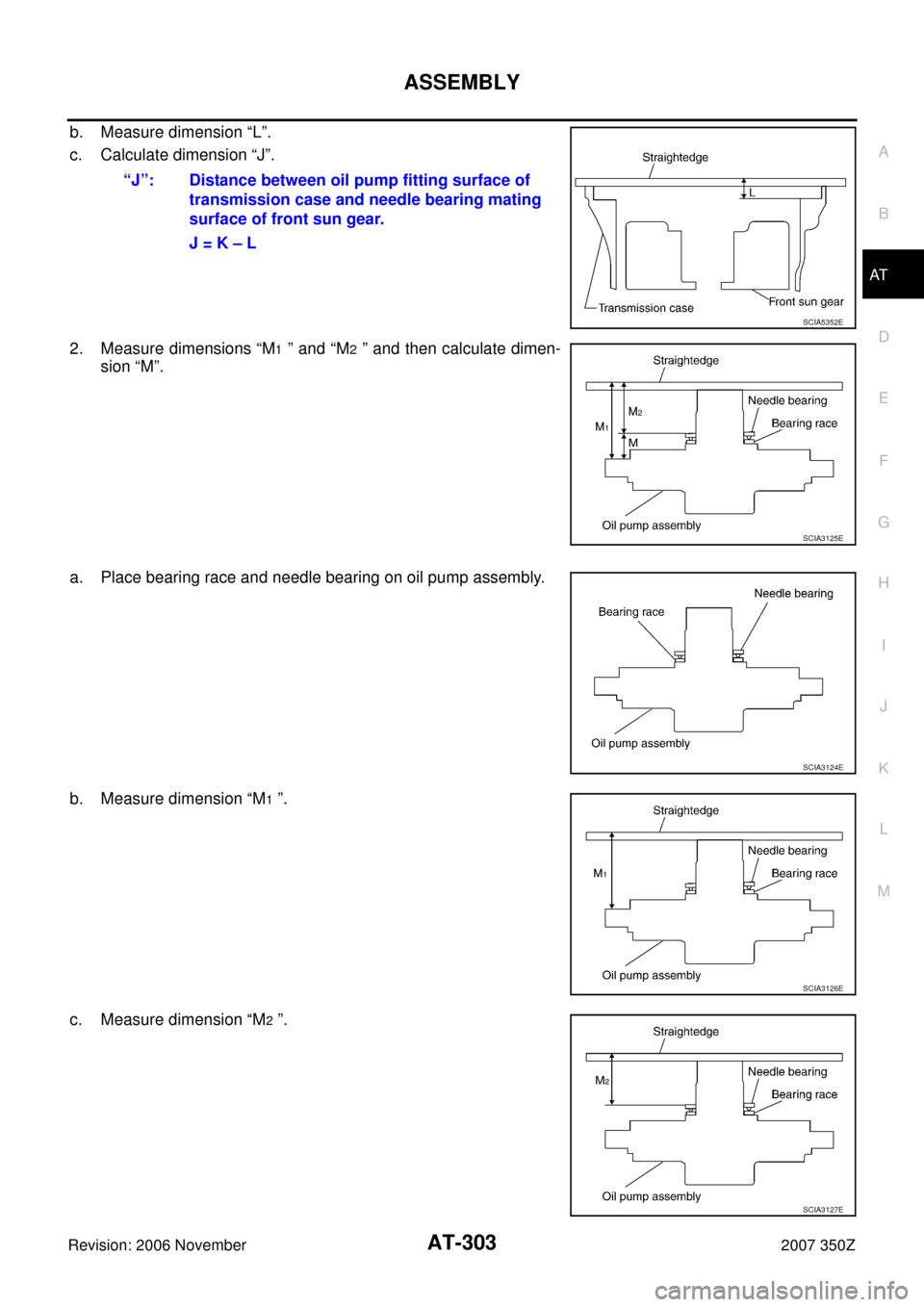

Page 303 of 312
ASSEMBLY
AT-303
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
b. Measure dimension “L”.
c. Calculate dimension “J”.
2. Measure dimensions “M
1 ” and “M2 ” and then calculate dimen-
sion “M”.
a. Place bearing race and needle bearing on oil pump assembly.
b. Measure dimension “M
1 ”.
c. Measure dimension “M
2 ”. “J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating
surface of front sun gear.
J = K – L
SCIA5352E
SCIA3125E
SCIA3124E
SCIA3126E
SCIA3127E
