NISSAN 350Z 2007 Z33 Engine Control Owner's Guide

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-31
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
COAST OPERATION
When the SET/COAST switch is pressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
RESUME OPERATION
When the RESUME/ACCELERATE switch is pressed after cancel operation other than pressing MAIN switch
is performed, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition must
meet following conditions.

Brake pedal is released

Clutch pedal is released (M/T models)

A/T selector lever is in other than P and N positions (A/T models)

Vehicle speed is greater than 40 km/h (25 MPH) and less than 144 km/h (89 MPH)
Component DescriptionNBS0002N
ASCD STEERING SWITCH
Refer to EC-602
ASCD BRAKE SWITCH
Refer to EC-610 and EC-671 .
ASCD CLUTCH SWITCH
Refer to EC-610 and EC-671 .
STOP LAMP SWITCH
Refer to EC-610 , EC-628 and EC-671 .
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EC-561 , EC-571 , EC-580 and EC-592 .
ASCD INDICATOR
Refer to EC-681 .

EC-32
CAN COMMUNICATION
Revision: 2006 November2007 350Z
CAN COMMUNICATIONPFP:23710
System DescriptionNBS0002O
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to LAN-48, "
CAN System Specification Chart" , about CAN communication for detail.

EVAPORATIVE EMISSION SYSTEM
EC-33
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionNBS0002P
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB1631E

EC-34
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 November2007 350Z

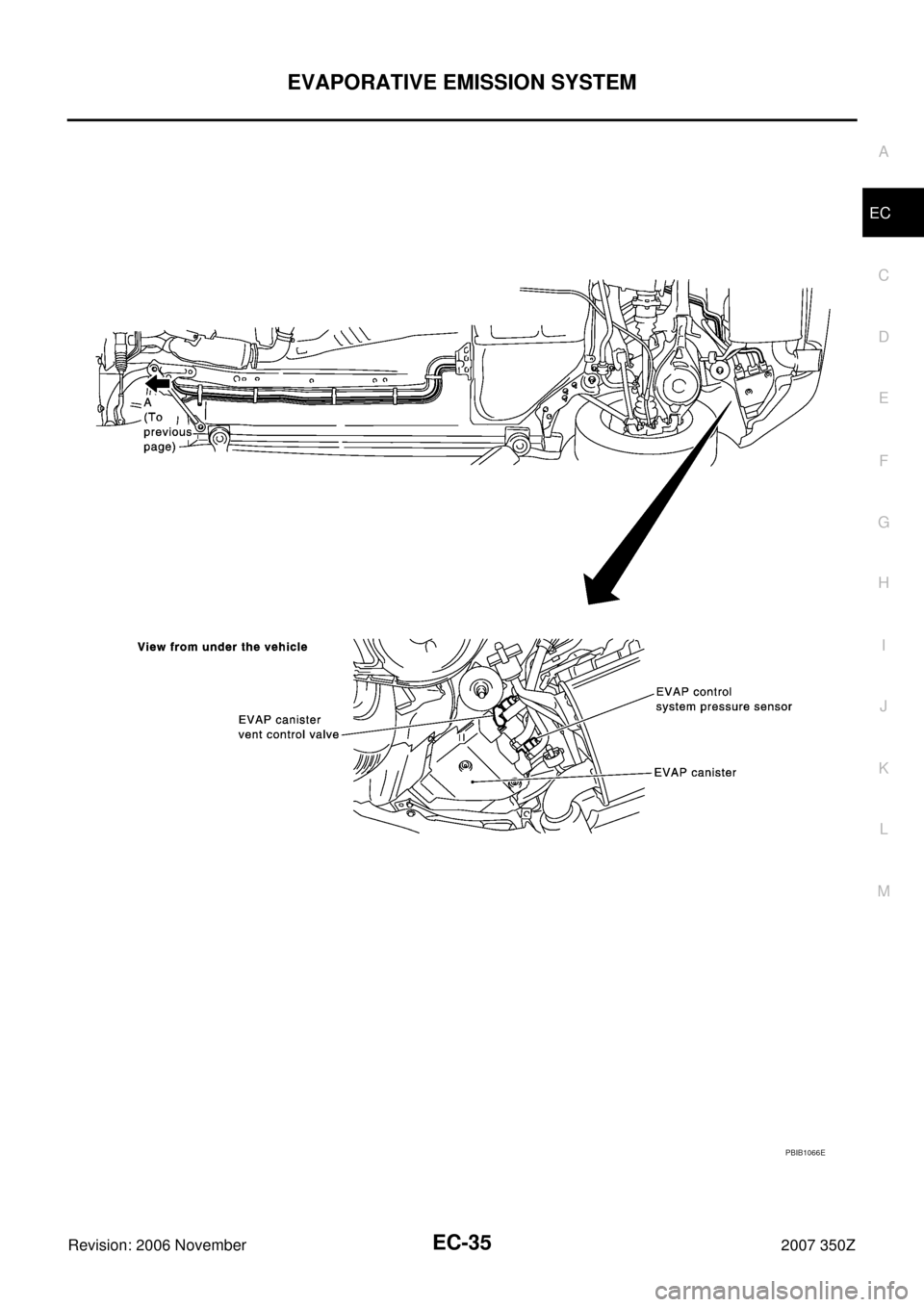

EVAPORATIVE EMISSION LINE DRAWING
1. Intake manifold collector 2. EVAP canister purge volume con-
trol solenoid valve3. EVAP service port
:From next page
PBIB3529E

EVAPORATIVE EMISSION SYSTEM
EC-35
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
PBIB1066E

EC-36
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 November2007 350Z
Component InspectionNBS0002Q
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B .
2. Blow air into port A and check that it flows freely out of port C .
3. Release blocked port B .
4. Apply vacuum pressure to port B and check that vacuum pres-
sure exists at the ports A and C .
5. Block port A and B .
6. Apply pressure to port C and check that there is no leakage.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
CAUTION:
Use only a genuine fuel filler cap as a replacement. If an incor-
rect fuel filler cap is used, the MIL may come on.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-436 .
FUEL TANK TEMPERATURE SENSOR
Refer to EC-347 .
EVAP CANISTER VENT CONTROL VALVE
Refer to EC-442 .
EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-455 .
PBIB1044E
SEF445Y
Pressure:
15.3 - 20.0 kPa (0.156 - 0.204 kg/cm2 , 2.22
- 2.90 psi)
Va c u u m :
−6.0 to −3.3 kPa (−0.061 to −0.034 kg/cm
2 ,
−0.87 to −0.48 psi)
SEF943S

EVAPORATIVE EMISSION SYSTEM
EC-37
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
EVAP SERVICE PORT
Positive pressure is delivered to the EVAP system through the EVAP
service port. If fuel vapor leakage in the EVAP system occurs, use a
leak detector to locate the leak.
Removal and InstallationNBS0002R
EVAP CANISTER
Tighten EVAP canister as shown in the figure.
EVAP CANISTER VENT CONTROL VALVE
1. Turn EVAP canister vent control valve counterclockwise.
2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.
How to Detect Fuel Vapor LeakageNBS0002S
CAUTION:

Never use compressed air or a high pressure pump.

Do not exceed 4.12 kPa (0.042 kg/cm2 , 0.6 psi) of pressure in EVAP system.
NOTE:

Do not start engine.

Improper installation of EVAP service port adapter to the EVAP service port may cause a leak.
SEF462UA
PBIB1029E
PBIB1030E

EC-38
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 November2007 350Z
WITH CONSULT-III
1. Attach the EVAP service port adapter securely to the EVAP service port.
2. Also attach the pressure pump and hose to the EVAP service port adapter.
3. Turn ignition switch ON.
4. Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT MODE” with CONSULT-III.
5. Touch “START”. A bar graph (Pressure indicating display) will appear on the screen.
6. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar
graph.
7. Remove EVAP service port adapter and hose with pressure pump.
8. Locate the leak using a leak detector. Refer to EC-34, "
EVAPO-
RATIVE EMISSION LINE DRAWING" .
WITHOUT CONSULT-III
1. Attach the EVAP service port adapter securely to the EVAP ser-
vice port.
2. Also attach the pressure pump with pressure gauge to the EVAP
service port adapter.
3. Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP
system.
4. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to
2.76 kPa (0.014 to 0.028 kg/cm
2 , 0.2 to 0.4 psi).
5. Remove EVAP service port adapter and hose with pressure pump.
6. Locate the leak using a leak detector. Refer to EC-34, "
EVAPORATIVE EMISSION LINE DRAWING" .
SEF200U
SEF462UA
PBIB1086E

ON BOARD REFUELING VAPOR RECOVERY (ORVR)
EC-39
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
ON BOARD REFUELING VAPOR RECOVERY (ORVR)PFP:00032
System DescriptionNBS0002T
From the beginning of refueling, the air and vapor inside the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspections below, be sure to observe the following:

Put a “CAUTION: FLAMMABLE” sign in workshop.

Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

Be sure to furnish the workshop with a CO2 fire extinguisher.
CAUTION:

Before removing fuel line parts, carry out the following procedures:
–Put drained fuel in an explosion-proof container and put lid on securely.
–Release fuel pressure from fuel line. Refer to EC-79, "FUEL PRESSURE RELEASE" .
–Disconnect battery ground cable.

Always replace O-ring when the fuel gauge retainer is removed.

Do not kink or twist hose and tube when they are installed.

Do not tighten hose and clamps excessively to avoid damaging hoses.

After installation, run engine and check for fuel leaks at connection.

Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
PBIB1068E

EC-40
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS0002U
SYMPTOM: FUEL ODOR FROM EVAP CANISTER IS STRONG.
1. CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.2 kg (4.9 lb).
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK IF EVAP CANISTER SATURATED WITH WATER
Does water drain from the EVAP canister?
Ye s o r N o
Yes >> GO TO 3.
No >> GO TO 5.
3. REPLACE EVAP CANISTER
Replace EVAP canister with a new one.
>> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.
>> Repair or replace EVAP hose.
5. CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-42, "
Component Inspection" .
OK or NG
OK >>INSPECTION END
NG >> Replace refueling EVAP vapor cut valve with fuel tank.
PBIB1031E
