NISSAN 350Z 2007 Z33 Engine Mechanical Workshop Manual

CYLINDER BLOCK
EM-131
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
CRANKSHAFT PIN JOURNAL DIAMETER

Measure the outer diameter of crankshaft pin journal with
micrometer.

If out of the standard, measure the connecting rod bearing oil
clearance. Then use undersize bearing. Refer to EM-131,
"CONNECTING ROD BEARING OIL CLEARANCE" .
CRANKSHAFT OUT-OF-ROUND AND TAPER

Measure the dimensions at four different points as shown in the
figure on each main journal and pin journal with micrometer.

Out-of-round is indicated by the difference in the dimensions
between “X” and “Y” at “A” and “B”.

Taper is indicated by the difference in the dimensions between
“A” and “B” at “X” and “Y”.

If the measured value exceeds the limit, correct or replace crankshaft.

If corrected, measure the bearing oil clearance of the corrected main journal and/or pin journal. Then
select the main bearing and/or connecting rod bearing. Refer to EM-132, "
MAIN BEARING OIL CLEAR-
ANCE" and/or EM-131, "CONNECTING ROD BEARING OIL CLEARANCE" .
CRANKSHAFT RUNOUT

Place V-block on precise flat table, and support the journals on
the both end of crankshaft.

Place dial indicator straight up on the No. 3 journal.

While rotating crankshaft, read the movement of the pointer on
dial indicator. (Total indicator reading)

If it exceeds the limit, replace crankshaft.
CONNECTING ROD BEARING OIL CLEARANCE
Method by Calculation

Install connecting rod bearings to connecting rod and cap, and
tighten connecting rod bolts to the specified torque. Refer to
E M - 111 , "
ASSEMBLY" for the tightening procedure.

Measure the inner diameter of connecting rod bearing with
inside micrometer.
(Bearing oil clearance) = (Connecting rod bearing inner diameter) –
(Crankshaft pin journal diameter)Standard : 53.956 - 53.974 mm (2.1242 - 2.1250 in) dia.
PBIC0127E
Limit:
Out-of-round (Difference between “X” and “Y”)
: 0.0025 mm (0.0001 in)
Taper (Difference between “A” and “B”)
: 0.0025 mm (0.0001 in)
SBIA0535E
Standard : Less than 0.05 mm (0.0020 in)
Limit : 0.10 mm (0.004 in)
SEM346D
Standard : 0.040 - 0.053 mm (0.0016 - 0.0021 in)
(actual clearance)
Limit : 0.070 mm (0.0028 in)
PBIC1642E

EM-132
CYLINDER BLOCK
Revision: 2006 November2007 350Z

If the calculated value exceeds the limit, select proper connecting rod bearing according to connecting rod
big end diameter and crankshaft pin journal diameter to obtain the specified bearing oil clearance. Refer
to EM-120, "
HOW TO SELECT CONNECTING ROD BEARING" .
Method of Using Plastigage

Remove oil and dust on crankshaft pin journal and the surfaces of each bearing completely.

Cut plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil
holes.

Install connecting rod bearings to connecting rod and cap, and tighten connecting rod bolts to the speci-
fied torque. Refer to E M - 111 , "
ASSEMBLY" for the tightening procedure.
CAUTION:
Do not rotate crankshaft.

Remove connecting rod bearing cap and bearing, and using
scale on plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
MAIN BEARING OIL CLEARANCE
Method by Calculation

Install main bearings (3) to cylinder block (1) and lower cylinder
block (2), and tighten lower cylinder block bolts to the specified
torque. Refer to EM-111, "
ASSEMBLY" for the tightening proce-
dure.

Measure the inner diameter of main bearing with bore gauge.
(Bearing clearance) = (Main bearing inner diameter) – (Crankshaft
main journal diameter)

If the clearance exceeds the limit, select proper main bearing according to main bearing inner diameter
and crankshaft main journal diameter to obtain the specified bearing oil clearance. Refer to EM-122,
"HOW TO SELECT MAIN BEARING" .
Method of Using Plastigage

Remove oil and dust on crankshaft main journal and the surfaces of each bearing completely.

Cut plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil
holes.

Install main bearings to cylinder block and lower cylinder block, and tighten lower cylinder block bolts with
lower cylinder block to the specified torque. Refer to E M - 111 , "
ASSEMBLY" for the tightening procedure.
CAUTION:
Do not rotate crankshaft.
PBIC1149E
Standard : 0.035 - 0.045 mm (0.0014 - 0.0018 in)
(actual clearance)
Limit : 0.065 mm (0.0026 in)
PBIC5126J

CYLINDER BLOCK
EM-133
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z

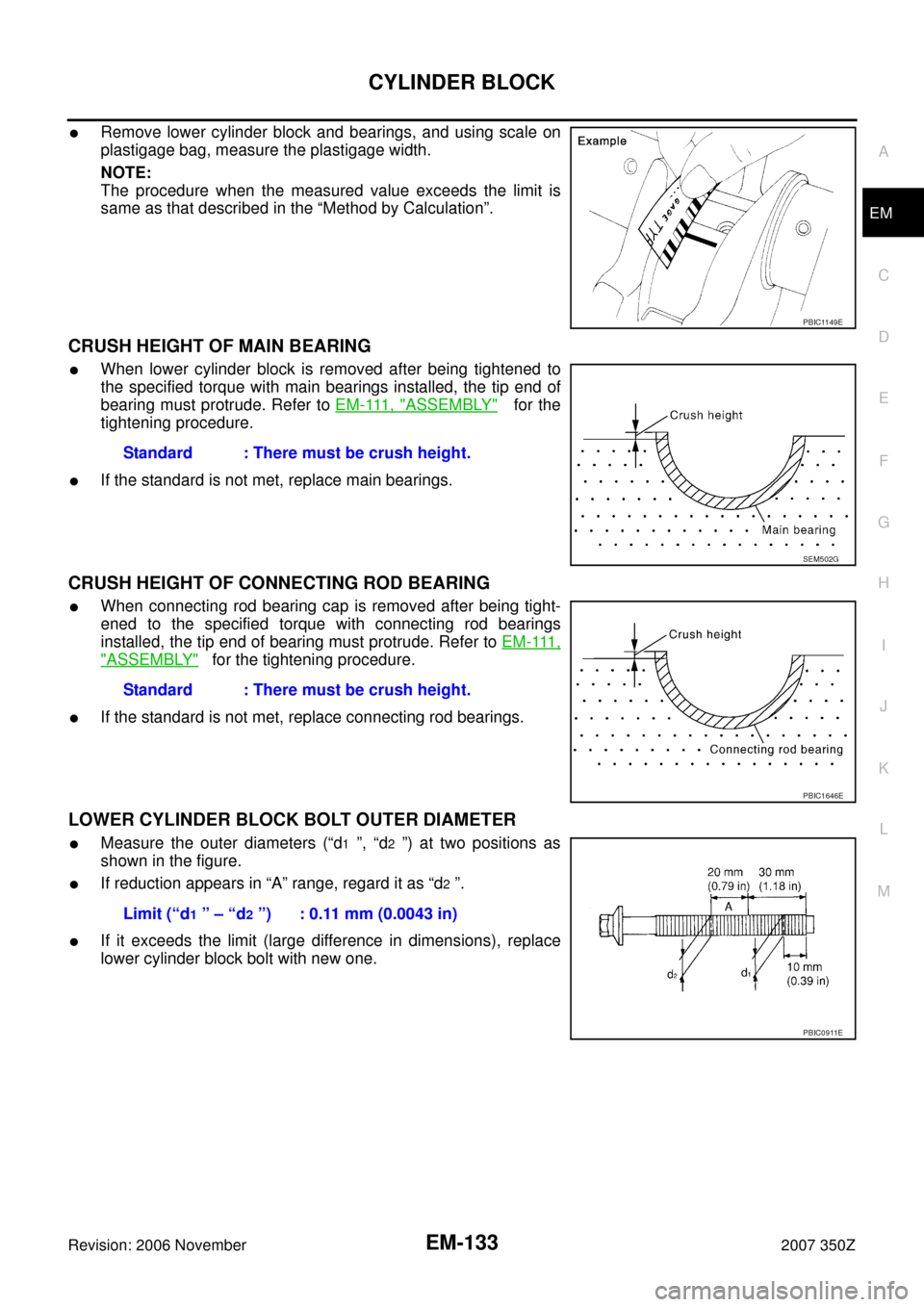

Remove lower cylinder block and bearings, and using scale on
plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.
CRUSH HEIGHT OF MAIN BEARING

When lower cylinder block is removed after being tightened to
the specified torque with main bearings installed, the tip end of
bearing must protrude. Refer to E M - 111 , "
ASSEMBLY" for the
tightening procedure.

If the standard is not met, replace main bearings.
CRUSH HEIGHT OF CONNECTING ROD BEARING

When connecting rod bearing cap is removed after being tight-
ened to the specified torque with connecting rod bearings
installed, the tip end of bearing must protrude. Refer to E M - 111 ,
"ASSEMBLY" for the tightening procedure.

If the standard is not met, replace connecting rod bearings.
LOWER CYLINDER BLOCK BOLT OUTER DIAMETER

Measure the outer diameters (“d1 ”, “d2 ”) at two positions as
shown in the figure.

If reduction appears in “A” range, regard it as “d2 ”.

If it exceeds the limit (large difference in dimensions), replace
lower cylinder block bolt with new one.
PBIC1149E
Standard : There must be crush height.
SEM502G
Standard : There must be crush height.
PBIC1646E
Limit (“d1 ” – “d2 ”) : 0.11 mm (0.0043 in)
PBIC0911E

EM-134
CYLINDER BLOCK
Revision: 2006 November2007 350Z
CONNECTING ROD BOLT OUTER DIAMETER

Measure the outer diameter (“a”, “b” and “c”) at the position
shown in the figure.

Obtain a mean value (d) of (a) and (b).

Subtract (c) from (d).

If it exceeds the limit (large difference in dimensions), replace
the bolt with new one.
FLYWHEEL DEFLECTION (M/T MODELS)

Measure the deflection of flywheel contact surface to clutch with
dial indicator.

Measure the deflection at 210 mm (8.27 in) dia.

If the measured value is out of the standard, replace flywheel.
MOVEMENT AMOUNT OF FLYWHEEL (M/T MODELS)
CAUTION:
Do not disassemble double mass flywheel.
Movement Amount of Radial (Rotation) Direction
Check the movement amount of radial (rotation) direction as follows:
1. Install bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.

Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it from loosening.
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transmis-
sion side.
4. Measure dimensions of movement amounts “A” and “B” on cir-
cumference of flywheel on the transmission side.

If the measured value is out of the standard, replace flywheel.
a : Value at the end of the smaller diameter of the bolt
b : Value at the end of the smaller diameter of the bolt (opposite side “a”)
c : Value of the smallest diameter of the smaller of the bolt
Limit (“d” − “c”) : 0.09 mm (0.0035 in)
PBIC5025E
Standard : 0.45 mm (0.0177 in) or less
PBIC2168E
Standard : 24 mm (0.94 in) or less
PBIC1046E

CYLINDER BLOCK
EM-135
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
DRIVE PLATE (A/T MODELS)

Check drive plate and signal plate for deformation or cracks.
CAUTION:

Do not disassemble drive plate.

Do not place drive plate with signal plate facing down.

When handling signal plate, take care not to damage or
scratch it.

Handle signal plate in a manner that prevents it from
becoming magnetized.

If anything is found, replace drive plate.
OIL JET

Check nozzle for deformation and damage.

Blow compressed air from nozzle, and check for clogs.

If it is not satisfied, clean or replace oil jet.
OIL JET RELIEF VALVE

Using clean plastic stick, press check valve in oil jet relief valve.
Make sure that valve moves smoothly with proper reaction
force.

If it is not satisfied, replace oil jet relief valve.
SEM760G
EMU0468D

EM-136
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
Standard and LimitNBS00016
GENERAL SPECIFICATIONS
INTAKE MANIFOLD COLLECTOR, INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm (in) Cylinder arrangementV-6
Displacement cm
3 (cu in)3,498 (213.45)
Bore and stroke mm (in)95.5 x 81.4 (3.76 x 3.205)
Valve arrangementDOHC
Firing order1-2-3-4-5-6
Number of piston ringsCompression 2
Oil 1
Number of main bearings4
Compression ratio10.6
Compression pressure
kPa (kg/cm
2 , psi)/300 rpmStandard 1,275 (13.0, 185)
Minimum 981 (10.0, 142)
Differential limit between cylinders 98 (1.0, 14)
Cylinder number
Va l v e t i m i n g
(Intake valve timing con-
trol - “OFF”)
Unit: degree
abcdef
248 248 2 66 0 68
SEM713A
PBIC0187E
Items Limit
Surface distortionIntake manifold collector 0.1 (0.004)
Intake manifold 0.1 (0.004)
Exhaust manifold 0.3 (0.012)

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-137
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
SPARK PLUG
Unit: mm (in)
CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
*
1 : Cam wear limit
*2 : Total indicator reading
Valve Lifter
Unit: mm (in)
Valve Clearance
Unit: mm (in)
*: Approximately 80°C (176°F) MakeDENSO
Standard typeFXE22HR11
Gap (Nominal)1.1 (0.043)
Items Standard Limit
Camshaft journal oil clearanceNo. 1 0.045 - 0.086 (0.0018 - 0.0034)
0.15 (0.0059)
No. 2, 3, 4 0.035 - 0.076 (0.0014 - 0.0030)
Camshaft bracket inner diameterNo. 1 26.000 - 26.021 (1.0236 - 1.0244) —
No. 2, 3, 4 23.500 - 23.521 (0.9252 - 0.9260) —
Camshaft journal diameterNo. 1 25.935 - 25.955 (1.0211 - 1.0218) —
No. 2, 3, 4 23.445 - 23.465 (0.9230 - 0.9238) —
Camshaft end play 0.115 - 0.188 (0.0045 - 0.0074) 0.24 (0.0094)
Camshaft cam height “A”Intake 45.865 - 46.055 (1.8057 - 1.8132)
0.2 (0.008)*
1
Exhaust 45.875 - 46.065 (1.8061 - 1.8136)
Camshaft runout (TIR*
2 )Less than 0.02 (0.0008) 0.05 (0.0020)
Camshaft sprocket runout (TIR*
2 )— 0.15 (0.0059)
SEM671
Items Standard
Valve lifter outer diameter 33.980 - 33.990 (1.3378 - 1.3382)
Valve lifter hole diameter 34.000 - 34.016 (1.3386 - 1.3392)
Valve lifter clearance0.010 - 0.036 (0.0004 - 0.0014)
Items Cold Hot* (reference data)
Intake 0.26 - 0.34 (0.010 - 0.013) 0.304 - 0.416 (0.012 - 0.016)
Exhaust 0.29 - 0.37 (0.011 - 0.015) 0.308 - 0.432 (0.012 - 0.017)

EM-138
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
Available Valve Lifter
Unit: mm (in)
Identification (stamped) mark Thickness
788T 7.88 (0.3102)
790T 7.90 (0.3110)
792T 7.92 (0.3118)
794T 7.94 (0.3126)
796T 7.96 (0.3134)
798T 7.98 (0.3142)
800T 8.00 (0.3150)
802T 8.02 (0.3157)
804T 8.04 (0.3165)
806T 8.06 (0.3173)
808T 8.08 (0.3181)
810T 8.10 (0.3189)
812T 8.12 (0.3197)
814T 8.14 (0.3205)
816T 8.16 (0.3213)
818T 8.18 (0.3220)
820T 8.20 (0.3228)
822T 8.22 (0.3236)
824T 8.24 (0.3244)
826T 8.26 (0.3252)
828T 8.28 (0.3260)
830T 8.30 (0.3268)
832T 8.32 (0.3276)
834T 8.34 (0.3283)
836T 8.36 (0.3291)
838T 8.38 (0.3299)
840T 8.40 (0.3307)
SEM758G

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-139
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
CYLINDER HEAD
Unit: mm (in)
Valve Dimensions
Unit: mm (in) Items Standard Limit
Head surface distortion Less than 0.03 (0.0012) 0.1 (0.004)
Normal cylinder head height “H” 126.3 - 126.5 (4.972 - 4.980) —
PBIC0924E
Valve head diameter “D”Intake 36.6 - 36.9 (1.441 - 1.453)
Exhaust 30.2 - 30.5 (1.189 - 1.201)
Valve length “L”Intake 97.13 (3.8240)
Exhaust 94.67 (3.7272)
Valve stem diameter “d”Intake 5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.962 - 5.970 (0.2347 - 0.2350)
Valve seat angle “α”Intake
45°15′ - 45°45′
Exhaust
Valve margin “T”Intake 1.1 (0.043)
Exhaust 1.3 (0.051)
Valve margin “T” limit0.5 (0.020)
Valve stem end surface grinding limit 0.2 (0.008)
SEM188

EM-140
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
Valve Guide
Unit: mm (in)
Items Standard Oversize (Service) [0.2 (0.008)]
Va l v e g u i d eOuter diameter 10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)
Inner diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 - 0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023)
Items Standard Limit
Valve guide clearanceIntake 0.020 - 0.053 (0.0008 - 0.0021) 0.08 (0.0031)
Exhaust 0.030 - 0.056 (0.0012 - 0.0022) 0.09 (0.0035)
Projection length “L” 12.6 - 12.8 (0.496 - 0.504)
SEM950E
