CYLINDER BLOCK
EM-121
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
3. Select connecting rod bearing grade at the point where selected row and column meet in “Connecting
Rod Bearing Selection Table”.
When Crankshaft and Connecting Rod are Reused
1. Measure the connecting rod big end diameter and crankshaft pin journal diameter. Refer to EM-127,
"CONNECTING ROD BIG END DIAMETER" . and EM-131, "CRANKSHAFT PIN JOURNAL DIAMETER"
.
2. Correspond the measured dimension in “Connecting rod big end diameter” row of “Connecting Rod Bear-
ing Selection Table”.
3. Correspond the measured dimension in “Crankshaft pin journal diameter” column of “Connecting Rod
Bearing Selection Table”.
4. Select connecting rod bearing grade at the point where selected row and column meet in following selec-
tion table.
Connecting Rod Bearing Selection Table
Connecting Rod Bearing Grade Table
PBIC5023E
Grade number Thickness mm (in) Identification color (mark)
0 1.497 – 1.500 (0.0589 – 0.0591) Black
1 1.500 – 1.503 (0.0591 – 0.0592) Brown

EM-122
CYLINDER BLOCK
Revision: 2006 November2007 350Z
Undersize Bearings Usage Guide

When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod
bearings, use undersize (US) bearings.

When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing
installed, and grind crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.
CAUTION:
In grinding crankshaft pin to use undersize bearings, keep
the fillet R [1.5 – 1.7 mm (0.059 – 0.067 in)].
Bearing undersize table
Unit: mm (in)
HOW TO SELECT MAIN BEARING
When New Cylinder Block and Crankshaft are Used
1. “Main Bearing Selection Table” rows correspond to bearing
housing grade on rear left side of cylinder block.
2. “Main Bearing Selection Table” columns correspond to journal
diameter grade on front side of crankshaft.
2 1.503 – 1.506 (0.0592 – 0.0593) Green
3 1.506 – 1.509 (0.0593 – 0.0594) Yellow
4 1.509 – 1.512 (0.0594 – 0.0595) Blue Grade number Thickness mm (in) Identification color (mark)
PBIC1908E
Size Thickness
US 0.25 (0.0098) 1.626 - 1.634 (0.0640 - 0.0643)
A : Bearing housing grade No. 1
B : Bearing housing grade No. 2
C : Bearing housing grade No. 3
D : Bearing housing grade No. 4
E : Cylinder bore grade No. 1
F : Cylinder bore grade No. 2
G : Cylinder bore grade No. 3
H : Cylinder bore grade No. 4
I : Cylinder bore grade No. 5
J : Cylinder bore grade No. 6
K : Identification code
: Engine front
A : Main journal diameter grade No. 1
B : Main journal diameter grade No. 2
C : Main journal diameter grade No. 3
D : Main journal diameter grade No. 4
E : Pin diameter grade No. 1
F : Pin diameter grade No. 2
G : Pin diameter grade No. 3
H : Pin diameter grade No. 4
PBIC4995E
PBIC4996E

CYLINDER BLOCK
EM-123
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z3. Select main bearing grade at the point where selected row and column meet in “Main Bearing Selection
Table”.
When Cylinder Block and Crankshaft are Reused
1. Measure cylinder block main bearing housing inner diameter and crankshaft main journal diameter. Refer
to EM-129, "
MAIN BEARING HOUSING INNER DIAMETER" and EM-130, "CRANKSHAFT MAIN
JOURNAL DIAMETER" .
2. Correspond the measured dimension in “Cylinder block main bearing housing inner diameter” row of
“Main Bearing Selection Table”.
3. Correspond the measured dimension in “Crankshaft main journal diameter” column of “Main Bearing
Selection Table”.
4. Select main bearing grade at the point where selected row and column meet in following selection table.
Main Bearing Selection Table
I : Pin diameter grade No. 5
J : Pin diameter grade No. 6
K : Identification code
PBIC5024E

EM-124
CYLINDER BLOCK
Revision: 2006 November2007 350Z
Main Bearing Grade Table (All Journals)
Undersize Bearing Usage Guide

When the specified main bearing oil clearance is not obtained with standard size main bearings, use
underside (US) bearing.

When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and
grind main journal so that the main bearing oil clearance satisfies the standard.
CAUTION:
In grinding crankshaft main journal to use undersize bear-
ings, keep the fillet R [1.5 – 1.7 mm (0.059 – 0.067 in)].
Bearing undersize table
Unit: mm (in) Grade numberThickness
Unit: mm (in)Width
Unit: mm (in)Identification color Remarks
0 2.500 - 2.503 (0.0984 - 0.0985)
19.9 - 20.1
(0.783 - 0.791)Black
Grade and color are
the same for upper
and lower bearings. 1 2.503 - 2.506 (0.0985 - 0.0987) Brown
2 2.506 - 2.509 (0.0987 - 0.0988) Green
3 2.509 - 2.512 (0.0988 - 0.0989) Yellow
4 2.512 - 2.515 (0.0989 - 0.0990) Blue
5 2.515 - 2.518 (0.0990 - 0.0991) Pink
6 2.518 - 2.521 (0.0991 - 0.0993) Purple
7 2.521 - 2.524 (0.0993 - 0.0994) White
01UPR 2.503 - 2.506 (0.0985 - 0.0987) Brown
Grade and color are
different for upper and
lower bearings. LWR 2.500 - 2.503 (0.0984 - 0.0985) Black
12UPR 2.506 - 2.509 (0.0987 - 0.0988) Green
LWR 2.503 - 2.506 (0.0985 - 0.0987) Brown
23UPR 2.509 - 2.512 (0.0988 - 0.0989) Yellow
LWR 2.506 - 2.509 (0.0987 - 0.0988) Green
34UPR 2.512 - 2.515 (0.0989 - 0.0990) Blue
LWR 2.509 - 2.512 (0.0988 - 0.0989) Yellow
45UPR 2.515 - 2.518 (0.0990 - 0.0991) Pink
LWR 2.512 - 2.515 (0.0989 - 0.0990) Blue
56UPR 2.518 - 2.521 (0.0991 - 0.0993) Purple
LWR 2.515 - 2.518 (0.0990 - 0.0991) Pink
67UPR 2.521 - 2.524 (0.0993 - 0.0994) White
LWR 2.518 - 2.521 (0.0991 - 0.0993) Purple
PBIC1908E
Size Thickness
US 0.25 (0.0098) 2.633 - 2.641 (0.1037 - 0.1040)

CYLINDER BLOCK
EM-125
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z

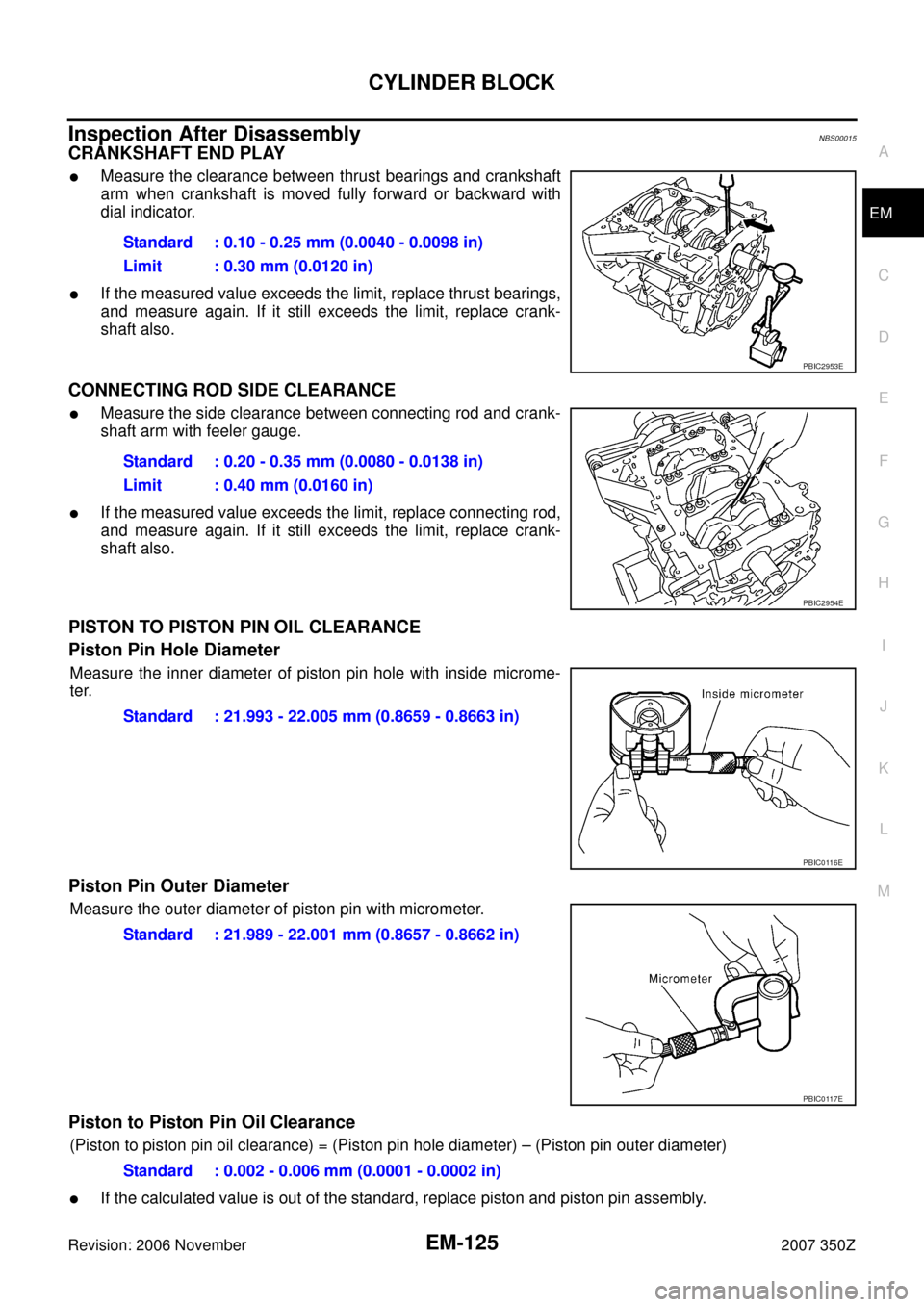

Inspection After DisassemblyNBS00015
CRANKSHAFT END PLAY

Measure the clearance between thrust bearings and crankshaft
arm when crankshaft is moved fully forward or backward with
dial indicator.

If the measured value exceeds the limit, replace thrust bearings,
and measure again. If it still exceeds the limit, replace crank-
shaft also.
CONNECTING ROD SIDE CLEARANCE

Measure the side clearance between connecting rod and crank-
shaft arm with feeler gauge.

If the measured value exceeds the limit, replace connecting rod,
and measure again. If it still exceeds the limit, replace crank-
shaft also.
PISTON TO PISTON PIN OIL CLEARANCE
Piston Pin Hole Diameter
Measure the inner diameter of piston pin hole with inside microme-
ter.
Piston Pin Outer Diameter
Measure the outer diameter of piston pin with micrometer.
Piston to Piston Pin Oil Clearance
(Piston to piston pin oil clearance) = (Piston pin hole diameter) – (Piston pin outer diameter)

If the calculated value is out of the standard, replace piston and piston pin assembly.Standard : 0.10 - 0.25 mm (0.0040 - 0.0098 in)
Limit : 0.30 mm (0.0120 in)
PBIC2953E
Standard : 0.20 - 0.35 mm (0.0080 - 0.0138 in)
Limit : 0.40 mm (0.0160 in)
PBIC2954E
Standard : 21.993 - 22.005 mm (0.8659 - 0.8663 in)
PBIC0116E
Standard : 21.989 - 22.001 mm (0.8657 - 0.8662 in)
PBIC0117E
Standard : 0.002 - 0.006 mm (0.0001 - 0.0002 in)

EM-126
CYLINDER BLOCK
Revision: 2006 November2007 350Z

When replacing piston and piston pin assembly, refer to EM-119, "HOW TO SELECT PISTON" .
NOTE:

Piston is available together with piston pin as assembly.

Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts,
no piston pin grades can be selected. (Only “0” grade is available.)

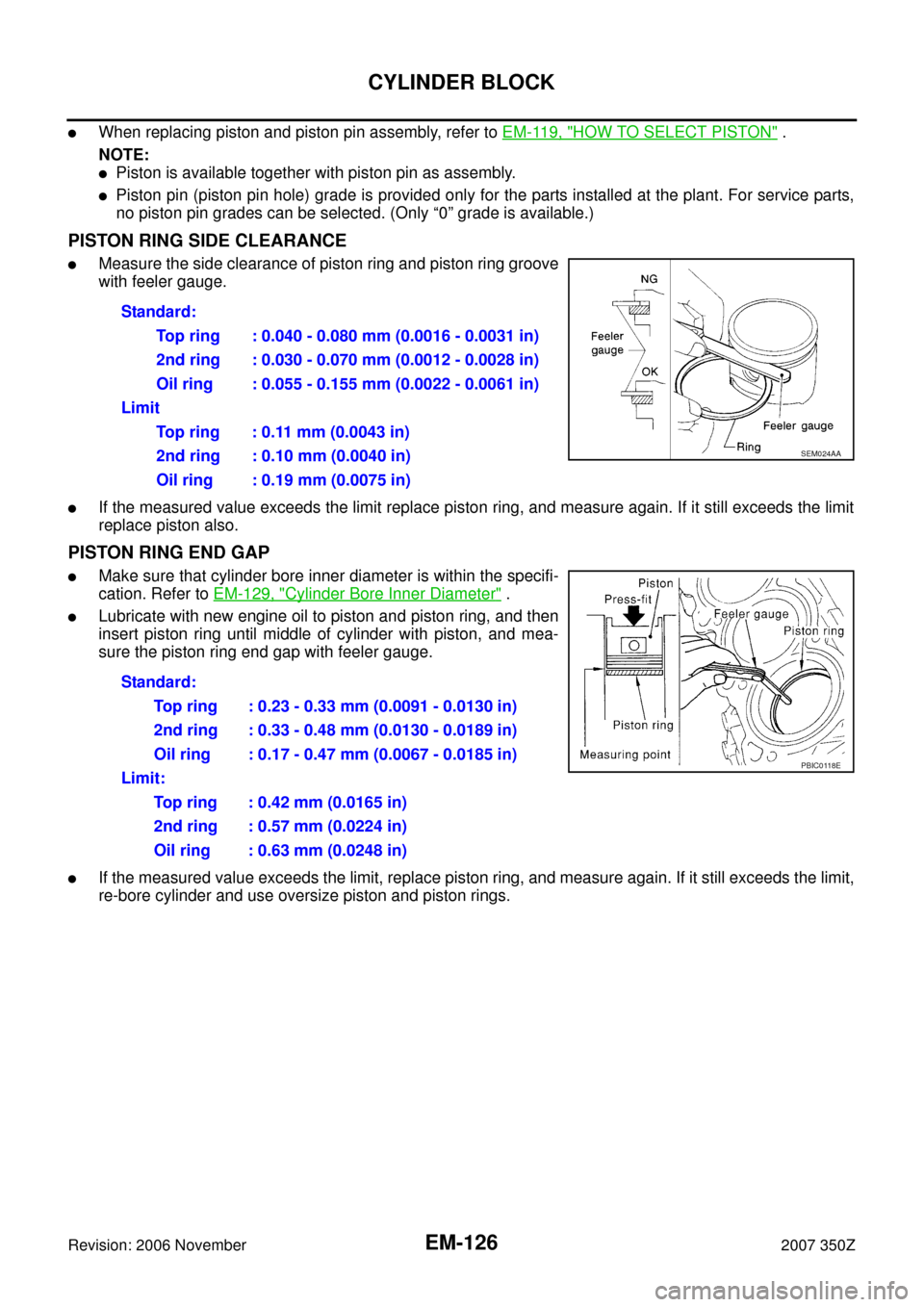

PISTON RING SIDE CLEARANCE

Measure the side clearance of piston ring and piston ring groove
with feeler gauge.

If the measured value exceeds the limit replace piston ring, and measure again. If it still exceeds the limit
replace piston also.
PISTON RING END GAP

Make sure that cylinder bore inner diameter is within the specifi-
cation. Refer to EM-129, "
Cylinder Bore Inner Diameter" .

Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure the piston ring end gap with feeler gauge.

If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversize piston and piston rings.Standard:
Top ring : 0.040 - 0.080 mm (0.0016 - 0.0031 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.055 - 0.155 mm (0.0022 - 0.0061 in)
Limit
Top ring : 0.11 mm (0.0043 in)
2nd ring : 0.10 mm (0.0040 in)
Oil ring : 0.19 mm (0.0075 in)
SEM024AA
Standard:
Top ring : 0.23 - 0.33 mm (0.0091 - 0.0130 in)
2nd ring : 0.33 - 0.48 mm (0.0130 - 0.0189 in)
Oil ring : 0.17 - 0.47 mm (0.0067 - 0.0185 in)
Limit:
Top ring : 0.42 mm (0.0165 in)
2nd ring : 0.57 mm (0.0224 in)
Oil ring : 0.63 mm (0.0248 in)
PBIC0118E

CYLINDER BLOCK
EM-127
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z

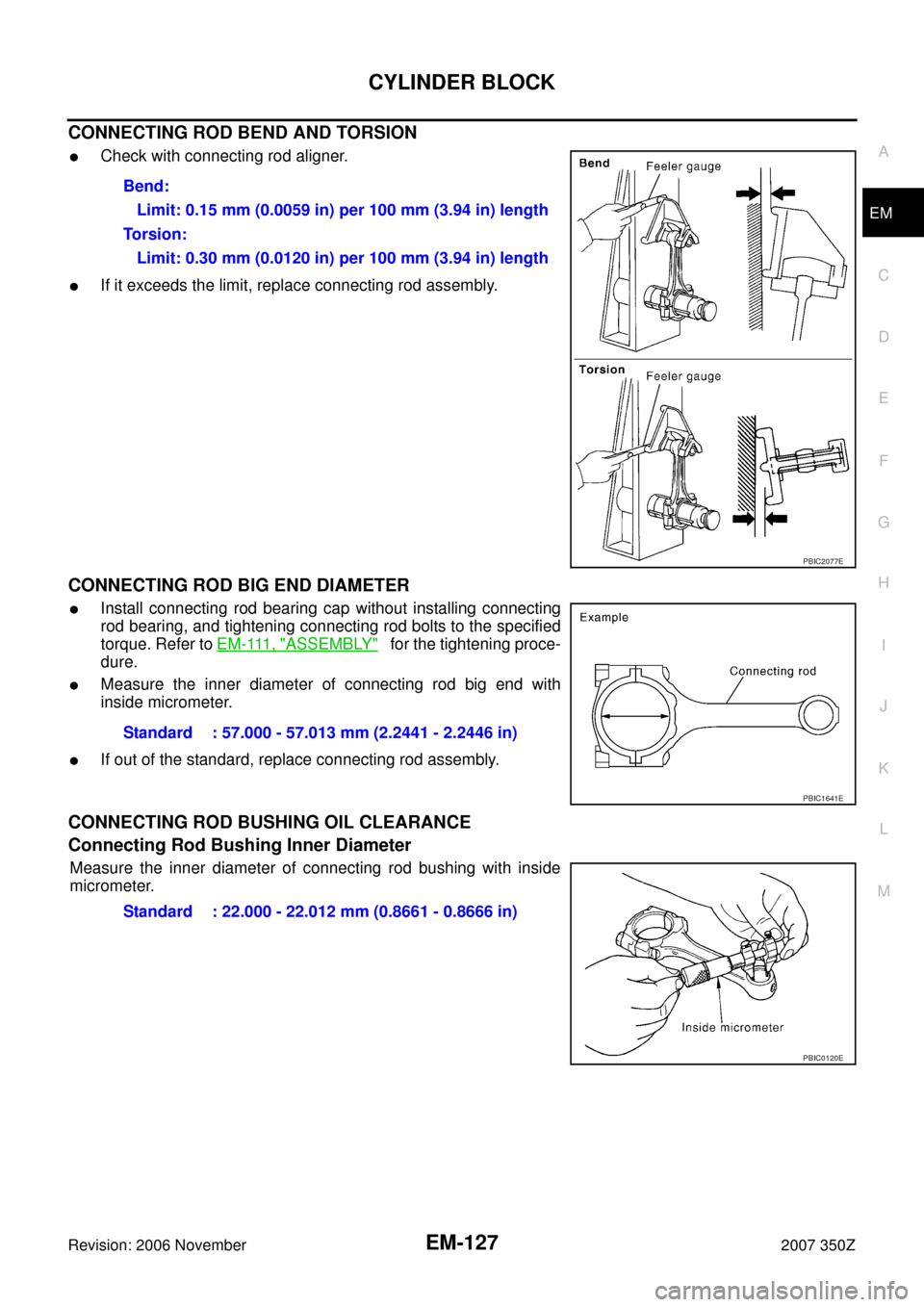

CONNECTING ROD BEND AND TORSION

Check with connecting rod aligner.

If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER

Install connecting rod bearing cap without installing connecting
rod bearing, and tightening connecting rod bolts to the specified
torque. Refer to E M - 111 , "
ASSEMBLY" for the tightening proce-
dure.

Measure the inner diameter of connecting rod big end with
inside micrometer.

If out of the standard, replace connecting rod assembly.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter
Measure the inner diameter of connecting rod bushing with inside
micrometer.Bend:
Limit: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
To r s i o n :
Limit: 0.30 mm (0.0120 in) per 100 mm (3.94 in) length
PBIC2077E
Standard : 57.000 - 57.013 mm (2.2441 - 2.2446 in)
PBIC1641E
Standard : 22.000 - 22.012 mm (0.8661 - 0.8666 in)
PBIC0120E

EM-128
CYLINDER BLOCK
Revision: 2006 November2007 350Z
Piston Pin Outer Diameter
Measure the outer diameter of piston pin with micrometer.
Connecting Rod Bushing Oil Clearance
(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)

If the measured value exceeds the limit, replace connecting rod assembly and/or piston and piston pin
assembly.

If replacing piston and piston pin assembly, refer to EM-119, "HOW TO SELECT PISTON" .

If replacing connecting rod assembly, refer to EM-131, "CONNECTING ROD BEARING OIL CLEAR-
ANCE" to select the connecting rod bearing.
Factory installed parts grading:

Service parts apply only to grade “0”.
Unit: mm (in)
*: After installing in connecting rod
CYLINDER BLOCK DISTORTION

Using scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or
other contamination.
CAUTION:
Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.Standard : 21.989 - 22.001 mm (0.8657 - 0.8662 in)
PBIC0117E
Standard : 0.005 - 0.017 mm (0.0002 - 0.0007 in)
Limit : 0.030 mm (0.0012 in)
A : Sample code
B : Bearing stopper groove
C : Small end diameter grade
D : Big end diameter grade
E : Weight grade
F : Cylinder No.
G : Management code
H : Front mark
I : Management code
PBIC5046E
A : Piston grade number
B : Front mark
C : Piston pin grade number
Grade 0 1
Connecting rod bushing
inner diameter * 22.000 - 22 .0 06
(0.8661 - 0.8664) 22.006 - 22.012
(0.8664 - 0.8666)
Piston pin hole diameter 21.993 - 21.999
(0.8659 - 0.8661) 21.999 - 22. 005
(0.8661 - 0.8663)
Piston pin outer diameter 21.989 - 21.995
(0.8657- 0.8659) 21.995 - 22.001
(0.8659 - 0.8662)
PBIC4994E

CYLINDER BLOCK
EM-129
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z

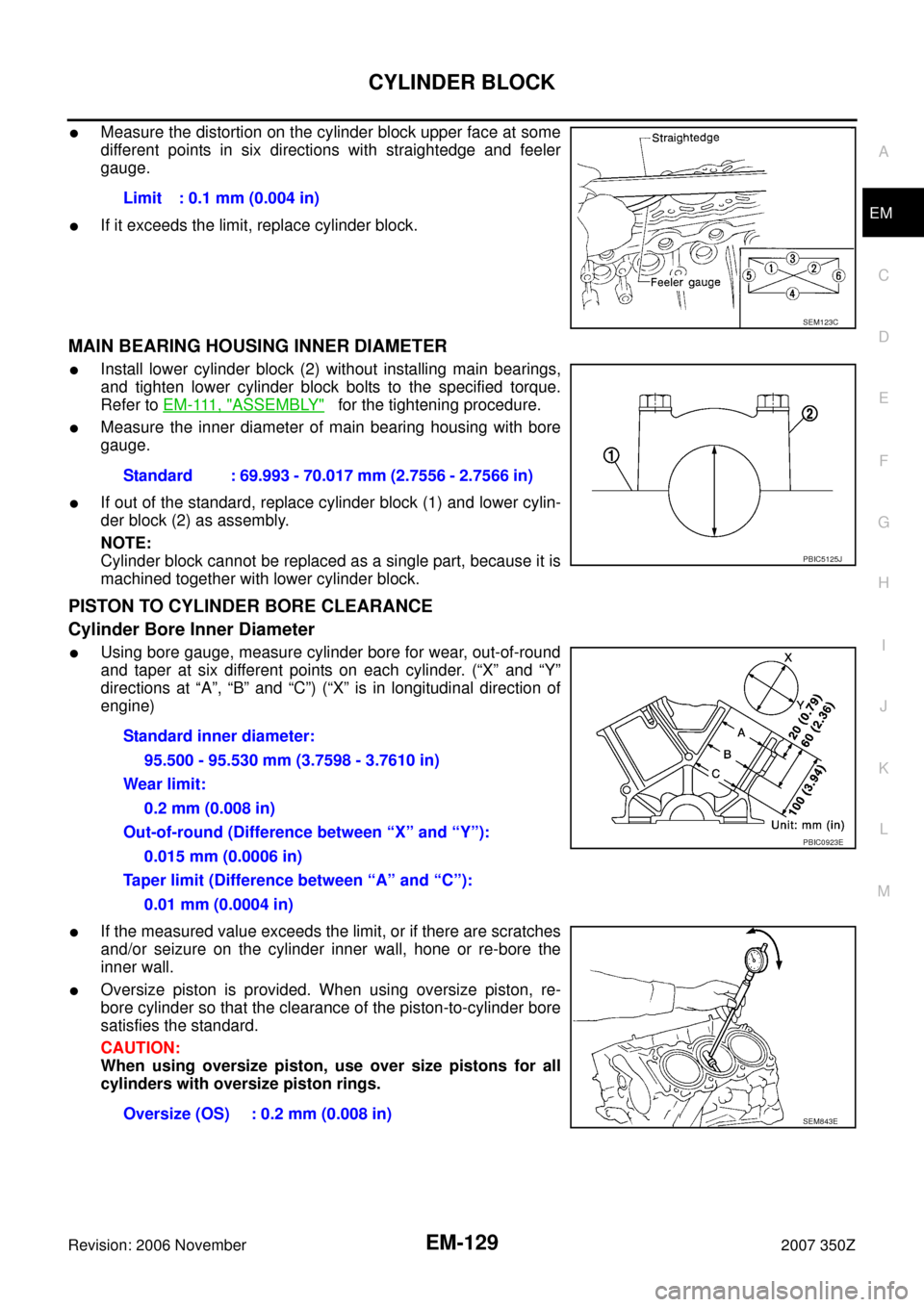

Measure the distortion on the cylinder block upper face at some
different points in six directions with straightedge and feeler
gauge.

If it exceeds the limit, replace cylinder block.
MAIN BEARING HOUSING INNER DIAMETER

Install lower cylinder block (2) without installing main bearings,
and tighten lower cylinder block bolts to the specified torque.
Refer to E M - 111 , "
ASSEMBLY" for the tightening procedure.

Measure the inner diameter of main bearing housing with bore
gauge.

If out of the standard, replace cylinder block (1) and lower cylin-
der block (2) as assembly.
NOTE:
Cylinder block cannot be replaced as a single part, because it is
machined together with lower cylinder block.
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter

Using bore gauge, measure cylinder bore for wear, out-of-round
and taper at six different points on each cylinder. (“X” and “Y”
directions at “A”, “B” and “C”) (“X” is in longitudinal direction of
engine)

If the measured value exceeds the limit, or if there are scratches
and/or seizure on the cylinder inner wall, hone or re-bore the
inner wall.

Oversize piston is provided. When using oversize piston, re-
bore cylinder so that the clearance of the piston-to-cylinder bore
satisfies the standard.
CAUTION:
When using oversize piston, use over size pistons for all
cylinders with oversize piston rings.Limit : 0.1 mm (0.004 in)
SEM123C
Standard : 69.993 - 70.017 mm (2.7556 - 2.7566 in)
PBIC5125J
Standard inner diameter:
95.500 - 95.530 mm (3.7598 - 3.7610 in)
Wear limit:
0.2 mm (0.008 in)
Out-of-round (Difference between “X” and “Y”):
0.015 mm (0.0006 in)
Taper limit (Difference between “A” and “C”):
0.01 mm (0.0004 in)
Oversize (OS) : 0.2 mm (0.008 in)
PBIC0923E
SEM843E

EM-130
CYLINDER BLOCK
Revision: 2006 November2007 350Z
Piston Skirt Diameter
Measure the outer diameter of piston skirt with micrometer.
Piston to Cylinder Bore Clearance
Calculate by piston skirt diameter and cylinder bore inner diameter (direction “Y”, position “B”).
(Clearance) = (Cylinder bore inner diameter) – (Piston skirt diameter).

If calculated value exceeds the limit, replace piston and piston pin assembly. Refer to EM-119, "HOW TO
SELECT PISTON" .
Re-boring Cylinder Bore
1. Cylinder bore size is determined by adding piston to cylinder bore clearance to piston skirt diameter.
2. Install lower cylinder block, and tighten to the specified torque. Otherwise, cylinder bores may be distorted
in final assembly.
3. Cut cylinder bores.
NOTE:

When any cylinder needs boring, all other cylinders must also be bored.

Do not cut too much out of cylinder bore at a time. Cut only 0.05 mm (0.0020 in) or so in diameter at a
time.
4. Hone cylinders to obtain the specified piston to cylinder bore clearance.
5. Measure finished cylinder bore for the out-of-round and taper.
NOTE:
Measurement should be done after cylinder bore cools down.
CRANKSHAFT MAIN JOURNAL DIAMETER

Measure the outer diameter of crankshaft main journals with micrometer.

If out of the standard, measure the main bearing oil clearance. Then use undersize bearing. Refer to EM-
132, "MAIN BEARING OIL CLEARANCE" . Measure point
: Distance from the top 38.8 mm (1.528 in)
Standard
: 95.480 - 95.510 mm (3.7590 - 3.7602 in)
PBIC0125E
Standard : 0.010 - 0.030 mm (0.0004 - 0.0012 in)
Limit : 0.08 mm (0.0031 in)
Re-bored size calculation: D = A + B – C
where,
D: Bored diameter
A: Piston skirt diameter as measured
B: Piston to cylinder bore clearance (standard value)
C: Honing allowance 0.02 mm (0.0008 in)
Standard : 64.951 - 64.975 mm (2.5571 - 2.5581 in) dia.
