FUEL TANK
FL-11
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: 2006 November2007 350Z

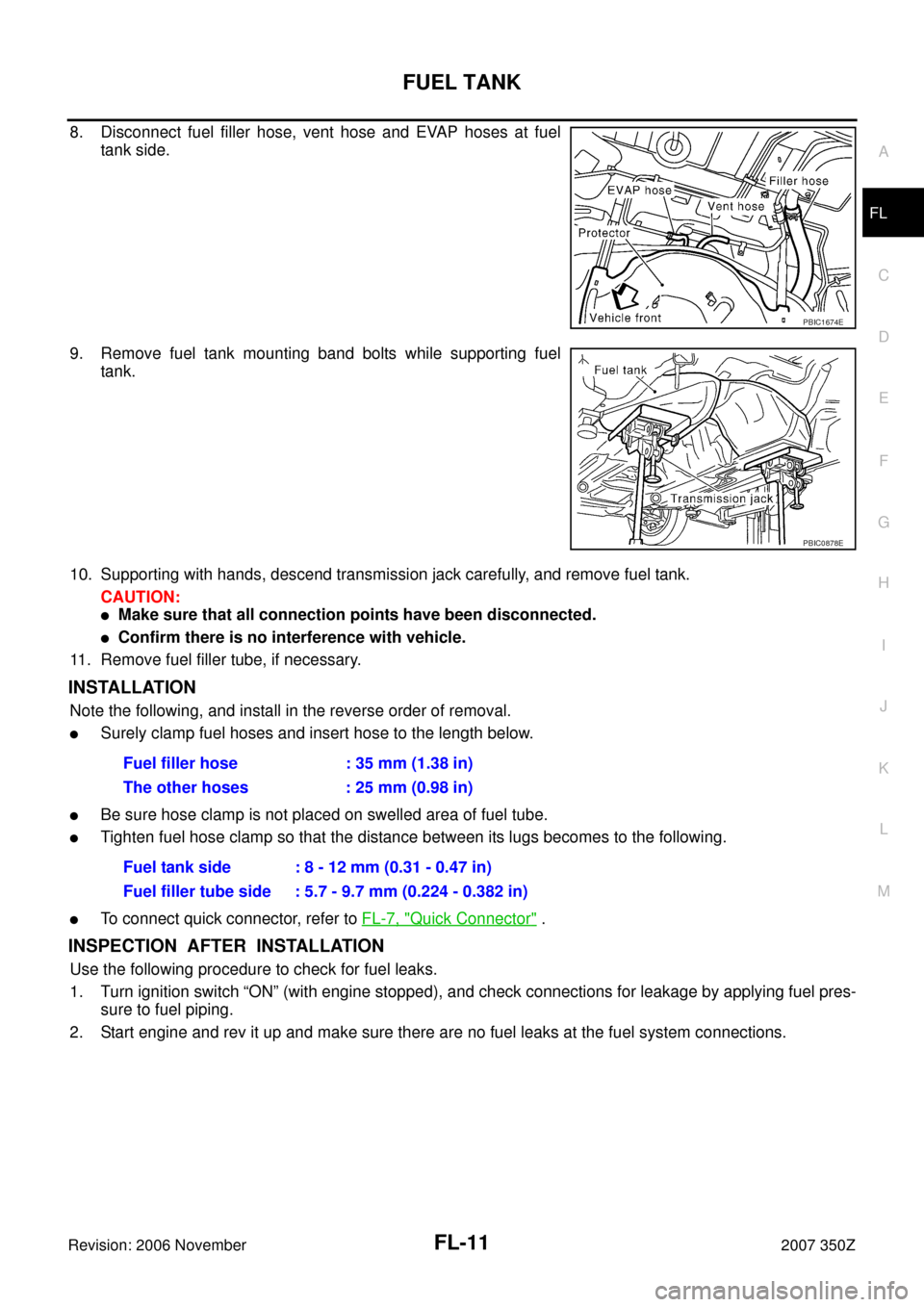

8. Disconnect fuel filler hose, vent hose and EVAP hoses at fuel
tank side.
9. Remove fuel tank mounting band bolts while supporting fuel
tank.
10. Supporting with hands, descend transmission jack carefully, and remove fuel tank.
CAUTION:

Make sure that all connection points have been disconnected.

Confirm there is no interference with vehicle.
11. Remove fuel filler tube, if necessary.
INSTALLATION
Note the following, and install in the reverse order of removal.

Surely clamp fuel hoses and insert hose to the length below.

Be sure hose clamp is not placed on swelled area of fuel tube.

Tighten fuel hose clamp so that the distance between its lugs becomes to the following.

To connect quick connector, refer to FL-7, "Quick Connector" .
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
1. Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.
2. Start engine and rev it up and make sure there are no fuel leaks at the fuel system connections.
PBIC1674E
PBIC0878E
Fuel filler hose : 35 mm (1.38 in)
The other hoses : 25 mm (0.98 in)
Fuel tank side : 8 - 12 mm (0.31 - 0.47 in)
Fuel filler tube side : 5.7 - 9.7 mm (0.224 - 0.382 in)

FL-12
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS000J2
Tightening TorqueNBS000J3
Unit : N·m (kg-m, ft-lb)
N·m (kg-m, in-lb)* Fuel tank capacity
Approx. 76 (20 US gal, 16-3/4 Imp gal)
Fuel recommendation Refer to GI-5
Main fuel level sensor unit, fuel filter and fuel pump assembly 2.0 - 2.5 (0.20 - 0.26, 18 - 22)*
Sub fuel level sensor unit 2.0 - 2.5 (0.20 - 0.26, 18 - 22)*
Fuel tank mounting band 37.0 - 49.0 (3.8 - 5.0, 28 - 36)
Fuel filler tube 10.9 - 14.7 (1.1 - 1.5, 8 - 10)
Fuel tank protector 10.9 - 14.7 (1.1 - 1.5, 8 - 10)
