REAR WINDOW DEFOGGER
Revision: 2006 November2007 350Z
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationNIS0005C
System DescriptionNIS0005D
The rear window defogger system is controlled by BCM (Body Control Module) and IPDM E/R (Intelligent
Power Distribution Module Engine Room). The rear window defogger operates only for approximately 15 min-
utes.
Power is supplied at all times

through 20A fuse [No. 75 and 80, located in the IPDM E/R]

to rear window defogger relay terminal 3 and 6.

through 40A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55.

through 10A fuse [No. 18, located in the fuse block (J/B)]

to BCM terminal 42.

through 10A fuse [No. 19, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 21.
With the ignition switch turned to ON or START position, power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

through 10A fuse [No. 12, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 22 and rear window defogger relay terminal 1

and then through unified meter and A/C amp.

to A/C controller (rear window defogger switch) terminal 72 and 84.
PIIB3830E

REAR WINDOW DEFOGGER
GW-57
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
Ground is supplied

to BCM terminal 52

through body grounds M30, and M66.

to unified meter and A/C amp. terminal 29 and 30

through body grounds M30 and M66.

to internal CPU of IPDM E/R terminal 38 and 60

through body grounds E17, E43, B102 (with VDC system or navigation system) and F152 (without VDC
system and navigation system).
When A/C controller (rear window defogger switch) is turned ON,
Rear window defogger switch signals are transmitted,

through A/C controller terminal 87

to unified meter and A/C amp.
Then ground is supplied

to BCM terminal 9

through unified meter and A/C amp. terminal 38

through unified meter and A/C amp. terminal 30

through body grounds M30 and M66.
Then BCM recognizes that rear window defogger switch is turned ON.
Then it sends rear window defogger switch signals to IPDM E/R via DATA LINE (CAN H, CAN L).
When IPDM E/R receives rear window defogger switch signals,
Ground is supplied

to rear window defogger relay terminal 2

through IPDM E/R terminal 52

through internal CPU of IPDM E/R

through IPDM E/R terminal 60

through body grounds E17, E43, B102 (with VDC system or navigation system), F152 (without VDC sys-
tem and navigation system), and then rear window defogger relay is energized.
When rear window defogger relay is turned ON,
Signals are transmitted

to rear window defogger terminal 1

through rear window defogger relay terminals 5 and 7 (For Coupe)

through rear window defogger relay terminal 5. (For Roadster)
Rear window defogger terminal 2 is grounded through body ground D212. (For Coupe)
Rear window defogger terminal 2 is grounded through body ground B5, B6 and T14. (For Roadster)
With power and ground supplied, rear window defogger filaments heat and defog the rear window.
When rear window defogger relay is turned ON,
Power is supplied

through rear window defogger relay terminals 5 and 7 (For Coupe)

through rear window defogger relay terminal 7 (For Roadster)

through fuse block (J/B) terminal 2C

through 10A fuse [No. 8, located in the fuse block (J/B)]

through fuse block (J/B) terminal 5B

to door mirror defogger (Driver side and passenger side) terminal 2.
Door mirror defogger (Driver side and passenger side) terminal 1 is grounded through body grounds M30 and
M66.
With power and ground supplied, door mirror defogger filaments heat and defog the mirror.
When rear window defogger relay is turned ON,
Power is supplied

through rear window defogger relay terminals 5 and 7 (For Coupe)

through rear window defogger relay terminal 5. (For Roadster)

to unified meter and A/C amp. terminal 56
Then ground is supplied

REAR WINDOW DEFOGGER
GW-67
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
Terminal and Reference Value for BCMNIS0005K
Terminal and Reference Value for IPDM E/R.NIS0005L
Terminal and Reference Value for Unified Meter and A/C Amp.NIS0005M
Te r -
minalWire
ColorItemSignal
input/out-
putConditionVoltage (V)
(Approx.)
9L/RRear window defogger
switch signalOutput Rear window defogger switch: Pressed 0
: OFF 5
11 L GIgnition switch ACC power supply
(ACC or ON)InputIgnition switch
(ACC or ON position)Battery voltage
38 W/LIgnition switch ON power supply
(ON or START)InputIgnition switch
(ON or START position)Battery voltage
39 L CAN-HInput/Out-
put——
40 P CAN-LInput/Out-
put——
42 GY Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
55 R Power source (Fusible link) Input — Battery voltage
Te r -
minalWire
ColorItemSignal
input/out-
putConditionVoltage (V)
(Approx.)
5 P Battery power supply Output — Battery voltage
6 W Battery power supply Output — Battery voltage
38 B Ground (Power) — — 0
48 L CAN-HInput/Out-
put——
49 P CAN-LInput/Out-
put——
52 WRear window defogger relay
control signalInput Rear window defogger switch: ON 0
: OFF Battery voltage
60 B Ground (Signal) — — 0
Te r -
minalWire
ColorItemSignal
input/out-
putConditionVoltage (V)
(Approx.)
21 R/W Power source (Fuse) Input — Battery voltage
22 Y/GIgnition switch ON power supply
(ON or START)InputIgnition switch
(ON or START position)Battery voltage
29 B Ground (Power) — — 0
30 B Ground — — 0
38 L/RRear window defogger
switch signalInput Rear window defogger switch.: Pressed 0
: OFF 5
56 B/WRear window defogger
ON signalInput Rear window defogger switch: ON Battery voltage
: OFF 0
72 — Indicator power supply InputIgnition switch
(ON or START position)5
78 —Rear window defogger
indicator signalInput Rear window defogger switch: ON 0
: OFF 5

REAR WINDOW DEFOGGER
GW-71
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
3. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M90 terminal 9 and
ground.
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Replace BCM.
Check Rear Window Defogger Power Supply CircuitNIS0005T
1. CHECK FUSE
Check 10A fuse [No. 12, located in fuse block (J/B)].
NOTE:
Refer to GW-56, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. REAR WINDOW DEFOGGER RELAY POWER SUPPLY CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Remove rear window defogger relay.
3. Check voltage between rear window defogger relay connector
B34 terminal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.9 (L/R) – Ground :Approx. 5V
PIIA6208E
1 (G/R) – Ground : Battery voltage
PIIA2377E

GW-72
REAR WINDOW DEFOGGER
Revision: 2006 November2007 350Z
3. REAR WINDOW DEFOGGER RELAY INSPECTION
1. Remove rear window defogger relay.
2. Check continuity between rear window defogger relay terminals
3 and 5, 6 and 7.
OK or NG
OK >> GO TO 4.
NG >> Replace rear window defogger relay.
4. REAR WINDOW DEFOGGER RELAY GROUND CIRCUIT INSPECTION
1. Installation rear window defogger relay.
2. Turn ignition switch ON.
3. Turn rear window defogger switch OFF.
4. Check voltage between IPDM E/R connector E9 terminal 52 and
ground.
OK or NG
OK >> Rear window defogger power supply circuit is OK.
NG >> GO TO 5.
5. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and rear window defogger relay.
3. Check continuity between IPDM E/R connector E9 terminal 52
and rear window defogger relay connector B34 terminal 2.
OK or NG
OK >> Check the condition of harness and the connector.
NG >> Repair or replace harness.
Terminal Condition Continuity
3512V direct current supply
between terminals 1 and 2Ye s
No current supply No
6712V direct current supply
between terminals 1 and 2Ye s
No current supply No
SEC202B
52 (B) – Ground : Battery voltage
PIIA6210E
52 (W) - 2 (W) :Continuity should exist.
PIIA6211E

REAR WINDOW DEFOGGER
GW-73
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z

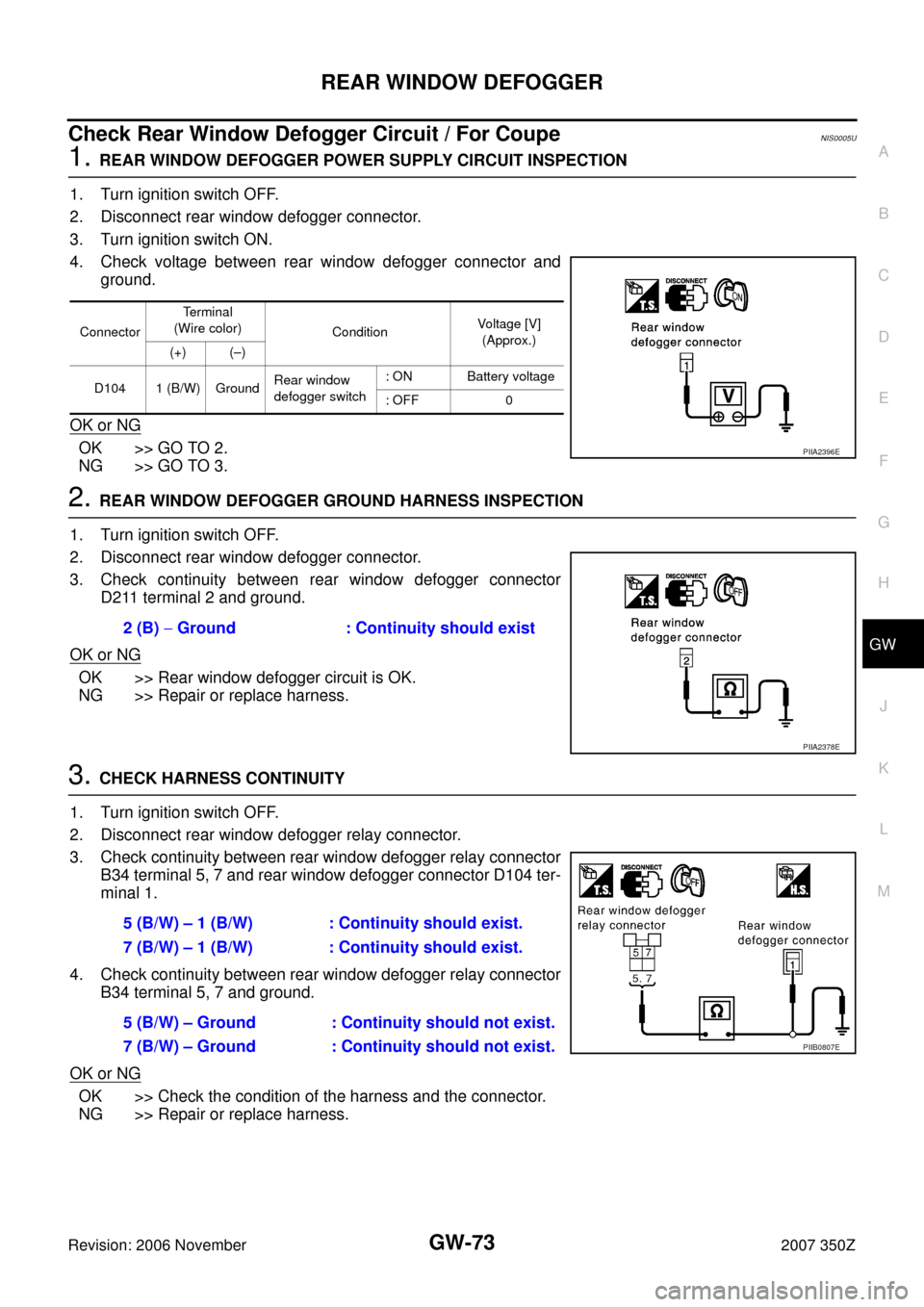

Check Rear Window Defogger Circuit / For CoupeNIS0005U
1. REAR WINDOW DEFOGGER POWER SUPPLY CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect rear window defogger connector.
3. Turn ignition switch ON.
4. Check voltage between rear window defogger connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. REAR WINDOW DEFOGGER GROUND HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect rear window defogger connector.
3. Check continuity between rear window defogger connector
D211 terminal 2 and ground.
OK or NG
OK >> Rear window defogger circuit is OK.
NG >> Repair or replace harness.
3. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear window defogger relay connector.
3. Check continuity between rear window defogger relay connector
B34 terminal 5, 7 and rear window defogger connector D104 ter-
minal 1.
4. Check continuity between rear window defogger relay connector
B34 terminal 5, 7 and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness.
ConnectorTe r m i n a l
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
D104 1 (B/W) GroundRear window
defogger switch: ON Battery voltage
: OFF 0
PIIA2396E
2 (B) − Ground : Continuity should exist
PIIA2378E
5 (B/W) – 1 (B/W) : Continuity should exist.
7 (B/W) – 1 (B/W) : Continuity should exist.
5 (B/W) – Ground : Continuity should not exist.
7 (B/W) – Ground : Continuity should not exist.
PIIB0807E

GW-74
REAR WINDOW DEFOGGER
Revision: 2006 November2007 350Z
Check Rear Window Defogger Circuit / For RoadsterNIS0005V
1. REAR WINDOW DEFOGGER POWER SUPPLY CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect rear window defogger connector.
3. Turn ignition switch ON.
4. Check voltage between rear window defogger connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. REAR WINDOW DEFOGGER GROUND HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect rear window defogger connector.
3. Check continuity between rear window defogger connector
D203 terminal 2 and ground.
OK or NG
OK >> Rear window defogger circuit is OK.
NG >> Repair or replace harness.
3. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear window defogger relay connector.
3. Check continuity between rear window defogger relay connector
B34 terminal 5 and rear window defogger connector B202 termi-
nal 1.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness.
ConnectorTerminal
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
B202 1 (B) GroundRear window
defogger relay: ON Battery voltage
: OFF 0
PIIA2396E
2(B) − Ground : Continuity should exist
PIIA2378E
5 (B/W) – 1 (B) : Continuity should exist.
PIIA4236E
