able. See “Owner’s Manual/Service Manual or-
der information” in the “9. Technical and con-
sumer information” section.
You should be aware that incomplete or im-
proper servicing may result in operating difficul-
ties or excessive emissions, and could affect
your warranty coverage.If in doubt about any
servicing, have it done by a NISSAN dealer.8-6
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0


1. Fuse/fusible link holder
2. Battery
3. Engine oil filler cap
4. Brake fluid reservoir
5. Clutch fluid reservoir (M/T models)
6. Window washer fluid reservoir
7. Power steering fluid reservoir
8. Air cleaner
9. Radiator filler cap
10. Engine drive belts
11. Engine coolant reservoir
12. Engine oil dipstick
Do not tamper with the strut tower bar
adjustment
A. The strut tower bar has
been adjusted to the most suitable posi-
tion at the factory.CAUTION
Tampering with the strut tower bar ad-
justment may cause a noise while driv-
ing or damage to the hood or engine.
SDI2050
ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself
8-7


07.7.25/Z33-D/V5.0


The engine cooling system is filled at the factory
with a high-quality, year-round, anti-freeze cool-
ant solution. The anti-freeze solution contains
rust and corrosion inhibitors, therefore additional
cooling system additives are not necessary.

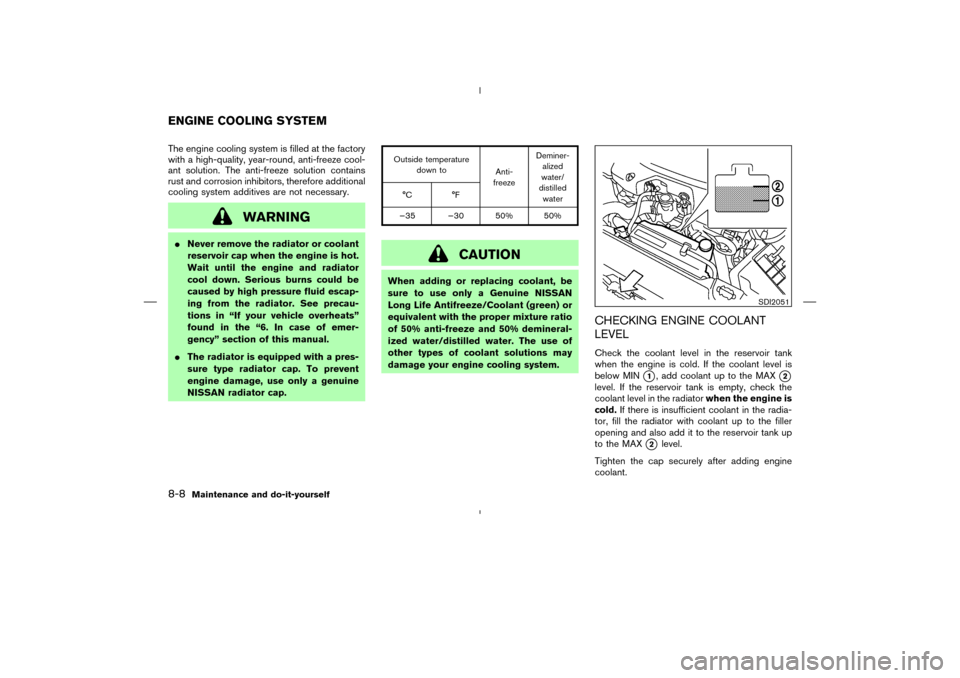

WARNING

Never remove the radiator or coolant
reservoir cap when the engine is hot.
Wait until the engine and radiator
cool down. Serious burns could be
caused by high pressure fluid escap-
ing from the radiator. See precau-
tions in “If your vehicle overheats”
found in the “6. In case of emer-
gency” section of this manual.

The radiator is equipped with a pres-
sure type radiator cap. To prevent
engine damage, use only a genuine
NISSAN radiator cap.
Outside temperature
down to
Anti-
freezeDeminer-
alized
water/
distilled
water °C °F
−35 −30 50% 50%
CAUTION
When adding or replacing coolant, be
sure to use only a Genuine NISSAN
Long Life Antifreeze/Coolant (green) or
equivalent with the proper mixture ratio
of 50% anti-freeze and 50% demineral-
ized water/distilled water. The use of
other types of coolant solutions may
damage your engine cooling system.
CHECKING ENGINE COOLANT
LEVELCheck the coolant level in the reservoir tank
when the engine is cold. If the coolant level is
below MIN
1, add coolant up to the MAX
2
level. If the reservoir tank is empty, check the
coolant level in the radiatorwhen the engine is
cold.If there is insufficient coolant in the radia-
tor, fill the radiator with coolant up to the filler
opening and also add it to the reservoir tank up
to the MAX
2
level.
Tighten the cap securely after adding engine
coolant.
SDI2051
ENGINE COOLING SYSTEM8-8
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0


If the engine cooling system frequently
requires coolant, have it checked by a
NISSAN dealer.CHANGING ENGINE COOLANTContact a NISSAN dealer if replacement is
required.

Major cooling system repairs should be per-
formed by a NISSAN dealer. The service
procedures can be found in the appropriate
NISSAN Service Manual.

Improper servicing can result in reduced
heater performance and engine overheating.

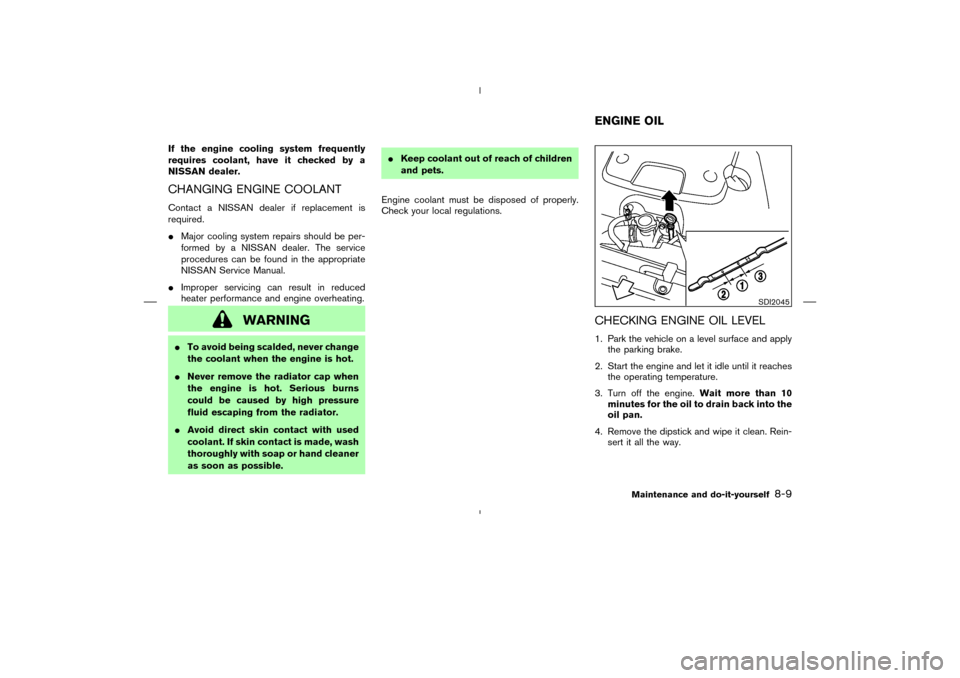

WARNING

To avoid being scalded, never change
the coolant when the engine is hot.

Never remove the radiator cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator.

Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
Keep coolant out of reach of children
and pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL1. Park the vehicle on a level surface and apply
the parking brake.
2. Start the engine and let it idle until it reaches
the operating temperature.
3. Turn off the engine.Wait more than 10
minutes for the oil to drain back into the
oil pan.
4. Remove the dipstick and wipe it clean. Rein-
sert it all the way.
SDI2045
ENGINE OIL
Maintenance and do-it-yourself
8-9


07.7.25/Z33-D/V5.0


5. Remove the dipstick again and check the oil
level. It should be between the H and L marks
1. If the oil level is below the L mark
2,
remove the oil filler cap and pour recom-
mended oil through the opening.Do not
overfill
3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the severity
of operating conditions.

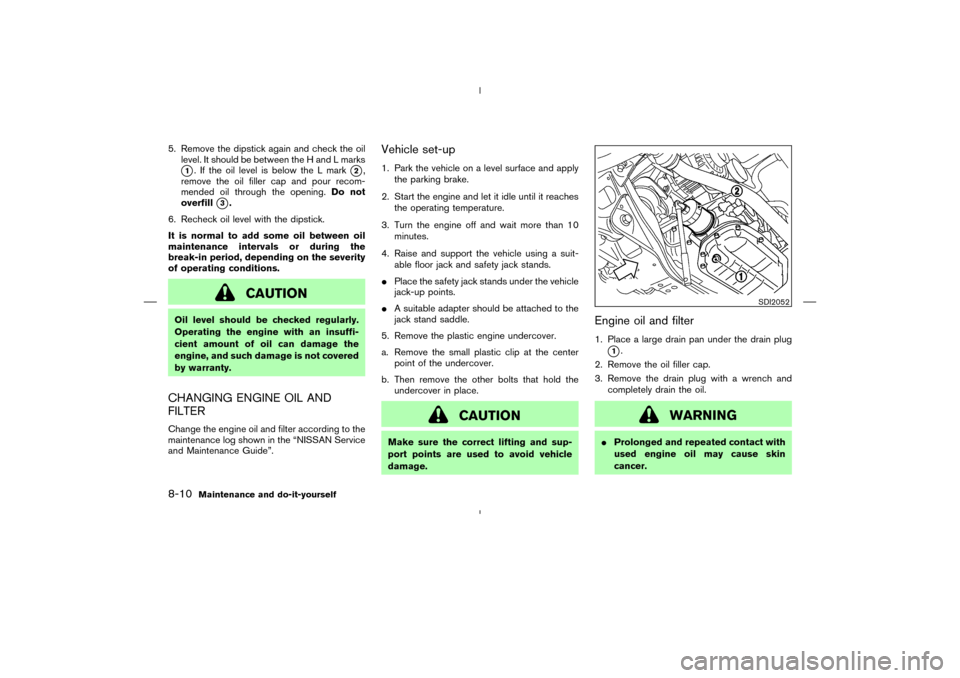

CAUTION
Oil level should be checked regularly.
Operating the engine with an insuffi-
cient amount of oil can damage the
engine, and such damage is not covered
by warranty.CHANGING ENGINE OIL AND
FILTERChange the engine oil and filter according to the
maintenance log shown in the “NISSAN Service
and Maintenance Guide”.
Vehicle set-up1. Park the vehicle on a level surface and apply
the parking brake.
2. Start the engine and let it idle until it reaches
the operating temperature.
3. Turn the engine off and wait more than 10
minutes.
4. Raise and support the vehicle using a suit-
able floor jack and safety jack stands.

Place the safety jack stands under the vehicle
jack-up points.

A suitable adapter should be attached to the
jack stand saddle.
5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the center
point of the undercover.
b. Then remove the other bolts that hold the
undercover in place.
CAUTION
Make sure the correct lifting and sup-
port points are used to avoid vehicle
damage.
Engine oil and filter1. Place a large drain pan under the drain plug
1.
2. Remove the oil filler cap.
3. Remove the drain plug with a wrench and
completely drain the oil.
WARNING

Prolonged and repeated contact with
used engine oil may cause skin
cancer.
SDI2052
8-10
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0

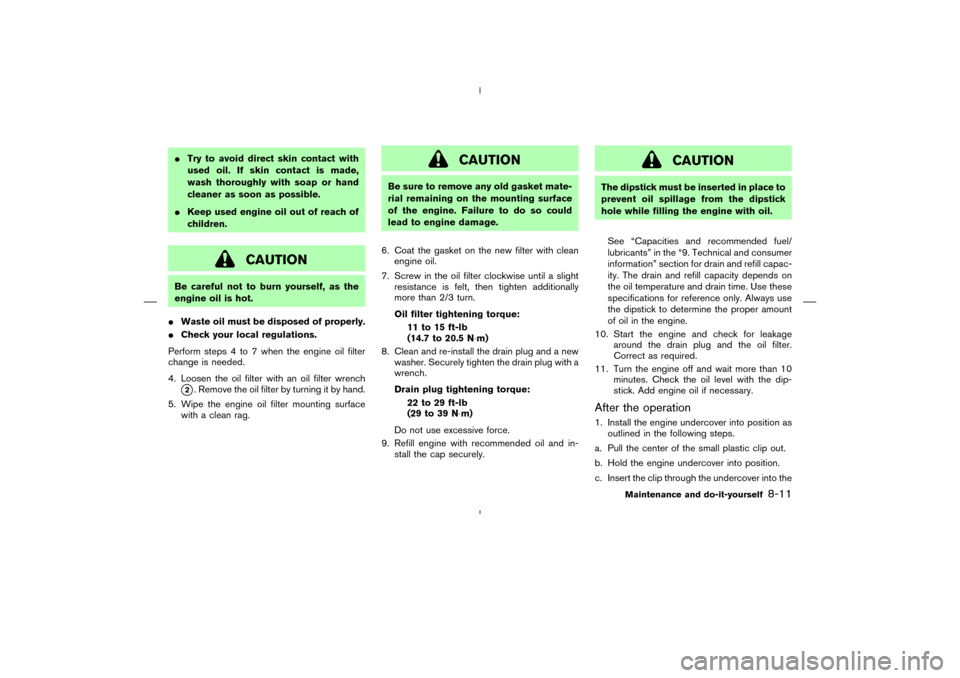

Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.

Keep used engine oil out of reach of
children.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.

Waste oil must be disposed of properly.

Check your local regulations.
Perform steps 4 to 7 when the engine oil filter
change is needed.
4. Loosen the oil filter with an oil filter wrench2. Remove the oil filter by turning it by hand.
5. Wipe the engine oil filter mounting surface
with a clean rag.
CAUTION
Be sure to remove any old gasket mate-
rial remaining on the mounting surface
of the engine. Failure to do so could
lead to engine damage.
6. Coat the gasket on the new filter with clean
engine oil.
7. Screw in the oil filter clockwise until a slight
resistance is felt, then tighten additionally
more than 2/3 turn.
Oil filter tightening torque:
11 to 15 ft-lb
(14.7 to 20.5 N⋅m)
8. Clean and re-install the drain plug and a new
washer. Securely tighten the drain plug with a
wrench.
Drain plug tightening torque:
22 to 29 ft-lb
(29 to 39 N⋅m)
Do not use excessive force.
9. Refill engine with recommended oil and in-
stall the cap securely.
CAUTION
The dipstick must be inserted in place to
prevent oil spillage from the dipstick
hole while filling the engine with oil.
See “Capacities and recommended fuel/
lubricants” in the “9. Technical and consumer
information” section for drain and refill capac-
ity. The drain and refill capacity depends on
the oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine the proper amount
of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 10
minutes. Check the oil level with the dip-
stick. Add engine oil if necessary.After the operation1. Install the engine undercover into position as
outlined in the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into the
Maintenance and do-it-yourself
8-11


07.7.25/Z33-D/V5.0


hole in the frame, then push the center of the
clip in to lock the clip in place.
d. Install the other bolts that hold the under-
cover in place. Be careful not to strip the
bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.When checking or replacement is required, we
recommend a NISSAN dealer for servicing.

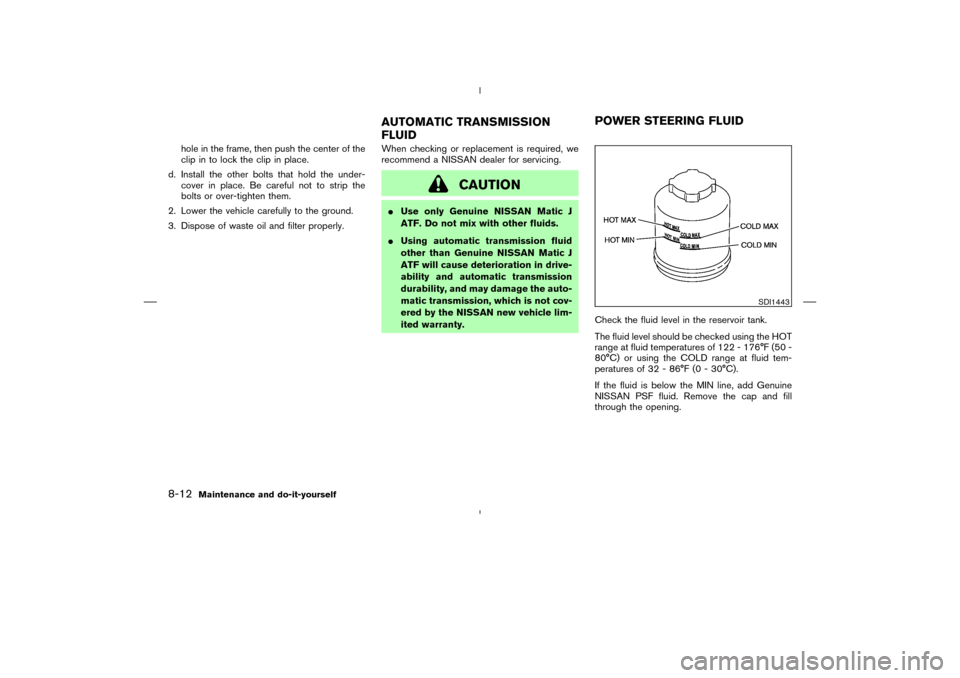

CAUTION

Use only Genuine NISSAN Matic J
ATF. Do not mix with other fluids.

Using automatic transmission fluid
other than Genuine NISSAN Matic J
ATF will cause deterioration in drive-
ability and automatic transmission
durability, and may damage the auto-
matic transmission, which is not cov-
ered by the NISSAN new vehicle lim-
ited warranty.Check the fluid level in the reservoir tank.
The fluid level should be checked using the HOT
range at fluid temperatures of 122 - 176°F (50 -
80°C) or using the COLD range at fluid tem-
peratures of 32 - 86°F (0 - 30°C).
If the fluid is below the MIN line, add Genuine
NISSAN PSF fluid. Remove the cap and fill
through the opening.
SDI1443
AUTOMATIC TRANSMISSION
FLUIDPOWER STEERING FLUID
8-12
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0

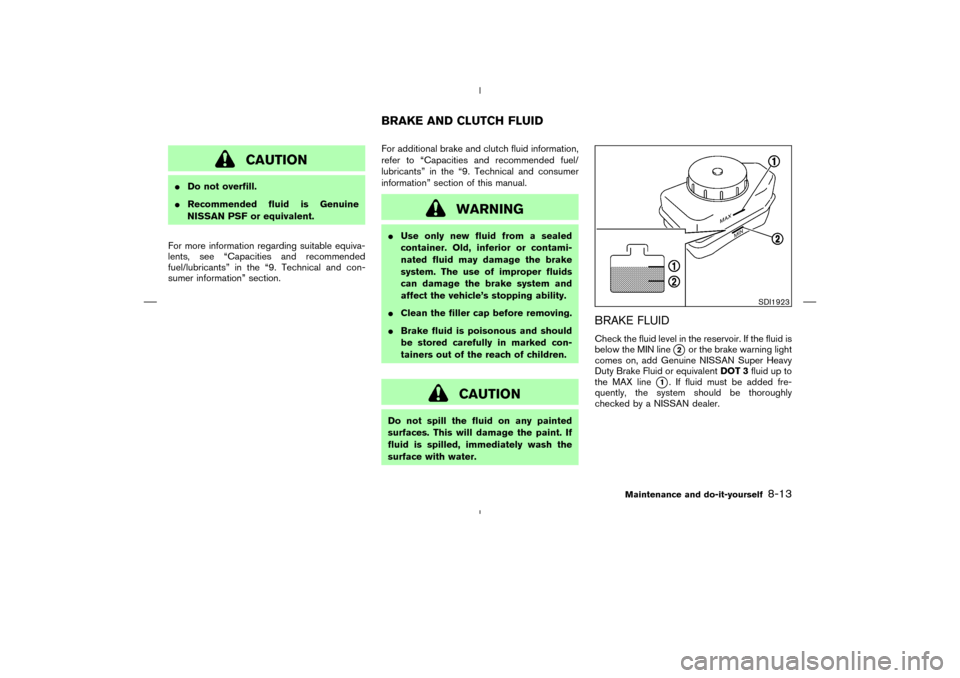

CAUTION

Do not overfill.

Recommended fluid is Genuine
NISSAN PSF or equivalent.
For more information regarding suitable equiva-
lents, see “Capacities and recommended
fuel/lubricants” in the “9. Technical and con-
sumer information” section.For additional brake and clutch fluid information,
refer to “Capacities and recommended fuel/
lubricants” in the “9. Technical and consumer
information” section of this manual.
WARNING

Use only new fluid from a sealed
container. Old, inferior or contami-
nated fluid may damage the brake
system. The use of improper fluids
can damage the brake system and
affect the vehicle’s stopping ability.

Clean the filler cap before removing.

Brake fluid is poisonous and should
be stored carefully in marked con-
tainers out of the reach of children.
CAUTION
Do not spill the fluid on any painted
surfaces. This will damage the paint. If
fluid is spilled, immediately wash the
surface with water.
BRAKE FLUIDCheck the fluid level in the reservoir. If the fluid is
below the MIN line
2or the brake warning light
comes on, add Genuine NISSAN Super Heavy
Duty Brake Fluid or equivalentDOT 3fluid up to
the MAX line
1. If fluid must be added fre-
quently, the system should be thoroughly
checked by a NISSAN dealer.
SDI1923
BRAKE AND CLUTCH FLUID
Maintenance and do-it-yourself
8-13


07.7.25/Z33-D/V5.0


CLUTCH FLUIDCheck the fluid level in the reservoir. If the fluid
level is below the MIN line
2, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalentDOT 3fluid up to the MAX line
1.
If fluid is added frequently, the system should be
thoroughly checked by a NISSAN dealer.Add fluid when the low washer fluid warning light
comes on.
Add a washer solvent to the washer fluid for
better cleaning. In the winter season, add a
windshield washer anti-freeze. Follow the manu-
facturer’s instructions for the mixture ratio.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Anti-
freeze or equivalent.
WARNING
Anti-freeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.
CAUTION

Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.

Do not fill the window washer reser-
voir tank with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.

Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
SDI1906
SDI2053
WINDOW WASHER FLUID
8-14
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0

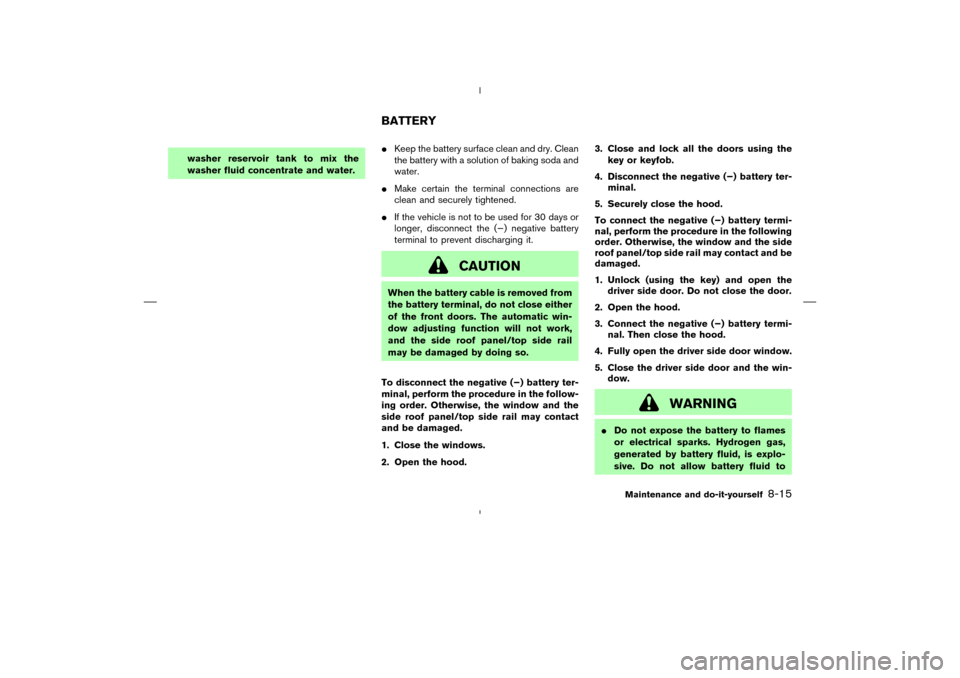

washer reservoir tank to mix the
washer fluid concentrate and water.
Keep the battery surface clean and dry. Clean
the battery with a solution of baking soda and
water.

Make certain the terminal connections are
clean and securely tightened.

If the vehicle is not to be used for 30 days or
longer, disconnect the (−) negative battery
terminal to prevent discharging it.
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work,
and the side roof panel/top side rail
may be damaged by doing so.
To disconnect the negative (−) battery ter-
minal, perform the procedure in the follow-
ing order. Otherwise, the window and the
side roof panel/top side rail may contact
and be damaged.
1. Close the windows.
2. Open the hood.3. Close and lock all the doors using the
key or keyfob.
4. Disconnect the negative (−) battery ter-
minal.
5. Securely close the hood.
To connect the negative (−) battery termi-
nal, perform the procedure in the following
order. Otherwise, the window and the side
roof panel/top side rail may contact and be
damaged.
1. Unlock (using the key) and open the
driver side door. Do not close the door.
2. Open the hood.
3. Connect the negative (−) battery termi-
nal. Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the win-
dow.
WARNING

Do not expose the battery to flames
or electrical sparks. Hydrogen gas,
generated by battery fluid, is explo-
sive. Do not allow battery fluid to
BATTERY
Maintenance and do-it-yourself
8-15


07.7.25/Z33-D/V5.0
