NISSAN 350Z 2008 Z33 Owners Manual

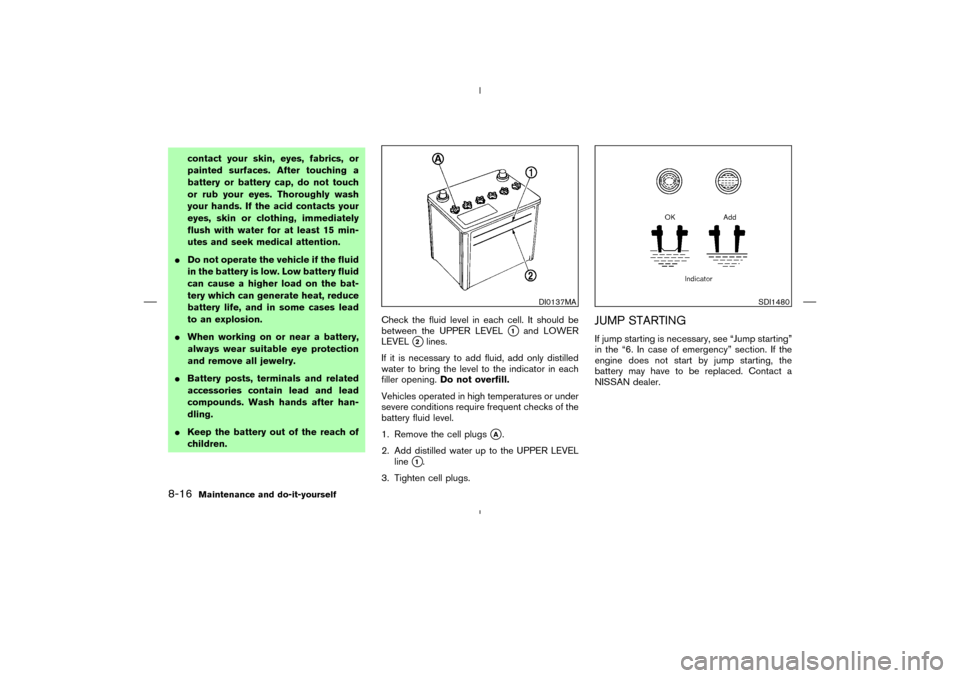

contact your skin, eyes, fabrics, or
painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately
flush with water for at least 15 min-
utes and seek medical attention.

Do not operate the vehicle if the fluid
in the battery is low. Low battery fluid
can cause a higher load on the bat-
tery which can generate heat, reduce
battery life, and in some cases lead
to an explosion.

When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.

Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after han-
dling.

Keep the battery out of the reach of
children.Check the fluid level in each cell. It should be
between the UPPER LEVEL
1
and LOWER
LEVEL
2lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening.Do not overfill.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
1. Remove the cell plugs
A.
2. Add distilled water up to the UPPER LEVEL
line
1.
3. Tighten cell plugs.
JUMP STARTINGIf jump starting is necessary, see “Jump starting”
in the “6. In case of emergency” section. If the
engine does not start by jump starting, the
battery may have to be replaced. Contact a
NISSAN dealer.
DI0137MA
SDI1480
8-16
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0


1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner

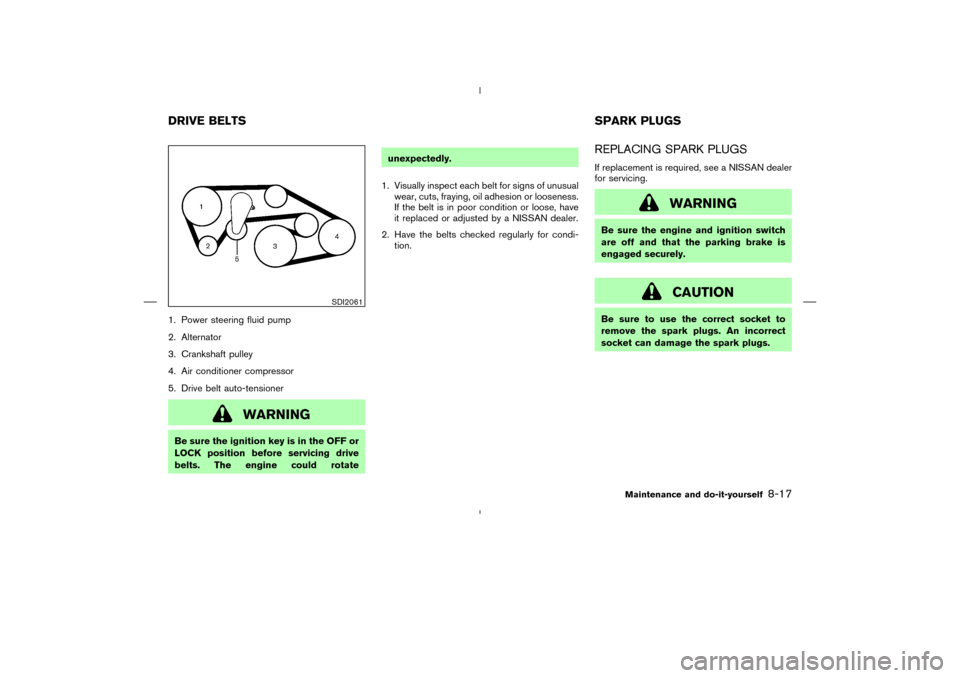

WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive
belts. The engine could rotateunexpectedly.
1. Visually inspect each belt for signs of unusual
wear, cuts, fraying, oil adhesion or looseness.
If the belt is in poor condition or loose, have
it replaced or adjusted by a NISSAN dealer.
2. Have the belts checked regularly for condi-
tion.
REPLACING SPARK PLUGSIf replacement is required, see a NISSAN dealer
for servicing.
WARNING
Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
SDI2061
DRIVE BELTS SPARK PLUGS
Maintenance and do-it-yourself
8-17


07.7.25/Z33-D/V5.0


Iridium-tipped spark plugsIt is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much longer.
Follow the maintenance log shown in the
“NISSAN Service and Maintenance Guide”, but
do not service iridium-tipped spark plugs by
cleaning or regapping.
Always replace spark plugs with recom-
mended or equivalent ones.To remove the filter from the air cleaner, pull off
the retainers
1
and pull the unit upward
2.
The filter element should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “NISSAN Service and Mainte-
nance Guide”. When replacing the filter, wipethe inside of the air cleaner housing and the
cover with a damp cloth.

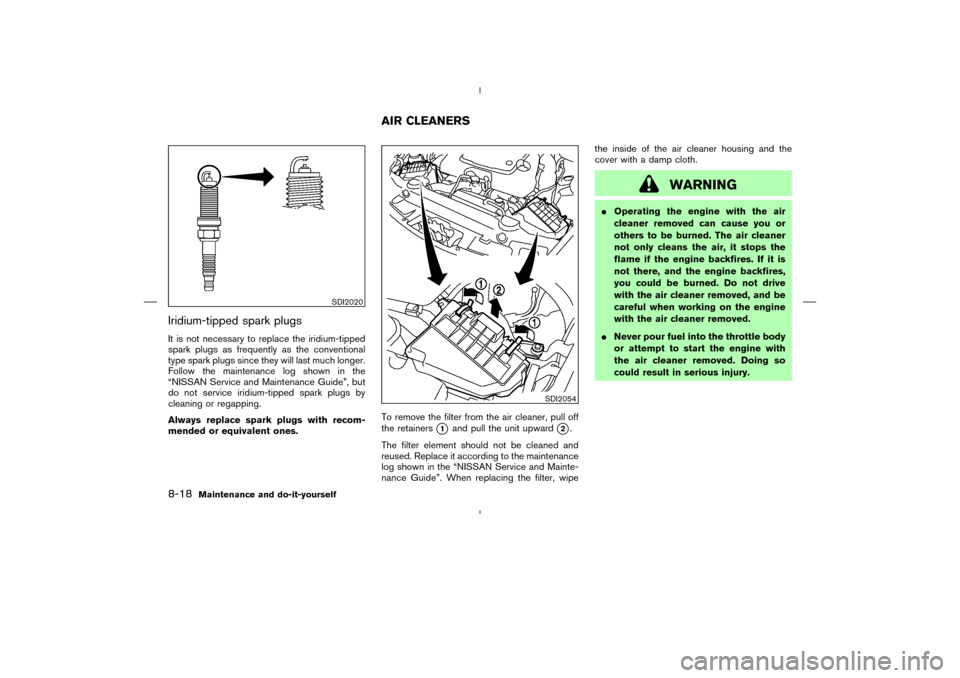

WARNING

Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it is
not there, and the engine backfires,
you could be burned. Do not drive
with the air cleaner removed, and be
careful when working on the engine
with the air cleaner removed.

Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
SDI2020
SDI2054
AIR CLEANERS
8-18
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0


CAUTION

After wiper blade replacement, return
the wiper arm to its original position.
Otherwise it may be damaged when
the engine hood is opened.

Make sure the wiper blades contact
the glass; otherwise the arms may be
damaged from wind pressure.

Worn windshield wiper blades can
damage the windshield and impair
driver vision.CLEANINGIf your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when rinsing
with clear water.
Clean the blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Thenrinse the blade with clear water. If your wind-
shield is still not clear after cleaning the blades
and using the wiper, replace the blades.WINDSHIELD WIPER BLADES
Maintenance and do-it-yourself
8-19


07.7.25/Z33-D/V5.0


REPLACINGReplace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the release tab
A, then move the wiper
blade down the wiper arm to remove
1.
3. Insert the new wiper blade onto the wiper arm
until a click sounds.
If necessary, clean the windshield washer
nozzle
A
with a needle or small pin
B.
*1: Only for passenger’s side wiper arm
*2: Adjustable washer nozzles
SDI1649
SDI1730A
8-20
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0


If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.SELF-ADJUSTING BRAKESYour vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.

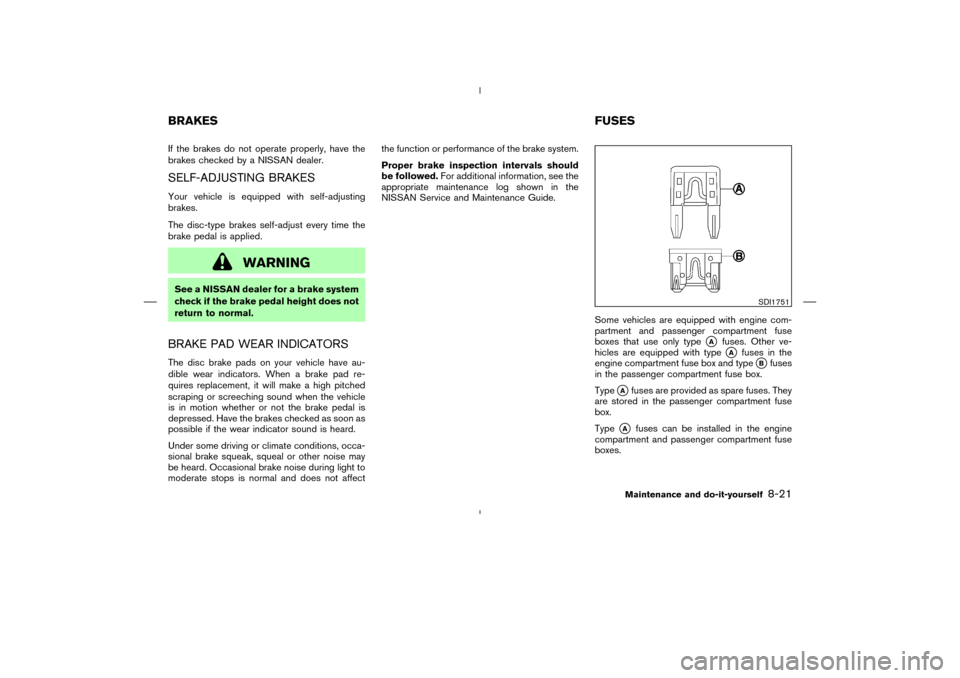

WARNING
See a NISSAN dealer for a brake system
check if the brake pedal height does not
return to normal.BRAKE PAD WEAR INDICATORSThe disc brake pads on your vehicle have au-
dible wear indicators. When a brake pad re-
quires replacement, it will make a high pitched
scraping or screeching sound when the vehicle
is in motion whether or not the brake pedal is
depressed. Have the brakes checked as soon as
possible if the wear indicator sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affectthe function or performance of the brake system.
Proper brake inspection intervals should
be followed.For additional information, see the
appropriate maintenance log shown in the
NISSAN Service and Maintenance Guide.
Some vehicles are equipped with engine com-
partment and passenger compartment fuse
boxes that use only type
A
fuses. Other ve-
hicles are equipped with typeA
fuses in the
engine compartment fuse box and type
Bfuses
in the passenger compartment fuse box.
Type
Afuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type
A
fuses can be installed in the engine
compartment and passenger compartment fuse
boxes.
SDI1751
BRAKES FUSES
Maintenance and do-it-yourself
8-21


07.7.25/Z33-D/V5.0


If a type
A
fuse is used to replace a type
B
fuse, the type
A
fuse will not be level with the
fuse pocket as shown in the illustration. This will
not affect the performance of the fuse. Make
sure the fuse is installed in the fuse box securely.
Type
B
fuses cannot be installed in the under-
hood fuse boxes. Only use type
A
fuses in the
underhood fuse boxes.
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and headlight
switch are OFF.2. Open the engine hood and remove the cover
on the battery and the fuse/fusible link holder.
3. Remove the fuse/fusible link holder cover by
pushing the tabs
1
and lifting the cover
2.
4. Remove the fuse with the fuse puller. The
fuse puller is located in the passenger com-
partment fuse box.
5. If the fuse is open
A, replace it with a new
fuse
B. Spare fuses are stored in the pas-
senger compartment fuse box.
6. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
SDI1752
SDI1479B
SDI1753
8-22
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0


Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
PASSENGER COMPARTMENT

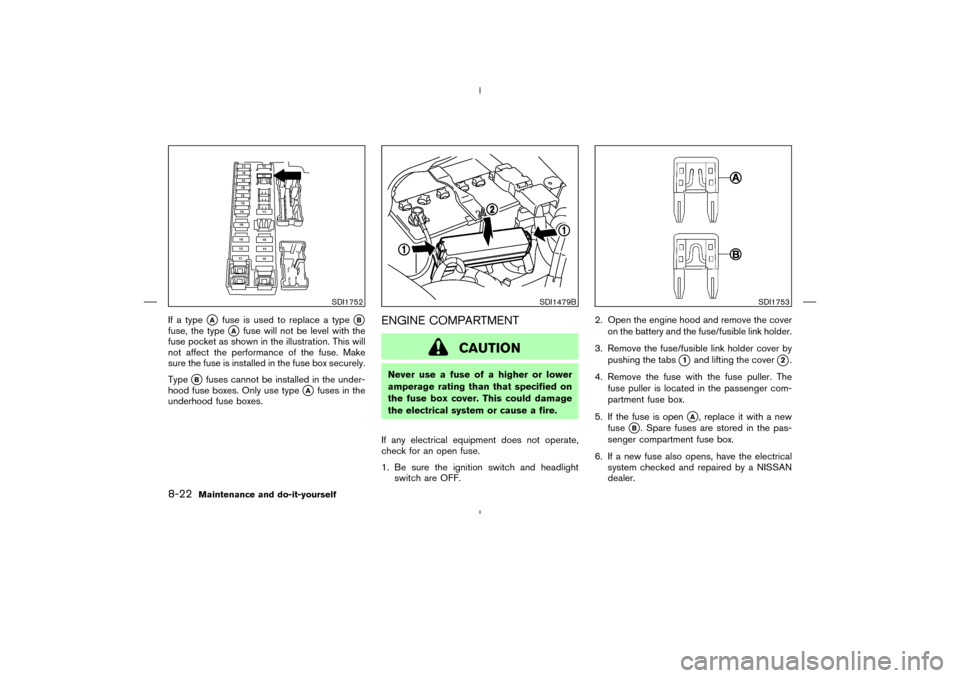

CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight
switch are OFF.2. Open the fuse box lid
1.
3. Pinch the fuse perpendicularly with the fuse
puller
2
and pull it out.
SDI1962
Maintenance and do-it-yourself
8-23


07.7.25/Z33-D/V5.0


4. If the fuse is open
A, replace it with a new
fuse
B. Spare fuses
3
are stored in the
fuse box.
5. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.

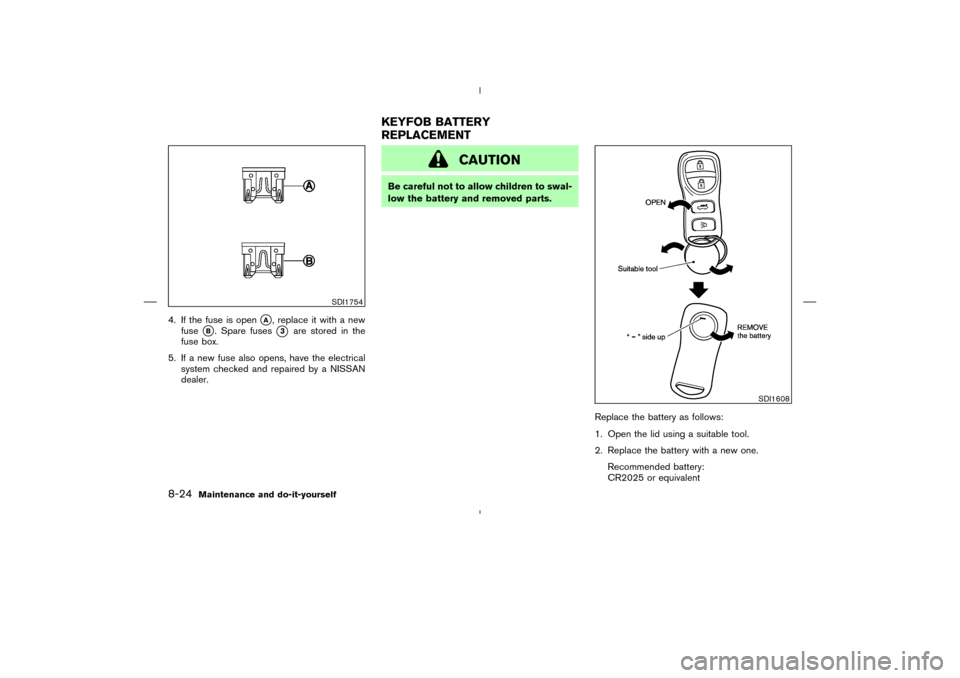

CAUTION
Be careful not to allow children to swal-
low the battery and removed parts.
Replace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
SDI1754
SDI1608
KEYFOB BATTERY
REPLACEMENT
8-24
Maintenance and do-it-yourself


07.7.25/Z33-D/V5.0


Make sure that the⊕side faces the
bottom case.

Do not touch the internal circuit and electric
terminals as doing so could cause a malfunc-
tion.
3. Close the lid securely.
4. Push the keyfob button two or three times to
check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch the circuit board
and the battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it gets wet, immediately wipe it com-
pletely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expresslyapproved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
