NISSAN 370Z 2009 Workshop Manual

SSS0162
SSS0680
1-34
Safety — Seats, seat belts and supplemental restraint system

is
located on the overhead console. The light op-
erates as follows:

Unoccupied passenger seat: Thelight
is OFF and the front passenger air bag is
OFF and will not inflate in a crash.

Passenger seat occupied by a small adult,
child or child restraint as outlined in this
section: The
light illuminates to indicate
that the front passenger air bag is OFF and
will not inflate in a crash.

Occupied passenger seat and the passenger
meets the conditions outlined in this section:
The
light is OFF to indicate that the
front passenger air bag is operational.
Front passenger air bag:
The front passenger air bag is designed to
automatically turn OFF when the vehicle is op-
erated under some conditions as described
SSS0681

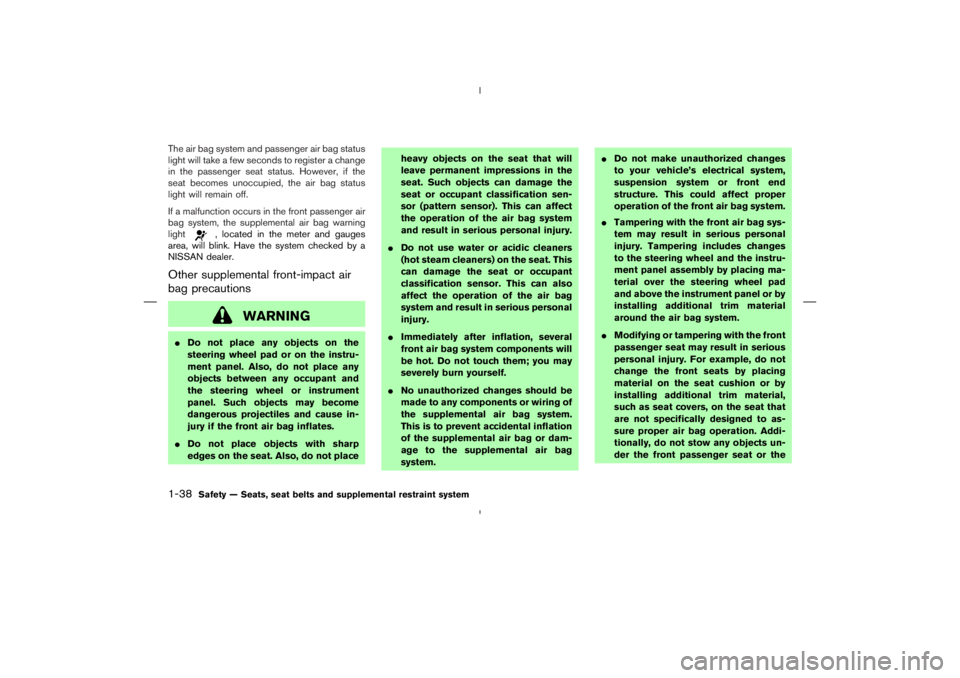

Front passenger air bag status light
1-36
Safety — Seats, seat belts and supplemental restraint system

, located in the meter and gauges
area, will blink. Have the system checked by a
NISSAN dealer.
Other supplemental front-impact air
bag precautions

SSS0209A
Safety — Seats, seat belts and supplemental restraint system
1-39

WARNING

Do not place any objects near the
seatback of the front seats. Also, donot place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles
and cause injury if a side air bag
inflates.

Right after inflation, several side air
bag and curtain air bag system com-
ponents will be hot. Do not touch
them; you may severely burn your-
self.

No unauthorized changes should be
made to any components or wiring of
the side air bag and curtain air bag
systems. This is to prevent accidental
inflation of the side air bags and
curtain air bags or damage to the
side air bag and curtain air bag sys-
tems.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation of
the side air bag and curtain air bag
systems.
1-40
Safety — Seats, seat belts and supplemental restraint system

will not come on, will flash intermittently or
will turn on for 7 seconds and remain on after the
ignition key has been turned to the ON or
START position. In this case, the pretensioner
may not function properly. They must be
checked and repaired. Take your vehicle to a
NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner and
guide the buyer to the appropriate sections in
this Owner’s Manual.
SUPPLEMENTAL AIR BAG
WARNING LABELSWarning labels about the supplemental front-
impact air bag and front seat-mounted side-
impact supplemental air bag (if so equipped)
systems are placed in the vehicle as shown in
the illustration.
SSS0206
1-42
Safety — Seats, seat belts and supplemental restraint system

in the instrument panel, monitors the
circuits of the supplemental front-impact air bag,
front seat-mounted side-impact supplemental air
bag (if so equipped), roof-mounted curtain side-
impact supplemental air bag (if so equipped for
Coupe models) and seat belt pretensioner sys-
tems. The monitored circuits include the Air bag
Control Unit (ACU), crash zone sensor, satellite
sensors, front air bag modules, side air bag
modules, curtain air bag modules, pretensioners
and all related wiring.After turning the ignition key to the ON position,
the supplemental air bag warning light illumi-
nates. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the front
air bag, side air bag and curtain air bag, and
pretensioner systems need servicing:

The supplemental air bag warning light re-
mains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag and/or pretensioner systems
may not operate properly. They must be checked
and repaired. Take your vehicle to a NISSAN
dealer.
